4B-52 REAR AXLE

3) Axle Case to Inside Brake Drum Leakage

Checkpoint Trouble Cause Countermeasure

Replace the oil sealWorn or defective oil seal NGOil seal

FRONT WHEEL DRIVE 4C1-15

Removal
1. Jack up the vehicle and support it using jack stand.
2. Remove the tire and wheel.
3. Remove the stone guard.
4. Remove the brake caliper fixing bolt and hang the caliper.
Refer to Disc Brakes in Brake section.
5. Remove the antilock brake system speed sensor.
Refer to Front Wheel Speed Sensor in Brake section.
6. Remove the hub and disc assembly.
Refer to Front Hub and Disc in this section.
7. Remove the propeller shaft, refer to Front Propeller Shaft in
this section.
8. Loosen the height control arm of the torsion bar, then
remove the torsion bar from lower control arm.
Refer to Torsion Bar in Suspension section.
9. Remove the suspension crossmember.
10. Remove the lower nut (1) of the stabilizer link.
11. Remove the lower bolt and nut (2) of the shock absorber.

12. Remove the tie-rod end from the knuckle.
Refer to Power Steering Unit in Steering Section.
13. Disconnect the breather hose of the front axle.
14. Disconnect the actuator connector. (With shift on the fly)
15. Remove the bolts and nuts of the lower control arm (Frame
side), then disconnect the lower control arm from frame.
16. Disconnect between the right side upper control arm and
the knuckle, then remove the knuckle with lower control
arm.
CAUTION :
When removing the knuckle, be careful not to damage the
oil seal inside of the knuckle.

FRONT WHEEL DRIVE 4C1-17
NOTE :
Adjust the buffer clearance before tighten the bolts and nuts of
the lower control arm.

6. Install the breather hose of the front axle.
7. Install the actuator connector of the shift on the fly. (With
shift on the fly)
8. Install the tie-rod end of the power steering unit to the
knuckle, tighten the nut to the specified torque.
Torque : 98 N·m (10.0kg·m/73 lb ft)

9. Install lower bolts and nuts of the shock absorber, tighten it
to the specified torque.
Torque : 93 N·m (9.5kg·m/69 lb ft)
10. Install lower nuts of the stabilizer link, tighten it to the
specified torque.
Torque : 50 N·m (5.1kg·m/37 lb ft)
11. Install the suspension crossmember.
12. Install the torsion bar.
Refer to Torsion Bar in Suspension section.
13. Install the front propeller shaft.
Refer to Front Propeller Shaft in this section.
14. Install the hub and disc assembly and adjust the bearing
preload.
Refer to Front Hub and Disc in this section.
15. Install the wheel speed sensor of the antilock brake
system.
16. Install the brake caliper. Tighten the bolt of the caliper
bracket to the specified torque.
Torque : 155 N·m (15.8kg·m/115 lb ft)
17. Install the stone guard.
18. Install the tire and wheel.
19. Lower the vehicle, adjust the trim height.
Refer to Trim Height Adjustment in Steering section.
20. Tighten the bolts and nuts of the lower control arm to the
specified torque.
Refer to Lower Control Arm in Suspension section.

4C1-42 FRONT WHEEL DRIVE
FRONT HUB AND DISC
(4




2 Except High Ride Suspension Model)
DISASSEMBLY
Refer to SECTION 3E “WHEEL AND TIRE” for wheel removal procedure.

RTW34CLF000801
Disassembly Steps
1. Bolt


2. Brake caliper


3. Hub cap
4. Split pin
5. Nut retainer
6. Hub nut
7. Lock washer


8. Outer bearing


9. Hub and disc assembly
10. Oil seal
11. Inner bearing and outer race
12. ABS sensor rotor


13. Bolt


14. Wheel pin

FRONT WHEEL DRIVE 4C1-43
Important Operations
Before removal, jack up the front of vehicle and support frame
with jack stands.



2. Brake Caliper
(1) Remove the two bolts from the rear side of the knuckle arm,
then remove the brake caliper, with the brake hose
attached.
(2) Use a wire etc., for attaching the brake caliper to the uppe
r
link.
Refer to the section Brake.



3. Hub Cap
When removing hub cap, exercise care so as not to scratch or
distort hub fitting face.



9. Hub and Disc Assembly
Using a brass bar to remove the outer bearing outer race (1),
oil seal, inner bearing and inner bearing outer race (2) from the
hug.



If necessary, replace the wheel pin in the following manner.

13. Bolt
14. Wheel Pin ; Front Hub
(1) Scribe mark on hub to disc before disassembly to insure
proper assembly.
(2) Drive out the ABS sensor rotor using a metal bar and
hammer through the two bolt holes.

Discard the used ABS sensor rotor
Refer to the section Brake.

FRONT WHEEL DRIVE 4C1-45
INSPECTION AND REPAIR
Make necessary correction or parts replacement if wear, damage or any other abnormal conditions are found
through inspection.
For inspection and servicing of disc caliper, and relative parts, and ABS parts, refer to section 5 Brakes.



Hub

Hub bearing

Bearing outer race


Disc


Oil seal


Knuckle spindle


ABS sensor rotor


Caliper



Visual Check
Check the following parts for wear, damage or other abnormal
conditions.

4C1-46 FRONT WHEEL DRIVE

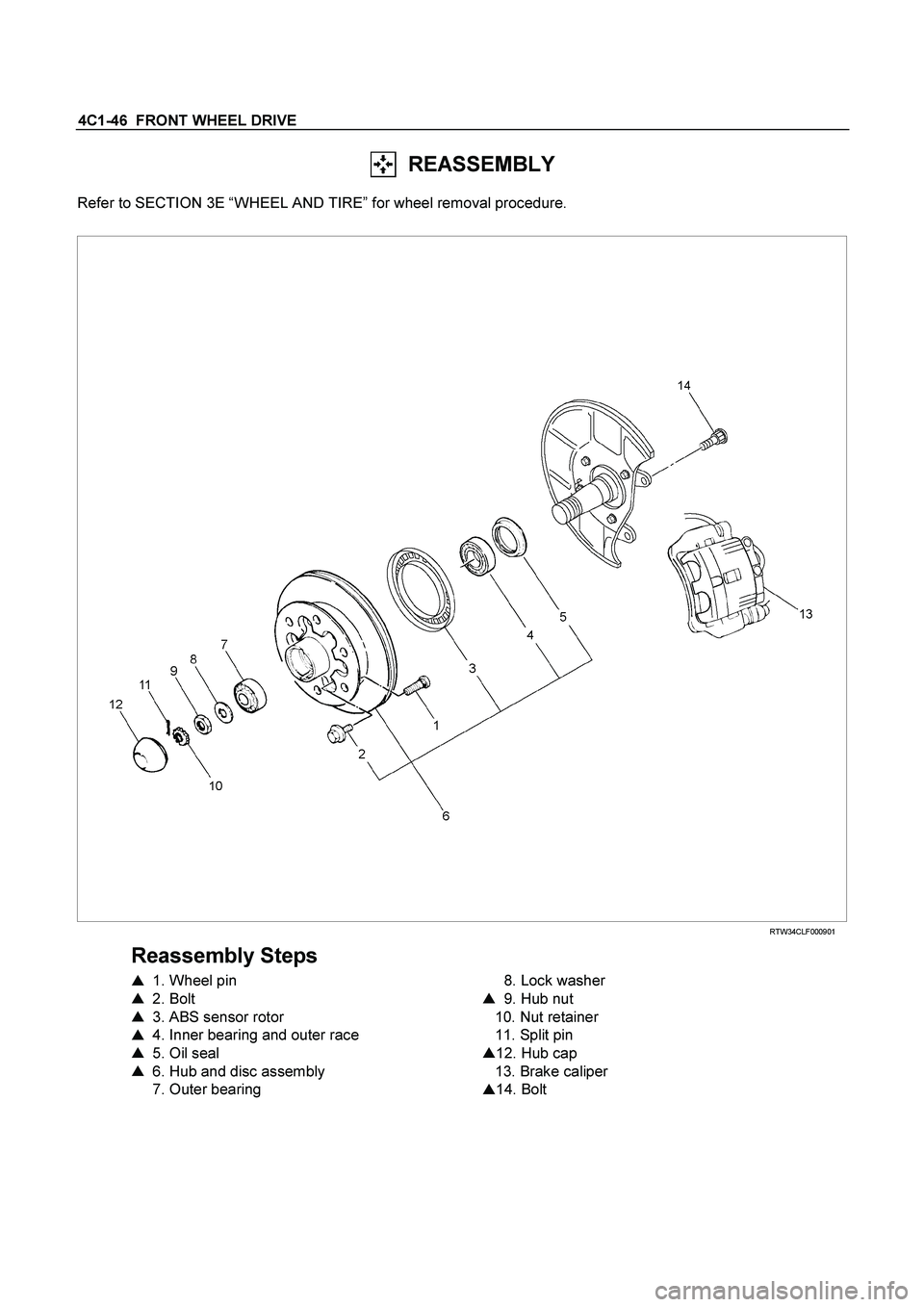

REASSEMBLY
Refer to SECTION 3E “WHEEL AND TIRE” for wheel removal procedure.

RTW34CLF000901
Reassembly Steps


1. Wheel pin


2. Bolt


3. ABS sensor rotor


4. Inner bearing and outer race


5. Oil seal


6. Hub and disc assembly
7. Outer bearing


8. Lock washer


9. Hub nut
10. Nut retainer
11. Split pin


12. Hub cap
13. Brake caliper


14. Bolt

FRONT WHEEL DRIVE 4C1-47

Important Operations
1. Wheel Pin
(1) Place hub on a wood workbench or a block of wood,
approx. 6” by 6” to protect the wheel stud ends and threads.
(2) Install wheel stud using a hammer.
Be sure wheel stud is started squarely and seats
completely.

(3) Align index marks and install hub to disc.


2. Bolt
Torque N

m (kgf

m/lb

ft)
103
10 (10.5
1/75.9
7.2)



3. ABS sensor rotor
(1) Set a new ABS sensor rotor, if replacement is required.
(2) Install the ABS sensor rotor in the hub, using special tools.
Installer : 5-8840-2789-0
Grip : 5-8840-0007-0
Refer to the section Brake.


4. Inner Bearing and Outer Race
5. Oil Seal

Outer Bearing Outer Race
(1) Install the bearing outer race by driving into the hub.
Installer (Outer) : 5-8822-0053-0 (J-29016)
Installer (Inner) : 5-8822-0054-0 (J-29015)
Drive handle : 5-8840-0007-0 (J-8092)

4C1-48 FRONT WHEEL DRIVE


(2) Install the outer and inner bearing into the hub with fingers.


(3) Install oil seal using special tools.
Discard the used oil seal and install a new one.
Installer : 5-8522-0051-0
(J-33161)
Grip : 5-8840-0007-0
(J-8092)


Hub cap Hub

6. Hub and Disc Assembly
12. Hub Cap
Apply grease in the hub and hub cap.
Description Amount g(oz)
Hub 50 (1.76)
Hub cap 20 (0.70)
Outer bearing 6.5 (0.23)
Inner bearing 12 (0.42)


9. Hub nut
Adjustment of front wheel hub bearing preload
1. Tighten spindle nut to 3.0 kg
m (21.7 lb.ft/29.4 N
m) torque.
2. Turn the hub 2-3 turns and loosen the nut just enough so
that it can be turned with the fingers.
3. Turn the nut all the way in with the fingers and check to be
sure the hub has no free play.
4. Measure the bearing preload by pulling one of the wheel
hub studs with a spring scale.
5. Tighten the spindle nut until specified bearing preload Is
obtained.
6. Install the split pin in the nut retainer.
Discard the used split pin and install a new one.
After reassembling, install the disc brake caliper assembly.
Bearing Preload N

m (kgf

m/lb

ft)

New bearing and New oil seal 8-12 (0.8-1.2 / 69-104)
Reuse bearing and New oil seal 8-12 (0.8-1.2 / 69-104)

FRONT WHEEL DRIVE 4C1-51

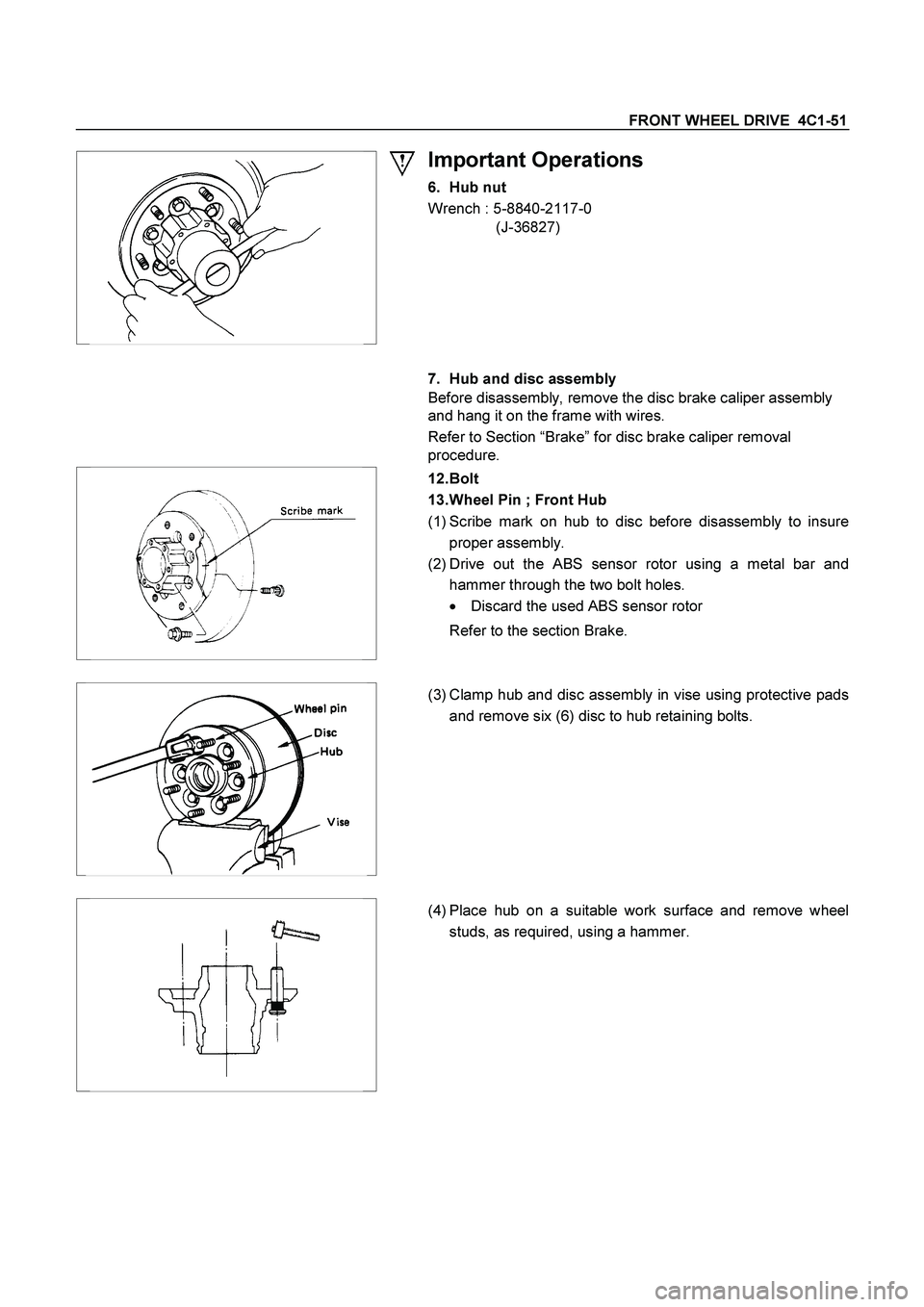

Important Operations
6. Hub nut
Wrench : 5-8840-2117-0
(J-36827)



7. Hub and disc assembly
Before disassembly, remove the disc brake caliper assembly
and hang it on the frame with wires.
Refer to Section “Brake” for disc brake caliper removal
procedure.


12. Bolt
13. Wheel Pin ; Front Hub
(1) Scribe mark on hub to disc before disassembly to insure
proper assembly.
(2) Drive out the ABS sensor rotor using a metal bar and
hammer through the two bolt holes.
 Discard the used ABS sensor rotor
Refer to the section Brake.



(3) Clamp hub and disc assembly in vise using protective pads
and remove six (6) disc to hub retaining bolts.


(4) Place hub on a suitable work surface and remove wheel
studs, as required, using a hammer.
