8A-4 ELECTRICAL-BODY AND CHASSIS
GENERAL INFORMATION
The body and chassis electrical system operates on a twelve volt power supply with negative ground polarity.
The main harness consists of the engine harness, the instrument harness, the body harness, and the chassis
harness.
The harnesses use a split corrugated tube to protect the wires from the elements.
Wire size is determined by current flow, circuit length, and voltage drop.
All wires have color-coded insulation.
Wire color-codes are shown in the circuit diagrams.
This makes it easier to trace circuits and to make the proper connections.
Each circuit consists of the following:
1. Power source - The battery and the alternator
2. Wires - To carry electrical current through the circuit
3. Fuses - To protect the circuit against current overload
4. Relays - To protect voltage drop between the battery and the circuit parts and to protect the switch points against
burning
5. Switches - To open and close the circuit
6. Load - Any device, such as a light or motor, which converts the electrical current into useful work
7. Ground - To allow the current to flow back to the power source

ELECTRICAL-BODY AND CHASSIS 8A-13
PARTS FOR ELECTRICAL CIRCUIT


WIRING
Wire Color
All wires have color-coded insulation.
Wires belonging to system's main harness will have a single
color.
Wires belonging to a system's sub-circuits will have a colored
stripe.
Striped wires use the following code to show wire size and
colors.
Example: 0.5 G
/ R
Red (Stripe color)
Green (Base color)
Wire size (0.5mm
2)
Abbreviations are used to indicate wire color within a circuit
diagram.
Refer to the following table.


Wire Color-Coding
Color-Coding Meaning Color-Coding Meaning
B Black BR Brown
W White LG Light green
R Red GR Grey
G Green P Pink
Y Yellow LB Light blue
L Blue V Violet
O Orange

8A-16 ELECTRICAL-BODY AND CHASSIS


RELAY
Battery and load location may require that a switch be placed
some distance from either component.
This means a longer wire and a higher voltage drop
1. The
installation of a relay between the battery and the load reduces
the voltage drop
2.
Because the switch controls the relay, amperage through the
switch can be reduced.


Relay Specifications and Configurations
Name/
Color Rated
voltage/ Coil
resistance Internal circuit Name/
color Rated
Voltage/Coil
resistance Internal circuit
1T
(MICRO
ISO)
/Black 12V
Approx. 92
Minimum
operating
voltage: 7V at
20C (77F)

1M (MINI
ISO)
/Black 12V Approx.
94 Minimum
operating
voltage: 7V at
20C (77F)

1M
(MICRO
ISO)
/Black 12V
Approx. 132-3
 Minimum
operating
voltage: 7V at
20C (77F)

1M
(power)/
Black 12V Approx.
94 Minimum
operating
voltage: 7V at
20C (77F)

* Relay contact shown in the wiring diagram indicates condition before actuation.

8A-18 ELECTRICAL-BODY AND CHASSIS


CONNECTOR
The connector pin shape determines whether the connector is
male or female.
The connector housing configuration does not determine
whether a connector is male or female.



The symbol illustrated in the figure is used as connector in the
circuit this section.



Connector is identified with a number.



The applicable terminal number is shown for each connector.



Connector terminal numbers are clearly shown.
Male side connector terminal numbers are in sequence from
upper right to lower left.
Female side connector terminal numbers are in sequence from
upper left to lower right.
NOTE:
For those connectors on which specific terminal numbers
on symbols are shown, the terminal numbers or symbols
are used in the circuit diagram, irrespective of the above
rule.

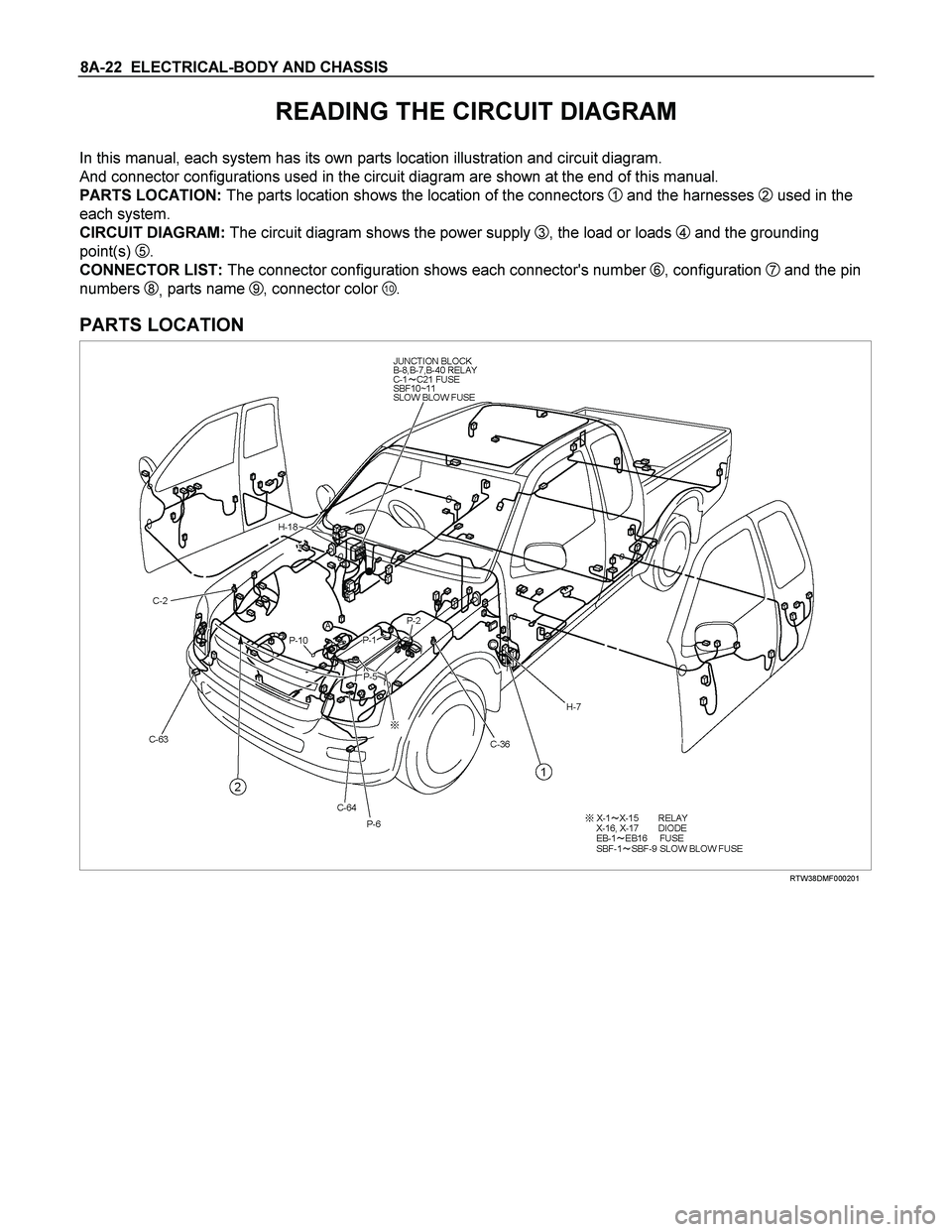

8A-22 ELECTRICAL-BODY AND CHASSIS
READING THE CIRCUIT DIAGRAM
In this manual, each system has its own parts location illustration and circuit diagram.
And connector configurations used in the circuit diagram are shown at the end of this manual.
PARTS LOCATION: The parts location shows the location of the connectors
1 and the harnesses 2 used in the
each system.
CIRCUIT DIAGRAM: The circuit diagram shows the power supply
3, the load or loads 4 and the grounding
point(s)
5.
CONNECTOR LIST: The connector configuration shows each connector's number
6, configuration 7 and the pin
numbers
8, parts name 9 , connector color 10.

PARTS LOCATION
RTW38DMF000201

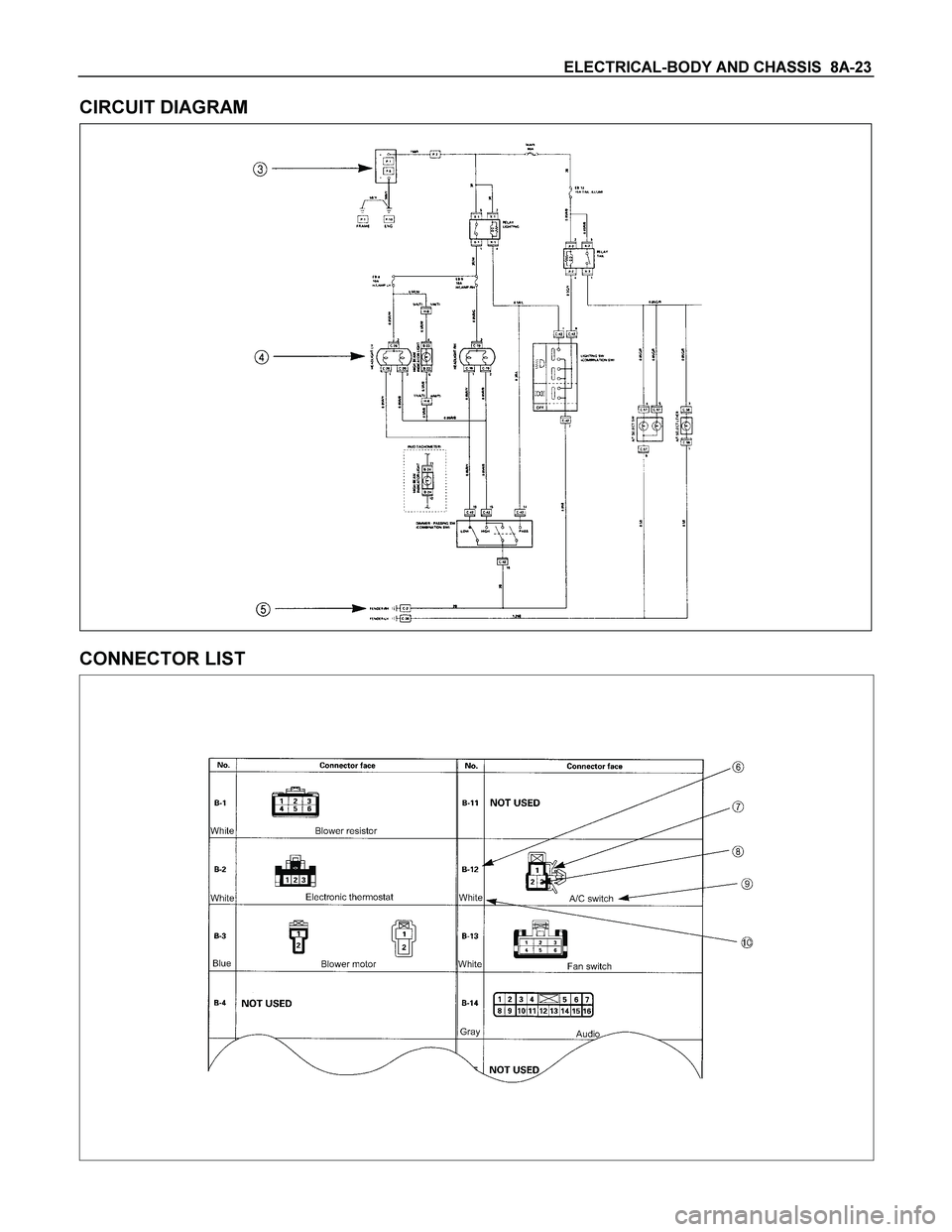

ELECTRICAL-BODY AND CHASSIS 8A-23
CIRCUIT DIAGRAM


CONNECTOR LIST

8A-78 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM C24SE (RHD)



RTW48AXF027301

ELECTRICAL-BODY AND CHASSIS 8A-79
CIRCUIT DIAGRAM 6VE1 (RHD)



RTW48AXF027401

8A-80 ELECTRICAL-BODY AND CHASSIS
CIRCUIT DIAGRAM 4JA1-TC / 4JH1-TC (RHD) G.EXP




RTW48AXF008501

ELECTRICAL-BODY AND CHASSIS 8A-81
CIRCUIT DIAGRAM 4JA1-TC / 4JH1-TC (RHD) EUROPE




RTW48AXF008701
