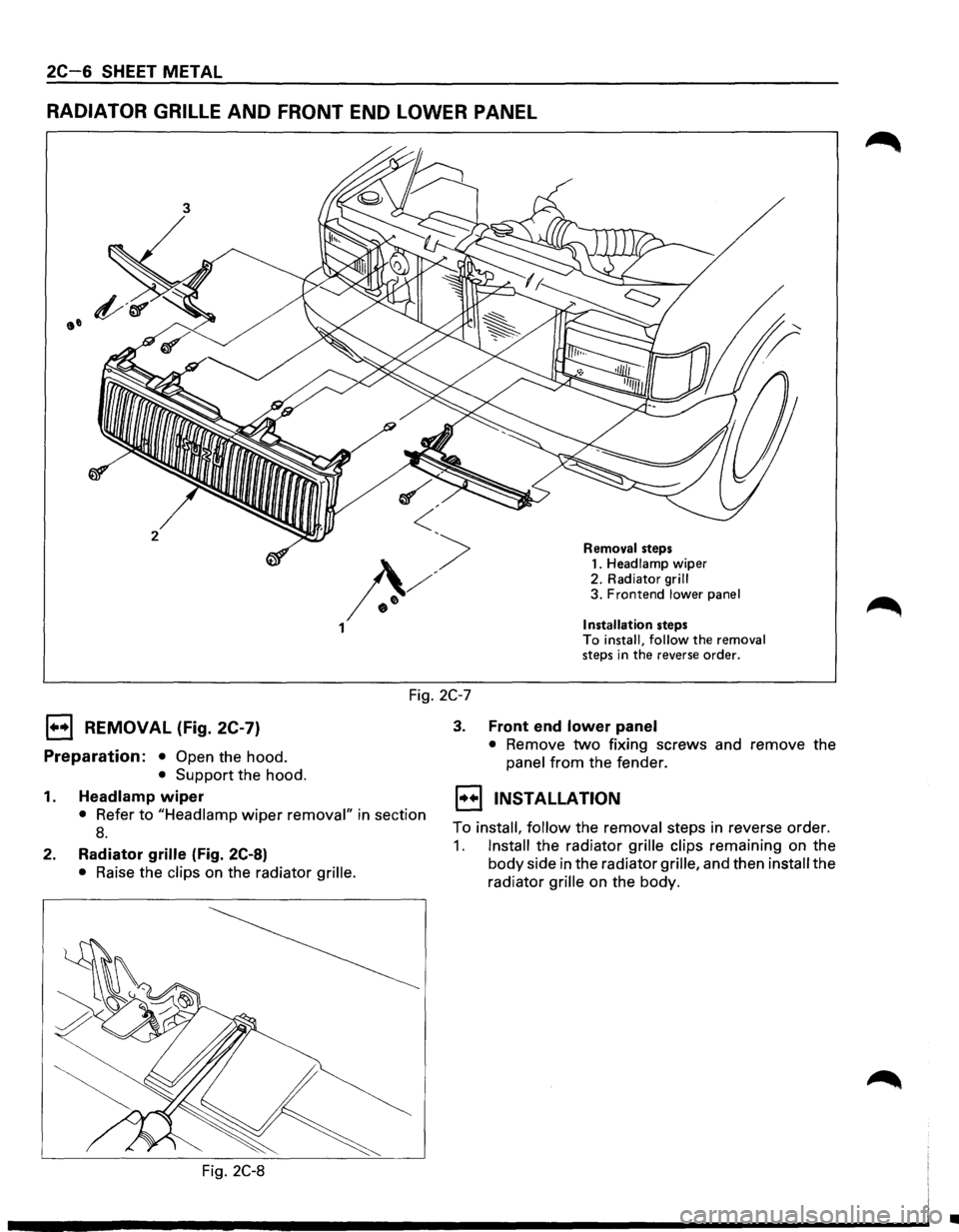

2C-6 SHEET METAL
RADIATOR GRILLE AND FRONT END LOWER PANEL
3
2 Removal steps 1. Headlamp wiper
2. Radiator
grill 3. Frontend lower panel
Installation steps To install, follow the removal steps in the reverse order.
Fig. 2C-7
1••1 REMOVAL (Fig. 2C-7)
Preparation: • Open the hood.
• Support the hood.
1.
Headlamp wiper
• Refer to "Headlamp wiper removal" in section
8.
2. Radiator grille (Fig. 2C-8)
• Raise the clips on the radiator grille.
Fig. 2C-8
3. Front end lower panel
•
Remove two fixing screws and remove the
panel from the fender.
1••1 INSTALLATION
To install, follow the removal steps in reverse order.
1. Install the radiator grille clips remaining on the
body side in the radiator
grille, and then install the
radiator
grille on the body.
•
