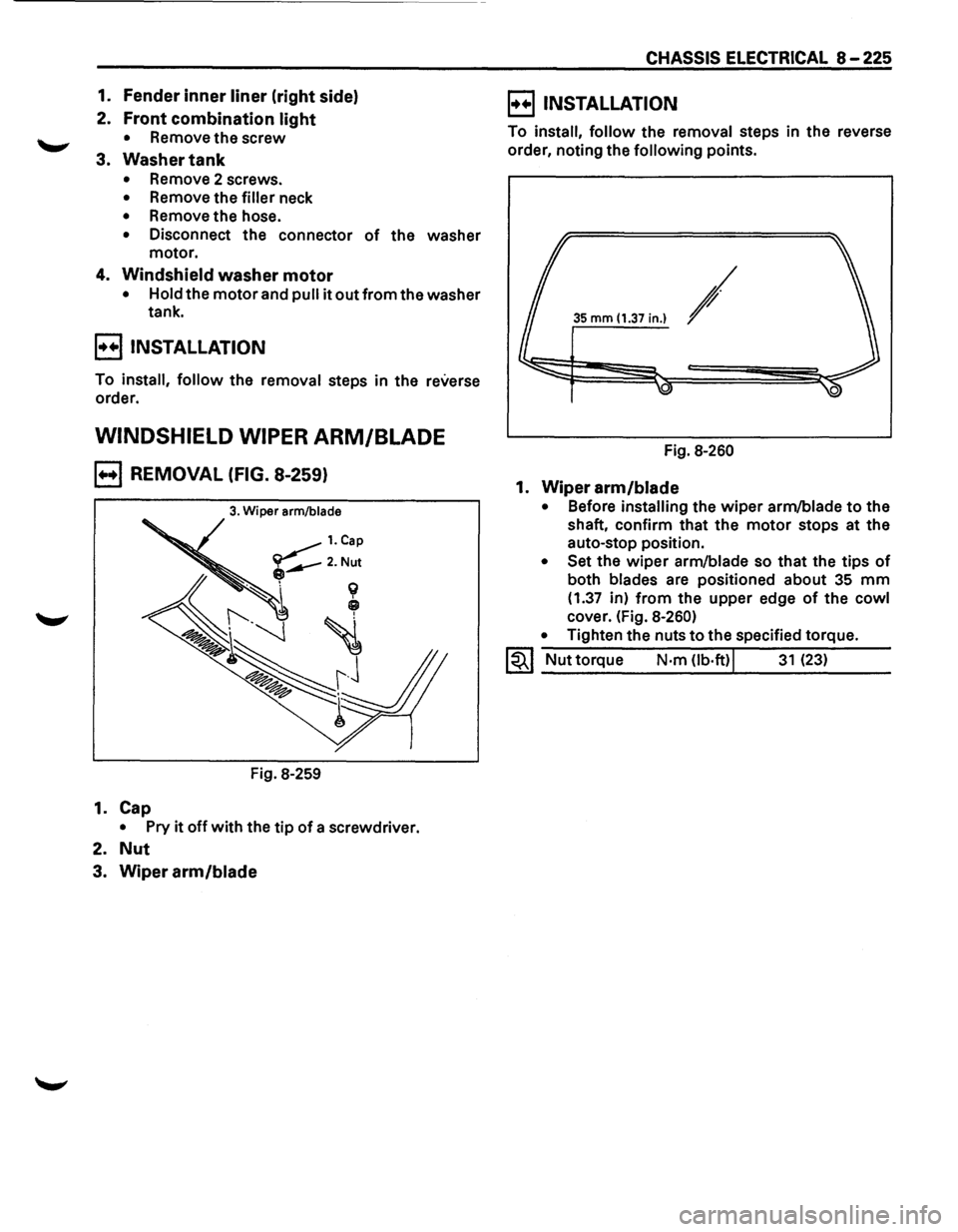

1. Fender inner liner (right side)
2. Front combination light
• Remove the screw
3. Washer tank
• Remove 2 screws.
• Remove the filler neck
• Remove the hose.
• Disconnect the connector of the washer
motor.
4. Windshield washer motor
• Hold the motor and pull it out from the washer
tank.
E3 INSTALLATION
To install, follow the removal steps in the reverse
order.
WINDSHIELD WIPER ARM/BLADE
B REMOVAL (FIG. 8-259)
3. Wiper arm/blade
Fig. 8-259
1. Cap
• Pry it off with the tip of a screwdriver.
2. Nut
3. Wiper arm/blade
CHASSIS ELECTRICAL 8-225
E) INSTALLATION
To install, follow the removal steps in the reverse
order, noting the
following points.
35 mm (1.37 in.) /
Fig. 8-260
1. Wiper arm/blade
• Before installing the wiper arm/blade to the
shaft, confirm that the
motor stops at the
auto-stop position.
• Set the wiper arm/blade so that the tips of
both blades are positioned about 35 mm
(1.37 in) from the upper edge of the cowl
cover. (Fig. 8-260)
•
Tighten the nuts to the specified torque.
1~1 Nut torque N·m Ob·ft)j 31 (23)
