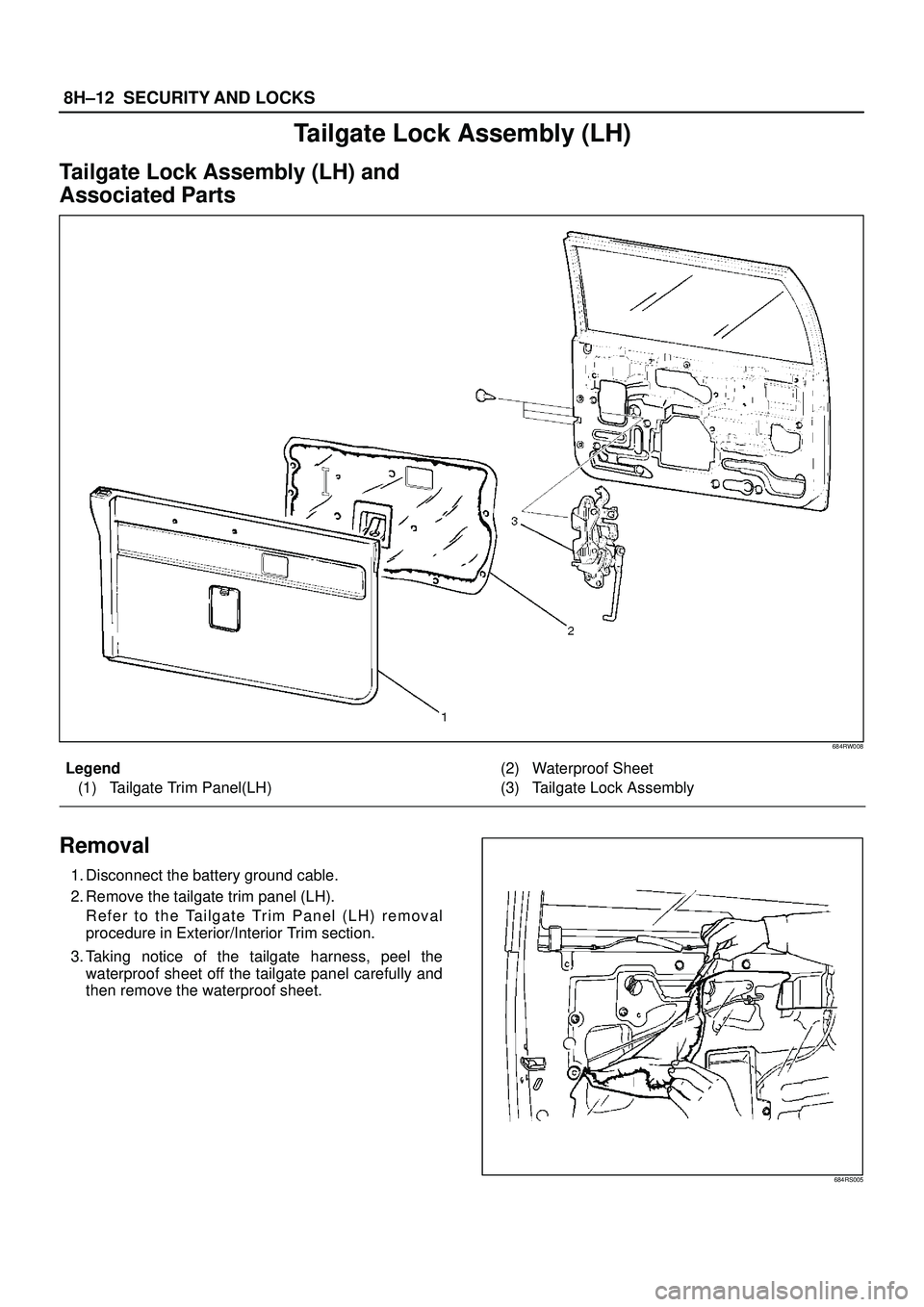

8H±12SECURITY AND LOCKS
Tailgate Lock Assembly (LH)
Tailgate Lock Assembly (LH) and
Associated Parts
684RW008
Legend
(1) Tailgate Trim Panel(LH)(2) Waterproof Sheet
(3) Tailgate Lock Assembly
Removal
1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (LH).
Refer to the Tailgate Trim Panel (LH) removal
procedure in Exterior/Interior Trim section.
3. Taking notice of the tailgate harness, peel the
waterproof sheet off the tailgate panel carefully and
then remove the waterproof sheet.
684RS005

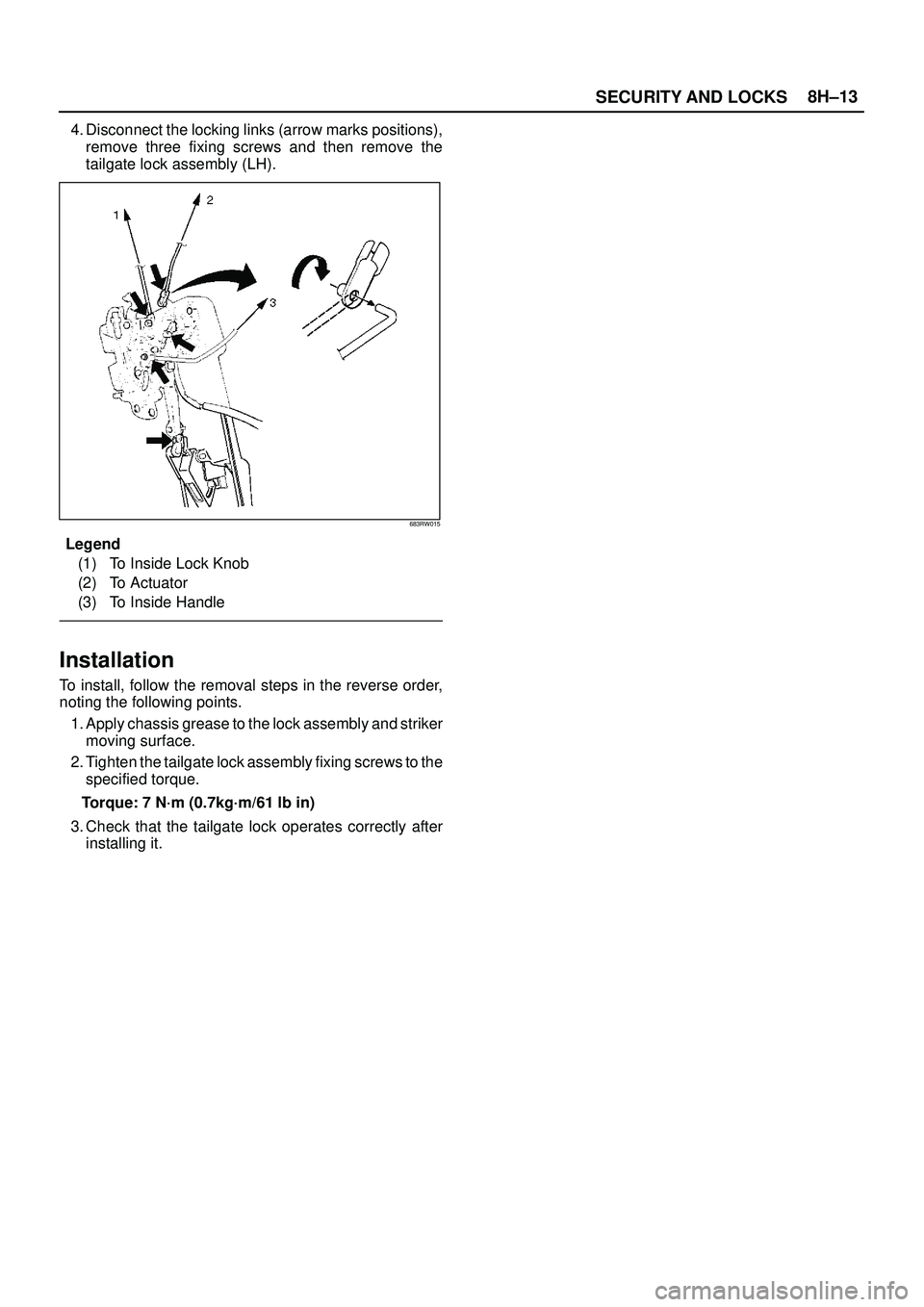

SECURITY AND LOCKS8H±13
4. Disconnect the locking links (arrow marks positions),
remove three fixing screws and then remove the
tailgate lock assembly (LH).
683RW015
Legend
(1) To Inside Lock Knob
(2) To Actuator
(3) To Inside Handle
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. Apply chassis grease to the lock assembly and striker
moving surface.
2. Tighten the tailgate lock assembly fixing screws to the
specified torque.
Torque: 7 N´m (0.7kg´m/61 lb in)
3. Check that the tailgate lock operates correctly after
installing it.

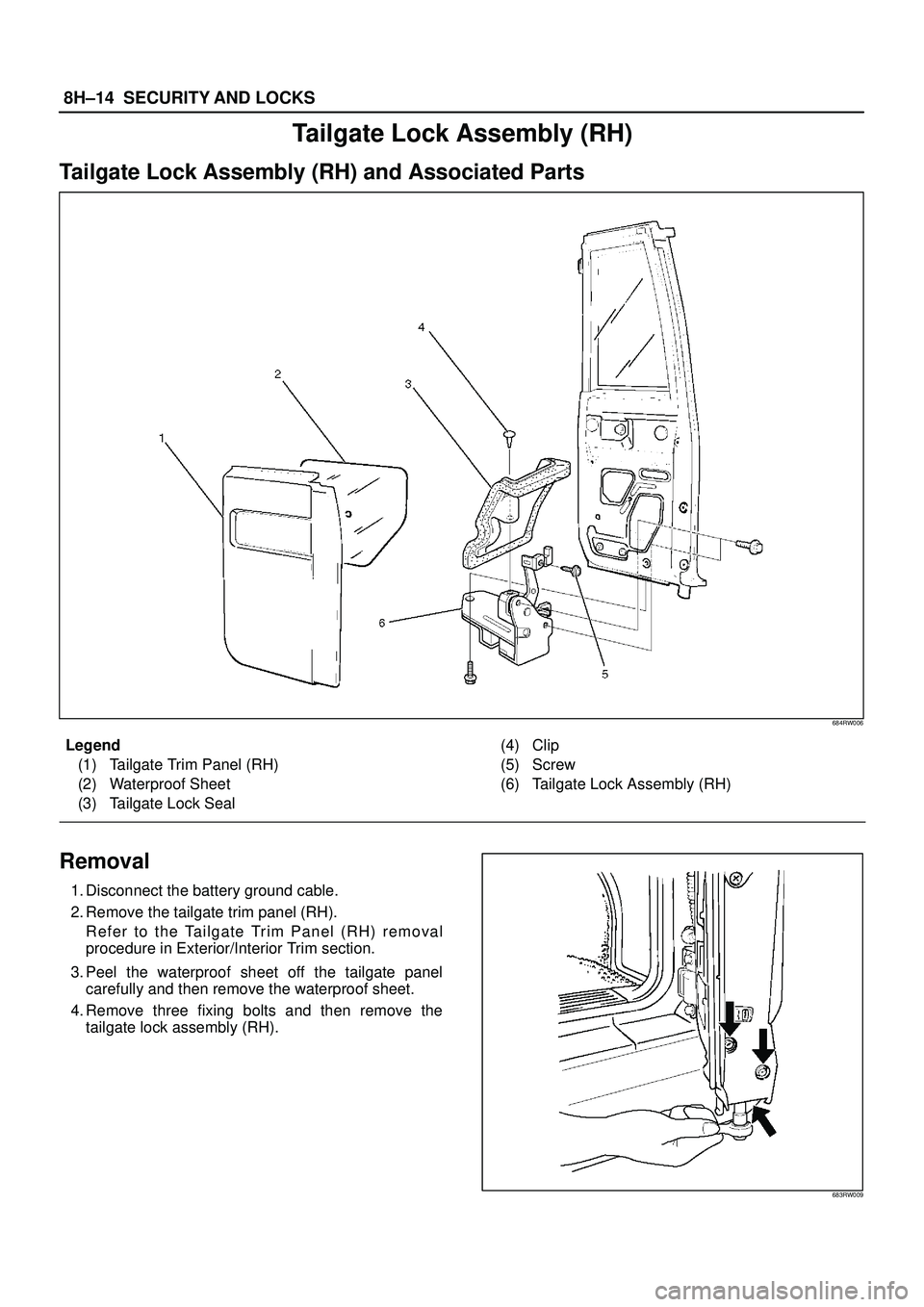

8H±14SECURITY AND LOCKS
Tailgate Lock Assembly (RH)
Tailgate Lock Assembly (RH) and Associated Parts
684RW006
Legend
(1) Tailgate Trim Panel (RH)
(2) Waterproof Sheet
(3) Tailgate Lock Seal(4) Clip
(5) Screw
(6) Tailgate Lock Assembly (RH)
Removal
1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (RH).
Refer to the Tailgate Trim Panel (RH) removal
procedure in Exterior/Interior Trim section.
3. Peel the waterproof sheet off the tailgate panel
carefully and then remove the waterproof sheet.
4. Remove three fixing bolts and then remove the
tailgate lock assembly (RH).
683RW009

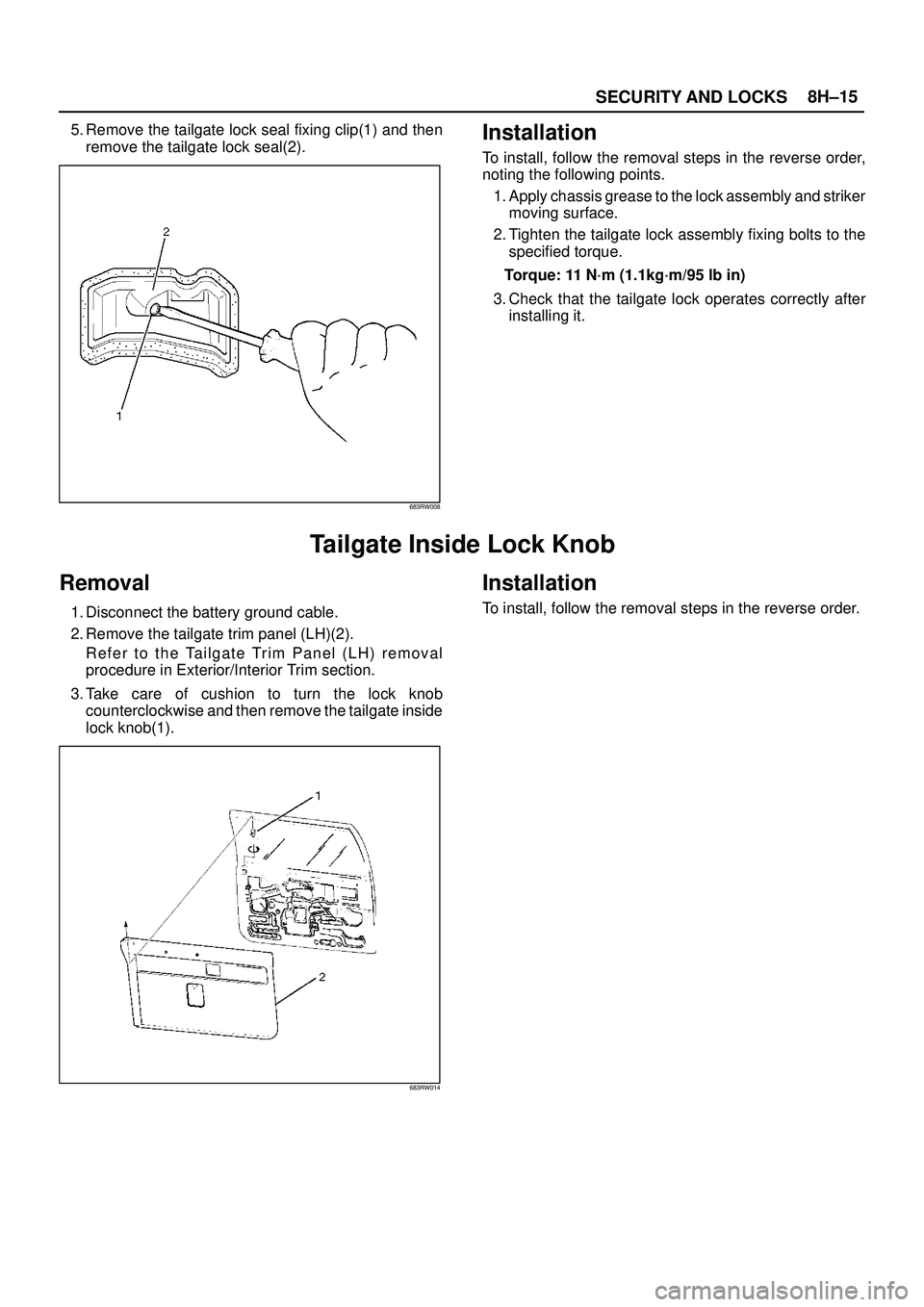

SECURITY AND LOCKS8H±15
5. Remove the tailgate lock seal fixing clip(1) and then
remove the tailgate lock seal(2).
683RW008
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. Apply chassis grease to the lock assembly and striker
moving surface.
2. Tighten the tailgate lock assembly fixing bolts to the
specified torque.
Torque: 11 N´m (1.1kg´m/95 lb in)
3. Check that the tailgate lock operates correctly after
installing it.
Tailgate Inside Lock Knob
Removal
1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel (LH)(2).
Refer to the Tailgate Trim Panel (LH) removal
procedure in Exterior/Interior Trim section.
3. Take care of cushion to turn the lock knob
counterclockwise and then remove the tailgate inside
lock knob(1).
683RW014
Installation
To install, follow the removal steps in the reverse order.

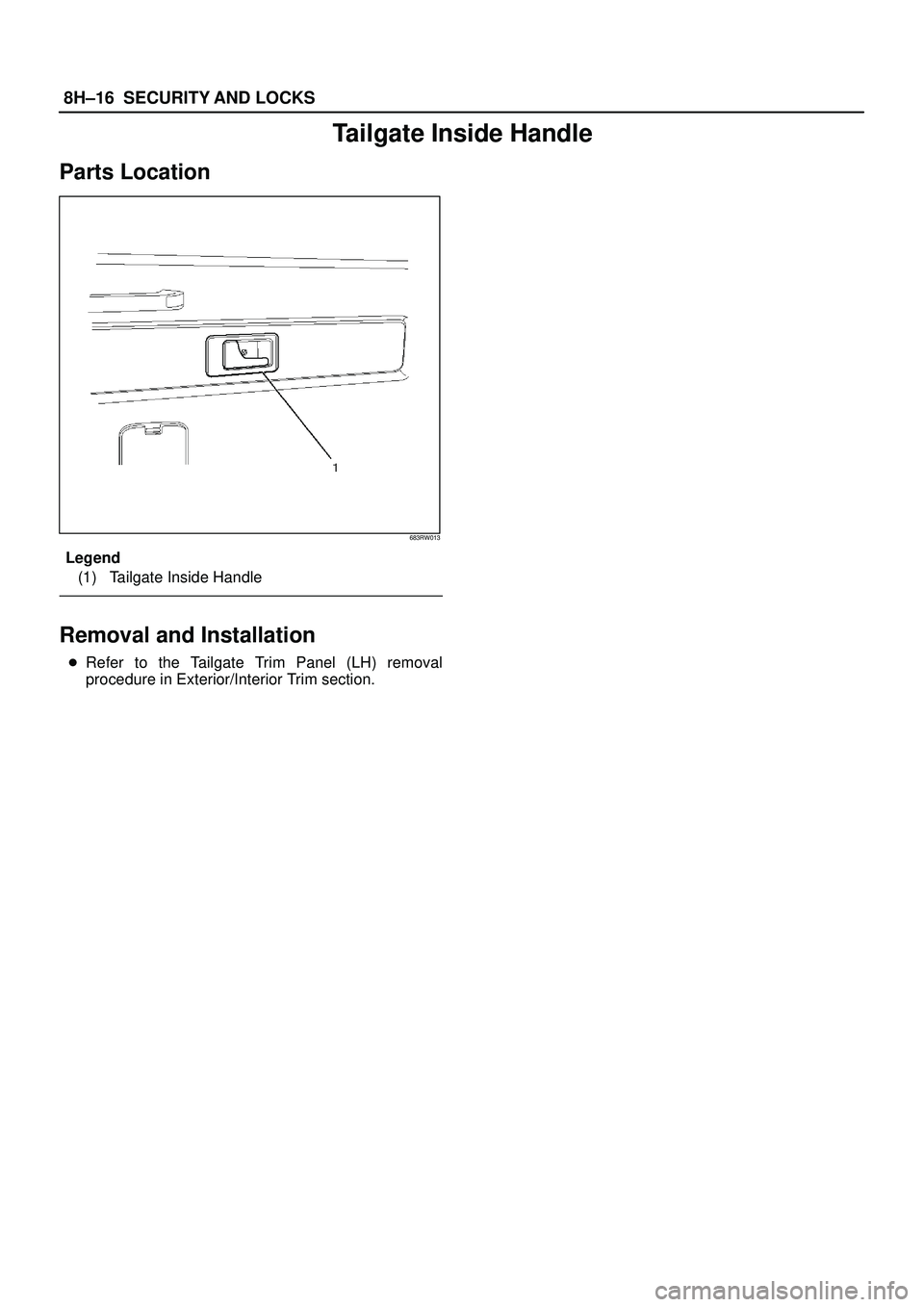

8H±16SECURITY AND LOCKS
Tailgate Inside Handle
Parts Location
683RW013
Legend
(1) Tailgate Inside Handle
Removal and Installation

Refer to the Tailgate Trim Panel (LH) removal
procedure in Exterior/Interior Trim section.

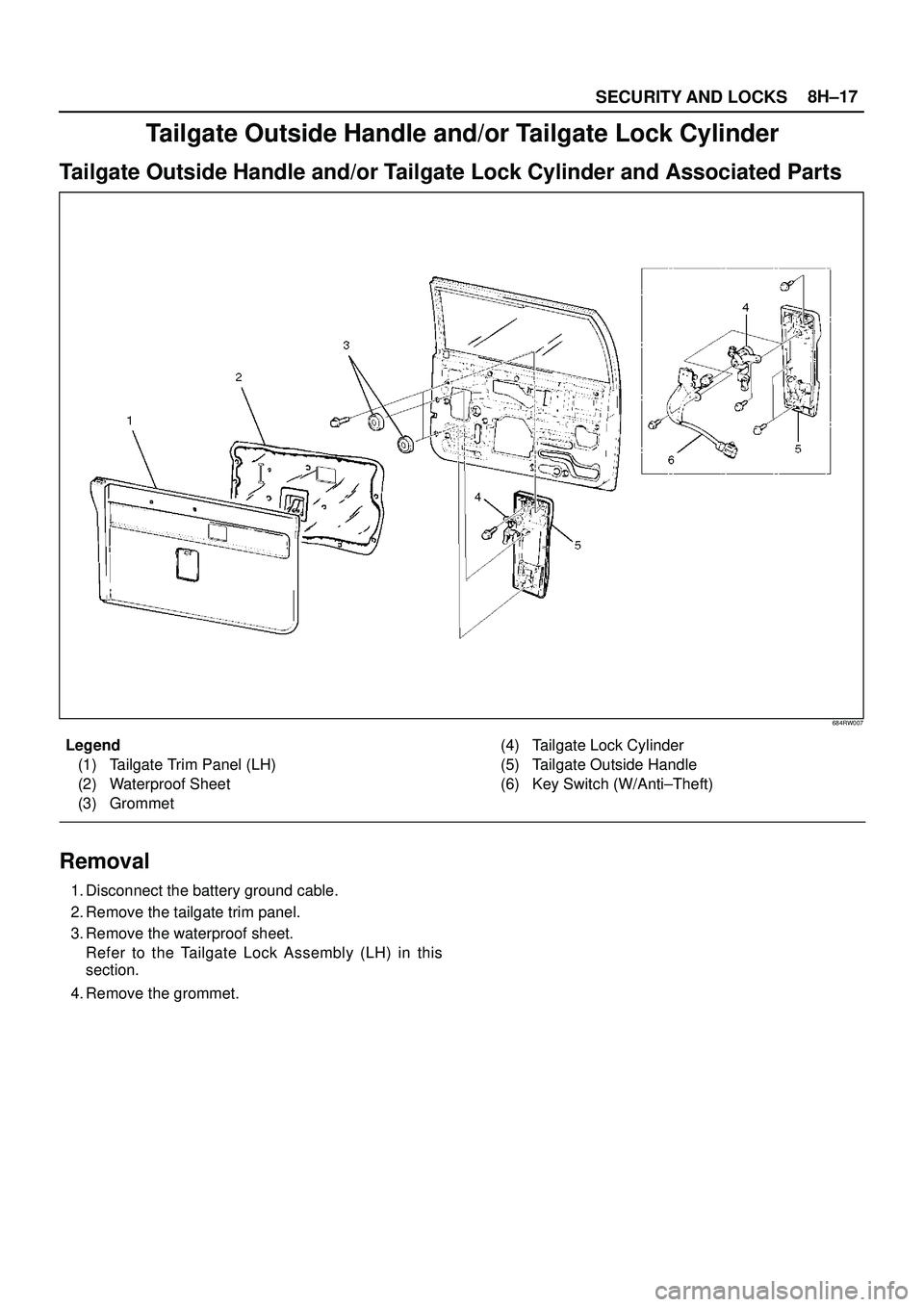

SECURITY AND LOCKS8H±17
Tailgate Outside Handle and/or Tailgate Lock Cylinder
Tailgate Outside Handle and/or Tailgate Lock Cylinder and Associated Parts
684RW007
Legend
(1) Tailgate Trim Panel (LH)
(2) Waterproof Sheet
(3) Grommet(4) Tailgate Lock Cylinder
(5) Tailgate Outside Handle
(6) Key Switch (W/Anti±Theft)
Removal
1. Disconnect the battery ground cable.
2. Remove the tailgate trim panel.
3. Remove the waterproof sheet.
Refer to the Tailgate Lock Assembly (LH) in this
section.
4. Remove the grommet.

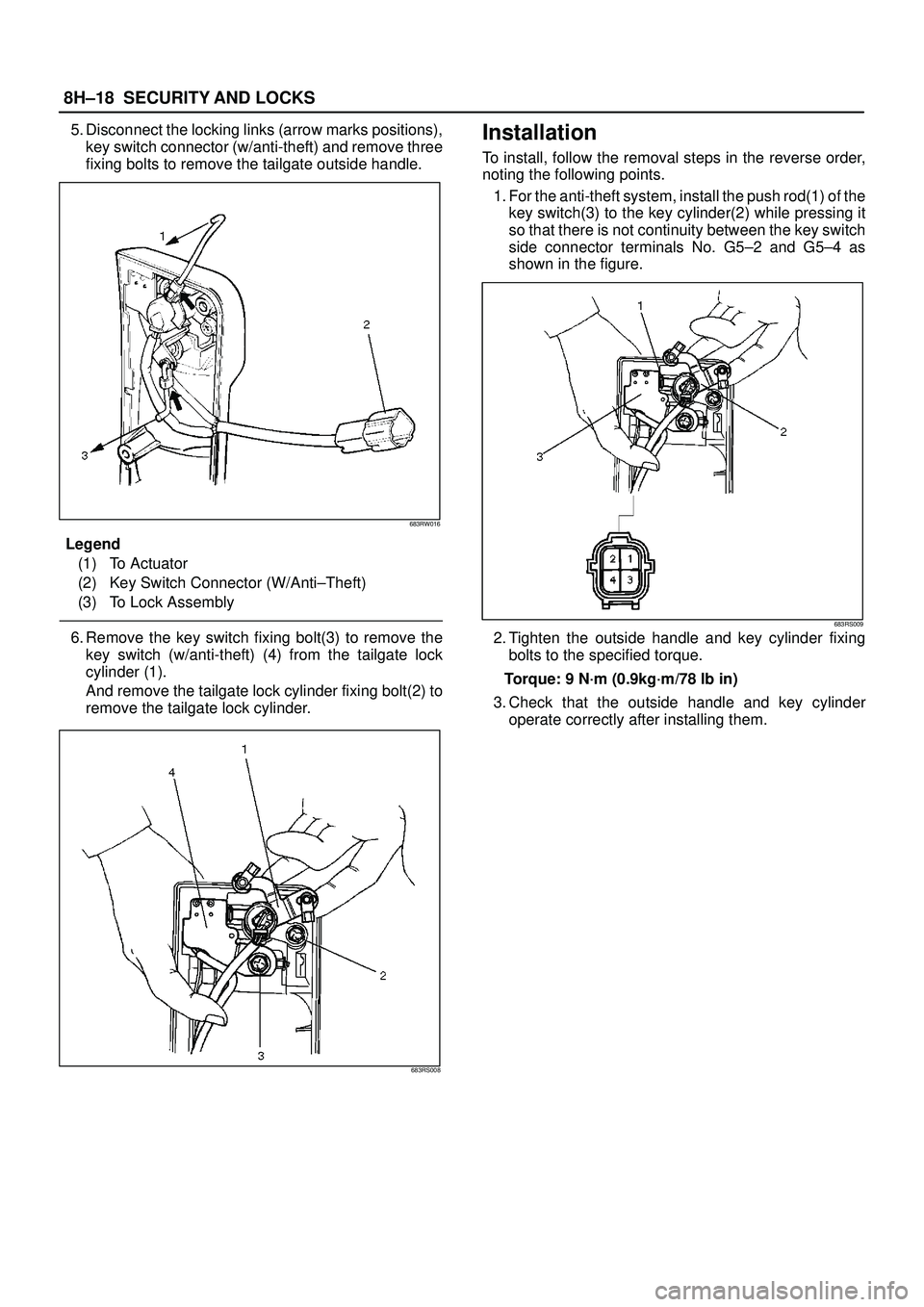

8H±18SECURITY AND LOCKS
5. Disconnect the locking links (arrow marks positions),
key switch connector (w/anti-theft) and remove three
fixing bolts to remove the tailgate outside handle.
683RW016
Legend
(1) To Actuator
(2) Key Switch Connector (W/Anti±Theft)
(3) To Lock Assembly
6. Remove the key switch fixing bolt(3) to remove the
key switch (w/anti-theft) (4) from the tailgate lock
cylinder (1).
And remove the tailgate lock cylinder fixing bolt(2) to
remove the tailgate lock cylinder.
683RS008
Installation
To install, follow the removal steps in the reverse order,
noting the following points.
1. For the anti-theft system, install the push rod(1) of the
key switch(3) to the key cylinder(2) while pressing it
so that there is not continuity between the key switch
side connector terminals No. G5±2 and G5±4 as
shown in the figure.
683RS009
2. Tighten the outside handle and key cylinder fixing
bolts to the specified torque.
Torque: 9 N´m (0.9kg´m/78 lb in)
3. Check that the outside handle and key cylinder
operate correctly after installing them.

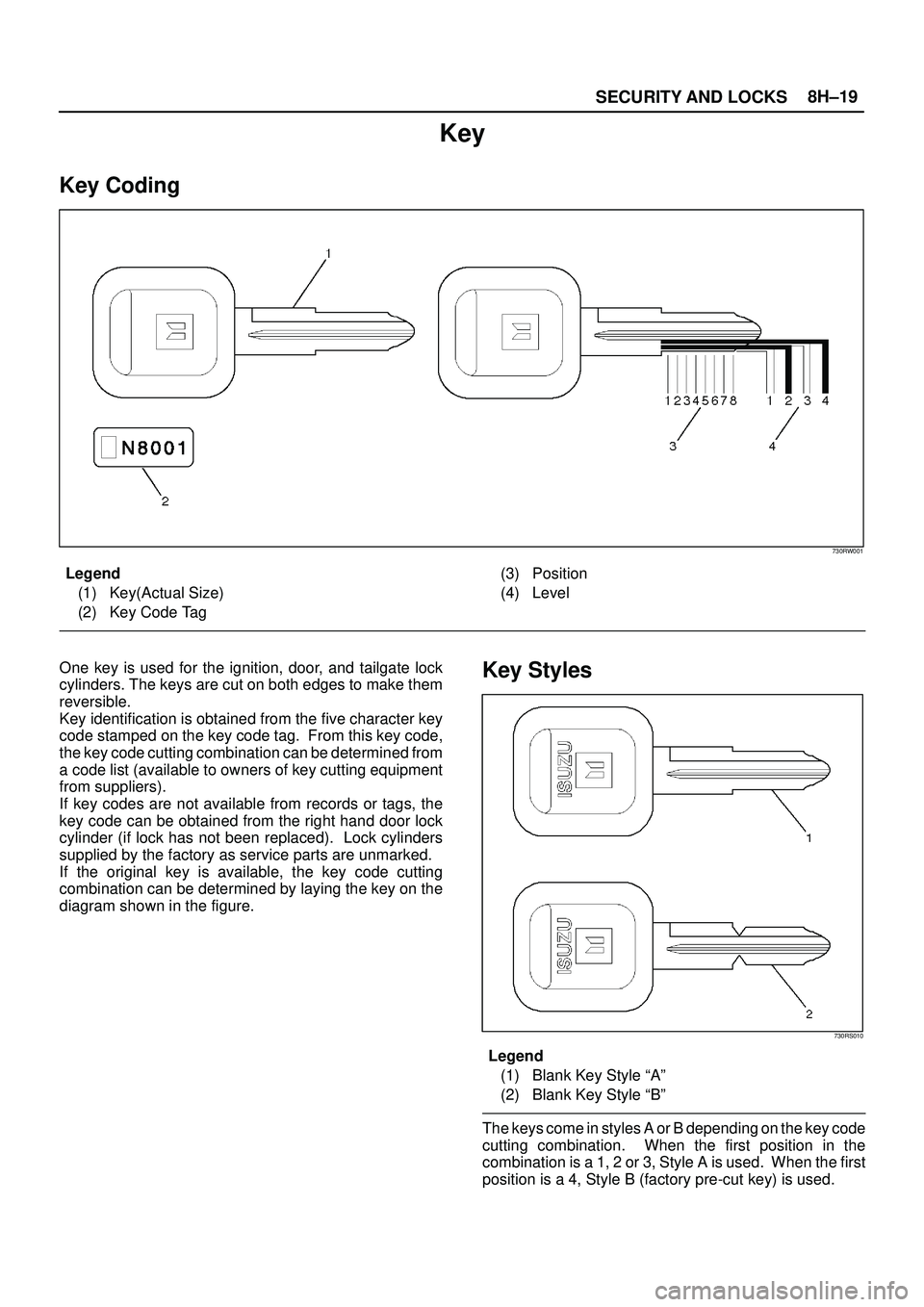

SECURITY AND LOCKS8H±19
Key
Key Coding
730RW001
Legend
(1) Key(Actual Size)
(2) Key Code Tag(3) Position
(4) Level
One key is used for the ignition, door, and tailgate lock
cylinders. The keys are cut on both edges to make them
reversible.
Key identification is obtained from the five character key
code stamped on the key code tag. From this key code,
the key code cutting combination can be determined from
a code list (available to owners of key cutting equipment
from suppliers).
If key codes are not available from records or tags, the
key code can be obtained from the right hand door lock
cylinder (if lock has not been replaced). Lock cylinders
supplied by the factory as service parts are unmarked.
If the original key is available, the key code cutting
combination can be determined by laying the key on the
diagram shown in the figure.Key Styles
730RS010
Legend
(1) Blank Key Style ªAº
(2) Blank Key Style ªBº
The keys come in styles A or B depending on the key code
cutting combination. When the first position in the
combination is a 1, 2 or 3, Style A is used. When the first
position is a 4, Style B (factory pre-cut key) is used.

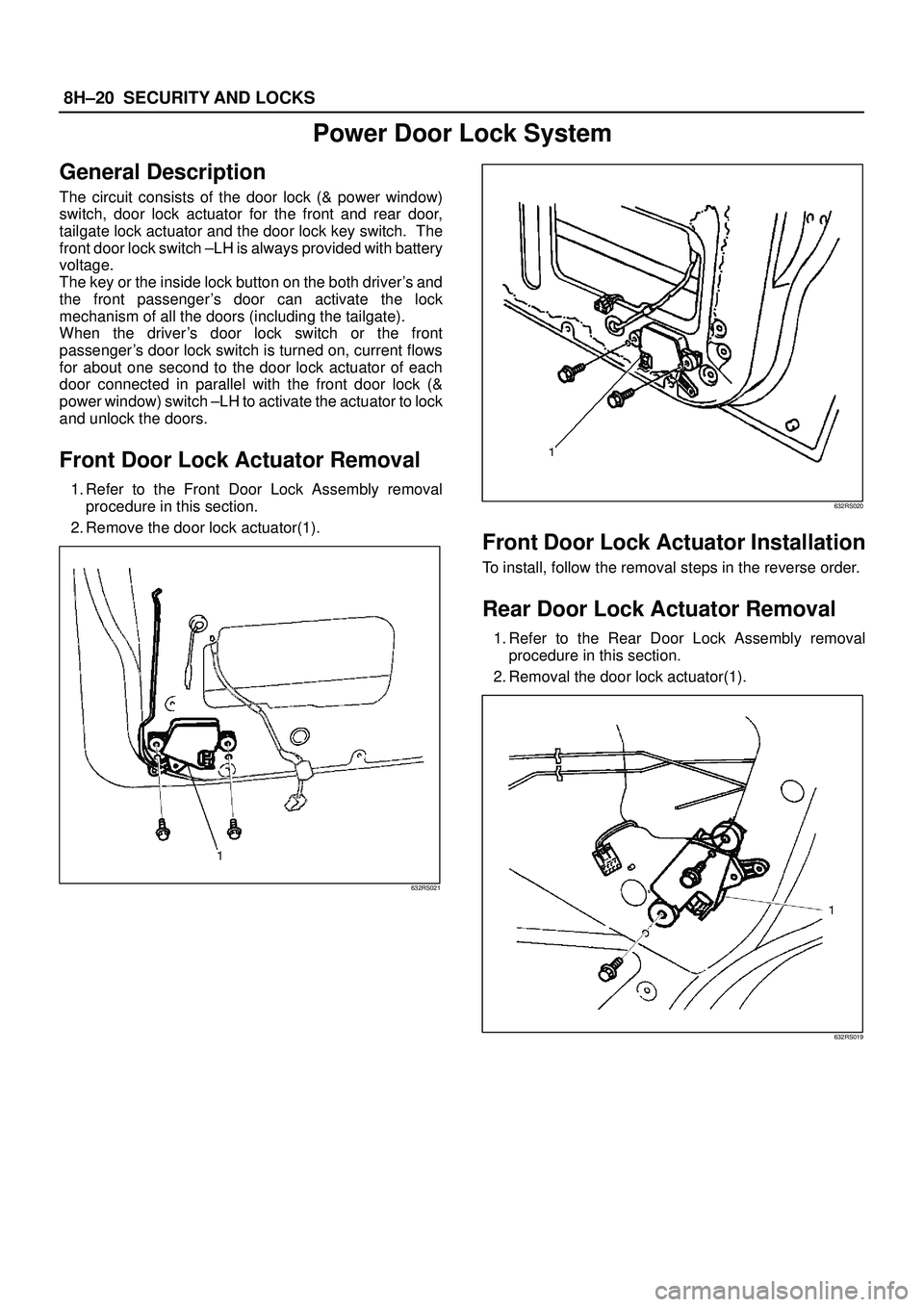

8H±20SECURITY AND LOCKS
Power Door Lock System
General Description
The circuit consists of the door lock (& power window)
switch, door lock actuator for the front and rear door,
tailgate lock actuator and the door lock key switch. The
front door lock switch ±LH is always provided with battery
voltage.
The key or the inside lock button on the both driver's and
the front passenger's door can activate the lock
mechanism of all the doors (including the tailgate).
When the driver's door lock switch or the front
passenger's door lock switch is turned on, current flows
for about one second to the door lock actuator of each
door connected in parallel with the front door lock (&
power window) switch ±LH to activate the actuator to lock
and unlock the doors.
Front Door Lock Actuator Removal
1. Refer to the Front Door Lock Assembly removal
procedure in this section.
2. Remove the door lock actuator(1).
632RS021
632RS020
Front Door Lock Actuator Installation
To install, follow the removal steps in the reverse order.
Rear Door Lock Actuator Removal
1. Refer to the Rear Door Lock Assembly removal
procedure in this section.
2. Removal the door lock actuator(1).
632RS019

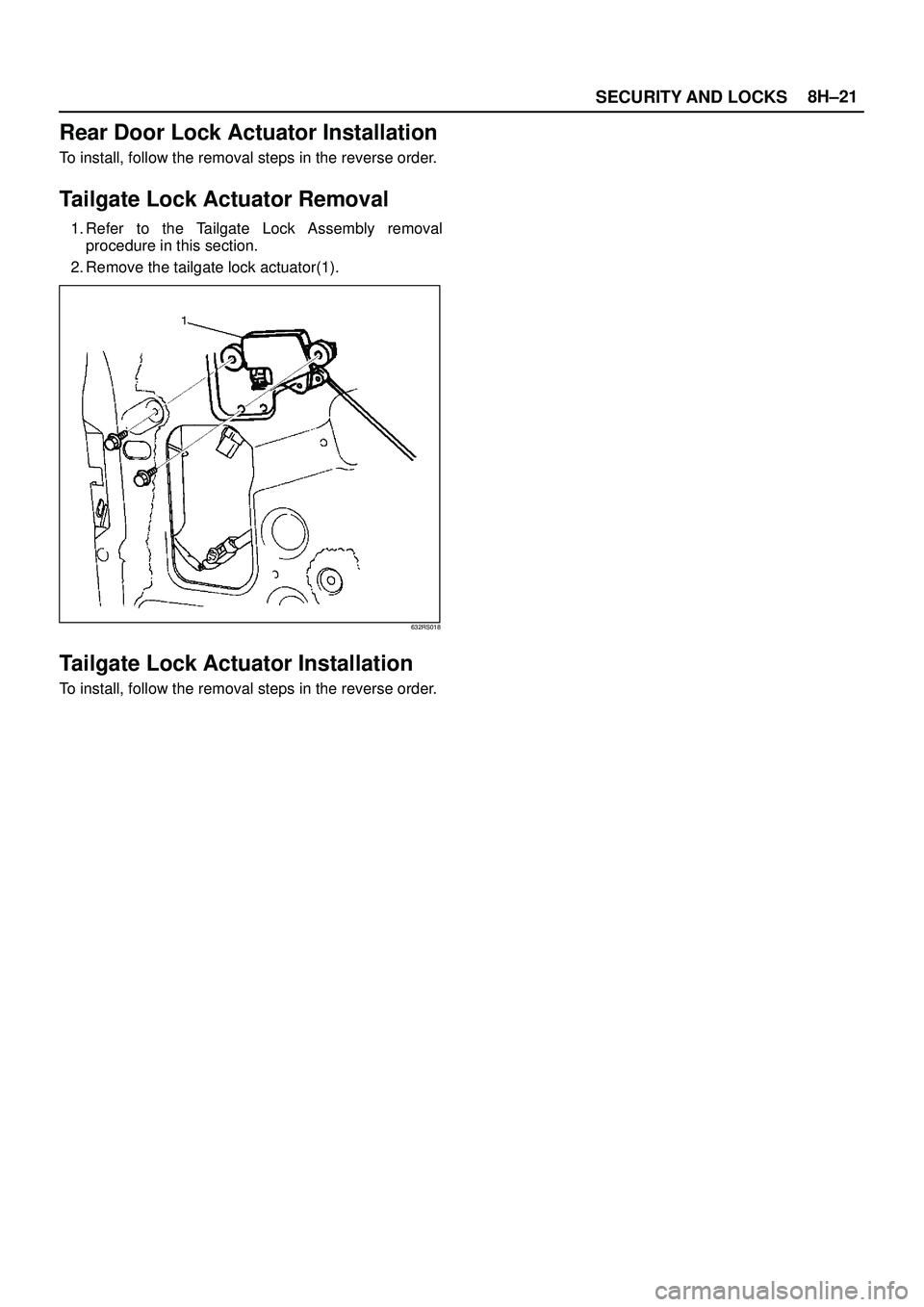

SECURITY AND LOCKS8H±21
Rear Door Lock Actuator Installation
To install, follow the removal steps in the reverse order.
Tailgate Lock Actuator Removal
1. Refer to the Tailgate Lock Assembly removal
procedure in this section.
2. Remove the tailgate lock actuator(1).
632RS018
Tailgate Lock Actuator Installation
To install, follow the removal steps in the reverse order.
