8H±22SECURITY AND LOCKS

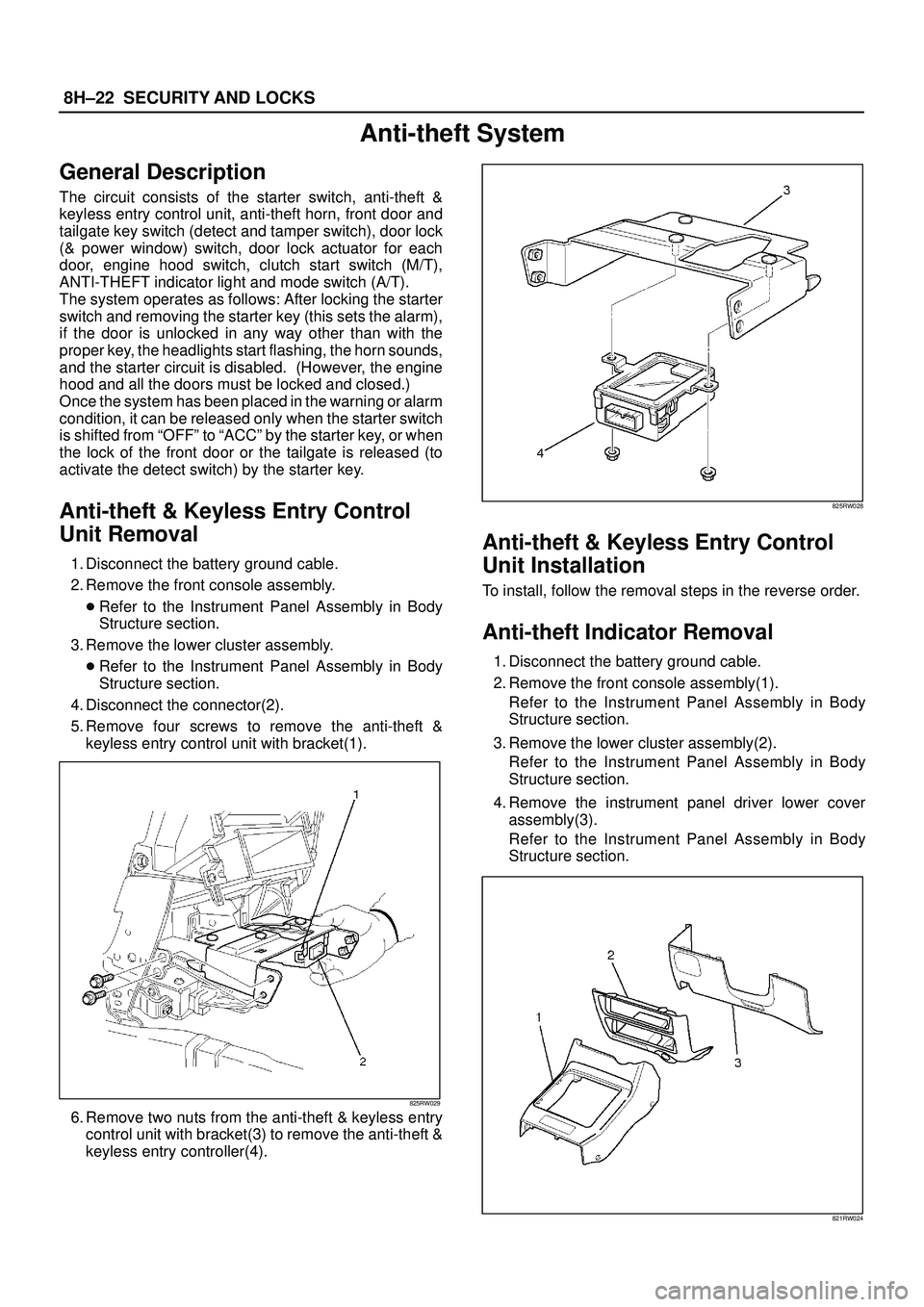

Anti-theft System
General Description
The circuit consists of the starter switch, anti-theft &
keyless entry control unit, anti-theft horn, front door and
tailgate key switch (detect and tamper switch), door lock
(& power window) switch, door lock actuator for each
door, engine hood switch, clutch start switch (M/T),
ANTI-THEFT indicator light and mode switch (A/T).
The system operates as follows: After locking the starter
switch and removing the starter key (this sets the alarm),
if the door is unlocked in any way other than with the
proper key, the headlights start flashing, the horn sounds,
and the starter circuit is disabled. (However, the engine
hood and all the doors must be locked and closed.)
Once the system has been placed in the warning or alarm
condition, it can be released only when the starter switch
is shifted from ªOFFº to ªACCº by the starter key, or when
the lock of the front door or the tailgate is released (to
activate the detect switch) by the starter key.
Anti-theft & Keyless Entry Control
Unit Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly.

Refer to the Instrument Panel Assembly in Body
Structure section.
3. Remove the lower cluster assembly.

Refer to the Instrument Panel Assembly in Body
Structure section.
4. Disconnect the connector(2).
5. Remove four screws to remove the anti-theft &
keyless entry control unit with bracket(1).
825RW029
6. Remove two nuts from the anti-theft & keyless entry
control unit with bracket(3) to remove the anti-theft &
keyless entry controller(4).
825RW028
Anti-theft & Keyless Entry Control
Unit Installation
To install, follow the removal steps in the reverse order.
Anti-theft Indicator Removal
1. Disconnect the battery ground cable.
2. Remove the front console assembly(1).
Refer to the Instrument Panel Assembly in Body
Structure section.
3. Remove the lower cluster assembly(2).
Refer to the Instrument Panel Assembly in Body
Structure section.
4. Remove the instrument panel driver lower cover
assembly(3).
Refer to the Instrument Panel Assembly in Body
Structure section.
821RW024

SECURITY AND LOCKS8H±23

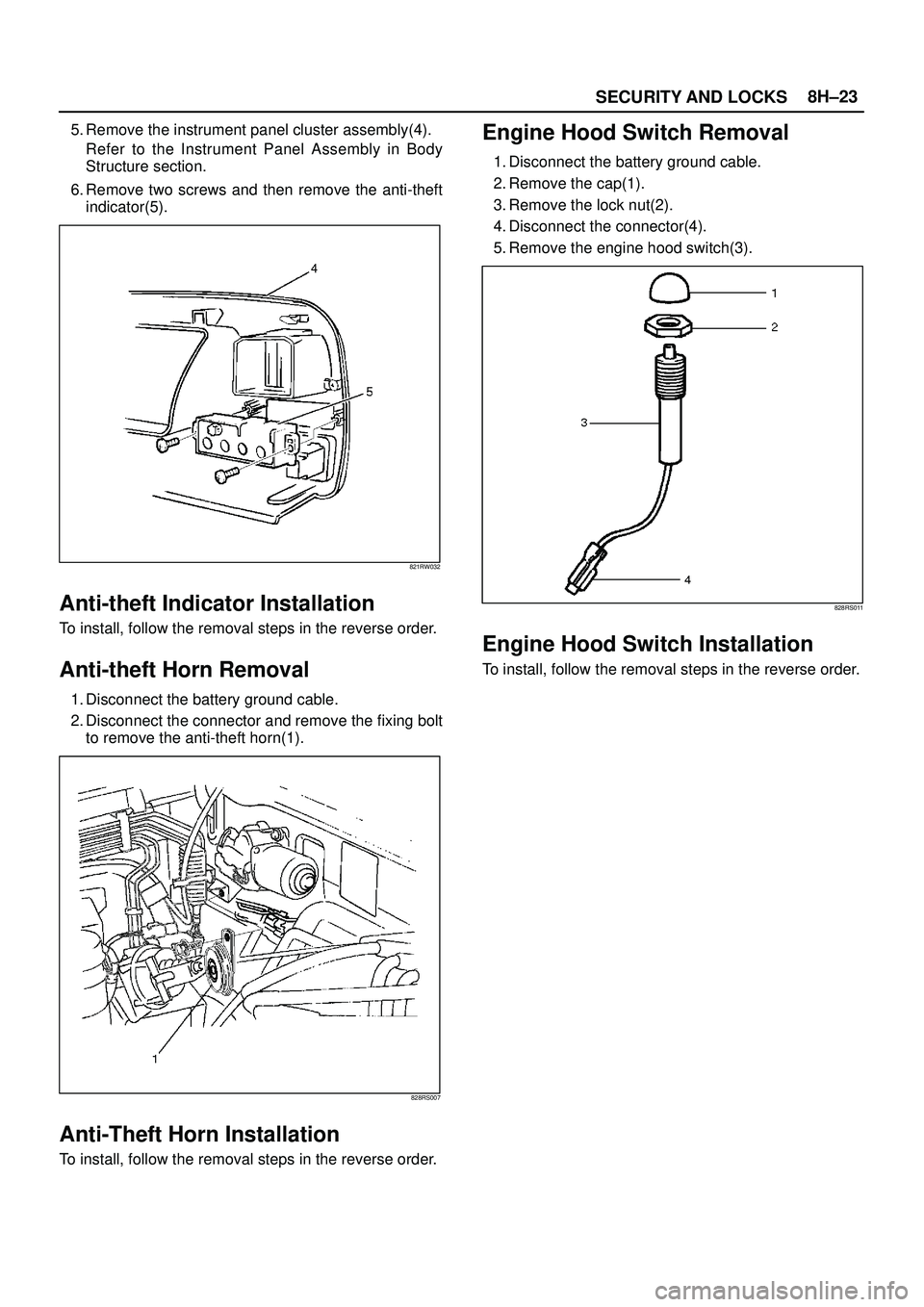

5. Remove the instrument panel cluster assembly(4).
Refer to the Instrument Panel Assembly in Body
Structure section.
6. Remove two screws and then remove the anti-theft
indicator(5).
821RW032
Anti-theft Indicator Installation
To install, follow the removal steps in the reverse order.
Anti-theft Horn Removal
1. Disconnect the battery ground cable.
2. Disconnect the connector and remove the fixing bolt
to remove the anti-theft horn(1).
828RS007
Anti-Theft Horn Installation
To install, follow the removal steps in the reverse order.
Engine Hood Switch Removal
1. Disconnect the battery ground cable.
2. Remove the cap(1).
3. Remove the lock nut(2).
4. Disconnect the connector(4).
5. Remove the engine hood switch(3).
828RS011
Engine Hood Switch Installation
To install, follow the removal steps in the reverse order.

8H±24SECURITY AND LOCKS
Keyless Entry System
ID Code Registration
There are four kinds of ID codes which can be registered,
for which these three modes, ID code new registration, ID
code additional registration and ID code check, are
available.
ID Code New Registration
This procedure erases all registered ID codes and
registers a new received ID code instead.
Step
ActionYe sNo
11. Open the driver's side door.
2. Turn the starter switch off.
Is the action complete?
Go to Step 2Ð
2Turn the starter switch to ACC position and then off three times
within five seconds after step 1.
Is the action complete within five seconds?
Go to Step 3Finished
3Close the door and then open it two times within ten seconds after
step 2.
Is the action complete within ten seconds?
Go to Step 4Finished
41. Turn the starter switch to ACC position and then off five times.
2. Close the door and then open it.
NOTE: This step must be performed within ten seconds after step
3.
Is the action complete?
Go to Step 5Finished
5The control unit makes lock/unlock response once with interval of
one second.
Is the response complete?
Go to Step 6Ð
6Operate the lock or unlock button of transmitter within twenty
senconds afer step 5.
Is the action complete?
Go to Step 7Finished
7The control unit makes lock/unlock response once with in terval of
one second as ID temprary registration.
Is the response complete?
Go to Step 8Ð
8Operate the lock or unlock button of transmitter within twenty
seconds after step 7.
Is the action complete?
Go to Step 9Finished
9The control unit compares temporary registered ID code with
receiving ID code
Is temporary registered ID code the same as receiving ID code?
Go to Step 10Go to Step 11
10The control unit makes lock/unlock response three times with
interval of one second.
Is the response complete?
FinishedÐ
11The control unit erases all registered ID codes and registers new
ID code.
Is the registration complete?
Go to Step 12Go to Step 13

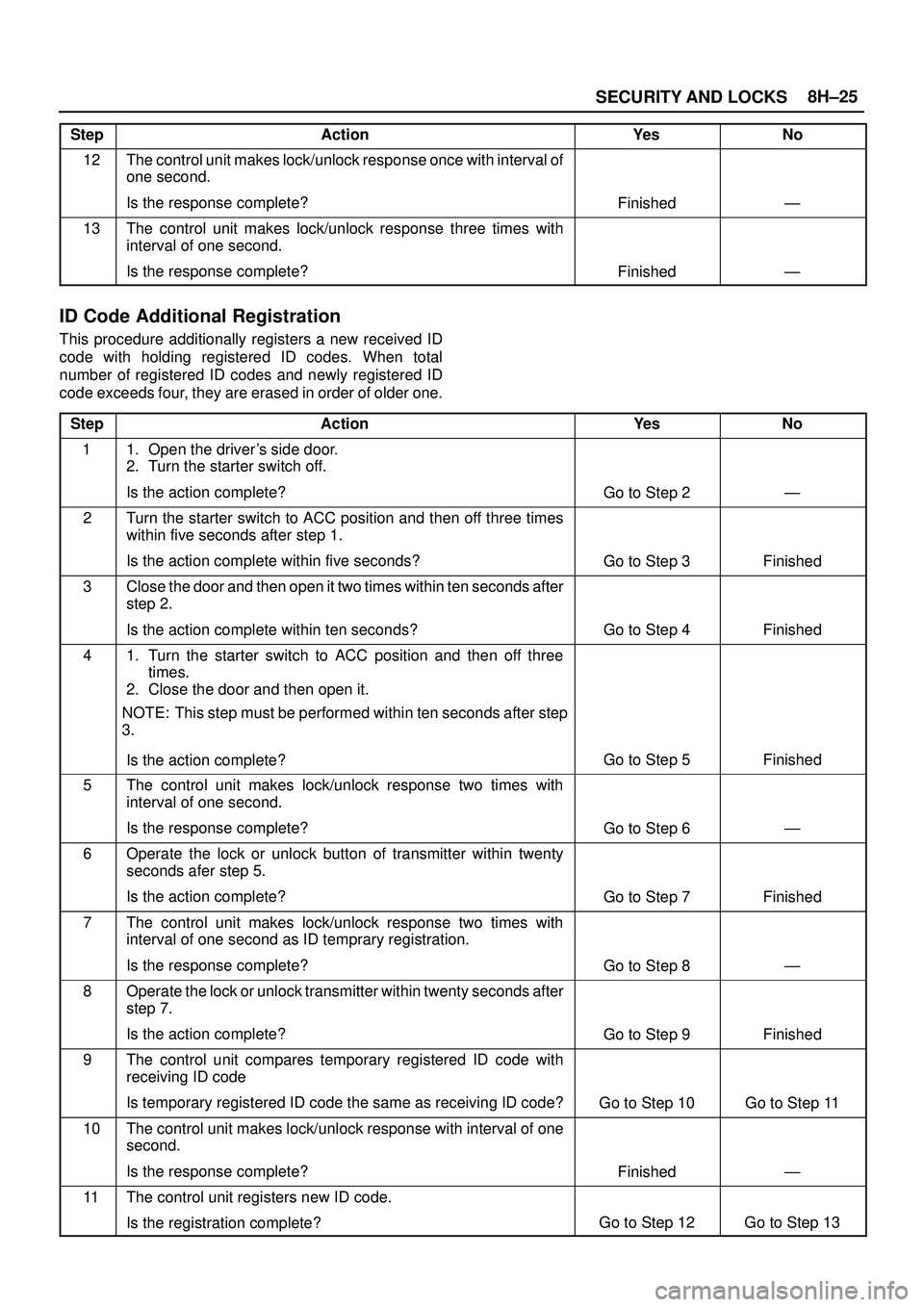

SECURITY AND LOCKS8H±25
StepNo Ye s Action
12The control unit makes lock/unlock response once with interval of
one second.
Is the response complete?
FinishedÐ
13The control unit makes lock/unlock response three times with
interval of one second.
Is the response complete?
FinishedÐ
ID Code Additional Registration
This procedure additionally registers a new received ID
code with holding registered ID codes. When total
number of registered ID codes and newly registered ID
code exceeds four, they are erased in order of older one.
Step
ActionYe sNo
11. Open the driver's side door.
2. Turn the starter switch off.
Is the action complete?
Go to Step 2Ð
2Turn the starter switch to ACC position and then off three times
within five seconds after step 1.
Is the action complete within five seconds?
Go to Step 3Finished
3Close the door and then open it two times within ten seconds after
step 2.
Is the action complete within ten seconds?
Go to Step 4Finished
41. Turn the starter switch to ACC position and then off three
times.
2. Close the door and then open it.
NOTE: This step must be performed within ten seconds after step
3.
Is the action complete?
Go to Step 5Finished
5The control unit makes lock/unlock response two times with
interval of one second.
Is the response complete?
Go to Step 6Ð
6Operate the lock or unlock button of transmitter within twenty
seconds afer step 5.
Is the action complete?
Go to Step 7Finished
7The control unit makes lock/unlock response two times with
interval of one second as ID temprary registration.
Is the response complete?
Go to Step 8Ð
8Operate the lock or unlock transmitter within twenty seconds after
step 7.
Is the action complete?
Go to Step 9Finished
9The control unit compares temporary registered ID code with
receiving ID code
Is temporary registered ID code the same as receiving ID code?
Go to Step 10Go to Step 11
10The control unit makes lock/unlock response with interval of one
second.
Is the response complete?
FinishedÐ
11The control unit registers new ID code.
Is the registration complete?
Go to Step 12Go to Step 13

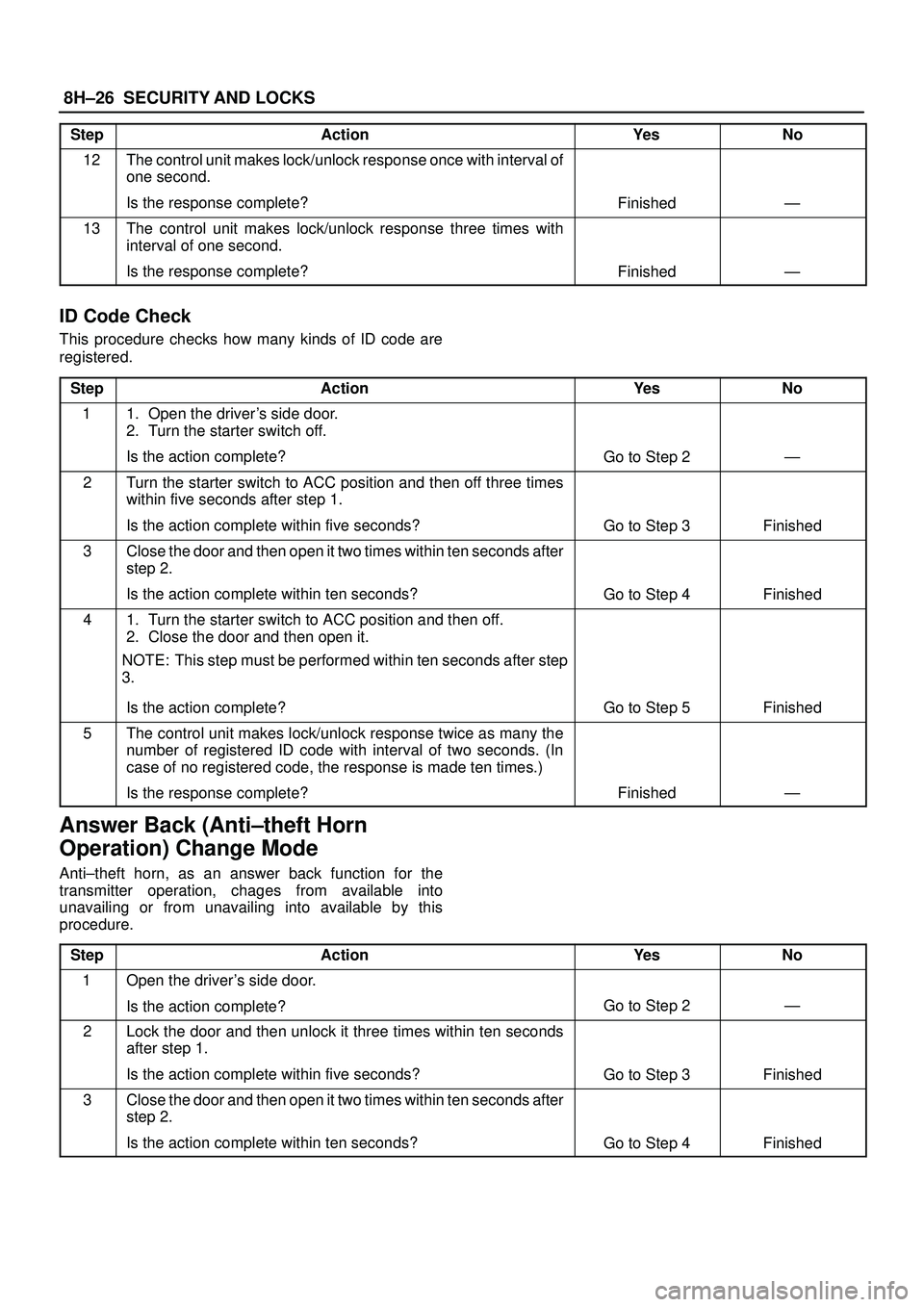

8H±26SECURITY AND LOCKS
StepNo Ye s Action
12The control unit makes lock/unlock response once with interval of
one second.
Is the response complete?
FinishedÐ
13The control unit makes lock/unlock response three times with
interval of one second.
Is the response complete?
FinishedÐ
ID Code Check
This procedure checks how many kinds of ID code are
registered.
Step
ActionYe sNo
11. Open the driver's side door.
2. Turn the starter switch off.
Is the action complete?
Go to Step 2Ð
2Turn the starter switch to ACC position and then off three times
within five seconds after step 1.
Is the action complete within five seconds?
Go to Step 3Finished
3Close the door and then open it two times within ten seconds after
step 2.
Is the action complete within ten seconds?
Go to Step 4Finished
41. Turn the starter switch to ACC position and then off.
2. Close the door and then open it.
NOTE: This step must be performed within ten seconds after step
3.
Is the action complete?
Go to Step 5Finished
5The control unit makes lock/unlock response twice as many the
number of registered ID code with interval of two seconds. (In
case of no registered code, the response is made ten times.)
Is the response complete?
FinishedÐ
Answer Back (Anti±theft Horn
Operation) Change Mode
Anti±theft horn, as an answer back function for the
transmitter operation, chages from available into
unavailing or from unavailing into available by this
procedure.
Step
ActionYe sNo
1Open the driver's side door.
Is the action complete?
Go to Step 2Ð
2Lock the door and then unlock it three times within ten seconds
after step 1.
Is the action complete within five seconds?
Go to Step 3Finished
3Close the door and then open it two times within ten seconds after
step 2.
Is the action complete within ten seconds?
Go to Step 4Finished

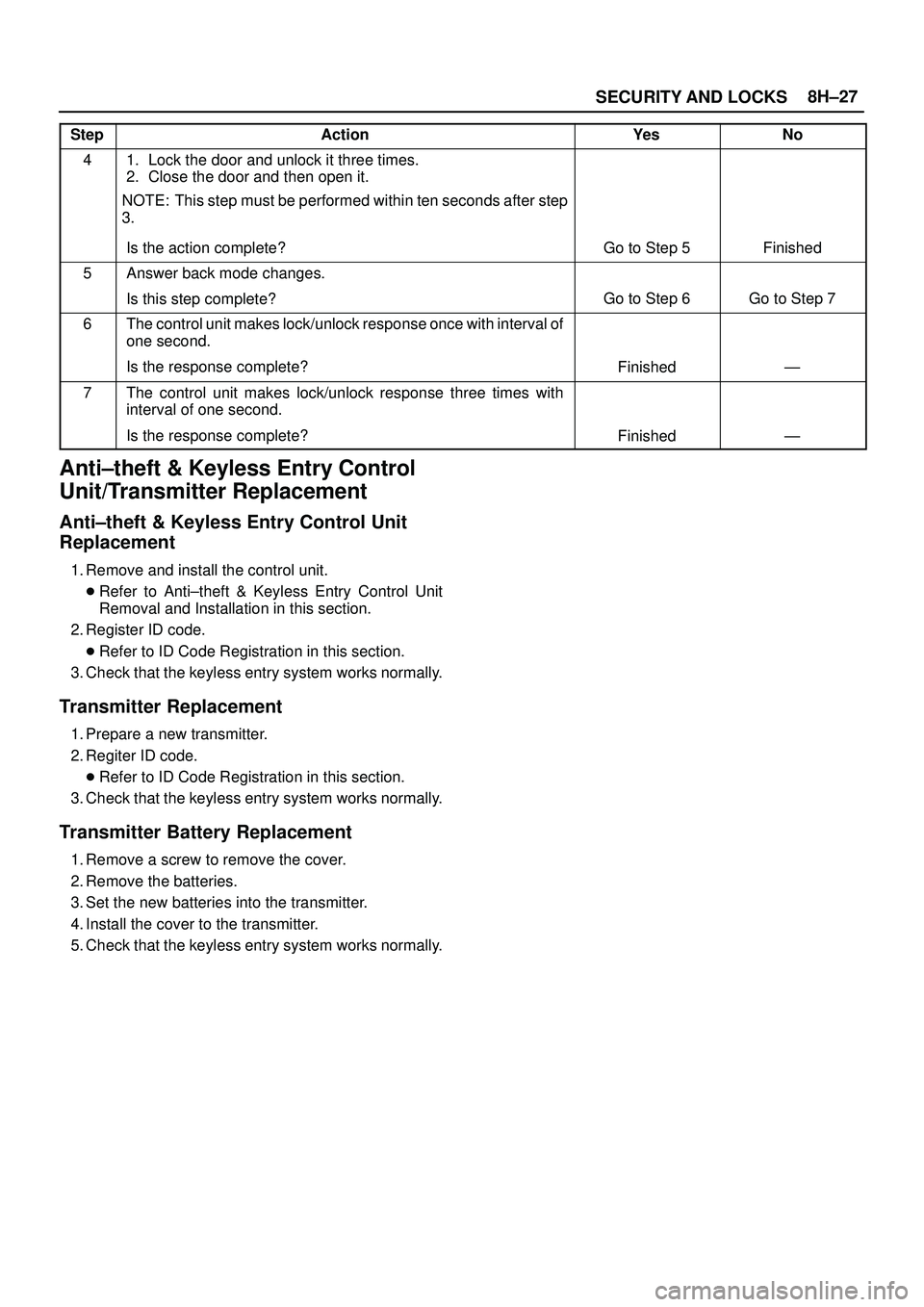

SECURITY AND LOCKS8H±27
StepNo Ye s Action
41. Lock the door and unlock it three times.
2. Close the door and then open it.
NOTE: This step must be performed within ten seconds after step
3.
Is the action complete?
Go to Step 5Finished
5Answer back mode changes.
Is this step complete?
Go to Step 6Go to Step 7
6The control unit makes lock/unlock response once with interval of
one second.
Is the response complete?
FinishedÐ
7The control unit makes lock/unlock response three times with
interval of one second.
Is the response complete?
FinishedÐ
Anti±theft & Keyless Entry Control
Unit/Transmitter Replacement
Anti±theft & Keyless Entry Control Unit
Replacement
1. Remove and install the control unit.

Refer to Anti±theft & Keyless Entry Control Unit
Removal and Installation in this section.
2. Register ID code.

Refer to ID Code Registration in this section.
3. Check that the keyless entry system works normally.
Transmitter Replacement
1. Prepare a new transmitter.
2. Regiter ID code.

Refer to ID Code Registration in this section.
3. Check that the keyless entry system works normally.
Transmitter Battery Replacement
1. Remove a screw to remove the cover.
2. Remove the batteries.
3. Set the new batteries into the transmitter.
4. Install the cover to the transmitter.
5. Check that the keyless entry system works normally.

8H±28SECURITY AND LOCKS

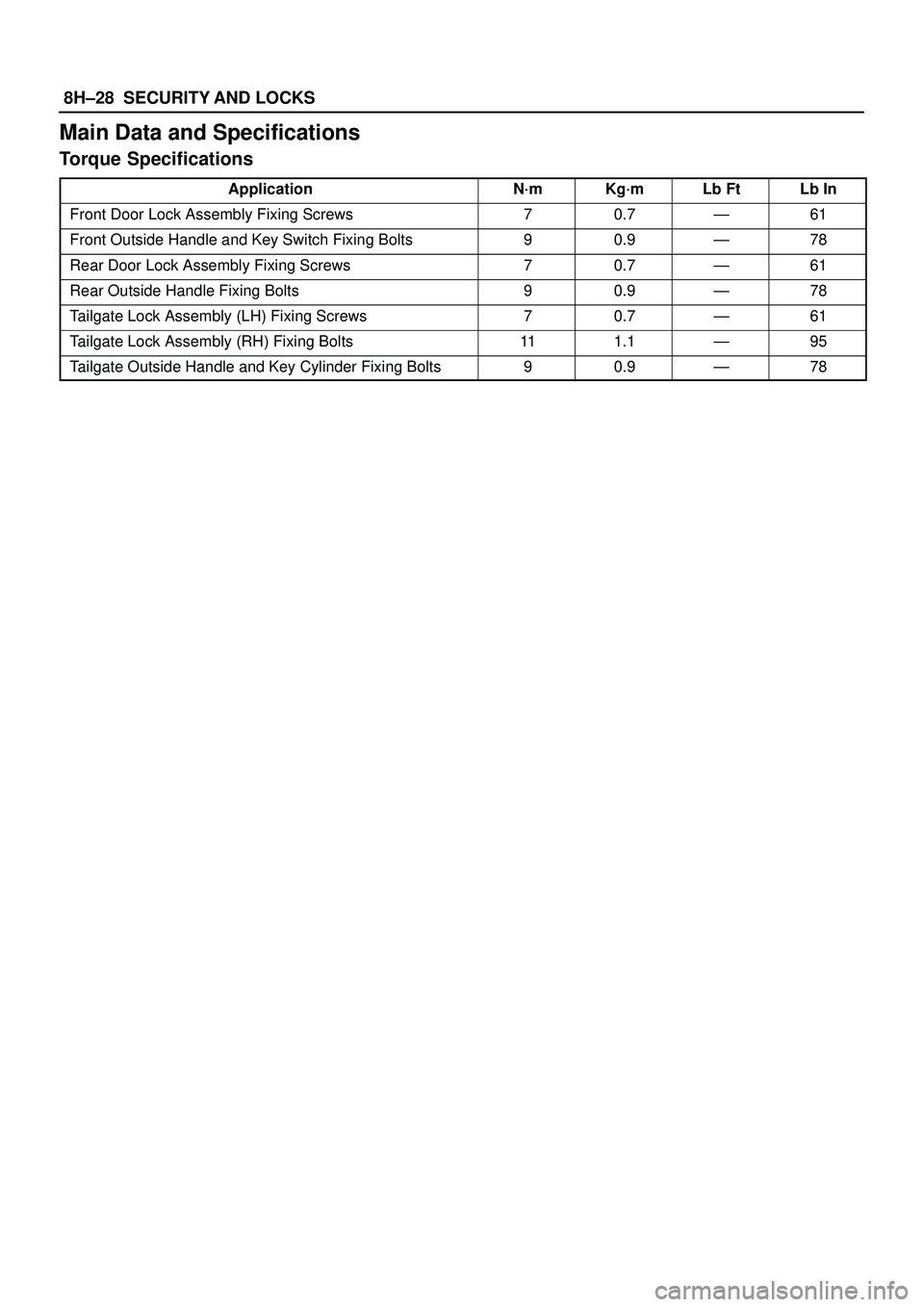

Main Data and Specifications
Torque Specifications
ApplicationN´mKg´mLb FtLb In
Front Door Lock Assembly Fixing Screws70.7Ð61
Front Outside Handle and Key Switch Fixing Bolts90.9Ð78
Rear Door Lock Assembly Fixing Screws70.7Ð61
Rear Outside Handle Fixing Bolts90.9Ð78
Tailgate Lock Assembly (LH) Fixing Screws70.7Ð61
Tailgate Lock Assembly (RH) Fixing Bolts111.1Ð95
Tailgate Outside Handle and Key Cylinder Fixing Bolts90.9Ð78

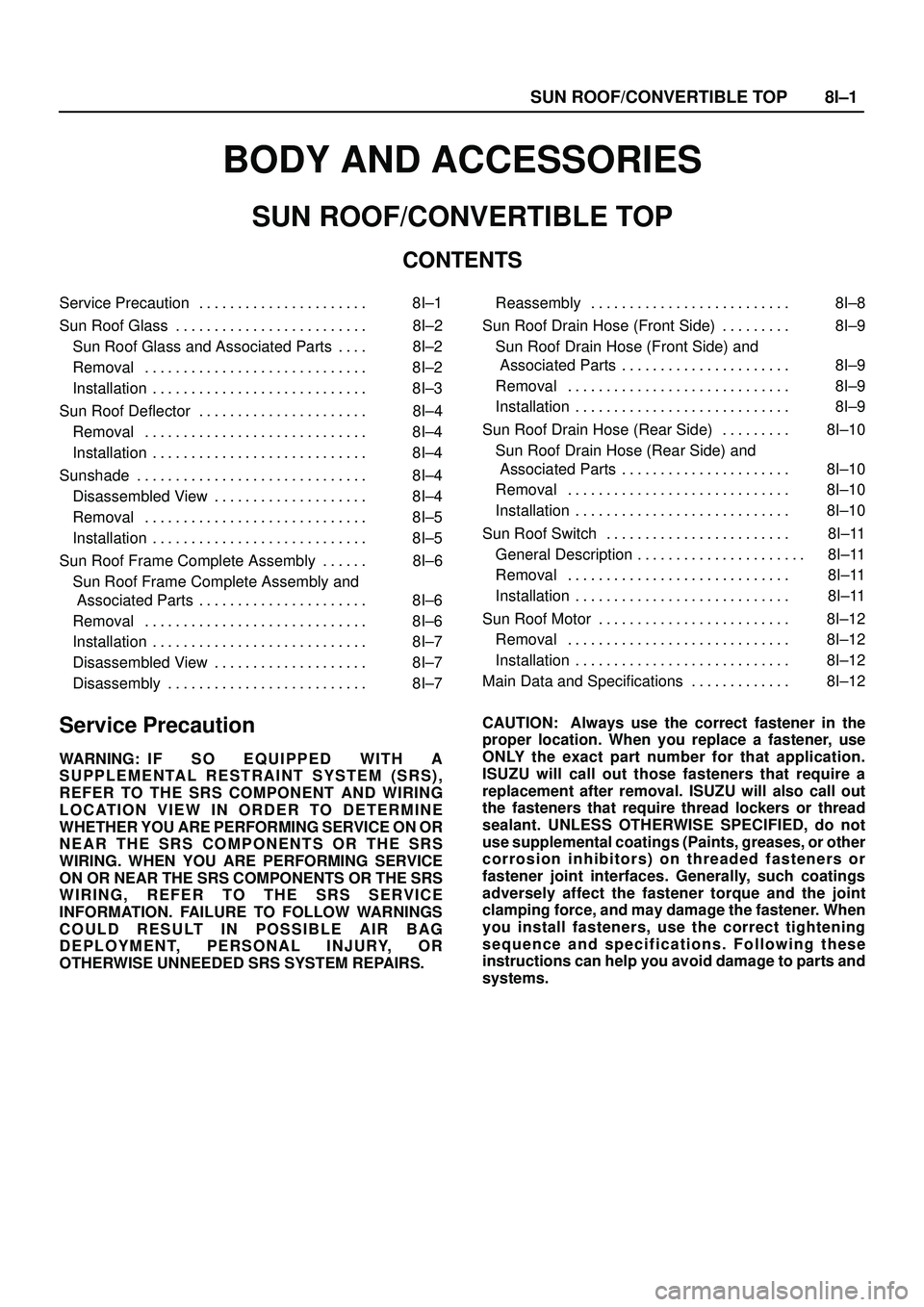

SUN ROOF/CONVERTIBLE TOP8I±1
BODY AND ACCESSORIES
SUN ROOF/CONVERTIBLE TOP
CONTENTS
Service Precaution 8I±1. . . . . . . . . . . . . . . . . . . . . .
Sun Roof Glass 8I±2. . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Glass and Associated Parts 8I±2. . . .
Removal 8I±2. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±3. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Deflector 8I±4. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±4. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sunshade 8I±4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembled View 8I±4. . . . . . . . . . . . . . . . . . . .
Removal 8I±5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±5. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Frame Complete Assembly 8I±6. . . . . .
Sun Roof Frame Complete Assembly and
Associated Parts 8I±6. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±6. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±7. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembled View 8I±7. . . . . . . . . . . . . . . . . . . .
Disassembly 8I±7. . . . . . . . . . . . . . . . . . . . . . . . . . Reassembly 8I±8. . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Drain Hose (Front Side) 8I±9. . . . . . . . .
Sun Roof Drain Hose (Front Side) and
Associated Parts 8I±9. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±9. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Drain Hose (Rear Side) 8I±10. . . . . . . . .
Sun Roof Drain Hose (Rear Side) and
Associated Parts 8I±10. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±10. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Switch 8I±11. . . . . . . . . . . . . . . . . . . . . . . .
General Description 8I±11. . . . . . . . . . . . . . . . . . . . . .
Removal 8I±11. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±11. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Sun Roof Motor 8I±12. . . . . . . . . . . . . . . . . . . . . . . . .
Removal 8I±12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installation 8I±12. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main Data and Specifications 8I±12. . . . . . . . . . . . .
Service Precaution
WARNING: I F S O E Q U IPPED WITH A
SUPPLEMENTAL RESTRAINT SYSTEM (SRS),
REFER TO THE SRS COMPONENT AND WIRING
LOCATION VIEW IN ORDER TO DETERMINE
WHETHER YOU ARE PERFORMING SERVICE ON OR
NEAR THE SRS COMPONENTS OR THE SRS
WIRING. WHEN YOU ARE PERFORMING SERVICE
ON OR NEAR THE SRS COMPONENTS OR THE SRS
WIRING, REFER TO THE SRS SERVICE
INFORMATION. FAILURE TO FOLLOW WARNINGS
COULD RESULT IN POSSIBLE AIR BAG
DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

8I±2SUN ROOF/CONVERTIBLE TOP
Sun Roof Glass

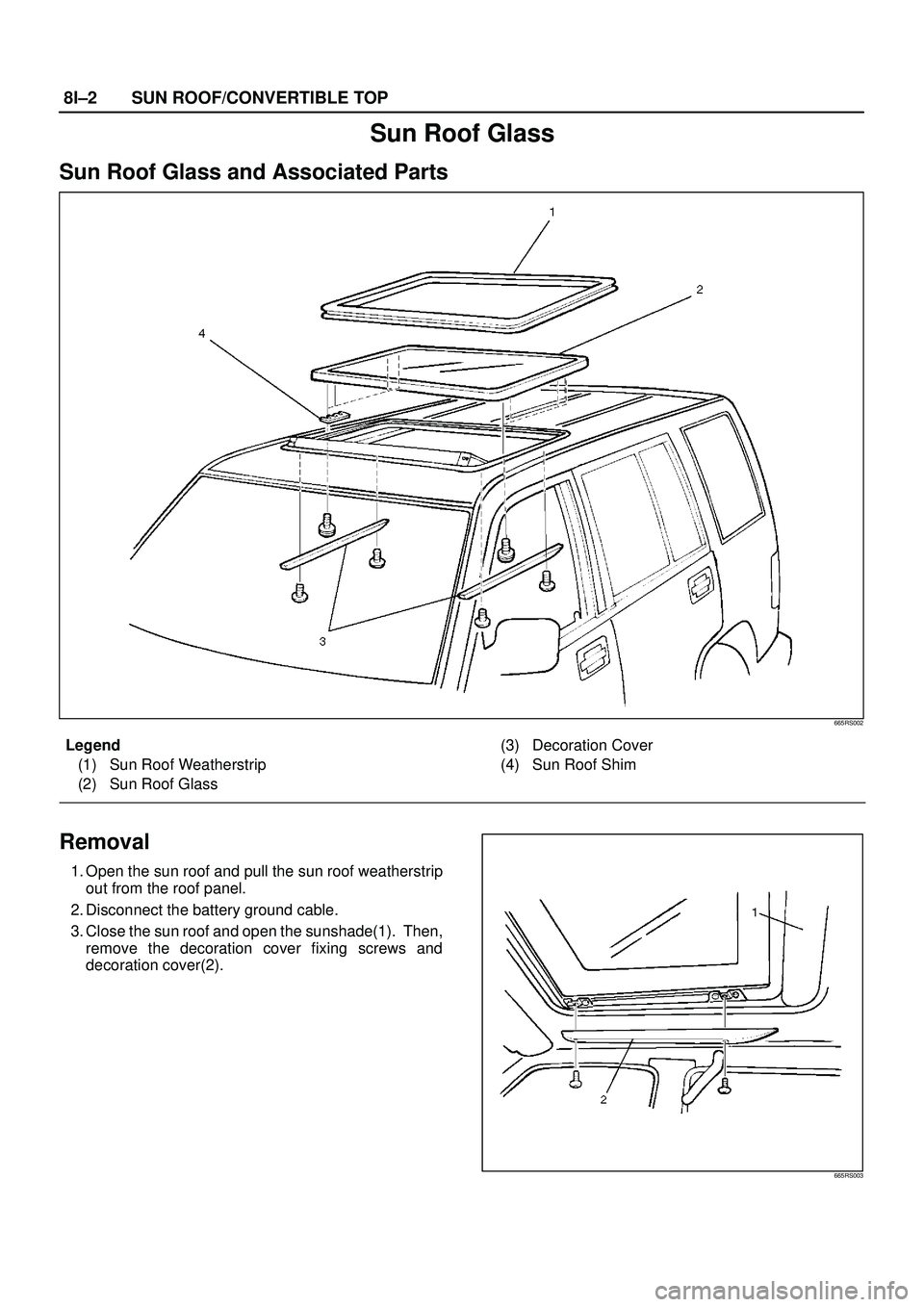

Sun Roof Glass and Associated Parts
665RS002
Legend
(1) Sun Roof Weatherstrip
(2) Sun Roof Glass(3) Decoration Cover
(4) Sun Roof Shim
Removal
1. Open the sun roof and pull the sun roof weatherstrip
out from the roof panel.
2. Disconnect the battery ground cable.
3. Close the sun roof and open the sunshade(1). Then,
remove the decoration cover fixing screws and
decoration cover(2).
665RS003

SUN ROOF/CONVERTIBLE TOP8I±3

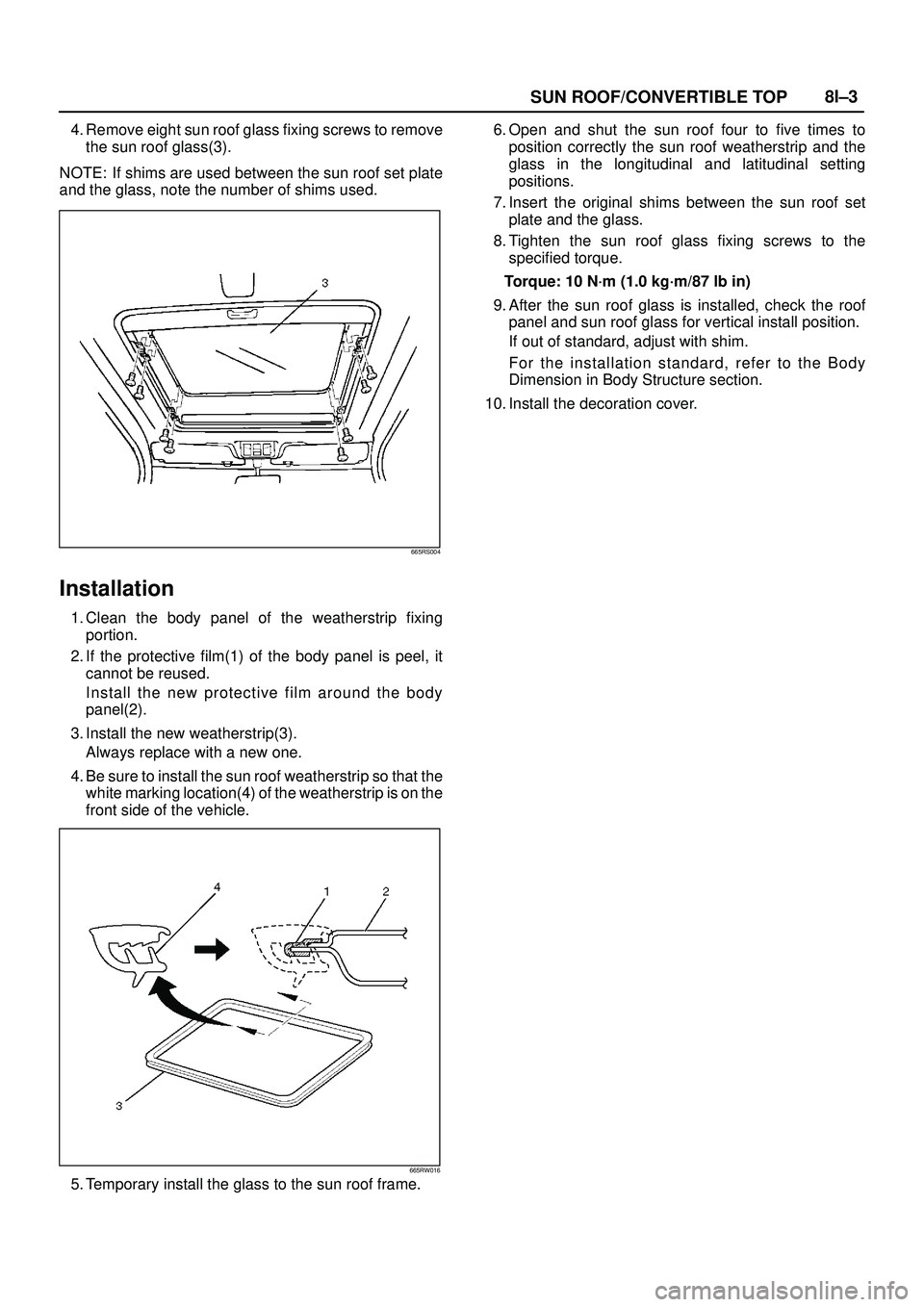

4. Remove eight sun roof glass fixing screws to remove
the sun roof glass(3).
NOTE: If shims are used between the sun roof set plate
and the glass, note the number of shims used.
665RS004
Installation
1. Clean the body panel of the weatherstrip fixing
portion.
2. If the protective film(1) of the body panel is peel, it
cannot be reused.
Install the new protective film around the body
panel(2).
3. Install the new weatherstrip(3).
Always replace with a new one.
4. Be sure to install the sun roof weatherstrip so that the
white marking location(4) of the weatherstrip is on the
front side of the vehicle.
665RW016
5. Temporary install the glass to the sun roof frame.6. Open and shut the sun roof four to five times to
position correctly the sun roof weatherstrip and the
glass in the longitudinal and latitudinal setting
positions.
7. Insert the original shims between the sun roof set
plate and the glass.
8. Tighten the sun roof glass fixing screws to the
specified torque.
Torque: 10 N´m (1.0 kg´m/87 lb in)
9. After the sun roof glass is installed, check the roof
panel and sun roof glass for vertical install position.
If out of standard, adjust with shim.
For the installation standard, refer to the Body
Dimension in Body Structure section.
10. Install the decoration cover.
