Position stabilizer bar on crossbeam.
Install and tighten bolts to 30-40Nm.
Repeat procedure at opposite end of stabilizer bar.

6. Tighten link arm to stabilizer bar securing nut to 60-80Nm.
Repeat procedure at opposite end of stabilizer bar.

7. Install steering rack on crossbeam.
Ensure that bushes are correct ly positioned on steering
rack.
Position steering rack on crossbeam.
Position support brac kets over bushes.
Install mounting bracket bolt s and tighten to 40-54Nm.

8. Install tie rods on steering arms.
Position and fully seat tie rod ball joint taper pin on
steering arm.
Install tie rod ball joint nu t and tighten to 71-85Nm.
Repeat procedure to install opposite side tie rod ball joint.
9. Install harness on suspension turret.
Noting positions marked during removal, tape new
securing clips to st eering harness.
Install securing clips/harness on LH turret.

10. With assistance position crossbeam/suspension assembly on
jack with protective wood under.
11. Traverse assembly into position below vehicle.
12. Ensure steering harn ess connector is positioned to avoid
damage during crossbeam lift .

13. NOTE: It may be necessary to use a hammer and drift to
finally align new mounting with body location.
Carefully raise crossbeam assembly into position.
Ensure that dowels of both crossbeam mountings are
correctly seated in body locations.

14. Ensure that both engine hydram ounts are correctly seated in
crossbeam locations.

15. Install crossbeam rear mountings.
Align rear mounting rubber with body location.
Install rear mounting securing bolt and nut and tighten
nut to 131-185 Nm.
Repeat procedure to install opposite side rear mounting
bolt and nut.
16. From engine compartment, install but do not tighten
crossbeam front RH bolts.

26. Install power steering pi pes on pinion housing.
Remove blanks and install new 'O'-ring seals in pipe
connectors.
Apply power steering fluid to 'O' ring seals.
Remove blanking plugs from pinion housing ports.
Position pipes on pinion ports and seat 'O' rings.

27. Secure pipes to pinion housing.
Ensure pipes and retaining pl ate are correctly seated.
Install bolt and tighten to 9-12Nm.

28. Secure return pipe on steering rack.
1. Position pipe rubber support on steering rack.
2. Position pipe on support .
3. RHD vehicles. Position harness on pipe support rubber.
4. Secure pipe and harness to support with new tiestrap.

29. RHD vehicles. Using new tiestrap, secure harness to steering
rack.

correctly seated in body locations.

3. Ensure that both engine hydram ounts are correctly seated in
crossbeam locations.

4. From engine compartment, install but do not tighten
crossbeam front RH bolts.

5. From engine compartment, install crossbeam front LH bolts
and tighten to 22-28Nm.
6. Install power steering fluid reservoir.
Position reservoir on mounting bracket.
Install reservoir securi ng nuts and bolts.

correctly seated in body locations.

3. Ensure that both engine hydram ounts are correctly seated in
crossbeam locations.

4. From engine compartment, install but do not tighten
crossbeam front RH bolts.

5. From engine compartment, install crossbeam front LH bolts
and tighten to 22-28Nm.
6. Install power steering fluid reservoir.
Position reservoir on mounting bracket.
Install reservoir securi ng nuts and bolts.

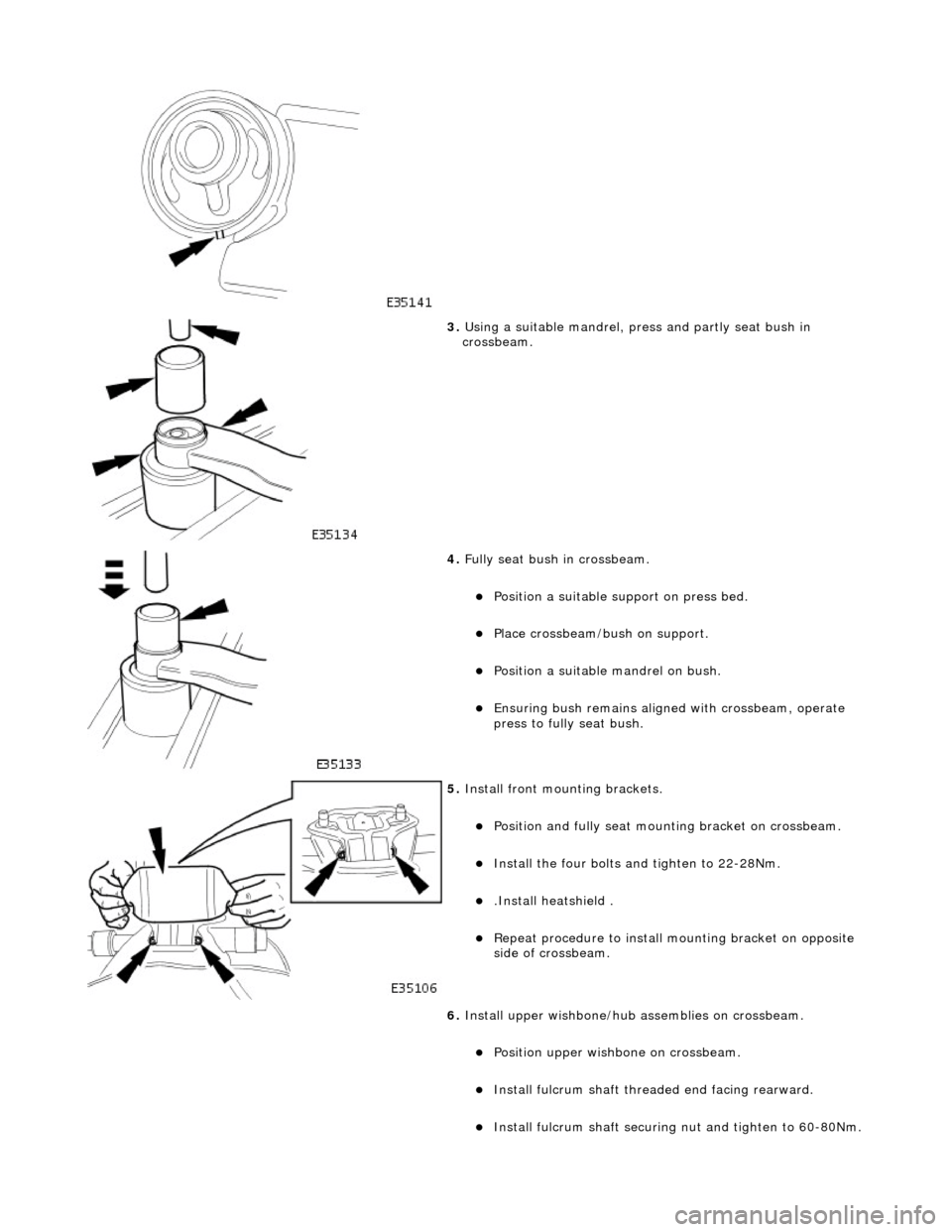

3. Using a suitable mandrel, pres s and partly seat bush in
crossbeam.

4. Fully seat bush in crossbeam.
Position a suitable support on press bed.
Place crossbeam/bush on support.
Position a suitable mandrel on bush.
Ensuring bush remains aligned with crossbeam, operate
press to fully seat bush.

5. Install front mounting brackets.
Position and fully seat mounting bracket on crossbeam.
Install the four bolts an d tighten to 22-28Nm.
.Install heatshield .
Repeat procedure to install mounting bracket on opposite
side of crossbeam.
6. Install upper wishbone/hub assemblies on crossbeam.
Position upper wishbone on crossbeam.
Install fulcrum shaft thread ed end facing rearward.
Install fulcrum shaft securing nut and tighten to 60-80Nm.

11. Install steering rack on crossbeam.
Ensure that bushes are correct ly positioned on steering
rack.
Position steering rack on crossbeam.
Position support brac kets over bushes.
Install mounting bracket bolt s and tighten to 41-54Nm.

12. Install tie rods on steering arms.
Position and fully seat tie rod ball joint taper pin on
steering arm.
Install tie rod ball joint nu t and tighten to 71-85Nm.
Repeat procedure to install opposite side tie rod ball joint.

13. Install steering harness on suspension turret.
Noting positions marked during removal, tape new
securing clips to st eering harness.
Install securing clips/harness on LH turret.
14. With assistance position crossbeam/suspension assembly on
jack with protective wood under.
15. Traverse assembly into position below vehicle.
16. Ensure steering harn ess connector is positioned to avoid
damage during crossbeam lift .
17. NOTE: It may be necessary to use a hammer and drift to
finally align new mounting with body location.

Carefully raise crossbeam assembly into position.
Ensure that dowels of both crossbeam mountings seat
correctly in body locations.

18. Ensure that both engine hydramounts seat correctly in
crossbeam locations.

19. Install crossbeam rear mountings.
Align rear mounting rubber with body location.
Install rear mounting securing bolt and nut and tighten
nut to 131-185 Nm.
Repeat procedure to install opposite side rear mounting
securing bolt and nut.

20. From engine compartment, install but do not tighten
crossbeam front RH bolts.
21. From engine compartment, install crossbeam front LH bolts
and tighten to 22-28Nm.

Remove blanking plugs from pinion housing ports.
Position pipes on pinion ports and seat 'O' rings.

31. Secure pipes to pinion housing.
Ensure pipes and retaining pl ate are correctly seated.
Install bolt and tighten to 9-12Nm.

32. Secure return pipe on steering rack.
1. Position pipe rubber support on steering rack.
2. Position pipe on support .
3. RHD vehicles. Position harness on pipe support rubber.
4. Secure pipe and harness to support with new tiestrap.


33. RHD vehicles. Using new tiestrap, secure harness to steering
rack.
34. Connect steering harness.
Route harness connector to body front location.
Connect steering ha rness connector.
Install connector in body retaining clip.

10. Install bush in housing.
Position a steel plate over the bush, ensuring the plate is
large enough to cover the rubber flange.
Operate the press to install the bush.

11. Ensure bush is fully seated in subframe.
The clearance between the bush flange and subframe
must not exceed 1.5 mm.
12. Ensure bush is aligned correctly in subframe as detailed in
Step 8 or 9 as appropriate.
13. Wipe off all excess adhesive from subframe and bush, and
remove masking tape.
14. NOTE: Allow adhesive at leas t 30 minutes to cure, before
installing subframe on vehicle.
Install suspension subframe on vehicle. Refer to 64..25.20.
