lower JAGUAR X308 1998 2.G Workshop Manual

26. Lower and withdraw jack from crossbeam.

27. Release engine from support tool.
1. Slacken hook adjustment nuts until weight of engine is released.
2. Remove hooks from engine front lifting eyes.
3. Remove special tool 303- 021 from fender channel.

28. Install crossbeam to engine Hydramount bolts.
Install bolt securing Hydr amount to crossmember and
tighten to 22-28Nm.
Repeat procedure to install crossmember opposite side
securing bolt.

29. Position and connect harnes s to steering transducer.
RHD vehicles. Position steeri ng harness behind return
pipe.
Connect harness to transducer.
30. Install power steering pi pes on pinion housing.
Remove blanks and install new 'O'-ring seals in pipe
connectors.
Apply power steering fluid to 'O' ring seals.

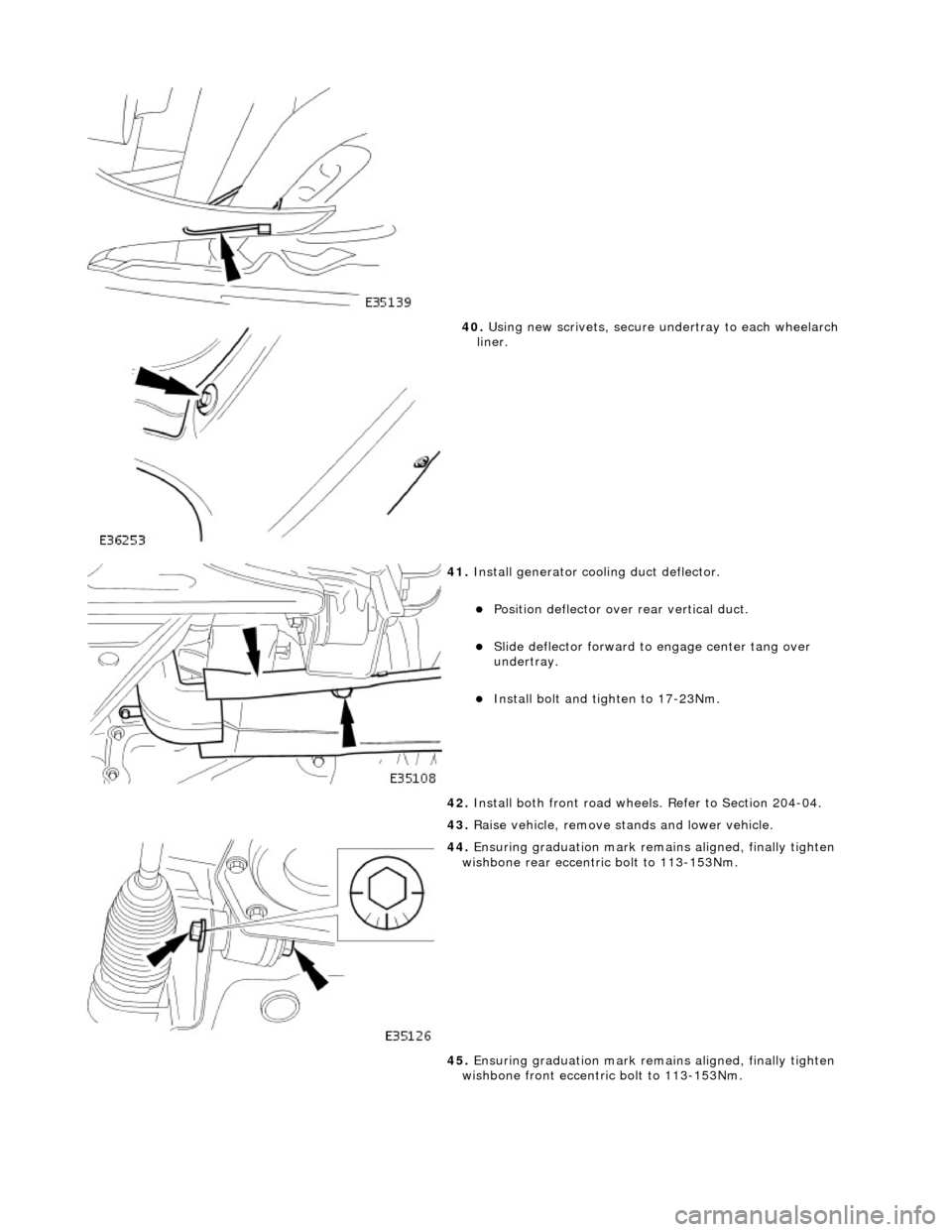

40. Using new scrivets, secure un dertray to each wheelarch
liner.

41. Install generator cool ing duct deflector.
Position deflector over rear vertical duct.
Slide deflector forward to engage center tang over
undertray.
Install bolt and ti ghten to 17-23Nm.
42. Install both front road wheels. Refer to Section 204-04.
43. Raise vehicle, remove st ands and lower vehicle.

44. Ensuring graduation mark remains aligned, finally tighten
wishbone rear eccentric bolt to 113-153Nm.
45. Ensuring graduation mark remains aligned, finally tighten
wishbone front eccentric bolt to 113-153Nm.

6. Remove both mounting brac kets from the suspension
subframe.
1. Remove bush center bolt from bracket.
2. Remove bolts securi ng bracket to body.
Remove bracket.
Following the same procedure, remove bracket on
opposite side.
7. To permit access, lower jack approximately 25 mm.

8. Remove and retain spacer from top of each bush.

9. Remove bolts securing link assemblies to suspension subframe.
1. Remove bolt.
2. Ensure spacer remain s captive in bracket.
Following the same procedure, remove bolt from opposite
side of subframe.
10. With assistance to support su bframe, remove the subframe
center to differential casing bolts.

13. Tighten mounting bracket bush center bolt to 80-100Nm.
Following same procedure, tighten mounting bracket
bush center bolt on opposite side.
14. Lower and remove jack.
15. Lower four-post lift.
