JAGUAR XFR 2010 1.G Workshop Manual

Filling

1. Refer to: Radiator Splash Shield (501-02 Front End Body Panels, Removal and Installation).

2. Lower the vehicle.

3.
4. CAUTION: Anti-freeze concentration must be maintained at 50%.

Fill the cooling system, keeping coolant to the upper level mark of the
expansion tank until a steady stream of coolant is seen running from the
coolant hose bleed point.

5.
Continue to fill the coolant until the maximum level
is reached.


















6. Set the heater controls to maximum.

7. Start engine and increase speed to 2000 rpm for 2 minutes.

8.
Continue to top-up with coolant with engine idling until hot air is
emitted from face vents.
When hot air is emitted from the vents, switch the heater off. Go
to Step 10.

9. If no hot air is emitted, turn the engine off for 10 seconds and the start
the engine and return to Step 7.


10. CAUTION: Correct installation of the Coolant
expansion tank cap can be obtained by tightening the cap
until an audible click is heard.

Continue to fill the coolant until the maximum level is
reached.









11. Switch the heater off.

12. Raise the engine speed to 2000 rpm for eight minutes.

13. Switch the engine off and allow to cool.

14. Visually check the engine and cooling system for signs of coolant
leakage.

15. WARNING: When releasing the cooling system pressure, cover the
coolant expansion tank cap with a thick cloth.
CAUTIONS:


Since injury such as scalding could be caused by escaping steam or
coolant, make sure the vehicle cooling system is cool prior to carrying
out this procedure.


Make sure the coolant level remains above the "COLD FILL RANGE"
lower level mark.


NOTE: When the cooling system is warm, the coolant will be
approximately 10mm above the upper level mark on the expansion tank
with the cap removed.
Check and top-up the coolant if required.

Published: 14-Feb-2013
Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Cooling System Draining,
Filling and Bleeding V8 S/C 5.0L Petrol
General Procedures

Draining

1. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

2. Refer to: Secondary Bulkhead Center Panel (501-02 Front End Body Panels, Removal and Installation).

3. Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).

4. Refer to: Radiator Splash Shield (501-02 Front End Body Panels, Removal and Installation).

5. WARNINGS:


Release the cooling system pressure by slowly turning
the coolant expansion tank cap a quarter of a turn. Cover
the expansion tank cap with a thick cloth to prevent the
possibility of scalding. Failure to follow this instruction may
result in personal injury.


Be prepared to collect escaping fluid.


CAUTION: Since injury such as scalding could be
caused by escaping steam or coolant, make sure the vehicle
cooling system is cool prior to carrying out this procedure.



6. CAUTION: Be prepared to collect escaping fluids.

7. CAUTION: Be prepared to collect escaping fluids.
















8. CAUTION: Be prepared to collect escaping coolant.
9. www.JagDocs.com

Torque: 50 Nm













12.
Carry out the procedure up to step 1 in the filling section three times,
filling the cooling system with clean water at the first two drains. At the
third refill, use a suitable measuring tool to make sure that the cooling
system maintains a 50% mix.

Filling

1.

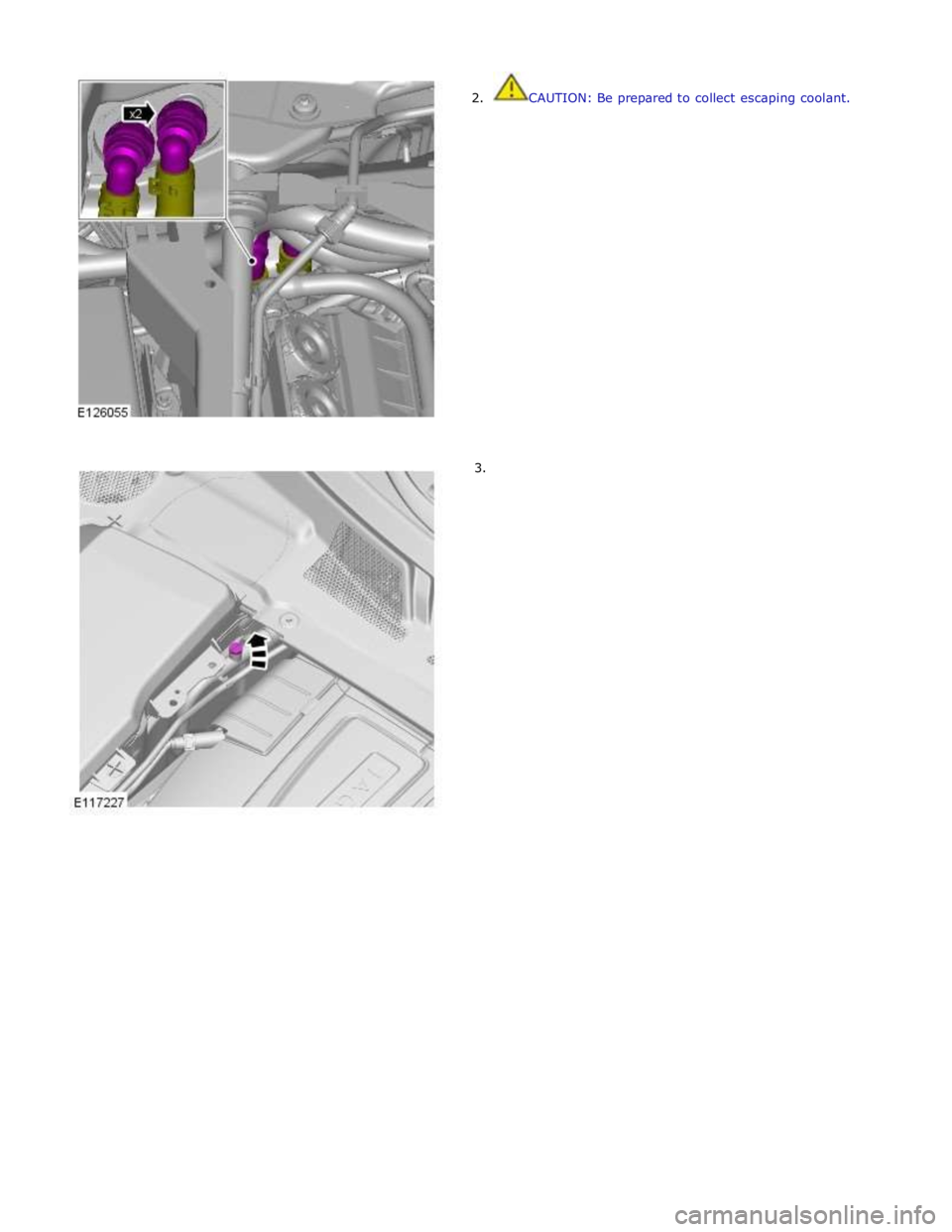

2. CAUTION: Be prepared to collect escaping coolant.























3.

4. CAUTION: Be prepared to collect escaping coolant.

Fill the cooling system, keeping coolant to the upper level
mark of the expansion tank until a steady stream of coolant
is seen running from the coolant hose bleed point.
















5. Continue to fill the coolant until the maximum level is reached.

6. Set the heater controls to maximum.

7. Start engine and increase speed to 2000 rpm for 2 minutes.

8.
Continue to top-up with coolant with engine idling until hot air is
emitted from face vents.
When hot air is emitted from the vents, switch the heater off. Go
to Step 10.

9. If no hot air is emitted, turn the engine off for 10 seconds and the start
the engine and return to Step 7.


10. CAUTION: Correct installation of the Coolant
expansion tank cap can be obtained by tightening the cap
until an audible click is heard.

Continue to fill the coolant until the maximum level is
reached.









11. Switch the heater off.

12. Raise the engine speed to 2000 rpm for eight minutes.

13. Switch the engine off and allow to cool.

14. Visually check the engine and cooling system for signs of coolant
leakage.


15. WARNING: When releasing the cooling system pressure, cover the
coolant expansion tank cap with a thick cloth.
CAUTIONS:


Since injury such as scalding could be caused by escaping steam or
coolant, make sure the vehicle cooling system is cool prior to carrying
out this procedure.


Make sure the coolant level remains above the "COLD FILL RANGE"
lower level mark.


NOTE: When the cooling system is warm, the coolant will be
approximately 10mm above the upper level mark on the expansion tank
with the cap removed.
Check and top-up the coolant system as required when cool.

16. Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).

17. Refer to: Radiator Splash Shield (501-02 Front End Body Panels, Removal and Installation).

18. Refer to: Secondary Bulkhead Center Panel (501-02 Front End Body Panels, Removal and Installation).

Published: 19-Nov-2013
Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Auxiliary Radiator
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Air Cleaner RH (303-12C Intake Air Distribution and Filtering - V8 5.0L Petrol, Removal and Installation).


3. CAUTION: Be prepared to collect escaping coolant.




















4. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

5. Refer to: Cooling System Partial Draining, Filling and Bleeding - V8 5.0L Petrol (303-03C Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).

6. Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation). www.JagDocs.com
