JAGUAR XFR 2010 1.G Workshop Manual

www.JagDocs.com

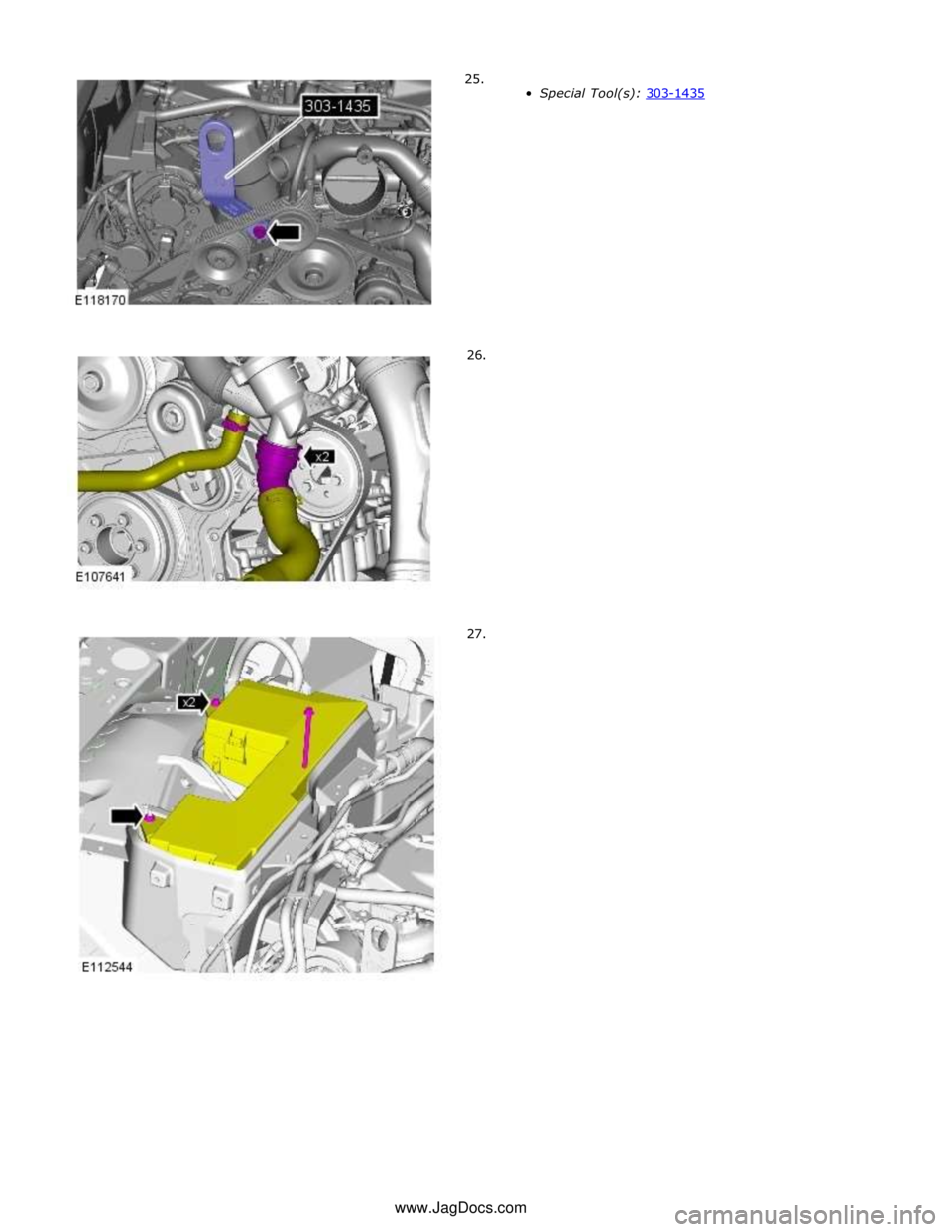

28.
29.
30.











































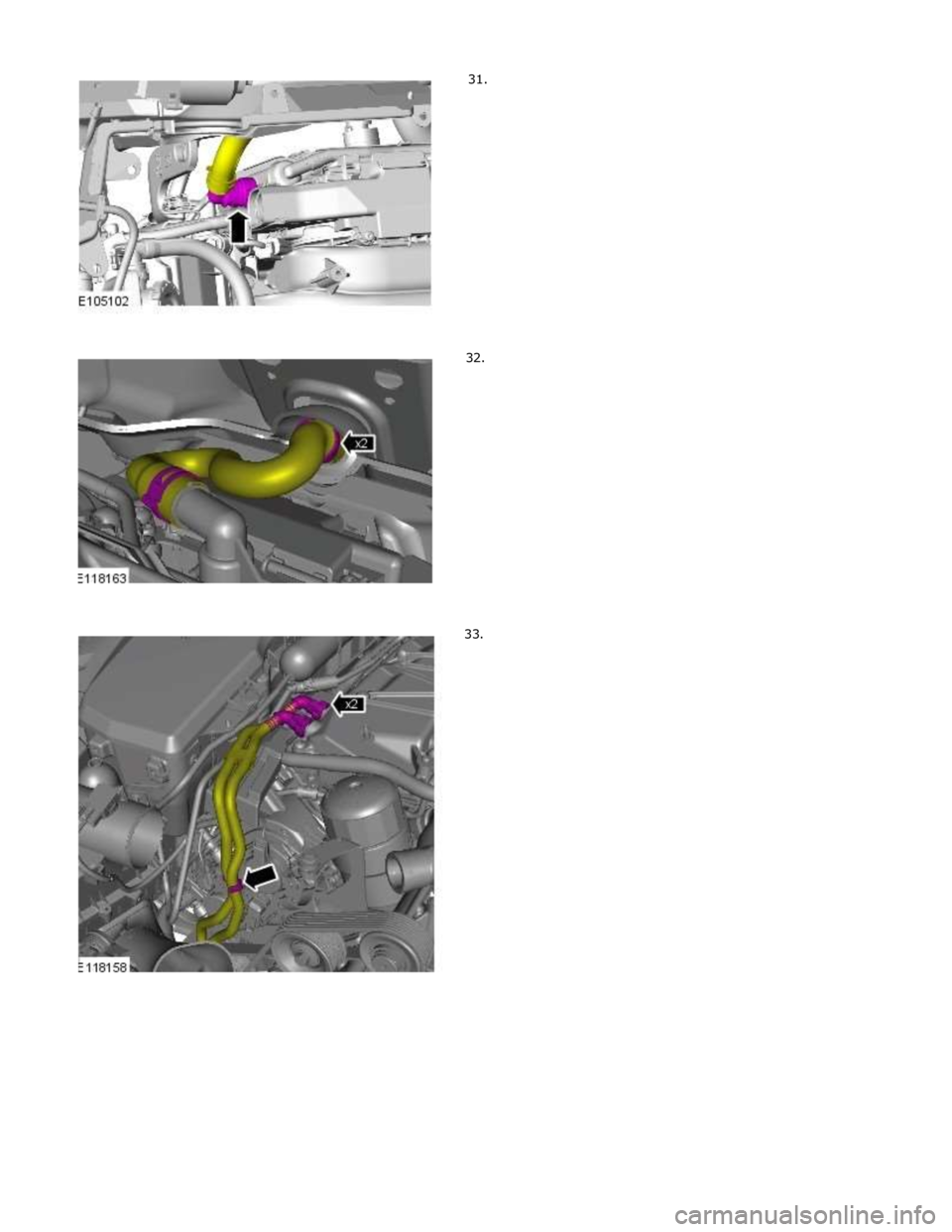

CAUTIONS:


Be prepared to collect escaping fluids.


Make sure that all openings are sealed. Use new
blanking caps.

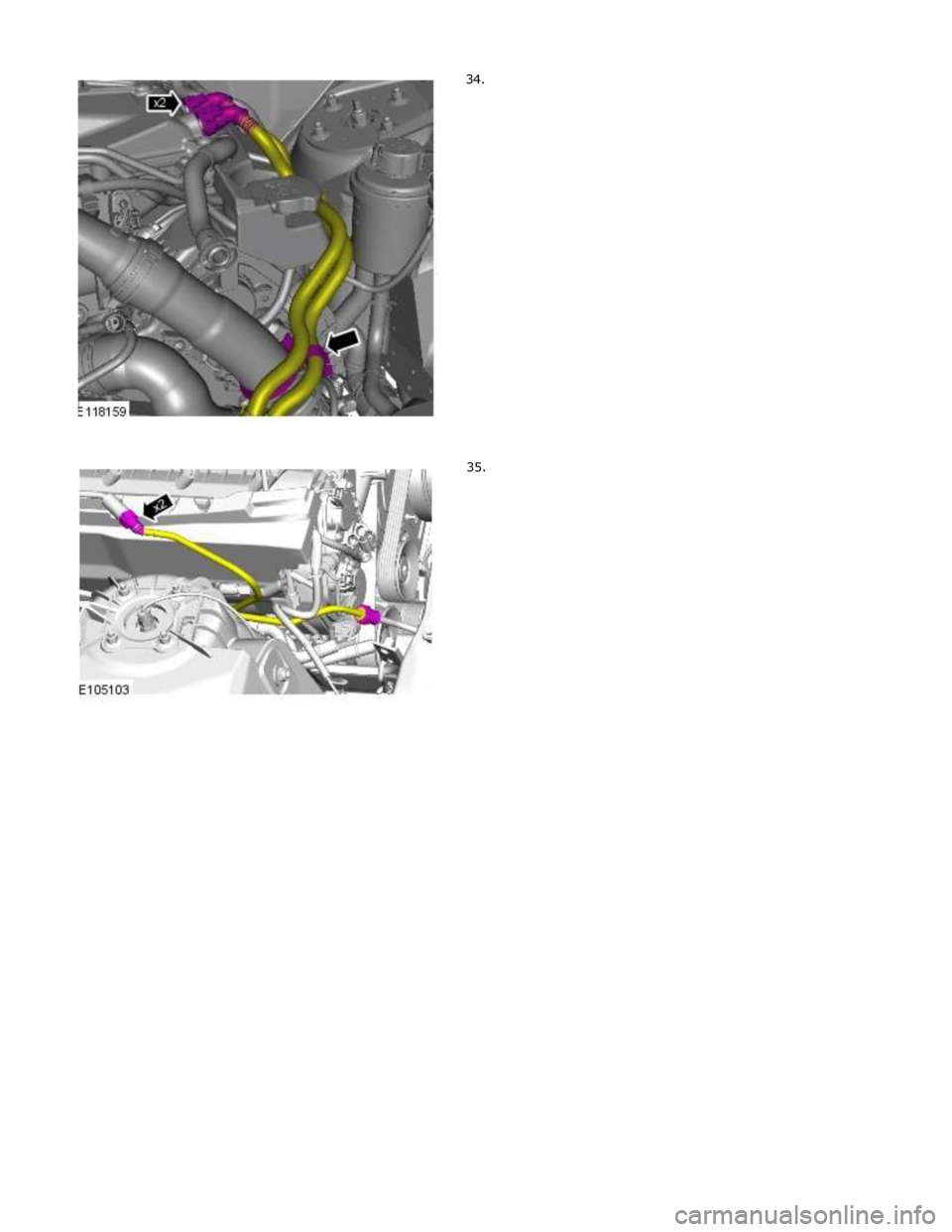

38.
39.



















NOTE: This step requires the aid of another technician.

Using a suitable tool, remove the engine. www.JagDocs.com

Engine - V8 S/C 5.0L Petrol - Engine
Installation

NOTES:


Some variation in the illustrations may occur, but the essential information is always correct. Published: 19-Nov-2013

If a new engine is to be installed, remove the intake manifold to access the top transmission retaining bolts.


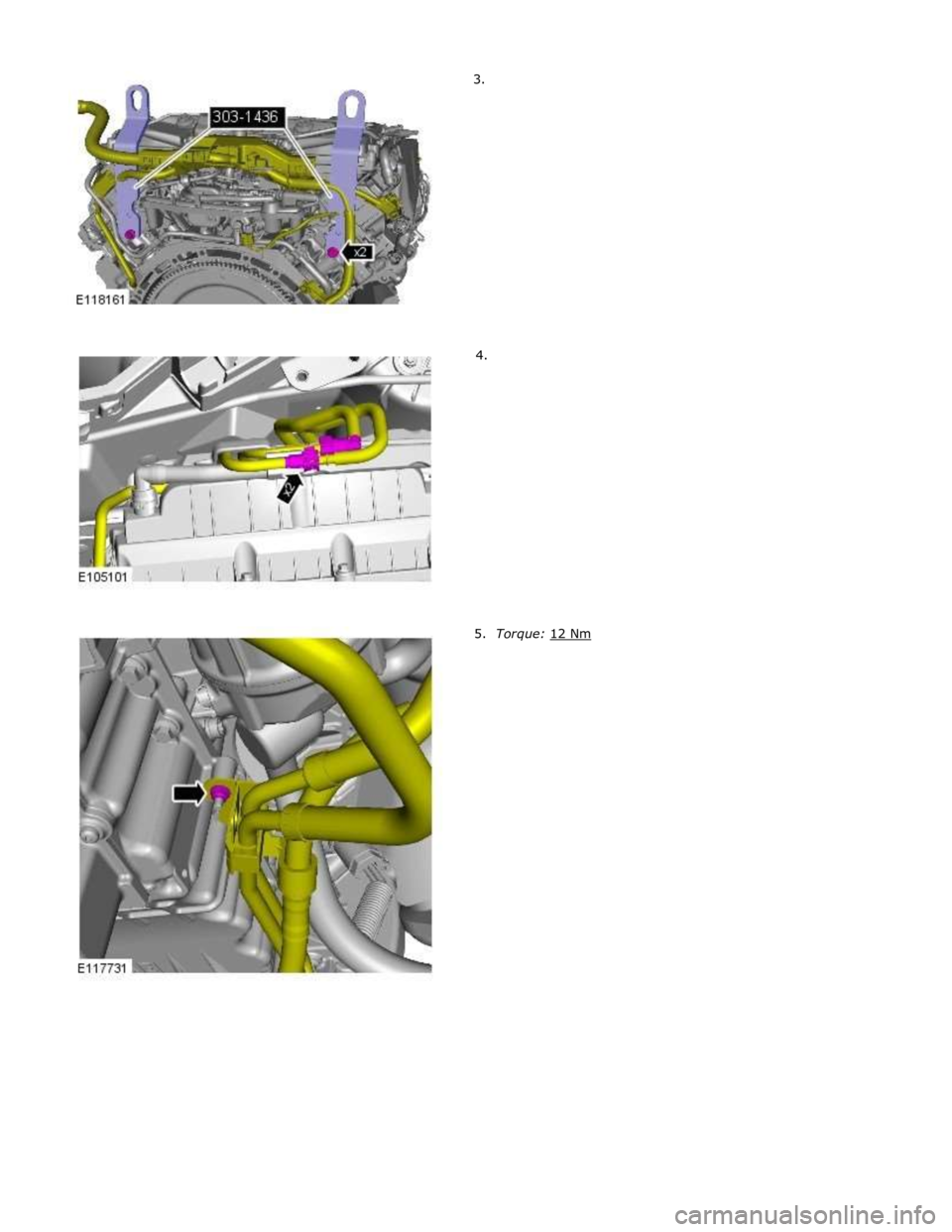

1. NOTE: This step requires the aid of another technician.
Install the engine assembly.





















2. Torque: 45 Nm

6. CAUTION: Install new o-ring seals

Torque: 9 Nm































7.
8.

9.















10.
11.
NOTE: Remove and discard the blanking caps.















Torque: 3 Nm
























Torque: 9 Nm
