JAGUAR XFR 2010 1.G Workshop Manual

27. Release the radiator assembly.










28.
Refer to: Engine Cover - V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-05 Interior Trim and Ornamentation, Removal and Installation).
29. Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation). 30. Refer to: Radiator Splash Shield (501-02 Front End Body Panels, Removal and Installation). 31. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).
32.
Refer to: Camber and Caster Adjustment (204-00 Suspension System - General Information, General Procedures).

Published: 11-May-2011
Uni-Body, Subframe and Mounting System - Rear Subframe V8 5.0L Petrol/V8 S/C 5.0L Petrol
Removal and Installation

General Equipment

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Petrol and Petrol-Ethanol Fuel Systems Health and Safety Precautions (100-00 General Information, Description and Operation).

2. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

3. Refer to: Fuel Tank Draining (310-00 Fuel System - General Information, General Procedures).

4. Refer to: Wheel and Tire (204-04 Wheels and Tires, Removal and Installation).

5. Refer to: Driveshaft - V8 5.0L Petrol/V8 S/C 5.0L Petrol (205-01 Driveshaft, Removal and Installation).


6. CAUTION: Be prepared to collect escaping fluids.
NOTES:

The fuel tank has a non-return valve in the filler stub
pipe, only the fuel present in the filler hose will be spilt.


Some variation in the illustrations may occur, but the
essential information is always correct.











7. Using the special tool, press and hold the brake pedal. Powertrain Jack www.JagDocs.com

8. WARNING: If the fluid is spilled on the paintwork, the
affected area must be immediately washed down with cold
water.
CAUTIONS:


Make sure that a new sealing washer is installed.
Be prepared to collect escaping fluids.
NOTE: LH illustration shown, RH is similar.
Torque: 35 Nm








9.

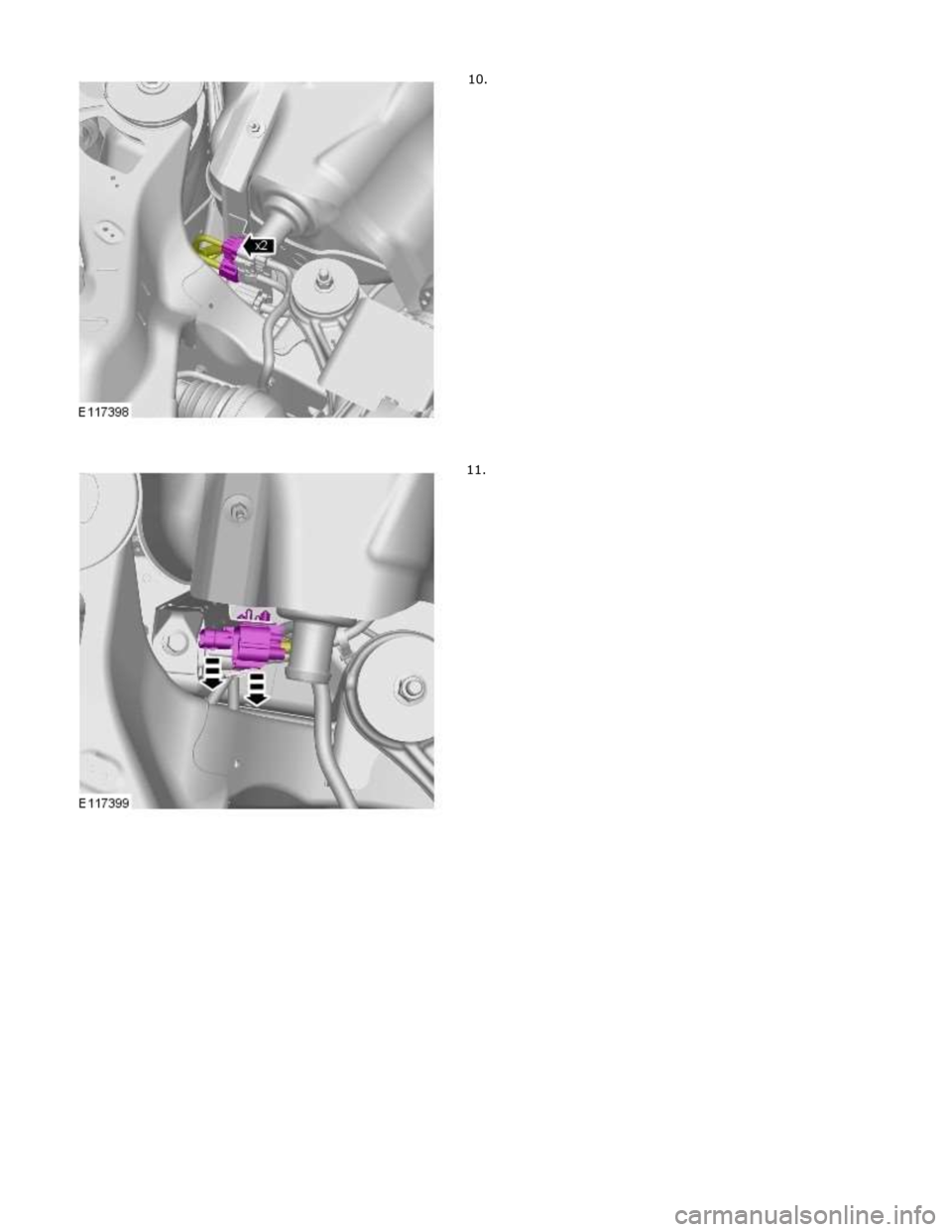

12.

























13. NOTE: Left-hand shown, right-hand similar.

Torque: 47 Nm






















NOTE: Left-hand shown, right-hand similar.

14.

























15. WARNING: Install the M12 subframe bolts prior to
removing axle support.
























NOTE: LH illustration shown, RH is similar.

Torque: 133 Nm

Installation
16.























17.
CAUTION: Make sure that new bolts are installed.

General Equipment: Powertrain Jack Torque:
Stage 1:80 Nm Stage 2:240°
1. To install, reverse the removal procedure.

2. Refer to: Brake System Bleeding (206-00 Brake System - General Information, General Procedures).

3. Refer to: Camber and Caster Adjustment (204-00 Suspension System - General Information, General Procedures). www.JagDocs.com

Reciever-bush
204-475

Replacer-bush
204-474

Remover bush
204-473

Remover support-bush
204-472
Removal
Vehicles with 3.0L diesel engine

1. For additional information, refer to: Rear Subframe - TDV6 3.0L Diesel (502-00 Uni-Body, Subframe and Mounting System, Removal and
Installation).

Vehicles with 5.0L

2. For additional information, refer to: Rear Subframe - V8 5.0L Petrol/V8 S/C 5.0L Petrol (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

All vehicles


3. NOTE: Note the orientation of the bushing before
removal.











Installation
All vehicles


1. NOTE: Make sure the bushing is correctly orientated.













Vehicles with 5.0L

2. For additional information, refer to: Rear Subframe - V8 5.0L Petrol/V8 S/C 5.0L Petrol (502-00 Uni-Body, Subframe and Mounting System, Removal and Installation).

Vehicles with 3.0L diesel engine

3. For additional information, refer to: Rear Subframe - TDV6 3.0L Diesel (502-00 Uni-Body, Subframe and Mounting System, Removal and
Installation).
