JAGUAR XFR 2010 1.G Workshop Manual

8. NOTE: Some variation in the illustrations may occur,
but the essential information is always correct.

Published: 14-Apr-2014
Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Coolant Expansion Tank
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Using a syringe, remove the cooling fluid from the expansion tank.


3. CAUTION: Take extra care not to damage the
component.
Torque: 7 Nm






























4.

Installation 5. CAUTION: Note the fitted position of the component
prior to removal.

NOTES:


Do not disassemble further if the component is
removed for access only.


Make sure that the component is installed to the
position noted on removal.

1. To install, reverse the removal procedure.

2. Fill the cooling system to the upper level mark of the coolant expansion
tank.

Published: 11-May-2011
Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Cooling Fan Motor and
Shroud Vehicles With: Supercharger
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Radiator Splash Shield (501-02 Front End Body Panels, Removal and Installation).


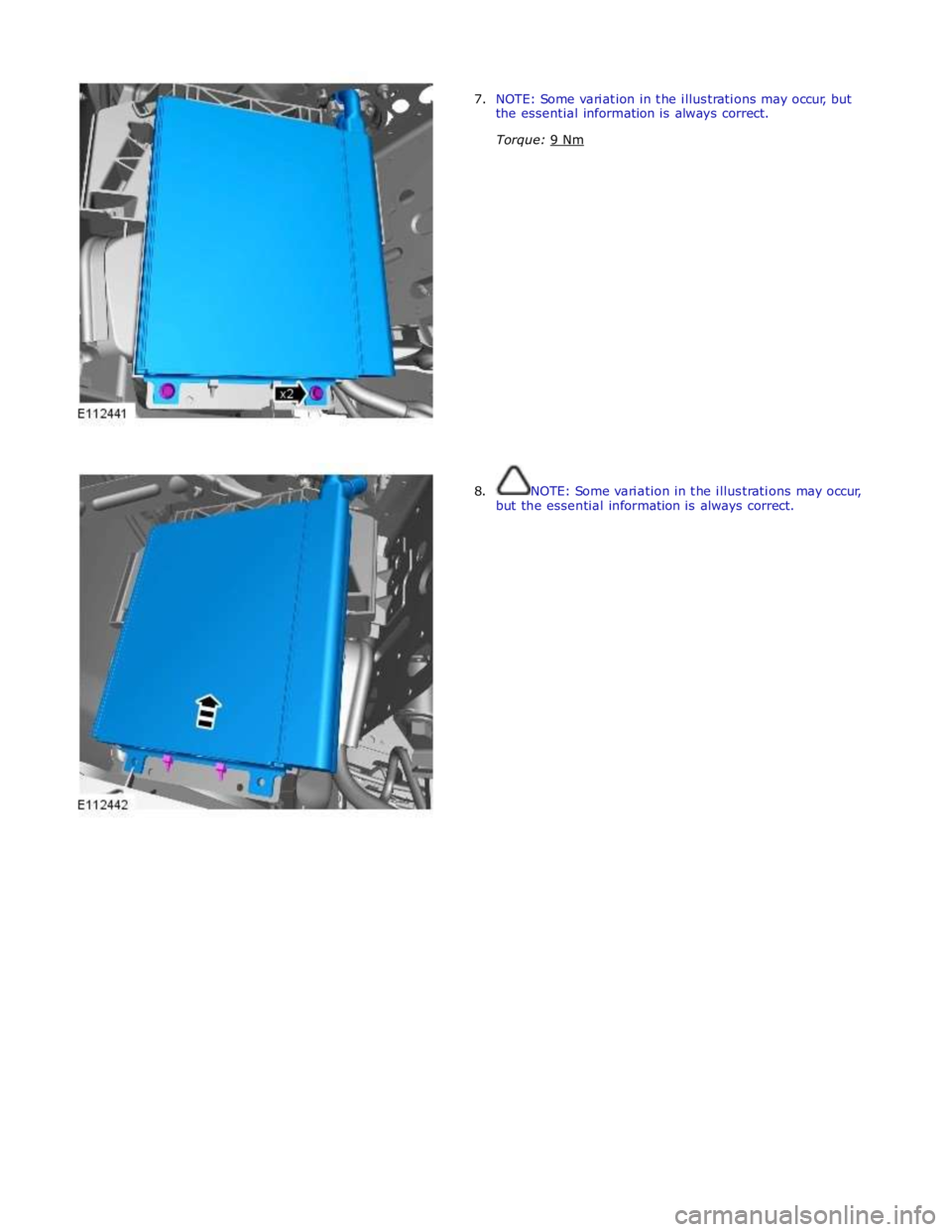

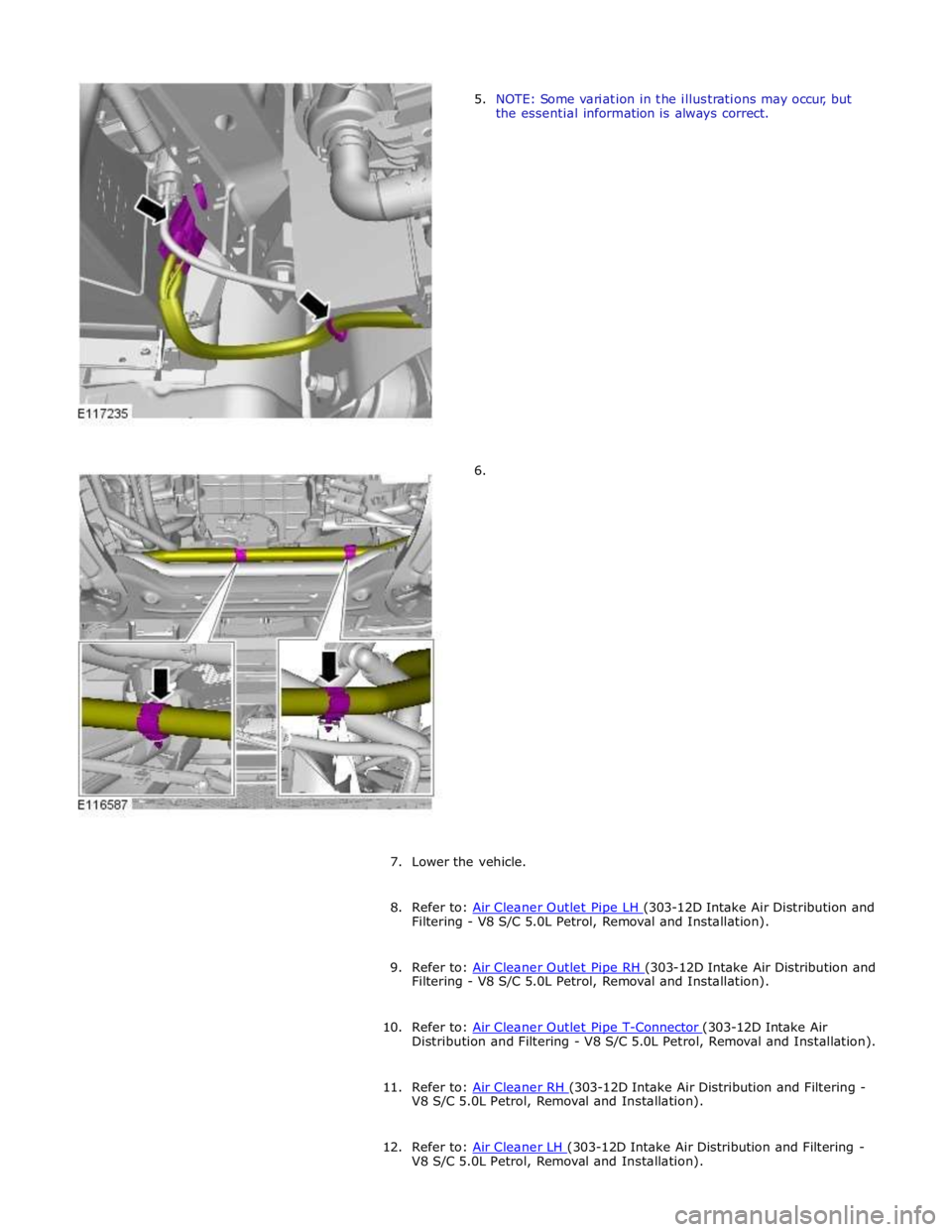

4. NOTE: Some variation in the illustrations may occur, but
the essential information is always correct. www.JagDocs.com

Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

9. Refer to: Air Cleaner Outlet Pipe RH (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

10. Refer to: Air Cleaner Outlet Pipe T-Connector (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

11. Refer to: Air Cleaner RH (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

12. Refer to: Air Cleaner LH (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).

Torque: 7 Nm

Published: 19-Nov-2013
Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol - Cooling Module Vehicles
With: Supercharger
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging (412-00 Climate Control System - General Information, General Procedures).


3. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.


4. NOTE: Some variation in the illustrations may occur, but
the essential information is always correct.


























5. WARNINGS:


Since injury such as scalding could be caused by escaping steam or
coolant, do not remove the filler cap from the coolant expansion tank
while the system is hot.


Be prepared to catch escaping fluid.

5.0L Petrol (303-03C Engine Cooling - V8 5.0L Petrol/V8 S/C 5.0L Petrol, General Procedures).

6.
7.
