JAGUAR XFR 2010 1.G Workshop Manual

Installation
1. CAUTIONS:


Make sure the anti-seize compound does not contact the catalyst
monitor sensor tip.


If accidentally dropped or knocked install a new sensor.

Make sure the catalyst monitor sensor wiring harness is not twisted
more than 180 degrees and is not in contact with either the exhaust or
driveshaft.

NOTE: If the original sensor is to be installed, apply lubricant
meeting specification ESE-M12A4-A to the thread of the sensor.

To install, reverse the removal procedure.


2. NOTE: For NAS vehicles only.
If required, carry out a long drive cycle.

Refer to: Powertrain Control Module (PCM) Long Drive Cycle Self-Test (303-14D Electronic Engine Controls - V8 S/C 5.0L Petrol, General
Procedures). www.JagDocs.com

Published: 11-May-2011
Electronic Engine Controls - V8 S/C 5.0L Petrol - Crankshaft Position (CKP)
Sensor
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.


1. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

2. Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).




Installation

3. NOTE: Clean the components general area prior to
dismantling.

Torque: 10 Nm
1. CAUTIONS:


Make sure that the mating faces are clean and free of foreign
material.


Make sure that the component is clean, free of foreign material and
lubricant.
To install, reverse the removal procedure.

Published: 11-May-2011

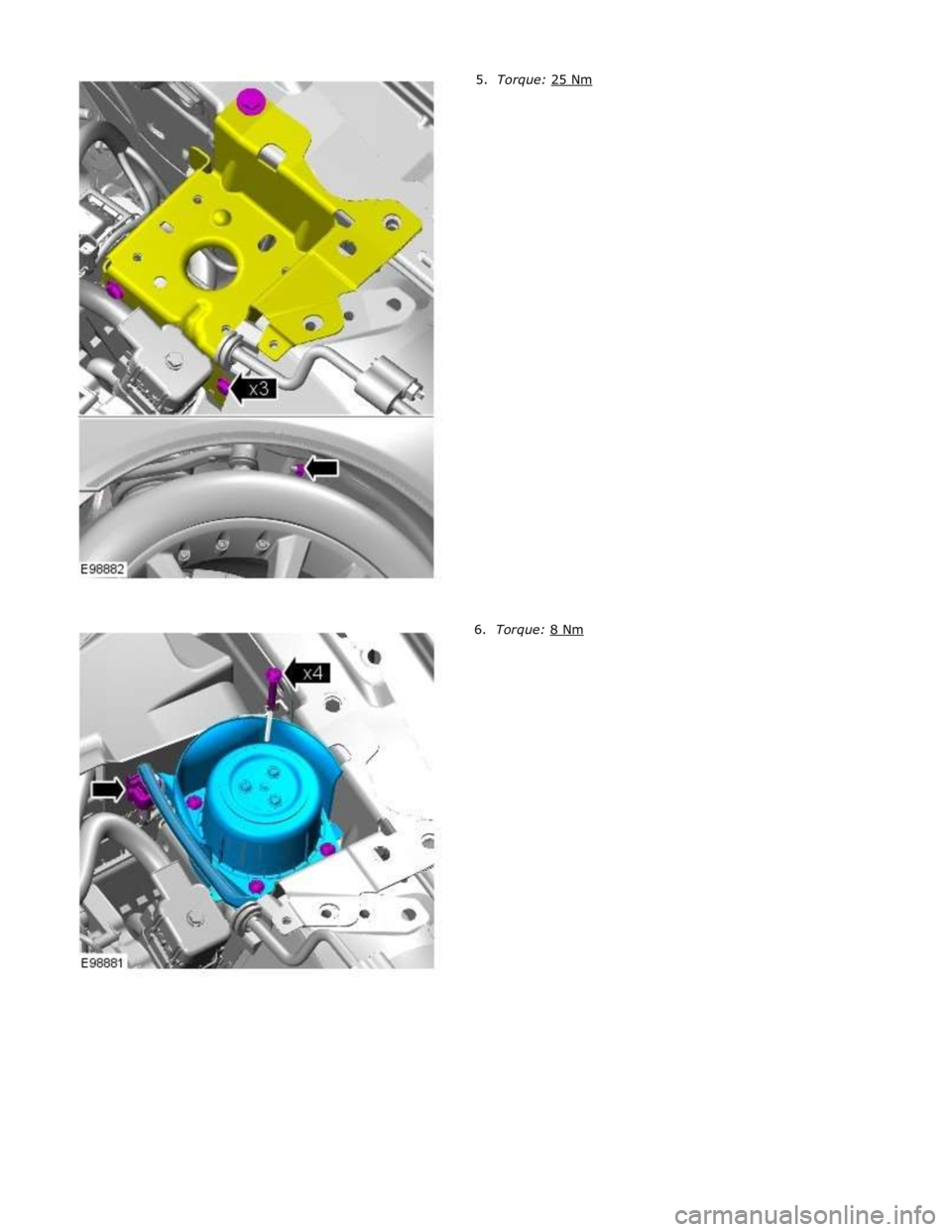

Electronic Engine Controls - V8 S/C 5.0L Petrol - Engine Control Module
(ECM)
Removal and Installation

Removal


NOTE: Some variation in the illustrations may occur, but the essential information is always correct.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

2. Refer to: Cowl Vent Screen (501-02 Front End Body Panels, Removal and Installation).

3. Refer to: Secondary Bulkhead Panel LH - TDV6 3.0L Diesel /V8 5.0L Petrol/V8 S/C 5.0L Petrol (501-02 Front End Body Panels, Removal and Installation).

4. Torque: 25 Nm

6. Torque: 8 Nm

8. Torque: 10 Nm 9.

Installation

1. NOTE: New units must be configured using the Programmable
Module Installation Routine in the diagnostic tool.
To install, reverse the removal procedure.
www.JagDocs.com

Published: 19-Aug-2013
Electronic Engine Controls - V8 S/C 5.0L Petrol - Engine Coolant Temperature
(ECT) Sensor
Removal and Installation

Removal

NOTES:


Some variation in the illustrations may occur, but the essential information is always correct.


Removal steps in this procedure may contain installation details.


1. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

2. Refer to: Cooling System Partial Draining, Filling and Bleeding (303-03B Engine Cooling - V6 3.0L Petrol, General Procedures).

3. Refer to: Catalytic Converter RH (309-00C Exhaust System - V8 5.0L Petrol/V8 S/C 5.0L Petrol, Removal and Installation).

4. Torque: 48 Nm

Installation 5. WARNING: Fluid loss is unavoidable, use absorbent
cloth or a container to collect the fluid.


CAUTION: Engine coolant will damage the paint
finished surfaces. If spilt, immediately remove the coolant
and clean the area with water.

Lift the tang and rotate the engine coolant temperature
(ECT) sensor counter clockwise.

1. To install, reverse the removal procedure.

Published: 11-May-2011
Electronic Engine Controls - V8 S/C 5.0L Petrol - Engine Oil Level Sensor
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.


1. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

2. Refer to: Air Deflector (501-02 Front End Body Panels, Removal and Installation).

3. Refer to: Engine Oil Draining and Filling (303-01D Engine - V8 S/C 5.0L Petrol, General Procedures).




Installation
4. CAUTION: Be prepared to collect escaping fluids.
Torque: 11 Nm

1. CAUTION: A new O-ring seal is to be installed.
To install, reverse the removal procedure.

Published: 11-May-2011
Electronic Engine Controls - V8 S/C 5.0L Petrol - Front Knock Sensor (KS) LH
Removal and Installation

Removal


NOTE: Removal steps in this procedure may contain installation details.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Do not work on or under a vehicle supported only by a jack.
Always support the vehicle on safety stands.
Raise and support the vehicle.

3. Refer to: Supercharger (303-12D Intake Air Distribution and Filtering - V8 S/C 5.0L Petrol, Removal and Installation).




Installation

4. Torque: 20 Nm
1. To install, reverse the removal procedure.
