Timing JAGUAR XFR 2010 1.G Owner's Guide

10.


































11. CAUTION: If the variable valve timing (VVT) units are
knocked or dropped then the VVT must be replaced.
Remove the timing chain with the VVT units. www.JagDocs.com

14.


































15. CAUTION: If the VVT is knocked or dropped then the
VVT must be replaced.
Remove the timing chain with the VVT units.

7. CAUTIONS:


Do not allow the camshaft to rotate.


If the VVT is knocked or dropped then the VVT must
be replaced.


NOTE: Do not tighten at this stage.

Install the timing chain with the variable valve
timing (VVT) units.


















8.
Make sure that all the timing chain alignment marks are in the
positions shown.

10.




































11. Make sure the tensioner piston is fully extended. Then fully
depress and lock the tensioner piston with the grenade pin
before installation, failure to do this may result in damage
to the engine.

































CAUTION: Do not release the timing chain tensioner
locking pin at this stage.
Torque: 10 Nm

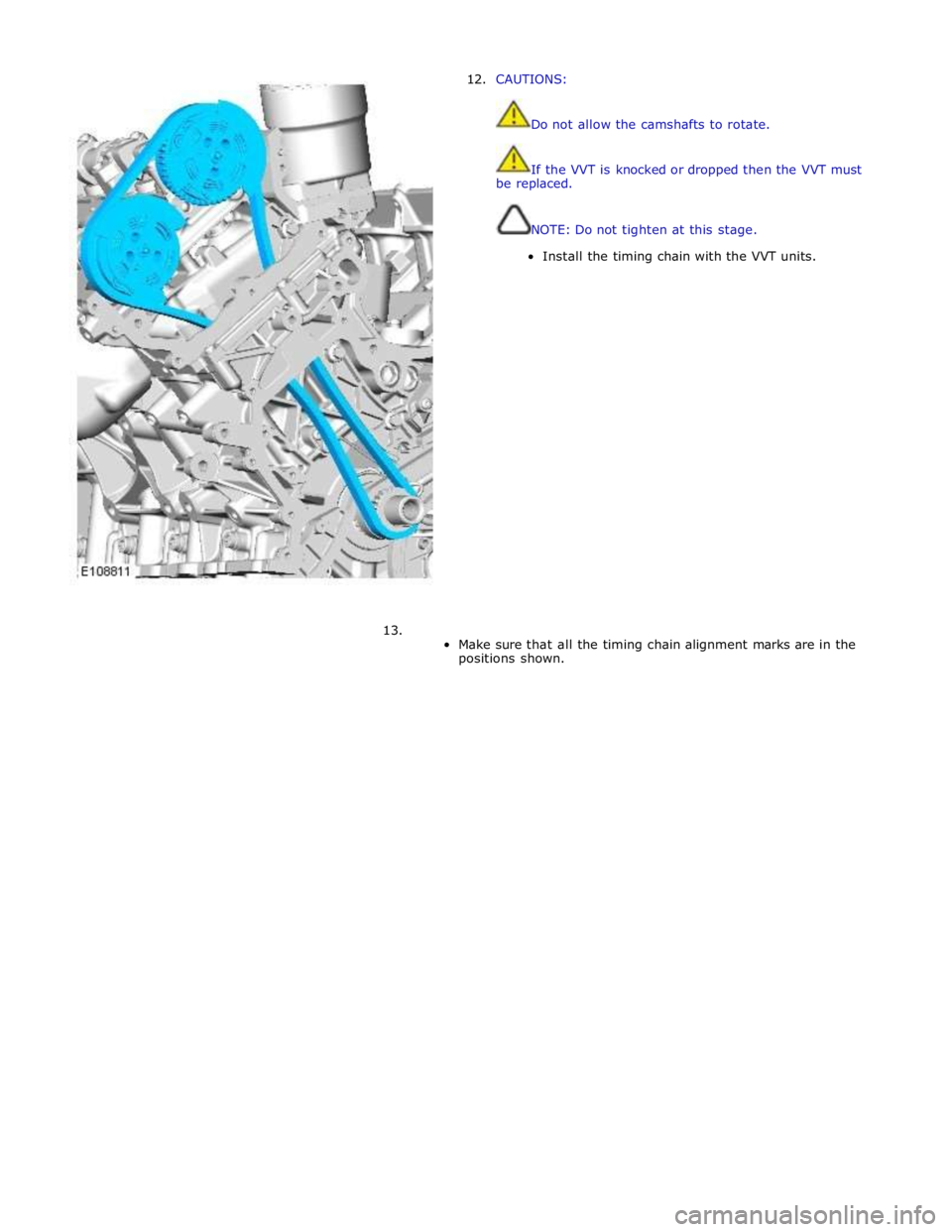

12. CAUTIONS:


Do not allow the camshafts to rotate.


If the VVT is knocked or dropped then the VVT must
be replaced.


NOTE: Do not tighten at this stage.

Install the timing chain with the VVT units.



















13.

Make sure that all the timing chain alignment marks are in the
positions shown.

15.




































16. Make sure the tensioner piston is fully extended. Then fully
depress and lock the tensioner piston with the grenade pin
before installation, failure to do this may result in damage
to the engine.

































CAUTION: Do not release the timing chain tensioner
locking pin at this stage.
Torque: 10 Nm

39.
















40.

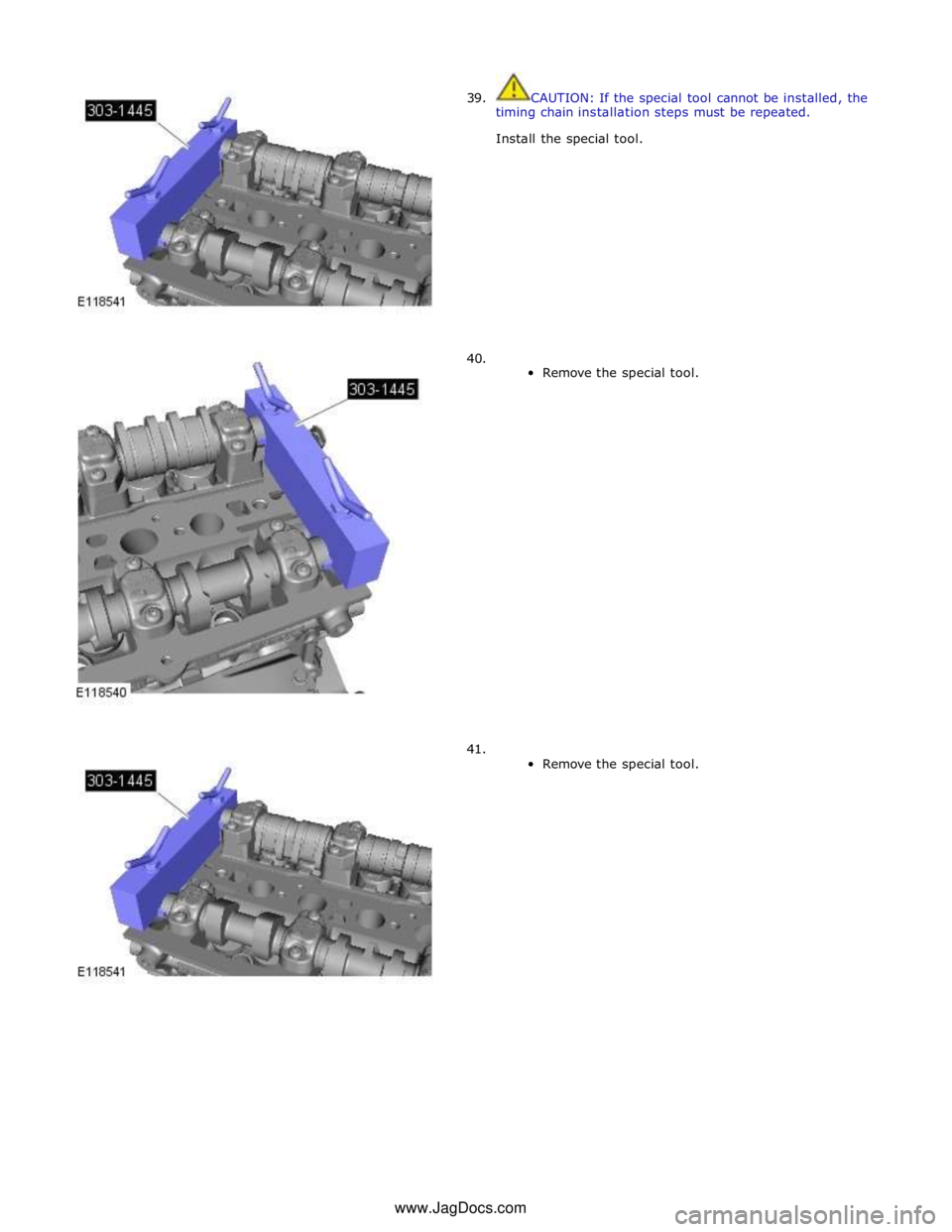

41. CAUTION: If the special tool cannot be installed, the
timing chain installation steps must be repeated.
Install the special tool.














Remove the special tool.

























Remove the special tool. www.JagDocs.com

42.
43.
Remove the special tool.
Special Tool(s): 303-1447














Torque: 10 Nm













44.
Refer to: Timing Cover (303-01C Engine - V8 5.0L Petrol, Removal and Installation).

45. Connect the battery ground cable.

Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).

Published: 10-Oct-2011
Engine - V8 S/C 5.0L Petrol - Fuel Pump Camshaft Assembly Part Number:
INA Timing Drive
Removal and Installation

Removal


NOTE: Some illustrations may show the engine removed for clarity.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Oil Pan Extension (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

4.

Published: 10-Oct-2011
Engine - V8 S/C 5.0L Petrol - Fuel Pump Camshaft Assembly Part Number:
Tsubaki Timing Drive
Removal and Installation

Removal


NOTE: Some illustrations may show the engine removed for clarity.

1. Refer to: Battery Disconnect and Connect (414-01 Battery, Mounting and Cables, General Procedures).


2. WARNING: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.

3. Refer to: Oil Pan Extension (303-01D Engine - V8 S/C 5.0L Petrol, Removal and Installation).

4.
5.
