JEEP CHEROKEE 1988 Service Owner's Guide

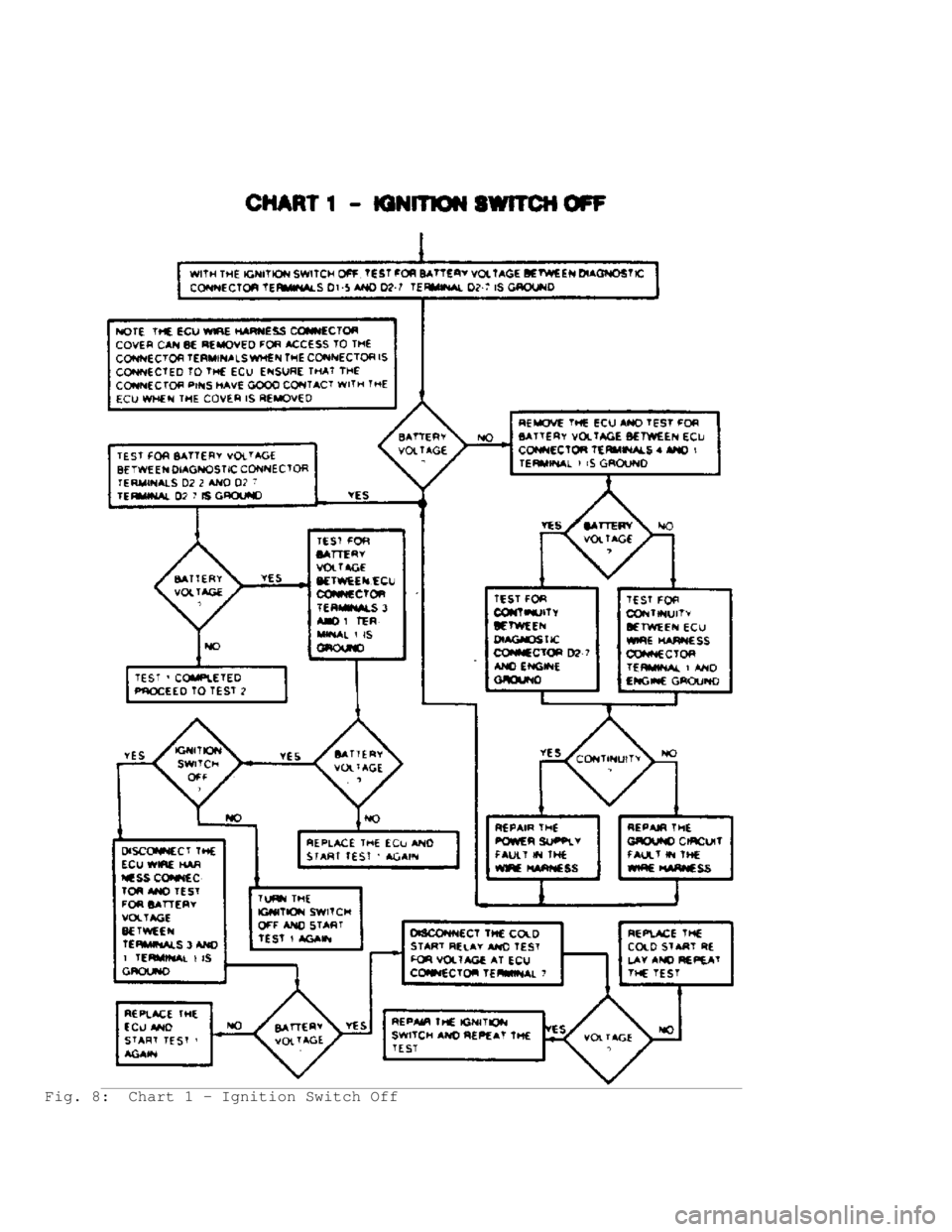

Fig. 8: Chart 1 - Ignition Switch Off

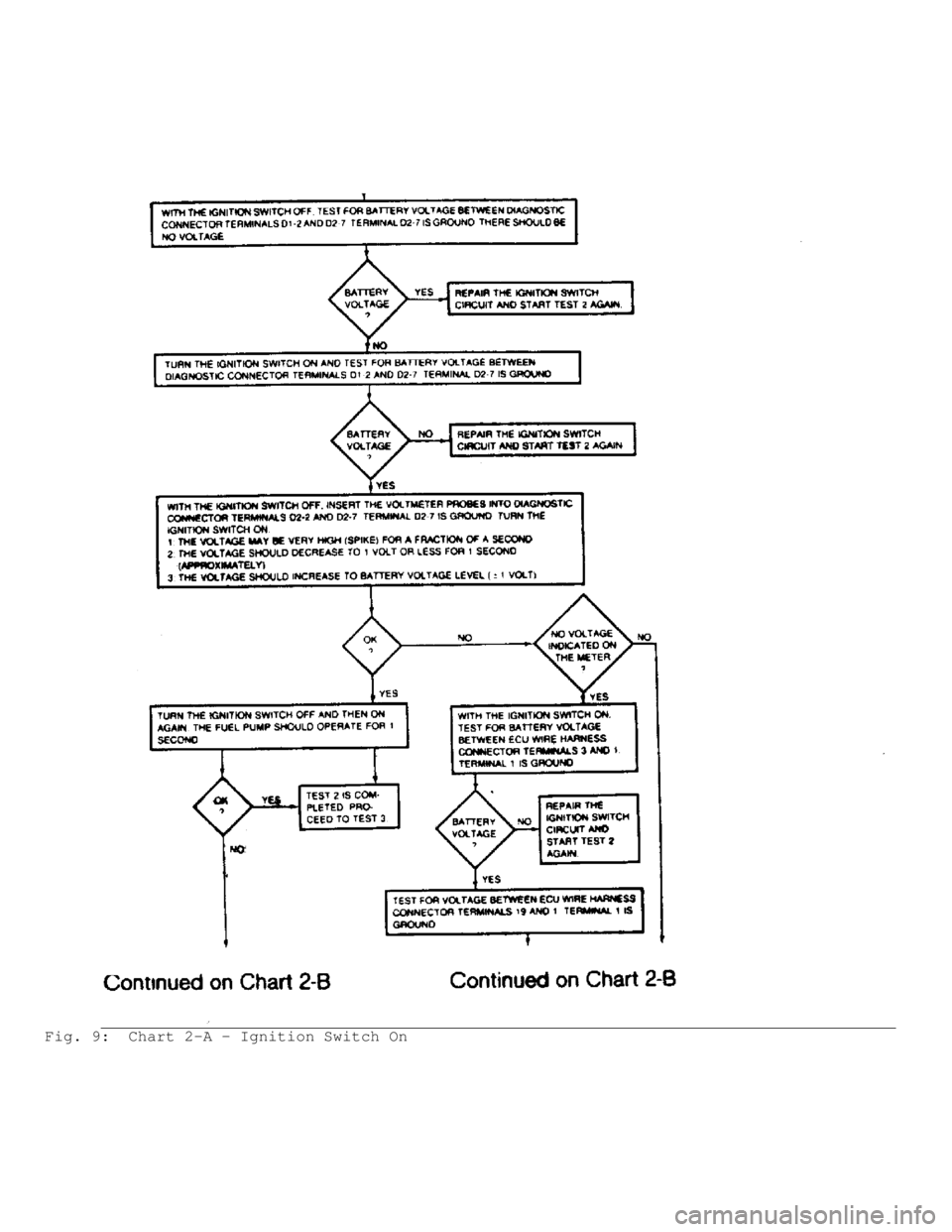

Fig. 9: Chart 2-A - Ignition Switch On

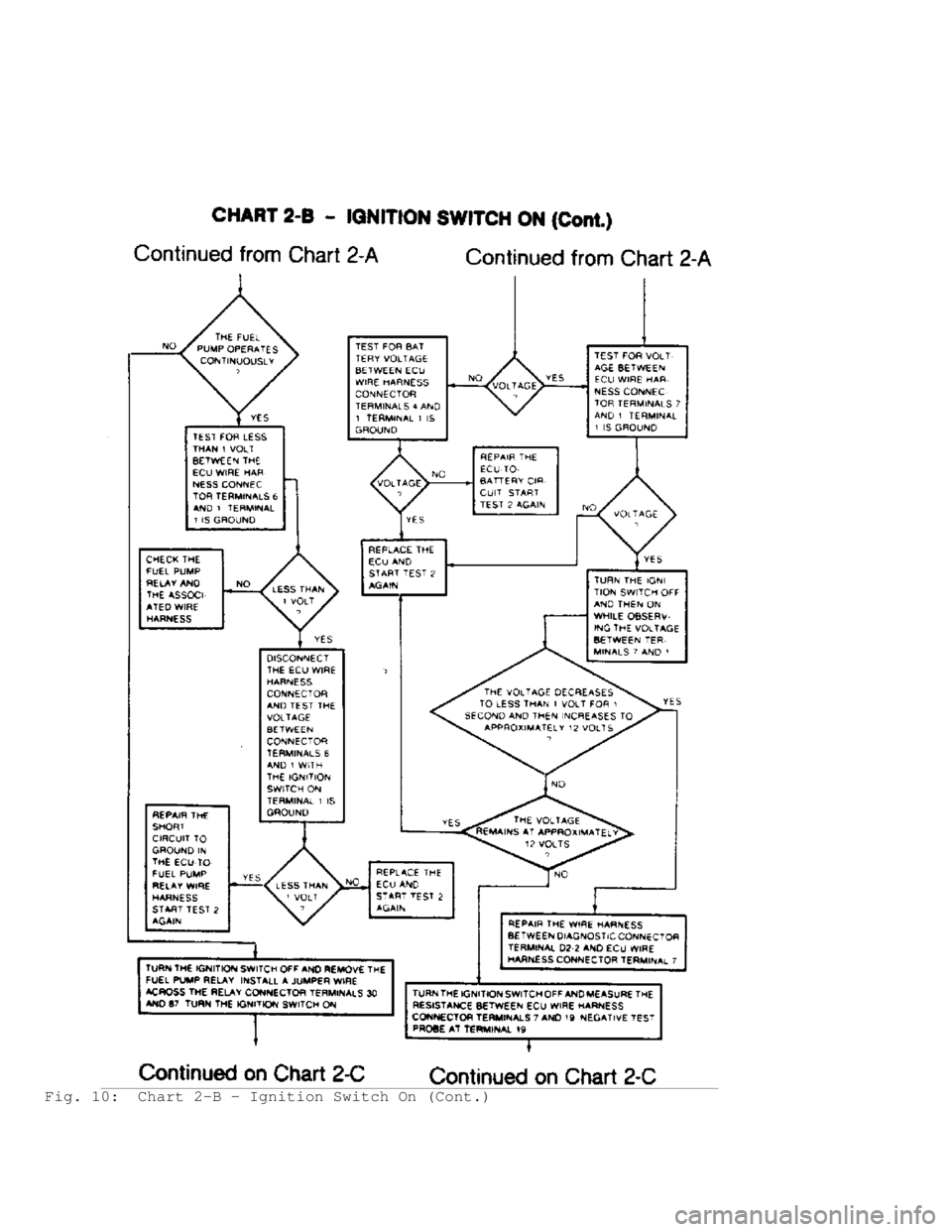

Fig. 10: Chart 2-B - Ignition Switch On (Cont.)

Fig. 11: Chart 2-C - Ignition Switch On (Cont.)

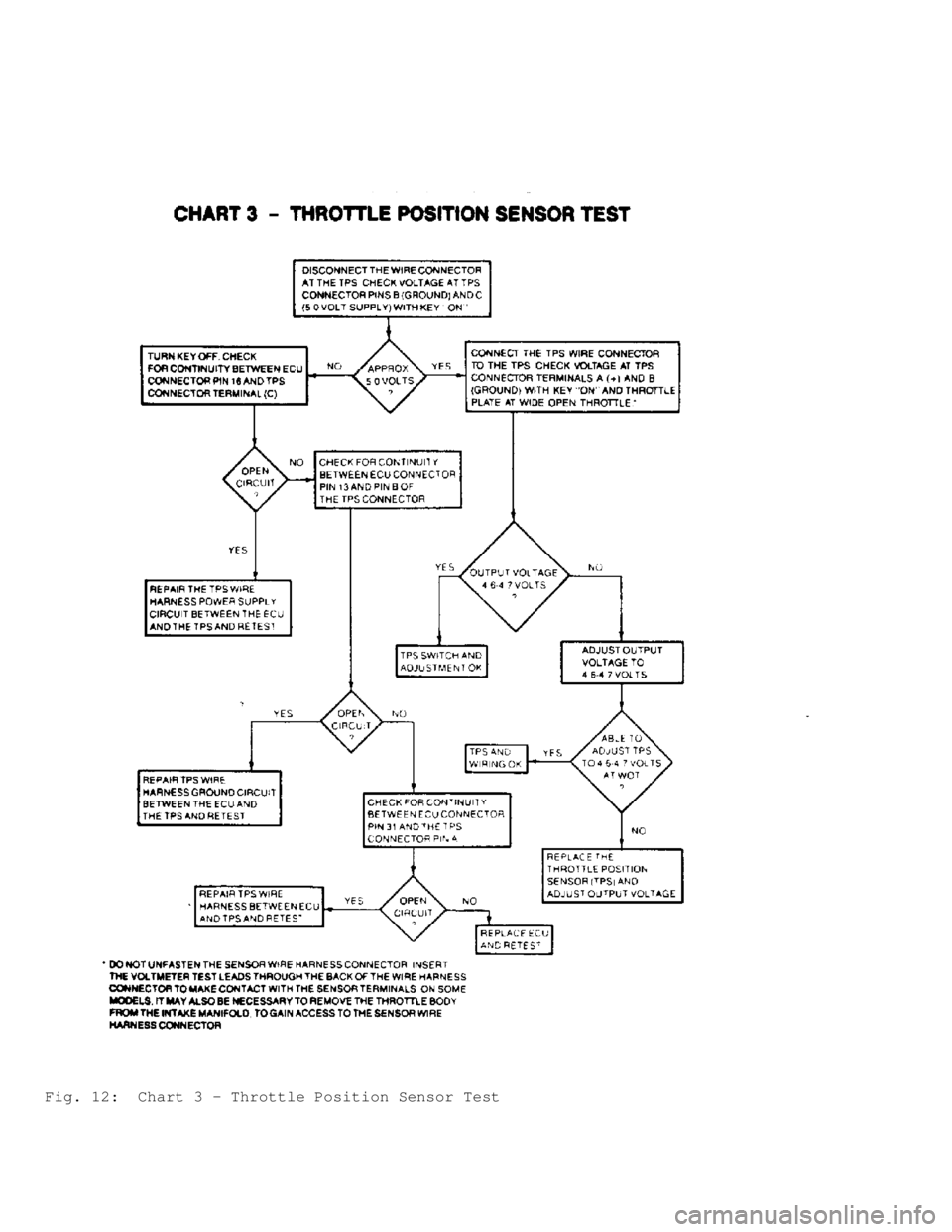

Fig. 12: Chart 3 - Throttle Position Sensor Test

Fig. 13: Chart 4-A - System Operational Test

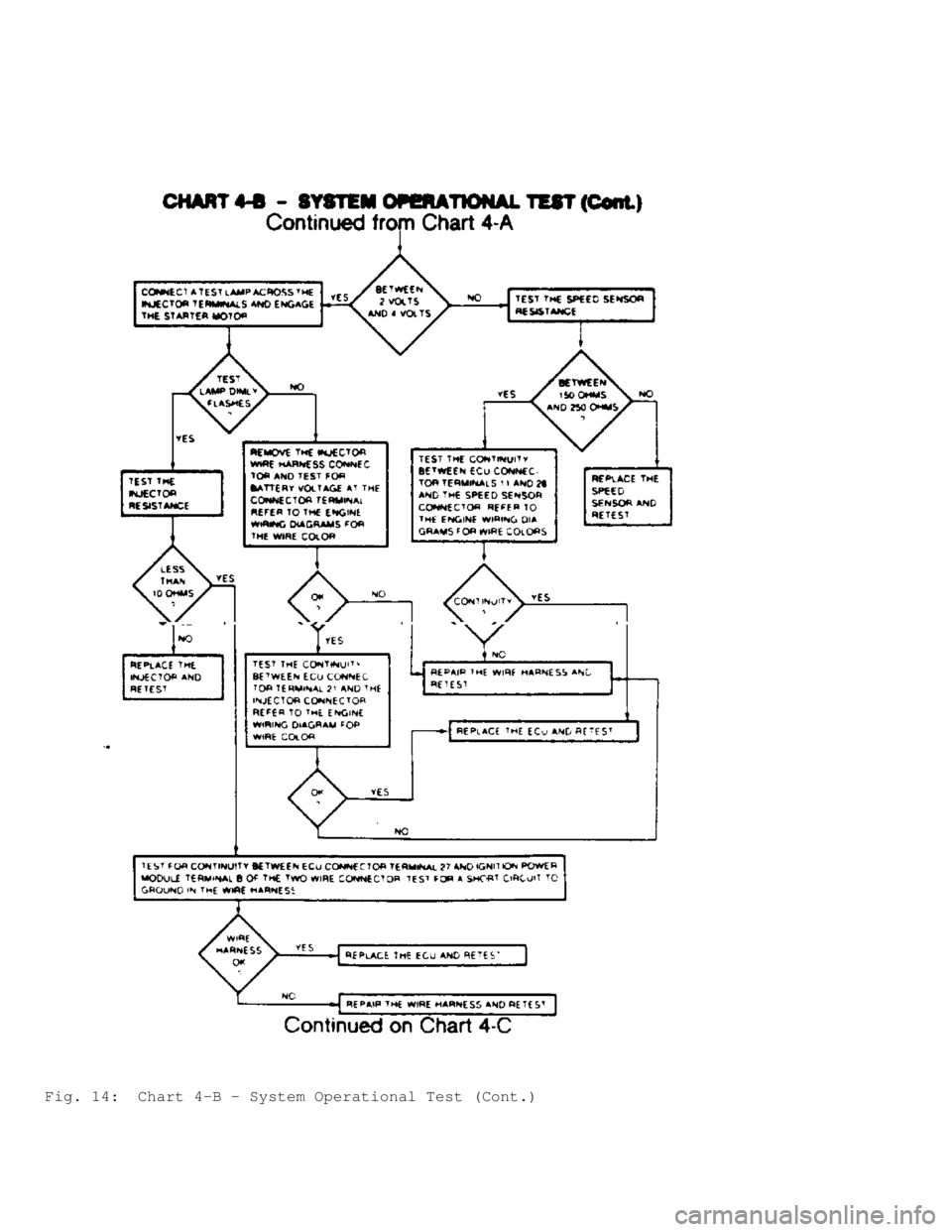

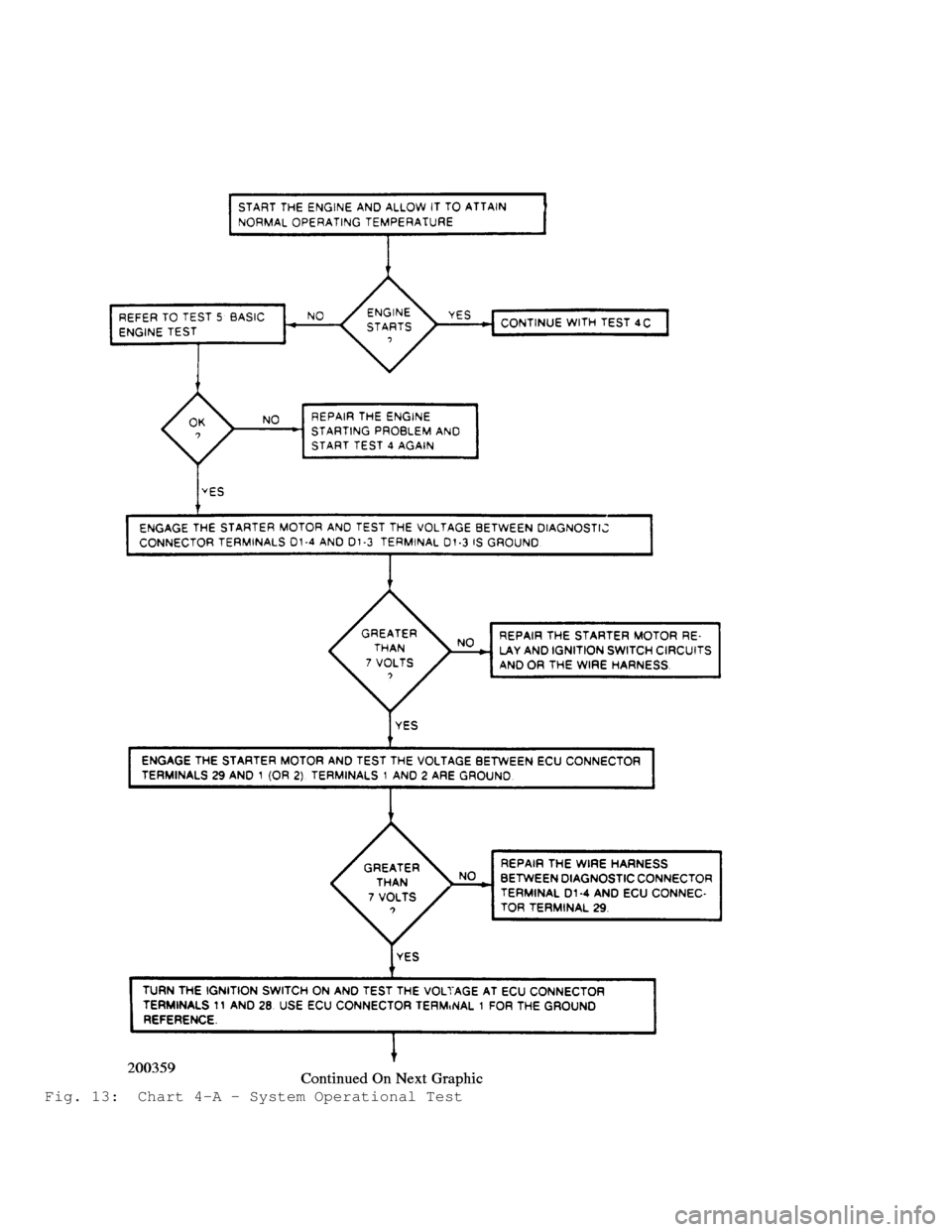

Fig. 14: Chart 4-B - System Operational Test (Cont.)

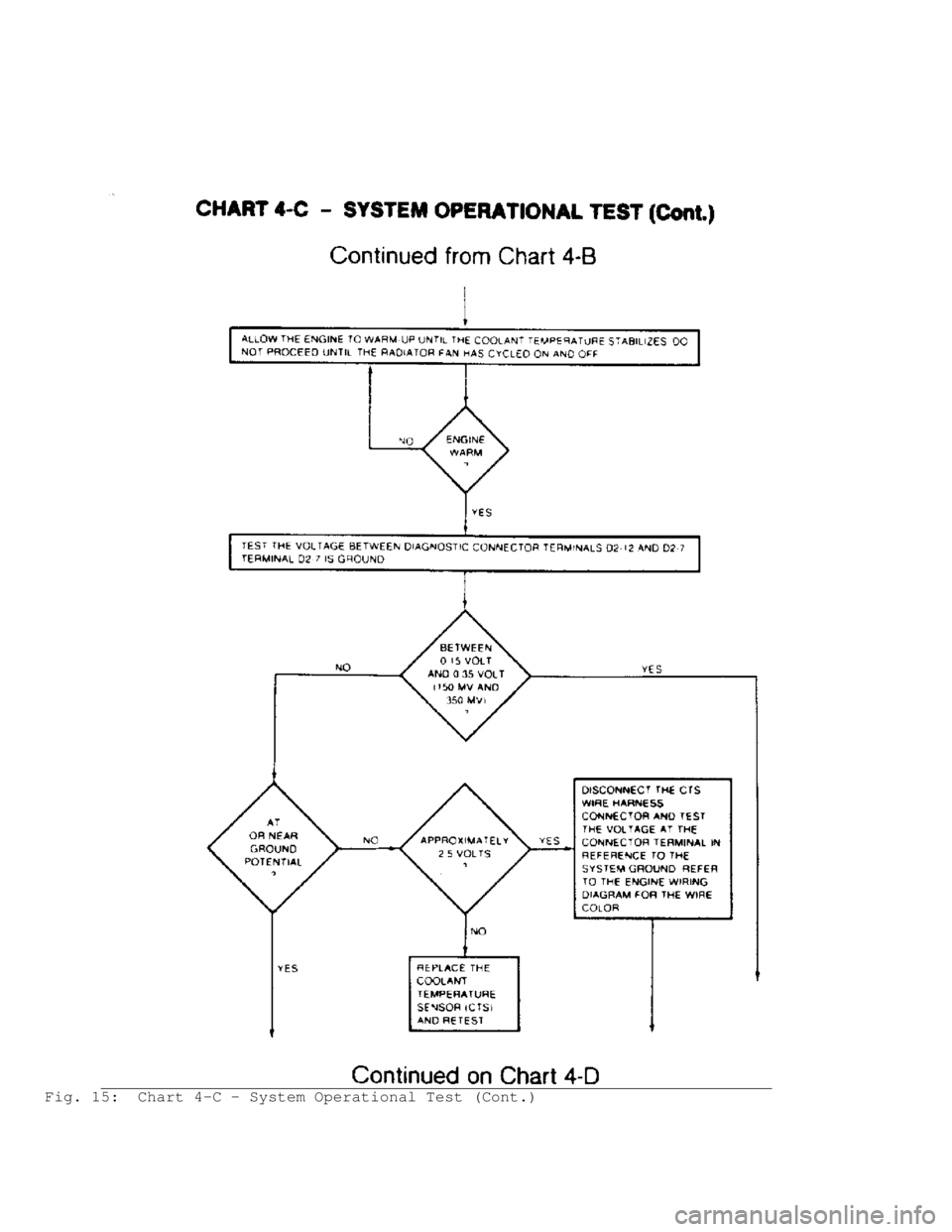

Fig. 15: Chart 4-C - System Operational Test (Cont.)

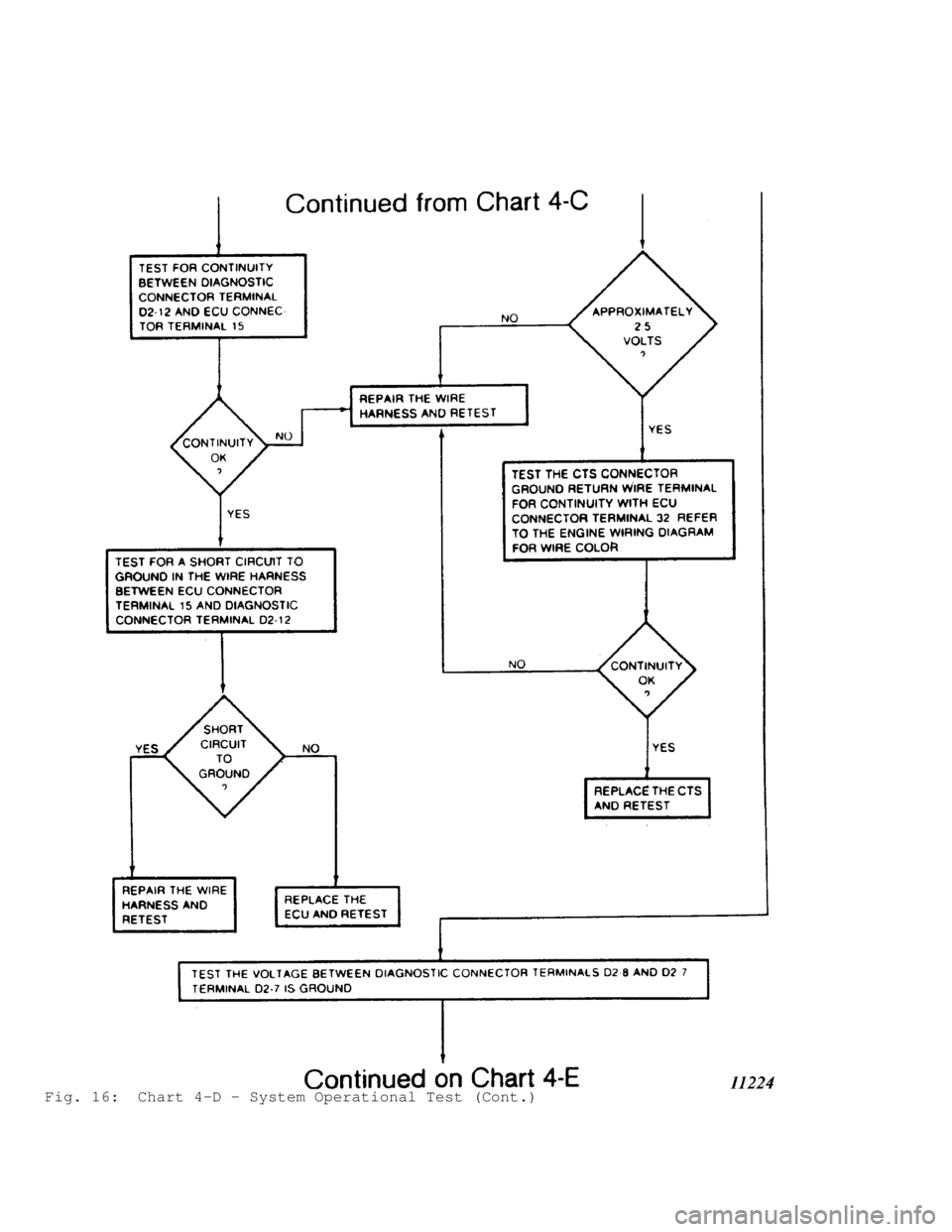

Fig. 16: Chart 4-D - System Operational Test (Cont.)

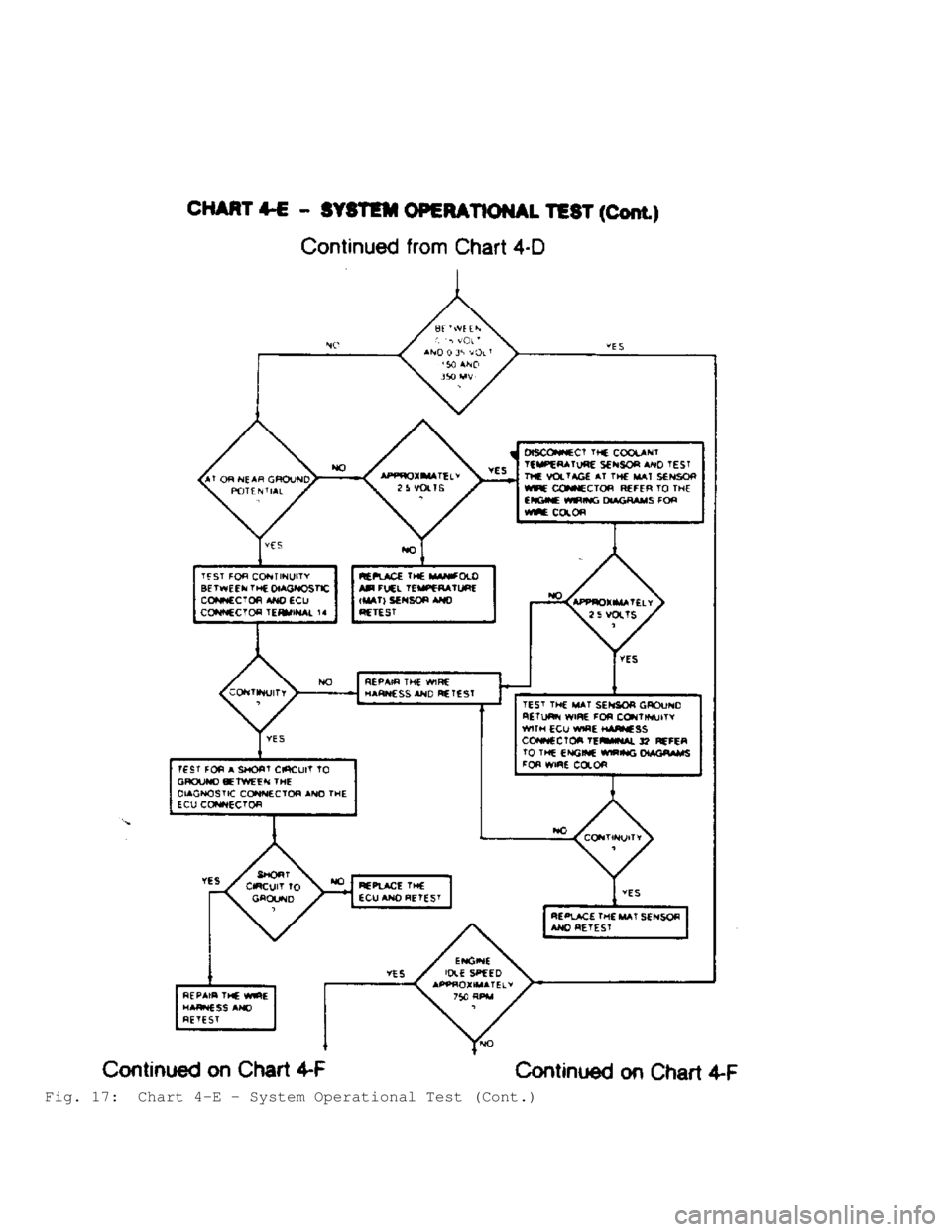

Fig. 17: Chart 4-E - System Operational Test (Cont.)
