JEEP CHEROKEE 1988 Service Repair Manual

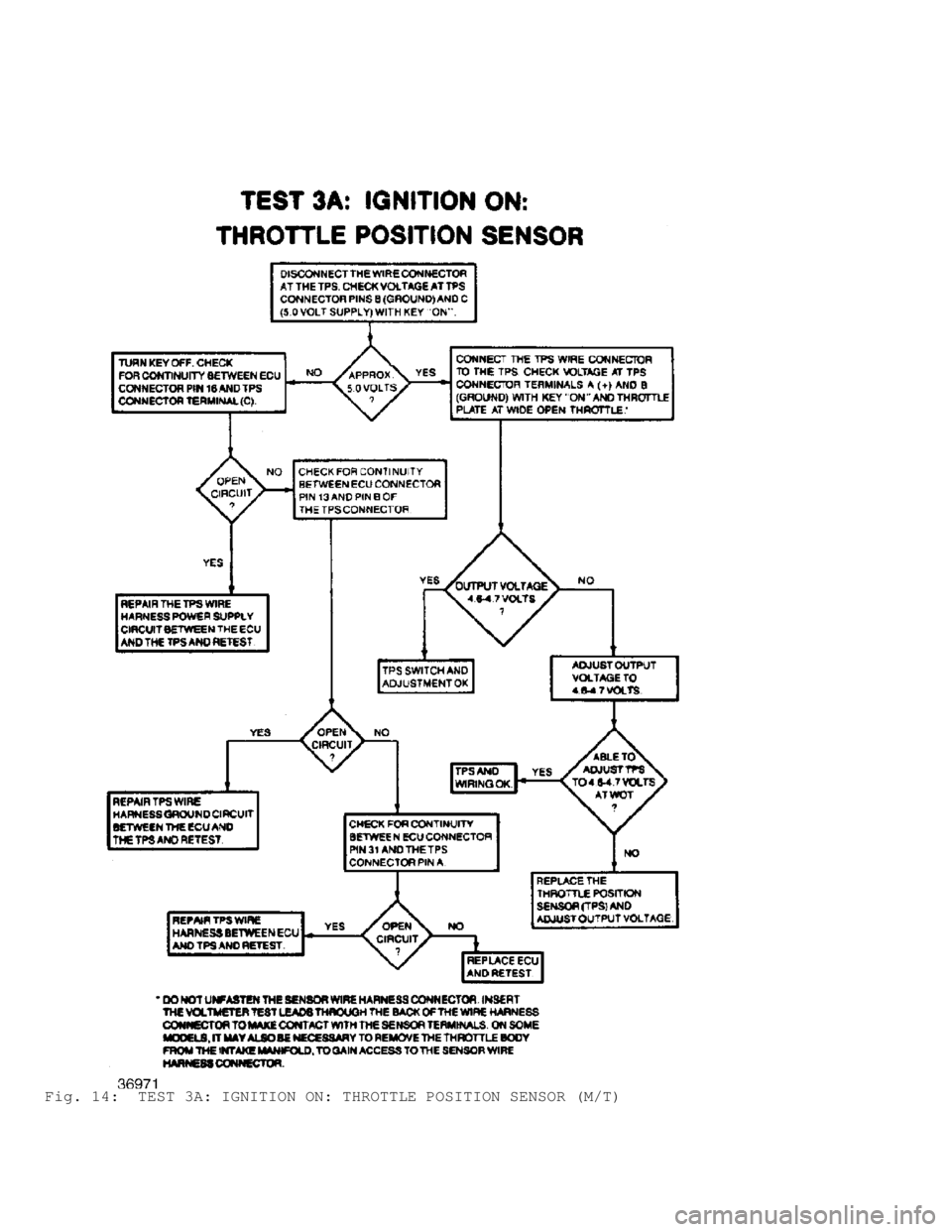

Fig. 14: TEST 3A: IGNITION ON: THROTTLE POSITION SENSOR (M/T)

Fig. 15: TEST 4: SYSTEM OPERATIONAL

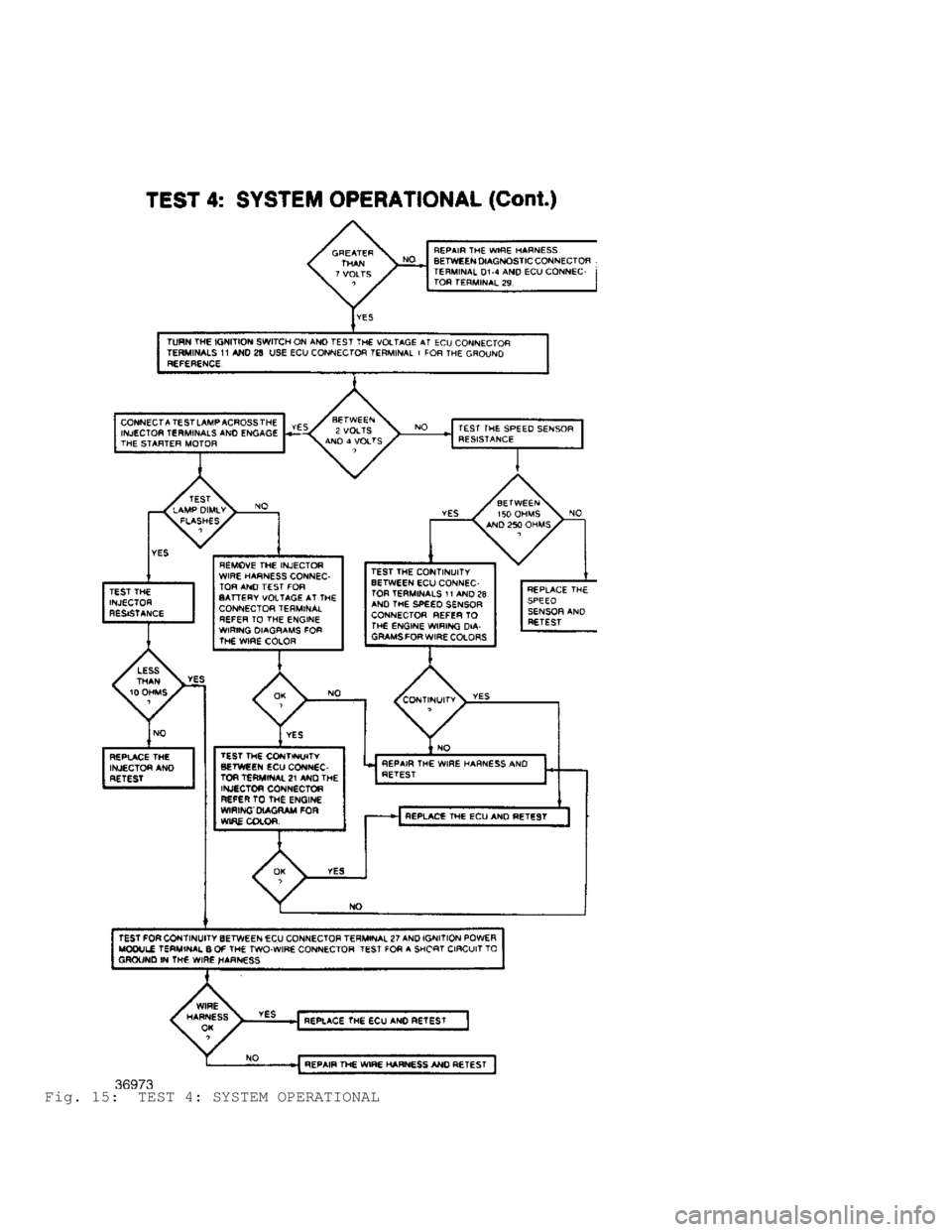

Fig. 16: TEST 4: SYSTEM OPERATIONAL (Cont.)

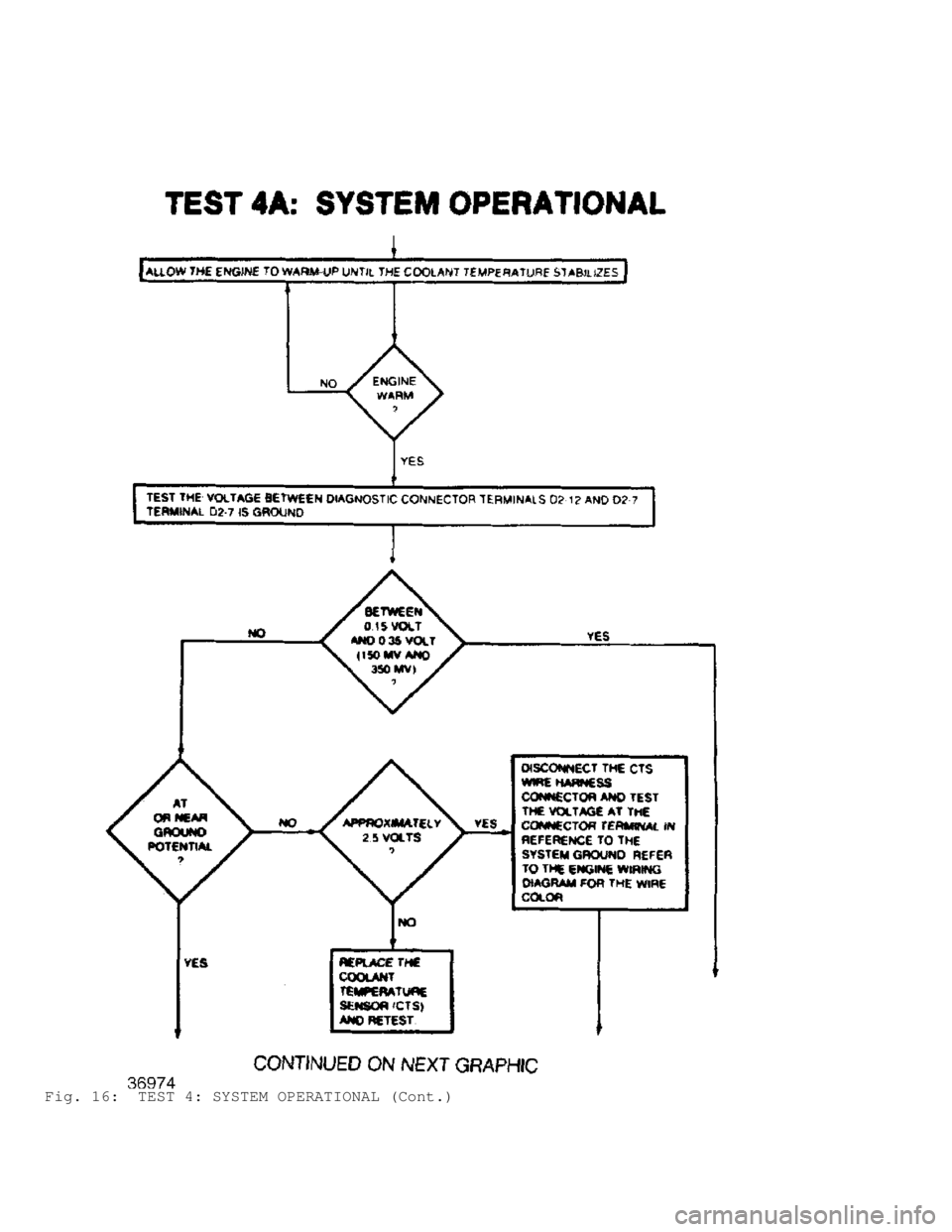

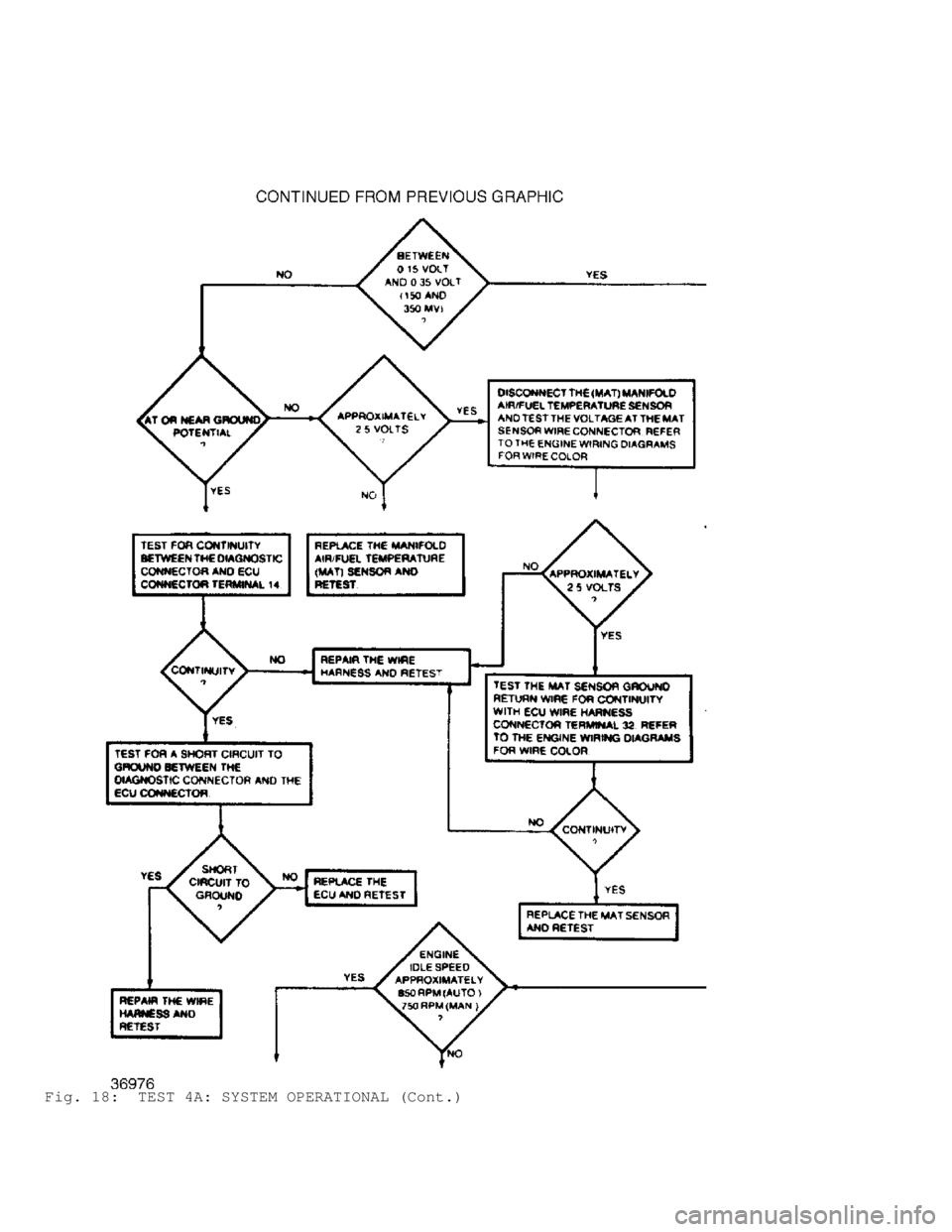

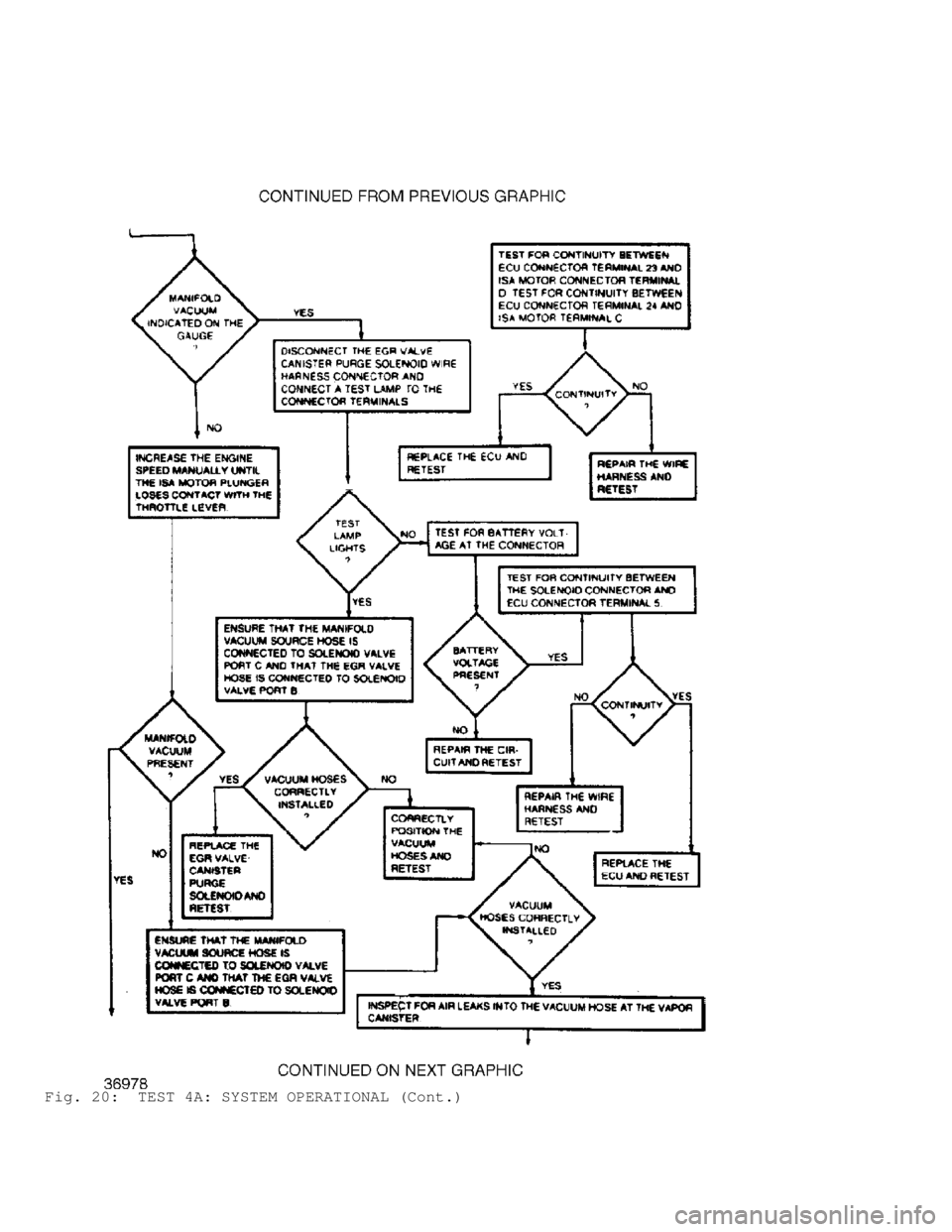

Fig. 17: TEST 4A: SYSTEM OPERATIONAL

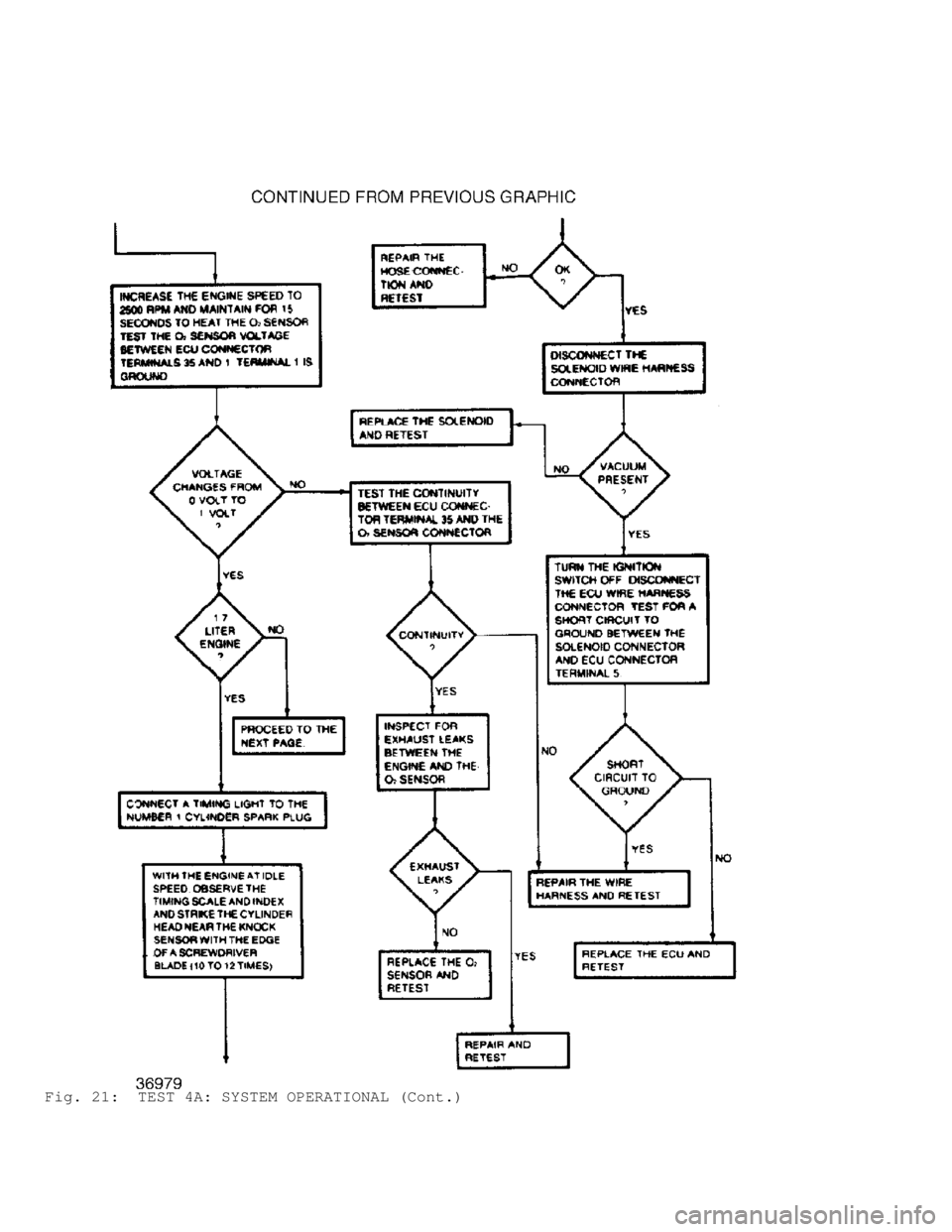

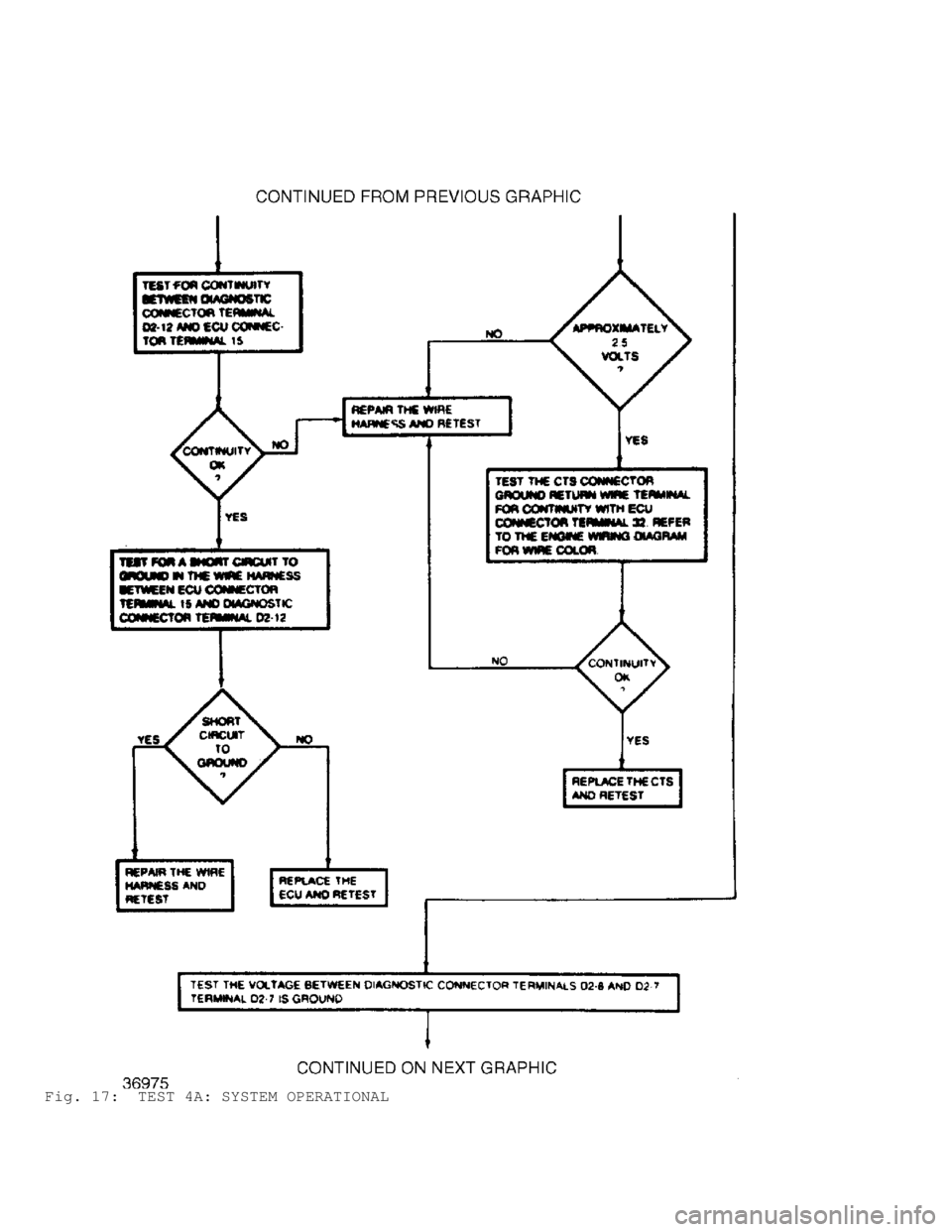

Fig. 18: TEST 4A: SYSTEM OPERATIONAL (Cont.)

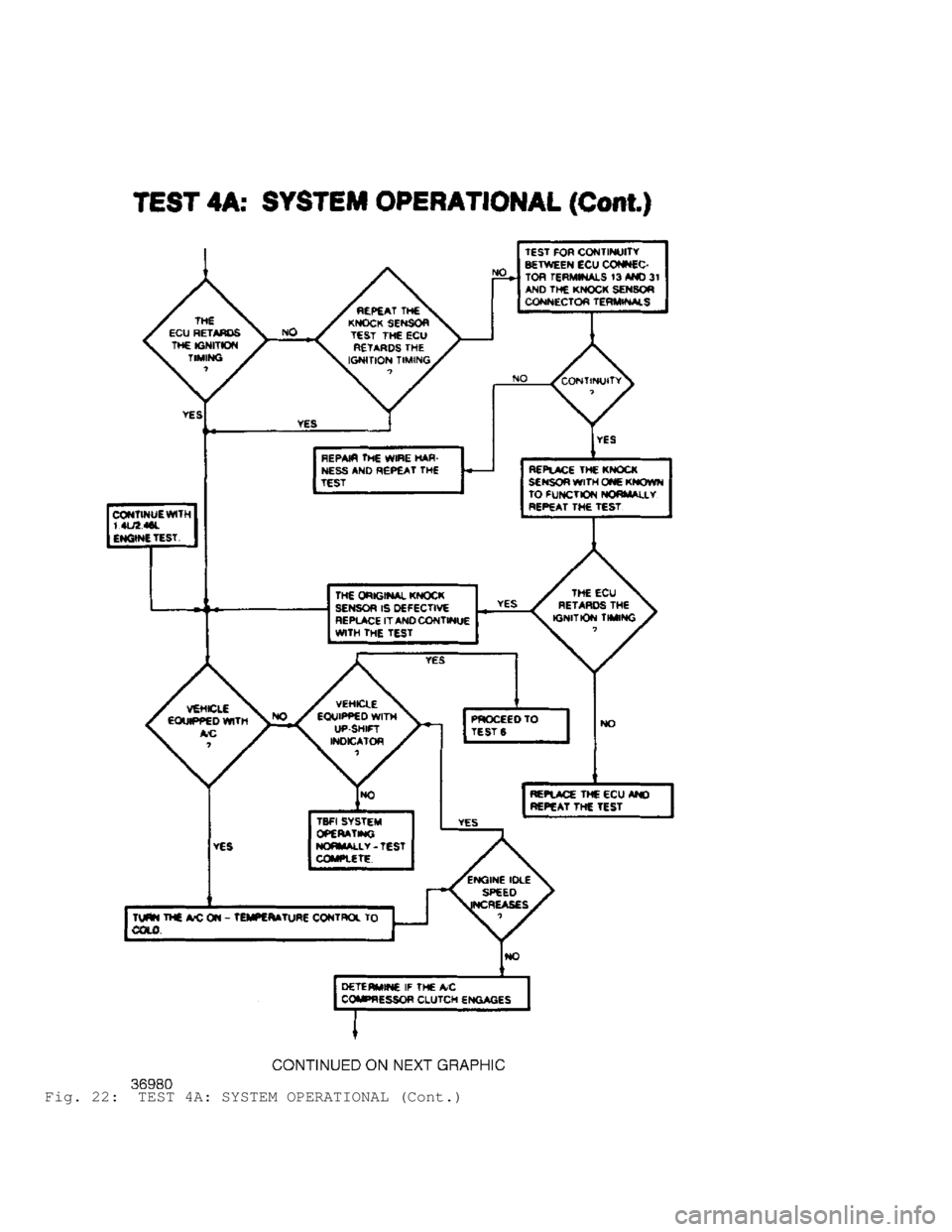

Fig. 19: TEST 4A: SYSTEM OPERATIONAL (Cont.)

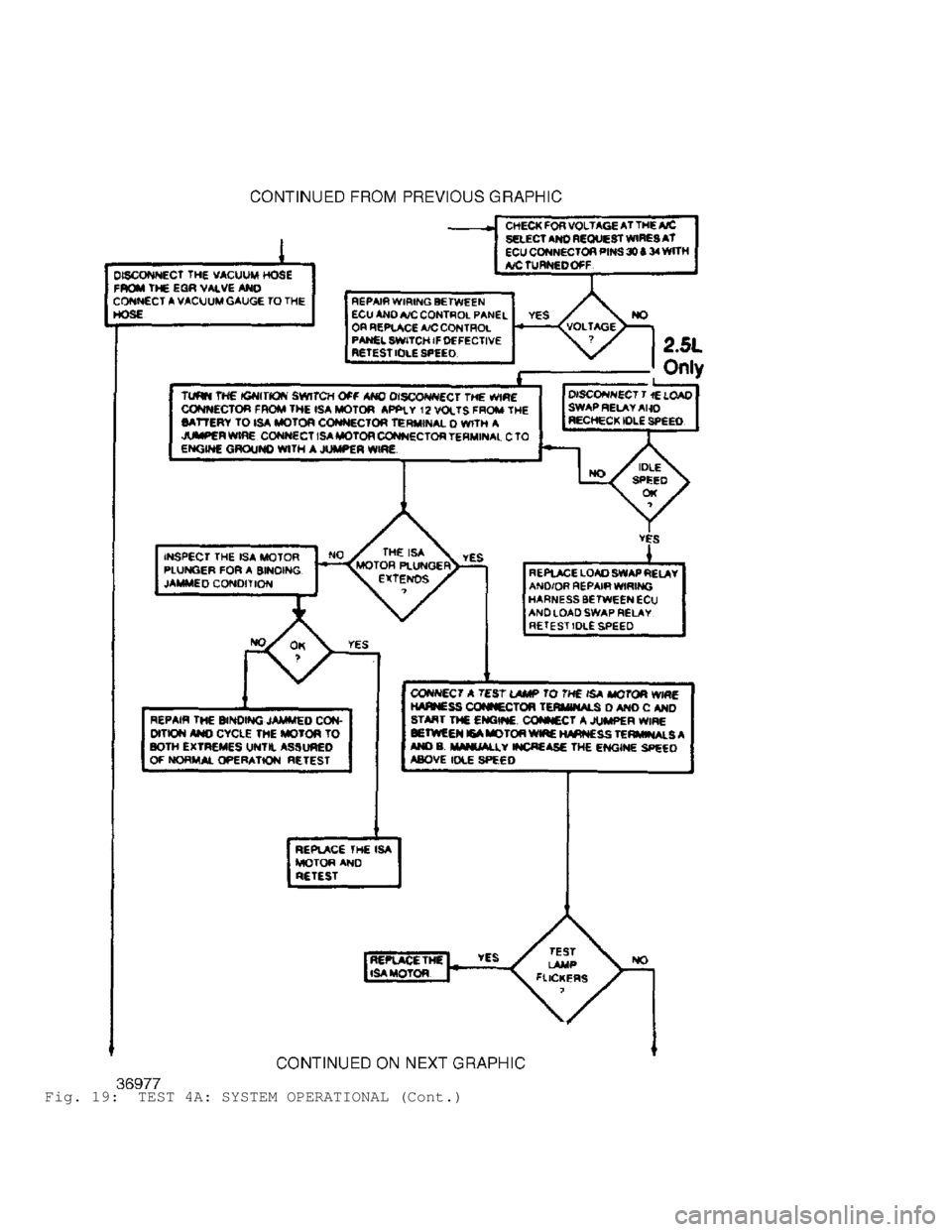

Fig. 20: TEST 4A: SYSTEM OPERATIONAL (Cont.)

Fig. 21: TEST 4A: SYSTEM OPERATIONAL (Cont.)

Fig. 22: TEST 4A: SYSTEM OPERATIONAL (Cont.)

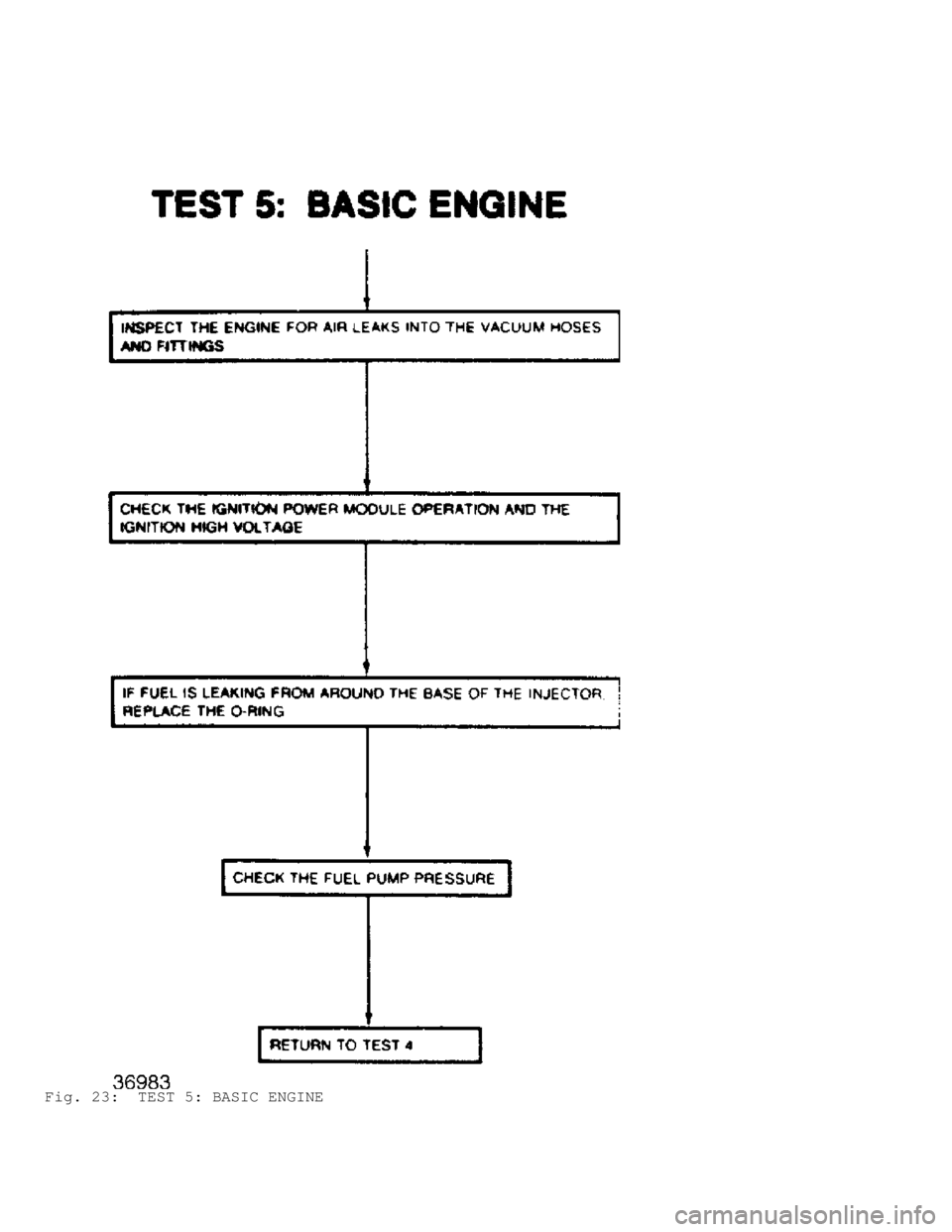

Fig. 23: TEST 5: BASIC ENGINE
