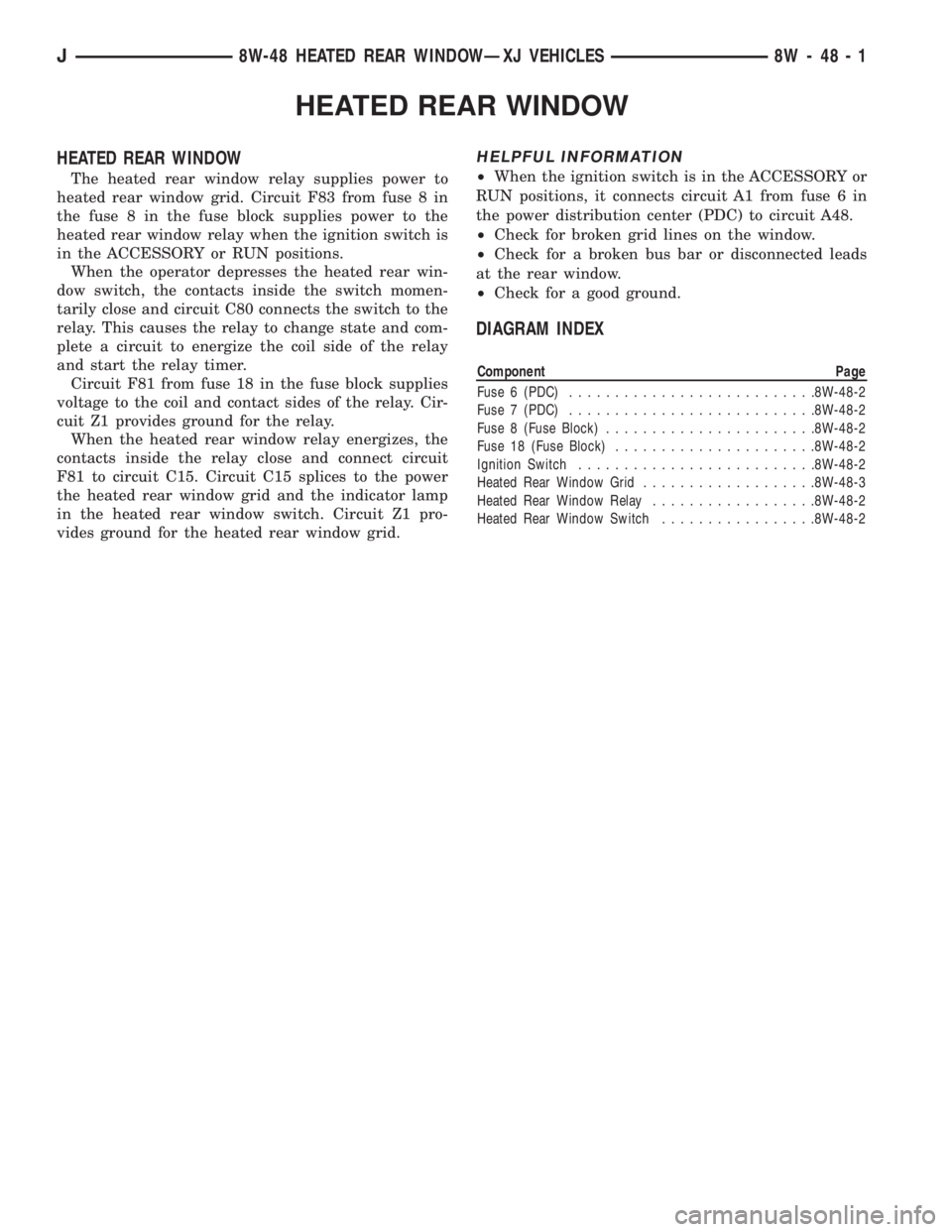

HEATED REAR WINDOW
HEATED REAR WINDOW
The heated rear window relay supplies power to
heated rear window grid. Circuit F83 from fuse 8 in
the fuse 8 in the fuse block supplies power to the
heated rear window relay when the ignition switch is
in the ACCESSORY or RUN positions.
When the operator depresses the heated rear win-
dow switch, the contacts inside the switch momen-
tarily close and circuit C80 connects the switch to the
relay. This causes the relay to change state and com-
plete a circuit to energize the coil side of the relay
and start the relay timer.
Circuit F81 from fuse 18 in the fuse block supplies
voltage to the coil and contact sides of the relay. Cir-
cuit Z1 provides ground for the relay.
When the heated rear window relay energizes, the
contacts inside the relay close and connect circuit
F81 to circuit C15. Circuit C15 splices to the power
the heated rear window grid and the indicator lamp
in the heated rear window switch. Circuit Z1 pro-
vides ground for the heated rear window grid.
HELPFUL INFORMATION
²When the ignition switch is in the ACCESSORY or
RUN positions, it connects circuit A1 from fuse 6 in
the power distribution center (PDC) to circuit A48.
²Check for broken grid lines on the window.
²Check for a broken bus bar or disconnected leads
at the rear window.
²Check for a good ground.
DIAGRAM INDEX
Component Page
Fuse 6 (PDC)...........................8W-48-2
Fuse 7 (PDC)...........................8W-48-2
Fuse 8 (Fuse Block).......................8W-48-2
Fuse 18 (Fuse Block)......................8W-48-2
Ignition Switch..........................8W-48-2
Heated Rear Window Grid...................8W-48-3
Heated Rear Window Relay..................8W-48-2
Heated Rear Window Switch.................8W-48-2
J8W-48 HEATED REAR WINDOWÐXJ VEHICLES 8W - 48 - 1

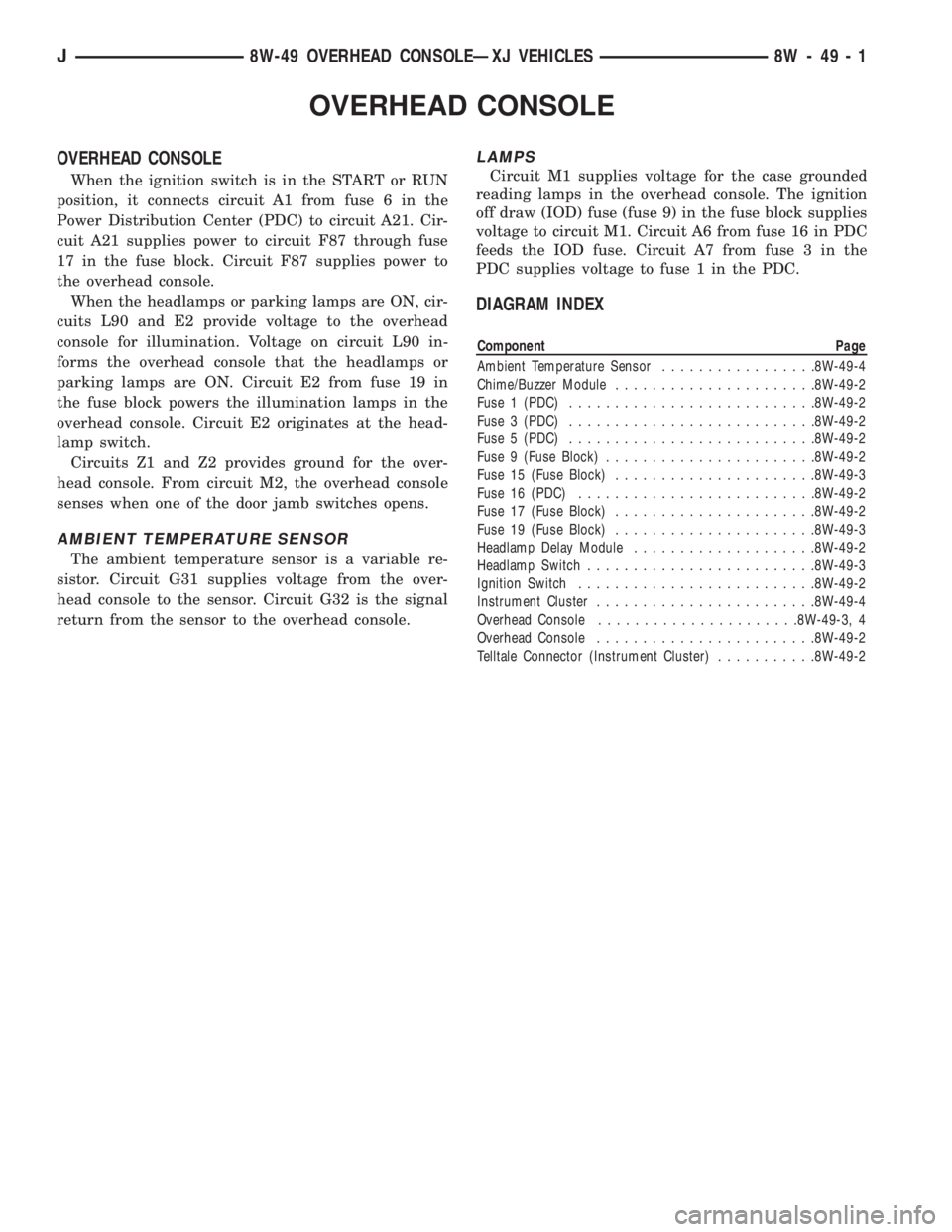

OVERHEAD CONSOLE
OVERHEAD CONSOLE
When the ignition switch is in the START or RUN
position, it connects circuit A1 from fuse 6 in the
Power Distribution Center (PDC) to circuit A21. Cir-
cuit A21 supplies power to circuit F87 through fuse
17 in the fuse block. Circuit F87 supplies power to
the overhead console.
When the headlamps or parking lamps are ON, cir-
cuits L90 and E2 provide voltage to the overhead
console for illumination. Voltage on circuit L90 in-
forms the overhead console that the headlamps or
parking lamps are ON. Circuit E2 from fuse 19 in
the fuse block powers the illumination lamps in the
overhead console. Circuit E2 originates at the head-
lamp switch.
Circuits Z1 and Z2 provides ground for the over-
head console. From circuit M2, the overhead console
senses when one of the door jamb switches opens.
AMBIENT TEMPERATURE SENSOR
The ambient temperature sensor is a variable re-
sistor. Circuit G31 supplies voltage from the over-
head console to the sensor. Circuit G32 is the signal
return from the sensor to the overhead console.
LAMPS
Circuit M1 supplies voltage for the case grounded
reading lamps in the overhead console. The ignition
off draw (IOD) fuse (fuse 9) in the fuse block supplies
voltage to circuit M1. Circuit A6 from fuse 16 in PDC
feeds the IOD fuse. Circuit A7 from fuse 3 in the
PDC supplies voltage to fuse 1 in the PDC.
DIAGRAM INDEX
Component Page
Ambient Temperature Sensor.................8W-49-4
Chime/Buzzer Module......................8W-49-2
Fuse 1 (PDC)...........................8W-49-2
Fuse 3 (PDC)...........................8W-49-2
Fuse 5 (PDC)...........................8W-49-2
Fuse 9 (Fuse Block).......................8W-49-2
Fuse 15 (Fuse Block)......................8W-49-3
Fuse 16 (PDC)..........................8W-49-2
Fuse 17 (Fuse Block)......................8W-49-2
Fuse 19 (Fuse Block)......................8W-49-3
Headlamp Delay Module....................8W-49-2
Headlamp Switch.........................8W-49-3
Ignition Switch..........................8W-49-2
Instrument Cluster........................8W-49-4
Overhead Console......................8W-49-3, 4
Overhead Console........................8W-49-2
Telltale Connector (Instrument Cluster)...........8W-49-2
J8W-49 OVERHEAD CONSOLEÐXJ VEHICLES 8W - 49 - 1

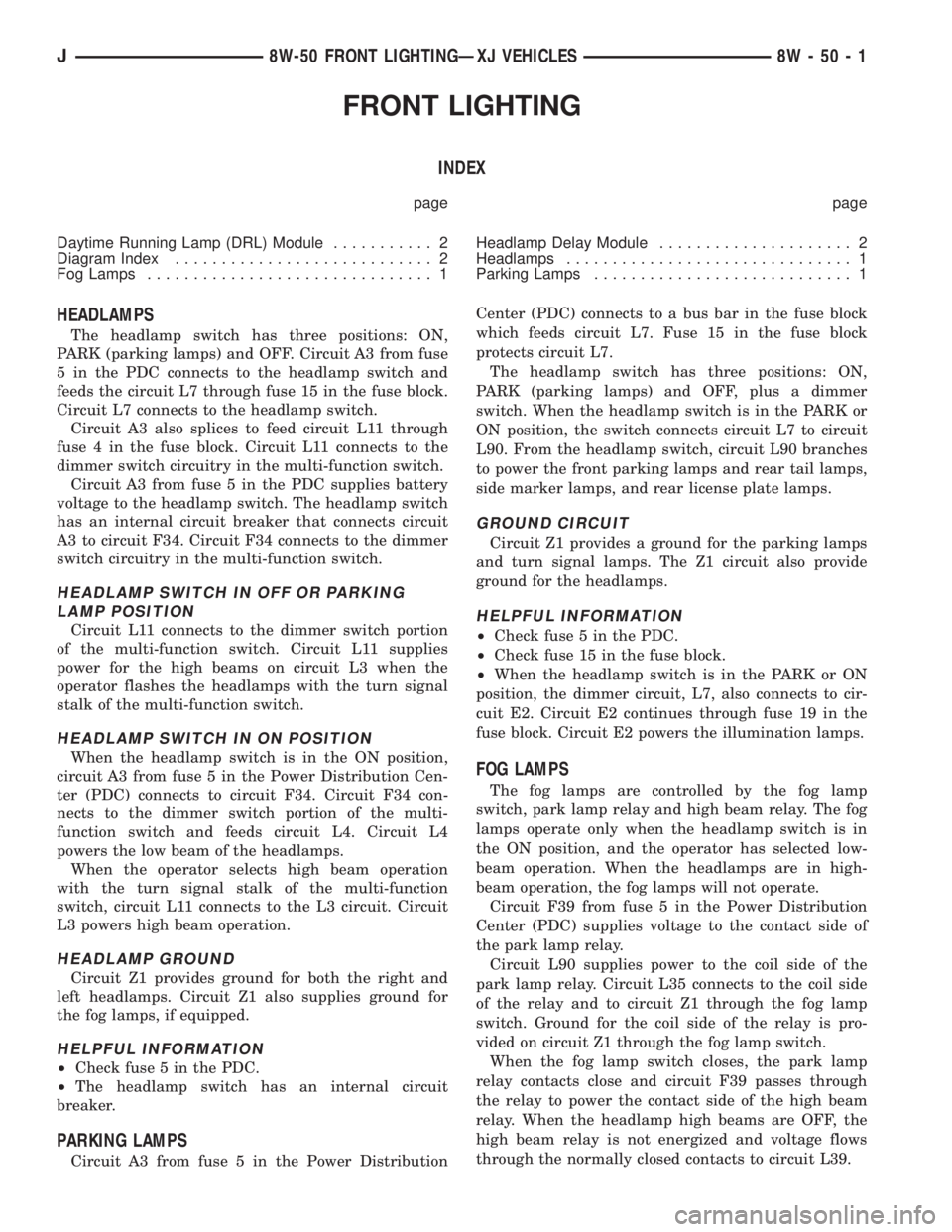

FRONT LIGHTING
INDEX
page page
Daytime Running Lamp (DRL) Module........... 2
Diagram Index............................ 2
Fog Lamps............................... 1Headlamp Delay Module..................... 2
Headlamps............................... 1
Parking Lamps............................ 1
HEADLAMPS
The headlamp switch has three positions: ON,
PARK (parking lamps) and OFF. Circuit A3 from fuse
5 in the PDC connects to the headlamp switch and
feeds the circuit L7 through fuse 15 in the fuse block.
Circuit L7 connects to the headlamp switch.
Circuit A3 also splices to feed circuit L11 through
fuse 4 in the fuse block. Circuit L11 connects to the
dimmer switch circuitry in the multi-function switch.
Circuit A3 from fuse 5 in the PDC supplies battery
voltage to the headlamp switch. The headlamp switch
has an internal circuit breaker that connects circuit
A3 to circuit F34. Circuit F34 connects to the dimmer
switch circuitry in the multi-function switch.
HEADLAMP SWITCH IN OFF OR PARKING
LAMP POSITION
Circuit L11 connects to the dimmer switch portion
of the multi-function switch. Circuit L11 supplies
power for the high beams on circuit L3 when the
operator flashes the headlamps with the turn signal
stalk of the multi-function switch.
HEADLAMP SWITCH IN ON POSITION
When the headlamp switch is in the ON position,
circuit A3 from fuse 5 in the Power Distribution Cen-
ter (PDC) connects to circuit F34. Circuit F34 con-
nects to the dimmer switch portion of the multi-
function switch and feeds circuit L4. Circuit L4
powers the low beam of the headlamps.
When the operator selects high beam operation
with the turn signal stalk of the multi-function
switch, circuit L11 connects to the L3 circuit. Circuit
L3 powers high beam operation.
HEADLAMP GROUND
Circuit Z1 provides ground for both the right and
left headlamps. Circuit Z1 also supplies ground for
the fog lamps, if equipped.
HELPFUL INFORMATION
²Check fuse 5 in the PDC.
²The headlamp switch has an internal circuit
breaker.
PARKING LAMPS
Circuit A3 from fuse 5 in the Power DistributionCenter (PDC) connects to a bus bar in the fuse block
which feeds circuit L7. Fuse 15 in the fuse block
protects circuit L7.
The headlamp switch has three positions: ON,
PARK (parking lamps) and OFF, plus a dimmer
switch. When the headlamp switch is in the PARK or
ON position, the switch connects circuit L7 to circuit
L90. From the headlamp switch, circuit L90 branches
to power the front parking lamps and rear tail lamps,
side marker lamps, and rear license plate lamps.
GROUND CIRCUIT
Circuit Z1 provides a ground for the parking lamps
and turn signal lamps. The Z1 circuit also provide
ground for the headlamps.
HELPFUL INFORMATION
²Check fuse 5 in the PDC.
²Check fuse 15 in the fuse block.
²When the headlamp switch is in the PARK or ON
position, the dimmer circuit, L7, also connects to cir-
cuit E2. Circuit E2 continues through fuse 19 in the
fuse block. Circuit E2 powers the illumination lamps.
FOG LAMPS
The fog lamps are controlled by the fog lamp
switch, park lamp relay and high beam relay. The fog
lamps operate only when the headlamp switch is in
the ON position, and the operator has selected low-
beam operation. When the headlamps are in high-
beam operation, the fog lamps will not operate.
Circuit F39 from fuse 5 in the Power Distribution
Center (PDC) supplies voltage to the contact side of
the park lamp relay.
Circuit L90 supplies power to the coil side of the
park lamp relay. Circuit L35 connects to the coil side
of the relay and to circuit Z1 through the fog lamp
switch. Ground for the coil side of the relay is pro-
vided on circuit Z1 through the fog lamp switch.
When the fog lamp switch closes, the park lamp
relay contacts close and circuit F39 passes through
the relay to power the contact side of the high beam
relay. When the headlamp high beams are OFF, the
high beam relay is not energized and voltage flows
through the normally closed contacts to circuit L39.
J8W-50 FRONT LIGHTINGÐXJ VEHICLES 8W - 50 - 1
