'Jeep'
UNIVERSAL
SERIES
SERVICE
MANUAL

M

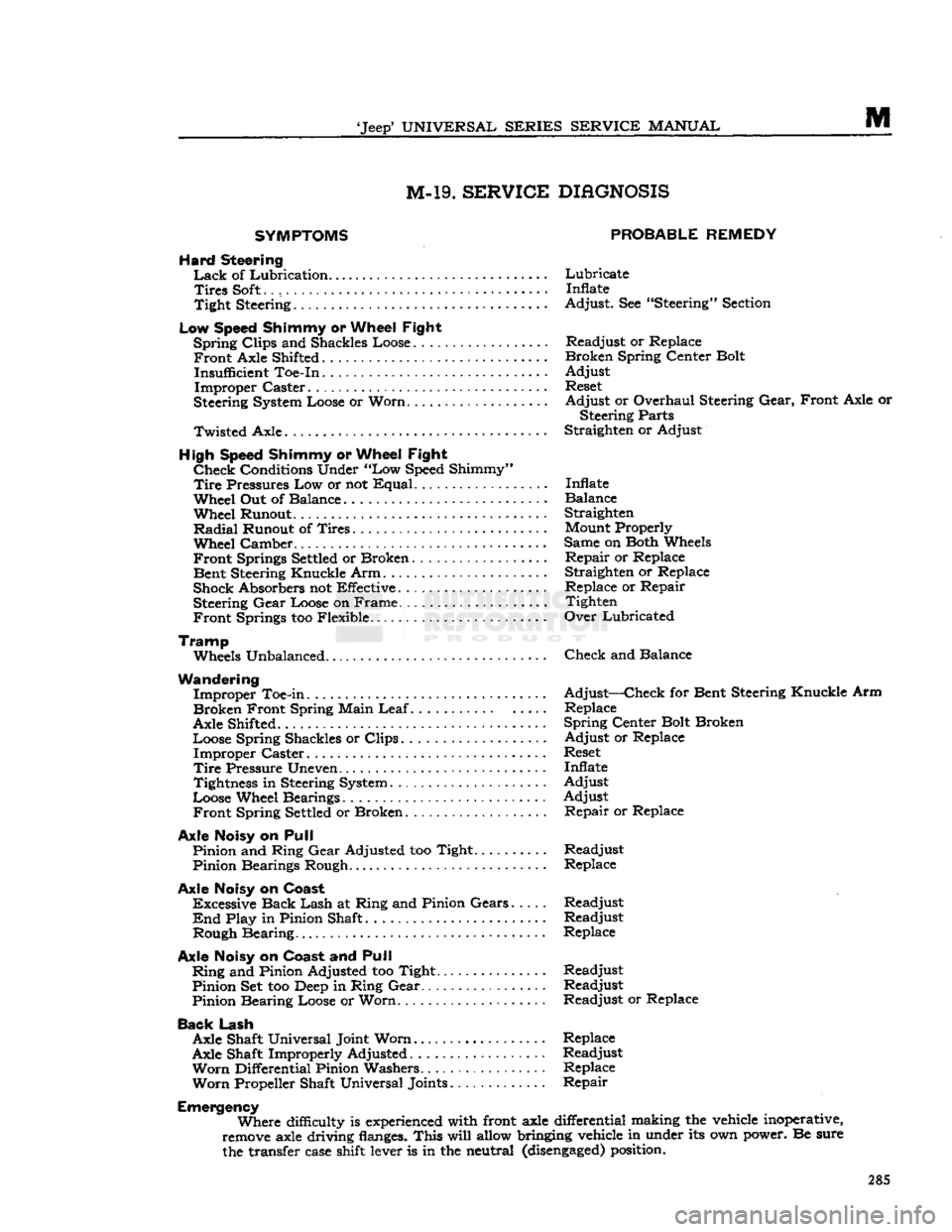

M-19.
SERVICE
DIAGNOSIS

SYMPTOMS
PROBABLE
REMEDY

Hard Steering
Lack
of
Lubrication
Lubricate
Tires
Soft.
. Inflate

Tight
Steering. Adjust. See "Steering" Section

Low Speed Shimmy
or
Wheel Fight
Spring
Clips and Shackles Loose
Front
Axle Shifted Insufficient Toe-In

Improper
Caster
Steering System Loose or Worn
Twisted Axle

High Speed Shimmy
or
Wheel Fight
Check
Conditions Under "Low Speed Shimmy"

Tire
Pressures Low or not
Equal

Wheel Out of Balance
Wheel Runout
Radial
Runout of Tires
Wheel Camber
Front
Springs
Settled
or Broken
Bent Steering Knuckle
Arm..................

Shock Absorbers not Effective
Steering
Gear
Loose on Frame

Front
Springs too Flexible

Tramp
Wheels Unbalanced

Wandering
Improper
Toe-in

Broken
Front Spring Main
Leaf

Axle Shifted Loose Spring Shackles or Clips
Improper
Caster

Tire
Pressure Uneven
Tightness in Steering System
Loose Wheel Bearings
Front
Spring
Settled
or Broken
Axle
Noisy
on
Pull
Pinion and Ring
Gear
Adjusted too Tight
Pinion Bearings Rough.

Axle Noisy
on
Coast
Excessive Back
Lash
at Ring and Pinion Gears.

End
Play in Pinion Shaft. . . Rough Bearing.

Axle Noisy
on
Coast
and
Pull
Ring
and Pinion Adjusted too Tight
Pinion Set too
Deep
in Ring
Gear
Pinion Bearing Loose or Worn

Back Lash
Axle Shaft Universal Joint Worn
Axle Shaft Improperly Adjusted

Worn
Differential Pinion Washers
Worn
Propeller Shaft Universal Joints.
Readjust
or Replace

Broken
Spring Center Bolt

Adjust
Reset

Adjust
or Overhaul Steering
Gear,
Front Axle or
Steering Parts
Straighten or Adjust
Inflate
Balance
Straighten Mount Properly
Same on Both Wheels
Repair
or Replace
Straighten or Replace
Replace or Repair Tighten

Over
Lubricated

Check
and Balance

Adjust—Check
for Bent Steering Knuckle Arm Replace

Spring
Center Bolt Broken
Adjust
or Replace
Reset Inflate

Adjust
Adjust
Repair
or Replace

Readjust

Replace

Readjust
Readjust

Replace

Readjust Readjust
Readjust
or Replace
Replace
Readjust

Replace

Repair

Emergency
Where difficulty is experienced with front axle differential making the vehicle inoperative,

remove
axle driving
flanges.
This will allow bringing vehicle in under its own power. Be sure the transfer
case
shift lever is in the neutral
(disengaged)
position.
285

'Jeep'
UNIVERSAL
SERIES SERVICE
MANUAL

N
f. Place the
gauge
block against the machined
sur­

face of the dial indicator mount, as shown in Fig.
N-2 8.
g. Set the dial indicator on zero by rotating the face.

h.
Install
the pinion adjusting fixture on the pinion

with
the stationary
guide
pin and the adjustable
guide
pin
seated
in pinion shaft lathe centers, as
shown in Fig. N-2 7.
FIG.
N-2
7—PINION
ADJUSTING FIXTURE
7—
C-Clamp

8— Sleeve Bearing
9—
Inner
Bearing
10— Housing 11—
Stationary
Guide Pin
1—
Dial
Gauge Swing Arc
2—
Pinion

3—
Flange

4—
Yoke

5—
Thumb
Screw
6—
Guide
Pin 12—Pinion Housing

Note:
Use the "C"
type
alignment fixture ver­

tically
as shown in Fig. N-29, so that
weight
of jig assembly is always directly centered and supported
on pinion shaft center. The function of the fixture is to accurately hold the dial indicator and its
FIG.
N-28—SETTING
PINION
GAUGE FOR
MODEL
27AF
AXLE
DIFFERENTIAL
1—
Dial
Indicator
2—
Gauge
Block
3—
Stationary
Pin
4—
C-Clamp
j
11534 j

FIG.
N-29—CHECKING
PINION
ADJUSTMENT mount in alignment to the pinion shaft while it is
pivoted on the stationary
guide
pin. If a consistent
repeat dial reading cannot be obtained, look for
dirty
or burred pinion centers or a
bent
or twisted
aligning jig. Keep jig flat in metal case when not
in
use. Do not allow other
tools
to rest on it
Treat

the C-type fixture
tool
carefully as a precision in­
strument.

i.
Seat the
gauge
mount firmly on the pinion head

and
swing the dial indicator through the differential
bearing bore as shown in
Fig.
N-29.

j.
The
lowest
reading indicates the center of the
differential bearing bore. At this point the dial indi­
cator should read the same as
mark
etched on the
pinion head. If the reading
does
not agree, add or
remove the shims behind the bearing cup until
the readings agree.

k.
The end of each pinion is etched with a plus
(+) number, a minus (—) number or zero (0)
number to indicate the
best
running position for
each particular gear set.
This
dimension is con­
trolled by shimming behind the inner pinion bear­ ing cup. Therefore if a pinion is etched (-f-2), this
pinion would require .002"
less
shims than a pinion
etched "0". By removing shims the mounting dis­
tance is increased which is just what a (+2) etch­
ing indicates. Or if a pinion is etched (—2), add
.002" more shims than would be required if the
pinion were etched "0". By adding .002" shims the mounting distance is decreased which is just what

a
(—2) etching indicates.

Note:
To increase the dial reading decrease shims;
to decrease the dial reading increase shims.

Example:
With a dial reading of minus .001" and
a
pinion marking of plus .002" remove .003" shims
to obtain a higher dial reading of plus .002"

I.
If the original ring and pinion set is to be re­
used, measure the old pinion shim pack and build a
new shim pack to this dimension. Collect shim pack
saved from teardown. Measure each shim separately 297

'Jeep'
UNIVERSAL SERIES SERVICE
MANUAL

The
purpose of caster Fig. O-S, is to provide steer­
ing stability which
will
keep the front wheels in the
straight
ahead position and also assist in straighten­
ing up the wheels when coming out of a
turn.
Caster
of the front wheels is preset. If the angle of

caster,
when accurately measured, is found to be

incorrect,
correct it to the specification given at
the end of this section by either installing new

parts
or installing caster shims
between
the axle

pad
and the springs.

If
the camber and toe-in are correct and it is known
the the axle is not twisted, a satisfactory check

may
be made by testing the vehicle on the road.
Before road testing, make sure all tires are properly

inflated,
being particularly careful that both front
tires are inflated to exactly the same pressure.
If
vehicle turns easily to either side but is
hard
to
straighten out, insufficient caster for easy handling of vehicle is indicated. If correction is necessary, it

can
usually be accomplished by installing shims

between
the springs and axle pads to secure the
desired
result.
0-11-
Front
Wheel
Turning
Angle
When
the front wheels are turned, the inside wheel
on the
turn
travels in a smaller circle than the out­side wheel, therefore, it is necessary for the wheels
to toe out to prevent the tire on the inside wheel

frOm
being scuffed sideways.
This
angle for toe out
on turns is designed to permit both front wheels to

turn
on a common center by having the ends of the
steering
knuckle
arms closer
together
than the king­

pins.

To
avoid possible damage to the universal joints
on the front axles of 4-wheel drive vehicles, it is advisable to check the turning angle.
Wearing
away
of the upset
edge
on the spindle housing bolt which
10607

FIG.
0-6—TURNING
ANGLE
STOP
SCREW
1—Stop
Screw
contacts the
stop
screw
will
increase the turning
angle to the point where the universal joints may
be damaged.

The
Jeep Universal Series vehicles should have a

turning
angle of not more than 27^° both left and

right.
To adjust the
stop
screw, it is necessary to

loosen
the locknut holding the
stop
screw. When
the adjustment has been made, tighten the locknut
on the screw to prevent any movement. Refer to
Fig.
O 6.

The
left steering knuckle arm controls the relation­
ship of the front wheels on a left
turn
and the right
arm
controls the relation on a right
turn.

0-12. Steering
Knuckle
Arm

Should
a steering knuckle arm
become
bent, the

knuckle
housing must be replaced. It is not safe to
straighten the knuckle arm.
0-13.
Front
Wheel
Shimmy
Wheel
shimmy may be caused by various condi­
tions in the wheels, axle or steering system, or a
combination of
these
conditions. Outlined below

will
be found the usual corrections of this fault:

a.
Equalize
tire pressures and see that they are
according
to specifications.

b.
Check
the wheel bearings for
looseness.
Be sure
that the inner wheel bearing race is not too
loose
on the spindle.

c.
Remove both steering knuckles and carefully inspect the upper and lower king pin bearings.

Inspect
the bearing cups for evidence of brinelling,
pitting, or fretting. Any bearings that show the slightest imperfection must be
replaced.
Reassemble

and
lubricate the front axle and steering linkage,
installing
new steering knuckle oil seals if present
seals show any wear.

d.
With
full
weight on the front wheels and one

man
working the steering play with the steering
wheel, a second man should closely observe the steering bell
crank
for any rocking motion and the
double tie rod socket for any rocking motion or

looseness
at both points. Replace the complete bell
crank
assembly if it has even the slightest rocking motion. The same applies to the double tie rod
socket.
e.
Check
wheel run-out.
This
check should include
radial
run-out and wheel
looseness
on the hub.
f- Test wheel balance—check for blowout patches,
uniform
tire tread, vulcanized tires, mud on inside
of wheels, and tires creeping on the
rims.

g.
Try
switching front wheels and tires to the
rear,
criss-crossing
them in this operation.

h.
Check
for front
spring
sag. Also check for broken

spring
leaves, broken center
spring
bolt,
loose
spring

clips
(or tight clips), over-lubrication of spring leaves, spring shackle bracket
loose
on frame, and

loose
rear
spring shackle. Be sure that the shock
absorbers
are operating properly to eliminate bob­bing of the front end.

i.
Check
brakes to make sure that one
does
not

drag.

j.
Check
the steering assembly and steering con­ necting rod.
This
includes the up-and-down-play
of the steering worm shaft, end play of the cross 317

Q

WHEELS

FIG.
Q-6—REAR
WHEEL,
FLANGED
AXLE
AND
BEARING
ASSY.

1—
Retainer
Plate

2— Oil
Seal

3—
Unit
Bearing

4—
Retaining
Ring
5—
Axle
Shaft
wheel
will
turn
freely with no drag. If adjustment
is necessary, follow the procedure given in Par. Q-8.

Q-8.
Rear Wheel Bearing Adjustment
—
Tapered Axle

The
bearing adjusting shims are placed
between
the brake backing plate and axle flange as shown

in
Fig. Q-7.

With
wheel raised on
jack,
the following procedure
should be used to make the
rear
wheel bearing
adjustment.

a.
Remove the hub cap with hub cap puller, the
cotter pin, axle shaft nut, and washer. Remove the
wheel hub and drum with a wheel puller.

b.
Disconnect hydraulic brake line at wheel

cylinder.

c.
Remove the
bolts
holding the brake dust shield, grease and bearing retainer, and the brake backing
plate.

d.
Remove or install shims to adjust the bearings
to provide .001" to .006" [0,025 a 0,152 mm.]
end float of the axle shaft.

Note:
Before reassembly of the wheel make certain
the backing plate nuts are tight and torqued at 25 to 35 lb-ft [3,4 a 4,8 kg-m.].
e. Reassemble the wheel, adjust brakes, and check
the bearing adjustment (Par. Q-7).

0-9.
REAR WHEEL MOUNTING
—
TAPERED AXLE

Proper
axle shaft key installation is accomplished by placing the hub and drum on the axle shaft
taper and then inserting the axle shaft key in the
FIG.
Q-7—REAR
WHEEL
AND HUB
BEARING
—

TAPERED
AXLE
SHAFT

1—-Adjusting
Shims
2—Inner
Seal
3—Outer
Seal
keyway.
Never install the key in the keyway before

placing
the hub and drum assembly on the axle
shaft. Be sure that the axle shaft nut is torqued
to a minimum of 150 lb-ft. [20,7 kg-m.].
O-10.
BRAKE
DRUM
SERVICE
On
rear
wheels, the hub fits inside the brake drum
(Fig.
Q-3). On front wheels, the hub is attached
to the outside of the brake drum (Fig. Q-l). The

brake
drums are attached to the wheel hubs by
five serrated bolts. These
bolts
are also used for
mounting the wheels on the hub. To remove a

brake
drum,
press or drive out the serrated
bolts
and
remove the drum from the hub. When placing
the drum on the hub, make sure that the contacting
surfaces are clean and flat.
Line
up the
holes
in
the drum with
those
in the hub and put the drum
over the shoulder on the hub. Insert five new
serrated
bolts
through the drum and hub and drive
the
bolts
into place solidly. Place a round head of the bolt in a vise. Next, place the hub and drum
assembly over it so that the bolt head rests on it.

Then
swage
the bolt into the countersunk section of the hub or drum with a punch. The runout of
the drum face should be within .030" [0,76 mm.]
total indicator reading. If the runout is found to be greater than .030" it
will
be necessary to reset
the
bolts
to correct the condition.
0-11.
TIRE SERVICE
Refer
to Fig. Q-8.

One
of the most important factors of safe vehicle
operation is systematic and correct tire mainte­ nance.
Tires
must sustain the weight of a loaded vehicle, withstand more than ordinary rough serv- 338

'Jeep'
UNIVERSAL
SERIES
SERVICE
MANUAL

Q
ice, provide maximum safety over all
types
of

terrain,
and furnish the medium on which the
vehicle can be maneuvered with ease. Although
there are other
elements
of tire service, inflation maintenance is the most important and in many
instances the most neglected. The tire pressure should be maintained for safe operation. An under- inflated tire is dangerous as too much flexing can
cause breakage of the casing. Overinflation in time
may
cause a blowout.

Upon
careful inspection of tires, it may be found
that improper wheel alignment, balance, grabbing
brakes,
poor driving habits, fast cornering or other
conditions are the cause of wear. Such conditions
should be corrected.

a.
UNDERINFLATION

Underinflation
distorts the normal contour of the
tire
body and the tire
bulges
or "bellies out" with

an
extreme flexing action.
This
wears the tread at the
edges
more than the center and generates
excessive internal heat, weakening the cords and
resulting
in bruises, broken cords or ply separation.

Underinflation
also leads to rim bruises as in­ sufficient resistance is provided to prevent the tire

from
being jammed against the rim and crushed
or
cut when the tire strikes a
curb,
rock, or rut.

b.
OVERINFLATION

When
a tire is
overinf
lated,
increased tension caused by excessive pressure prevents proper deflection of
the sidewalls.
This
results in wear in the center of the tread and the tire also
loses
its ability to absorb

road
shocks. Under this increased
strain,
cords in the tread area eventually snap under impact, caus­ing a casing break.

c.
MISALIGNMENT
WEAR
Excessive
wheel camber causes the tires to run at an angle to the road when camber is incorrect

it
will
cause excessive wear on one side of the
tire
tread.

Front
wheels should be straight ahead or toe-in slightly. When there is excessive toe-in or
toe-out,

tires
will
revolve with a side motion and scrape
the tread rubber off.
Front
tires
will
show wear on the outside with too great a toe-in condition
and
on the inside with a
toe-out
condition.

d.
BALANCE
Cupping
and bald spotting of tires is associated

with
wear on a vehicle driven mostly at high-way
speeds
without the recommended tire rotation and

with
unbalance conditions.

Q-12.
Tire
Care
Note;
For satisfactory 4-wheel drive operation, a
4-wheel drive vehicle
MUST
be equipped with the same size tires of equal circumference on all
four wheels. The tires must then be inflated to

proper
factory recommended pressures at all times.

Tire
pressure, tire rotation, wheel balance, and wheel alignment are the four vital factors that in­
fluence the
extent
of tire life and the
ease
and safety of vehicle control.
Four
of the most common

tire
troubles are:

a.
Excessive wear around the outer
edges
resulting

from
underinflation.

b.
Excessive wear in the center of the tread re­
sulting from overinflation.

c.
Tire
tread worn on one side indicating wheels
need realigning.
d.
Cuplike
depressions on one side of the tread

indicating
wheels need balancing.

If
the vehicle normally carries a
full
load, two to
four psi. [0,14 a 0,28 kg-m2] can be added to the
recommended air pressures. But, remember that adding air with a light load means a harsher ride,

doesn't
help tires, and wears out shock absorbers. Rotate the tires as shown in Fig. Q-9 for correct
rotation system.

Q-13.
Tire
Removal
and
Installation

To
remove a tire from a drop center rim, first
WEAR
AT SHOULDERS

WEAR
AT CENTER

WEAR
ON ONE
SIDE
FEATHERED
EDGE
BALD
SPOTS

/1TTDN

i

UNDER
INFLATION
OVER
INFLATION
EXCESSIVE
CAMBER

INCORRECT
TOE
WHEEL
UNBALANCED

liF
11

ADJUST
PRESSURE TO
SPECIFICATIONS
WHEN
TIRES ARE
COOL
ADJUST
CAMBER
TO

SPECIFICATIONS
ADJUST
FOR

TOE-IN
DYNAMIC
OR
STATIC

BALANCE
WHEELS

FIG.
Q-8—TIRE
WEAR
PATTERN
339
