Page 111 of 439

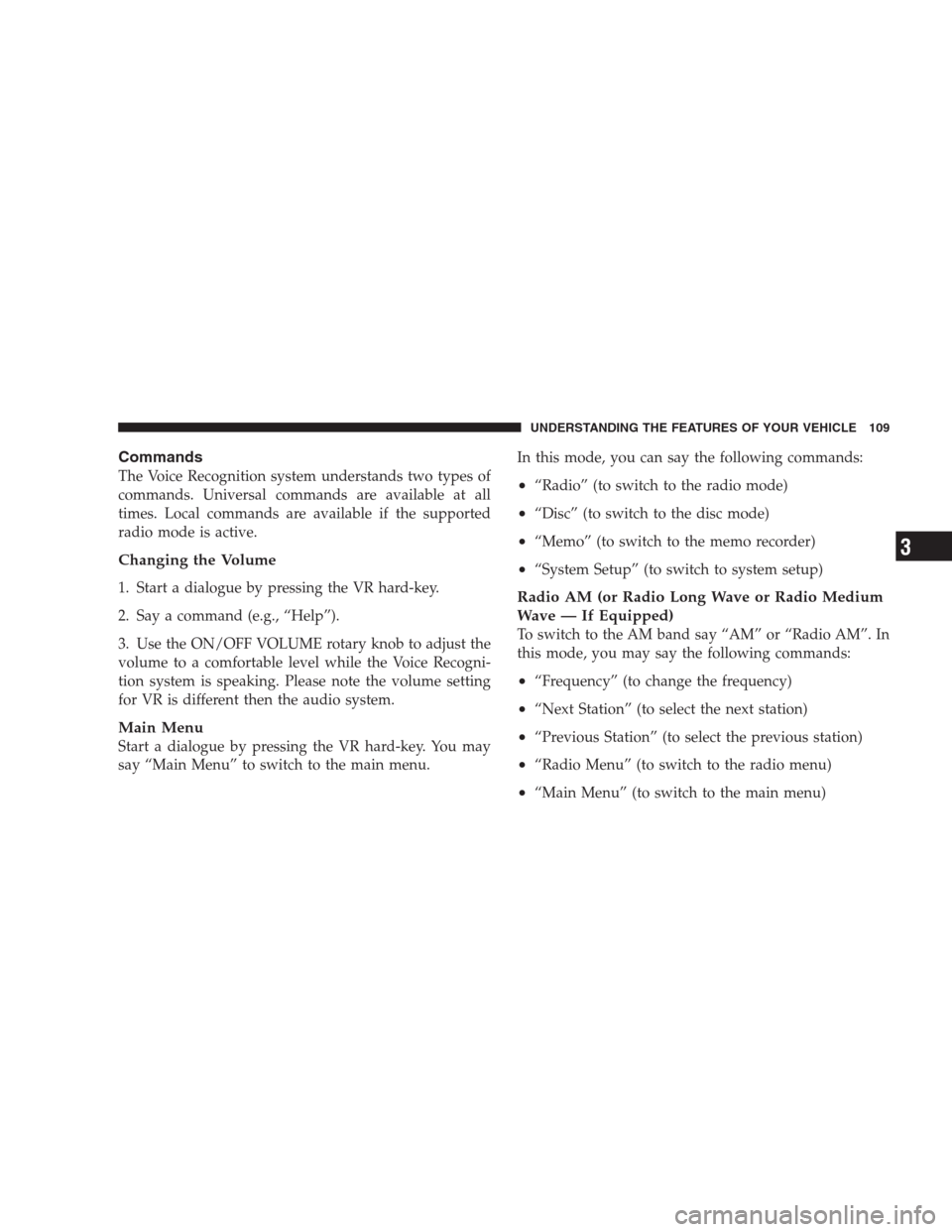

JEEP COMPASS 2009 1.G Owners Manual Commands
The Voice Recognition system understands two types of
commands. Universal commands are available at all
times. Local commands are available if the supported
radio mode is active.
Changing the

Page 112 of 439

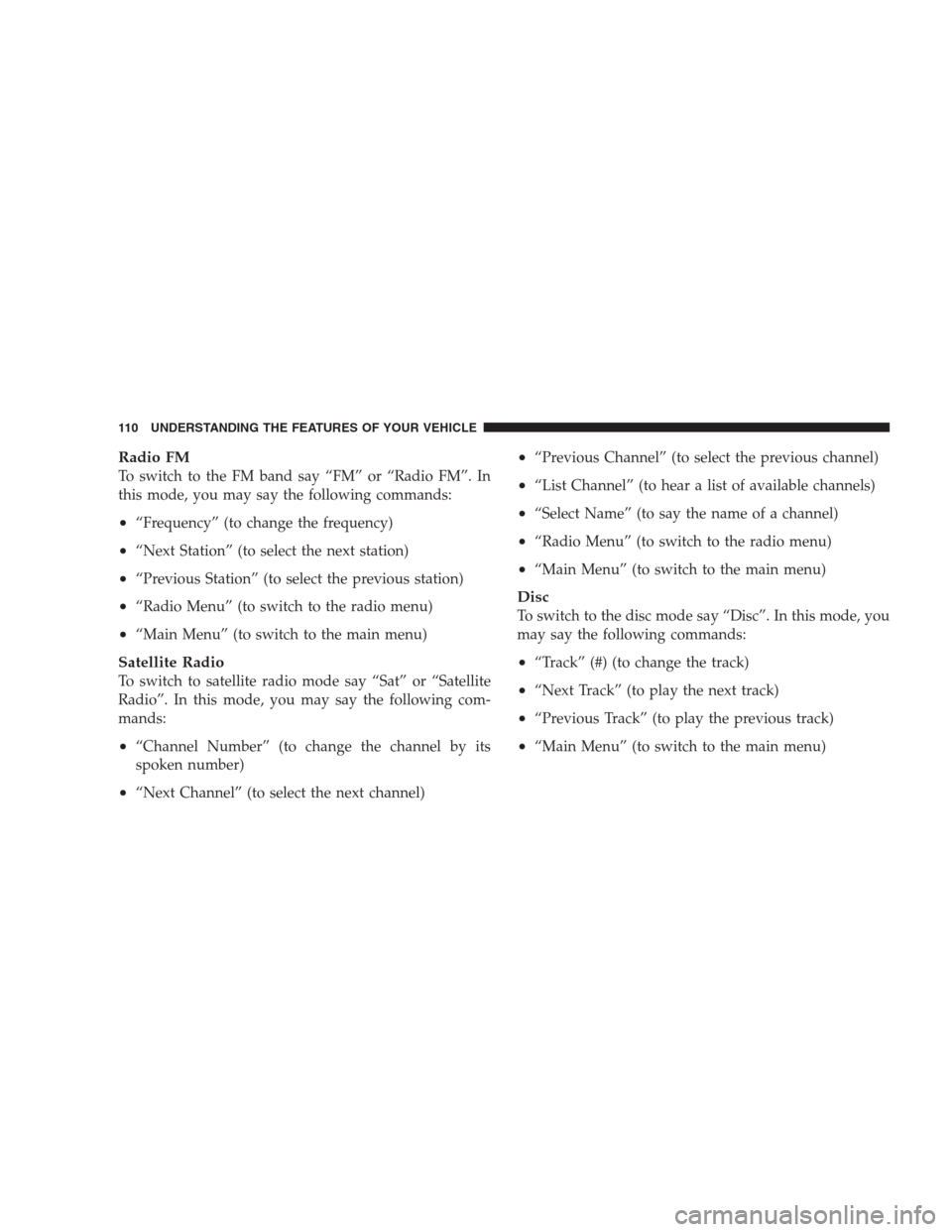

JEEP COMPASS 2009 1.G Owners Manual Radio FM
To switch to the FM band say “FM” or “Radio FM”. In
this mode, you may say the following commands:
•“Frequency” (to change the frequency)
•“Next Station” (to select the ne

Page 113 of 439

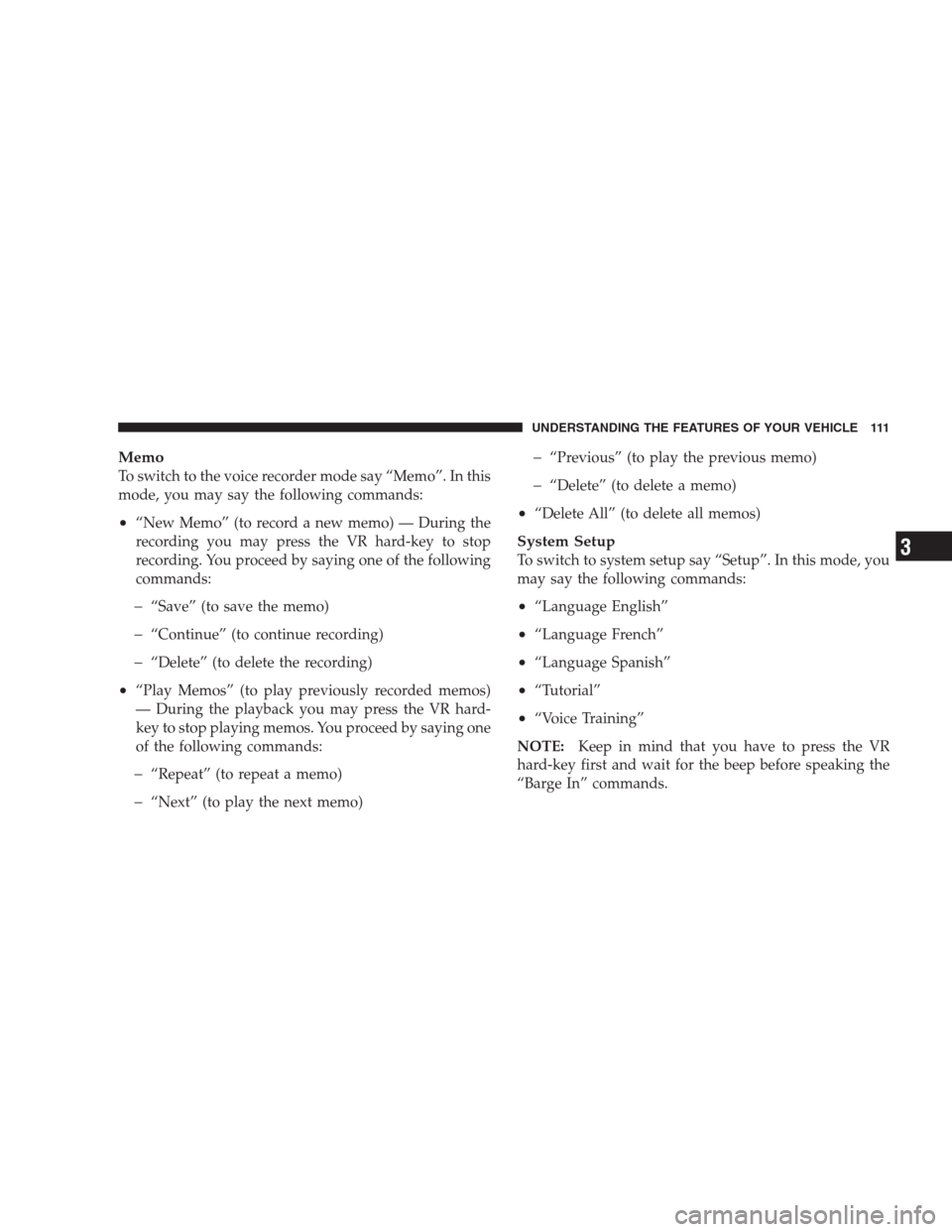

JEEP COMPASS 2009 1.G Owners Manual Memo
To switch to the voice recorder mode say “Memo”. In this
mode, you may say the following commands:
•“New Memo” (to record a new memo) — During the
recording you may press the VR hard-

Page 114 of 439

JEEP COMPASS 2009 1.G Owners Manual Voice Training
For users experiencing difficulty with the system recog-
nizing their voice commands or numbers, the UConnect
system Voice Training feature may be used.
1. Press the VR hard-key, say

Page 115 of 439

JEEP COMPASS 2009 1.G Owners Manual Using body pressure, move forward and rearward on the
seat to be sure the seat adjusters have latched.
WARNING!
•Adjusting a seat while the vehicle is moving is
dangerous. The sudden movement of the

Page 116 of 439

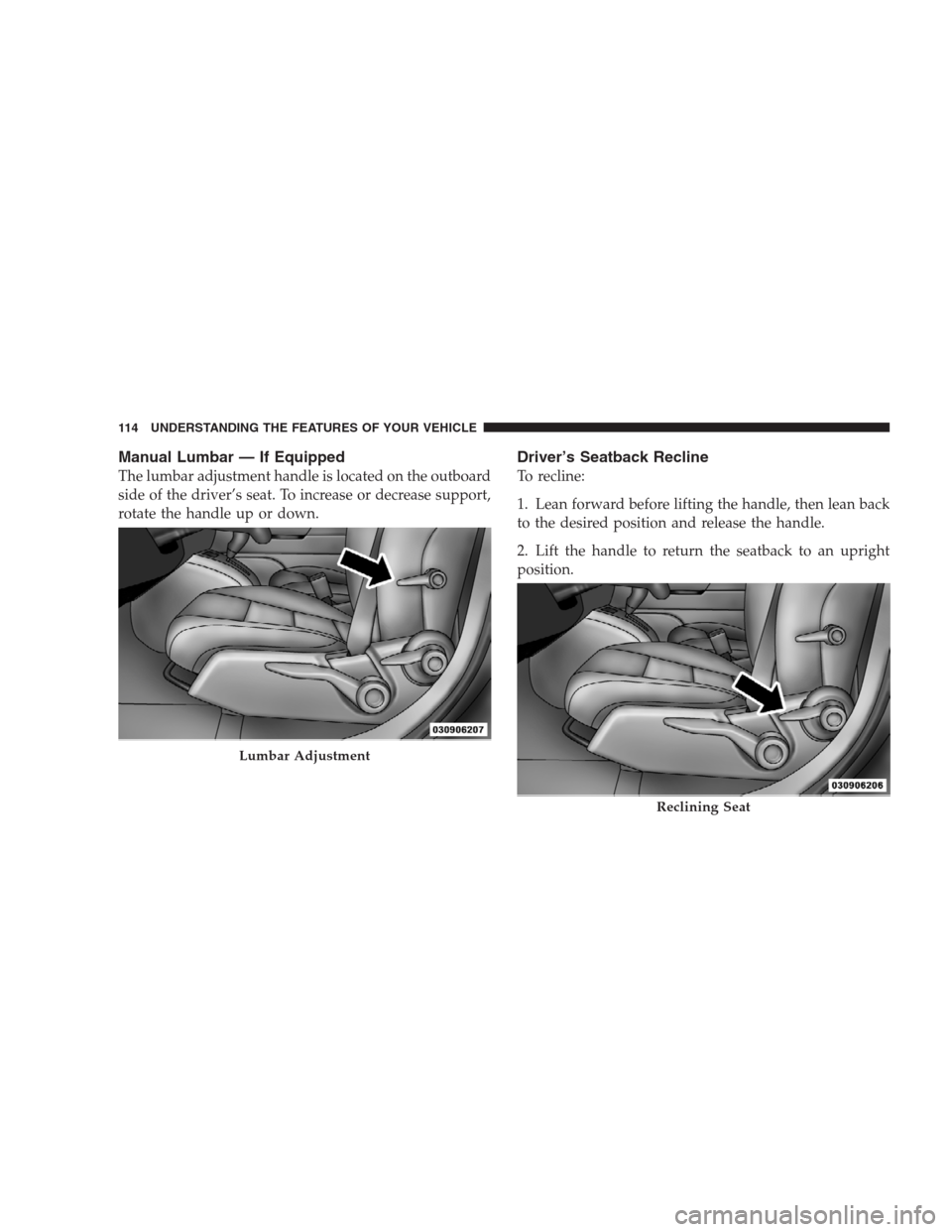

JEEP COMPASS 2009 1.G Owners Manual Manual Lumbar — If Equipped
The lumbar adjustment handle is located on the outboard
side of the driver’s seat. To increase or decrease support,
rotate the handle up or down.
Driver’s Seatback Re

Page 117 of 439

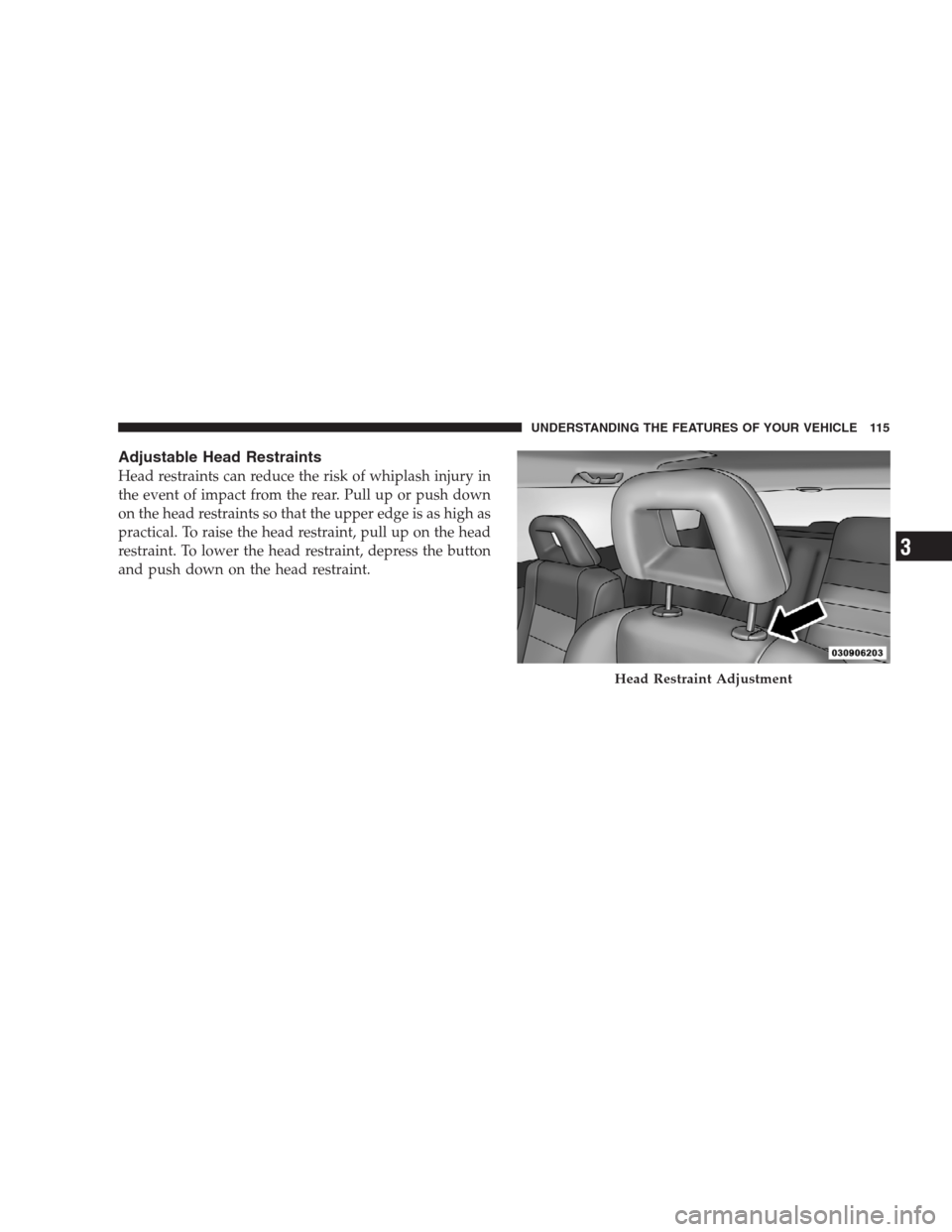

JEEP COMPASS 2009 1.G Owners Manual Adjustable Head Restraints
Head restraints can reduce the risk of whiplash injury in
the event of impact from the rear. Pull up or push down
on the head restraints so that the upper edge is as high as

Page 118 of 439

JEEP COMPASS 2009 1.G Owners Manual Heated Seats — If Equipped
This feature heats the front driver and passenger seats.
The heaters provide the same heat level for both cushion
and back. The controls for the front heated seats are
loc

Page 119 of 439

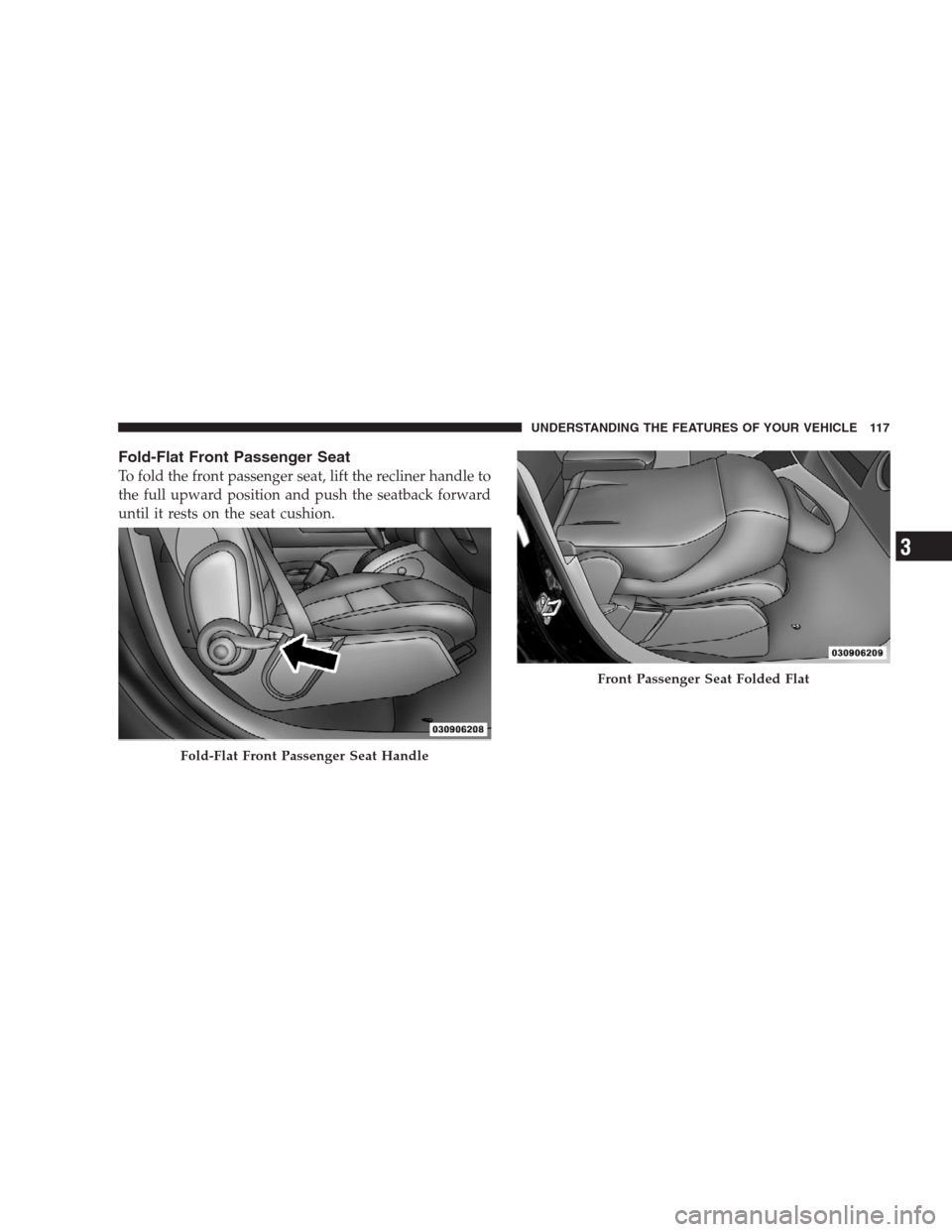

JEEP COMPASS 2009 1.G Owners Manual Fold-Flat Front Passenger Seat
To fold the front passenger seat, lift the recliner handle to
the full upward position and push the seatback forward
until it rests on the seat cushion.
Fold-Flat Front

Page 120 of 439

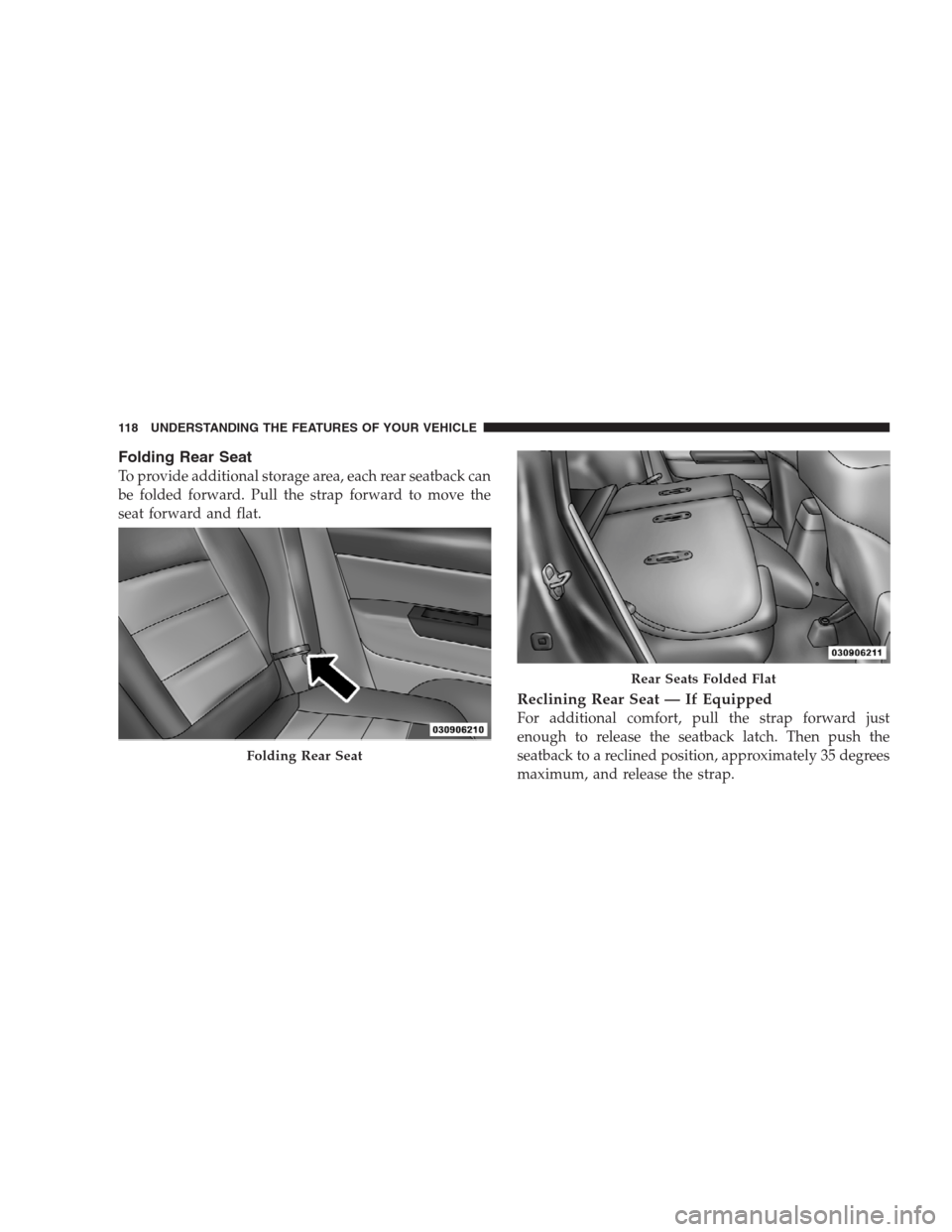

JEEP COMPASS 2009 1.G Owners Manual Folding Rear Seat
To provide additional storage area, each rear seatback can
be folded forward. Pull the strap forward to move the
seat forward and flat.
Reclining Rear Seat — If Equipped
For additi
