Vanity Mirrors — If Equipped
To use the vanity mirror, rotate the sun visor down and
swing the mirror cover upward.
Sun Visor Sliding Feature
The sun visors may be extended out to provide more
coverage of the side glass.
HANDS-FREE COMMUNICATION (UConnect)—
IF EQUIPPED
NOTE: The sales code RER and REU radios contain an
integrated Hands-Free Communication (UConnect)
system. Refer to your “Navigation User’s Manual” for
UConnectsystem operating instructions for these ra-
dios. Radio sales code can be located on the lower right
corner of the Radio faceplate.
UConnectis a voice-activated, hands-free, in-vehicle
communications system. UConnectallows you to dial a
phone number with your cellular phone using simple
voice commands (e.g.,Call”“Mike””WorkorDial”
“248-555-1212). Your cellular phone’s audio is trans-
mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnectsystem.
Vanity Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3

NOTE:The UConnectsystem requires a cellular phone
equipped with the BluetoothHands-Free Profile,Ve r -
sion 0.96 or higher. See the UConnectwebsite for
supported phones.
NOTE:For UConnectcustomer support, visit the
following websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
UConnectallows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation.
The UConnectsystem is driven through your
Bluetooth“Hands-Free Profile” cellular phone.UConnectfeatures Bluetoothtechnology - the global
standard that enables different electronic devices to con-
nect to each other without wires or a docking station, so
UConnectworks no matter where you stow your cellu-
lar phone (be it your purse, pocket, or briefcase), as long
as your phone is turned on and has been paired to the
vehicle’s UConnectsystem. The UConnectsystem
allows up to seven cellular phones to be linked to the
system. Only one linked (or paired) cellular phone can be
used with the system at a time. The system is available in
English, Spanish, or French languages.
Phone Button
The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Voice Recognition Button
Actual button location may vary with the ra-
dio. The individual buttons are described in the
“Operation” section.
The UConnectsystem can be used with any Hands-Free
Profile certified Bluetoothcellular phone. See the
UConnectwebsite for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnect
features. Refer to your cellular service provider or the
phone manufacturer for details.
The UConnectsystem is fully integrated with the vehi-
cle’s audio system. The volume of the UConnectsystem
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.The radio display will be used for visual prompts from
the UConnectsystem such asCELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the UConnect
system and to navigate through the UConnectmenu
structure. Voice commands are required after most
UConnectsystem prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows theReadyprompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of sayingSetupand then
Phone Pairing,the following compound command
can be said:Setup Phone Pairing.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the combined form voice com-
mandPhonebook New Entry,or you can break the
combined form command into two voice commands:
PhonebookandNew Entry.Please remember, the
UConnectsystem works best when you talk in a
normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, sayHelpfollowing
the beep. The UConnectsystem will play all the options
at any prompt if you ask for help.To activate the UConnectsystem from idle, simply press
the PHONE button and follow the audible prompts for
directions. All UConnectsystem sessions begin with a
press of the PHONE button on the radio control head.
Cancel Command
At any prompt, after the beep, you can sayCanceland
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) UConnectSystem to a Cellular Phone
To begin using your UConnectsystem, you must pair
your compatible Bluetoothenabled cellular phone.
To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
UConnectwebsite may also provide detailed instruc-
tions for pairing.
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

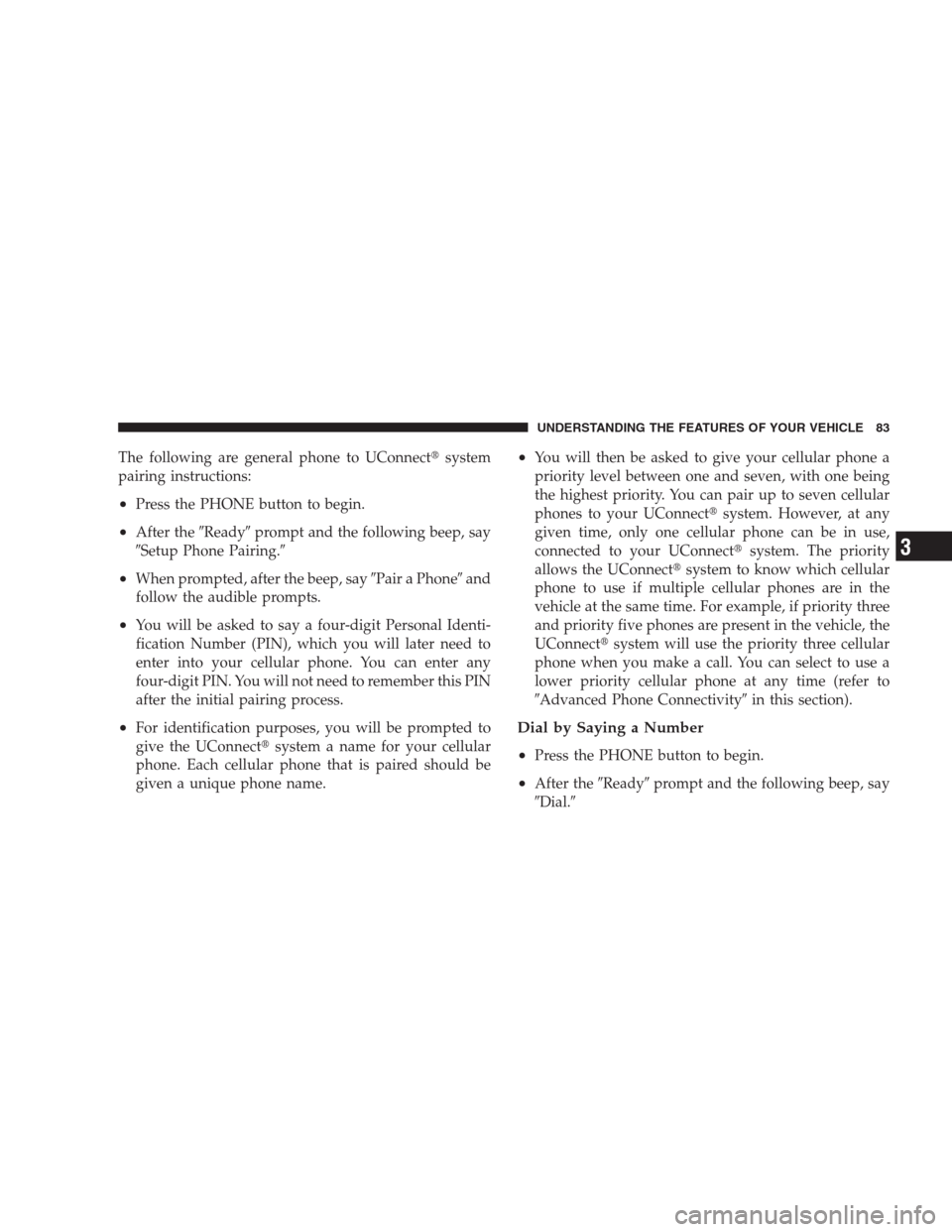

The following are general phone to UConnectsystem
pairing instructions:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Setup Phone Pairing.
•When prompted, after the beep, sayPair a Phoneand
follow the audible prompts.
•You will be asked to say a four-digit Personal Identi-
fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.
•For identification purposes, you will be prompted to
give the UConnectsystem a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone a
priority level between one and seven, with one being
the highest priority. You can pair up to seven cellular
phones to your UConnectsystem. However, at any
given time, only one cellular phone can be in use,
connected to your UConnectsystem. The priority
allows the UConnectsystem to know which cellular
phone to use if multiple cellular phones are in the
vehicle at the same time. For example, if priority three
and priority five phones are present in the vehicle, the
UConnectsystem will use the priority three cellular
phone when you make a call. You can select to use a
lower priority cellular phone at any time (refer to
Advanced Phone Connectivityin this section).
Dial by Saying a Number
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Dial.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3

•The system will prompt you to say the number you
want to call.
•For example, you can say234-567-8901.
•The UConnectsystem will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
“Call.
•The system will prompt you to say the name of the
person you want to call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,
you can sayJohn Doe,where John Doe is a previ-
ously stored name entry in the UConnectphonebookor downloaded phonebook. To learn how to store a
name in the phonebook, refer toAdd Names to Your
UConnectPhonebook,in the phonebook.
•The UConnectsystem will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your UConnectPhonebook
NOTE:Adding names to the UConnectphonebook is
recommended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook New Entry.
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, sayRobert Smithor
Robertinstead ofBob.
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

•When prompted, enter the number designation (e.g.,
Home,Work,Mobile,orPager). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.
After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.
The UConnectsystem will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language. In addition, if equipped and
supported by your phone, UConnectautomatically
downloads your mobile phone’s phonebook.
Phonebook Download – Automatic Phonebook
Transfer From Mobile Phone
If equipped and specifically supported by your phone,
UConnectautomatically downloads names (text names)
and number entries from the mobile phone’s phonebook.
Specific BluetoothPhones with Phone Book Access
Profile may support this feature. See UConnectwebsite
for supported phones.
•To call a name from downloaded (or UConnect)
Phonebook, follow the procedure in “Call by Saying a
Name” section.
•Automatic download and update, if supported, begins
as soon as the Bluetoothwireless phone connection is
made to the UConnect, for example, after you start
the vehicle.
•A maximum of 1000 entries per phone will be down-
loaded and updated every time a phone is connected
to the UConnect.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

•Depending on the maximum number of entries down-
loaded, there may be a short delay before the latest
downloaded names can be used. Until then, if available,
the previous downloaded phonebook is available for use.
•Only the phonebook of the currently connected mobile
phone is accessible.
•Only the mobile phone’s phonebook is downloaded.
SIM card phonebook is not part of the Mobile phone-
book.
•This downloaded phonebook cannot be edited or
deleted on the UConnect. These can only be edited on
the mobile phone. The changes are transferred and
updated to UConnecton the next phone connection.
Phonebook Download — Single Entry
If equipped and supported by your phone, UConnect
allows the user to download entries from their phone via
Bluetooth. To use this feature, press the PHONE button andsay “Phonebook Download.” The system prompts, “Ready
to accept “V” card entry via Bluetooth…” The system is
now ready to accept phonebook entries from your phone
using the BluetoothObject Exchange Profile (OBEX). Please
see your phone Owner’s Manual for specific instructions on
how to send these entries from your phone.
NOTE:
•The phone handset must support BluetoothOBEX
transfers of phonebook entries to use this feature.
•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth,
and you may see a message on the phone display that
the Bluetoothlink is busy. In this case, the user must
first disconnect or drop the Bluetoothconnection to
the UConnectsystem, and then send the address
book entry via Bluetooth. Please see your phone
Owner ’s Manual for specific instructions on how to
drop the Bluetoothconnection.
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

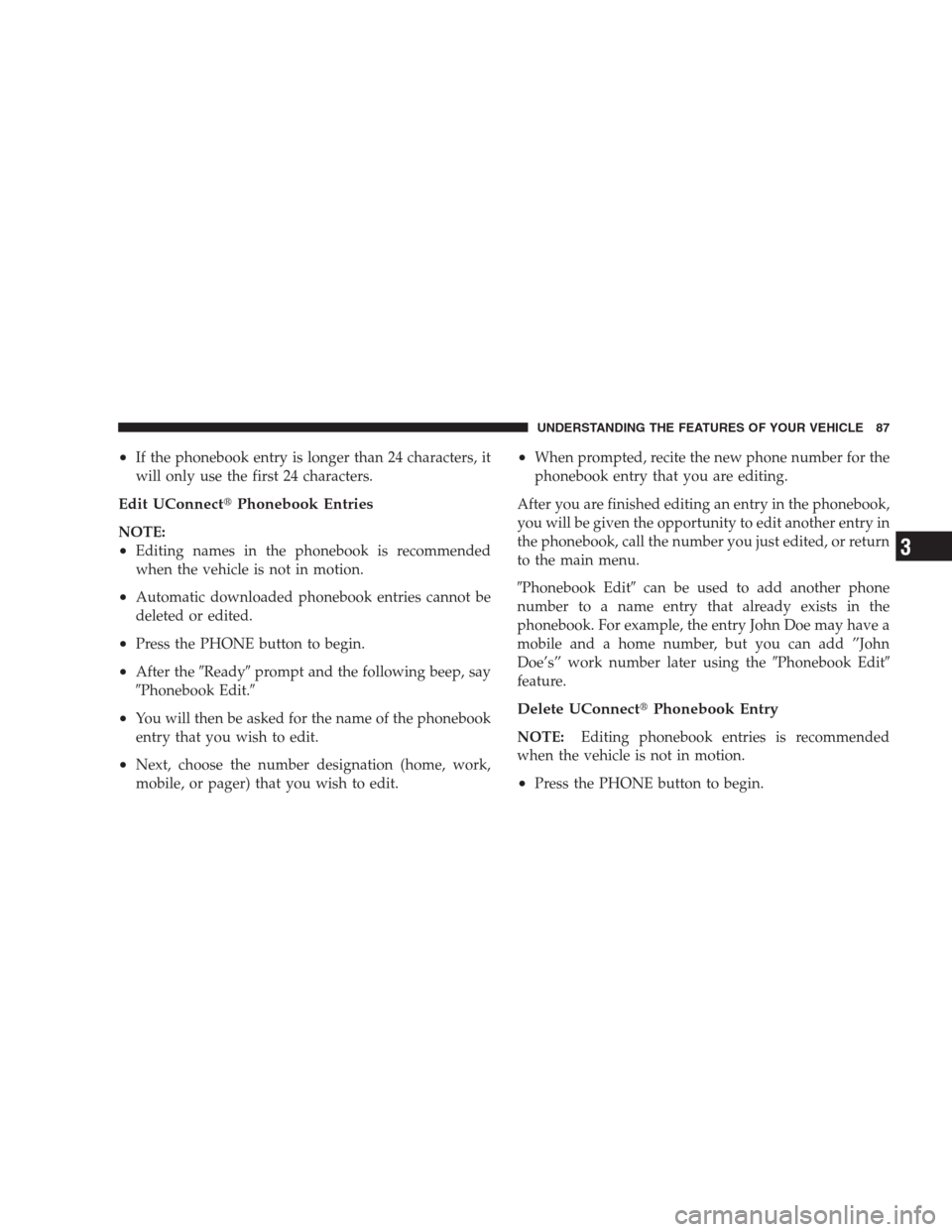

•If the phonebook entry is longer than 24 characters, it
will only use the first 24 characters.
Edit UConnectPhonebook Entries
NOTE:
•Editing names in the phonebook is recommended
when the vehicle is not in motion.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Edit.
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing.
After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.
Phonebook Editcan be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
mobile and a home number, but you can add ”John
Doe’s” work number later using thePhonebook Edit
feature.
Delete UConnectPhonebook Entry
NOTE:Editing phonebook entries is recommended
when the vehicle is not in motion.
•Press the PHONE button to begin.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

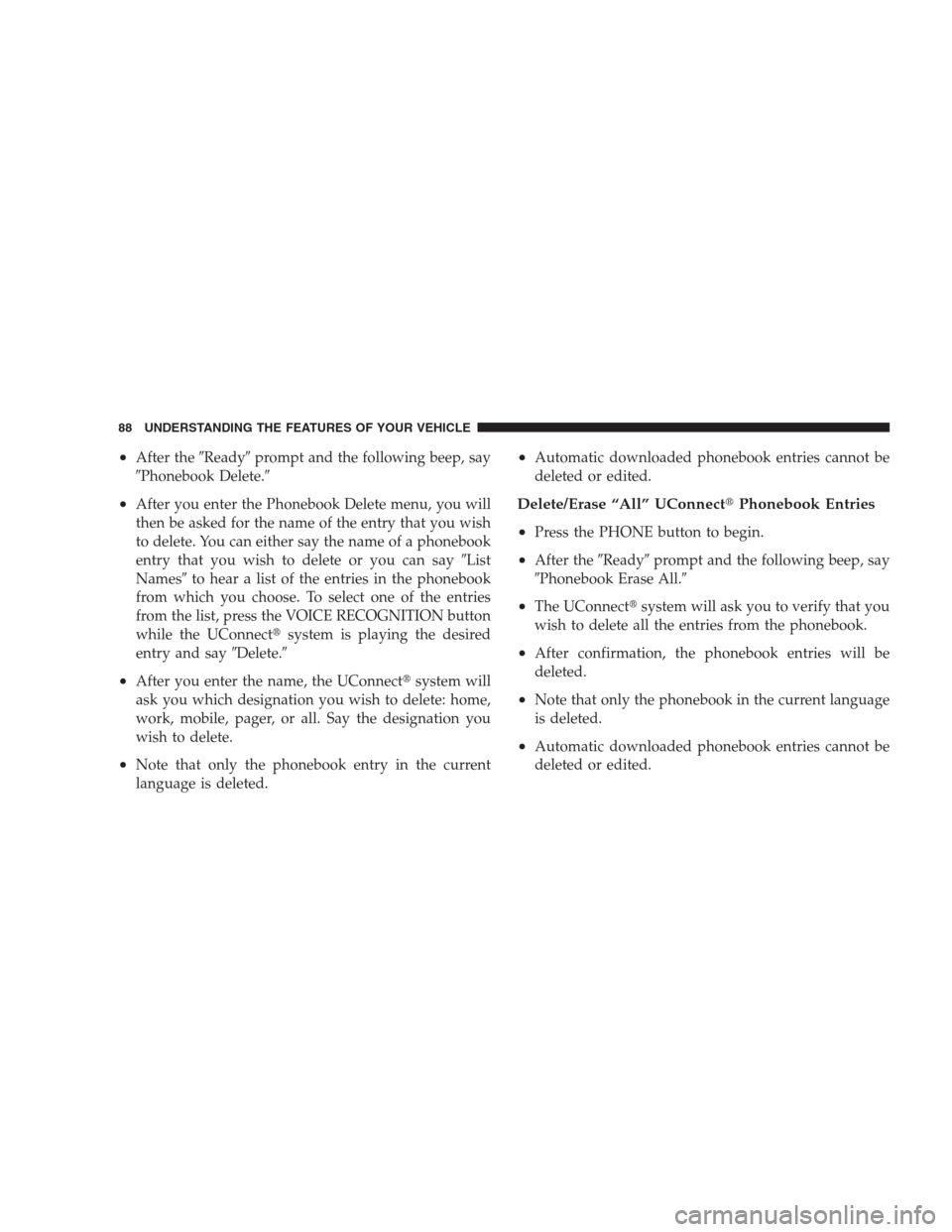

•After theReadyprompt and the following beep, say
Phonebook Delete.
•After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can sayList
Namesto hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press the VOICE RECOGNITION button
while the UConnectsystem is playing the desired
entry and sayDelete.
•After you enter the name, the UConnectsystem will
ask you which designation you wish to delete: home,
work, mobile, pager, or all. Say the designation you
wish to delete.
•Note that only the phonebook entry in the current
language is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
Delete/Erase “All” UConnectPhonebook Entries
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Erase All.
•The UConnectsystem will ask you to verify that you
wish to delete all the entries from the phonebook.
•After confirmation, the phonebook entries will be
deleted.
•Note that only the phonebook in the current language
is deleted.
•Automatic downloaded phonebook entries cannot be
deleted or edited.
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
