ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.
Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil
changes should be consistent with anticipated climate
conditions under which vehicle operations will occur. For
the recommended viscosity and quality grades, refer to
“Maintenance Procedures” in “Maintaining Your Ve-
hicle”.
CAUTION!
Never use Non-Detergent Oil or Straight Mineral Oil
in the engine or damage may result.
NOTE: A new engine may consume some oil during its
first few thousand miles (kilometers) of operation. This
should be considered a normal part of the break-in and
not interpreted as an indication of difficulty.
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 99

WARNING!
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
• It is extremely dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision, people
riding in these areas are more likely to be seriously
injured or killed.
• Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
• Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
Exhaust Gas
WARNING!
Exhaust gases can injure or kill. They contain carbon
monoxide (CO), which is colorless and odorless.
Breathing it can make you unconscious and can
eventually poison you. To avoid breathing (CO),
follow these safety tips:
• Do not run the engine in a closed garage or in
confined areas any longer than needed to move
your vehicle in or out of the area.
• If you are required to drive with the trunk/liftgate/
rear doors open, make sure that all windows are
closed and the climate control BLOWER switch is
set at high speed. DO NOT use the recirculation
mode.
(Continued)
100 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

WARNING!(Continued)
•If it is necessary to sit in a parked vehicle with the
engine running, adjust your heating or cooling
controls to force outside air into the vehicle. Set the
blower at high speed.
The best protection against carbon monoxide entry into
the vehicle body is a properly maintained engine exhaust
system.
Whenever a change is noticed in the sound of the exhaust
system, when exhaust fumes can be detected inside the
vehicle, or when the underside or rear of the vehicle is
damaged, have a competent mechanic inspect the com-
plete exhaust system and adjacent body areas for broken,
damaged, deteriorated, or mispositioned parts. Open
seams or loose connections could permit exhaust fumes
to seep into the passenger compartment. In addition,
inspect the exhaust system each time the vehicle is raised
for lubrication or oil change. Replace as required.
Safety Checks You Should Make Inside The
Vehicle
Seat Belts
Inspect the seat belt system periodically, checking for
cuts, frays, and loose parts. Damaged parts must be
replaced immediately. Do not disassemble or modify the
system.
Front seat belt assemblies must be replaced after a
collision. Rear seat belt assemblies must be replaced after
a collision if they have been damaged (i.e., bent retractor,
torn webbing, etc.). If there is any question regarding seat
belt or retractor condition, replace the seat belt.2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 101

Air Bag Warning Light
The light should come on and remain on for
four to eight seconds as a bulb check when the
ignition switch is first turned ON. If the light is
not lit during starting, see your authorized
dealer. If the light stays on, flickers, or comes on while
driving, have the system checked by an authorized
dealer.
Defroster
Check operation by selecting the defrost mode and place
the blower control on high speed. You should be able to
feel the air directed against the windshield. See your
authorized dealer for service if your defroster is inoper-
able.
Floor Mat Safety Information
Always use floor mats designed to fit the footwell of your
vehicle. Use only floor mats that leave the pedal area
unobstructed and that are firmly secured so that they
cannot slip out of position and interfere with the pedals
or impair safe operation of your vehicle in other ways.
WARNING!
Pedals that cannot move freely can cause loss of
vehicle control and increase the risk of serious per-
sonal injury.
• Always make sure that floor mats are properly
attached to the floor mat fasteners.
(Continued)
102 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

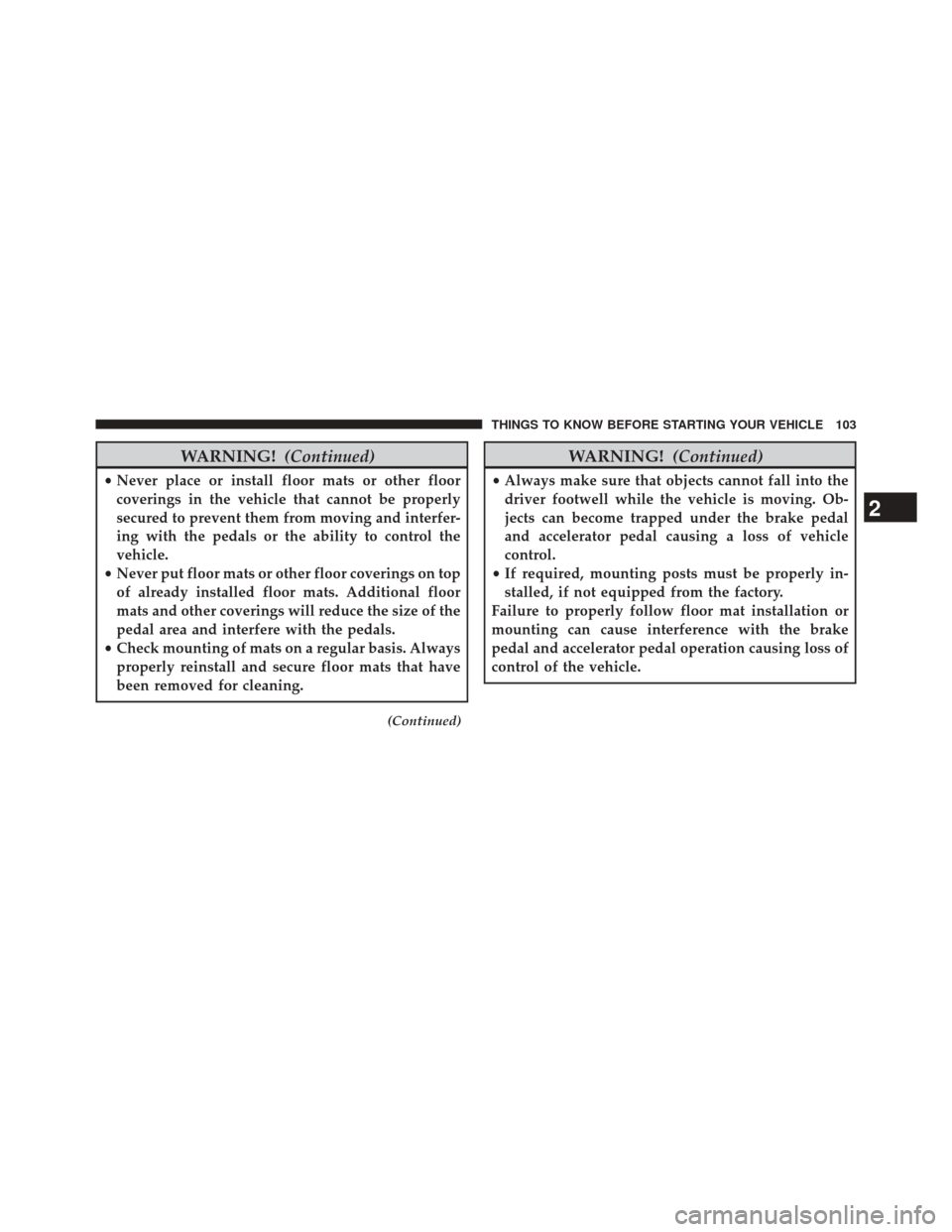

WARNING!(Continued)
•Never place or install floor mats or other floor
coverings in the vehicle that cannot be properly
secured to prevent them from moving and interfer-
ing with the pedals or the ability to control the
vehicle.
• Never put floor mats or other floor coverings on top
of already installed floor mats. Additional floor
mats and other coverings will reduce the size of the
pedal area and interfere with the pedals.
• Check mounting of mats on a regular basis. Always
properly reinstall and secure floor mats that have
been removed for cleaning.
(Continued)
WARNING! (Continued)
•Always make sure that objects cannot fall into the
driver footwell while the vehicle is moving. Ob-
jects can become trapped under the brake pedal
and accelerator pedal causing a loss of vehicle
control.
• If required, mounting posts must be properly in-
stalled, if not equipped from the factory.
Failure to properly follow floor mat installation or
mounting can cause interference with the brake
pedal and accelerator pedal operation causing loss of
control of the vehicle.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 103

Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks and bulges.
Check the wheel nuts for tightness. Check the tires
(including spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
Door Latches
Check for positive closing, latching, and locking.
Fluid Leaks
Check area under vehicle after overnight parking for fuel,
engine coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, power steering fluid (if
equipped), or brake fluid leaks are suspected, the cause
should be located and corrected immediately.
104 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

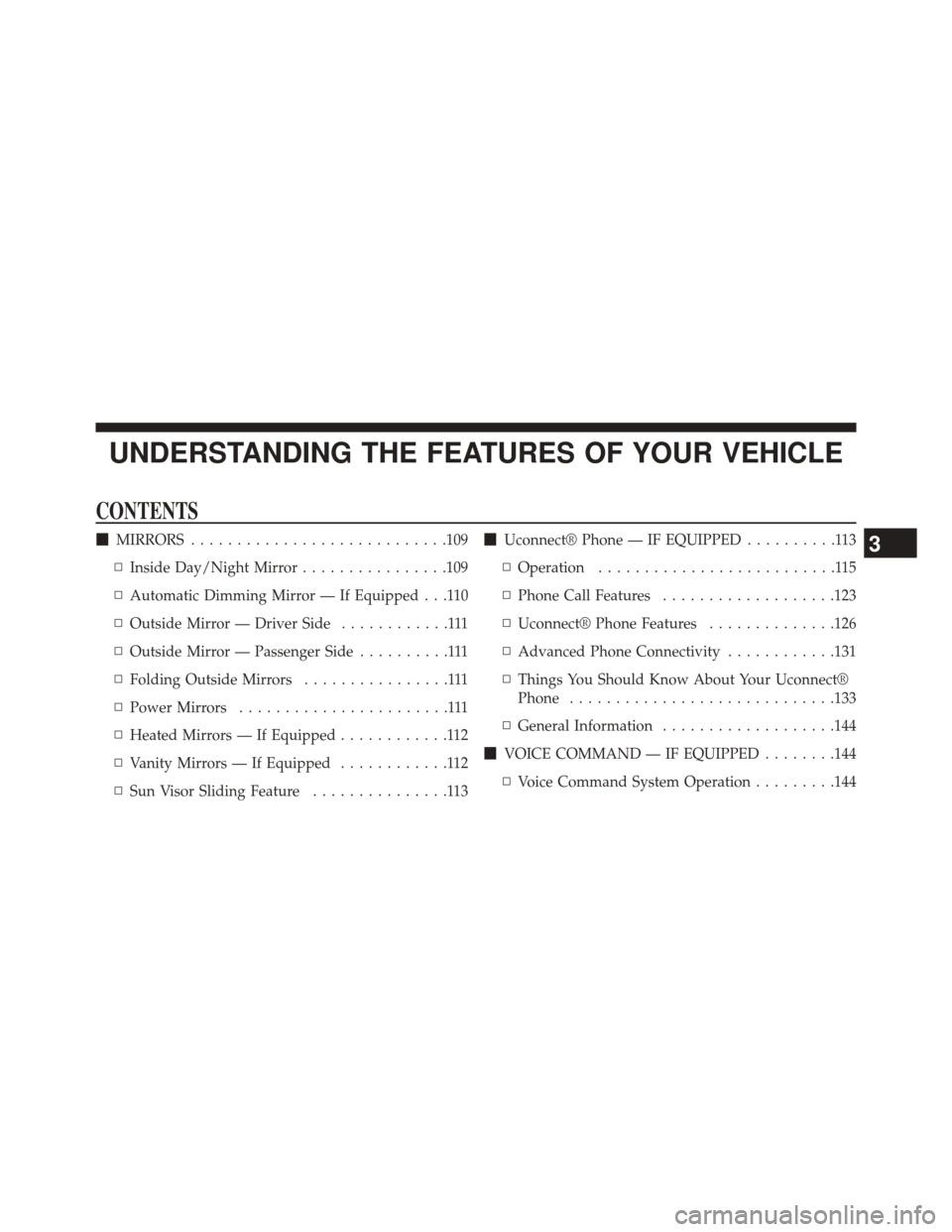

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
MIRRORS ........................... .109
▫ Inside Day/Night Mirror ................109
▫ Automatic Dimming Mirror — If Equipped . . .110
▫ Outside Mirror — Driver Side ............111
▫ Outside Mirror — Passenger Side ..........111
▫ Folding Outside Mirrors ................111
▫ Power Mirrors .......................111
▫ Heated Mirrors — If Equipped ............112
▫ Vanity Mirrors — If Equipped ............112
▫ Sun Visor Sliding Feature ...............113
Uconnect® Phone — IF EQUIPPED ..........113
▫ Operation ..........................115
▫ Phone Call Features ...................123
▫ Uconnect® Phone Features ..............126
▫ Advanced Phone Connectivity ............131
▫ Things You Should Know About Your Uconnect®
Phone ............................ .133
▫ General Information ...................144
 VOICE COMMAND — IF EQUIPPED ........144
▫ Voice Command System Operation .........1443

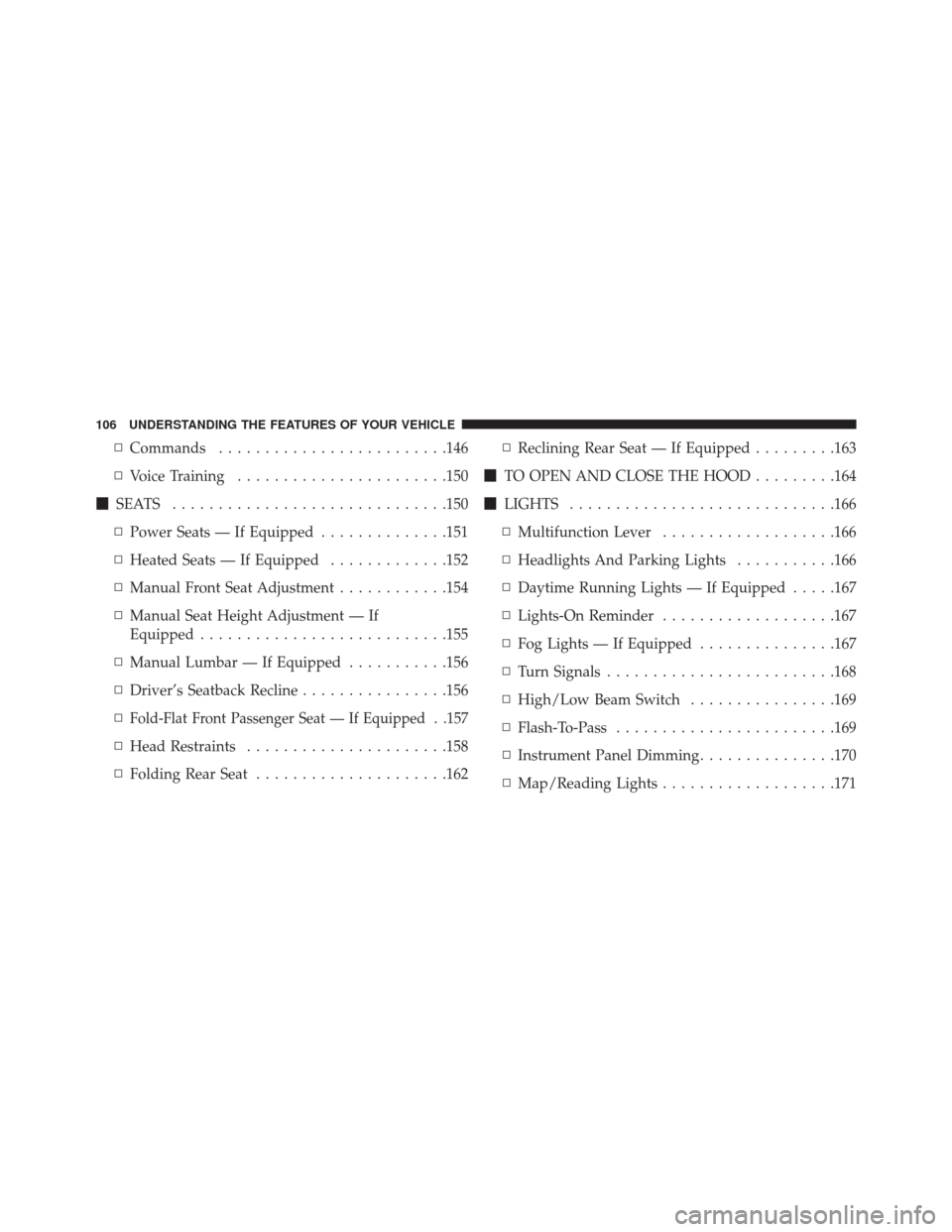

▫Commands ........................ .146
▫ Voice Training ...................... .150
 SEATS ............................. .150
▫ Power Seats — If Equipped ..............151
▫ Heated Seats — If Equipped .............152
▫ Manual Front Seat Adjustment ............154
▫ Manual Seat Height Adjustment — If
Equipped .......................... .155
▫ Manual Lumbar — If Equipped ...........156
▫ Driver’s Seatback Recline ................156
▫
Fold-Flat Front Passenger Seat — If Equipped . .157
▫ Head Restraints ..................... .158
▫ Folding Rear Seat .....................162 ▫
Reclining Rear Seat — If Equipped .........163
 TO OPEN AND CLOSE THE HOOD .........164
 LIGHTS ............................ .166
▫ Multifunction Lever ...................166
▫ Headlights And Parking Lights ...........166
▫ Daytime Running Lights — If Equipped .....167
▫ Lights-On Reminder ...................167
▫ Fog Lights — If Equipped ...............167
▫ Turn Signals ........................ .168
▫ High/Low Beam Switch ................169
▫ Flash-To-Pass ....................... .169
▫ Instrument Panel Dimming ...............170
▫ Map/Reading Lights ...................171
106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

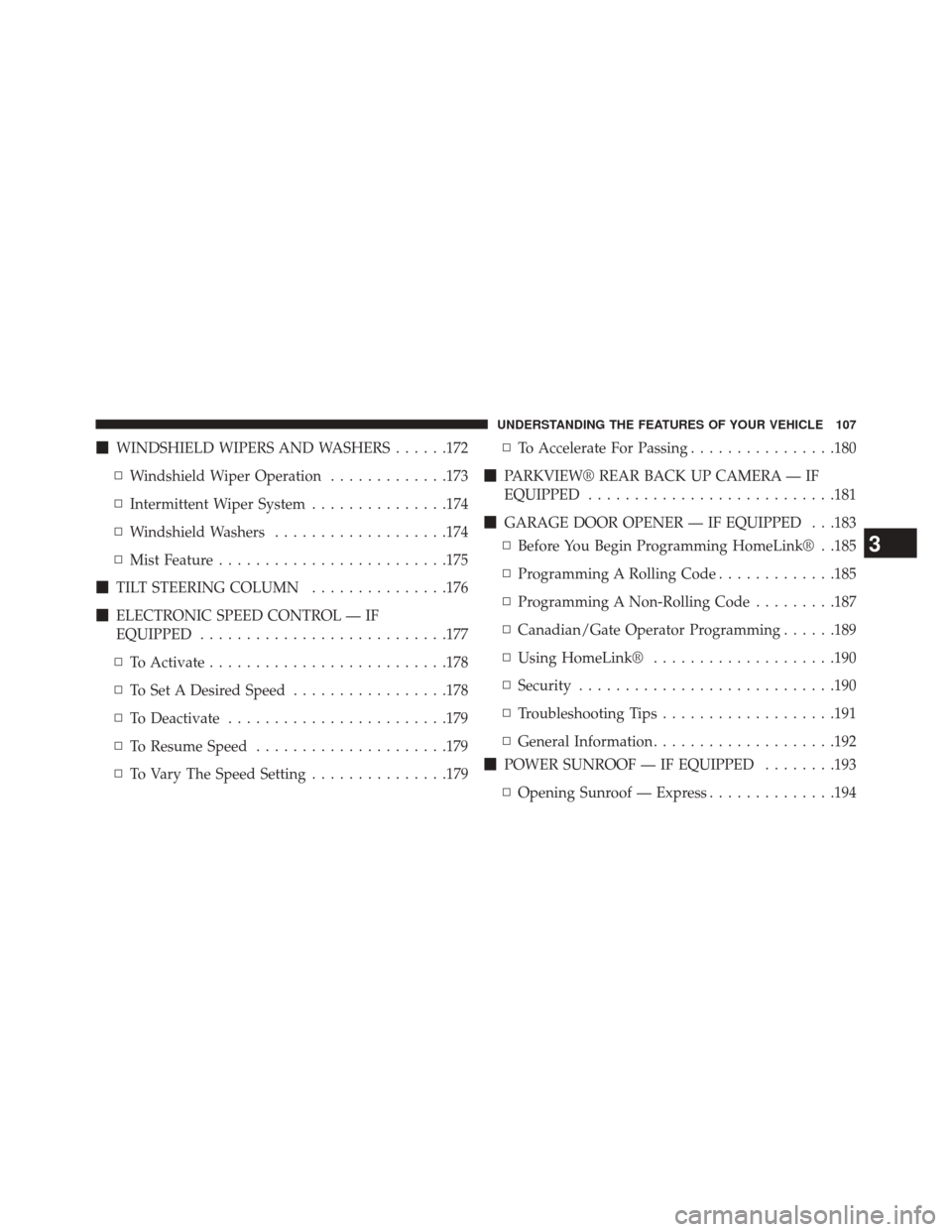

WINDSHIELD WIPERS AND WASHERS ......172
▫ Windshield Wiper Operation .............173
▫ Intermittent Wiper System ...............174
▫ Windshield Washers ...................174
▫ Mist Feature ........................ .175
 TILT STEERING COLUMN ...............176
 ELECTRONIC SPEED CONTROL — IF
EQUIPPED .......................... .177
▫ To Activate ......................... .178
▫ To Set A Desired Speed .................178
▫ To Deactivate ....................... .179
▫ To Resume Speed .....................179
▫ To Vary The Speed Setting ...............179 ▫
To Accelerate For Passing ................180
 PARKVIEW® REAR BACK UP CAMERA — IF
EQUIPPED .......................... .181
 GARAGE DOOR OPENER — IF EQUIPPED . . .183
▫ Before You Begin Programming HomeLink® . .185
▫ Programming A Rolling Code .............185
▫ Programming A Non-Rolling Code .........187
▫ Canadian/Gate Operator Programming ......189
▫ Using HomeLink® ....................190
▫ Security ........................... .190
▫ Troubleshooting Tips ...................191
▫ General Information ....................192
 POWER SUNROOF — IF EQUIPPED ........193
▫ Opening Sunroof — Express ..............194
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107

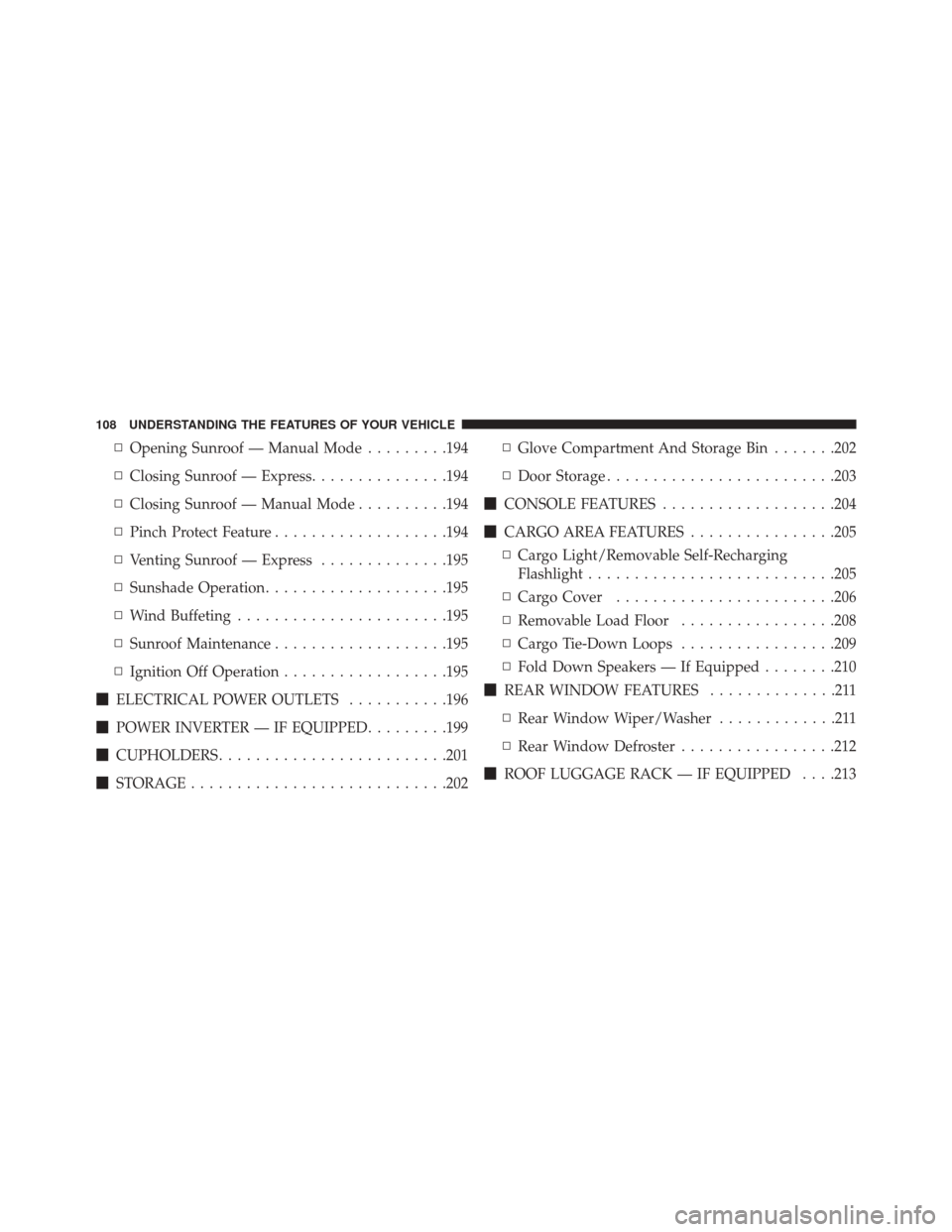

▫Opening Sunroof — Manual Mode .........194
▫ Closing Sunroof — Express ...............194
▫ Closing Sunroof — Manual Mode ..........194
▫ Pinch Protect Feature ...................194
▫ Venting Sunroof — Express ..............195
▫ Sunshade Operation ....................195
▫ Wind Buffeting ...................... .195
▫ Sunroof Maintenance ...................195
▫ Ignition Off Operation ..................195
 ELECTRICAL POWER OUTLETS ...........196
 POWER INVERTER — IF EQUIPPED .........199
 CUPHOLDERS ........................ .201
 STORAGE ........................... .202▫
Glove Compartment And Storage Bin .......202
▫ Door Storage ........................ .203
 CONSOLE FEATURES ...................204
 CARGO AREA FEATURES ................205
▫ Cargo Light/Removable Self-Recharging
Flashlight .......................... .205
▫ Cargo Cover ....................... .206
▫ Removable Load Floor .................208
▫ Cargo Tie-Down Loops .................209
▫ Fold Down Speakers — If Equipped ........210
 REAR WINDOW FEATURES ..............211
▫ Rear Window Wiper/Washer .............211
▫ Rear Window Defroster .................212
 ROOF LUGGAGE RACK — IF EQUIPPED . . . .213
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
