JACKING AND TIRE

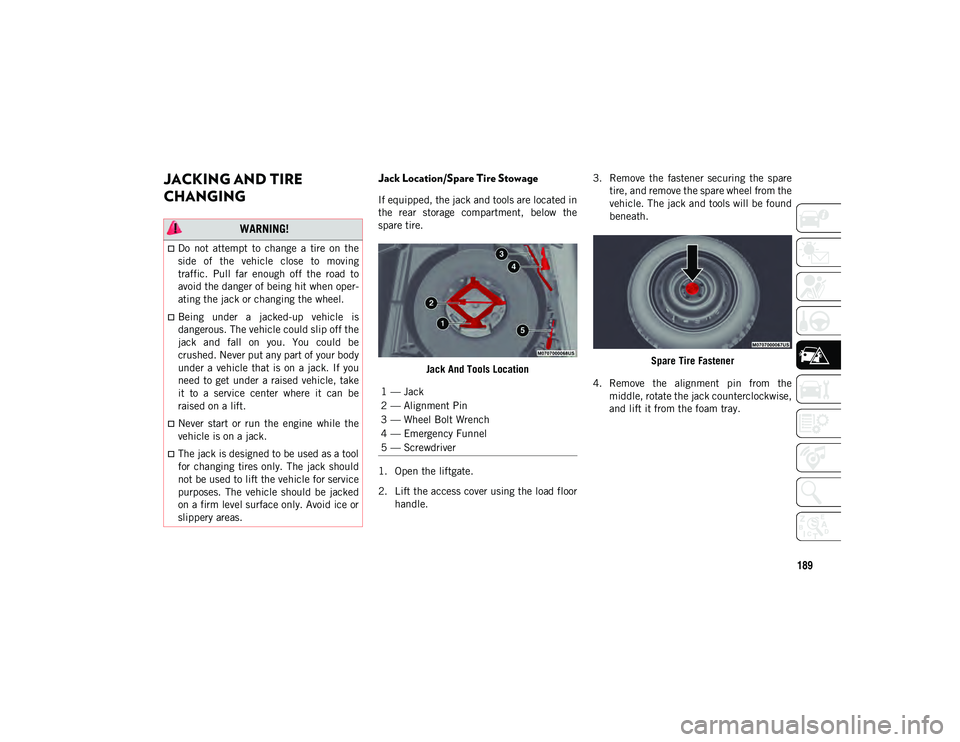

CHANGING Jack Location/Spare Tire Stowage
If equipped, the jack and tools are located in
the rear storage compartment, below the
spare tire.Jack And Tools Location
1. Open the liftgate.
2. Lift the access cover using the load floor handle. 3. Remove the fastener securing the spare
tire, and remove the spare wheel from the
vehicle. The jack and tools will be found
beneath.
Spare Tire Fastener
4. Remove the alignment pin from the middle, rotate the jack counterclockwise,
and lift it from the foam tray.
WARNING!
Do not attempt to change a tire on the
side of the vehicle close to moving
traffic. Pull far enough off the road to
avoid the danger of being hit when oper -
ating the jack or changing the wheel.
Being under a jacked-up vehicle is
dangerous. The vehicle could slip off the
jack and fall on you. You could be
crushed. Never put any part of your body
under a vehicle that is on a jack. If you
need to get under a raised vehicle, take
it to a service center where it can be
raised on a lift.
Never start or run the engine while the
vehicle is on a jack.
The jack is designed to be used as a tool
for changing tires only. The jack should
not be used to lift the vehicle for service
purposes. The vehicle should be jacked
on a firm level surface only. Avoid ice or
slippery areas.
1 — Jack
2 — Alignment Pin
3 — Wheel Bolt Wrench
4 — Emergency Funnel
5 — Screwdriver
2020_JEEP_M6_UG_UK.book Page 189

IN CASE OF EMERGENCY
190(Continued)

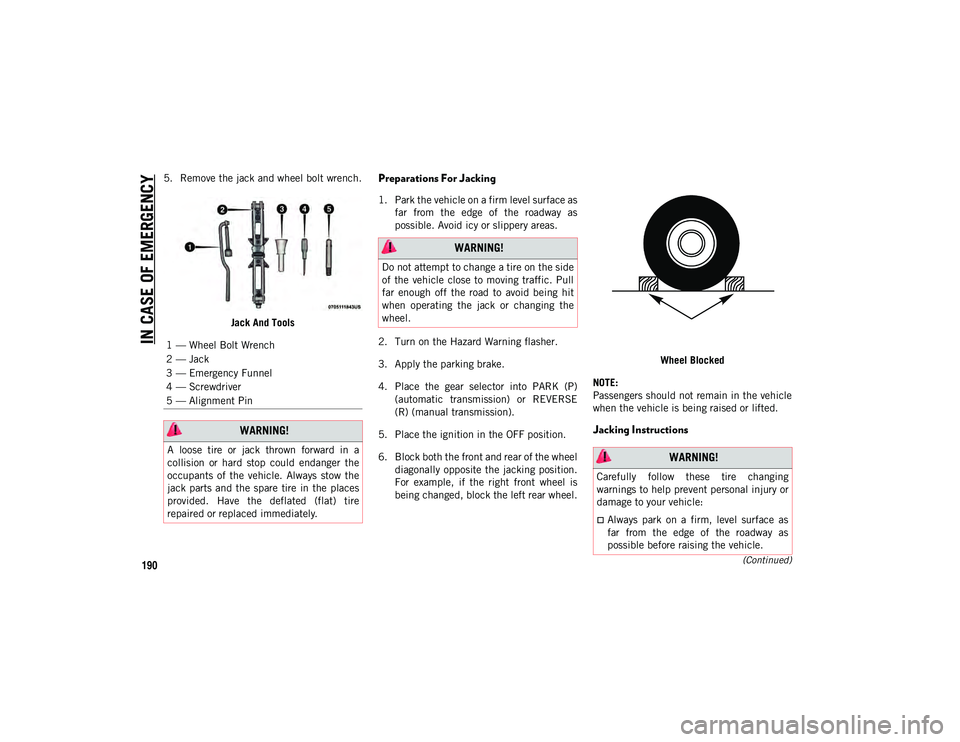

5. Remove the jack and wheel bolt wrench.Jack And ToolsPreparations For Jacking
1. Park the vehicle on a firm level surface asfar from the edge of the roadway as
possible. Avoid icy or slippery areas.
2. Turn on the Hazard Warning flasher.
3. Apply the parking brake.
4. Place the gear selector into PARK (P) (automatic transmission) or REVERSE
(R) (manual transmission).
5. Place the ignition in the OFF position.
6. Block both the front and rear of the wheel diagonally opposite the jacking position.
For example, if the right front wheel is
being changed, block the left rear wheel. Wheel Blocked
NOTE:
Passengers should not remain in the vehicle
when the vehicle is being raised or lifted.
Jacking Instructions
1 — Wheel Bolt Wrench
2 — Jack
3 — Emergency Funnel
4 — Screwdriver
5 — Alignment Pin
WARNING!
A loose tire or jack thrown forward in a
collision or hard stop could endanger the
occupants of the vehicle. Always stow the
jack parts and the spare tire in the places
provided. Have the deflated (flat) tire
repaired or replaced immediately.
WARNING!
Do not attempt to change a tire on the side
of the vehicle close to moving traffic. Pull
far enough off the road to avoid being hit
when operating the jack or changing the
wheel.
WARNING!
Carefully follow these tire changing
warnings to help prevent personal injury or
damage to your vehicle:
Always park on a firm, level surface as
far from the edge of the roadway as
possible before raising the vehicle.
2020_JEEP_M6_UG_UK.book Page 190

191(Continued)

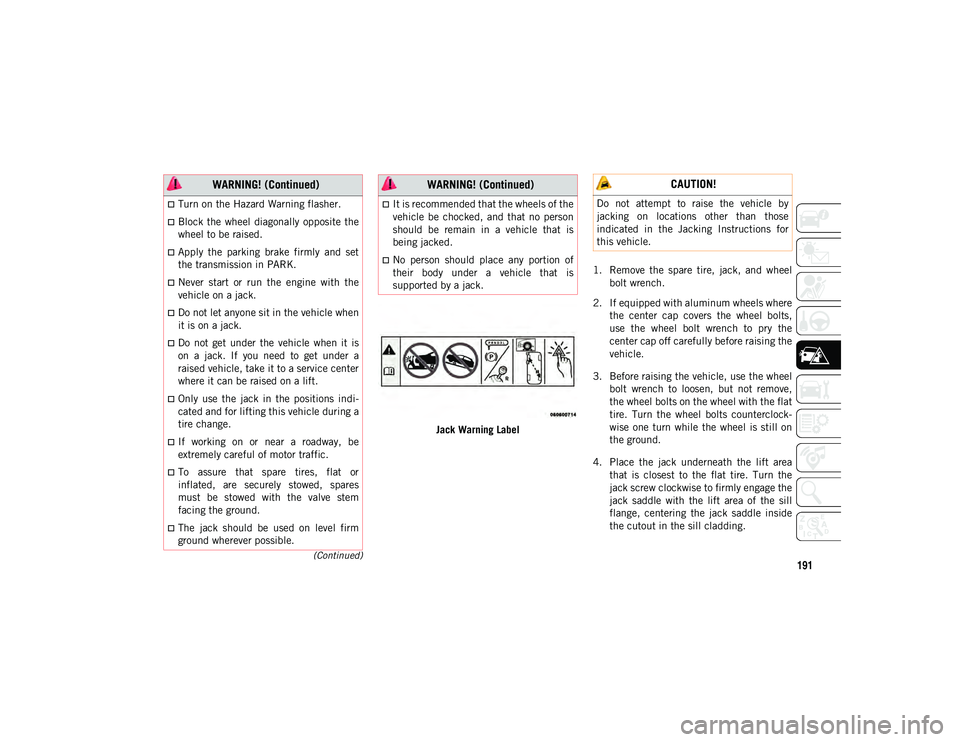

Jack Warning Label1. Remove the spare tire, jack, and wheel
bolt wrench.
2. If equipped with aluminum wheels where the center cap covers the wheel bolts,
use the wheel bolt wrench to pry the
center cap off carefully before raising the
vehicle.
3. Before raising the vehicle, use the wheel bolt wrench to loosen, but not remove,
the wheel bolts on the wheel with the flat
tire. Turn the wheel bolts counterclock -
wise one turn while the wheel is still on
the ground.
4. Place the jack underneath the lift area that is closest to the flat tire. Turn the
jack screw clockwise to firmly engage the
jack saddle with the lift area of the sill
flange, centering the jack saddle inside
the cutout in the sill cladding.
Turn on the Hazard Warning flasher.
Block the wheel diagonally opposite the
wheel to be raised.
Apply the parking brake firmly and set
the transmission in PARK.
Never start or run the engine with the
vehicle on a jack.
Do not let anyone sit in the vehicle when
it is on a jack.
Do not get under the vehicle when it is
on a jack. If you need to get under a
raised vehicle, take it to a service center
where it can be raised on a lift.
Only use the jack in the positions indi -
cated and for lifting this vehicle during a
tire change.
If working on or near a roadway, be
extremely careful of motor traffic.
To assure that spare tires, flat or
inflated, are securely stowed, spares
must be stowed with the valve stem
facing the ground.
The jack should be used on level firm
ground wherever possible.
WARNING! (Continued)
It is recommended that the wheels of the
vehicle be chocked, and that no person
should be remain in a vehicle that is
being jacked.
No person should place any portion of
their body under a vehicle that is
supported by a jack.
WARNING! (Continued) CAUTION!
Do not attempt to raise the vehicle by
jacking on locations other than those
indicated in the Jacking Instructions for
this vehicle.
2020_JEEP_M6_UG_UK.book Page 191

IN CASE OF EMERGENCY
192

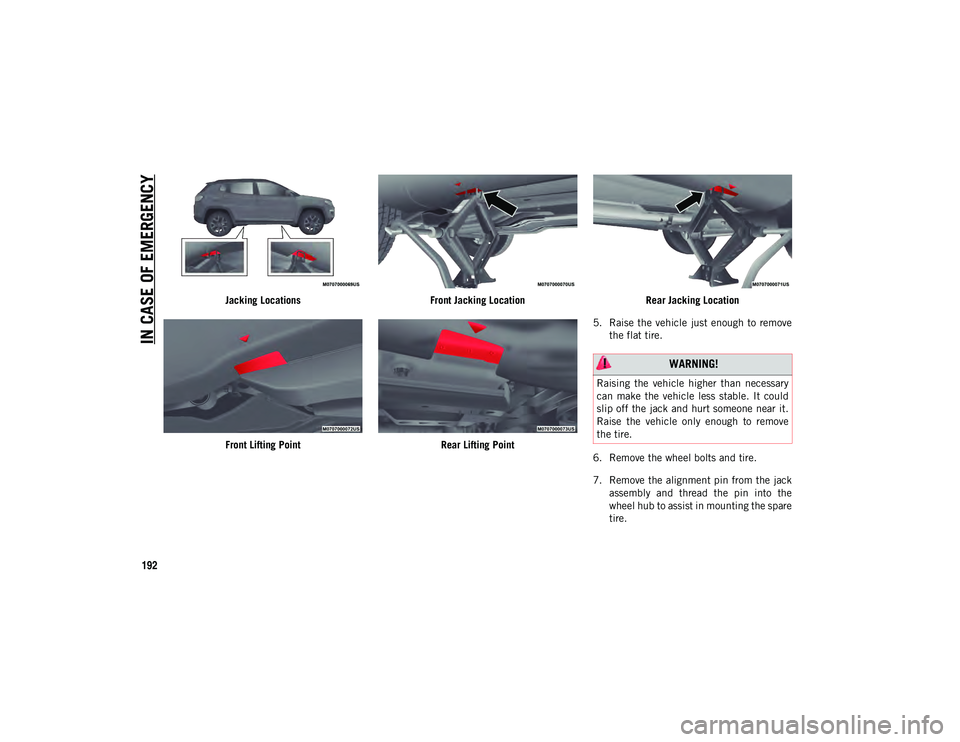

Jacking LocationsFront Lifting Point Front Jacking Location
Rear Lifting Point Rear Jacking Location
5. Raise the vehicle just enough to remove the flat tire.
6. Remove the wheel bolts and tire.
7. Remove the alignment pin from the jack assembly and thread the pin into the
wheel hub to assist in mounting the spare
tire.
WARNING!
Raising the vehicle higher than necessary
can make the vehicle less stable. It could
slip off the jack and hurt someone near it.
Raise the vehicle only enough to remove
the tire.
2020_JEEP_M6_UG_UK.book Page 192

211

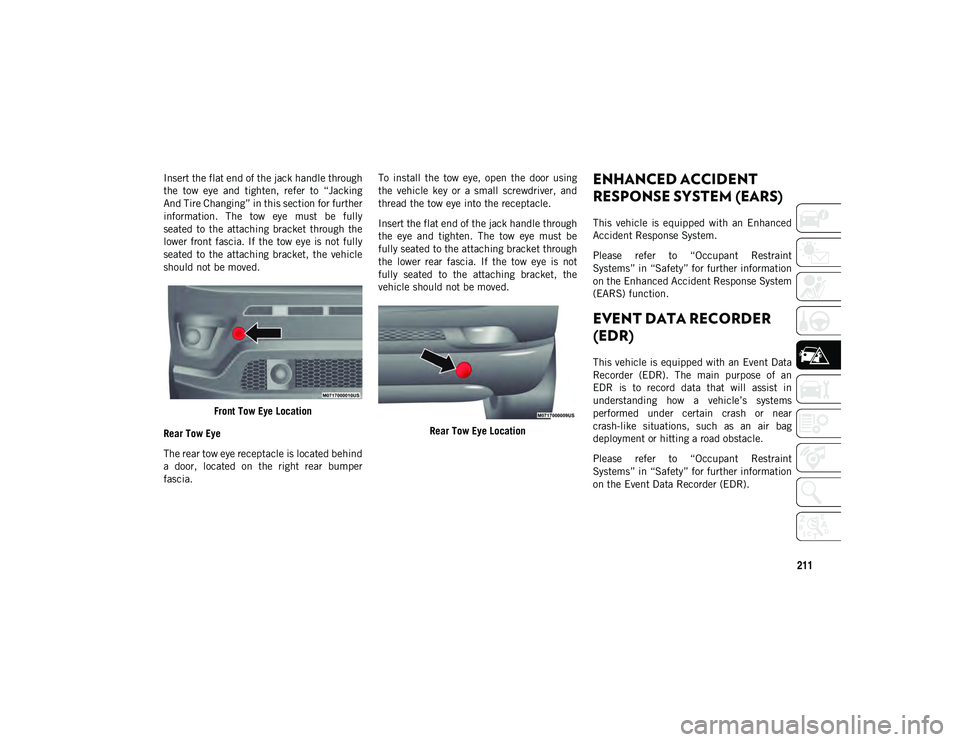

Insert the flat end of the jack handle through
the tow eye and tighten, refer to “Jacking
And Tire Changing” in this section for further
information. The tow eye must be fully
seated to the attaching bracket through the
lower front fascia. If the tow eye is not fully
seated to the attaching bracket, the vehicle
should not be moved.Front Tow Eye Location
Rear Tow Eye
The rear tow eye receptacle is located behind
a door, located on the right rear bumper
fascia. To install the tow eye, open the door using
the vehicle key or a small screwdriver, and
thread the tow eye into the receptacle.
Insert the flat end of the jack handle through
the eye and tighten. The tow eye must be
fully seated to the attaching bracket through
the lower rear fascia. If the tow eye is not
fully seated to the attaching bracket, the
vehicle should not be moved.
Rear Tow Eye LocationENHANCED ACCIDENT
RESPONSE SYSTEM (EARS)
This vehicle is equipped with an Enhanced
Accident Response System.
Please refer to “Occupant Restraint
Systems” in “Safety” for further information
on the Enhanced Accident Response System
(EARS) function.
EVENT DATA RECORDER
(EDR)
This vehicle is equipped with an Event Data
Recorder (EDR). The main purpose of an
EDR is to record data that will assist in
understanding how a vehicle’s systems
performed under certain crash or near
crash-like situations, such as an air bag
deployment or hitting a road obstacle.
Please refer to “Occupant Restraint
Systems” in “Safety” for further information
on the Event Data Recorder (EDR).
2020_JEEP_M6_UG_UK.book Page 211

318
INDEX
C
Camera, Rear .................................... 164
Capacities, Fluid................................ 254
Caps, FillerFuel .............................................. 165
Oil (Engine) ................................... 222
Radiator (Coolant Pressure) ............. 230
Car Washes ....................................... 241
Carbon Monoxide Warning .......... 128 , 252
Certification Label ............................. 171
Chains, Tire ...................................... 239
Change Oil Indicator ............................ 56
Changing A Flat Tire .................. 189 , 232
Checking Your Vehicle For Safety ........ 128
Checks, Safety .................................. 128
Child Safety Locks ............................... 23
Cleaning Windshield Wiper Blades ................ 228
Climate Control ................................... 36
Clock Settings ................................... 263
Compact Spare Tire ........................... 238
Computer, Trip/Travel ........................... 59
Cooling Pressure Cap (Radiator Cap) .... 230
Cooling System .................................. 229 Coolant Level ................................. 229
Cooling Capacity ............................ 254Pressure Cap ................................. 230
Radiator Cap.................................. 230
Selection Of Coolant (Antifreeze) ........................ 254 , 255 Cruise Light ............................. 69
, 70 , 71
Customer Assistance .......................... 305
Customer Programmable Features ....... 284
Cybersecurity .................................... 262
D
Daytime Running Lights ..................31 , 32
Dealer Service ................................... 227
Defroster, Windshield......................... 129
Diagnostic System, Onboard ................. 71
Diesel Display Messages ............................. 57
Diesel Fuel ....................................... 252
Diesel Fuel Requirements .................. 252
Dimmer Switch Headlight ...................................31 , 32
Dipsticks Oil (Engine) ................................... 225
Disabled Vehicle Towing .................... 207
Do Not Disturb ...........................293 , 302
Door Ajar .......................................60 , 61
Door Ajar Light ...............................60 , 61
Drag And Drop Menu ......................... 268
Driver’s Seat Back Tilt ......................... 24
E
Electric Brake Control System............... 73 Anti-Lock Brake System.................... 72Traction Control System.................... 80
Electric Parking Brake ....................... 134 Electrical Outlet, Auxiliary (Power
Outlet) ................................................52
Electronic Speed Control (Cruise
Control) .............................................150
Electronic Stability Control (ESC) ..........74
Electronic Throttle Control Warning
Light ...................................................61
Emergency Gas Can Refueling .............204
Emergency, In Case Of Hazard Warning Flasher ..................177
Jacking .................................. 189 , 232
Jump Starting ................................202
Tow Hooks .....................................209
Towing ..........................................207
Emissions..........................................260
Engine ..............................................222 Checking Oil Level ..........................225
Coolant (Antifreeze) ........................255
Cooling ..........................................229Exhaust Gas Caution ............... 128 , 252
Jump Starting ................................202
Oil ........................................ 254 , 255
Oil Filler Cap ..................................222
Oil Selection ..................................254
Overheating....................................204
Starting .........................................131
Enhanced Accident Response
Feature ..................................... 111 , 211
Ethanol .............................................250
Exhaust Gas Cautions ................. 128 , 252
2020_JEEP_M6_UG_UK.book Page 318

320
INDEX
J
Jack Location .................................... 189
Jack Operation ...................189, 190 , 232
Jacking Instructions ........................... 190
Jump Starting ................................... 202
K
Key Fob Arm The Alarm................................. 18
Disarm The Alarm ............................ 18Remote Keyless Entry ....................... 13
Keyless Enter-N-Go ........................ 13 , 21
Keys ................................................... 13 Replacement ................................... 14
L
Lane Change And Turn Signals........ 31 , 33
Lane Change Assist .............................. 31
LaneSense ........................................ 162
Lap/Shoulder Belts .............................. 93
Latches............................................. 130 Hood ............................................... 49
Leaks, Fluid ...................................... 130
Life Of Tires ...................................... 235
Liftgate ............................................... 50
Liftgate Window Wiper/Washer .............. 36
Light Bulbs ....................................... 130 Lights............................................... 130
Air Bag .............................. 59 , 98 , 129
Automatic Headlights ....................... 32
Battery Saver ................................... 34
Brake Assist Warning........................ 77
Brake Warning ................................. 59
Bulb Replacement ......................... 177
Cruise .................................. 69 , 70 , 71
Daytime Running ........................31 , 32
Dimmer Switch, Headlight ...........31 , 32
Electronic Stability Program (ESP) Indica- tor............................................... 61
Engine Temperature Warning ............ 61
Exterior ......................................... 130
Fog............................................33 , 68
Headlight Switch ............................. 31
Headlights....................................... 31
Headlights On Reminder................... 33 High Beam ...................................... 32
High Beam/Low Beam Select .......31 , 32
Hill Descent Control Indicator ........... 77
Instrument Cluster ........................... 31
Lights On Reminder ....................31 , 33
Low Fuel ......................................... 63
Malfunction Indicator (Check Engine) ....................................... 64
Park ............................................... 69
Passing ......................................31 , 32 Seat Belt Reminder ..........................62
Security Alarm .................................62
Service ..........................................177
Tire Pressure Monitoring (TPMS) ........86
Traction Control................................77
Turn Signals..................31 , 33 , 69 , 130
Warning Instrument Cluster Descriptions ........................... 61 , 69
Loading Vehicle .................................171
Locks Child Protection ...............................23
Steering Wheel .................................16
Low Tire Pressure System .....................86
Lug Nuts/Bolts ...................................244
Luggage Carrier ....................................54
M
Maintenance........................................48
Maintenance Free Battery ...................226
Maintenance Schedule .......................212
Malfunction Indicator Light (Check
Engine) ...............................................64
Manual Transmission.................. 137 , 231
Fluid Level Check ...........................231
Shift Speeds ..................................137
Memory Feature (Memory Seats)............25
Memory Seat .......................................25
2020_JEEP_M6_UG_UK.book Page 320

321
Methanol .......................................... 250
Mini-Trip Computer .............................. 59
Monitor, Tire Pressure System ............... 86
Mopar Accessories ............................. 260
Multi-Function Control Lever................. 31
N
Navigation ........................................ 285
O
Occupant Restraints............................. 90
Octane Rating, Gasoline (Fuel) .... 250, 255
Oil Pressure Light ................................ 61
Oil, Engine ........................................ 255 Capacity ........................................ 254
Checking ....................................... 225
Dipstick ........................................ 225
Filter............................................. 255
Pressure Warning Light ..................... 61
Recommendation ........................... 254Viscosity ........................................ 254
Onboard Diagnostic System .................. 71
Operating Precautions .......................... 71
Overheating, Engine ........................... 204
P
Paddle Shifters .................................. 144
Parking Brake .................................... 134
ParkSense Front And Rear .............................. 156 ParkSense Active Park Assist .............. 159
ParkSense System, Rear .................... 154
Passenger Airbag Disable OFF ............ 101
Passenger Airbag Disable ON.............. 101
Personalized Main Menu .................... 268
Pets ................................................. 127
Phone (Uconnect).............................. 288
Pairing .......................................... 289
Phonebook ........................................ 293
Power Inverter ........................................... 53
Liftgate ........................................... 50
Outlet (Auxiliary Electrical Outlet) ..... 52
Sunroof........................................... 46
Windows ......................................... 45
Pregnant Women And Seat Belts........... 97
Preparation For Jacking...................... 190
R
Radial Ply Tires ................................. 234
Radiator Cap (Coolant Pressure Cap) ... 230
Radio Presets .......................... 264 , 269 , 275
Radio Operation .........................263 , 267
Radio Screens ............................267 , 274
Rain Sensitive Wiper System ................ 35
Rear Camera ..................................... 164
Rear Cross Path................................... 83
Rear ParkSense System ..............154 , 156
Rear Seats, Folding ............................. 24 Rear Wiper/Washer ...............................36
Recreational Towing ...........................175
Release, Hood .....................................49
Reminder, Lights On ...................... 31
, 33
Reminder, Seat Belt .............................92
Remote Control Starting System ................................16
Remote Keyless Entry ...........................13 Arm The Alarm .................................18
Disarm The Alarm .............................18
Remote Starting System .......................16
Replacement Keys ...............................14
Replacement Tires .............................236
Restraints, Head ..................................28
Roll Over Warning ..................................2
Roof Type Carrier .................................54
Rotation, Tires ...................................239
S
Safety Checks Inside Vehicle ...............128
Safety Checks Outside Vehicle.............130
Safety Tips ........................................128
Safety, Exhaust Gas ...........................128
Schedule, Maintenance ......................212
Seat Belt Reminder ..............................62
Seat Belts ................................... 91 , 128
Adjustable Shoulder Belt ...................95
Adjustable Upper Shoulder Anchorage ....................................95
Adjustable Upper Shoulder Belt Anchor -
age ..............................................95
2020_JEEP_M6_UG_UK.book Page 321

322
INDEX
Front Seat ............................91, 93 , 94
Inspection ..................................... 128
Lap/Shoulder Belt Operation.............. 94
Lap/Shoulder Belt Untwisting ............ 95
Lap/Shoulder Belts ........................... 93
Operating Instructions ...................... 94
Pregnant Women .............................. 97 Rear Seat ........................................ 93
Reminder ........................................ 92
Untwisting Procedure ....................... 95
Seat Belts Maintenance...................... 242
Seats .................................................. 24 Adjustment ...................................... 24
Head Restraints ............................... 28
Heated ............................................ 27
Memory ........................................... 25
Rear Folding .................................... 24
Seatback Release ............................. 24Tilting ............................................. 24
Ventilated ........................................ 28
Security Alarm..........................18 , 19 , 62
Arm The System ............................... 18
Disarm The System .......................... 18
Selection Of Coolant (Antifreeze) ......... 255
Sentry Key Replacement ...................... 14
Service Assistance ............................. 305
Shift Lever Override ........................... 205
Shifting Automatic Transmission .................. 140
Manual Transmission ...................... 137 Shoulder Belts .................................... 93
Signals, Turn ................... 31
, 33 , 69 , 130
Siri .................................................. 302
Snow Chains (Tire Chains) .................. 239
Snow Tires ........................................ 237
Sound Systems (Radio) ...............270 , 276
Spare Tires ................................237 , 238
Spark Plugs ...................................... 255
Specifications Fuel (Gasoline) .............................. 255
Oil ................................................ 255
Speed Control Cancel .......................................... 151
Distance Setting (ACC Only)............ 151
Mode Setting (ACC Only) ................ 151
Resume ........................................ 151
Speed Control (Cruise Control) ............ 150
Speed Limiter, Active ........................ 149
Starting .......................................16 , 131
Automatic Transmission ................. 131 Button ............................................ 14
Remote ........................................... 16
Starting And Operating ...................... 131
Starting Procedures ........................... 131
Steering Column Controls .............................. 31
Tilt Column ..................................... 30
Wheel Locking ................................. 16
Wheel, Heated ................................. 30
Wheel, Tilt ...................................... 30 Steering Wheel Audio Controls.............285
Steering Wheel Mounted Sound System Con
-
trols ..................................................285
Storage, Vehicle ...................................44
Stuck, Freeing ...................................206
Sun Roof ....................................... 46 , 48
Supplemental Restraint System –
Air Bag ...............................................99
Sway Control, Trailer ............................80
System, Remote Starting ......................16
T
Telescoping Steering Column ................30
Temperature Control, Automatic (ATC) ...43
Text Messages ........................... 266 , 294
Tilt Steering Column ............................30
Time Delay Headlight................................... 31 , 32
Tire Service Kit ..................................196
Tires ................................. 130 , 232 , 237
Aging (Life Of Tires)........................235
Air Pressure ...................................232
Chains ...........................................239 Changing ............................... 189 , 232
Compact Spare...............................238
General Information ................ 232 , 237
High Speed ....................................233
Inflation Pressure ...........................233
Jacking .................................. 189 , 232
2020_JEEP_M6_UG_UK.book Page 322
