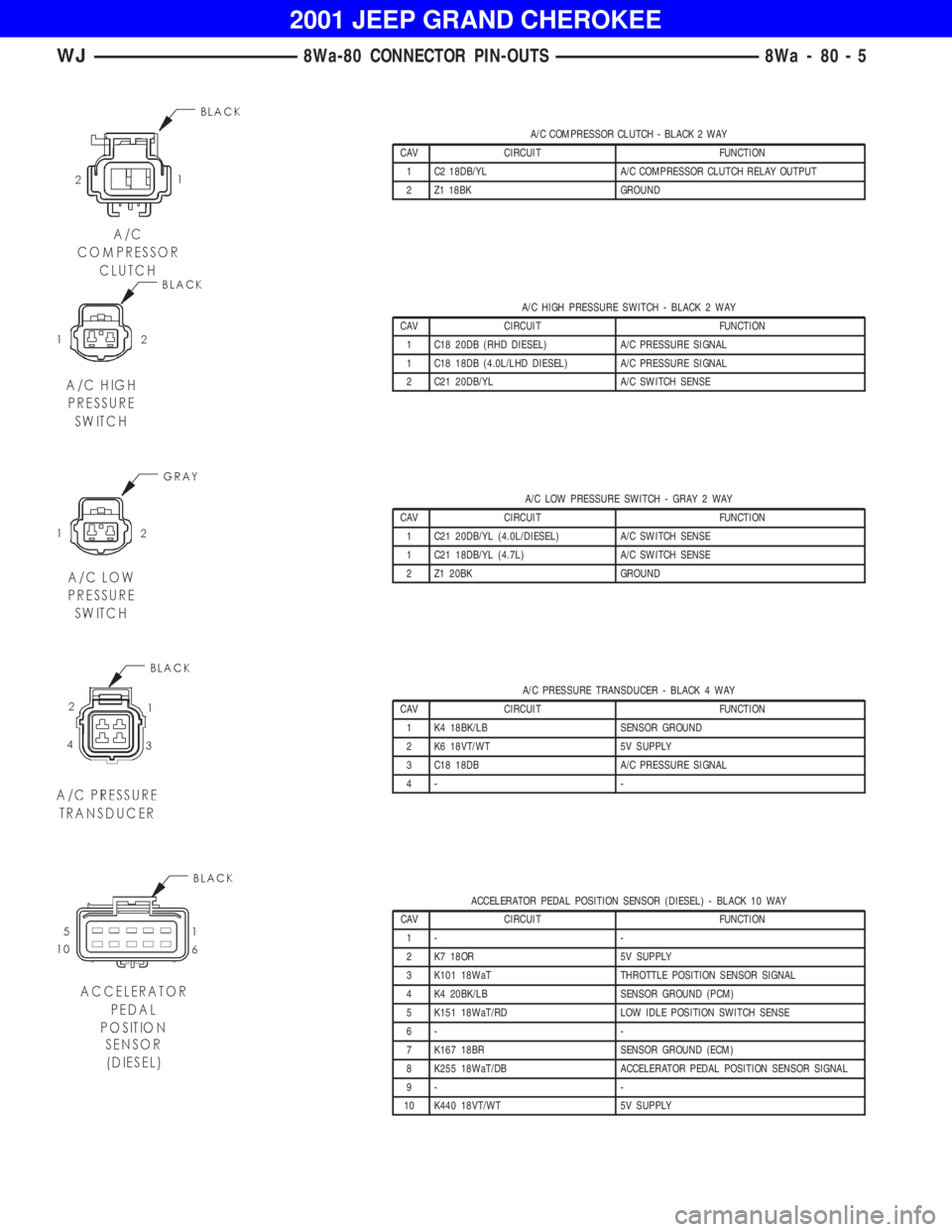

A/C HIGH PRESSURE SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C18 20DB (RHD DIESEL) A/C PRESSURE SIGNAL
1 C18 18DB (4.0L/LHD DIESEL) A/C PRESSURE SIGNAL
2 C21 20DB/YL A/C SWITCH SENSE
A/C LOW PRESSURE SWITCH - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C21 20DB/YL (4.0L/DIESEL) A/C SWITCH SENSE
1 C21 18DB/YL (4.7L) A/C SWITCH SENSE
2 Z1 20BK GROUND
A/C PRESSURE TRANSDUCER - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K4 18BK/LB SENSOR GROUND
2 K6 18VT/WT 5V SUPPLY
3 C18 18DB A/C PRESSURE SIGNAL
4- -
ACCELERATOR PEDAL POSITION SENSOR (DIESEL) - BLACK 10 WAY
CAV CIRCUIT FUNCTION
1- -
2 K7 18OR 5V SUPPLY
3 K101 18WaT THROTTLE POSITION SENSOR SIGNAL
4 K4 20BK/LB SENSOR GROUND (PCM)
5 K151 18WaT/RD LOW IDLE POSITION SWITCH SENSE
6- -
7 K167 18BR SENSOR GROUND (ECM)
8 K255 18WaT/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
9- -
10 K440 18VT/WT 5V SUPPLY
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 5

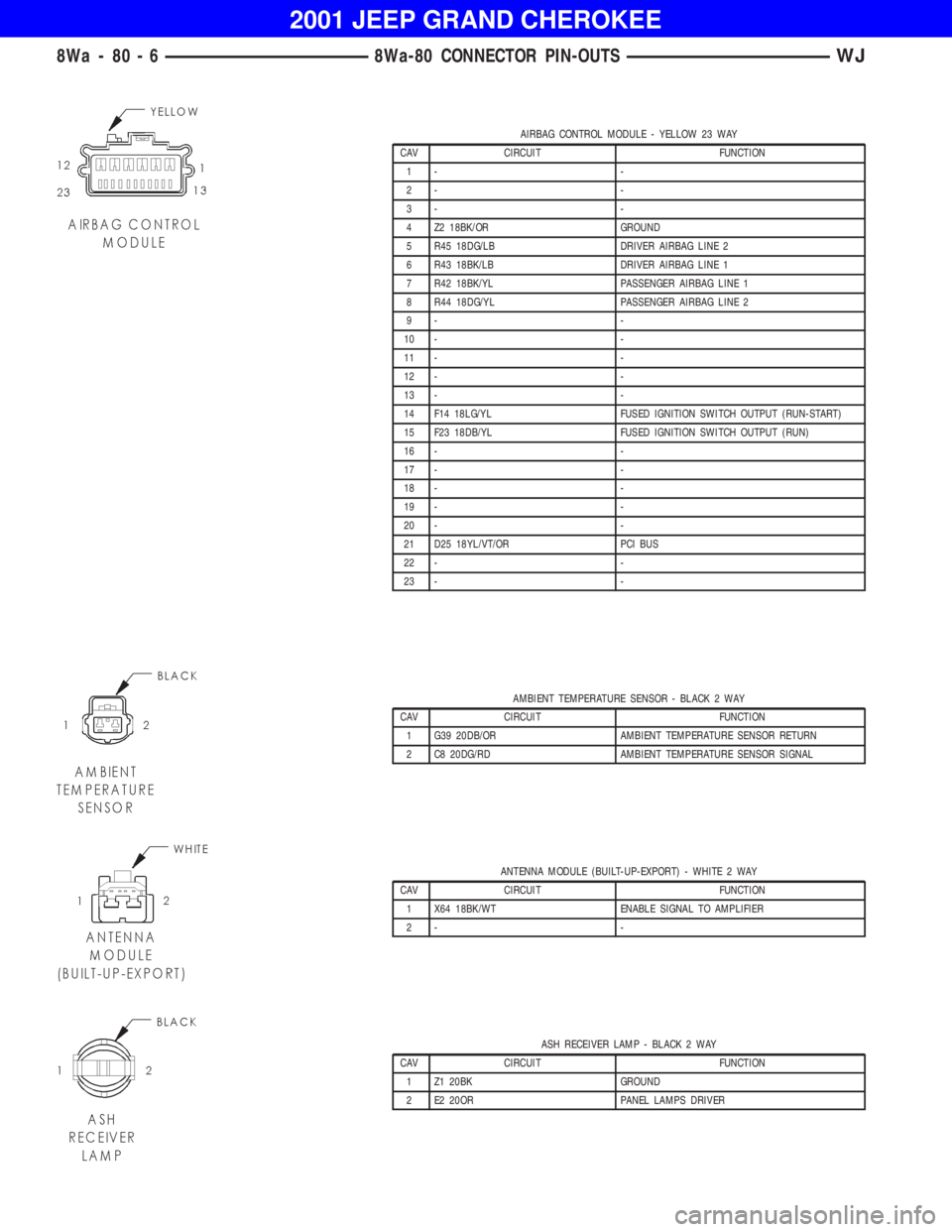

AMBIENT TEMPERATURE SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G39 20DB/OR AMBIENT TEMPERATURE SENSOR RETURN
2 C8 20DG/RD AMBIENT TEMPERATURE SENSOR SIGNAL
ANTENNA MODULE (BUILT-UP-EXPORT) - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 X64 18BK/WT ENABLE SIGNAL TO AMPLIFIER
2- -
ASH RECEIVER LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 E2 20OR PANEL LAMPS DRIVER
8Wa - 80 - 6 8Wa-80 CONNECTOR PIN-OUTSWJ

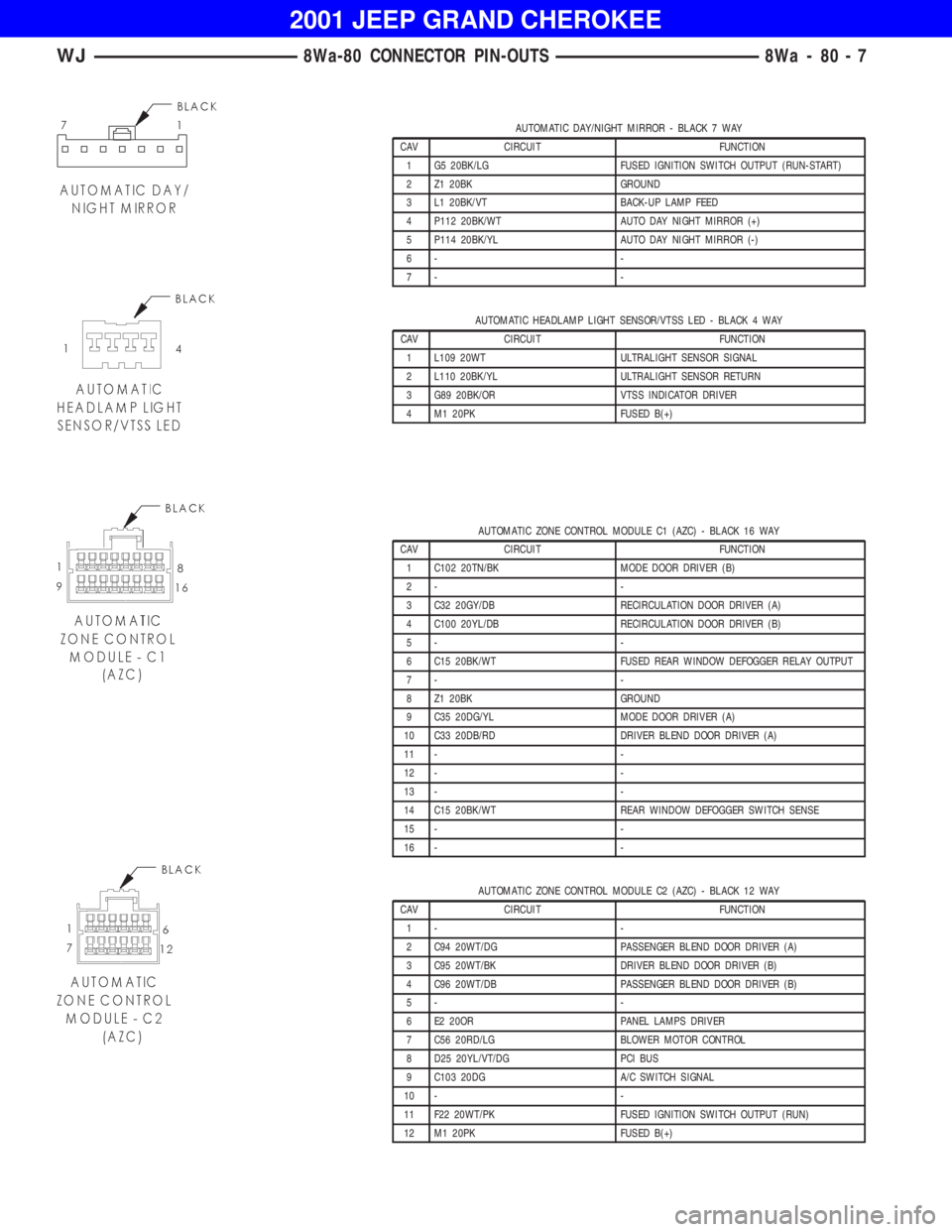

AUTOMATIC HEADLAMP LIGHT SENSOR/VTSS LED - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 L109 20WT ULTRALIGHT SENSOR SIGNAL
2 L110 20BK/YL ULTRALIGHT SENSOR RETURN
3 G89 20BK/OR VTSS INDICATOR DRIVER
4 M1 20PK FUSED B(+)
AUTOMATIC ZONE CONTROL MODULE C1 (AZC) - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1 C102 20TN/BK MODE DOOR DRIVER (B)
2- -
3 C32 20GY/DB RECIRCULATION DOOR DRIVER (A)
4 C100 20YL/DB RECIRCULATION DOOR DRIVER (B)
5- -
6 C15 20BK/WT FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
7- -
8 Z1 20BK GROUND
9 C35 20DG/YL MODE DOOR DRIVER (A)
10 C33 20DB/RD DRIVER BLEND DOOR DRIVER (A)
11 - -
12 - -
13 - -
14 C15 20BK/WT REAR WINDOW DEFOGGER SWITCH SENSE
15 - -
16 - -
AUTOMATIC ZONE CONTROL MODULE C2 (AZC) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1- -
2 C94 20WT/DG PASSENGER BLEND DOOR DRIVER (A)
3 C95 20WT/BK DRIVER BLEND DOOR DRIVER (B)
4 C96 20WT/DB PASSENGER BLEND DOOR DRIVER (B)
5- -
6 E2 20OR PANEL LAMPS DRIVER
7 C56 20RD/LG BLOWER MOTOR CONTROL
8 D25 20YL/VT/DG PCI BUS
9 C103 20DG A/C SWITCH SIGNAL
10 - -
11 F22 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
12 M1 20PK FUSED B(+)
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 7

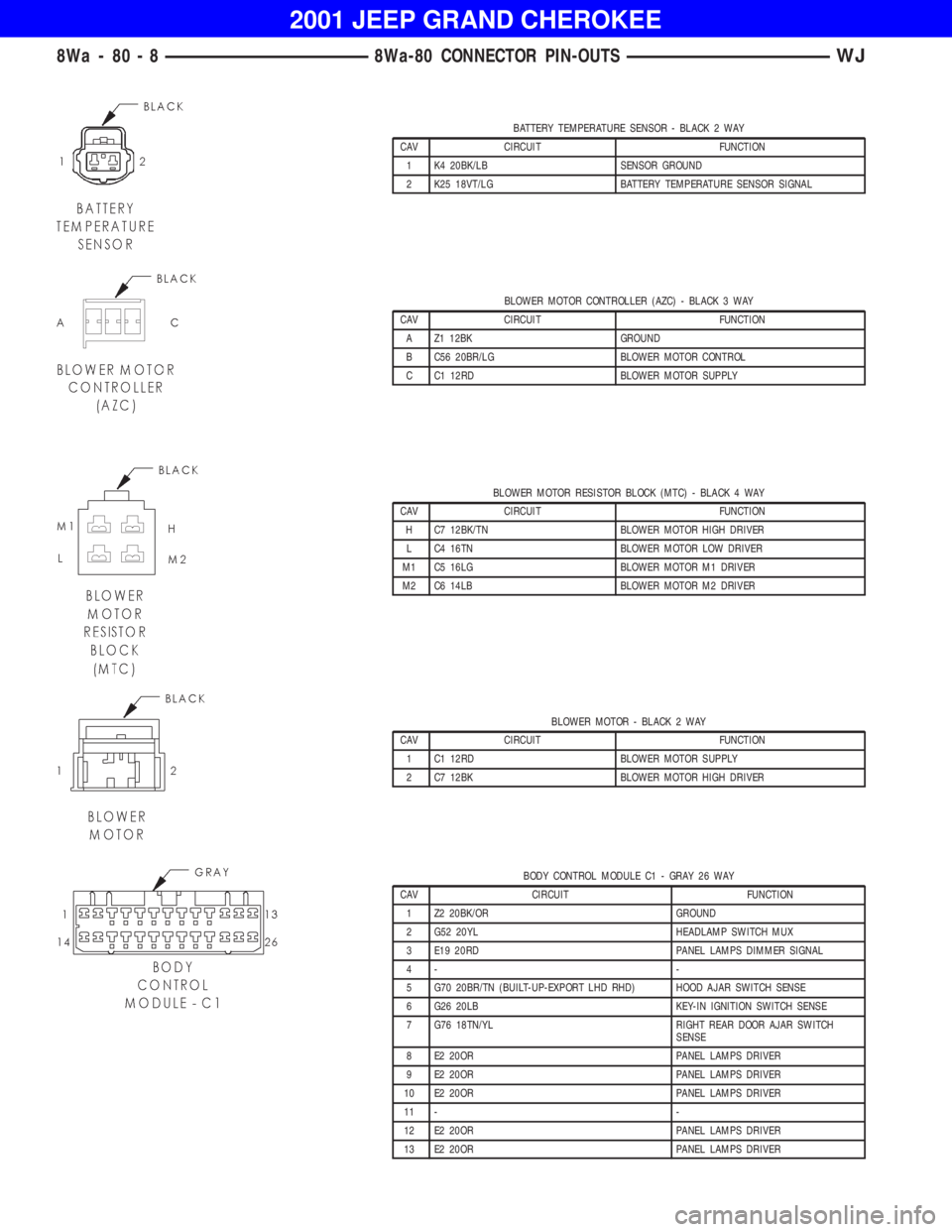

BLOWER MOTOR CONTROLLER (AZC) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
A Z1 12BK GROUND
B C56 20BR/LG BLOWER MOTOR CONTROL
C C1 12RD BLOWER MOTOR SUPPLY
BLOWER MOTOR RESISTOR BLOCK (MTC) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
H C7 12BK/TN BLOWER MOTOR HIGH DRIVER
L C4 16TN BLOWER MOTOR LOW DRIVER
M1 C5 16LG BLOWER MOTOR M1 DRIVER
M2 C6 14LB BLOWER MOTOR M2 DRIVER
BLOWER MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 C1 12RD BLOWER MOTOR SUPPLY
2 C7 12BK BLOWER MOTOR HIGH DRIVER
BODY CONTROL MODULE C1 - GRAY 26 WAY
CAV CIRCUIT FUNCTION
1 Z2 20BK/OR GROUND
2 G52 20YL HEADLAMP SWITCH MUX
3 E19 20RD PANEL LAMPS DIMMER SIGNAL
4- -
5 G70 20BR/TN (BUILT-UP-EXPORT LHD RHD) HOOD AJAR SWITCH SENSE
6 G26 20LB KEY-IN IGNITION SWITCH SENSE
7 G76 18TN/YL RIGHT REAR DOOR AJAR SWITCH
SENSE
8 E2 20OR PANEL LAMPS DRIVER
9 E2 20OR PANEL LAMPS DRIVER
10 E2 20OR PANEL LAMPS DRIVER
11 - -
12 E2 20OR PANEL LAMPS DRIVER
13 E2 20OR PANEL LAMPS DRIVER
8Wa - 80 - 8 8Wa-80 CONNECTOR PIN-OUTSWJ

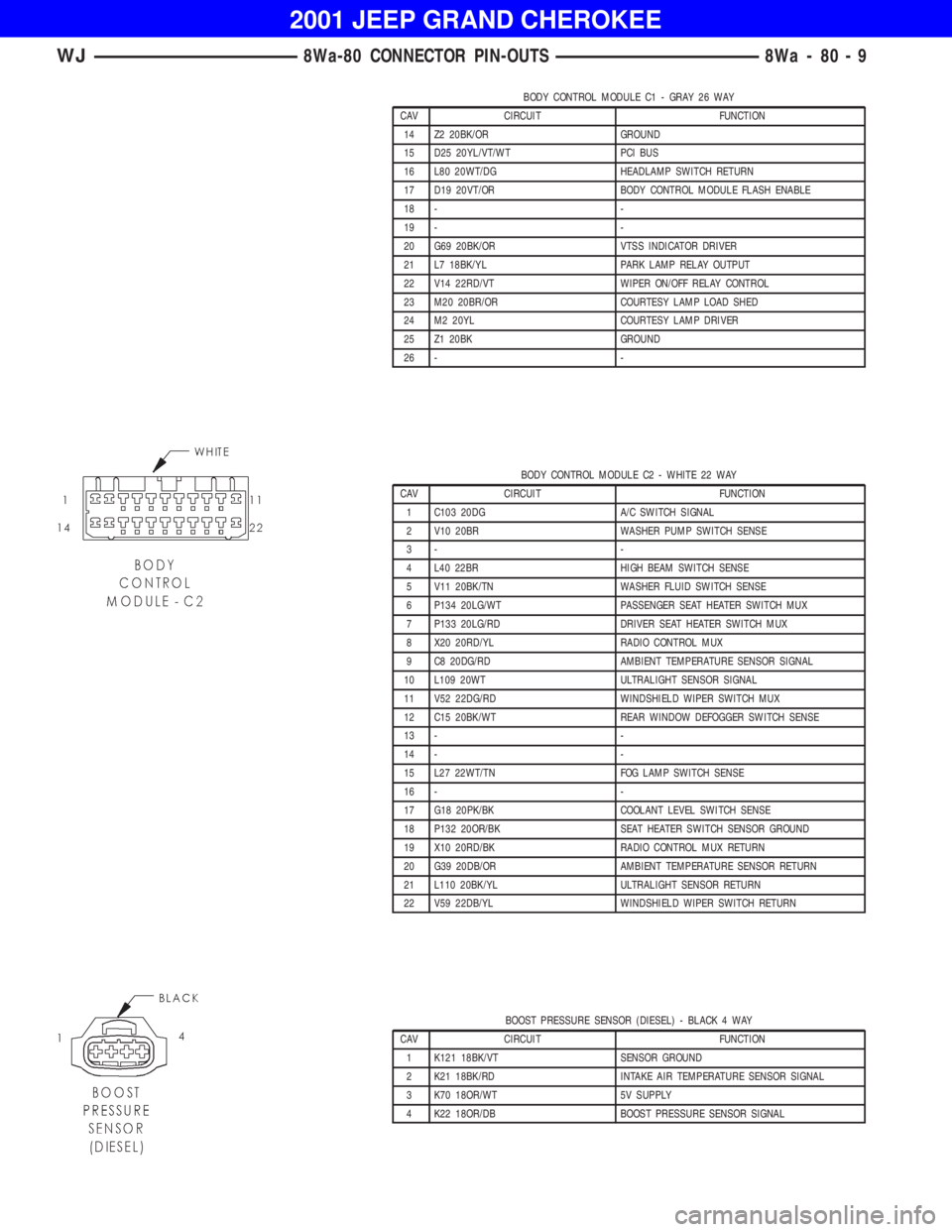

BODY CONTROL MODULE C2 - WHITE 22 WAY
CAV CIRCUIT FUNCTION
1 C103 20DG A/C SWITCH SIGNAL
2 V10 20BR WASHER PUMP SWITCH SENSE
3- -
4 L40 22BR HIGH BEAM SWITCH SENSE
5 V11 20BK/TN WASHER FLUID SWITCH SENSE
6 P134 20LG/WT PASSENGER SEAT HEATER SWITCH MUX
7 P133 20LG/RD DRIVER SEAT HEATER SWITCH MUX
8 X20 20RD/YL RADIO CONTROL MUX
9 C8 20DG/RD AMBIENT TEMPERATURE SENSOR SIGNAL
10 L109 20WT ULTRALIGHT SENSOR SIGNAL
11 V52 22DG/RD WINDSHIELD WIPER SWITCH MUX
12 C15 20BK/WT REAR WINDOW DEFOGGER SWITCH SENSE
13 - -
14 - -
15 L27 22WT/TN FOG LAMP SWITCH SENSE
16 - -
17 G18 20PK/BK COOLANT LEVEL SWITCH SENSE
18 P132 20OR/BK SEAT HEATER SWITCH SENSOR GROUND
19 X10 20RD/BK RADIO CONTROL MUX RETURN
20 G39 20DB/OR AMBIENT TEMPERATURE SENSOR RETURN
21 L110 20BK/YL ULTRALIGHT SENSOR RETURN
22 V59 22DB/YL WINDSHIELD WIPER SWITCH RETURN
BOOST PRESSURE SENSOR (DIESEL) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 K121 18BK/VT SENSOR GROUND
2 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
3 K70 18OR/WT 5V SUPPLY
4 K22 18OR/DB BOOST PRESSURE SENSOR SIGNAL
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 9
