C302 - BLACK (FRONT DRIVER DOOR SIDE)
CAV CIRCUIT
1 P112 20YL/WT
2 P114 20YL/RD
3 D25 20YL/VT
4 Z1 12BK
5 E21 20OR/RD
6 Q13 16DB
7 Q23 16RD/WT
8 F21 12TN/LB
9 X80 18LG/DG (RHD PREMIUM)
9 X85 18LG/DG (LHD PREMIUM)
10 X82 18LG/RD (RHD PREMIUM)
10 X87 18LG/RD (LHD PREMIUM)
11 M1 18PK (JAPAN)
12 -
13 -
14 -
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 41

C303 - WHITE (REAR DOOR SIDE)
CAV CIRCUIT
1 X92 18TN/DG
2 X90 18WaT/VT
3 E21 20OR/RD
4 P35 18OR/VT
5 P36 18PK/VT
6-
7-
8 Q14 16GY
9 Q24 16DG
10 Z1 16BK
11 G76 18TN/YL
C304 - BLACK (BODY SIDE)
CAV CIRCUIT
1 P86 20PK/BK
2 P130 16DG/WT
3 D25 20YL/VT
4 F35 16RD
5 Z1 16BK
6 P29 20BR/WT
7 Z2 18BK/OR (RHD)
7 Z2 20BK/OR (LHD)
8 Z5 16BK/VT
9 G10 20LG/RD (BUILT-UP-EXPORT)
10 -
8Wa - 80 - 42 8Wa-80 CONNECTOR PIN-OUTSWJ

C306 - BLACK (BODY SIDE)
CAV CIRCUIT
1 P130 16DG/WT
2 Z1 16BK
3 F37 16RD/LB
4 P86 20PK/BK
5 P29 20BR/WT
6 Z5 16BK/VT
C306 - BLACK (POWER SEAT SIDE)
CAV CIRCUIT
1 P130 16DG/WT (HEATED SEATS)
2 Z1 16BK
3 F37 16RD/LB
4 P86 20DG/YL (HEATED SEATS)
5 P29 20BR/WT (HEATED SEATS)
6 Z5 16BK/VT (HEATED SEATS)
C307 - WHITE (BODY SIDE)
CAV CIRCUIT
1 X93 18DG/WT (RHD)
1 X57 18WaT/DG (LHD)
2 X51 18DG/WT (LHD)
2 X91 18WaT/DG (RHD)
3 E20 20OR/DB (RHD)
3 E21 20OR/RD (LHD)
4 P35 18OR/VT
5 P36 18PK/VT
6-
7-
8 Q13 16DB (LHD)
8 Q14 16GY (RHD)
9 Q24 16DG (RHD)
9 Q23 16RD/TN (LHD)
10 Z1 16BK
11 G77 20TN/OR
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 43

C308 - WHITE (LEFT BODY SIDE)
CAV CIRCUIT
1 G78 20TN/BK
2 P35 18PK/VT (RHD)
2 P35 18OR/VT (LHD)
3 P36 18OR/VT (RHD)
3 P36 18PK/VT (LHD)
4 V13 18BR/LG
5 V22 18BR/YL
6 F70 18PK
7 L50 18WaT/TN
8 Z1 12BK
9 G80 20VT/YL
10 C15 12BK/WT
11 L7 18BK/YL
C308 - WHITE (LIFTGATE SIDE)
CAV CIRCUIT
1 G78 20TN/BK
2 P35 18OR/VT
3 P36 18PK/VT
4 V13 18BR/LG
5 V22 18BR/YL
6 F70 18PK
7 L50 18WaT/TN
8 Z1 12BK
9 G80 18VT/YL
10 C15 12BK/WT
11 L7 18BK/YL
8Wa - 80 - 44 8Wa-80 CONNECTOR PIN-OUTSWJ

C309 - WHITE (LEFT BODY SIDE)
CAV CIRCUIT
1 D25 20VT/YL
2 M20 18YL/BK (RHD)
2 M20 20YL/BK (LHD)
3 M2 18YL (RHD)
3 M2 20YL/DG (LHD)
4 P112 20YL/WT
5 P114 20YL/RD
6 L1 20VT/BK
7 G5 20DB/WT
8-
9-
10 F70 20PK (LHD)
10 F70 18PK (RHD)
11 Q30 16TN
12 Z1 16BK
13 -
14 Z2 20BK/OR (LHD PREMIUM POWER
SEATS)
14 Z2 18BK/OR (RHD BASE)
15 G73 20LG/OR
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 45

C310 (BUILT-UP-EXPORT) - LT.GRAY (BODY
SIDE)
CAV CIRCUIT
1 L50 16WT/TN (RHD)
1 L50 14WT/TN (LHD)
2 L62 18BR/RD (LHD)
2 L62 20BR/RD (RHD)
3 L1 18VT/BK
4 F30 14RD/YL (LHD)
4 F30 14RD (RHD)
5 L7 18BK/YL
6 L95 18DG/YL
7 B40 14LB (RHD)
7 B40 12LB (LHD)
8 Z1 14BK
9 L50 16WT/TN (RHD)
9 L50 18WaT/TN (LHD)
10 L63 20DG/RD
11 Z1 14BK
12 -
13 -
14 -

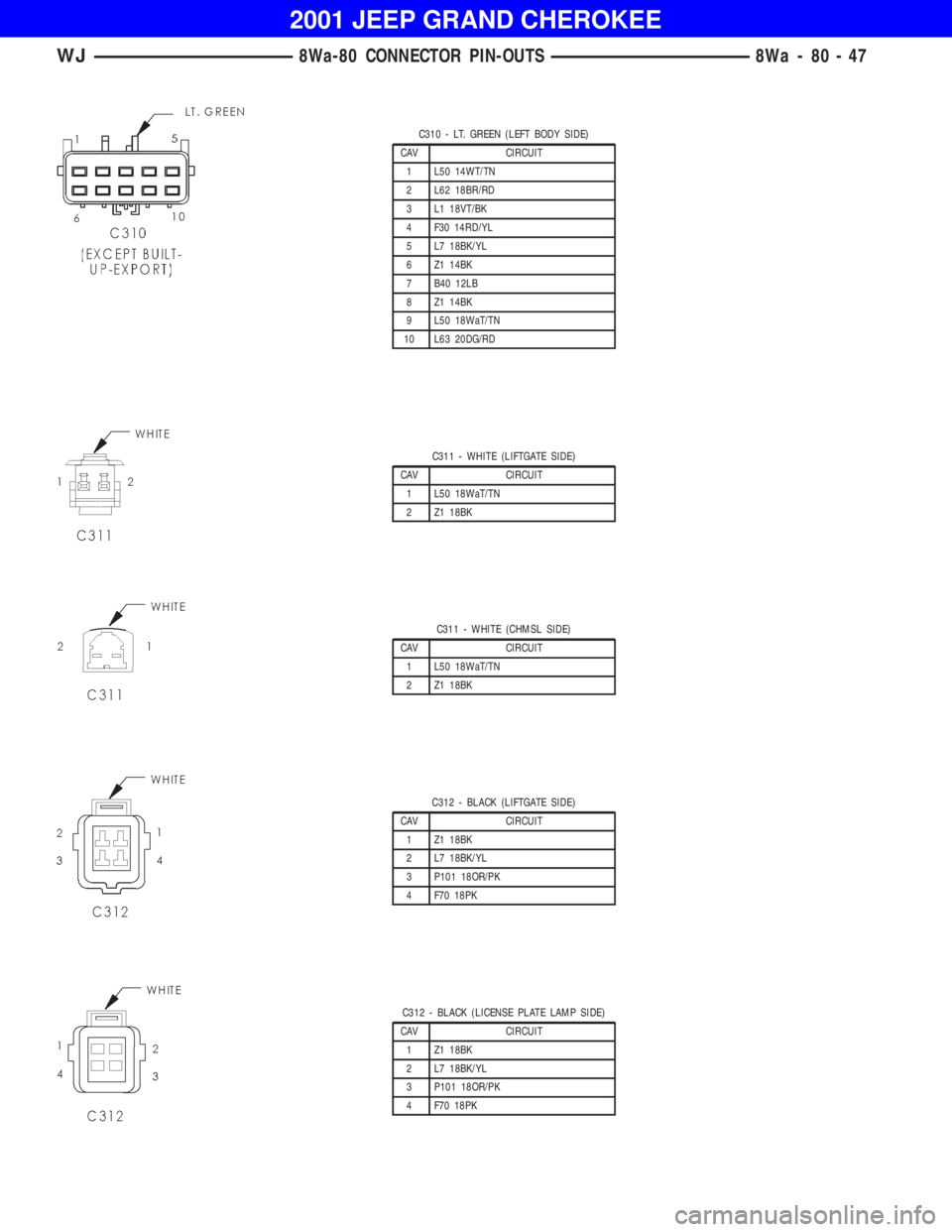

C310 - LT. GREEN (TRAILER TOW SIDE)
CAV CIRCUIT
1 L50 16WT/TN
2 L62 20BR/RD
3 L1 18VT/BK
4 F30 14RD
5 L7 18BK/YL
6 Z1 14BK
7 B40 14LB
8 Z1 14BK
9 L50 18WaT/TN
10 L63 20DG/RD
8Wa - 80 - 46 8Wa-80 CONNECTOR PIN-OUTSWJ

C311 - WHITE (LIFTGATE SIDE)
CAV CIRCUIT
1 L50 18WaT/TN
2 Z1 18BK
C311 - WHITE (CHMSL SIDE)
CAV CIRCUIT
1 L50 18WaT/TN
2 Z1 18BK
C312 - BLACK (LIFTGATE SIDE)
CAV CIRCUIT
1 Z1 18BK
2 L7 18BK/YL
3 P101 18OR/PK
4 F70 18PK
C312 - BLACK (LICENSE PLATE LAMP SIDE)
CAV CIRCUIT
1 Z1 18BK
2 L7 18BK/YL
3 P101 18OR/PK
4 F70 18PK
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 47

C313 - WHITE (MUX JUMPER SIDE)
CAV CIRCUIT
1 P112 20YL/WT
2 P114 20YL/RD
C314 - LT. GRAY (BODY SIDE)
CAV CIRCUIT
1 D25 20YL/VT
2 F21 12TN/BK (LHD)
2 F21 12TN (RHD)
3 P35 18OR/VT
4 P36 18PK/VT
5 Z1 12BK
6 Q14 16GY
7 Q24 16DG
8 E20 20OR/DB
9 X56 18DB/PK (BASE LHD)
9 X80 18LB/BK (PREMIUM LHD)
9 X85 18LG/DG (RHD)
10 X54 18VT (BASE)
10 X87 18LG/RD (RHD)
10 X82 18LB/RD (PREMIUM)
11 -
12 -
13 -
14 -
C314 - LT. GRAY (FRONT PASSENGER DOOR
SIDE)
CAV CIRCUIT
1 D25 20YL/VT
2 F21 12TN/BK
3 P35 18OR/VT
4 P36 18PK/VT
5 Z1 12BK
6 Q14 16GY
7 Q24 16DG
8 E20 20OR/DB
9 X85 18LB/BK (RHD)
9 X80 18LB/BK (LHD)
10 X82 18LB/RD (LHD)
10 X87 18LB/RD (RHD)
11 -
12 -
13 -
14 -
8Wa - 80 - 48 8Wa-80 CONNECTOR PIN-OUTSWJ

C315 - (SUN ROOF MODULE SIDE)
CAV CIRCUIT
1 Q30 16DB
2-
3 Q43 20VT
4 Q41 20WT
5-
6-
7 Z1 16BK
8-
CAMSHAFT POSITION SENSOR - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 K44 18TN/YL CAMSHAFT POSITION SENSOR SIGNAL
2 K4 18BK/LB SENSOR GROUND
3 K7 20OR 5V SUPPLY
CAPACITOR (4.0L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A142 16DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
2- -
CAPACITOR NO. 1 (4.7L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
2- -
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 49
