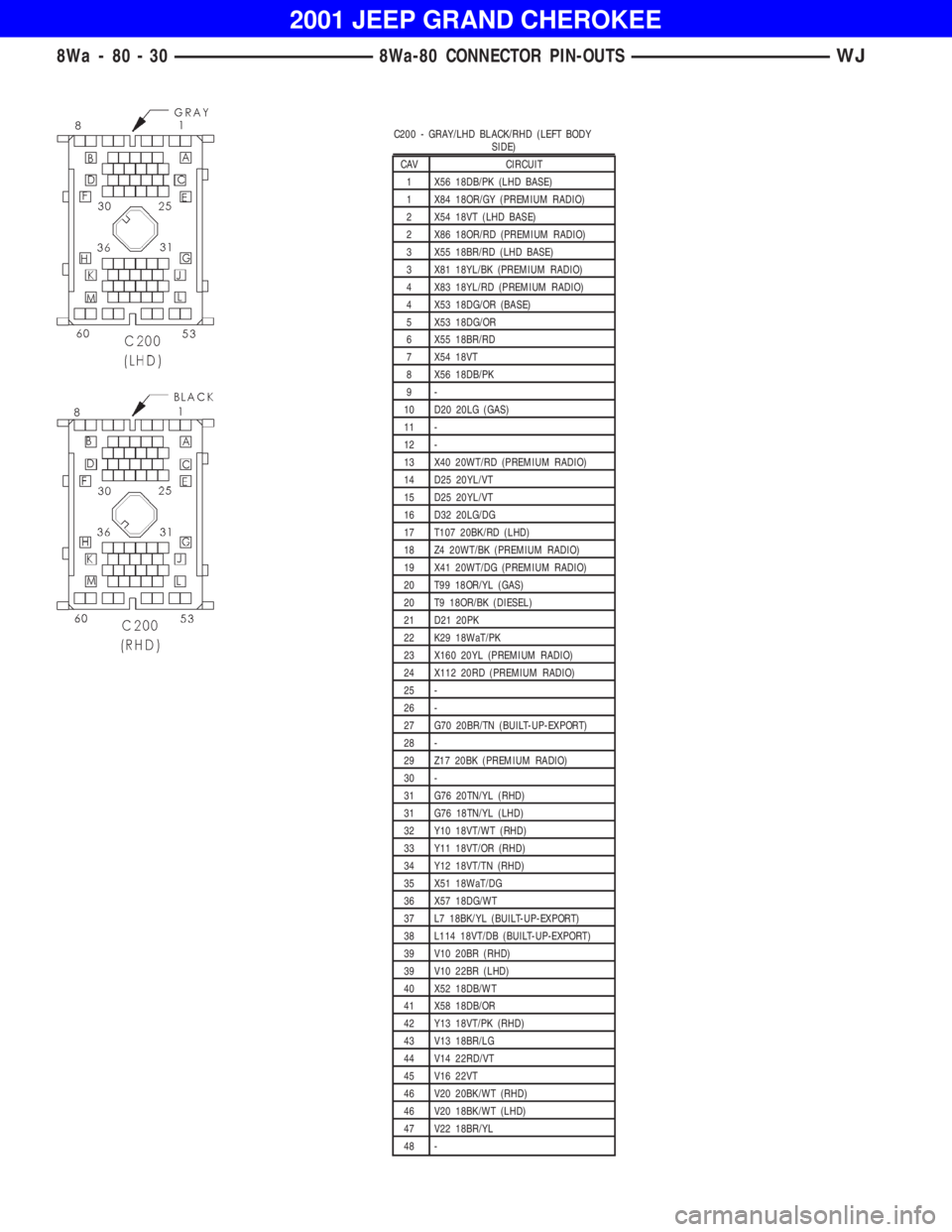

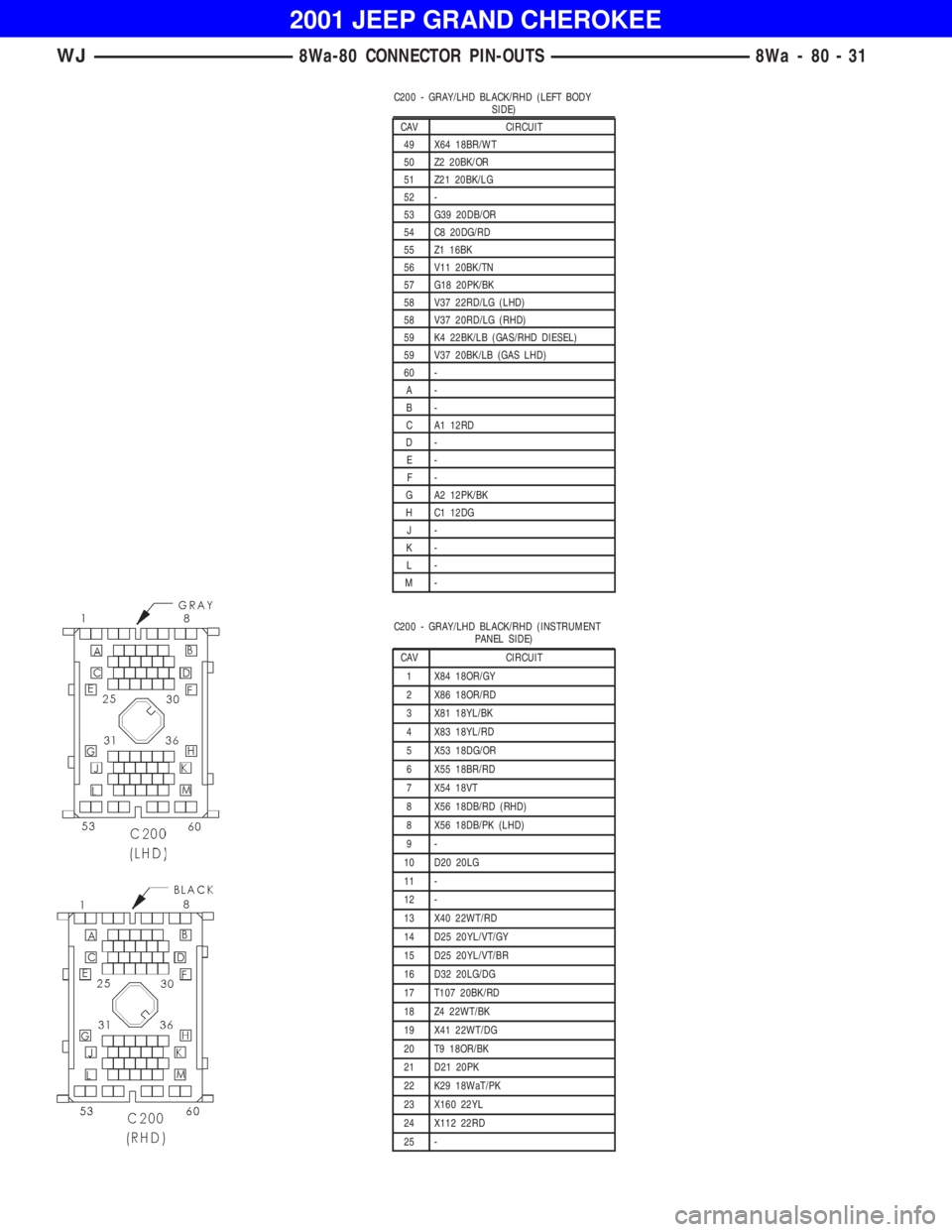

C200 - GRAY/LHD BLACK/RHD (INSTRUMENT
PANEL SIDE)
CAV CIRCUIT
1 X84 18OR/GY
2 X86 18OR/RD
3 X81 18YL/BK
4 X83 18YL/RD
5 X53 18DG/OR
6 X55 18BR/RD
7 X54 18VT
8 X56 18DB/RD (RHD)
8 X56 18DB/PK (LHD)
9-
10 D20 20LG
11 -
12 -
13 X40 22WT/RD
14 D25 20YL/VT/GY
15 D25 20YL/VT/BR
16 D32 20LG/DG
17 T107 20BK/RD
18 Z4 22WT/BK
19 X41 22WT/DG
20 T9 18OR/BK
21 D21 20PK
22 K29 18WaT/PK
23 X160 22YL
24 X112 22RD
25 -
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 31

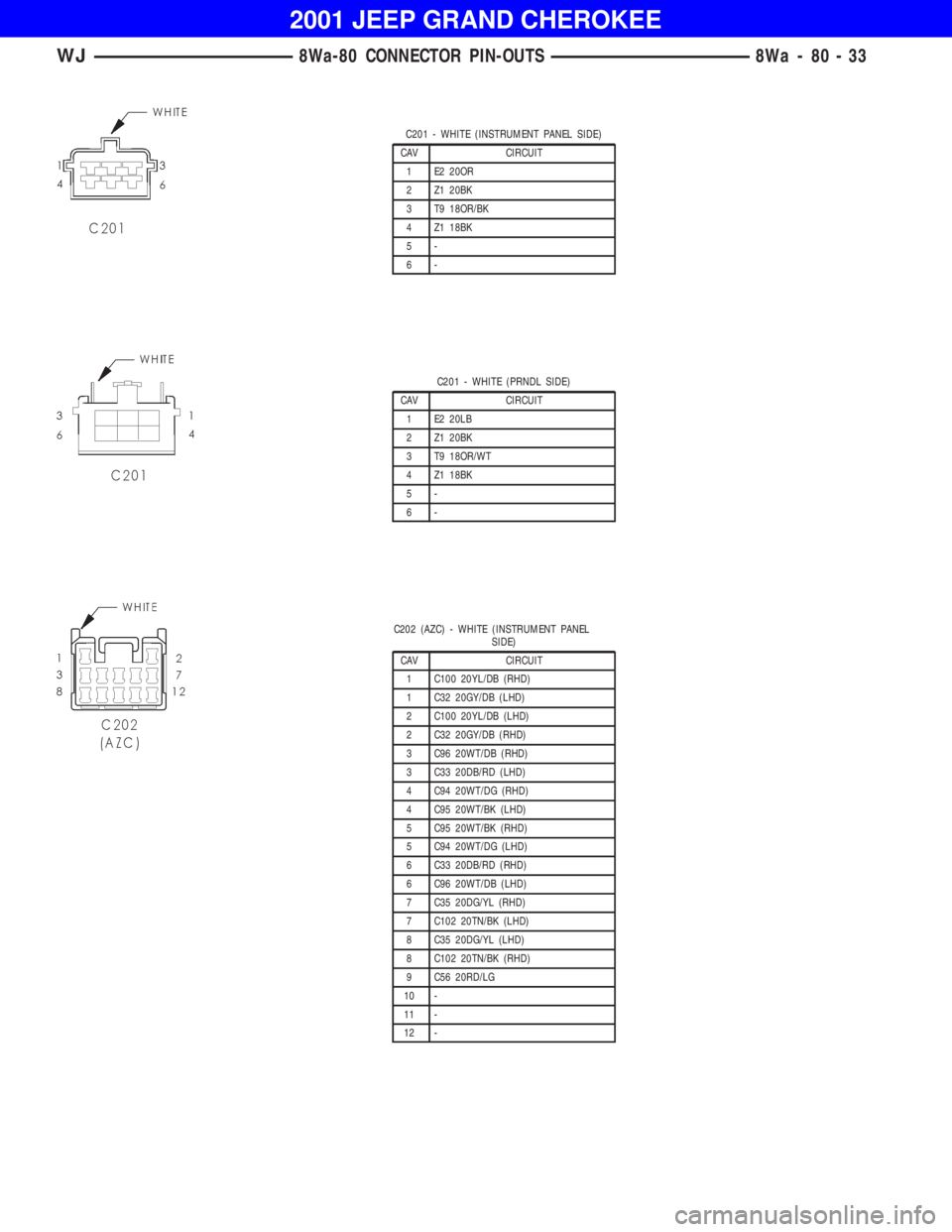

C201 - WHITE (PRNDL SIDE)
CAV CIRCUIT
1 E2 20LB
2 Z1 20BK
3 T9 18OR/WT
4 Z1 18BK
5-
6-
C202 (AZC) - WHITE (INSTRUMENT PANEL
SIDE)
CAV CIRCUIT
1 C100 20YL/DB (RHD)
1 C32 20GY/DB (LHD)
2 C100 20YL/DB (LHD)
2 C32 20GY/DB (RHD)
3 C96 20WT/DB (RHD)
3 C33 20DB/RD (LHD)
4 C94 20WT/DG (RHD)
4 C95 20WT/BK (LHD)
5 C95 20WT/BK (RHD)
5 C94 20WT/DG (LHD)
6 C33 20DB/RD (RHD)
6 C96 20WT/DB (LHD)
7 C35 20DG/YL (RHD)
7 C102 20TN/BK (LHD)
8 C35 20DG/YL (LHD)
8 C102 20TN/BK (RHD)
9 C56 20RD/LG
10 -
11 -
12 -
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 33

C202 (MTC) - WHITE (INSTRUMENT PANEL
SIDE)
CAV CIRCUIT
1-
2-
3-
4-
5 C67 20RD/LB
6-
7-
8-
9-
10 C6 14LB
11 Z2 20BK/OR
12 F22 20WT/PK
13 C7 12BK/TN
14 C1 12DG
15 C4 16TN
16 C5 16LG
C202 (MTC) - WHITE (A/C SIDE)
CAV CIRCUIT
1-
2-
3-
4-
5 C67 20DB/RD
6 WT/YL
7-
8-
9-
10 C6 14LB
11 Z2 20VT/WT
12 F22 20PK/DG
13 C7 12BK/TN
14 C1 12RD
15 C4 16TN
16 C5 16LG
8Wa - 80 - 34 8Wa-80 CONNECTOR PIN-OUTSWJ

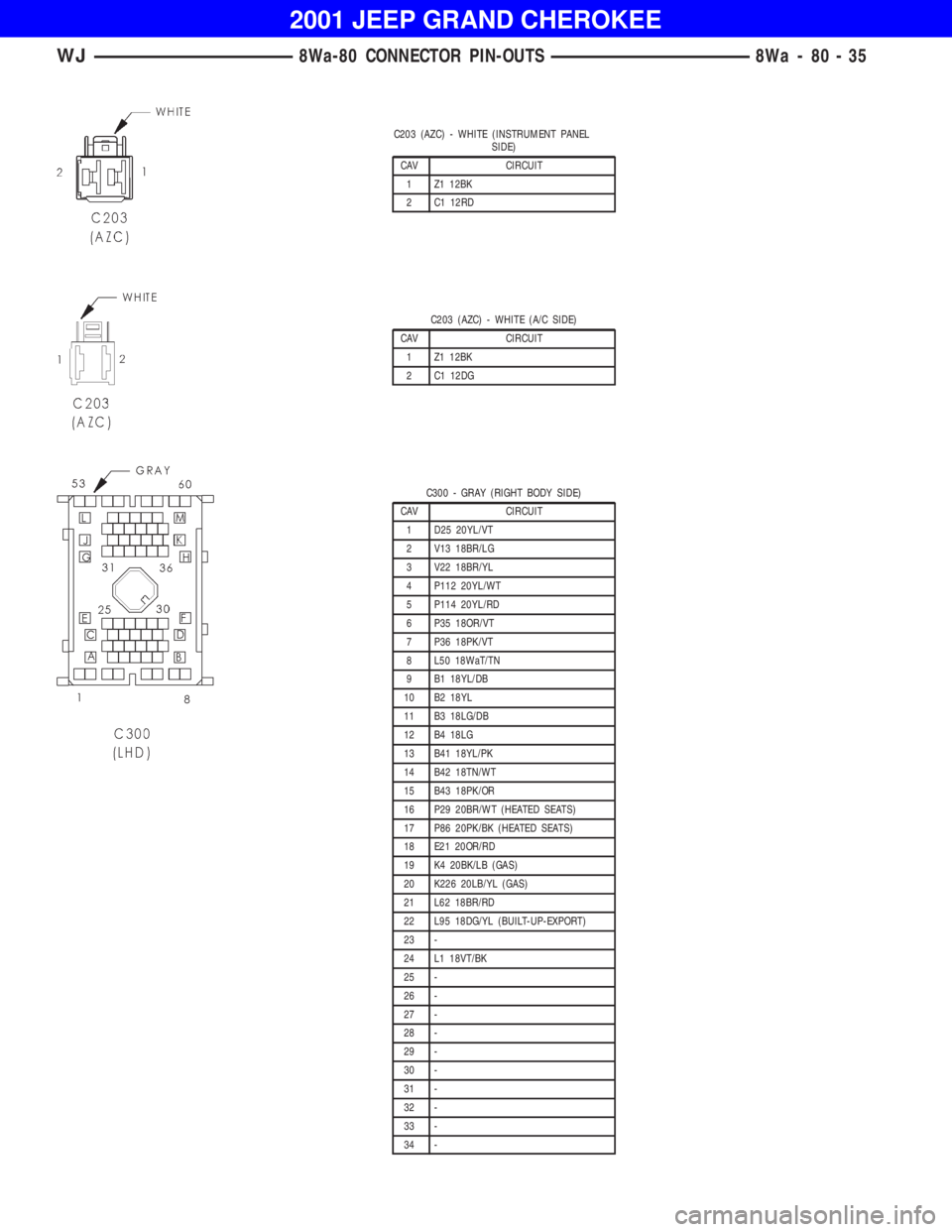

C203 (AZC) - WHITE (A/C SIDE)
CAV CIRCUIT
1 Z1 12BK
2 C1 12DG
C300 - GRAY (RIGHT BODY SIDE)
CAV CIRCUIT
1 D25 20YL/VT
2 V13 18BR/LG
3 V22 18BR/YL
4 P112 20YL/WT
5 P114 20YL/RD
6 P35 18OR/VT
7 P36 18PK/VT
8 L50 18WaT/TN
9 B1 18YL/DB
10 B2 18YL
11 B3 18LG/DB
12 B4 18LG
13 B41 18YL/PK
14 B42 18TN/WT
15 B43 18PK/OR
16 P29 20BR/WT (HEATED SEATS)
17 P86 20PK/BK (HEATED SEATS)
18 E21 20OR/RD
19 K4 20BK/LB (GAS)
20 K226 20LB/YL (GAS)
21 L62 18BR/RD
22 L95 18DG/YL (BUILT-UP-EXPORT)
23 -
24 L1 18VT/BK
25 -
26 -
27 -
28 -
29 -
30 -
31 -
32 -
33 -
34 -
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 35

C300 - GRAY (LEFT BODY SIDE)
CAV CIRCUIT
1 D25 20YL/VT
2 V13 18BR/LG
3 V22 18BR/YL
4 P112 20YL/WT
5 P114 20YL/RD
6 P35 18OR/VT
7 P36 18PK/VT
8 L50 18WaT/TN
9 B1 18YL/DB
10 B2 18YL
11 B3 18LG/DB
12 B4 18LG
13 B41 18YL/PK
8Wa - 80 - 36 8Wa-80 CONNECTOR PIN-OUTSWJ

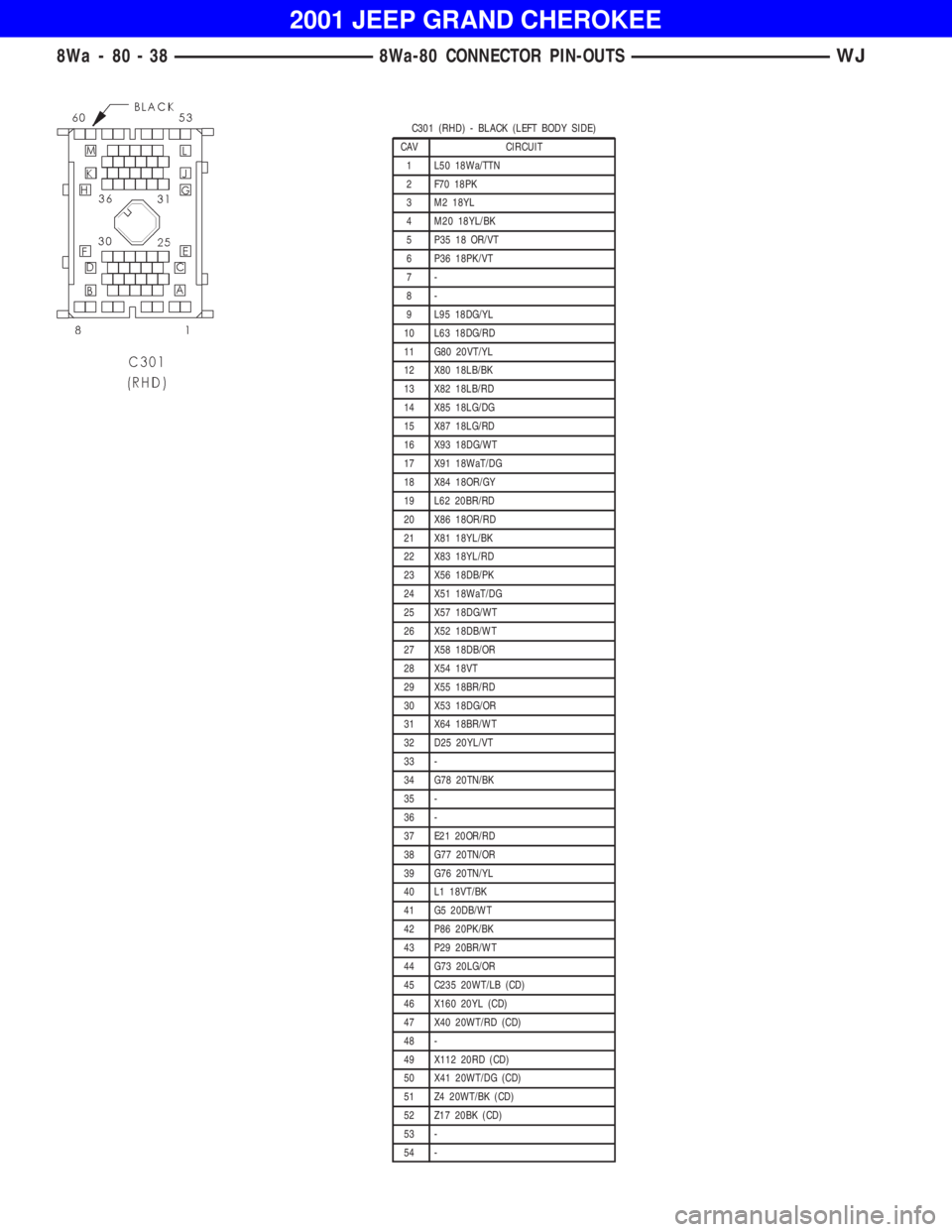

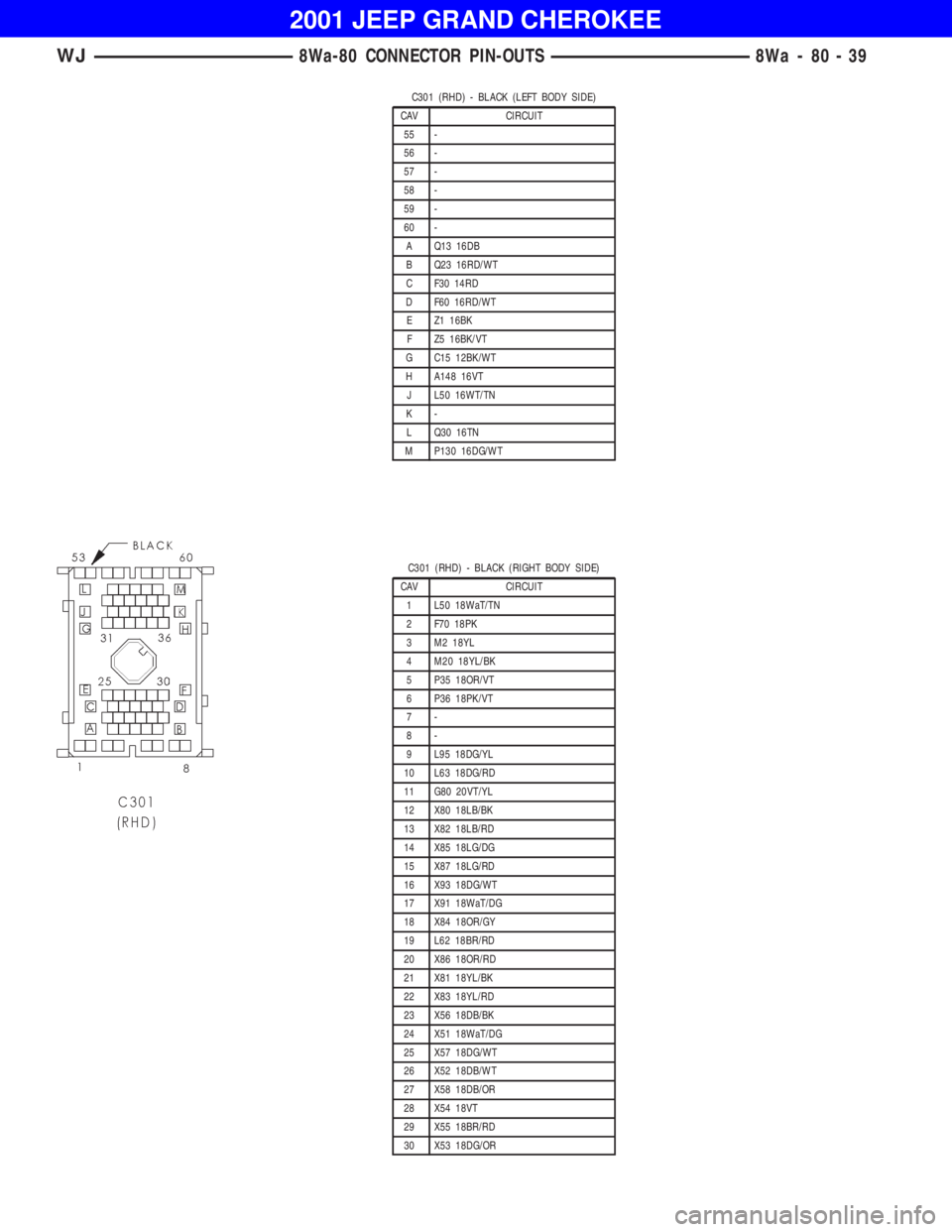

C301 (RHD) - BLACK (RIGHT BODY SIDE)
CAV CIRCUIT
1 L50 18WaT/TN
2 F70 18PK
3 M2 18YL
4 M20 18YL/BK
5 P35 18OR/VT
6 P36 18PK/VT
7-
8-
9 L95 18DG/YL
10 L63 18DG/RD
11 G80 20VT/YL
12 X80 18LB/BK
13 X82 18LB/RD
14 X85 18LG/DG
15 X87 18LG/RD
16 X93 18DG/WT
17 X91 18WaT/DG
18 X84 18OR/GY
19 L62 18BR/RD
20 X86 18OR/RD
21 X81 18YL/BK
22 X83 18YL/RD
23 X56 18DB/BK
24 X51 18WaT/DG
25 X57 18DG/WT
26 X52 18DB/WT
27 X58 18DB/OR
28 X54 18VT
29 X55 18BR/RD
30 X53 18DG/OR
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 39
