JEEP GRAND CHEROKEE 2001 Owners Manual

DRIVER REAR POWER WINDOW MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q124 16DG/WT WINDOW DRIVER (DOWN)
2 Q114 16GY/WT WINDOW DRIVER (UP)
DRIVER REAR POWER WINDOW SWITCH - BLUE 6 WAY
CAV CIRCUIT FUNCTION
1 Q14 16GY DRIVER REAR WINDOW DRIVER UP
2 Q114 16GY/WT WINDOW DRIVER UP
3 E21 20OR/RD DRIVER REAR DOOR SWITCH ILLUMINATION
4 Q24 16DG DRIVER REAR WINDOW DRIVER DOWN
5 Q124 16DG/WT WINDOW DRIVER DOWN
6 Z1 16BK GROUND
EGR SOLENOID (DIESEL) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
A F15 18DB/WT FUSED AUTOMATIC SHUT DOWN RELAY OUTPUT
B K35 18GY/YL EGR SOLENOID CONTROL
C- -
D Z1 18BK GROUND
8Wa - 80 - 60 8Wa-80 CONNECTOR PIN-OUTSWJ

ELECTRONIC SPEED CONTROL SERVO - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 V36 20TN/RD (RHD/GAS) SPEED CONTROL VACUUM SOLENOID CONTROL
1 V36 18TN/RD (LHD DIESEL) SPEED CONTROL VACUUM SOLENOID CONTROL
2 V35 20LG/RD (RHD/GAS) SPEED CONTROL VENT SOLENOID CONTROL
2 V35 18LG/RD (LHD DIESEL) SPEED CONTROL VENT SOLENOID CONTROL
3 V30 20DB/RD SPEED CONTROL BRAKE SWITCH OUTPUT
4 Z1 20BK GROUND
ENGINE CONTROL MODULE C1 (DIESEL) - GRAY 52 WAY
CAV CIRCUIT FUNCTION
1 Z12 14BK/TN GROUND
2 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
3- -
4- -
5 C13 18DB/OR A/C COMPRESSOR CLUTCH RELAY CONTROL
6 K159 16GY ENGINE SPEED SENSOR SIGNAL
7- -
8 C90 18LG A/C SWITCH SIGNAL
9 K29 18WaT/PK SECONDARY BRAKE SWITCH SENSE
10 C18 18DB A/C PRESSURE SIGNAL
11 K440 18VT/WT 5V SUPPLY
12 K151 18WaT/RD LOW IDLE POSITION SWITCH SENSE
13 K21 18BK/RD INTAKE AIR TEMPERATURE SENSOR SIGNAL
14 - -
15 - -
16 - -
17 - -
18 G8 18LB/BK FUEL MONITOR SIGNAL
19 - -
20 L50 18WaT/TN PRIMARY BRAKE SWITCH SIGNAL
21 - -
22 - -
23 K255 18WaT/DB ACCELERATOR PEDAL POSITION SENSOR SIGNAL
24 K167 18BR SENSOR GROUND (ECM)
25 - -
26 - -
27 Z12 14BK/TN GROUND
28 A142 14DG/OR AUTOMATIC SHUT DOWN RELAY OUTPUT
29 K35 18GY/YL EGR SOLENOID CONTROL
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 61

ENGINE CONTROL MODULE C2 (DIESEL) - GRAY 28 WAY
CAV CIRCUIT FUNCTION
53 K156 18GY FUEL TEMPERATURE SENSOR SIGNAL
54 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
55 K68 18LG/YL NEEDLE MOVEMENT SENSOR SIGNAL
56 K134 18LB/BK REFERENCE COIL
57 K57 18LG/OR CONTROL SLEEVE POSITION SENSOR SIGNAL
58 K135 18WaT/BK MEASURE COIL
59 K140 18TN/WT FUEL QUANTITY ACTUATOR CONTROL
60 - -
61 K121 18BK/VT FUEL TEMPERATURE SENSOR GROUND
62 K67 18BR/BK NEEDLE MOVEMENT SENSOR GROUND
63 - -
64 - -
65 - -
66 K140 18TN/WT FUEL QUANTITY ACTUATOR CONTROL
67 K24 18GY/BK ENGINE SPEED SENSOR SIGNAL
68 - -
69 Z3 18BK/OR GROUND
70 - -
71 - -
72 - -
73 - -
74 - -
75 - -
76 - -
77 K153 18OR FUEL SHUT DOWN SOLENOID CONTROL
78 - -
79 K238 18VT FUEL TIMING SOLENOID CONTROL
80 K140 18TN/WT FUEL QUANTITY ACTUATOR CONTROL
8Wa - 80 - 62 8Wa-80 CONNECTOR PIN-OUTSWJ

ENGINE COOLANT TEMPERATURE SENSOR - ECM (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K2 18TN/BK ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2 K121 18BK/VT SENSOR GROUND
ENGINE COOLANT TEMPERATURE SENSOR - PCM (DIESEL)-2WAY
CAV CIRCUIT FUNCTION
1 K222 18TN/RD ENGINE COOLANT TEMPERATURE SENSOR SIGNAL
2 K4 18BK/LB SENSOR GROUND
ENGINE OIL PRESSURE SENSOR - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K6 18VT/BK (GAS) 5V SUPPLY
1 K6 18VT/WT (DIESEL) 5V SUPPLY
2 G60 18GY/YL ENGINE OIL PRESSURE SENSOR SIGNAL
3 K4 18BK/LB SENSOR GROUND
ENGINE SPEED SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 Z3 18BK/OR GROUND
2- -
3 K24 18GY/BK ENGINE SPEED SENSOR SIGNAL
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 63

FRONT POWER OUTLET - RED 3 WAY
CAV CIRCUIT FUNCTION
1 A148 16VT FUSED B(+)
2- -
3 Z1 16BK GROUND
FRONT WASHER PUMP - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 V10 20BR WASHER PUMP MOTOR SWITCH SENSE
2 Z1 20BK GROUND
FRONT WIPER MOTOR - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 V6 16DB FUSED IGNITION SWITCH OUTPUT (RUN-ACC)
2 V55 16TN/RD WIPER PARK SWITCH SENSE
3- -
4 Z1 16BK GROUND
5 V3 16BR/WT WIPER HIGH/LOW RELAY LOW SPEED OUTPUT
6 V4 16RD/YL WIPER HIGH/LOW RELAY HIGH SPEED OUTPUT
FUEL HEATER (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 16BK GROUND
2 A93 16RD/BK FUEL HEATER RELAY OUTPUT
8Wa - 80 - 64 8Wa-80 CONNECTOR PIN-OUTSWJ

FUEL INJECTOR NO. 1 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K11 18WaT/DB FUEL INJECTOR NO. 1 DRIVER
2 F42 18DG/LG FUSED AUTOMATIC SHUT DOWN RELAY OUTPUT
FUEL INJECTOR NO. 2 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K12 18TN FUEL INJECTOR NO. 2 DRIVER
2 F42 18DG/LG FUSED AUTOMATIC SHUT DOWN RELAY OUTPUT
FUEL INJECTOR NO. 3 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K13 18YL/WT FUEL INJECTOR NO. 3 DRIVER
2 F42 18DG/LG FUSED AUTOMATIC SHUT DOWN RELAY OUTPUT
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 65

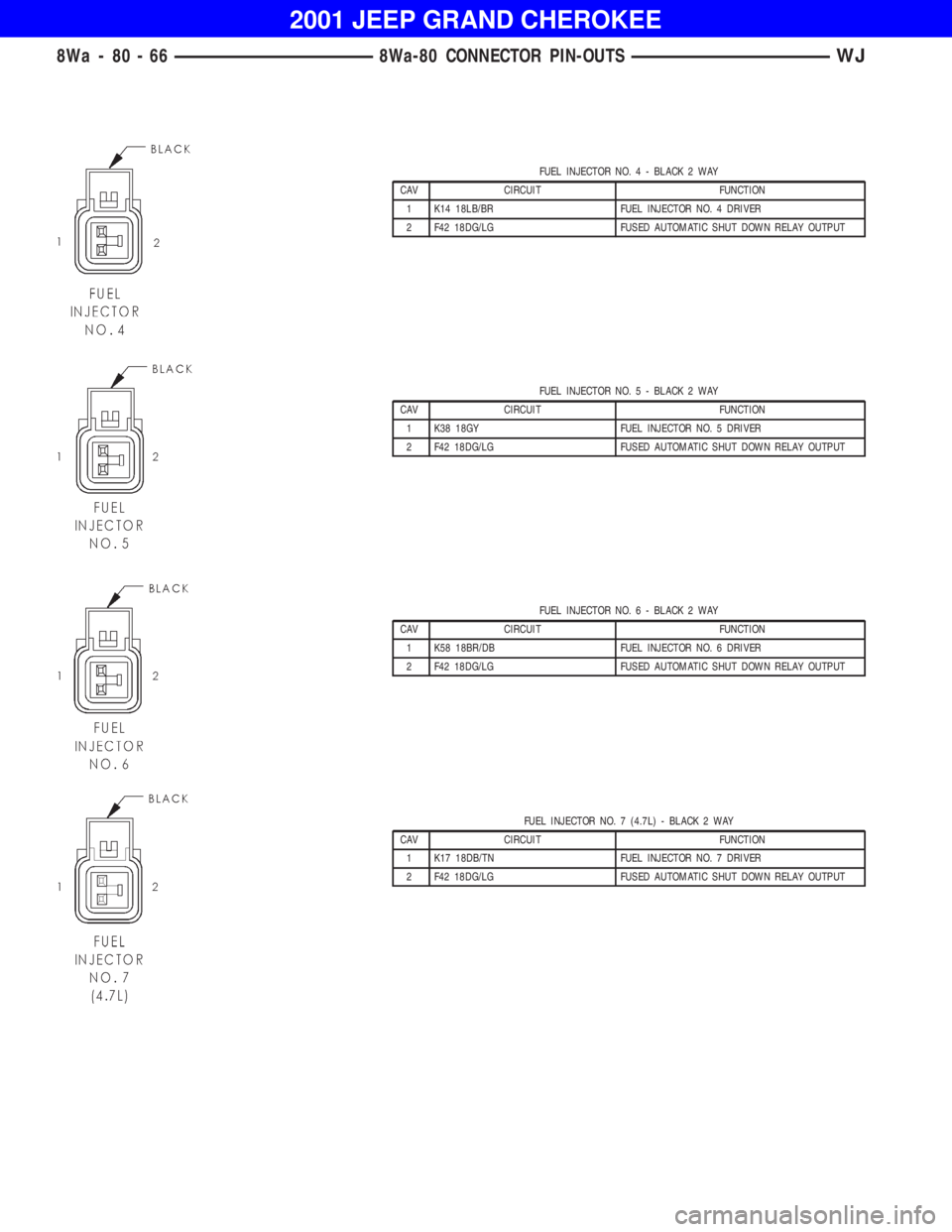

FUEL INJECTOR NO. 5 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K38 18GY FUEL INJECTOR NO. 5 DRIVER
2 F42 18DG/LG FUSED AUTOMATIC SHUT DOWN RELAY OUTPUT
FUEL INJECTOR NO. 6 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K58 18BR/DB FUEL INJECTOR NO. 6 DRIVER
2 F42 18DG/LG FUSED AUTOMATIC SHUT DOWN RELAY OUTPUT
FUEL INJECTOR NO. 7 (4.7L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K17 18DB/TN FUEL INJECTOR NO. 7 DRIVER
2 F42 18DG/LG FUSED AUTOMATIC SHUT DOWN RELAY OUTPUT
8Wa - 80 - 66 8Wa-80 CONNECTOR PIN-OUTSWJ

FUEL PUMP MODULE (GAS) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 A141 16DG/BK FUEL PUMP RELAY OUTPUT
2- -
3 K226 20LB/YL FUEL LEVEL SENSOR SIGNAL
4 K4 20BK/LB SENSOR GROUND
5- -
6 Z1 16BK GROUND
FUEL TANK MODULE (DIESEL) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2- --
3 K226 18LB/YL FUEL LEVEL SENSOR SIGNAL
4 K4 18BK/LB SENSOR GROUND
5- -
6- -
GENERATOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 K21 18WaT/DB (DIESEL) GENERATOR SOURCE
1 K21 18LB/RD (GAS) GENERATOR SOURCE
2 K20 18DG GENERATOR FIELD DRIVER
GLOVE BOX LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 F70 20PK/BK FUSED B(+)
2 M20 20BR/OR COURTESY LAMP LOAD SHED
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 67

HEADLAMP LEVELING SWITCH (BUILT-UP-EXPORT) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 Z1 20BK GROUND
2 L7 18BK/YL PARK LAMP RELAY OUTPUT
3 L114 20VT/YL (RHD) HEADLAMP ADJUST SIGNAL
3 L114 20VT/DB (LHD) HEADLAMP ADJUST SIGNAL
HOOD AJAR SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G70 20BR/TN HOOD AJAR SWITCH SENSE
2 Z1 20BK GROUND
HORN NO. 1 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 X2 18DG/RD HORN RELAY OUTPUT
HORN NO. 2 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z1 18BK GROUND
2 X2 18DG/RD HORN RELAY OUTPUT
HYDRAULIC COOLING MODULE - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 F142 18OR/DG FUSED AUTOMATIC SHUT DOWN RELAY OUTPUT
2 C240 18DB/RD ENGINE COOLANT TEMPERATURE
8Wa - 80 - 68 8Wa-80 CONNECTOR PIN-OUTSWJ

IGNITION SWITCH C1 - WHITE 6 WAY
CAV CIRCUIT FUNCTION
1 A41 12YL IGNITION SWITCH OUTPUT (START)
2 A2 12PK/BK FUSED B(+)
3 A22 12BK/OR IGNITION SWITCH OUTPUT (RUN)
4 A1 12RD FUSED B(+)
5 A31 12RD/BK IGNITION SWITCH OUTPUT (RUN-ACC)
6 A21 12DB IGNITION SWITCH OUTPUT (RUN-START)
IGNITION SWITCH C2 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G26 20LB KEY-IN IGNITION SWITCH SENSE
2 Z1 20BK GROUND
INPUT SPEED SENSOR (4.7L) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T52 18RD/BK INPUT SPEED SENSOR SIGNAL
2 T13 18DB/BK SPEED SENSOR GROUND
INSTRUMENT CLUSTER - WHITE 12 WAY
CAV CIRCUIT FUNCTION
1 L61 20LG LEFT TURN SIGNAL
2 L60 20TN RIGHT TURN SIGNAL
3- -
4 G7 20WT/OR VEHICLE SPEED SIGNAL
5 G9 20GY/BK RED BRAKE WARNING INDICATOR DRIVER
6 F33 20PK/RD FUSED B(+)
7 G5 20DB/WT FUSED IGNITION SWITCH OUTPUT (RUN-START)
8- -
9 Z1 20BK GROUND
10 D25 20YL/VT/RD PCI BUS
11 Z2 20BK/OR GROUND
12 T107 20BK/RD PART TIME 4 WHEEL DRIVER INDICATOR DRIVER
WJ8Wa-80 CONNECTOR PIN-OUTS 8Wa - 80 - 69
