JEEP GRAND CHEROKEE 2012 Owner handbook (in English)

87

88

89

Voice Commands
Primary Alternate(s)
zero
one
two
three
four
five
six
seven
eight
nine
asterisk (*) star
plus (+)
hash (#)
all all of them
Breakdown service
call
cancel
confirmation prompts confirmation
continue
delete
dialVoice Commands
Primary Alternate(s)
download
Dutch Nederlands
edit
emergency
English
delete all erase all
Espanol
Francais
German Deutsch
help
home
Italian Italiano
language
list names
list phones
main menu. return to main menu
mobile
mute on
mute off
new entry
noVoice Commands
Primary Alternate(s)
other other
pair a phone
phone pairing pairing
phonebook phonebook
previous
redial
select phone select
send
set up phone settings or
phone set up
transfer call
Uconnect™ Tutorial
try again
voice training system training
work
yes
90

VOICE COMMAND — IF EQUIPPED
Voice Command System Operation
This Voice Command system al-
lows you to control your AM, FM
radio, disc player, and a memo
recorder.
NOTE:
Take care to speak into the Voice Interface
System as calmly and normally as possible.
The ability of the Voice Interface System to
recognize user voice commands may be
negatively affected by rapid speaking or a
raised voice level.
WARNING!
Any voice commanded system should be
used only in safe driving conditions following
local laws. All attention should be kept on the
roadway ahead. Failure to do so may result in
a collision causing serious injury or death. When you press the Voice Command
button, you will hear a beep. The beep is your
signal to give a command.
NOTE:
If you do not say a command within a few
seconds, the system will present you with a
list of options.
If you ever wish to interrupt the system while it
lists options, press the Voice Command
button, listen for the beep, and say your com-
mand.
Pressing the Voice Command
button
while the system is speaking is known as
“barging in.” The system will be interrupted,
and after the beep, you can add or change
commands. This will become helpful once you
start to learn the options.
NOTE:
At any time, you can say the words “Can-
cel”, “Help” or “Main Menu”.
These commands are universal and can be
used from any menu. All other commands can
be used depending upon the active applica-
tion. When using this system, you should speak
clearly and at a normal speaking volume.
The system will best recognize your speech if
the windows are closed, and the heater/air
conditioning fan is set to low.
At any point, if the system does not recognize
one of your commands, you will be prompted to
repeat it.
To hear the first available Menu, press the Voice
Command
button and say “Help” or
“Main Menu”.
CommandsThe Voice Command system understands two
types of commands. Universal commands are
available at all times. Local commands are
available if the supported radio mode is active.
Changing The Volume
1. Start a dialogue by pressing the Voice Com-
mand
button.
2. Say a command (e.g., “Help”).
3. Use the ON/OFF VOLUME rotary knob to
adjust the volume to a comfortable level while
the Voice Command system is speaking.
91

Please note the volume setting for Voice Com-
mand is different than the audio system.
Main Menu
Start a dialogue by pressing the Voice Com-
mand
button. You may say “Main Menu”
to switch to the main menu.
In this mode, you can say the following com-
mands:
• “Radio” (to switch to the radio mode)
• “Disc” (to switch to the disc mode)
• “Memo” (to switch to the memo recorder)
• “Setup” (to switch to system setup)
Radio Am (Or Radio Long Wave Or Radio
Medium Wave — If Equipped)
To switch to the AM band, say “AM” or “Radio
AM”. In this mode, you may say the following
commands:
• “Frequency #” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous
station)
• “Menu Radio” (to switch to the radio menu) •
“Main Menu” (to switch to the main menu)
Radio FM
To switch to the FM band, say “FM” or “Radio
FM”. In this mode, you may say the following
commands:
• “Frequency #” (to change the frequency)
• “Next Station” (to select the next station)
• “Previous Station” (to select the previous
station)
• “Menu Radio” (to switch to the radio menu)
• “Main Menu” (to switch to the main menu)
Disc
To switch to the disc mode, say “Disc”. In this
mode, you may say the following commands:
• “Track” (#) (to change the track)
• “Next Track” (to play the next track)
• “Previous Track” (to play the previous track)
• “Main Menu” (to switch to the main menu) Memo
To switch to the voice recorder mode, say
“Memo”. In this mode, you may say the follow-
ing commands:
•
“New Memo” (to record a new memo) —
During the recording, you may press the
Voice Command
button to stop re-
cording. You proceed by saying one of the
following commands:
“Save” (to save the memo)
“Continue” (to continue recording)
“Delete” (to delete the recording)
• “Play Memos” (to play previously recorded
memos) — During the playback you may
press the Voice Command
button to
stop playing memos. You proceed by saying
one of the following commands:
“Repeat” (to repeat a memo)
“Next” (to play the next memo)
“Previous” (to play the previous memo)
“Delete” (to delete a memo)
• “Delete All” (to delete all memos)
92

System Setup
To switch to system setup, you may say on of
the following:
•“Change to system setup”
• “Main menu system setup”
• “Switch to system setup”
• “Change to setup”
• “Main menu setup” or
• “Switch to setup”
In this mode, you may say the following com-
mands:
• “Language English”
• “Language French”
• “Language Spanish”
• “Language Dutch”
• “Language Deutsch”
• “Language Italian”
• “Tutorial”
• “Voice Training” NOTE:
Keep in mind that you have to press the
Voice Command
button first and wait
for the beep before speaking the “Barge In”
commands.
Voice TrainingFor users experiencing difficulty with the sys-
tem recognizing their voice commands or num-
bers the Uconnect™ Voice “Voice Training”
feature may be used.
1. Press the Voice Command
button,
say “System Setup” and once you are in that
menu then say “Voice Training.” This will train
your own voice to the system and will improve
recognition.
2. Repeat the words and phrases when
prompted by Uconnect™ Voice. For best re-
sults, the Voice Training session should be
completed when the vehicle is parked, engine
running, all windows closed, and the blower fan
switched off. This procedure may be repeated
with a new user. The system will adapt to the
last trained voice only.
SEATSSeats are part of the Occupant Restraint Sys-
tem of the vehicle.
WARNING!
• It is dangerous to ride in a cargo area,
inside or outside of a vehicle. In a collision,
people riding in these areas are more likely
to be seriously injured or killed.
• Do not allow people to ride in any area of
your vehicle that is not equipped with seats
and seat belts. In a collision, people riding
in these areas are more likely to be seri-
ously injured or killed.
• Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
93

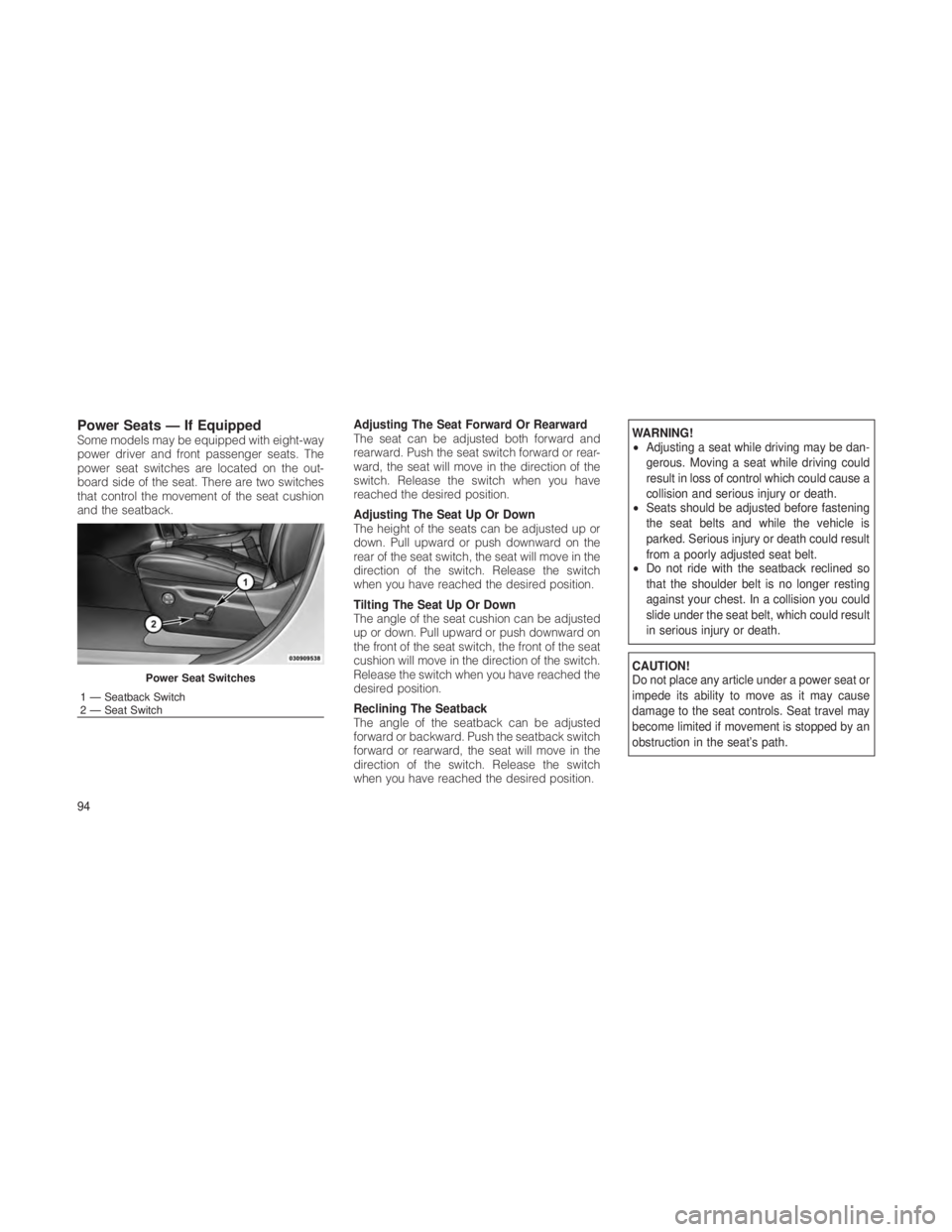

Power Seats — If EquippedSome models may be equipped with eight-way
power driver and front passenger seats. The
power seat switches are located on the out-
board side of the seat. There are two switches
that control the movement of the seat cushion
and the seatback.Adjusting The Seat Forward Or Rearward
The seat can be adjusted both forward and
rearward. Push the seat switch forward or rear-
ward, the seat will move in the direction of the
switch. Release the switch when you have
reached the desired position.
Adjusting The Seat Up Or Down
The height of the seats can be adjusted up or
down. Pull upward or push downward on the
rear of the seat switch, the seat will move in the
direction of the switch. Release the switch
when you have reached the desired position.
Tilting The Seat Up Or Down
The angle of the seat cushion can be adjusted
up or down. Pull upward or push downward on
the front of the seat switch, the front of the seat
cushion will move in the direction of the switch.
Release the switch when you have reached the
desired position.
Reclining The Seatback
The angle of the seatback can be adjusted
forward or backward. Push the seatback switch
forward or rearward, the seat will move in the
direction of the switch. Release the switch
when you have reached the desired position.WARNING!
•
Adjusting a seat while driving may be dan-
gerous. Moving a seat while driving could
result in loss of control which could cause a
collision and serious injury or death.
• Seats should be adjusted before fastening
the seat belts and while the vehicle is
parked. Serious injury or death could result
from a poorly adjusted seat belt.
• Do not ride with the seatback reclined so
that the shoulder belt is no longer resting
against your chest. In a collision you could
slide under the seat belt, which could result
in serious injury or death.
CAUTION!
Do not place any article under a power seat or
impede its ability to move as it may cause
damage to the seat controls. Seat travel may
become limited if movement is stopped by an
obstruction in the seat’s path.Power Seat Switches
1 — Seatback Switch
2 — Seat Switch
94

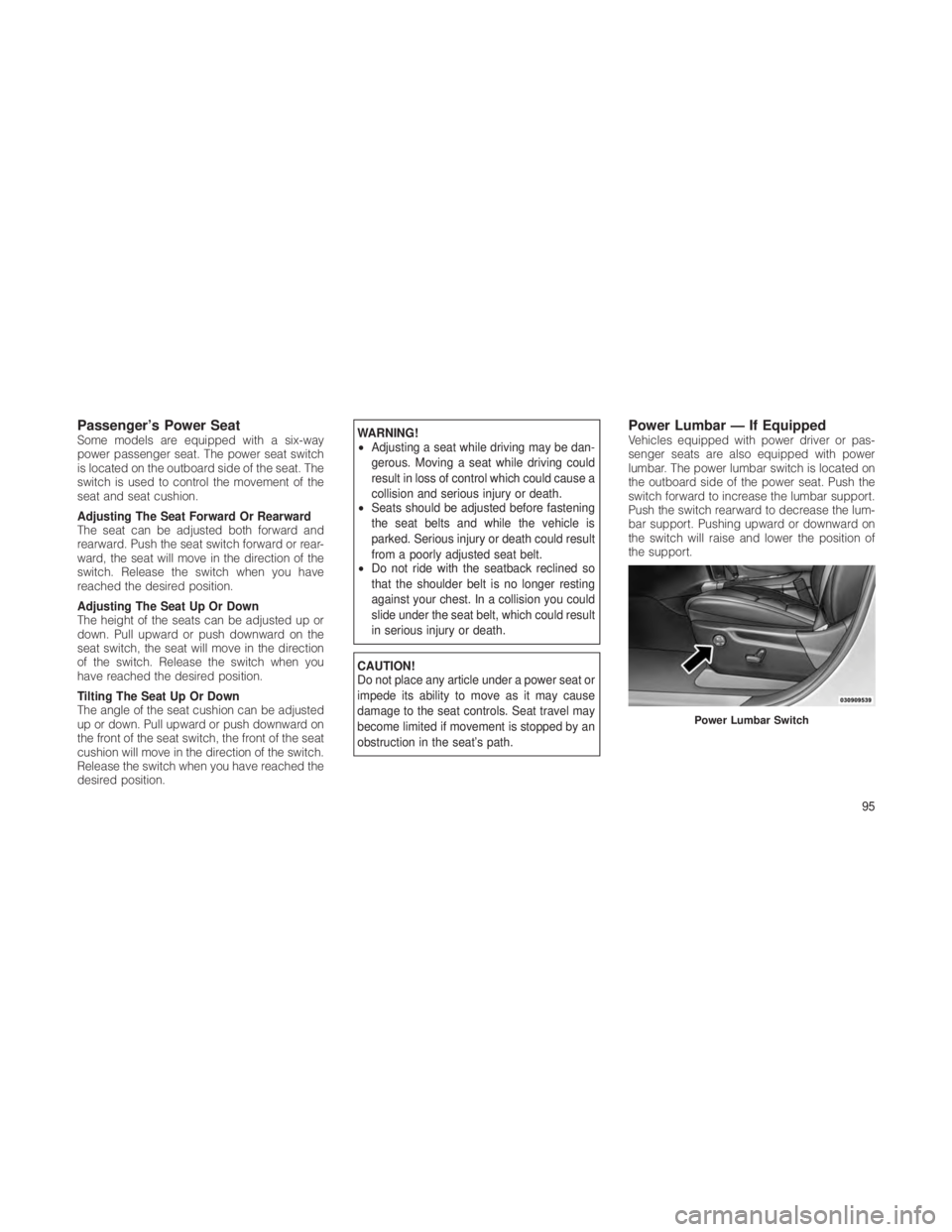

Passenger’s Power SeatSome models are equipped with a six-way
power passenger seat. The power seat switch
is located on the outboard side of the seat. The
switch is used to control the movement of the
seat and seat cushion.
Adjusting The Seat Forward Or Rearward
The seat can be adjusted both forward and
rearward. Push the seat switch forward or rear-
ward, the seat will move in the direction of the
switch. Release the switch when you have
reached the desired position.
Adjusting The Seat Up Or Down
The height of the seats can be adjusted up or
down. Pull upward or push downward on the
seat switch, the seat will move in the direction
of the switch. Release the switch when you
have reached the desired position.
Tilting The Seat Up Or Down
The angle of the seat cushion can be adjusted
up or down. Pull upward or push downward on
the front of the seat switch, the front of the seat
cushion will move in the direction of the switch.
Release the switch when you have reached the
desired position.WARNING!
•Adjusting a seat while driving may be dan-
gerous. Moving a seat while driving could
result in loss of control which could cause a
collision and serious injury or death.
• Seats should be adjusted before fastening
the seat belts and while the vehicle is
parked. Serious injury or death could result
from a poorly adjusted seat belt.
• Do not ride with the seatback reclined so
that the shoulder belt is no longer resting
against your chest. In a collision you could
slide under the seat belt, which could result
in serious injury or death.
CAUTION!
Do not place any article under a power seat or
impede its ability to move as it may cause
damage to the seat controls. Seat travel may
become limited if movement is stopped by an
obstruction in the seat’s path.
Power Lumbar — If EquippedVehicles equipped with power driver or pas-
senger seats are also equipped with power
lumbar. The power lumbar switch is located on
the outboard side of the power seat. Push the
switch forward to increase the lumbar support.
Push the switch rearward to decrease the lum-
bar support. Pushing upward or downward on
the switch will raise and lower the position of
the support.
Power Lumbar Switch
95

Front Passenger Seat Fold-Flat
Feature — If Equipped
To fold the seatback to the flat load-floor posi-
tion, lift the recline lever and push the seatback
forward. To return to the seating position, raise
the seatback and lock it into place.
Heated Seats — If EquippedOn some models, the front and rear seats may
be equipped with heaters in both the seat
cushions and seatbacks.
WARNING!
•Persons who are unable to feel pain to the
skin because of advanced age, chronic
illness, diabetes, spinal cord injury, medi-
cation, alcohol use, exhaustion or other
physical condition must exercise care when
using the seat heater. It may cause burns
even at low temperatures, especially if
used for long periods of time.
• Do not place anything on the seat that
insulates against heat, such as a blanket or
cushion. This may cause the seat heater to
overheat. Sitting in a seat that has been
overheated could cause serious burns due
to the increased surface temperature of the
seat.
Vehicles Equipped With Remote Start
On models that are equipped with remote start,
the driver’s heated seat can be programmed to
come on during a remote start. Refer to “Re-
mote Starting System — If Equipped” in
“Things to Know Before Starting Your Vehicle”
for further information. Front Heated Seats
There are two heated seat switches that allow
the driver and passenger to operate the seats
independently. The controls for each heater are
located near the bottom center of the instru-
ment panel (below the climate controls).
You can choose from HIGH, LOW or OFF heat
settings. Amber indicator lights in each switch
indicate the level of heat in use. Two indicator
lights will illuminate for HIGH, one for LOW and
none for OFF.
Press the switch once to select
HIGH-level heating. Press the
switch a second time to select
LOW-level heating. Press the
switch a third time to shut the heat-
ing elements OFF.
NOTE:
Once a heat setting is selected, heat will be
felt within two to five minutes.
When the HIGH-level setting is selected, the
heater will provide a boosted heat level during
the first four minutes of operation. Then, the
heat output will drop to the normal HIGH-level.
If the HIGH-level setting is selected, the system
Fold-Flat Passenger Seat
96
