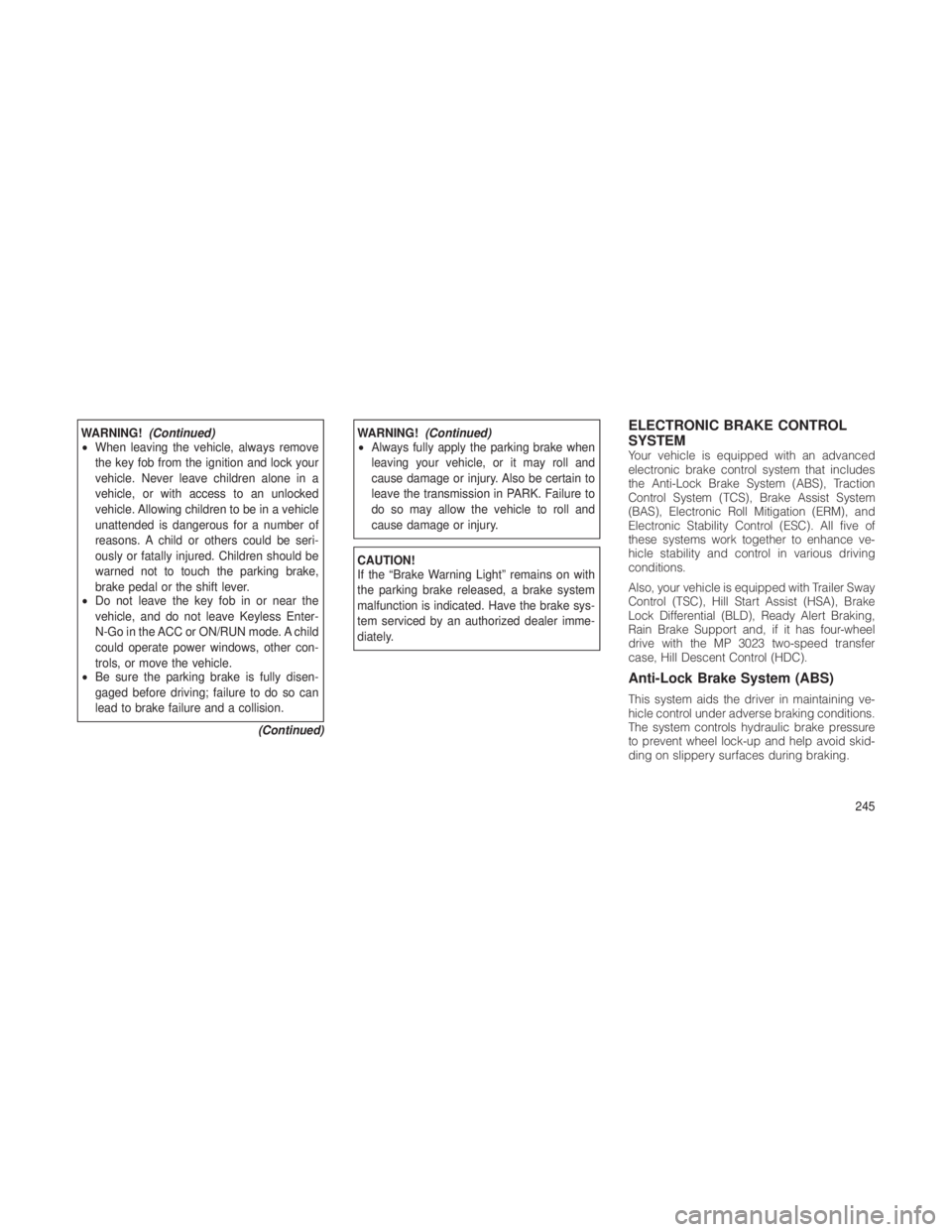

WARNING!(Continued)
• When leaving the vehicle, always remove
the key fob from the ignition and lock your
vehicle. Never leave children alone in a
vehicle, or with access to an unlocked
vehicle. Allowing children to be in a vehicle
unattended is dangerous for a number of
reasons. A child or others could be seri-
ously or fatally injured. Children should be
warned not to touch the parking brake,
brake pedal or the shift lever.
• Do not leave the key fob in or near the
vehicle, and do not leave Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child
could operate power windows, other con-
trols, or move the vehicle.
• Be sure the parking brake is fully disen-
gaged before driving; failure to do so can
lead to brake failure and a collision.
(Continued)WARNING!(Continued)
• Always fully apply the parking brake when
leaving your vehicle, or it may roll and
cause damage or injury. Also be certain to
leave the transmission in PARK. Failure to
do so may allow the vehicle to roll and
cause damage or injury.
CAUTION!
If the “Brake Warning Light” remains on with
the parking brake released, a brake system
malfunction is indicated. Have the brake sys-
tem serviced by an authorized dealer imme-
diately.
ELECTRONIC BRAKE CONTROL
SYSTEM
Your vehicle is equipped with an advanced
electronic brake control system that includes
the Anti-Lock Brake System (ABS), Traction
Control System (TCS), Brake Assist System
(BAS), Electronic Roll Mitigation (ERM), and
Electronic Stability Control (ESC). All five of
these systems work together to enhance ve-
hicle stability and control in various driving
conditions.
Also, your vehicle is equipped with Trailer Sway
Control (TSC), Hill Start Assist (HSA), Brake
Lock Differential (BLD), Ready Alert Braking,
Rain Brake Support and, if it has four-wheel
drive with the MP 3023 two-speed transfer
case, Hill Descent Control (HDC).
Anti-Lock Brake System (ABS)
This system aids the driver in maintaining ve-
hicle control under adverse braking conditions.
The system controls hydraulic brake pressure
to prevent wheel lock-up and help avoid skid-
ding on slippery surfaces during braking.
245

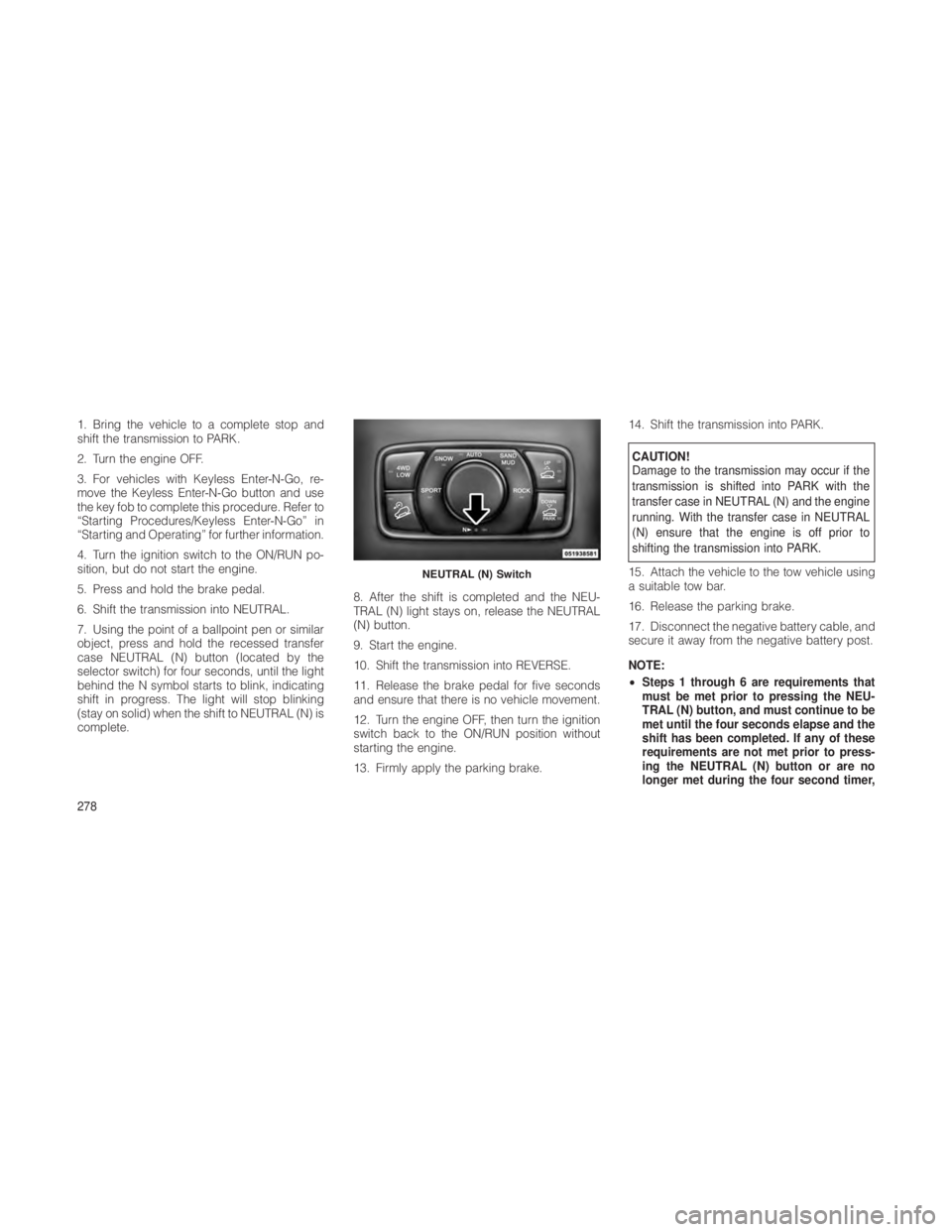

1. Bring the vehicle to a complete stop and
shift the transmission to PARK.
2. Turn the engine OFF.
3. For vehicles with Keyless Enter-N-Go, re-
move the Keyless Enter-N-Go button and use
the key fob to complete this procedure. Refer to
“Starting Procedures/Keyless Enter-N-Go” in
“Starting and Operating” for further information.
4. Turn the ignition switch to the ON/RUN po-
sition, but do not start the engine.
5. Press and hold the brake pedal.
6. Shift the transmission into NEUTRAL.
7. Using the point of a ballpoint pen or similar
object, press and hold the recessed transfer
case NEUTRAL (N) button (located by the
selector switch) for four seconds, until the light
behind the N symbol starts to blink, indicating
shift in progress. The light will stop blinking
(stay on solid) when the shift to NEUTRAL (N) is
complete.8. After the shift is completed and the NEU-
TRAL (N) light stays on, release the NEUTRAL
(N) button.
9. Start the engine.
10. Shift the transmission into REVERSE.
11. Release the brake pedal for five seconds
and ensure that there is no vehicle movement.
12. Turn the engine OFF, then turn the ignition
switch back to the ON/RUN position without
starting the engine.
13. Firmly apply the parking brake.14. Shift the transmission into PARK.
CAUTION!
Damage to the transmission may occur if the
transmission is shifted into PARK with the
transfer case in NEUTRAL (N) and the engine
running. With the transfer case in NEUTRAL
(N) ensure that the engine is off prior to
shifting the transmission into PARK.
15. Attach the vehicle to the tow vehicle using
a suitable tow bar.
16. Release the parking brake.
17. Disconnect the negative battery cable, and
secure it away from the negative battery post.
NOTE:
• Steps 1 through 6 are requirements that
must be met prior to pressing the NEU-
TRAL (N) button, and must continue to be
met until the four seconds elapse and the
shift has been completed. If any of these
requirements are not met prior to press-
ing the NEUTRAL (N) button or are no
longer met during the four second timer,
NEUTRAL (N) Switch
278

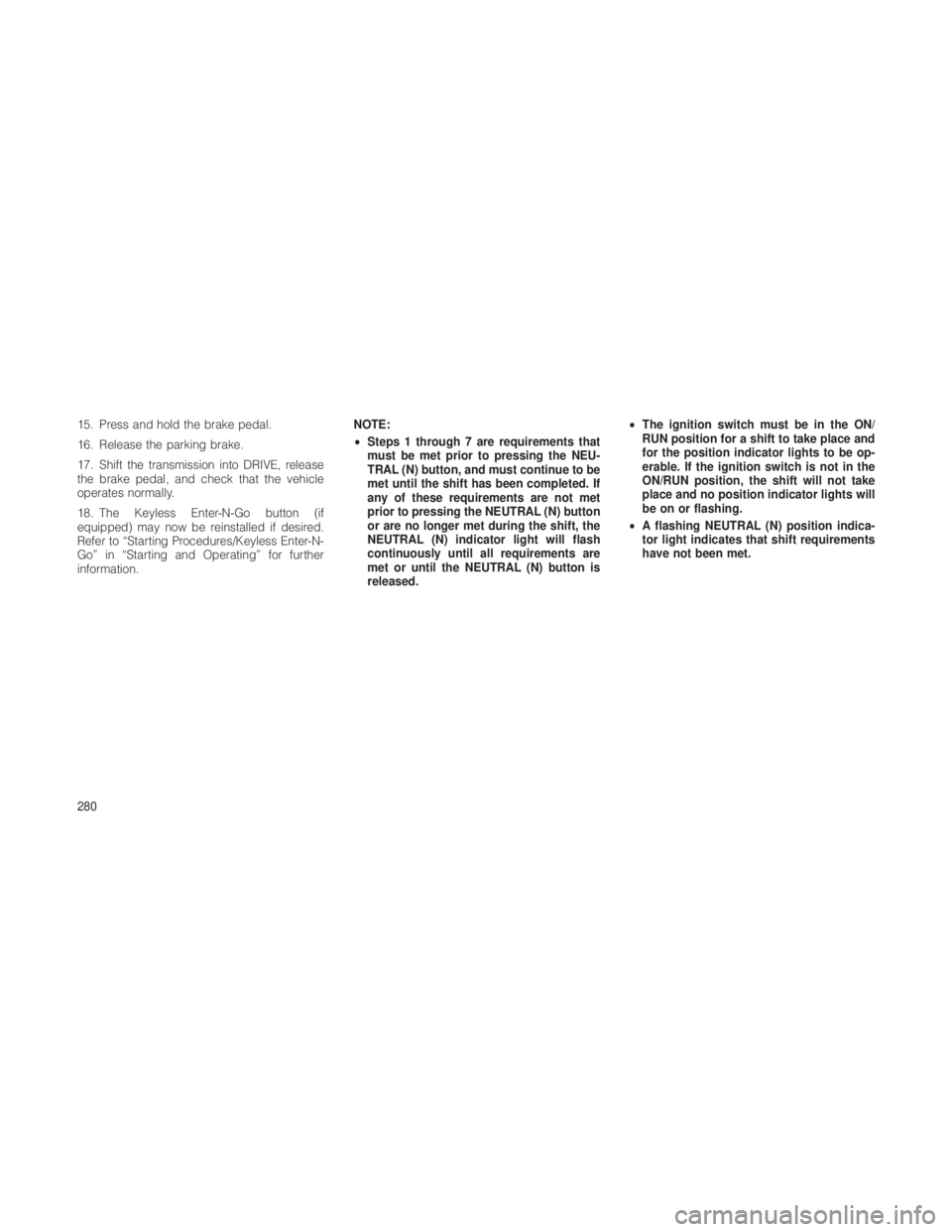

15. Press and hold the brake pedal.
16. Release the parking brake.
17. Shift the transmission into DRIVE, release
the brake pedal, and check that the vehicle
operates normally.
18. The Keyless Enter-N-Go button (if
equipped) may now be reinstalled if desired.
Refer to “Starting Procedures/Keyless Enter-N-
Go” in “Starting and Operating” for further
information.NOTE:
•
Steps 1 through 7 are requirements that
must be met prior to pressing the NEU-
TRAL (N) button, and must continue to be
met until the shift has been completed. If
any of these requirements are not met
prior to pressing the NEUTRAL (N) button
or are no longer met during the shift, the
NEUTRAL (N) indicator light will flash
continuously until all requirements are
met or until the NEUTRAL (N) button is
released. •
The ignition switch must be in the ON/
RUN position for a shift to take place and
for the position indicator lights to be op-
erable. If the ignition switch is not in the
ON/RUN position, the shift will not take
place and no position indicator lights will
be on or flashing.
• A flashing NEUTRAL (N) position indica-
tor light indicates that shift requirements
have not been met.
280

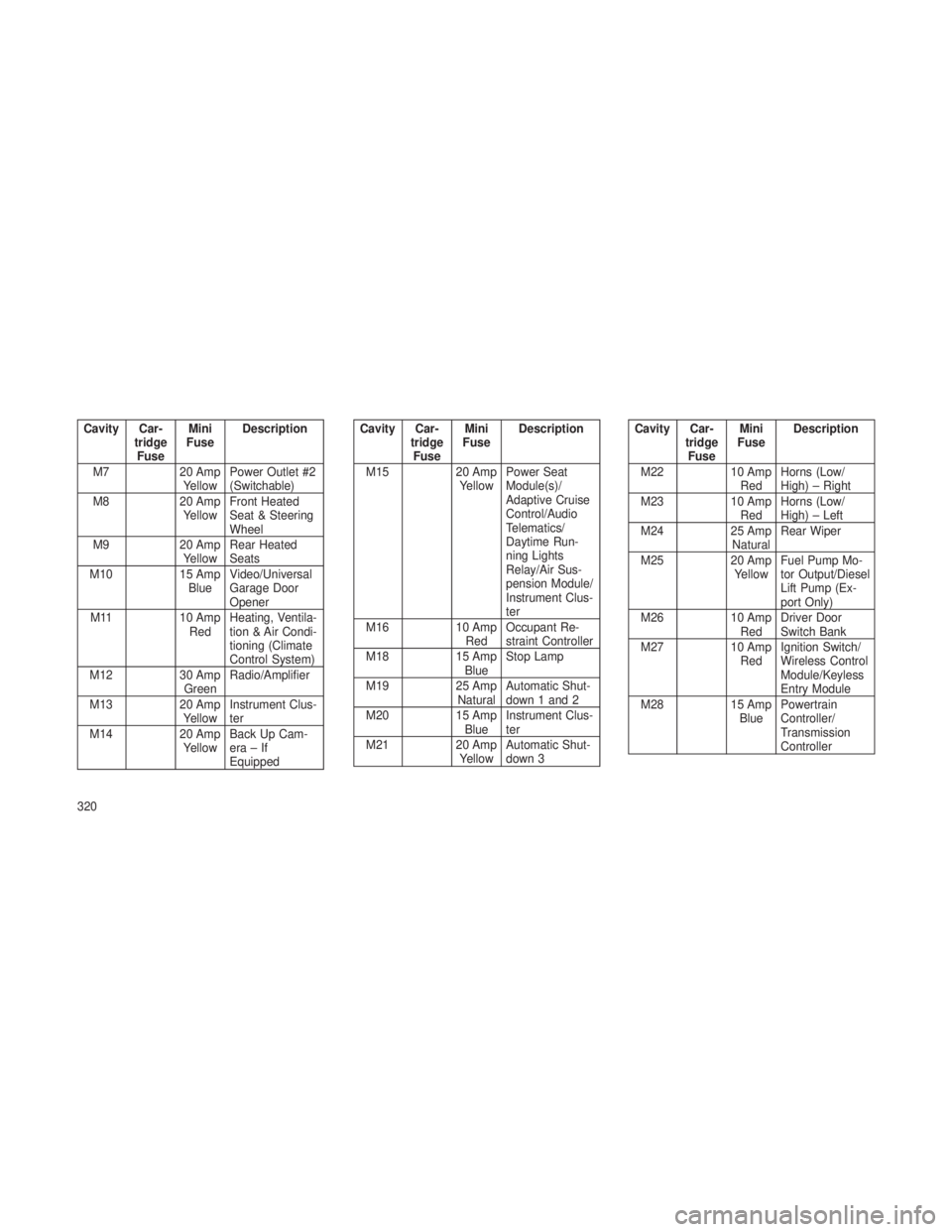

Cavity Car-tridgeFuse Mini
Fuse Description
M7 20 Amp YellowPower Outlet #2
(Switchable)
M8 20 Amp
Yellow Front Heated
Seat & Steering
Wheel
M9 20 Amp
Yellow Rear Heated
Seats
M10 15 Amp
Blue Video/Universal
Garage Door
Opener
M11 10 Amp
Red Heating, Ventila-
tion & Air Condi-
tioning (Climate
Control System)
M12 30 Amp
Green Radio/Amplifier
M13 20 Amp
Yellow Instrument Clus-
ter
M14 20 Amp
Yellow Back Up Cam-
era–If
EquippedCavity Car-
tridgeFuse Mini
Fuse Description
M15 20 Amp YellowPower Seat
Module(s)/
Adaptive Cruise
Control/Audio
Telematics/
Daytime Run-
ning Lights
Relay/Air Sus-
pension Module/
Instrument Clus-
ter
M16 10 Amp RedOccupant Re-
straint Controller
M18 15 Amp
Blue Stop Lamp
M19 25 Amp
Natural Automatic Shut-
down 1 and 2
M20 15 Amp BlueInstrument Clus-
ter
M21 20 Amp YellowAutomatic Shut-
down 3Cavity Car-
tridgeFuse Mini
Fuse Description
M22 10 Amp RedHorns (Low/
High) – Right
M23 10 Amp
Red Horns (Low/
High) – Left
M24 25 Amp
Natural Rear Wiper
M25 20 Amp
Yellow Fuel Pump Mo-
tor Output/Diesel
Lift Pump (Ex-
port Only)
M26 10 Amp
Red Driver Door
Switch Bank
M27 10 Amp RedIgnition Switch/
Wireless Control
Module/Keyless
Entry Module
M28 15 Amp
Blue Powertrain
Controller/
Transmission
Controller
320

Adaptive Cruise Control (ACC)
(Cruise Control)..............117
Adding Fuel ................265
Additives, Fuel ...............264
Air Cleaner, Engine
(Engine Air Cleaner Filter) .........304
Air Conditioner Maintenance .......305
Air Conditioning Refrigerant .......305
Air Conditioning System ..........205
Air Conditioning, Operating Tips .....208
Air Filter ...................304
Air Pressure, Tires .............253
Air Suspension ...............236
Airbag .................. 37,43
Airbag Deployment .............44
Airbag Light ........... 42,45,56,159
Airbag Maintenance ............45
Airbag, Side ............. 39,41,43
Airbag, Window (Side Curtain) . . . 39,41,43
Alarm (Security Alarm) ..........164
Alarm System (Security Alarm) ......16
Alterations/Modifications, Vehicle ......8
Anti-Lock Brake System (ABS) ......245
Anti-Lock Warning Light ..........163
Anti-Theft System .............164
Antifreeze (Engine Coolant) ........326
Appearance Care .............315 Assist, Hill Start
..............249
Auto Down Power Windows ........25
Automatic Dimming Mirror .........67
Automatic Door Locks ...........21
Automatic Headlights ...........105
Automatic Temperature Control (ATC) . . 205
Automatic Transmission .....222,226,313
Adding Fluid ...............315
Fluid and Filter Changes ........313
Fluid Level Check .........314,315
Fluid Type ................313
Special Additives ............314
Autostick ................ 225,230
Auxiliary Electrical Outlet
(Power Outlet) ...............142
Auxiliary Power Outlet ...........142
Battery ...................304
Keyless Transmitter Replacement
(RKE) ...................19
Belts, Seat ................ 30,56
Blind Spot Monitoring ............69
Body Mechanism Lubrication .......305
Brake Assist System ............246
Brake Control System, Electronic .....245
Brake Fluid .................312 Brake System
...............311
Anti-Lock
(ABS) .............245
Fluid Check ...............312
Master Cylinder .............312
Parking ..................244
Warning Light ..............162
Brake/Transmission Interlock .......222
Break-In Recommendations, New
Vehicle ....................55
Bulb Replacement .............322
Bulbs, Light .................58
Calibration, Compass ...........179
Camera, Rear ...............136
Capacities, Fluid ..............326
Caps, Filler Fuel ....................265
Power Steering .............243
Radiator (Coolant Pressure) ......310
Car Washes ................316
Carbon Monoxide Warning .........56
Cargo Area Cover .............148
Cargo Area Features ...........146
Cargo Compartment ............146
Light ...................147
Cargo Light .................147
366

Gas Cap (Fuel Filler Cap)....265,266,301
Gasoline (Fuel) ...............262
Conserving ................173
Gasoline, Clean Air ............263
Gauges Coolant Temperature ..........164
Fuel ....................163
Speedometer ..............163
Tachometer ...............159
Gear Ranges ............. 222,226
Gear Select Lever Override ........290
General Information ........15,20,262
Glass Cleaning ...............318
Gross Axle Weight Rating .........267
Gross Vehicle Weight Rating .......267
Hands-Free Phone (Uconnect™) .....74
Hazard Warning Flasher .........282
Headlights .................322
Bulb Replacement ...........323
Cleaning .................317
On With Wipers .............106
Replacing ................323
Heated Mirrors ...............68
High Beam Indicator ...........160
Hill Descent Control ............250 Hill Descent Control Indicator
......160
Hill Start Assist ...............249
Holder, Cup ................144
Hood Release ...............104
Ignition ....................13
Key ................... 12,13
Ignition Key Removal ............13
Illuminated Entry ..............17
Immobilizer (Sentry Key) ..........14
Infant Restraint .............. 47,49
Inflation Pressure Tires ..........253
Information Center, Vehicle ........164
Inside Rearview Mirror ...........67
Instrument Cluster .............159
Instrument Panel and Controls ......157
Instrument Panel Lens Cleaning .....318
Integrated Power Module (Fuses) ....318
Interior Appearance Care .........317
Intermittent Wipers (Delay Wipers) ....111
Introduction ..................4
Jack Location ...............283
Jack Operation ............ 283,284
Jacking Instructions ............284
Jump Starting ...............287 Key-In
Reminder
..............14
Key, Programming .............15
Key, Replacement ..............15
Key, Sentry (Immobilizer) ..........14
Keyless Enter-N-Go ........22,176,216
Keyless Entry System ............17
Keyless Go ............... 12,176
Keys .....................12
Lap/Shoulder Belts .............30
LATCH (Lower Anchors and Tether for
CHildren) ...................51
Latches ...................58
Lead Free Gasoline ............262
Leaks, Fluid .................58
Liftgate ....................26
Liftgate Flipper Glass ............27
Liftgate Window Wiper/Washer ......149
Light Bulbs ..................58
Lights .................. 58,105
Airbag ............. 42,45,56,159
Anti-Lock .................163
Automatic Headlights ..........105
Back-Up .................324
Brake Assist Warning ..........251
Brake Warning ..............162
369

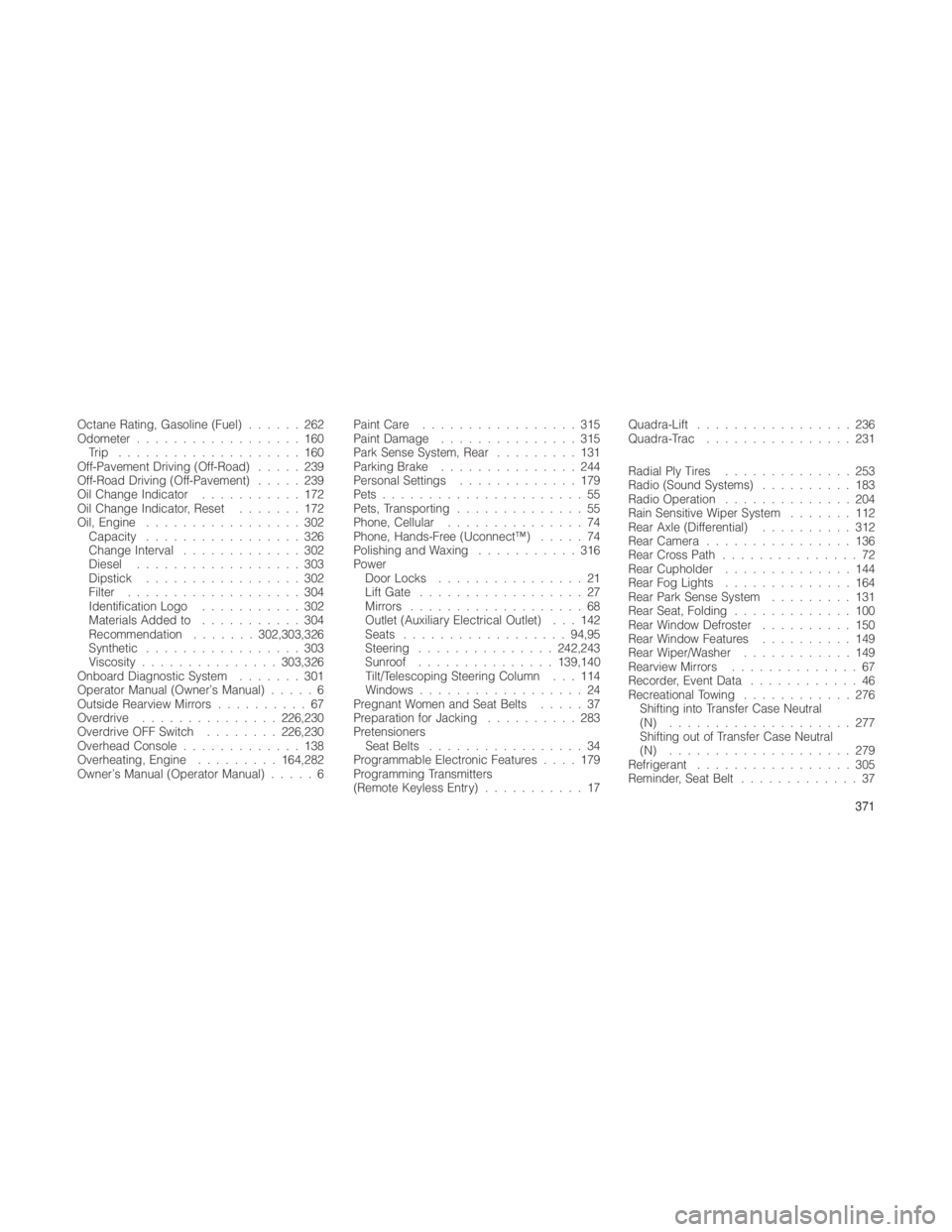

Octane Rating, Gasoline (Fuel)......262
Odometer ..................160
Trip ....................160
Off-Pavement Driving (Off-Road) .....239
Off-Road Driving (Off-Pavement) .....239
Oil Change Indicator ...........172
Oil Change Indicator, Reset .......172
Oil, Engine .................302
Capacity .................326
Change Interval .............302
Diesel ..................303
Dipstick .................302
Filter ...................304
Identification Logo ...........302
Materials Added to ...........304
Recommendation .......302,303,326
Synthetic .................303
Viscosity ............... 303,326
Onboard Diagnostic System .......301
Operator Manual (Owner’s Manual) .....6
Outside Rearview Mirrors ..........67
Overdrive ............... 226,230
Overdrive OFF Switch ........226,230
Overhead Console .............138
Overheating, Engine .........164,282
Owner’s Manual (Operator Manual) .....6Paint Care
.................315
Paint Damage ...............315
Park Sense System, Rear .........131
Parking Brake ...............244
Personal Settings .............179
Pets ......................55
Pets, Transporting ..............55
Phone, Cellular ...............74
Phone, Hands-Free (Uconnect™) .....74
Polishing and Waxing ...........316
Power Door Locks ................21
Lift Gate ..................27
Mirrors ...................68
Outlet (Auxiliary Electrical Outlet) . . . 142
Seats .................. 94,95
Steering ............... 242,243
Sunroof ............... 139,140
Tilt/Telescoping Steering Column . . . 114
Windows ..................24
Pregnant Women and Seat Belts .....37
Preparation for Jacking ..........283
Pretensioners Seat Belts .................34
Programmable Electronic Features ....
179
Programming Transmitters
(Remote Keyless Entry) ...........17 Quadra-Lift
.................236
Quadra-Trac ................231
Radial Ply Tires ..............253
Radio (Sound Systems) ..........183
Radio Operation ..............204
Rain Sensitive Wiper System .......112
Rear Axle (Differential) ..........312
Rear Camera ................136
Rear Cross Path ...............72
Rear Cupholder ..............144
Rear Fog Lights ..............164
Rear Park Sense System .........131
Rear Seat, Folding .............100
Rear Window Defroster ..........150
Rear Window Features ..........149
Rear Wiper/Washer ............149
Rearview Mirrors ..............67
Recorder, Event Data ............46
Recreational Towing ............276
Shifting into Transfer Case Neutral
(N) ....................277
Shifting out of Transfer Case Neutral
(N) ....................279
Refrigerant .................305
Reminder, Seat Belt .............37
371

Remote Keyless Entry (RKE)........17
Remote Sound System (Radio)
Controls ...................203
Replacement Bulbs ............322
Replacement Keys .............15
Replacement Parts ............301
Replacement Tires .............255
Restraints, Child ...............47
Restraints, Occupant ............29
Retractable Cargo Area Cover ......148
Roll Over Warning ..............4
Rotation, Tires ...............256
Safety Checks Inside Vehicle .......56
Safety Checks Outside Vehicle ......58
Safety Tips ..................55
Safety, Exhaust Gas ...........29,56
Schedule, Maintenance .......332,344
Seat Belt Reminder .............37
Seat Belts ................ 30,56
Adjustable Upper Shoulder
Anchorage ................33
And Pregnant Women ..........37
Child Restraint ............. 47,53
Front Seat .................30
Inspection .................56 Maintenance
...............318
Pretensioners ...............34
Reminder .................162
Shoulder Belt Anchorage ........33
Untwisting Procedure ...........32
Seats .....................93
Cleaning .................317
Easy Entry ................103
Memory .................101
Power ................. 94,95
Rear Folding ...............100
Security Alarm (Theft Alarm) .......164
Selec-Terrain ................234
Selection of Oil ...............303
Sentry Key (Immobilizer) ..........14
Sentry Key Programming ..........15
Sentry Key Replacement ..........15
Service Assistance ............356
Service Engine Soon Light
(Malfunction Indicator) ..........159
Settings, Personal .............179
Shift Lever Override ............290
Shifting ...................221
Automatic Transmission .........221
Shoulder Belts ................30
Side Airbag .................43
Signals, Turn ......... 58,160,323,324 Smar
tBeams
................106
Snow Chains (Tire Chains) ........254
Sound Systems ..............183
Sound Systems (Radio) ..........183
Spare Tire ............... 253,283
Specifications Fuel (Gasoline) .............262
Oil ....................303
Speed Control (Cruise Control) . . . 115,117
Speedometer ................163
Starting ...................216
Automatic Transmission .........216
Cold Weather ..............218
Engine Fails to Start ...........218
Starting and Operating ..........216
Starting Procedures ............216
Steering Power ................ 242,243
Tilt Column ............. 113,114
Wheel Lock ................14
Wheel, Heated ..............114
Wheel, Tilt .............. 113,114
Steering Wheel Audio Controls ......203
Steering Wheel Mounted Sound
System Controls ..............203
Storage ...................321
Storage, Vehicle ............ 209,321
372

Storing Your Vehicle............321
Sun Roof ................ 139,140
Sun Visor Extension .............69
Sunglasses Storage ............138
Supplemental Restraint
System - Airbag ...............37
Suspension, Air ..............236
Sway Control, Trailer ............248
Synthetic Engine Oil ............303
Tachometer .................159
Telescoping Steering Column ....113,114
Temperature Control, Automatic (ATC) . . 205
Temperature Gauge, Engine Coolant . . 164
Tether Anchor, Child Restraint .......51
Tie Down Hooks, Cargo ..........148
Tilt Steering Column .........113,114
Tires ................... 58,252
Air Pressure ...............253
Chains ..................254
Changing ................283
High Speed ...............253
Inflation Pressures ............253
Jacking ..................283 Pressure Monitor System (TPMS) . . . 257
Pressure Warning Light
.........160
Radial ..................253
Replacement ..............255
Rotation .................256
Spare Tire ................283
Spinning .................253
Tread Wear Indicators .........254
Tongue Weight/Trailer Weight .......270
Tow/Haul Indicator Light .........160
Towing ................. 266,291
Disabled Vehicle ............291
Guide ...................270
Recreational ...............276
Weight ..................270
Towing Eyes ................290
Traction Control ..............246
Trailer Sway Control (TSC) ........248
Trailer Towing ................266
Cooling System Tips ..........275
Hitches ..................275
Minimum Requirements .........271
Trailer and Tongue Weight .......270
Wiring ..................272 Trailer Towing Guide
............270
Trailer Weight ................270
Transfer Case ...............313
Maintenance ...............313
Transmission Automatic ........... 222,226,313
Maintenance ...............

313
Shifting ..................221
Transmitter Battery Service
(Remote Keyless Entry) ...........19
Transmitter Programming
(Remote Keyless Entry) ...........17
Transmitter, Remote Keyless Entry
(RKE) .....................17
Tread Wear Indicators ...........254
Turn Signals ........... 160,323,324
UCI Connector ...............183
Uconnect™ (Hands-Free Phone) .....74
Universal Consumer Interface (UCI)
Connector .................183
Untwisting Procedure, Seat Belt ......32
Upholstery Care ..............317
373
