TPMS JEEP GRAND CHEROKEE 2012 Owner handbook (in English)

As an added safety feature, your vehicle has
been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates a low tire pres-
sure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when
the low tire pressure telltale illuminates, you
should stop and check your tires as soon as
possible, and inflate them to the proper pres-
sure. Driving on a significantly under-inflated
tire causes the tire to overheat and can lead to
tire failure. Under-inflation also reduces fuel
efficiency and tire tread life, and may affect the
vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
to trigger illumination of the TPMS low tire
pressure telltale.Your vehicle has also been equipped with a
TPMS malfunction indicator to indicate when
the system is not operating properly. The TPMS
malfunction indicator is combined with the low
tire pressure telltale. When the system detects
a malfunction, the telltale will flash for approxi-
mately one minute and then remain continu-
ously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as
the malfunction exists. When the malfunction
indicator is illuminated, the system may not be
able to detect or signal low tire pressure as
intended. TPMS malfunctions may occur for a
variety of reasons, including the installation of
replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning
properly. Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle, to ensure that the
replacement or alternate tires and wheels allow
the TPMS to continue to function properly.CAUTION!
The TPMS has been optimized for the original
equipment tires and wheels. TPMS pressures
and warning have been established for the tire
size equipped on your vehicle. Undesirable
system operation or sensor damage may re-
sult when using replacement equipment that
is not of the same size, type, and/or style.
Aftermarket wheels can cause sensor dam-
age. Do not use tire sealant from a can or
balance beads if your vehicle is equipped with
a TPMS, as damage to the sensors may
result.
12. Park/Headlight ON Indicator — If
Equipped This indicator will illuminate when
the park lights or headlights are
turned on.
161

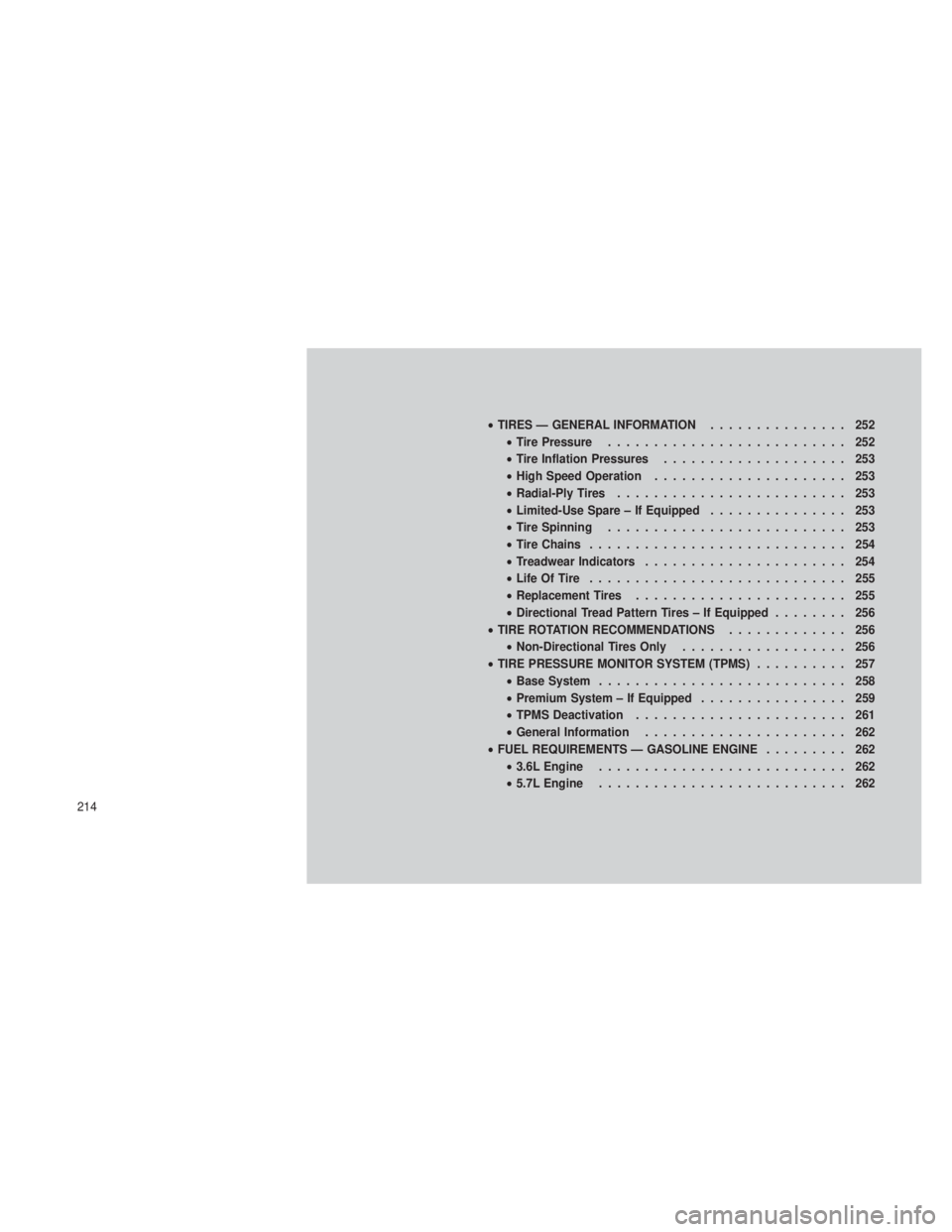

•TIRES — GENERAL INFORMATION ............... 252
• Tire Pressure .......................... 252
• Tire Inflation Pressures .................... 253
• High Speed Operation ..................... 253
• Radial-Ply Tires ......................... 253
• Limited-Use Spare – If Equipped ............... 253
• Tire Spinning .......................... 253
• Tire Chains ............................ 254
• Treadwear Indicators ...................... 254
• Life Of Tire ............................ 255
• Replacement Tires ....................... 255
• Directional Tread Pattern Tires – If Equipped ........ 256
• TIRE ROTATION RECOMMENDATIONS ............. 256
• Non-Directional Tires Only .................. 256
• TIRE PRESSURE MONITOR SYSTEM (TPMS) .......... 257
• Base System ........................... 258
• Premium System – If Equipped ................ 259
• TPMS Deactivation ....................... 261
• General Information ...................... 262
• FUEL REQUIREMENTS — GASOLINE ENGINE ......... 262
• 3.6L Engine ........................... 262
• 5.7L Engine ........................... 262
214

TIRE PRESSURE MONITOR SYSTEM
(TPMS)
The Tire Pressure Monitoring System (TPMS)
will warn the driver of a low tire pressure based
on the vehicle recommended cold tire pressure.
The tire pressure will vary with temperature by
about 1 psi (7 kPa) for every 12°F (6.5°C). This
means that when the outside temperature de-
creases, the tire pressure will decrease. Tire
pressure should always be set based on cold
inflation tire pressure. This is defined as the tire
pressure after the vehicle has not been driven
for at least three hours, or driven less than
1 mile (1.6 km) after a three-hour period.Refer
to “Tires – General Information” in “Starting
and Operating” for information on how to
properly inflate the vehicle’s tires. The tire
pressure will also increase as the vehicle is
driven - this is normal and there should be no
adjustment for this increased pressure.
The TPMS will warn the driver of a low tire
pressure if the tire pressure falls below the low
pressure warning threshold for any reason,
including low temperature effects, or natural
pressure loss through the tire. The TPMS will continue to warn the driver of low
tire pressure as long as the condition exists,
and will not turn off until the tire pressure is at or
above recommended cold tire pressure. Once
the “TPM Telltale Light” and the “TIRE LOW
PRESSURE” message appears, the tire pres-
sure must be increased to the recommended
cold tire pressure in order for the ”TPM Telltale
Light” and the “TIRE LOW PRESSURE” mes-
sage to be turned off. The system will automati-
cally update and the “TPM Telltale Light” and
the “TIRE LOW PRESSURE” message will turn
off once the updated tire pressures have been
received. The vehicle may need to be driven for
up to 20 minutes above 15 mph (24 km/h) to
receive this information.
For example, your vehicle has a recommended
cold (parked for more than three hours) tire
pressure of 33 psi (227 kPa). If the ambient
temperature is 68°F (20°C) and the measured
tire pressure is 28 psi (193 kPa), a temperature
drop to 20°F (-7°C) will decrease the tire pres-
sure to approximately 24 psi (165 kPa). This tire
pressure is sufficiently low enough to display
the “TPM Telltale Light” and the “TIRE LOW
PRESSURE” message. Driving the vehicle maycause the tire pressure to rise to approximately
28 psi (193 kPa), but the “TPM Telltale Light”
and the “TIRE LOW PRESSURE” message will
still display. In this situation, the “TPM Telltale
Light” and the “TIRE LOW PRESSURE” mes-
sage will turn OFF only after the tires have been
inflated to the vehicle’s recommended cold tire
pressure value.
CAUTION!
•
The TPMS has been optimized for the
original equipment tires and wheels. TPMS
pressures have been established for the
tire size equipped on your vehicle. Unde-
sirable system operation or sensor damage
may result when using replacement equip-
ment that is not of the same size, type,
and/or style. Aftermarket wheels can cause
sensor damage. Do not use aftermarket tire
sealants or balance beads if your vehicle is
equipped with a TPMS, as damage to the
sensors may result.
(Continued)
257

CAUTION!(Continued)
• After inspecting or adjusting the tire pres-
sure always reinstall the valve stem cap.
This will prevent moisture and dirt from
entering the valve stem, which could dam-
age the Tire Pressure Monitoring Sensor.
NOTE:
• The TPMS is not intended to replace nor-
mal tire care and maintenance, or to pro-
vide warning of a tire failure or condition.
• The TPMS should not be used as a tire
pressure gauge while adjusting your tire
pressure.
• Driving on a significantly under-inflated
tire causes the tire to overheat and can
lead to tire failure. Under-inflation also
reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and
stopping ability.
• The TPMS is not a substitute for proper
tire maintenance, and it is the driver’s
responsibility to maintain correct tire
pressure using an accurate tire gauge,
even if under-inflation has not reached the level to trigger the display of the “TPM
Telltale Light” and the “TIRE LOW PRES-
SURE” message.
• Seasonal temperature changes will affect
tire pressure, and the TPMS will monitor
the actual tire pressure in the tire.
Base SystemThe Tire Pressure Monitor System (TPMS) uses
wireless technology with wheel rim-mounted
electronic sensors to monitor tire pressure lev-
els. Sensors, mounted to each wheel as part of
the valve stem, transmit tire pressure readings
to the Receiver Module.
NOTE:
It is particularly important, for you to regu-
larly check the tire pressure in all of your
tires, and to maintain the proper pressure.
The TPMS consists of the following compo-
nents:
•Receiver Module
• Four Tire Pressure Monitoring Sensors
• Tire Pressure Monitoring Telltale Light A low spare tire will not cause the “Tire Pressure
Monitoring Telltale Light” to illuminate, a warn-
ing message to appear, or the chime to sound.
The “Tire Pressure Monitoring Telltale
Light” will illuminate in the instrument
cluster, a “TIRE LOW PRESSURE”
message will display in the instrument
cluster for 5 seconds, and an audible chime will
be activated, when one or more of the four
active road tire pressures are low. Should this
occur, you should stop as soon as possible,
check the inflation pressure of each tire on your
vehicle, and inflate each tire to the vehicle’s
recommended cold placard pressure value.
The system will automatically update and the
“Tire Pressure Monitoring Telltale Light” will
extinguish, once the updated tire pressures
have been received. The vehicle may need to
be driven for up to 20 minutes above 15 mph
(24 km/h) to receive this information.
The “Tire Pressure Monitoring Telltale Light” will
flash on and off for 75 seconds, and remain on
solid when a system fault is detected. In addi-
tion, a “SERVICE TPM SYSTEM” message may
be displayed for approximately 5 seconds
when a system fault is detected, and a chime
258

will sound. If the ignition switch is cycled, this
sequence will repeat, providing the system
fault still exists. The “Tire Pressure Monitoring
Telltale Light” will turn off when the fault condi-
tion no longer exists. A system fault can occur
by any of the following:
1. Jamming due to electronic devices or driv-
ing next to facilities emitting the same Radio
Frequencies as the TPM sensors.
2. Installing some form of aftermarket window
tinting that affects radio wave signals.
3. Lots of snow or ice around the wheels or
wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM
sensors.
NOTE:
There is no tire pressure monitoring sensor
in the spare tire. The TPMS will not be able to
monitor the tire pressure. If you install the
spare tire, in place of a road tire, that has a
pressure below the low-pressure warning
limit, upon the next ignition switch cycle, a
chime will sound, a “TIRE LOW PRESSURE”message will be displayed in the instrument
cluster, and the “Tire Pressure Monitoring
Telltale Light” will turn ON. After driving the
vehicle for up to 20 minutes above 15 mph
(25 km/h), the “Tire Pressure Monitoring
Telltale Light” will flash on and off for
75 seconds and then remain on solid. In
addition, a “SERVICE TPM SYSTEM” mes-
sage will be displayed. For each subsequent
ignition switch cycle, a chime will sound, a
“SERVICE TPM SYSTEM” message will be
displayed, and the “Tire Pressure Monitor-
ing Telltale Light” will flash on and off for
75 seconds and then remain on solid. Once
you repair or replace the original road tire,
and reinstall it on the vehicle in place of the
spare tire, the TPMS will update automati-
cally and the “Tire Pressure Monitoring Tell-
tale Light” will turn OFF, as long as no tire
pressure is below the low-pressure warning
limit in any of the four active road tires. The
vehicle may need to be driven for up to
20 minutes above 15 mph (24 km/h) in order
for the TPMS to receive this information.Premium System – If EquippedThe Tire Pressure Monitor System (TPMS) uses
wireless technology with wheel rim-mounted
electronic sensors to monitor tire pressure lev-
els. Sensors, mounted to each wheel as part of
the valve stem, transmit tire pressure readings
to the Receiver Module.
NOTE:
It is particularly important, for you to regu-
larly check the tire pressure in all of your
tires and to maintain the proper pressure.
The Tire Pressure Monitor System (TPMS) con-
sists of the following components:
•
Receiver Module
• Four Tire Pressure Monitoring Sensors
• Tire Pressure Monitoring Telltale Light
• Various Tire Pressure Monitoring System
Messages, which display in the Electronic
Vehicle Information Center (EVIC), and a
graphic displaying tire pressures
259

3. Lots of snow or ice around the wheels or
wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM
sensors.
The “TPM Telltale Light” will also flash on and
off for 75 seconds and then remain on, and the
EVIC will display aSERVICE TPM SYSTEM
message when a system fault is detected pos-
sibly related to an incorrect sensor location
fault. In this case, the SERVICE TPM SYSTEM
message is then followed by a graphic display,
with pressure values still shown. This indicates
the pressure values are still being received
from the TPM Sensors. However, the system
still needs to be serviced as long as the SER-
VICE TPM SYSTEM message exists.
NOTE:
There is no tire pressure monitoring sensor
in the spare tire. The TPMS will not be able to
monitor the tire pressure. If you install the
spare tire in place of a road tire that has a
pressure below the low-pressure warning
limit, upon the next ignition switch cycle, a
chime will sound, the TPM Telltale Light will turn on, and the EVIC will still display a
Low Pressure message and a “flashing”
pressure value in the graphic display. After
driving the vehicle for up to 20 minutes
above 15 mph (24 km/h), the
TPM Telltale
Light will flash on and off for 75 seconds
and then remain on, the EVIC will display a
“SERVICE TPM SYSTEM message and then
display dashes (- -) in place of the pressure
value. For each subsequent ignition switch
cycle, a chime will sound, the TPM Telltale
Light will flash on and off for 75 seconds
and then remain on, the EVIC will display a
SERVICE TPM SYSTEM message and then
display dashes (- -) in place of the pressure
value. Once you repair or replace the origi-
nal road tire, and reinstall it on the vehicle in
place of the spare tire, the TPMS will update
automatically.
In addition, the graphic in the EVIC will display
a new pressure value instead of dashes (- -), as
long as no tire pressure is below the low-
pressure warning limit in any of the four active
road tires. The vehicle may need to be driven
for up to 20 minutes above 15 mph (24 km/h) in
order for the TPMS to receive this information.TPMS DeactivationThe TPMS can be deactivated if replacing all
four wheel and tire assemblies (road tires) with
wheel and tire assemblies that do not have
TPMS Sensors, such as when installing winter
wheel and tire assemblies on your vehicle To
deactivate the TPMS, first, replace all four
wheel and tire assemblies (road tires) with tires
not equipped with Tire Pressure Monitoring
(TPM) Sensors. Then, drive the vehicle for
20 minutes above 24 km/h (15 mph). The TPMS
will chime, the TPM Telltale Light will flash on
and off for 75 seconds and then remain on and
the Electronic Vehicle Information Center
(EVIC) will display the “SERVICE TPM SYSTEM”
message and then display dashes (--) in place
of the pressure values. Beginning with the next
ignition switch cycle, the TPMS will no longer
chime or display the “SERVICE TPM SYSTEM”
message in the EVIC but dashes (--) will remain
in place of the pressure values.
To reactivate the TPMS, replace all four wheel
and tire assemblies (road tires) with tires
equipped with TPM sensors. Then, drive the
vehicle for up to 20 minutes above 24 km/h
(15 mph). The TPMS will chime, the TPM
261

Bulb Replacement...........322
Cargo ..................147
Center Mounted Stop ..........325
Daytime Running ............107
Dimmer Switch, Headlight .......105
Electronic Stability Program (ESP)
Indicator .................251
Exterior ..................58
Fog ............... 108,160,323
Fuses ...................318
Hazard Warning Flasher ........282
Headlights ............. 322,323
Headlights On With Wipers .......106
High Beam Indicator ..........160
Hill Descent Control Indicator .....160
Illuminated Entry .............17
Low Fuel .................170
Malfunction Indicator
(Check Engine) .............159
Map Reading ..............109
Reading ............... 109,138
Rear Fog .................164
Rear Servicing ..............324
Rear Tail .................324
Seat Belt Reminder ...........162
Security Alarm (Theft Alarm) ......164
Service ..................322 Service Engine Soon
(Malfunction Indicator)
.........159
Side Marker ...............324
SmartBeams ...............106
Tire Pressure Monitoring (TPMS) ....160
Tow/Haul Indicator ...........160
Traction Control .............251
Turn Signal ......... 58,105,323,324
Vanity Mirror ................69
Locks .....................20
Automatic Door ..............21
Child Protection ..............21
Door ....................20
Power Door ................21
Steering Wheel ..............14
Lower Anchors and Tether for CHildren
(LATCH) ...................51
Lubrication, Body .............305
Maintenance Free Battery .........304
Maintenance Procedures .........301
Maintenance Schedule ........332,344
Malfunction Indicator Light
(Check Engine) ..............159
Memory Feature (Memory Seat) .....101
Memory Seat ................101 Memory Seats and Radio
.........101
Methanol .................. 263
Methanol Fuel ...............263
Mini-Trip Computer ............174
Mirrors ....................67
Automatic Dimming ............67
Electric Powered .............68
Electric Remote ..............68
Exterior Folding ..............68
Heated ...................68
Outside ..................67
Power Folding ...............68
Rearview ..................67
Vanity ...................69
Mode Fuel Saver ................173
Modifications/Alterations, Vehicle ......8
Monitor, Tire Pressure System ......257
Mopar Parts ................301
Multi-Displacement Engine System . . . 244
Multi-Function Control Lever .......105
New Vehicle Break-In Period ........55
Occupant Restraints .........29,41,44
Occupant Restraints (Sedan) ....39,41,43
370

Storing Your Vehicle............321
Sun Roof ................ 139,140
Sun Visor Extension .............69
Sunglasses Storage ............138
Supplemental Restraint
System - Airbag ...............37
Suspension, Air ..............236
Sway Control, Trailer ............248
Synthetic Engine Oil ............303
Tachometer .................159
Telescoping Steering Column ....113,114
Temperature Control, Automatic (ATC) . . 205
Temperature Gauge, Engine Coolant . . 164
Tether Anchor, Child Restraint .......51
Tie Down Hooks, Cargo ..........148
Tilt Steering Column .........113,114
Tires ................... 58,252
Air Pressure ...............253
Chains ..................254
Changing ................283
High Speed ...............253
Inflation Pressures ............253
Jacking ..................283 Pressure Monitor System (TPMS) . . . 257
Pressure Warning Light
.........160
Radial ..................253
Replacement ..............255
Rotation .................256
Spare Tire ................283
Spinning .................253
Tread Wear Indicators .........254
Tongue Weight/Trailer Weight .......270
Tow/Haul Indicator Light .........160
Towing ................. 266,291
Disabled Vehicle ............291
Guide ...................270
Recreational ...............276
Weight ..................270
Towing Eyes ................290
Traction Control ..............246
Trailer Sway Control (TSC) ........248
Trailer Towing ................266
Cooling System Tips ..........275
Hitches ..................275
Minimum Requirements .........271
Trailer and Tongue Weight .......270
Wiring ..................272 Trailer Towing Guide
............270
Trailer Weight ................270
Transfer Case ...............313
Maintenance ...............313
Transmission Automatic ........... 222,226,313
Maintenance ...............

313
Shifting ..................221
Transmitter Battery Service
(Remote Keyless Entry) ...........19
Transmitter Programming
(Remote Keyless Entry) ...........17
Transmitter, Remote Keyless Entry
(RKE) .....................17
Tread Wear Indicators ...........254
Turn Signals ........... 160,323,324
UCI Connector ...............183
Uconnect™ (Hands-Free Phone) .....74
Universal Consumer Interface (UCI)
Connector .................183
Untwisting Procedure, Seat Belt ......32
Upholstery Care ..............317
373
