zone”. The side mirrors LED’s will be lit up and
stay lit until the vehicle exits the zone.
Uconnect™ Phone — IF EQUIPPED
NOTE:
For Uconnect™ Phone with Navigation or
Multimedia radio, refer to the Navigation or
Multimedia radio’s User’s Manual (separate
booklet) Uconnect™ Phone section.
Uconnect™ Phone is a voice-activated, hands-
free, in-vehicle communications system.
Uconnect™ Phone allows you to dial a phone
number with your mobile phone* using simple
voice commands (e.g., “Call”“Jim”“Work” or
“Dial”“151-1234 -5555”). Your mobile phone’s
audio is transmitted through your vehicle’s au-
dio system; the system will automatically mute
your radio when using the Uconnect™ Phone.
Uconnect™ Phone allows you to transfer calls
between the Uconnect™ Phone and your mo-
bile phone as you enter or exit your vehicle and
enables you to mute the Uconnect™ Phone’s
microphone for private conversation. The Uconnect™ Phone is driven through your
Bluetooth
“Hands-Free profile” mobile phone.
Uconnect™ Phone features Bluetooth tech-
nology - the global standard that enables dif-
ferent electronic devices to connect to each
other without wires or a docking station, so
Uconnect™ Phone works no matter where you
stow your mobile phone (be it your purse,
pocket, or briefcase), as long as your phone is
turned on and has been paired to the vehicle’s
Uconnect™ Phone. The Uconnect™ Phone al-
lows up to seven mobile phones to be linked to
the system. Only one linked (or paired) mobile
phone can be used with the Uconnect™ Phone
at a time. The Uconnect™ Phone is available in
English, Dutch, French, German, Italian or
Spanish languages (as equipped).
WARNING!
Any voice commanded system should be
used only in safe driving conditions following
local laws and phone use. All attention should
be kept on the roadway ahead. Failure to do
so may result in a collision causing serious
injury or death. Uconnect™ Phone Button
The radio or steering wheel con-
trols (if equipped) will contain the
two control buttons (Uconnect™
Phone
button and Voice Com-
mandbutton) that will en-
able you to access the system.
When you press the button you will hear the
word Uconnect™ followed by a BEEP. The
beep is your signal to give a command.
Voice Command Button Actual button location may vary
with radio. The individual buttons
are described in the “Operation”
section.
The Uconnect™ Phone can be used with
Hands-Free Profile certified Bluetooth mobile
phones. Some phones may not support all the
Uconnect™ Phone features. Refer to your mo-
bile service provider or the phone manufacturer
for details.
The Uconnect™ Phone is fully integrated with
the vehicle’s audio system. The volume of the
Uconnect™ Phone can be adjusted either from
74

the radio volume control knob or from the
steering wheel radio control, if so equipped.
The radio display will be used for visual
prompts from the Uconnect™ Phone such as
CELL or caller ID on certain radios.
Compatible Phones* The Uconnect™ Phone requires a mobile
phone equipped with the Bluetooth
“Hands-Free Profile”, version 1.0 or higher.
See Uconnect™ website for supported
phones.
• www.chrysler.com/uconnect
• www.dodge.com/uconnect
• www.jeep.com/uconnect
To find the list of compatible phones navigate
through the following menus:
• Select model year for the vehicle
• Select type of the vehicle
• In the getting started tab, select compatible
phones
OperationVoice commands can be used to operate the
Uconnect™ Phone and to navigate through the
Uconnect™ Phone menu structure. Voice com-
mands are required after most Uconnect™
Phone prompts. You will be prompted for a
specific command and then guided through
the available options.
•Prior to giving a voice command, one must
wait for the beep, which follows the “Ready”
prompt or another prompt.
• For certain operations, compound com-
mands can be used. For example, instead of
saying “Setup” and then “Phone Pairing”, the
following compound command can be said:
“Setup Phone Pairing”.
• For each feature explanation in this section,
only the compound form of the voice com-
mand is given. You can also break the com-
mands into parts and say each part of the
command when you are asked for it. For
example, you can use the compound form
voice command “Phonebook New Entry”, or
you can break the compound form com-
mand into two voice commands: “Phone- book” and “New Entry”. Please remember,
the Uconnect™ Phone works best when you
talk in a normal conversational tone, as if
speaking to someone sitting a few feet/
meters away from you.
Voice Command Tree
Refer to “Voice Tree.”
Help Command
If you need assistance at any prompt, or if you
want to know your options at any prompt, say
“Help” following the beep. The Uconnect™
Phone will play all the options at any prompt if
you ask for help.
To activate the Uconnect™ Phone from idle,
simply press the
button and follow the
audible prompts for directions. All Uconnect™
Phone sessions begin with a press of the
button on the radio control head.
Cancel Command
At any prompt, after the beep, you can say
“Cancel” and you will be returned to the main
menu. However, in a few instances the system
will take you back to the previous menu.
75

Pair (Link) Uconnect™ Phone To A Mobile
Phone
To begin using your Uconnect™ Phone, you
must pair your compatible Bluetoothenabled
mobile phone (refer to “Compatible Phones”
section to learn about the phone type).
To complete the pairing process, you will need
to reference your mobile phone owner’s
manual. The Uconnect™ website may also
provide detailed instructions for pairing.
The following are general phone to Uconnect™
Phone pairing instructions:
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Setup Phone Pairing”.
• When prompted, after the beep, say “Pair a
Phone” and follow the audible prompts.
• You will be asked to say a four-digit Personal
Identification Number (PIN), which you will
later need to enter into your mobile phone.
You can enter any four-digit PIN. You will not
need to remember this PIN after the initial
pairing process. •
For identification purposes, you will be
prompted to give the Uconnect™ Phone a
name for your mobile phone. Each mobile
phone that is paired should be given a
unique phone name.
• You will then be asked to give your mobile
phone a priority level between 1 and 7, with
1 being the highest priority. You can pair up
to seven mobile phones to your Uconnect™
Phone. However, at any given time, only one
mobile phone can be in use, connected to
your Uconnect™ System. The priority allows
the Uconnect™ Phone to know which mobile
phone to use if multiple mobile phones are in
the vehicle at the same time. For example, if
priority 3 and priority 5 phones are present in
the vehicle, the Uconnect™ Phone will use
the priority 3 mobile phone when you make a
call. You can select to use a lower priority
mobile phone at any time (refer to “Ad-
vanced Phone Connectivity”).
Dial By Saying A Number
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Dial.” •
The system will prompt you to say the num-
ber you want to call.
• For example, you can say “151-1234-5555.”
• The Uconnect™ Phone will confirm the
phone number and then dial. The number
will appear in the display of certain radios.
Call By Saying A Name
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Call.”
• The system will prompt you to say the name
of the person you want to call.
• After the “Ready” prompt and the following
beep, say the name of the person you want
to call. For example, you can say “John
Doe”, where John Doe is a previously stored
name entry in the Uconnect™ Phonebook or
downloaded phonebook. To learn how to
store a name in the phonebook , refer to
“Add Names to Your Uconnect™ Phone-
book”.
76

•The Uconnect™ Phone will confirm the name
and then dial the corresponding phone num-
ber, which may appear in the display of
certain radios.
Add Names To Your Uconnect™
Phonebook
NOTE:
Adding names to the Uconnect™ Phone-
book is recommended when the vehicle is
not in motion.
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Phonebook New Entry”.
• When prompted, say the name of the new
entry. Use of long names helps the Voice
Command and it is recommended. For ex-
ample, say “Robert Smith” or “Robert” in-
stead of “Bob”.
• When prompted, enter the number designa-
tion (e.g., “Home”, “Work”, “Mobile”, or
“Other”). This will allow you to store multiple
numbers for each phonebook entry, if de-
sired. •
When prompted, recite the phone number
for the phonebook entry that you are adding.
After you are finished adding an entry into the
phonebook, you will be given the opportunity to
add more phone numbers to the current entry
or to return to the main menu.
The Uconnect™ Phone will allow you to enter
up to 32 names in the phonebook with each
name having up to four associated phone
numbers and designations. Each language has
a separate 32-name phonebook accessible
only in that language. In addition, if equipped
and supported by your phone, Uconnect™
Phone automatically downloads your mobile
phone’s phonebook.
Phonebook Download — Automatic
Phonebook Transfer From Mobile Phone
If equipped and specifically supported by your
phone, Uconnect™ Phone automatically down-
loads names (text names) and number entries
from your mobile phone’s phonebook. Specific
Bluetooth Phones with Phone Book Access
Profile may support this feature. See
Uconnect™ website for supported phones. •
To call a name from downloaded (or
Uconnect™) Phonebook, follow the proce-
dure in “Call by Saying a Name” section.
• Automatic download and update, if sup-
ported, begins as soon as the phone
Bluetooth wireless connection is made to
the Uconnect™ Phone. For example, after
you start the vehicle.
• Maximum of 1000 entries per phone will be
downloaded and updated every time a
phone is connected to the Uconnect™
Phone.
• Depending on the maximum number of en-
tries downloaded, there may be a short
delay before the latest downloaded names
can be used. Until then, if available, the
previously downloaded phonebook is avail-
able for use.
• Only the phonebook of the currently con-
nected mobile phone is accessible.
• Only the mobile phone’s phonebook is
downloaded. SIM card phonebook is not
part of the mobile phonebook.
77

You can use your Uconnect™ Phone to access
a voice mail system or an automated service,
such as a paging service or automated cus-
tomer service. Some services require immedi-
ate response selection. In some instances, that
may be too quick for use of the Uconnect™
Phone.
When calling a number with your Uconnect™
Phone that normally requires you to enter in a
touch-tone sequence on your mobile phone
keypad, you can press the
button and
say the sequence you wish to enter followed by
the word “Send”. For example, if required to
enter your PIN followed with a hash, (3746#),
you can press the
button and say, “3 7 4
6 # Send”. Saying a number, or sequence of
numbers, followed by “Send”, is also to be
used for navigating through an automated cus-
tomer service center menu structure, and to
leave a number on a pager.
You can also send stored Uconnect™ Phone-
book entries as tones for fast and easy access
to voice mail and pager entries. To use this
feature, dial the number you wish to call and
then press the
button and say “Send.”
The system will prompt you to enter the name or number and say the name of the phonebook
entry you wish to send. The Uconnect™ Phone
will then send the corresponding phone num-
ber associated with the phonebook entry, as
tones over the phone.
NOTE:
•
You may not hear all of the tones due to
mobile phone network configurations;
this is normal.
• Some paging and voice mail systems
have system time out settings that are too
short and may not allow the use of this
feature.
Barge In — Overriding Prompts
The “Voice Command” button can be used
when you wish to skip part of a prompt and
issue your voice command immediately. For
example, if a prompt is asking “Would you like
to pair a phone, clear a,” you could press the
button and say, “Pair a Phone” to select
that option without having to listen to the rest of
the voice prompt.
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the
system from confirming your choices (e.g., the Uconnect™ Phone will not repeat a phone
number before you dial it).
•
Press the
button to begin.
• After the “Ready” prompt and the following
beep, say:
“Setup Confirmations Prompts On”
“Setup Confirmations Prompts Off”
Phone And Network Status Indicators
If available on the radio and/or on a premium
display such as the instrument panel cluster,
and supported by your mobile phone, the
Uconnect™ Phone will provide notification to
inform you of your phone and network status
when you are attempting to make a phone call
using Uconnect™ Phone. The status is given
for network signal strength, phone battery
strength, etc.
Dialing Using The Mobile Phone Keypad
You can dial a phone number with your mobile
phone keypad and still use the Uconnect™
Phone (while dialing via the mobile phone
keypad, the user must exercise caution and
take precautionary safety measures). By dial-
ing a number with your paired Bluetooth mo-
82

bile phone, the audio will be played through
your vehicle’s audio system. The Uconnect™
Phone will work the same as if you dialed the
number using a Voice Command.
NOTE:
Certain brands of mobile phones do not
send the dial ring to the Uconnect™ Phone
to play it on the vehicle audio system, so
you will not hear it. Under this situation,
after successfully dialing a number the user
may feel that the call did not go through
even though the call is in progress. Once
your call is answered, you will hear the
audio.
Mute/Un-Mute (Mute Off)
When you mute the Uconnect™ Phone, you will
still be able to hear the conversation coming
from the other party, but the other party will not
be able to hear you. In order to mute the
Uconnect™ Phone:
•Press the
button.
• Following the beep, say “Mute”. In order to un-mute the Uconnect™ Phone:
•
Press the
button.
• Following the beep, say “Mute off”.
Advanced Phone Connectivity
Transfer Call To And From Mobile Phone
The Uconnect™ Phone allows ongoing calls to
be transferred from your mobile phone to the
Uconnect™ Phone without terminating the call.
To transfer an ongoing call from your
Uconnect™ Phone paired mobile phone to the
Uconnect™ Phone or vice versa, press the
button and say “Transfer Call”.
Connect Or Disconnect Link Between The
Uconnect™ Phone And Mobile Phone
Your mobile phone can be paired with many
different electronic devices, but can only be
actively connected with one electronic device
at a time.
If you would like to connect or disconnect the
Bluetooth connection, your mobile phone, and
the Uconnect™ phone system, follow the in-
structions described in your mobile phone Us-
er’s Manual. List Paired Mobile Phone Names
•
Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Setup Phone Pairing”.
• When prompted, say “List Phones”.
• The Uconnect™ Phone will play the phone
names of all paired mobile phones in order
from the highest to the lowest priority. To
“select” or “delete” a paired phone being
announced, press the
button and say
“Select” or “Delete”. Also, see the next two
sections for an alternate way to “select” or
“delete” a paired phone.
Select Another Mobile Phone
This feature allows you to select and start using
another phone paired with the Uconnect™ Phone.
• Press thebutton to begin.
• After the “Ready” prompt and the following
beep, say “Setup Select Phone” and follow
the prompts.
• You can also press the
button at any
time while the list is being played, and then
choose the phone that you wish to select.
83

•Uconnect™ Phone will play the new text
message for you.
After reading a message, you can “Reply” or
“Forward” the message using Uconnect™
Phone.
Send Messages:
You can send messages using Uconnect™
Phone. To send a new message:
• Press the
button.
• After the “Ready” prompt and the following
beep, say “SMS Send” or “Send Messages”.
• You can either say the message you wish to
send or say “List Messages.” There are 20
preset messages.
To send a message, press the
button
while the system is listing the message and say
“Send.”
Uconnect™ Phone will prompt you to say the
name or number of the person you wish to send
the message to.
List of Preset Messages:
1. Yes 2. No
3. Where are you?
4. I need more direction.
5. LOL
6. Why
7. I love you
8. Call me
9. Call me later
10. Thanks
11. See You in 15 minutes
12. Iamonmyway
13. I’ll be late
14. Are you there yet?
15. Where are we meeting?
16. Can this wait?
17. Bye for now
18. When can we meet
19. Send number to call
20. Start without meTurn SMS Incoming Announcement
ON/OFF
Turning the SMS Incoming Announcement OFF
will stop the system from announcing the new
incoming messages.
•
Press the
button.
• After the “Ready” prompt and the following
beep, say “Setup, Incoming Message An-
nouncement”, you will then be given a
choice to change it.
Bluetooth Communication Link
Mobile phones have been found to lose con-
nection to the Uconnect™ Phone. When this
happens, the connection can generally be re-
established by switching the phone off/on. Your
mobile phone is recommended to remain in
Bluetooth ON mode.
Power-Up
After switching the ignition key from OFF to
either ON or ACC position, or after a language
change, you must wait at least 15 seconds
prior to using the system.
86

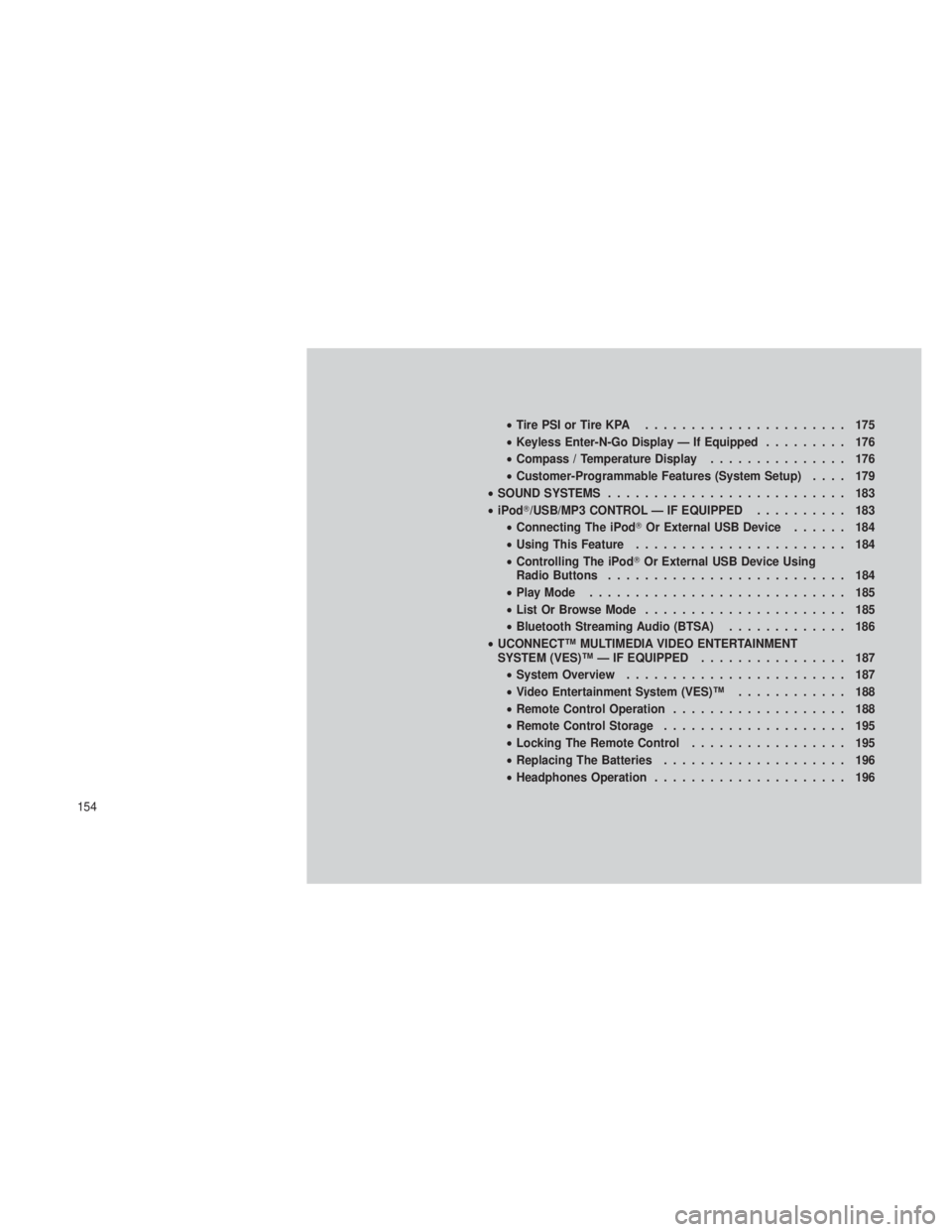

•TirePSIorTireKPA ...................... 175
• Keyless Enter-N-Go Display — If Equipped ......... 176
• Compass / Temperature Display ............... 176
• Customer-Programmable Features (System Setup) .... 179
• SOUND SYSTEMS .......................... 183
• iPod/USB/MP3 CONTROL — IF EQUIPPED .......... 183
• Connecting The iPod Or External USB Device ...... 184
• Using This Feature ....................... 184
• Controlling The iPod Or External USB Device Using
Radio Buttons .......................... 184
• Play Mode ............................ 185
• List Or Browse Mode ...................... 185
• Bluetooth Streaming Audio (BTSA) ............. 186
• UCONNECT™ MULTIMEDIA VIDEO ENTERTAINMENT
SYSTEM (VES)™ — IF EQUIPPED ................ 187
• System Overview ........................ 187
• Video Entertainment System (VES)™ ............ 188
• Remote Control Operation ................... 188
• Remote Control Storage .................... 195
• Locking The Remote Control ................. 195
• Replacing The Batteries .................... 196
• Headphones Operation ..................... 196
154

is highlighted on the radio display, press
theTUNE control knob to select and start
playing the track. Turning the TUNEcon-
trol knob fast will scroll through the list
faster. During fast scroll, a slight delay in
updating the information on the radio dis-
play may be noticeable.
• During all List modes, the iPod displays
all lists in “wrap-around” mode. So if the
track is at the bottom of the list, just turn
the wheel backward (counterclockwise)
to get to the track faster.
• In List mode, the radio PRESETbuttons
are used as shortcuts to the following lists
on the iPod or external USB device.
• Preset 1 – Playlists
• Preset2–Ar tists
• Preset 3 – Albums
• Preset 4 – Genres
• Preset 5 – Audiobooks
• Preset 6 – Podcasts •
Pressing a PRESET button will display the
current list on the top line and the first item
in that list on the second line.
• To exit List mode without selecting a
track, press the same PRESETbutton
again to go back to Play mode.
• LIST button: The LISTbutton will display the
top level menu of the iPod or external USB
device. Turn the TUNEcontrol knob to list the
top-menu item to be selected and press the
TUNE control knob. This will display the next
sub-menu list item on the audio device, then
follow the same steps to go to the desired
track in that list. Not all iPod or external USB
device sub-menu levels are available on this
system.
• MUSIC TYPE button: TheMUSIC TYPE but-
ton is another shortcut button to the genre
listing on your audio device.CAUTION!
• Leaving the iPod or external USB device
(or any supported device) anywhere in the
vehicle in extreme heat or cold can alter the
operation or damage the device. Follow the
device manufacturer’s guidelines.
• Placing items on the iPod or external USB
device, or connections to the iPod or
external USB device in the vehicle, can
cause damage to the device and/or to the
connectors.
WARNING!
Do not plug in or remove the iPod or external
USB device while driving. Failure to follow this
warning could result in an accident.
Bluetooth Streaming Audio (BTSA)Music can be streamed from your cellular
phone to the Uconnect™ phone system.
Controlling BTSA Using Radio Buttons
To get into the BTSA mode, press either “AUX”
button on the radio or press the VR button and
say “Bluetooth Streaming Audio”.
186
