trol (ACC)” in “Understanding The Features
Of Your Vehicle” (if equipped).
• Distance Set — After changing the desired
following distance in the ACC system, this
message will display momentarily. Refer to
“Adaptive Cruise Control (ACC)” in “Under-
standing The Features Of Your Vehicle” (if
equipped).
• Brake — If the ACC system predicts that its
maximum braking level is not sufficient to
maintain the set distance, this message will
flash and a chime will sound while ACC
continues to apply its maximum braking ca-
pacity. When this occurs, you should imme-
diately apply the brakes as needed to main-
tain a safe distance from the vehicle ahead.
Refer to “Adaptive Cruise Control (ACC)” in
“Understanding The Features Of Your Ve-
hicle” (if equipped).
• Clean Radar Sensor in the Front of Vehicle —
If the ACC system deactivates due to perfor-
mance limiting conditions. Refer to “Adap-
tive Cruise Control (ACC)” in “Understanding
The Features Of Your Vehicle” (if equipped). •
ACC/FCW Unavailable Vehicle System Error
— If the ACC system turns off due to a
temporary malfunction that limits functional-
ity. Refer to “Adaptive Cruise Control (ACC)”
in “Understanding The Features Of Your Ve-
hicle” (if equipped).
• ACC/FCW Unavailable Service Radar Sen-
sor — If the ACC system turns off due to an
internal system fault that requires service
from an authorized dealer. Refer to “Adaptive
Cruise Control (ACC)” in “Understanding
The Features Of Your Vehicle” (if equipped).
• Coolant Low
• Service Air Suspension System
• Oil Change Due
• Key In Ignition
• Lights On
• Key In Ignition Lights On
• Ignition Or Accessory On
• Ignition Or Accessory On. Lights On
• Turn Signal On
• Park Assist On •
Warning Object Detected
• Memory 1 Profile Set
• Memory 2 Profile Set
• Memory System Unavailable — Not in Park
• Memory System Unavailable — Seatbelt
buckled
• Memory 1 Profile Recall
• Memory 2 Profile Recall
• Press Brake Pedal And Push Button To Start
• Wrong Key
• Damaged Key
• Key Not Programmed
• Function Currently Unavailable — Power Lift-
gate
• Unlock To Operate — Power Liftgate
• Put In Park To Operate — Power Liftgate
• Automatic High Beams On
• Automatic High Beams Off
• Service Four Wheel Drive System
167

When adding engine coolant (antifreeze):
•
The manufacturer recommends using MOPAR
Antifreeze/ Coolant 5–Year/100,000 Mile For-
mula HOAT (Hybrid Organic Additive Technol-
ogy) or equivalent.
• Mix a minimum solution of 50% HOAT engine
coolant (antifreeze) and distilled water. Use
higher concentrations (not to exceed 70%) if
temperatures below -34°F (-37°C) are antici-
pated.
• Use only high purity water such as distilled
or deionized water when mixing the water/
engine coolant (antifreeze) solution. The use
of lower quality water will reduce the amount
of corrosion protection in the engine cooling
system.
Please note that it is the owner’s responsibility
to maintain the proper level of protection
against freezing according to the temperatures
occurring in the area where the vehicle is
operated.
NOTE:
Mixing engine coolant (antifreeze) types will
decrease the life of the engine coolant (an- tifreeze) and will require more frequent en-
gine coolant (antifreeze) changes.
Cooling System Pressure Cap
The cap must be fully tightened to prevent loss
of engine coolant (antifreeze), and to ensure
that engine coolant (antifreeze) will return to the
radiator from the coolant recovery tank.
The cap should be inspected and cleaned if
there is any accumulation of foreign material on
the sealing surfaces.
WARNING!
•
The warning words DO NOT OPEN HOT
on the cooling system pressure cap are a
safety precaution. Never add engine cool-
ant (antifreeze) when the engine is over-
heated. Do not loosen or remove the cap to
cool an overheated engine. Heat causes
pressure to build up in the cooling system.
To prevent scalding or injury, do not remove
the pressure cap while the system is hot or
under pressure.
(Continued)
WARNING!(Continued)
• Do not use a pressure cap other than the
one specified for your vehicle. Personal
injury or engine damage may result.
Disposal Of Used Engine Coolant
Used ethylene glycol-based engine coolant
(antifreeze) is a regulated substance requiring
proper disposal. Check with your local authori-
ties to determine the disposal rules for your
community. To prevent ingestion by animals
and children, do not store ethylene glycol-
based engine coolant (antifreeze) in open con-
tainers or allow it to remain in puddles on the
ground. If ingested by a child or pet, seek
emergency assistance immediately. Clean up
any ground spills immediately.
Coolant Level
The coolant bottle provides a quick visual
method for determining that the engine coolant
(antifreeze) level is adequate. With the engine
idling, and warm to normal operating tempera-
ture, the level of the engine coolant (antifreeze)
in the bottle should be between the ranges
indicated on the bottle.
310

The radiator normally remains completely full,
so there is no need to remove the radiator cap,
unless checking for engine coolant (antifreeze)
freeze point or replacing engine coolant (anti-
freeze). Advise your service attendant of this.
As long as the engine operating temperature is
satisfactory, the coolant bottle need only be
checked once a month.
When additional engine coolant (antifreeze) is
needed to maintain the proper level, it should
be added to the coolant bottle. Do not overfill.
Points To Remember
NOTE:
When the vehicle is stopped after a few
miles (kilometers) of operation, you may
observe vapor coming from the front of the
engine compartment. This is normally a re-
sult of moisture from rain, snow, or high
humidity accumulating on the radiator and
being vaporized when the thermostat opens,
allowing hot engine coolant (antifreeze) to
enter the radiator.If an examination of your engine compartment
shows no evidence of radiator or hose leaks,
the vehicle may be safely driven. The vapor will
soon dissipate.
•
Do not overfill the coolant recovery bottle.
• Check engine coolant (antifreeze) freeze
point in the radiator and in the coolant recov-
ery bottle. If engine coolant (antifreeze)
needs to be added, contents of coolant
recovery bottle must also be protected
against freezing.
• If frequent engine coolant (antifreeze) addi-
tions are required, or if the level in the
coolant recovery bottle does not drop when
the engine cools, the cooling system should
be pressure tested for leaks.
• Maintain engine coolant (antifreeze) concen-
tration at 50% HOAT engine coolant (anti-
freeze) (minimum) and distilled water for
proper corrosion protection of your engine,
which contains aluminum components.
• Make sure that the radiator and coolant
recovery bottle hoses are not kinked or ob-
structed. •
Keep the front of the radiator clean. If your
vehicle is equipped with air conditioning,
keep the front of the condenser clean.
• Do not change the thermostat for Summer or
Winter operation. If replacement is ever nec-
essary, install ONLY the correct type thermo-
stat. Other designs may result in unsatisfac-
tory cooling performance, poor gas mileage,
and increased emissions.
Brake SystemIn order to assure brake system performance,
all brake system components should be peri-
odically inspected. Refer to the “Maintenance
Schedule” for the proper maintenance inter-
vals.
WARNING!
Riding the brakes can lead to brake failure
and possibly an accident. Driving with your
foot resting or riding on the brake pedal can
result in abnormally high brake temperatures,
excessive lining wear, and possible brake
damage. You would not have your full braking
capacity in an emergency.
311

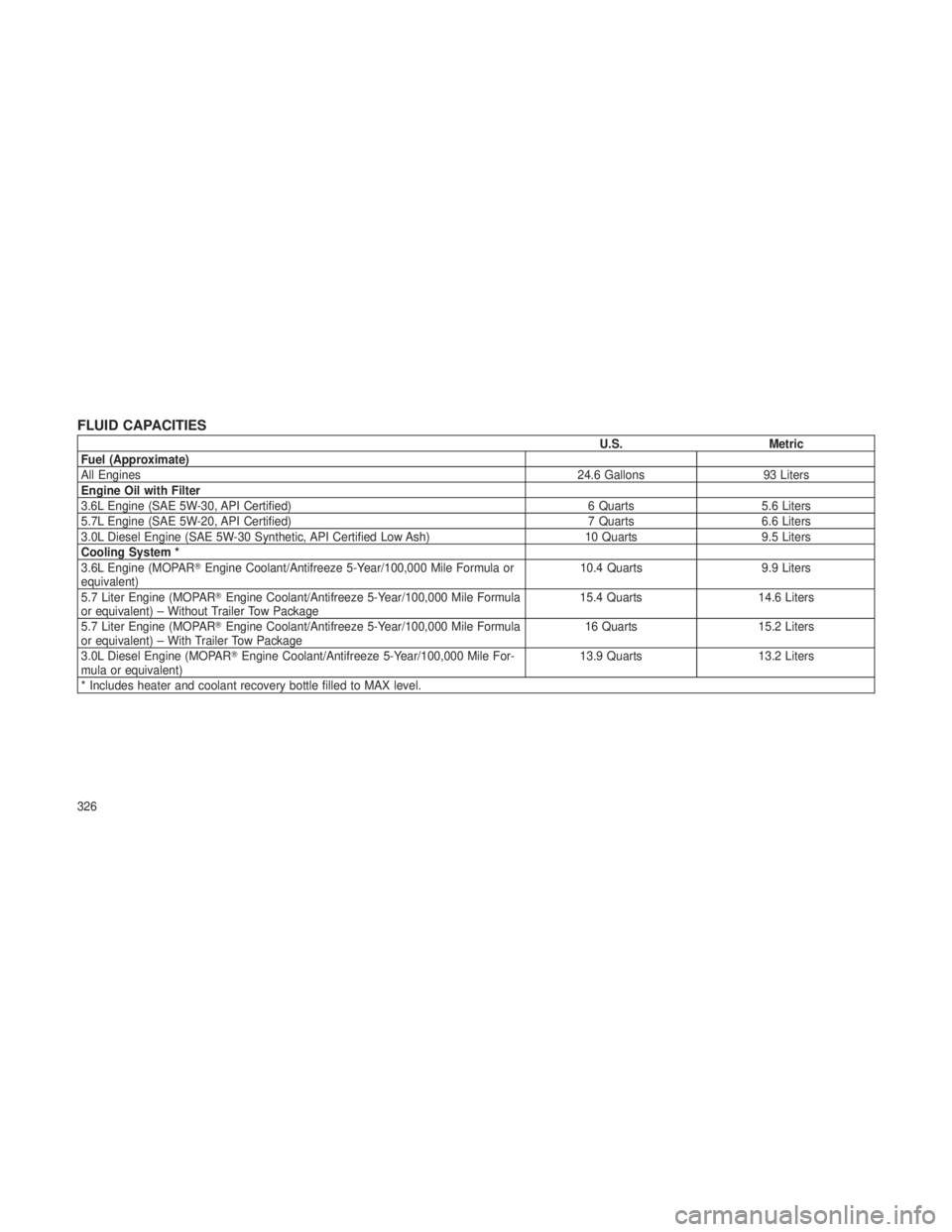

FLUID CAPACITIES
U.S.Metric
Fuel (Approximate)
All Engines 24.6 Gallons93 Liters
Engine Oil with Filter
3.6L Engine (SAE 5W-30, API Certified) 6 Quarts5.6 Liters
5.7L Engine (SAE 5W-20, API Certified) 7 Quarts6.6 Liters
3.0L Diesel Engine (SAE 5W-30 Synthetic, API Certified Low Ash) 10 Quarts9.5 Liters
Cooling System *
3.6L Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile Formula or
equivalent) 10.4 Quarts
9.9 Liters
5.7 Liter Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile Formula
or equivalent) – Without Trailer Tow Package 15.4 Quarts
14.6 Liters
5.7 Liter Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile Formula
or equivalent) – With Trailer Tow Package 16 Quarts
15.2 Liters
3.0L Diesel Engine (MOPAR Engine Coolant/Antifreeze 5-Year/100,000 Mile For-
mula or equivalent) 13.9 Quarts
13.2 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
326

At Each Stop for Fuel
•Check the engine oil level about 5 minutes
after a fully warmed engine is shut off.
Checking the oil level while the vehicle is on
level ground will improve the accuracy of the
oil level reading. Add oil only when the level
is at or below the ADD or MIN mark.
• Check the windshield washer solvent and
add if required. Once a Month
•
Check tire pressure and look for unusual
wear or damage.
• Inspect the battery and clean and tighten the
terminals as required.
• Check the fluid levels of the coolant reser-
voir, brake master cylinder, power steering
and transmission (5.7L only) and add as
needed.
• Check all lights and other electrical items for
correct operation. At Each Oil Change
•
Change the engine oil filter.
• Inspect the brake hoses and lines.
CAUTION!
Failure to perform the required maintenance
items may result in damage to the vehicle.
333

† This maintenance is recommended by the
manufacturer to the owner, but is not required
to maintain emissions warranty.
WARNING!
You can be badly injured working on or around
a motor vehicle. Do only that service work for
which you have the knowledge and the right
equipment. If you have any doubt about your
ability to perform a service job, take your
vehicle to a competent mechanic.
Maintenance Schedule – Diesel
Engine
To help you have the best driving experience
possible, the manufacturer has identified the
specific vehicle maintenance service intervals
that are required to keep your vehicle operating
properly and safely.
The manufacturer recommends that these
maintenance intervals be performed at your
selling dealer. The technicians at your dealer-
ship know your vehicle best, and have access
to factory trained information, genuine
MOPARparts, and specially designed elec- tronic and mechanical tools that can help pre-
vent future costly repairs.
The maintenance intervals shown should be
performed as indicated in this section.
NOTE:
Under no circumstances should oil change
intervals exceed 12,500 miles (20 000 km) or
12 months, whichever comes first.
At Each Stop for Fuel
•
Check the engine oil level about 15 minutes
after a fully warmed engine is shut off.
Checking the oil level while the vehicle is on
level ground will improve the accuracy of the
oil level reading. Add oil only when the level
is at or below the ADD or MIN mark.
• Check the windshield washer solvent and
add if required.
Once a Month
• Check tire pressure and look for unusual
wear or damage.
• Inspect the battery and clean and tighten the
terminals as required. •
Check the fluid levels of the coolant reser-
voir, brake master cylinder, and power steer-
ing and add as needed.
• Check all lights and other electrical items for
correct operation.
At Each Oil Change
• Change the engine oil filter.
• Inspect the brake hoses and lines.
• Inspect for the presence of water in the fuel
filter/water separator unit.
CAUTION!
Failure to perform the required maintenance
items may result in damage to the vehicle.
Required Maintenance Intervals
Refer to the Maintenance Schedules on the
following pages for the required maintenance
intervals.
344

Adaptive Cruise Control (ACC)
(Cruise Control)..............117
Adding Fuel ................265
Additives, Fuel ...............264
Air Cleaner, Engine
(Engine Air Cleaner Filter) .........304
Air Conditioner Maintenance .......305
Air Conditioning Refrigerant .......305
Air Conditioning System ..........205
Air Conditioning, Operating Tips .....208
Air Filter ...................304
Air Pressure, Tires .............253
Air Suspension ...............236
Airbag .................. 37,43
Airbag Deployment .............44
Airbag Light ........... 42,45,56,159
Airbag Maintenance ............45
Airbag, Side ............. 39,41,43
Airbag, Window (Side Curtain) . . . 39,41,43
Alarm (Security Alarm) ..........164
Alarm System (Security Alarm) ......16
Alterations/Modifications, Vehicle ......8
Anti-Lock Brake System (ABS) ......245
Anti-Lock Warning Light ..........163
Anti-Theft System .............164
Antifreeze (Engine Coolant) ........326
Appearance Care .............315 Assist, Hill Start
..............249
Auto Down Power Windows ........25
Automatic Dimming Mirror .........67
Automatic Door Locks ...........21
Automatic Headlights ...........105
Automatic Temperature Control (ATC) . . 205
Automatic Transmission .....222,226,313
Adding Fluid ...............315
Fluid and Filter Changes ........313
Fluid Level Check .........314,315
Fluid Type ................313
Special Additives ............314
Autostick ................ 225,230
Auxiliary Electrical Outlet
(Power Outlet) ...............142
Auxiliary Power Outlet ...........142
Battery ...................304
Keyless Transmitter Replacement
(RKE) ...................19
Belts, Seat ................ 30,56
Blind Spot Monitoring ............69
Body Mechanism Lubrication .......305
Brake Assist System ............246
Brake Control System, Electronic .....245
Brake Fluid .................312 Brake System
...............311
Anti-Lock
(ABS) .............245
Fluid Check ...............312
Master Cylinder .............312
Parking ..................244
Warning Light ..............162
Brake/Transmission Interlock .......222
Break-In Recommendations, New
Vehicle ....................55
Bulb Replacement .............322
Bulbs, Light .................58
Calibration, Compass ...........179
Camera, Rear ...............136
Capacities, Fluid ..............326
Caps, Filler Fuel ....................265
Power Steering .............243
Radiator (Coolant Pressure) ......310
Car Washes ................316
Carbon Monoxide Warning .........56
Cargo Area Cover .............148
Cargo Area Features ...........146
Cargo Compartment ............146
Light ...................147
Cargo Light .................147
366

Cargo Tie-Downs.............148
Cellular Phone ............. 74,204
Center High Mounted Stop Light .....325
Chains, Tire ................254
Changing A Flat Tire ...........283
Checking Your Vehicle For Safety .....55
Checks, Safety ...............55
Child Restraint .......... 47,49,51,53
Child Restraint Tether Anchors .......51
Child Safety Locks .............21
Clean Air Gasoline .............263
Climate Control ...............205
Cold Weather Operation .........218
Compact Disc (CD) Maintenance ....204
Compass ..................176
Compass Calibration ...........179
Compass Variance .............177
Computer, Trip/Travel ...........174
Connector UCI ....................183
Universal Consumer Interface (UCI) . . 183
Conserving Fuel ..............173
Console, Overhead ............138
Cooling System ..............308
Adding Coolant (Antifreeze) ......309
Coolant Capacity ............326
Coolant Level ..............310 Disposal of Used Coolant
.......310
Drain, Flush, and Refill .........309
Inspection ................308
Points to Remember ..........311
Pressure Cap ..............310
Radiator Cap ..............310
Selection of Coolant
(Antifreeze) ............. 309,326
Cruise Control (Speed Control) ......117
Cupholders .................144
Customer Assistance ...........356
Data Recorder, Event ............46
Daytime Running Lights ..........107
Defroster, Rear Window ..........150
Defroster, Windshield .........57,207
Diagnostic System, Onboard .......301
Diesel Fuel .................264
Diesel Fuel Requirements .........264
Dipsticks Automatic Transmission .........315
Oil (Engine) ...............302
Power Steering .............243
Disabled Vehicle Towing .........291
Disposal Engine Oil ................304 Door Locks
.................20
Door
Locks, Automatic ...........21
Driving ...................238
Off-Pavement ..............239
Off-Road .................239
Driving to Achieve Maximum Fuel
Economy ..................173
Electric Remote Mirrors ...........68
Electrical Outlet, Auxiliary
(Power Outlet) ...............142
Electronic Brake Control System .....245
Anti-Lock Brake System ........245
Brake Assist System ..........246
Electronic Roll Mitigation ........246
Traction Control System ........246
Electronic Roll Mitigation (ERM) .....246
Electronic Speed Control (Cruise
Control) ................ 115,117
Electronic Stability Control (ESC) .....247
Electronic Vehicle Information Center
(EVIC) ................. 160,164
Emergency, In Case of Freeing Vehicle When Stuck ......289
Hazard Warning Flasher ........282
Jacking ..................283
367
