64

zone”. The side mirrors LED’s will be lit up and
stay lit until the vehicle exits the zone.
Uconnect™ Phone — IF EQUIPPED
NOTE:
For Uconnect™ Phone with Navigation or
Multimedia radio, refer to the Navigation or
Multimedia radio’s User’s Manual (separate
booklet) Uconnect™ Phone section.
Uconnect™ Phone is a voice-activated, hands-
free, in-vehicle communications system.
Uconnect™ Phone allows you to dial a phone
number with your mobile phone* using simple
voice commands (e.g., “Call”“Jim”“Work” or
“Dial”“151-1234 -5555”). Your mobile phone’s
audio is transmitted through your vehicle’s au-
dio system; the system will automatically mute
your radio when using the Uconnect™ Phone.
Uconnect™ Phone allows you to transfer calls
between the Uconnect™ Phone and your mo-
bile phone as you enter or exit your vehicle and
enables you to mute the Uconnect™ Phone’s
microphone for private conversation. The Uconnect™ Phone is driven through your
Bluetooth
“Hands-Free profile” mobile phone.
Uconnect™ Phone features Bluetooth tech-
nology - the global standard that enables dif-
ferent electronic devices to connect to each
other without wires or a docking station, so
Uconnect™ Phone works no matter where you
stow your mobile phone (be it your purse,
pocket, or briefcase), as long as your phone is
turned on and has been paired to the vehicle’s
Uconnect™ Phone. The Uconnect™ Phone al-
lows up to seven mobile phones to be linked to
the system. Only one linked (or paired) mobile
phone can be used with the Uconnect™ Phone
at a time. The Uconnect™ Phone is available in
English, Dutch, French, German, Italian or
Spanish languages (as equipped).
WARNING!
Any voice commanded system should be
used only in safe driving conditions following
local laws and phone use. All attention should
be kept on the roadway ahead. Failure to do
so may result in a collision causing serious
injury or death. Uconnect™ Phone Button
The radio or steering wheel con-
trols (if equipped) will contain the
two control buttons (Uconnect™
Phone
button and Voice Com-
mandbutton) that will en-
able you to access the system.
When you press the button you will hear the
word Uconnect™ followed by a BEEP. The
beep is your signal to give a command.
Voice Command Button Actual button location may vary
with radio. The individual buttons
are described in the “Operation”
section.
The Uconnect™ Phone can be used with
Hands-Free Profile certified Bluetooth mobile
phones. Some phones may not support all the
Uconnect™ Phone features. Refer to your mo-
bile service provider or the phone manufacturer
for details.
The Uconnect™ Phone is fully integrated with
the vehicle’s audio system. The volume of the
Uconnect™ Phone can be adjusted either from
74

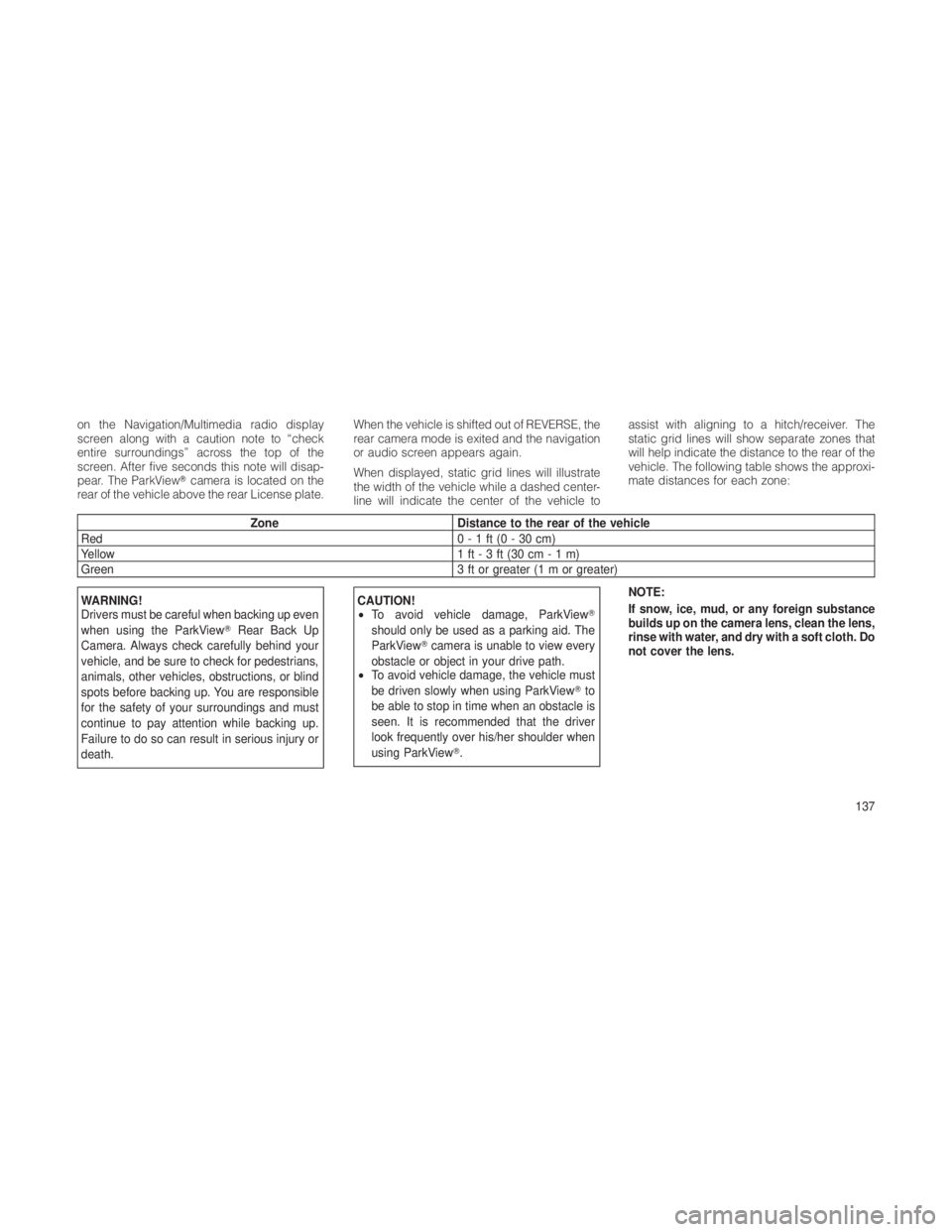

on the Navigation/Multimedia radio display
screen along with a caution note to “check
entire surroundings” across the top of the
screen. After five seconds this note will disap-
pear. The ParkViewcamera is located on the
rear of the vehicle above the rear License plate. When the vehicle is shifted out of REVERSE, the
rear camera mode is exited and the navigation
or audio screen appears again.
When displayed, static grid lines will illustrate
the width of the vehicle while a dashed center-
line will indicate the center of the vehicle toassist with aligning to a hitch/receiver. The
static grid lines will show separate zones that
will help indicate the distance to the rear of the
vehicle. The following table shows the approxi-
mate distances for each zone:
Zone
Distance to the rear of the vehicle
Red 0-1ft(0-30cm)
Yellow 1 ft-3ft(30cm-1m)
Green 3 ft or greater (1 m or greater)
WARNING!
Drivers must be careful when backing up even
when using the ParkViewRear Back Up
Camera. Always check carefully behind your
vehicle, and be sure to check for pedestrians,
animals, other vehicles, obstructions, or blind
spots before backing up. You are responsible
for the safety of your surroundings and must
continue to pay attention while backing up.
Failure to do so can result in serious injury or
death.CAUTION!
• To avoid vehicle damage, ParkView
should only be used as a parking aid. The
ParkView camera is unable to view every
obstacle or object in your drive path.
• To avoid vehicle damage, the vehicle must
be driven slowly when using ParkView to
be able to stop in time when an obstacle is
seen. It is recommended that the driver
look frequently over his/her shoulder when
using ParkView. NOTE:
If snow, ice, mud, or any foreign substance
builds up on the camera lens, clean the lens,
rinse with water, and dry with a soft cloth. Do
not cover the lens.
137

Turning ParkViewOn Or Off —
With Navigation/Multimedia Radio
1. Press the “menu” hard-key.
2. Select “system setup” soft-key.
3. Press the “camera setup” soft-key.
4. Enable or disable the rear camera feature by
selecting the “enable rear camera in reverse”
soft-key.
5. Press the “save” soft-key.
Turning ParkView On Or Off —
Without Navigation/Multimedia
Radio
1. Press the “menu” hard-key.
2. Select “system setup” soft-key.
3. Enable or disable the rear camera feature by
selecting “enable rear camera in reverse” soft-
key and pressing the “save” soft-key.
OVERHEAD CONSOLEThe overhead console contains courtesy/
reading lights and storage for sunglasses.
Power liftgate and power sunroof switches may
also be included, if equipped.
Courtesy/Reading LightsLocated on the overhead console are two
courtesy/reading lights. Press the lens to turn
these lights on. Press a second time to turn the
lights off. The lights also turn on when a front door or rear
door is opened, when the UNLOCK button on
the Remote Keyless Entry (RKE) transmitter is
pressed, or when the dimmer wheel is moved
up to the dome ON position.Sunglasses StorageAt the rear of the console a compartment is
provided for the storage of a pair of sun-
glasses.
The storage compartment access is a “push/
push” design. Push the chrome pad on the
door to open. Push the chrome pad on the door
to close.
Overhead Console
Courtesy/Reading Lights
138

Elapsed Time
Shows the total elapsed time of travel since the
last reset when the ignition switch is in the ACC
position. Elapsed time will increment when the
ignition switch is in the ON or START position.
To Reset The Display
Reset will only occur while a resettable function
is being displayed. Press and release the SE-
LECT button once to clear the resettable func-
tion being displayed.
UnitsPress and release the UP or DOWN button until
“Units” displays highlighted in the EVIC and
press the SELECT button. The EVIC, odometer,
and navigation system (if equipped) can be
changed between English and Metric units of
measure. To make your selection, scroll up or
down until the preferred setting is highlighted,
then press and release the SELECT button until
a check-mark appears next to the setting,
showing that the setting has been selected.
Vehicle Info
(Customer Information Features)
Press and release the UP or DOWN button until
“Vehicle Info” displays highlighted in the EVIC
and press the SELECT button. Press the UP
and DOWN button to scroll through the avail-
able information displays, then press SELECT
to display any one of the following choices.
•Oil Temp (If Equipped)
Displays the actual oil temperature.
• Oil Pressure (If Equipped)
Displays the actual oil pressure.
• Coolant Temp
Displays the actual coolant temperature.
• Trans Temperature
Displays the actual transmission temperature
when the shift lever is in the Drive position. •
Engine Hours
Displays the number of hours of engine opera-
tion.
Tire PSI or Tire KPA
Press and release the UP or DOWN button until
“Tire PSI” or “Tire KPA” displays highlighted in
the EVIC and press the SELECT button. Press
and release the UP/DOWN buttons until one of
the following System Status messages displays
in the EVIC:
• System OK
• System Warnings Displayed (will display all
currently active System Warnings)
175

1. Turn the ignition switch ON.
2. Press the UP or DOWN button until the
System Setup (Customer-Programmable Fea-
tures) menu is reached, then press the SELECT
button.
3. Press the DOWN button until the “Compass
Variance” message is displayed in the EVIC,
then press the SELECT button. The last vari-
ance zone number displays in the EVIC.
4. Press and release the SELECT button until
the proper variance zone is selected, accord-
ing to the map.
5. Press and release the BACK button to exit.
Manual Compass Calibration
If the compass appears erratic and the CAL
indicator does not appear in the EVIC display,
you must put the compass into the Calibration
Mode manually, as follows:
NOTE:
For the most accurate compass perfor-
mance, the compass variance must be set
before performing the manual compass cali-
bration. The variance should be set for thezone where the vehicle is driven, per the
zone map. For further information, refer to
“Compass Variance.”
1. Turn ON the ignition switch.
2. Press the UP or DOWN button until the
Setup (Customer-Programmable Features)
menu is reached, then press the SELECT but-
ton.
3. Press the DOWN button until “Calibrate
Compass” is displayed in the EVIC.
4. Press and release the SELECT button to
start the calibration. The “CAL” indicator will be
displayed in the EVIC.
5. Complete one or more 360–degree turns (in
an area free from large metal or metallic ob-
jects) until the “CAL” indicator turns off. The
compass will now function normally.
Customer-Programmable Features
(System Setup)
Personal Settings allows you to set and recall
features when the transmission is in PARK. If
the transmission is out of PARK or the vehicle
begins moving, a warning message
SETUPNOT AVAILABLE,
is followed in three seconds
by, VEHICLE NOT IN PARK.
Press and release the UP or DOWN button until
Setup displays in the EVIC.
Use the UP or DOWN button to display one of
the following choices.
Select Language
When in this display you may select one of five
languages for all display nomenclature, includ-
ing the trip functions and the navigation system
(if equipped). Press the UP or DOWN button

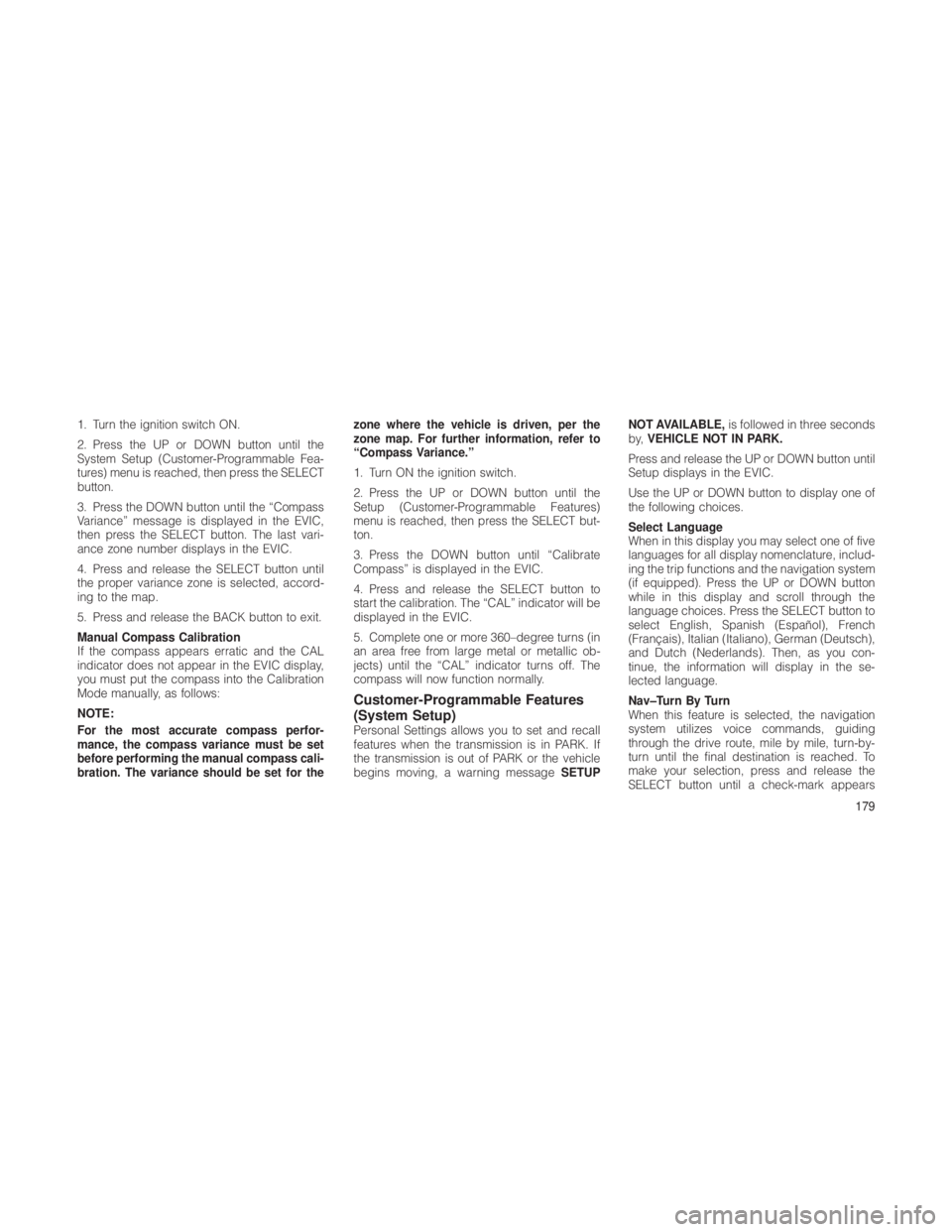

while in this display and scroll through the
language choices. Press the SELECT button to
select English, Spanish (Español), French
(Français), Italian (Italiano), German (Deutsch),
and Dutch (Nederlands). Then, as you con-
tinue, the information will display in the se-
lected language.
Nav–Turn By Turn
When this feature is selected, the navigation
system utilizes voice commands, guiding
through the drive route, mile by mile, turn-by-
turn until the final destination is reached. To
make your selection, press and release the
SELECT button until a check-mark appears
179

2. Channel 1 Shared Status – When the icon is
displayed, the audio for Channel 1 is also
shared with the radio and playing through the
cabin speakers.
3. Channel 1 Audio Only/Mute - Audio: The
audio only icon is not used on Channel 1, in a
single screen system. Mute: when the Mute
icon is displayed, the audio for Channel 1 has
been muted using the remote control’s MUTE
button.
4. Channel 2 Mode – Displays the current
source for Channel 2.
5. Channel 2 Shared Status – When the icon is
displayed, the audio for Channel 2 is also
shared with the radio and playing through the
cabin speakers.
6. Channel 2 Audio Only/Mute – Audio: Only in
a single screen system: The audio only icon is
displayed on Channel 2 when Channel 1 is in a
video mode. Mute: when the Mute icon is
displayed, the audio for Channel 2 has been
muted using the remote control’s MUTE button.
7. Channel 1 ENTER Button Action – When the
ENTER button on the remote control is pressedwith the
INPUT FILE # button visible on the
screen, the screen shows a numeric entry
keypad which allows you to enter a specific
track number on data discs and HDD (see
Numeric Keypad Menu section of this manual).
Also, Enter Button Action – “INPUT TRK #” to
enter a specific track number on audio discs.
8. Channel 2 ENTER Button Action – When the
ENTER button on the remote control is pressed
with the DIRECT TUNE button visible on the
screen, the screen shows a numeric entry
keypad which allows you to enter a specific
tuner frequency, or tuner channel for AM/FM/
MW/LW/SAT (see Numeric Keypad Menu sec-
tion).
9. Clock – Displays the time.
10. Video Lock – When the icon is displayed,
the remote control functions are disabled.
11. Not Available / Error – Operational or status
errors are displayed here.
12. Disc Changer Status – When the source for
either Channel 1 or Channel 2 is a multi-disc
changer, the disc loaded / selected status is
displayed.Mode Selection Menu

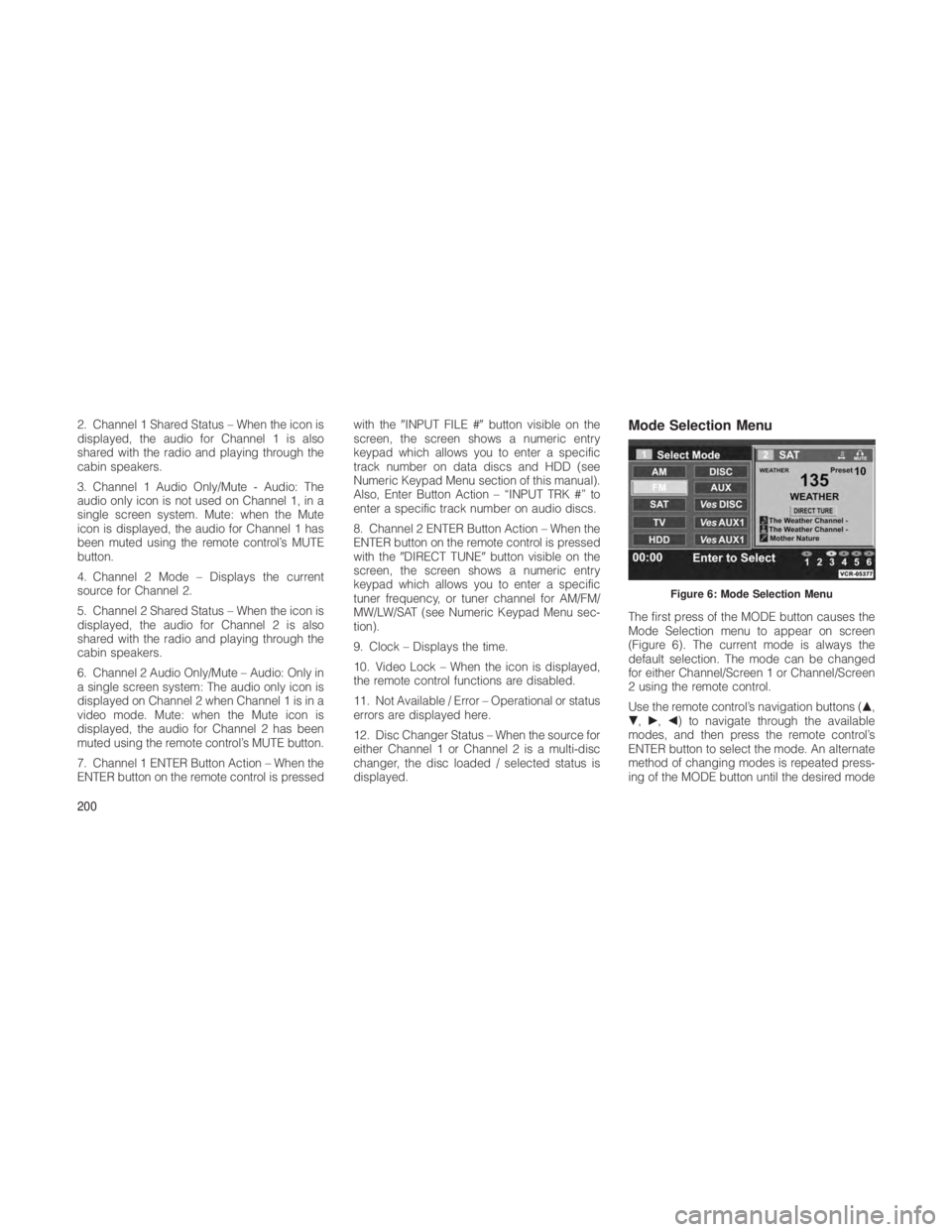

The first press of the MODE button causes the
Mode Selection menu to appear on screen
(Figure 6). The current mode is always the
default selection. The mode can be changed
for either Channel/Screen 1 or Channel/Screen
2 using the remote control.
Use the remote control’s navigation buttons ( ,
, ,) to navigate through the available
modes, and then press the remote control’s
ENTER button to select the mode. An alternate
method of changing modes is repeated press-
ing of the MODE button until the desired mode
Figure 6: Mode Selection Menu
200

is highlighted then press the ENTER button on
the remote control to select the mode.
In a single screen system, when a video mode
(such as DVD-video, Aux video, etc.) is active
and Channel/Screen 1 is selected using the
remote control selector switch, the first press of
the remote control’s MODE button causes the
Mode Selection menu to appear.

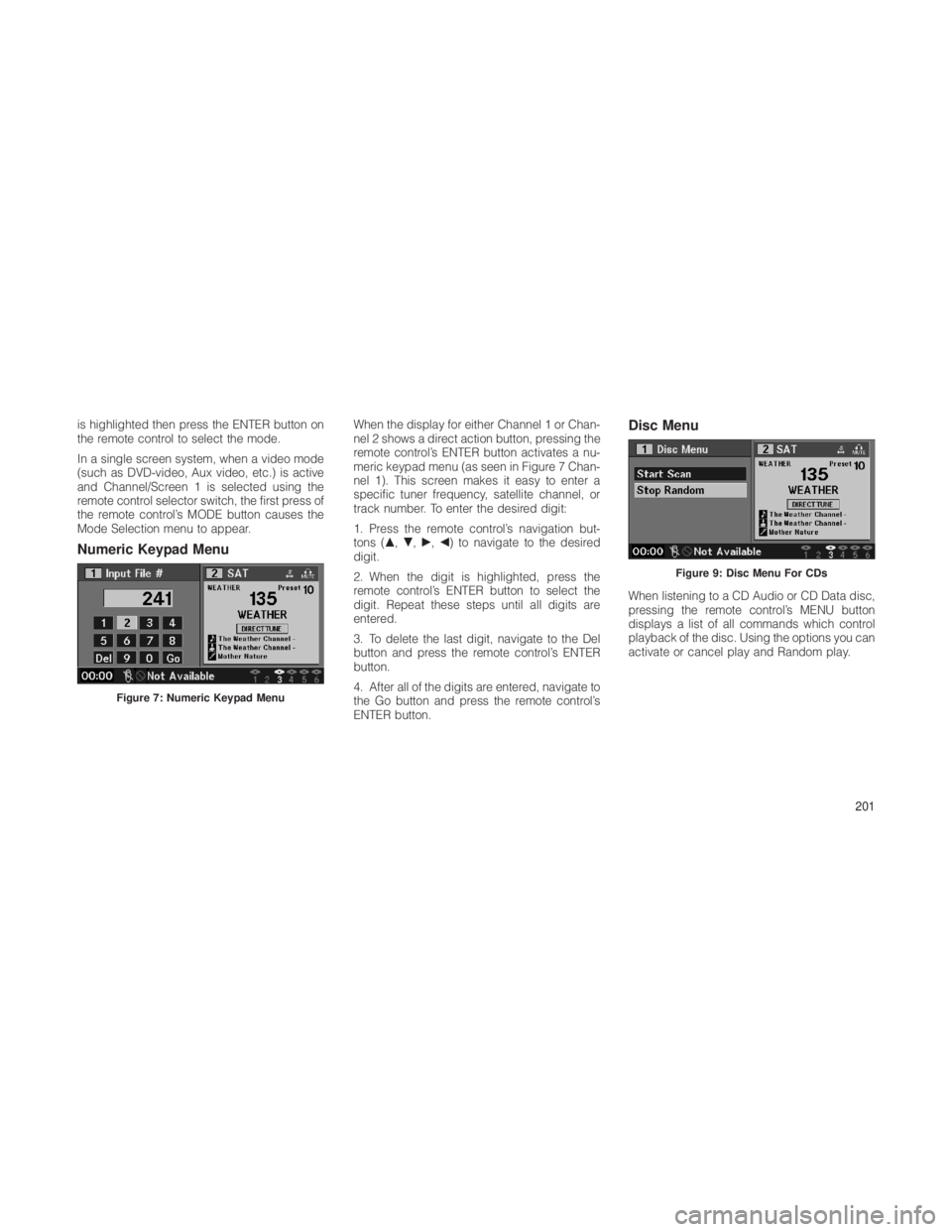

Numeric Keypad Menu
When the display for either Channel 1 or Chan-
nel 2 shows a direct action button, pressing the
remote control’s ENTER button activates a nu-
meric keypad menu (as seen in Figure 7 Chan-
nel 1). This screen makes it easy to enter a
specific tuner frequency, satellite channel, or
track number. To enter the desired digit:
1. Press the remote control’s navigation but-
tons (,,,) to navigate to the desired
digit.
2. When the digit is highlighted, press the
remote control’s ENTER button to select the
digit. Repeat these steps until all digits are
entered.
3. To delete the last digit, navigate to the Del
button and press the remote control’s ENTER
button.
4. After all of the digits are entered, navigate to
the Go button and press the remote control’s
ENTER button.Disc Menu
When listening to a CD Audio or CD Data disc,
pressing the remote control’s MENU button
displays a list of all commands which control
playback of the disc. Using the options you can
activate or cancel play and Random play.
Figure 7: Numeric Keypad Menu
Figure 9: Disc Menu For CDs
201

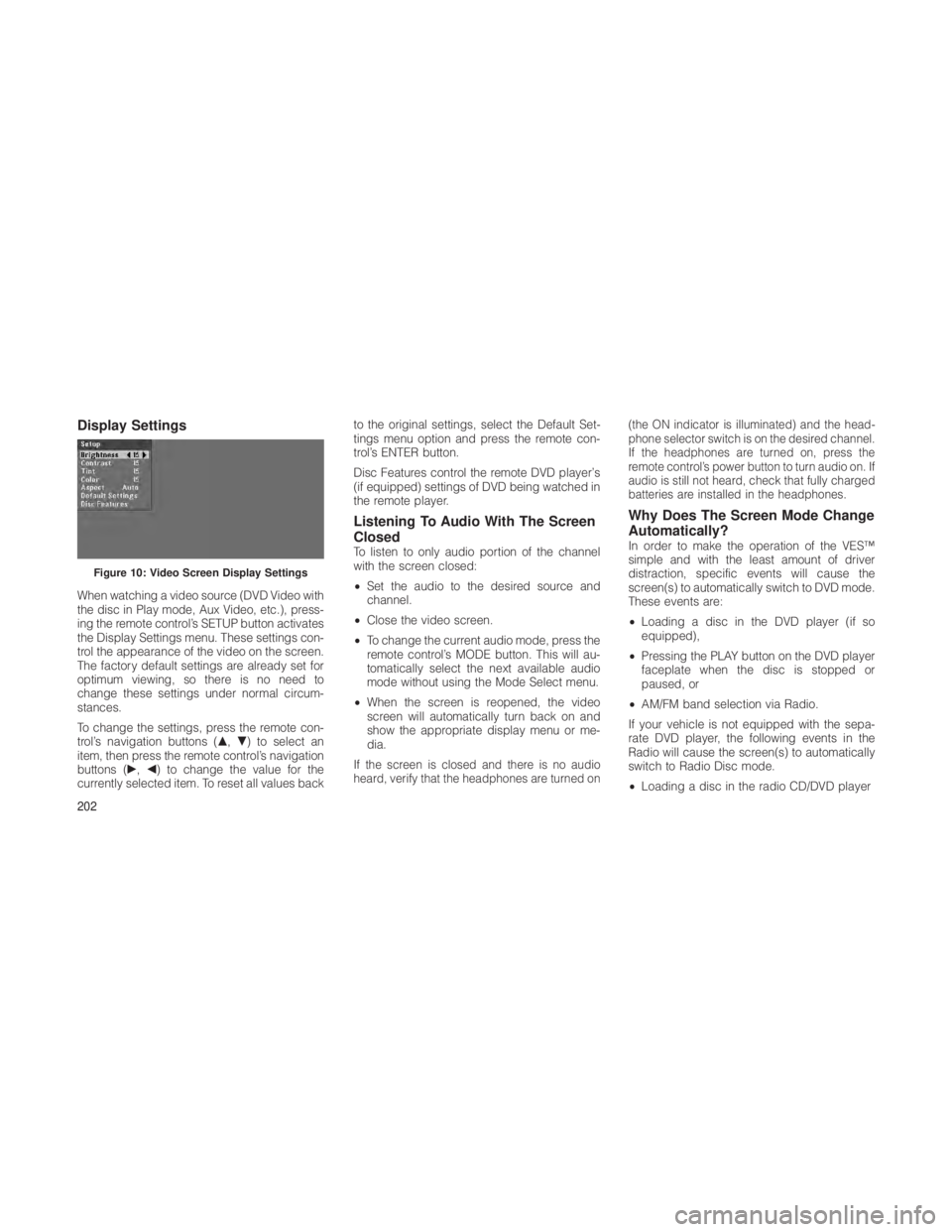

Display Settings
When watching a video source (DVD Video with
the disc in Play mode, Aux Video, etc.), press-
ing the remote control’s SETUP button activates
the Display Settings menu. These settings con-
trol the appearance of the video on the screen.
The factory default settings are already set for
optimum viewing, so there is no need to
change these settings under normal circum-
stances.
To change the settings, press the remote con-
trol’s navigation buttons (,) to select an
item, then press the remote control’s navigation
buttons (, ) to change the value for the
currently selected item. To reset all values back to the original settings, select the Default Set-
tings menu option and press the remote con-
trol’s ENTER button.
Disc Features control the remote DVD player’s
(if equipped) settings of DVD being watched in
the remote player.
Listening To Audio With The Screen
Closed
To listen to only audio portion of the channel
with the screen closed:
•
Set the audio to the desired source and
channel.
• Close the video screen.
• To change the current audio mode, press the
remote control’s MODE button. This will au-
tomatically select the next available audio
mode without using the Mode Select menu.
• When the screen is reopened, the video
screen will automatically turn back on and
show the appropriate display menu or me-
dia.
If the screen is closed and there is no audio
heard, verify that the headphones are turned on (the ON indicator is illuminated) and the head-
phone selector switch is on the desired channel.
If the headphones are turned on, press the
remote control’s power button to turn audio on. If
audio is still not heard, check that fully charged
batteries are installed in the headphones.
Why Does The Screen Mode Change
Automatically?
In order to make the operation of the VES™
simple and with the least amount of driver
distraction, specific events will cause the
screen(s) to automatically switch to DVD mode.
These events are:
•
Loading a disc in the DVD player (if so
equipped),
• Pressing the PLAY button on the DVD player
faceplate when the disc is stopped or
paused, or
• AM/FM band selection via Radio.
If your vehicle is not equipped with the sepa-
rate DVD player, the following events in the
Radio will cause the screen(s) to automatically
switch to Radio Disc mode.
• Loading a disc in the radio CD/DVD player
Figure 10: Video Screen Display Settings
202
