Page 16 of 380

A WORD ABOUT YOUR KEYSYour vehicle uses a keyless ignition system.
This system consists of a Key Fob with Remote
Keyless Entry (RKE) transmitter and a Wireless
Ignition Node (WIN) with integral ignition
switch. You can insert the Key Fob into the
ignition switch with either side up.
Keyless Enter-N-Go Feature
This vehicle is equipped with the Keyless Enter-
N-Go feature, refer to “Starting Procedures” in
“Starting And Operating” for further informa-
tion.
Wireless Ignition Node (WIN)The Wireless Ignition Node (WIN) operates
similar to an ignition switch. It has four operat-
ing positions, three of which are detented and
one spring-loaded. The detented positions are
OFF, ACC, and ON/RUN. The START position is
a spring-loaded momentary contact position.
When released from the START position, the
switch automatically returns to the detented
ON/RUN position.NOTE:
With the Keyless Enter-N-Go feature, the
Electronic Vehicle Information Center (EVIC)
will display the ignition switch position
(OFF/ACC/RUN). Refer to “Electronic Ve-
hicle Information Center (EVIC)” in “Under-
standing Your Instrument Panel” for further
information.
Key FobThe Key Fob operates the ignition switch. Insert
the square end of the key fob into the ignition
switch located on the instrument panel and
rotate to the desired position. It also contains
the Remote Keyless Entry (RKE) transmitter
and an emergency key, which stores in the rear
of the Key Fob.
The emergency key allows for entry into the
vehicle on the driver’s side should the battery in
the vehicle or the RKE transmitter go dead. The
emergency key is also for locking the glove
box. You can keep the emergency key with you
when valet parking.
NOTE:
Entering a vehicle using the emergency key
with the theft alarm armed, will result in the
alarm sounding. Insert the Key Fob (even if
the Key Fob battery is dead) into the ignition
switch to disarm theft alarm.
To remove the emergency key, slide the me-
chanical latch at the top of the Key Fob side-
ways with your thumb and then pull the key out
with your other hand.
Wireless Ignition Node (WIN)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
4—START
12
Page 19 of 380

The system uses the factory-mated Key Fob
with Remote Keyless Entry (RKE) transmitter
and Wireless Ignition Node (WIN) to prevent
unauthorized vehicle operation. Therefore, only
Key Fobs that are programmed to the vehicle
can be used to start and operate the vehicle.
The system will shut the engine off in two
seconds if an invalid Key Fob is used to start
the engine.
After turning the ignition switch to the ON/RUN
position, the Vehicle Security Light will turn on
for three seconds for a bulb check. If the light
remains on after the bulb check, it indicates
that there is a problem with the electronics. In
addition, if the light begins to flash after the
bulb check, it indicates that someone used an
invalid Key Fob to start the engine. Either of
these conditions will result in the engine being
shut off after two seconds.
If the Vehicle Security Light turns on during
normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there
is a fault in the electronics. Should this occur,
have the vehicle serviced as soon as possible
by an authorized dealer.CAUTION!
The Sentry KeyImmobilizer system is not
compatible with some after-market remote
starting systems. Use of these systems may
result in vehicle starting problems and loss of
security protection.
All of the Key Fobs provided with your new
vehicle have been programmed to the vehicle
electronics.
Replacement Keys
NOTE:
Only Key Fobs that are programmed to the
vehicle electronics can be used to start and
operate the vehicle. Once a Key Fob is
programmed to a vehicle, it cannot be pro-
grammed to any other vehicle.
CAUTION!
• Always remove the Key Fobs from the
vehicle and lock all doors when leaving the
vehicle unattended.
(Continued)
CAUTION!(Continued)
• With Keyless Enter-N-Go, always remem-
ber to place the ignition in OFF.
At the time of purchase, the original owner is
provided with a four-digit Personal Identifica-
tion Number (PIN). Keep the PIN in a secure
location. This number is required for authorized
dealer replacement of Key Fobs. Duplication of
Key Fobs may be performed at an authorized
dealer.
NOTE:
When having the Sentry Key Immobilizer
system serviced, bring all vehicle ignition
keys with you to an authorized dealer.
Customer Key ProgrammingProgramming Key Fobs or RKE transmitters
may be performed at an authorized dealer.
General InformationThe Sentry Key operates on a carrier fre-
quency of 433.92 MHz. The Sentry Key Immo-
bilizer system will be used in the following
European countries, which apply Directive
1999/5/EC: Austria, Belgium, Czech Republic,
15
Page 20 of 380

Denmark, Finland, France, Germany, Greece,
Hungary, Ireland, Italy, Luxembourg, Nether-
lands, Norway, Poland, Portugal, Romania,
Russian Federation, Slovenia, Spain, Sweden,
Switzerland, Yugoslavia, and United Kingdom.
Operation is subject to the following conditions:
•This device may not cause harmful interfer-
ence.
• This device must accept any interference
that may be received, including interference
that may cause undesired operation.
VEHICLE SECURITY ALARM — IF
EQUIPPED
The Vehicle Security Alarm monitors the hood,
liftgate, liftgate flipper glass, vehicle doors for
unauthorized entry, and the ignition switch for
unauthorized operation.
If something triggers the alarm, the Vehicle
Security Alarm will provide the following audio
and visual signals: the horn will pulse, the
headlights will turn on, the park lights will flash,
and the Vehicle Security Light in the instrument
cluster will flash.
To Arm The SystemFollow these steps to arm the Vehicle Security
Alarm:
1. Remove the key from the ignition system
(refer to Starting Procedures inStarting And
Operating for further information).
• For vehicles equipped with Keyless Enter-N-
Go, make sure the vehicle ignition system is
OFF.
• For vehicles not equipped with Keyless Enter-
N-Go, make sure the vehicle ignition system is
OFF and the key is physically removed from
the ignition.
2. Perform one of the following methods to lock
the vehicle:
• Press LOCK on the interior power door lock
switch with the driver and/or passenger door
open.
• Press the LOCK button on the exterior Pas-
sive Entry Door Handle with a valid Key Fob
available in the same exterior zone (refer to
Keyless Enter-N-Go inThings To Know Be-
fore Starting Your Vehicle for further informa-
tion). •
Press the LOCK button on the Remote Key-
less Entry (RKE) transmitter.
3. If any doors are open, close them.
To Disarm The SystemThe Vehicle Security Alarm can be disarmed
using any of the following methods:
• Press the UNLOCK button on the Remote
Keyless Entry (RKE) transmitter.
• Grasp the Passive Entry Unlock Door Handle
(if equipped, refer to Keyless Enter-N-Go in
Things To Know Before Starting Your Ve-
hicle for further information).
• Cycle the vehicle ignition system out of the
OFF position.
• For vehicles equipped with Keyless Enter-
N-Go, press the Keyless Enter-N-Go
Start/Stop button (requires at least one
valid Key Fob in the vehicle).
• For vehicles not equipped with Keyless
Enter-N-Go, insert a valid key into the
ignition switch and turn the key to the ON
position.
16
Page 22 of 380

NOTE:
Inserting the Key Fob with RKE transmitter
into the ignition switch disables the system
from responding to any button presses from
that RKE transmitter. Driving at speeds
5 mph (8 km/h) and above disables the
system from responding to all RKE transmit-
ter buttons for all RKE transmitters.
To Unlock The DoorsPress and release the UNLOCK button on the
RKE transmitter once to unlock the driver’s
door or twice to unlock all doors. The turnsignal lights will flash to acknowledge the un-
lock signal. The illuminated entry system will
also turn on.
Refer to “Keyless Enter-N-Go — If Equipped”
under “Things To Know Before Starting Your
Vehicle” for further information.
Remote Unlock Sequence
This feature lets you program the system to
unlock either the driver’s door or all doors, on
the first press of the UNLOCK button on the
RKE transmitter. To change the current setting,
proceed as follows:
•
For vehicles equipped with the Electronic
Vehicle Information Center (EVIC), refer to
“Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-
Programmable Features)” in “Understanding
Your Instrument Panel” for further informa-
tion.
Flash Lamps With Lock
This feature will cause the turn signal lights to
flash when the doors are locked or unlocked
with the RKE transmitter. This feature can be
turned on or off. To change the current setting,
proceed as follows: •
For vehicles equipped with the Electronic
Vehicle Information Center (EVIC), refer to
“Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Pro-
grammable Features)” in “Understanding
Your Instrument Panel” for further informa-
tion.
Illuminated Approach
This feature activates the headlights for up to
90 seconds when the doors are unlocked with
the RKE transmitter. The time for this feature is
programmable on vehicles equipped with the
Electronic Vehicle Information Center (EVIC).
Refer to “Electronic Vehicle Information Center
(EVIC)/Personal Settings (Customer-Program-
mable Features)” in “Understanding Your In-
strument Panel” for further information.
To Lock The DoorsPress and release the LOCK button on the RKE
transmitter to lock all doors. The turn signal
lights will flash to acknowledge the signal.
Refer to “Keyless Enter-N-Go — If Equipped”
under “Things To Know Before Starting Your
Vehicle” for further information.Key Fob With RKE Transmitter
18
Page 100 of 380

Front Passenger Seat Fold-Flat
Feature — If Equipped
To fold the seatback to the flat load-floor posi-
tion, lift the recline lever and push the seatback
forward. To return to the seating position, raise
the seatback and lock it into place.
Heated Seats — If EquippedOn some models, the front and rear seats may
be equipped with heaters in both the seat
cushions and seatbacks.
WARNING!
•Persons who are unable to feel pain to the
skin because of advanced age, chronic
illness, diabetes, spinal cord injury, medi-
cation, alcohol use, exhaustion or other
physical condition must exercise care when
using the seat heater. It may cause burns
even at low temperatures, especially if
used for long periods of time.
• Do not place anything on the seat that
insulates against heat, such as a blanket or
cushion. This may cause the seat heater to
overheat. Sitting in a seat that has been
overheated could cause serious burns due
to the increased surface temperature of the
seat.

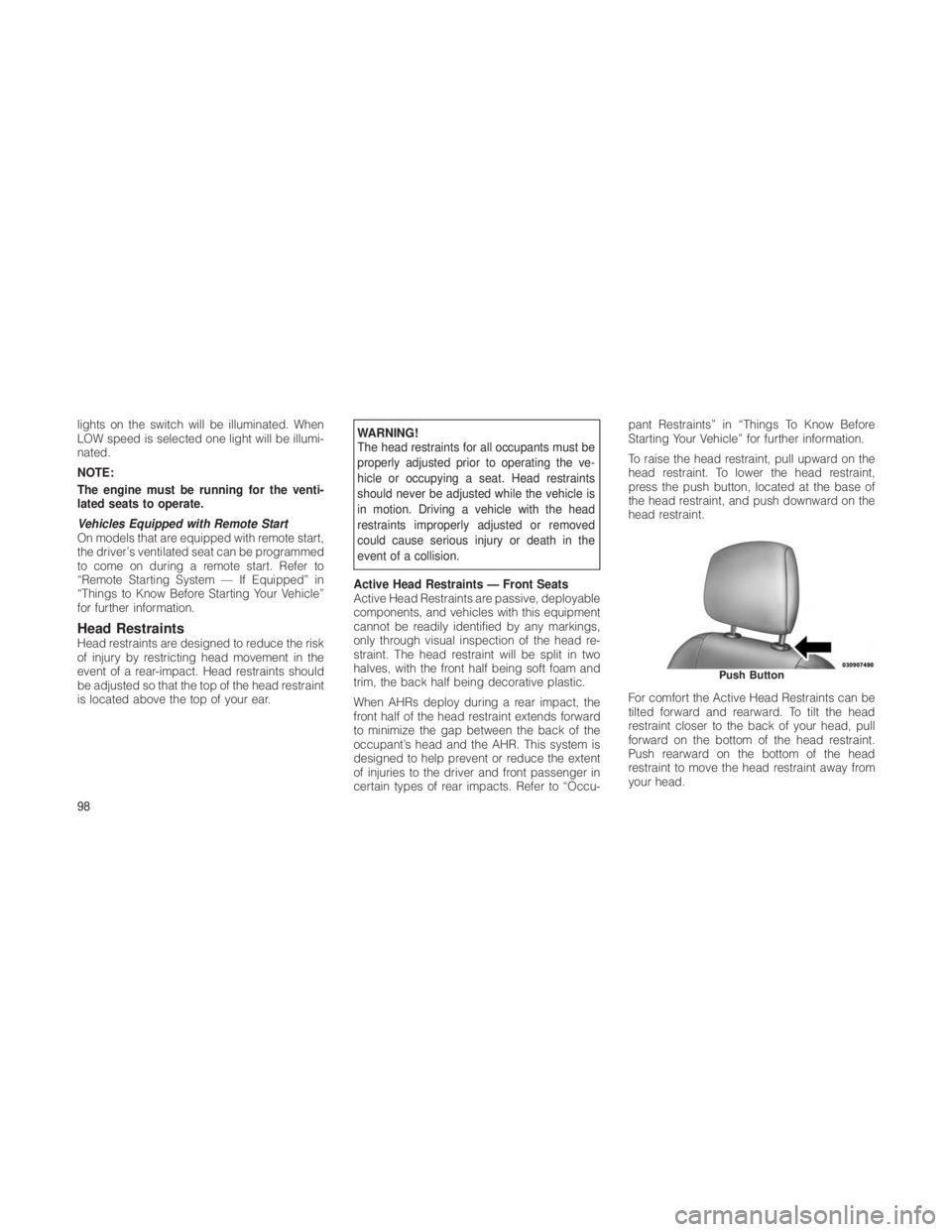

Vehicles Equipped With Remote Start
On models that are equipped with remote start,
the driver’s heated seat can be programmed to
come on during a remote start. Refer to “Re-
mote Starting System — If Equipped” in
“Things to Know Before Starting Your Vehicle”
for further information. Front Heated Seats
There are two heated seat switches that allow
the driver and passenger to operate the seats
independently. The controls for each heater are
located near the bottom center of the instru-
ment panel (below the climate controls).
You can choose from HIGH, LOW or OFF heat
settings. Amber indicator lights in each switch
indicate the level of heat in use. Two indicator
lights will illuminate for HIGH, one for LOW and
none for OFF.
Press the switch once to select
HIGH-level heating. Press the
switch a second time to select
LOW-level heating. Press the
switch a third time to shut the heat-
ing elements OFF.
NOTE:
Once a heat setting is selected, heat will be
felt within two to five minutes.
When the HIGH-level setting is selected, the
heater will provide a boosted heat level during
the first four minutes of operation. Then, the
heat output will drop to the normal HIGH-level.
If the HIGH-level setting is selected, the system
Fold-Flat Passenger Seat
96
Page 102 of 380

lights on the switch will be illuminated. When
LOW speed is selected one light will be illumi-
nated.
NOTE:
The engine must be running for the venti-
lated seats to operate.
Vehicles Equipped with Remote Start
On models that are equipped with remote start,
the driver’s ventilated seat can be programmed
to come on during a remote start. Refer to
“Remote Starting System — If Equipped” in
“Things to Know Before Starting Your Vehicle”
for further information.
Head RestraintsHead restraints are designed to reduce the risk
of injury by restricting head movement in the
event of a rear-impact. Head restraints should
be adjusted so that the top of the head restraint
is located above the top of your ear.
WARNING!
The head restraints for all occupants must be
properly adjusted prior to operating the ve-
hicle or occupying a seat. Head restraints
should never be adjusted while the vehicle is
in motion. Driving a vehicle with the head
restraints improperly adjusted or removed
could cause serious injury or death in the
event of a collision.
Active Head Restraints — Front Seats
Active Head Restraints are passive, deployable
components, and vehicles with this equipment
cannot be readily identified by any markings,
only through visual inspection of the head re-
straint. The head restraint will be split in two
halves, with the front half being soft foam and
trim, the back half being decorative plastic.
When AHRs deploy during a rear impact, the
front half of the head restraint extends forward
to minimize the gap between the back of the
occupant’s head and the AHR. This system is
designed to help prevent or reduce the extent
of injuries to the driver and front passenger in
certain types of rear impacts. Refer to “Occu- pant Restraints” in “Things To Know Before
Starting Your Vehicle” for further information.
To raise the head restraint, pull upward on the
head restraint. To lower the head restraint,
press the push button, located at the base of
the head restraint, and push downward on the
head restraint.
For comfort the Active Head Restraints can be
tilted forward and rearward. To tilt the head
restraint closer to the back of your head, pull
forward on the bottom of the head restraint.
Push rearward on the bottom of the head
restraint to move the head restraint away from
your head.
Push Button
98
Page 119 of 380

Press the switch to turn
on the heated steering
wheel. The light on the
switch will illuminate to
indicate the steering
wheel heater is on.
Pressing the switch a
second time will turn off
the heated steering
wheel and light indicator.
NOTE:
The engine must be running for the heated
steering wheel to operate.
Vehicles Equipped With Remote Start
On models that are equipped with remote start,
the heated steering wheel can be programmed
to come on during a remote start. Refer to
“Remote Starting System — If Equipped” in
“Things to Know Before Starting Your Vehicle”
for further information.
WARNING!
•Persons who are unable to feel pain to the
skin because of advanced age, chronic
illness, diabetes, spinal cord injury, medi-
cation, alcohol use, exhaustion, or other
physical conditions must exercise care
when using the steering wheel heater. It
may cause burns even at low tempera-
tures, especially if used for long periods.
• Do not place anything on the steering
wheel that insulates against heat, such as a
blanket or steering wheel covers of any
type and material. This may cause the
steering wheel heater to overheat.
ELECTRONIC SPEED CONTROLWhen engaged, the Electronic Speed Control
takes over accelerator operations at speeds
greater than 25 mph (40 km/h).
The Electronic Speed Control buttons are lo-
cated on the right side of the steering wheel. NOTE:
In order to ensure proper operation, the
Electronic Speed Control System has been
designed to shut down if multiple Speed
Control functions are operated at the same
time. If this occurs, the Electronic Speed
Control System can be reactivated by push-
ing the Electronic Speed Control ON/OFF
button and resetting the desired vehicle set
speed.
1 — ON/OFF 2 — RES +
4 — CANCEL 3 — SET -
11 5
Page 191 of 380

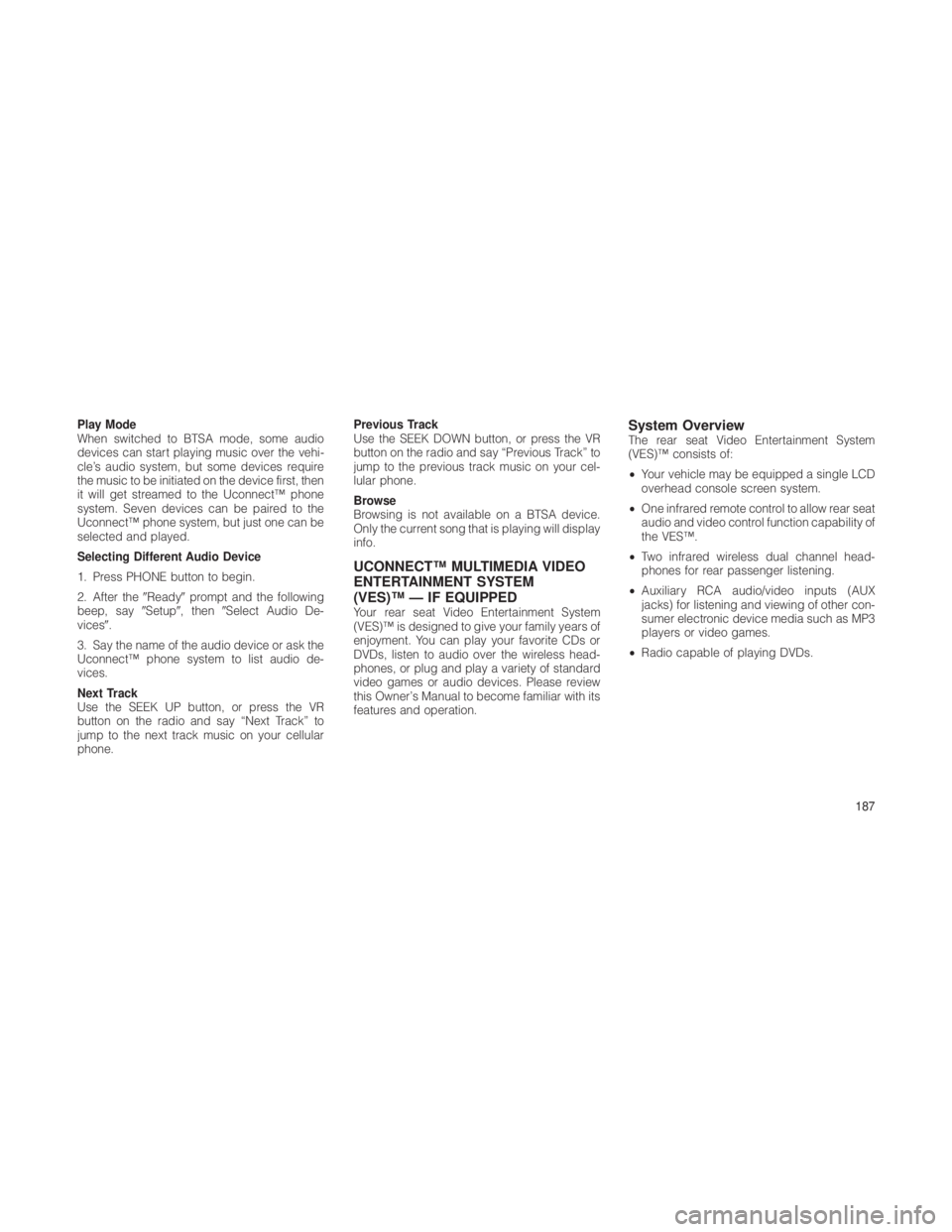

Play Mode
When switched to BTSA mode, some audio
devices can start playing music over the vehi-
cle’s audio system, but some devices require
the music to be initiated on the device first, then
it will get streamed to the Uconnect™ phone
system. Seven devices can be paired to the
Uconnect™ phone system, but just one can be
selected and played.
Selecting Different Audio Device
1. Press PHONE button to begin.
2. After theReadyprompt and the following
beep, say Setup, then Select Audio De-
vices.
3. Say the name of the audio device or ask the
Uconnect™ phone system to list audio de-
vices.
Next Track
Use the SEEK UP button, or press the VR
button on the radio and say “Next Track” to
jump to the next track music on your cellular
phone. Previous Track
Use the SEEK DOWN button, or press the VR
button on the radio and say “Previous Track” to
jump to the previous track music on your cel-
lular phone.
Browse
Browsing is not available on a BTSA device.
Only the current song that is playing will display
info.
UCONNECT™ MULTIMEDIA VIDEO
ENTERTAINMENT SYSTEM
(VES)™ — IF EQUIPPED
Your rear seat Video Entertainment System
(VES)™ is designed to give your family years of
enjoyment. You can play your favorite CDs or
DVDs, listen to audio over the wireless head-
phones, or plug and play a variety of standard
video games or audio devices. Please review
this Owner’s Manual to become familiar with its
features and operation.
System OverviewThe rear seat Video Entertainment System
(VES)™ consists of:
•
Your vehicle may be equipped a single LCD
overhead console screen system.
• One infrared remote control to allow rear seat
audio and video control function capability of
the VES™.
• Two infrared wireless dual channel head-
phones for rear passenger listening.
• Auxiliary RCA audio/video inputs (AUX
jacks) for listening and viewing of other con-
sumer electronic device media such as MP3
players or video games.
• Radio capable of playing DVDs.
187
Page 198 of 380

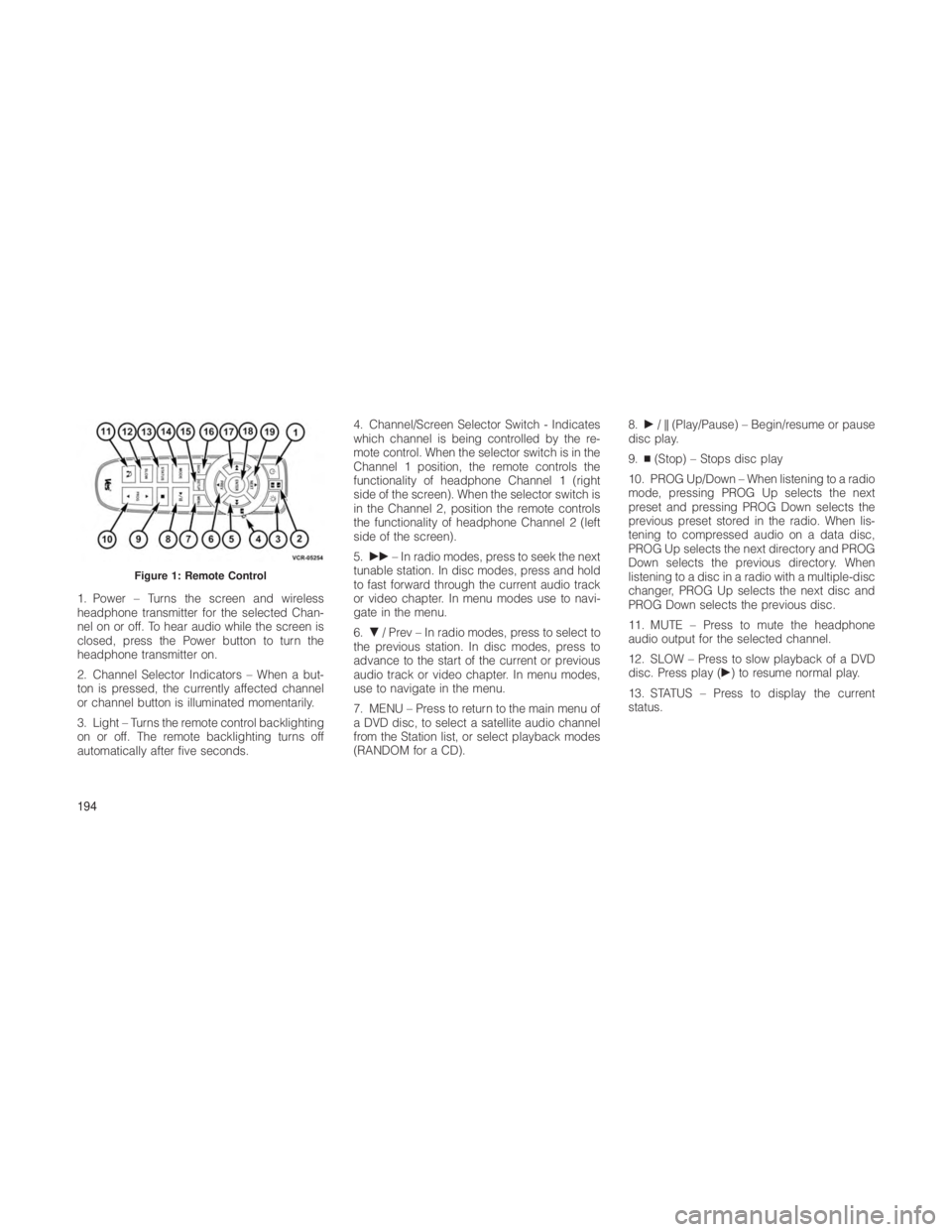

1. Power – Turns the screen and wireless
headphone transmitter for the selected Chan-
nel on or off. To hear audio while the screen is
closed, press the Power button to turn the
headphone transmitter on.
2. Channel Selector Indicators – When a but-
ton is pressed, the currently affected channel
or channel button is illuminated momentarily.
3. Light – Turns the remote control backlighting
on or off. The remote backlighting turns off
automatically after five seconds.4. Channel/Screen Selector Switch - Indicates
which channel is being controlled by the re-
mote control. When the selector switch is in the
Channel 1 position, the remote controls the
functionality of headphone Channel 1 (right
side of the screen). When the selector switch is
in the Channel 2, position the remote controls
the functionality of headphone Channel 2 (left
side of the screen).
5.
– In radio modes, press to seek the next
tunable station. In disc modes, press and hold
to fast forward through the current audio track
or video chapter. In menu modes use to navi-
gate in the menu.
6. / Prev – In radio modes, press to select to
the previous station. In disc modes, press to
advance to the start of the current or previous
audio track or video chapter. In menu modes,
use to navigate in the menu.
7. MENU – Press to return to the main menu of
a DVD disc, to select a satellite audio channel
from the Station list, or select playback modes
(RANDOM for a CD). 8.
/ (Play/Pause) – Begin/resume or pause
disc play.
9. (Stop) – Stops disc play
10. PROG Up/Down – When listening to a radio
mode, pressing PROG Up selects the next
preset and pressing PROG Down selects the
previous preset stored in the radio. When lis-
tening to compressed audio on a data disc,
PROG Up selects the next directory and PROG
Down selects the previous directory. When
listening to a disc in a radio with a multiple-disc
changer, PROG Up selects the next disc and
PROG Down selects the previous disc.
11. MUTE – Press to mute the headphone
audio output for the selected channel.
12. SLOW – Press to slow playback of a DVD
disc. Press play () to resume normal play.
13. STATUS – Press to display the current
status.
Figure 1: Remote Control
194
Page 292 of 380

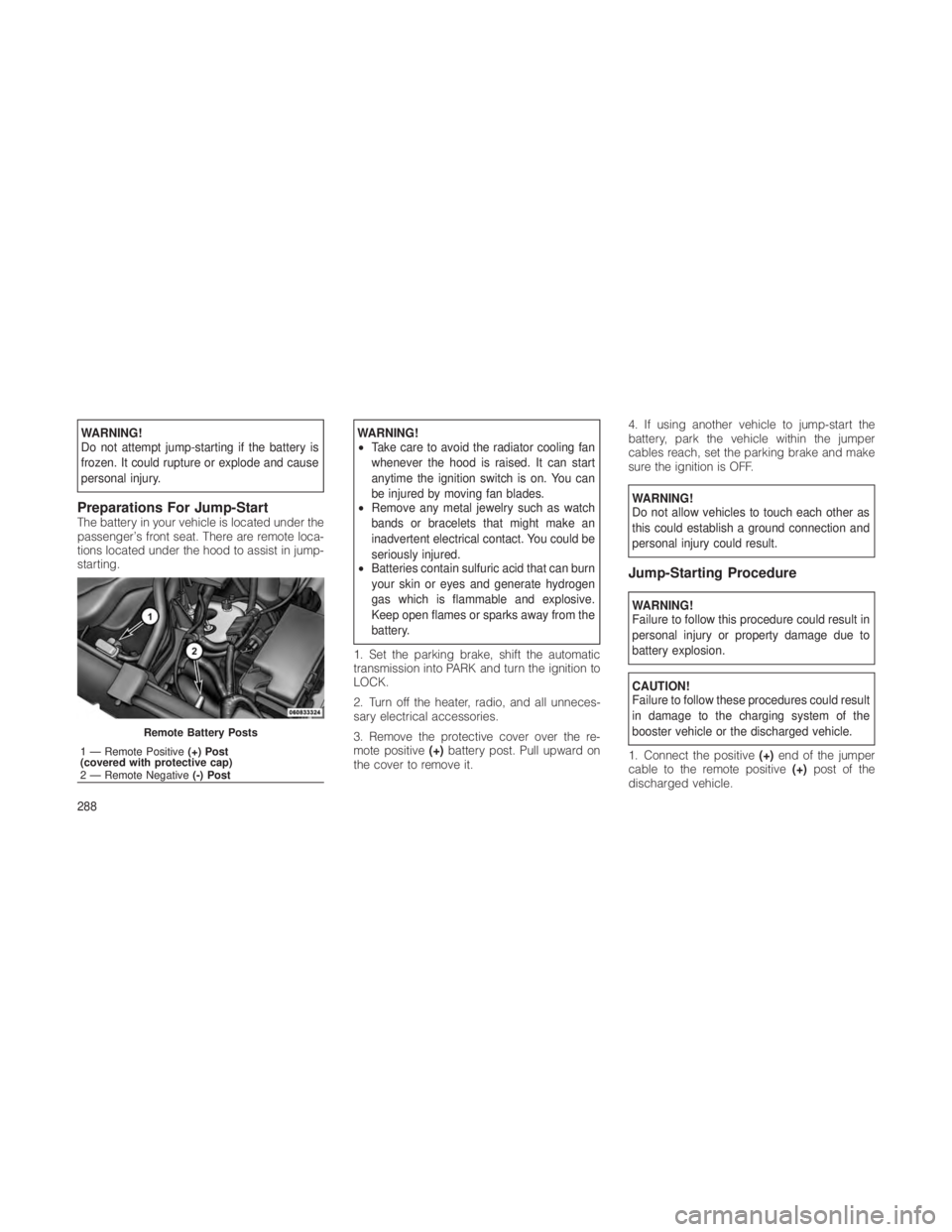

WARNING!
Do not attempt jump-starting if the battery is
frozen. It could rupture or explode and cause
personal injury.
Preparations For Jump-StartThe battery in your vehicle is located under the
passenger’s front seat. There are remote loca-
tions located under the hood to assist in jump-
starting.
WARNING!
•Take care to avoid the radiator cooling fan
whenever the hood is raised. It can start
anytime the ignition switch is on. You can
be injured by moving fan blades.
• Remove any metal jewelry such as watch
bands or bracelets that might make an
inadvertent electrical contact. You could be
seriously injured.
• Batteries contain sulfuric acid that can burn
your skin or eyes and generate hydrogen
gas which is flammable and explosive.
Keep open flames or sparks away from the
battery.
1. Set the parking brake, shift the automatic
transmission into PARK and turn the ignition to
LOCK.
2. Turn off the heater, radio, and all unneces-
sary electrical accessories.
3. Remove the protective cover over the re-
mote positive (+)battery post. Pull upward on
the cover to remove it. 4. If using another vehicle to jump-start the
battery, park the vehicle within the jumper
cables reach, set the parking brake and make
sure the ignition is OFF.
WARNING!
Do not allow vehicles to touch each other as
this could establish a ground connection and
personal injury could result.
Jump-Starting Procedure
WARNING!
Failure to follow this procedure could result in
personal injury or property damage due to
battery explosion.
CAUTION!
Failure to follow these procedures could result
in damage to the charging system of the
booster vehicle or the discharged vehicle.
1. Connect the positive (+)end of the jumper
cable to the remote positive (+)post of the
discharged vehicle.
Remote Battery Posts
1 — Remote Positive (+) Post
(covered with protective cap)
2 — Remote Negative (-) Post
288
