NOTE:
You can insert the double-sided emergency
key into the lock cylinders with either side
up.
Removing Key Fob From IgnitionPlace the shift lever in PARK. Turn the Key Fob
to the OFF position and then remove the Key
Fob.
With the Keyless Enter-N-Go feature, the EVIC
will display the ignition switch position “OFF/
ACC/RUN”. Refer to “Electronic Vehicle Infor-
mation Center (EVIC)” in “Understanding Your
Instrument Panel” for further information.NOTE:
•
If you try to remove the Key Fob before
you place the shift lever in PARK, it may
become trapped temporarily in the igni-
tion switch. If this occurs, place the shift
lever in PARK, rotate the key to the right
slightly, then remove the Key Fob as de-
scribed. If a malfunction occurs, the sys-
tem may trap the key in the ignition switch
to warn you that this safety feature is
inoperable. The engine can be started and
stopped, but the Key Fob cannot be re-
moved until you obtain service.
• The power window switches, radio, power
sunroof (if equipped), and power outlets
will remain active for up to 10 minutes
after the ignition switch is turned to the
OFF position. Opening either front door
will cancel this feature. The time for this
feature is programmable. Refer to “Elec-
tronic Vehicle Information Center (EVIC)/
Personal Settings (Customer-Program-
mable Features)” in “Understanding Your
Instrument Panel” for further information.
CAUTION!
•If your vehicle battery becomes low or
dead, your Key Fob will become locked in
the ignition.
• Do not attempt to remove the Key Fob
while in this condition, damage could occur
to the Key Fob or ignition module. Only
remove the emergency key for locking and
unlocking the doors.
• Leave the Key Fob in the ignition and
either:
• Jump Start the vehicle.
• Charge the battery.
WARNING!
•When leaving the vehicle, always remove
the key fob from the ignition and lock your
vehicle.
• Never leave children alone in a vehicle, or
with access to an unlocked vehicle.
(Continued)
Emergency Key Removal
13
Page 30 of 380
NOTE:
If the window runs into any obstacle during
Auto Up it will reverse direction and then go
back down. Remove the obstacle and use
the window switch again to close the win-
dow. Any impact due to rough road condi-
tions may trigger the auto reverse function
unexpectedly during Auto Up. If this hap-
pens, pull the switch lightly to the first
detent and hold it to close the window manu-
ally.
WARNING!
There is no anti-pinch protection when the
window is almost closed. Be sure to clear all
objects from the window before closing.
Resetting The Auto Up Feature
Should the Auto Up feature stop working, the
window probably needs to be reset. To reset
Auto Up:
1. Pull the window switch up to close the
window completely and continue to hold the
switch up for an additional two seconds after
the window is closed. 2. Push the window switch down firmly to the
second detent to open the window completely
and continue to hold the switch down for an
additional two seconds after the window is fully
open.
Window Lockout Button
The Window Lockout button on the driver’s
door allows you to disable the window controls
on the rear doors. To disable the window con-
trols on the rear doors, press the Window
Lockout button. To enable the window controls,
press the Window Lockout button again.
Wind Buffeting
Wind buffeting can be described as the per-
ception of pressure on the ears or a helicopter-
type sound in the ears. Your vehicle may exhibit
wind buffeting with the windows down, or the
sunroof (if equipped) in certain open or partially
open positions. This is a normal occurrence
and can be minimized. If the buffeting occurs
with the sunroof open, adjust the sunroof open-
ing to minimize the buffeting.
LIFTGATETo open the liftgate, pull up on the handle and
lift. Manually unlocking the vehicle doors with
the plunger or a key in the lock cylinder will not
unlock the liftgate.
Window Lockout Button
26
Page 44 of 380
NOTE:
•Should a vehicle rollover occur, the pre-
tensioners and/or SAB and SABIC air
bags on both sides of the vehicle may
deploy.
• Air Bag covers may not be obvious in the
interior trim, but they will open during air
bag deployment.
• Being too close to the SAB and SABIC air
bags during deployment could cause you
to be severely injured or killed.
The system includes side impact sensors that
are calibrated to deploy the side air bags
during impacts that require air bag occupant
protection.WARNING!
• Your vehicle is equipped with left and right
Supplemental Side Air Bag Inflatable Cur-
tain (SABIC), do not stack luggage or other
cargo up high enough to block the location
of the SABIC. The area where the SABIC is
located should remain free from any ob-
structions.
• Do not use accessory seat covers or place
objects between you and the side air bags;
the performance could be adversely af-
fected and/or objects could be pushed into
you, causing serious injury.
• Your vehicle is equipped with SABIC air
bags, do not have any accessory items
installed which will alter the roof, including
adding a sunroof to your vehicle. Do not
add roof racks that require permanent at-
tachments (bolts or screws) for installation
on the vehicle roof. Do not drill into the roof
of the vehicle for any reason. Supplemental Driver Side Knee Air Bag
The Supplemental Driver Side Knee Air Bag
provides enhanced protection and works to-
gether with the Driver Advanced Front Air Bag
during a frontal impact.
Knee Impact Bolster
The Knee Impact Bolster helps protect the
knees of the front passenger, and position the
front occupant for the best interaction with the
Advanced Front Air Bag.
Along with seat belts and pretensioners, Ad-
vanced Front Air Bags work with the Supple-
mental Driver Side Knee Air Bag and the pas-
senger side knee bolster to provide improved
protection for the front passenger. Side air bags
also work with seat belts to improve occupant
protection.
Here are some simple steps you can take to
minimize the risk of harm from a deploying air
bag:
Children 12 years old and under should always
ride buckled up in a rear seat.
40
Page 68 of 380
•ParkSense System Usage Precautions ........... 135
• PARKVIEW REAR BACK UP CAMERA — IF EQUIPPED . . . 136
• Turning ParkView On Or Off — With Navigation/
Multimedia Radio ........................ 138
• Turning ParkView On Or Off — Without Navigation/
Multimedia Radio ........................ 138
• OVERHEAD CONSOLE ....................... 138
• Courtesy/Reading Lights .................... 138
• Sunglasses Storage ...................... 138
• POWER SUNROOF — IF EQUIPPED ............... 139
• Opening Sunroof — Express ................. 139
• Opening Sunroof — Manual .................. 139
• Closing Sunroof — Express .................. 139
• Closing Sunroof — Manual Mode .............. 139
• Pinch Protect Feature ..................... 139
• Venting Sunroof — Express .................. 140
• Sunshade Operation ...................... 140
• Wind Buffeting .......................... 140
• Sunroof Maintenance ...................... 140
• Ignition OFF Operation ..................... 140
64
Page 69 of 380

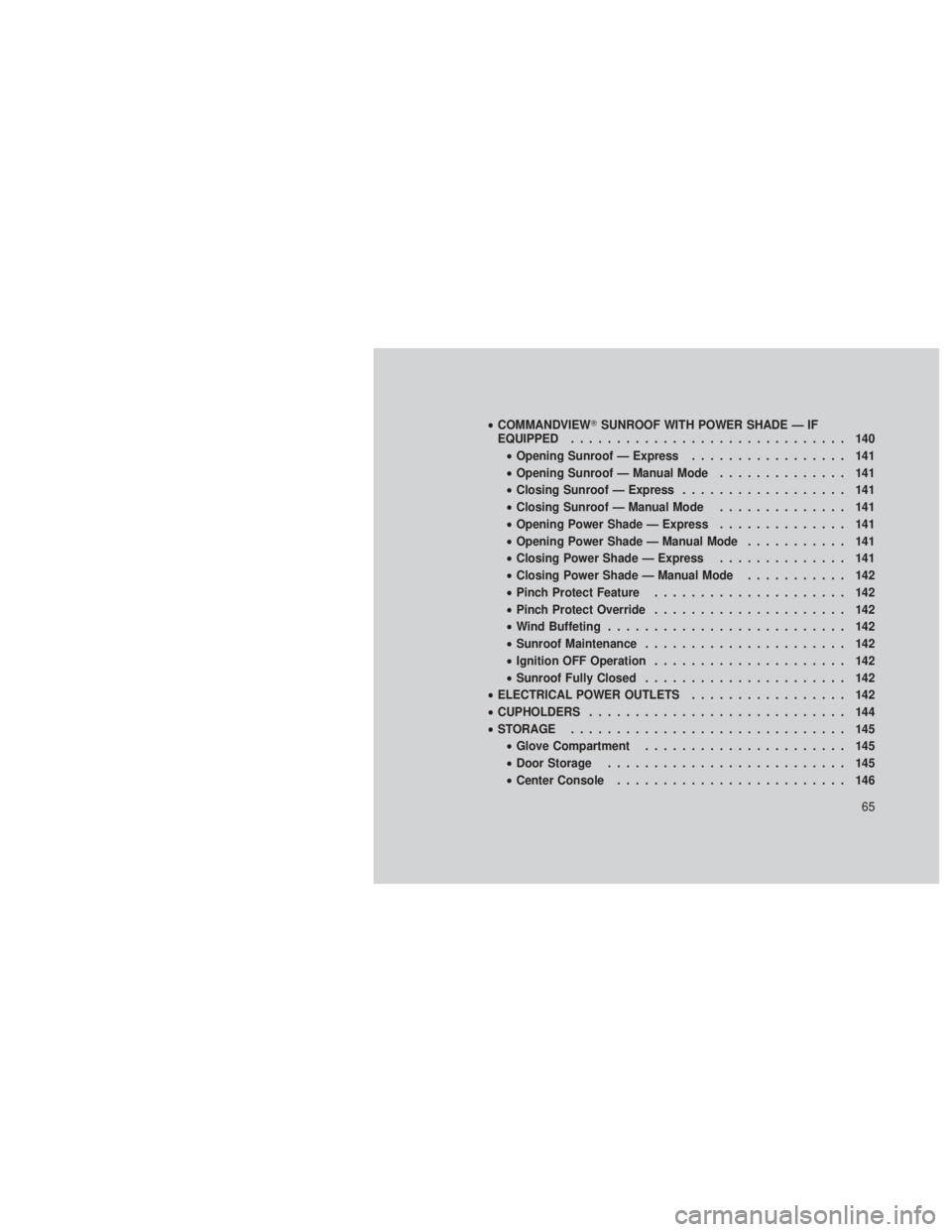

•COMMANDVIEW SUNROOF WITH POWER SHADE — IF
EQUIPPED .............................. 140
• Opening Sunroof — Express ................. 141
• Opening Sunroof — Manual Mode .............. 141
• Closing Sunroof — Express .................. 141
• Closing Sunroof — Manual Mode .............. 141
• Opening Power Shade — Express .............. 141
• Opening Power Shade — Manual Mode ........... 141
• Closing Power Shade — Express .............. 141
• Closing Power Shade — Manual Mode ........... 142
• Pinch Protect Feature ..................... 142
• Pinch Protect Override ..................... 142
• Wind Buffeting .......................... 142
• Sunroof Maintenance ...................... 142
• Ignition OFF Operation ..................... 142
• Sunroof Fully Closed ...................... 142
• ELECTRICAL POWER OUTLETS ................. 142
• CUPHOLDERS ............................ 144
• STORAGE .............................. 145
• Glove Compartment ...................... 145
• Door Storage .......................... 145
• Center Console ......................... 146
65
Page 70 of 380

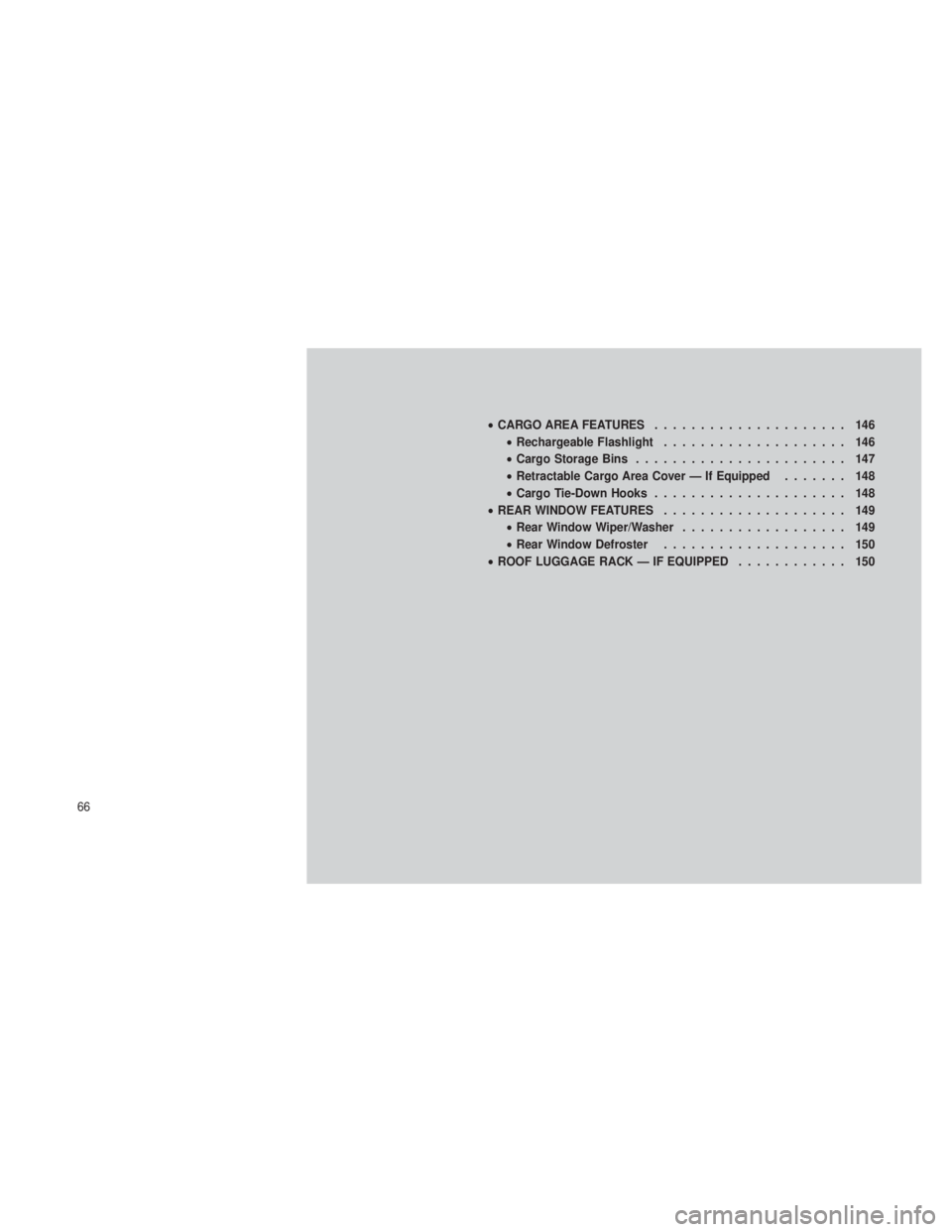

•CARGO AREA FEATURES ..................... 146
• Rechargeable Flashlight .................... 146
• Cargo Storage Bins ....................... 147
• Retractable Cargo Area Cover — If Equipped ....... 148
• Cargo Tie-Down Hooks ..................... 148
• REAR WINDOW FEATURES .................... 149
• Rear Window Wiper/Washer .................. 149
• Rear Window Defroster .................... 150
• ROOF LUGGAGE RACK — IF EQUIPPED ............ 150
66
Page 142 of 380
Turning ParkViewOn Or Off —
With Navigation/Multimedia Radio
1. Press the “menu” hard-key.
2. Select “system setup” soft-key.
3. Press the “camera setup” soft-key.
4. Enable or disable the rear camera feature by
selecting the “enable rear camera in reverse”
soft-key.
5. Press the “save” soft-key.
Turning ParkView On Or Off —
Without Navigation/Multimedia
Radio
1. Press the “menu” hard-key.
2. Select “system setup” soft-key.
3. Enable or disable the rear camera feature by
selecting “enable rear camera in reverse” soft-
key and pressing the “save” soft-key.
OVERHEAD CONSOLEThe overhead console contains courtesy/
reading lights and storage for sunglasses.
Power liftgate and power sunroof switches may
also be included, if equipped.
Courtesy/Reading LightsLocated on the overhead console are two
courtesy/reading lights. Press the lens to turn
these lights on. Press a second time to turn the
lights off. The lights also turn on when a front door or rear
door is opened, when the UNLOCK button on
the Remote Keyless Entry (RKE) transmitter is
pressed, or when the dimmer wheel is moved
up to the dome ON position.Sunglasses StorageAt the rear of the console a compartment is
provided for the storage of a pair of sun-
glasses.
The storage compartment access is a “push/
push” design. Push the chrome pad on the
door to open. Push the chrome pad on the door
to close.
Overhead Console
Courtesy/Reading Lights
138
Page 143 of 380
POWER SUNROOF — IF EQUIPPEDThe power sunroof switch is located between
the sun visors on the overhead console.
WARNING!
•Never leave children in a vehicle with the
key in the ignition switch. Occupants, par-
ticularly unattended children, can become
entrapped by the power sunroof while op-
erating the power sunroof switch. Such
entrapment may result in serious injury or
death.
• In a collision, there is a greater risk of being
thrown from a vehicle with an open sunroof.
You could also be seriously injured or killed.
Always fasten your seat belt properly and
make sure all passengers are properly se-
cured too.
• Do not allow small children to operate the
sunroof. Never allow your fingers, other
body parts, or any object to project through
the sunroof opening. Injury may result.
Opening Sunroof — ExpressPress the switch rearward and release it within
one-half second and the sunroof will open
automatically from any position. The sunroof
will open fully and stop automatically. This is called “Express Open”. During Express Open
operation, any movement of the sunroof switch
will stop the sunroof.
Opening Sunroof — ManualTo open the sunroof, press and hold the switch
rearward to full open. Any release of the switch
will stop the movement and the sunroof will
remain in a partially opened condition until the
switch is pushed and held rearward again.
Closing Sunroof — ExpressTo close the sunroof, press and hold the switch
in the forward position. Any release of the
switch will stop the movement and the sunroof
will remain in a partially closed condition until
the switch is pushed and held forward again.
Closing Sunroof — Manual ModeTo close the sunroof, press and hold the switch
in the forward position. Any release of the
switch will stop the movement and the sunroof
will remain in a partially closed condition until
the switch is pushed and held forward again.
Pinch Protect FeatureThis feature will detect an obstruction in the
opening of the sunroof during Express Close
Sunglass Storage
Power Sunroof Switch
139
Page 144 of 380

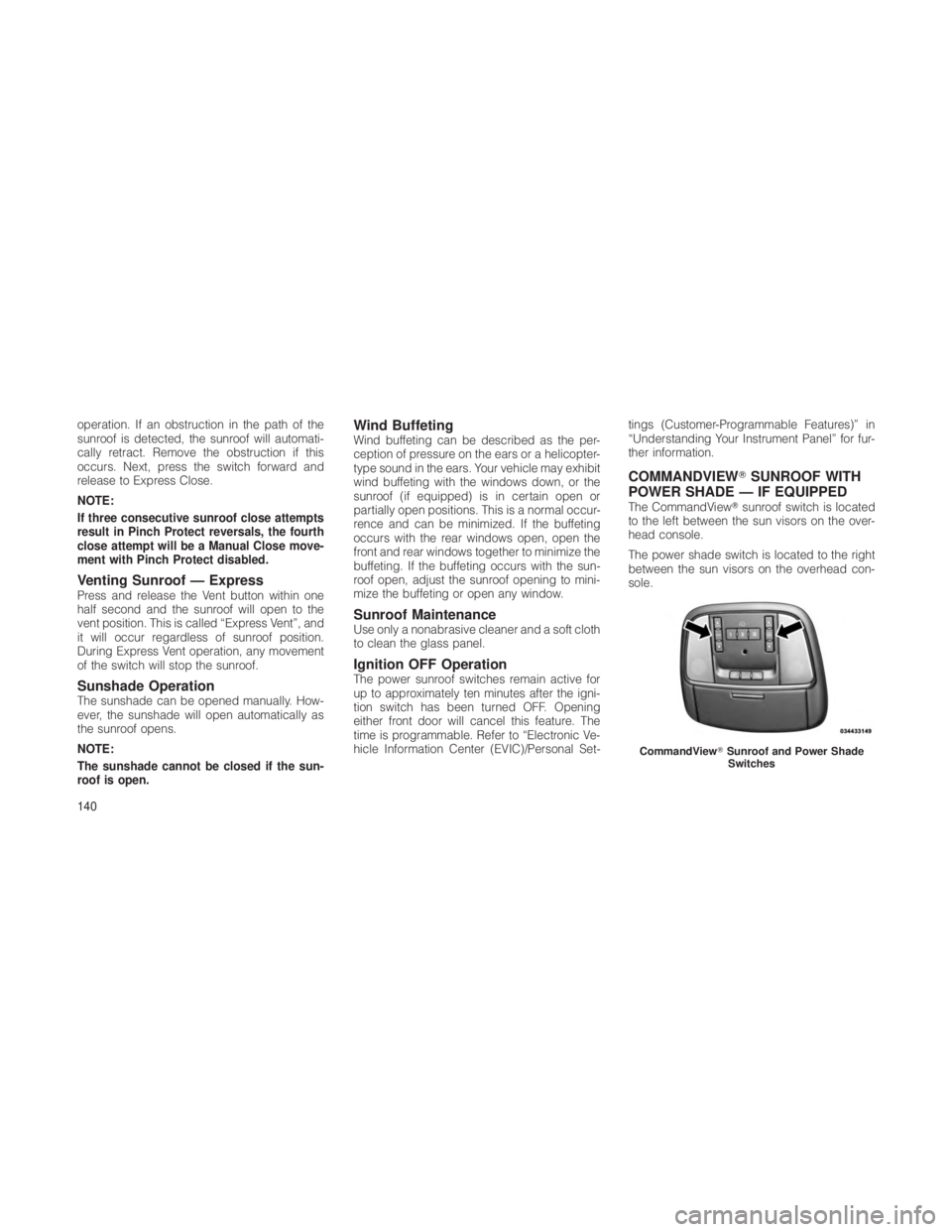

operation. If an obstruction in the path of the
sunroof is detected, the sunroof will automati-
cally retract. Remove the obstruction if this
occurs. Next, press the switch forward and
release to Express Close.
NOTE:
If three consecutive sunroof close attempts
result in Pinch Protect reversals, the fourth
close attempt will be a Manual Close move-
ment with Pinch Protect disabled.
Venting Sunroof — ExpressPress and release the Vent button within one
half second and the sunroof will open to the
vent position. This is called “Express Vent”, and
it will occur regardless of sunroof position.
During Express Vent operation, any movement
of the switch will stop the sunroof.
Sunshade OperationThe sunshade can be opened manually. How-
ever, the sunshade will open automatically as
the sunroof opens.
NOTE:
The sunshade cannot be closed if the sun-
roof is open.
Wind BuffetingWind buffeting can be described as the per-
ception of pressure on the ears or a helicopter-
type sound in the ears. Your vehicle may exhibit
wind buffeting with the windows down, or the
sunroof (if equipped) is in certain open or
partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting
occurs with the rear windows open, open the
front and rear windows together to minimize the
buffeting. If the buffeting occurs with the sun-
roof open, adjust the sunroof opening to mini-
mize the buffeting or open any window.
Sunroof MaintenanceUse only a nonabrasive cleaner and a soft cloth
to clean the glass panel.
Ignition OFF OperationThe power sunroof switches remain active for
up to approximately ten minutes after the igni-
tion switch has been turned OFF. Opening
either front door will cancel this feature. The
time is programmable. Refer to “Electronic Ve-
hicle Information Center (EVIC)/Personal Set-tings (Customer-Programmable Features)” in
“Understanding Your Instrument Panel” for fur-
ther information.
COMMANDVIEW
SUNROOF WITH
POWER SHADE — IF EQUIPPED
The CommandView sunroof switch is located
to the left between the sun visors on the over-
head console.
The power shade switch is located to the right
between the sun visors on the overhead con-
sole.
CommandView Sunroof and Power Shade
Switches
140
Page 145 of 380
WARNING!
•Never leave children in a vehicle with the
key in the ignition switch. Occupants, par-
ticularly unattended children, can become
entrapped by the power sunroof while op-
erating the power sunroof switch. Such
entrapment may result in serious injury or
death.
• In a collision, there is a greater risk of being
thrown from a vehicle with an open sunroof.
You could also be seriously injured or killed.
Always fasten your seat belt properly and
make sure all passengers are properly se-
cured too.
• Do not allow small children to operate the
sunroof. Never allow your fingers, other
body parts, or any object to project through
the sunroof opening. Injury may result.
Opening Sunroof — ExpressPress the switch rearward and release it within
one-half second and the sunroof will open
automatically from any position. The sunroof
will open fully and stop automatically. This is called “Express Open”. During Express Open
operation, any movement of the sunroof switch
will stop the sunroof.
Opening Sunroof — Manual ModeTo open the sunroof, press and hold the switch
rearward to full open. Any release of the switch
will stop the movement and the sunroof will
remain in a partially opened condition until the
switch is pushed and held rearward again.
Closing Sunroof — ExpressPress the switch forward and release it within
one-half second and the sunroof will close
automatically from any position. The sunroof
will close fully and stop automatically. This is
called “Express Close”. During Express Close
operation, any movement of the switch will stop
the sunroof.
Closing Sunroof — Manual ModeTo close the sunroof, press and hold the switch
in the forward position. Any release of the
switch will stop the movement and the sunroof
will remain in a partially closed condition until
the switch is pushed and held forward again.
Opening Power Shade — ExpressPress the shade switch rearward and release it
within one-half second and the shade will open
automatically from any position. The shade will
open fully and stop automatically. This is called
“Express Open”. During Express Open opera-
tion, any movement of the shade switch will
stop the shade.
Opening Power Shade — Manual
Mode
To open the shade, press and hold the switch
rearward to full open. Any release of the switch
will stop the movement and the shade will
remain in a partially opened condition until the
switch is pushed and held rearward again.
Closing Power Shade — ExpressPress the switch forward and release it within
one-half second and the shade will close auto-
matically from any position. The shade will
close fully and stop automatically. This is called
“Express Close”. During Express Close opera-
tion, any movement of the switch will stop the
shade.
141
