Page 71 of 380

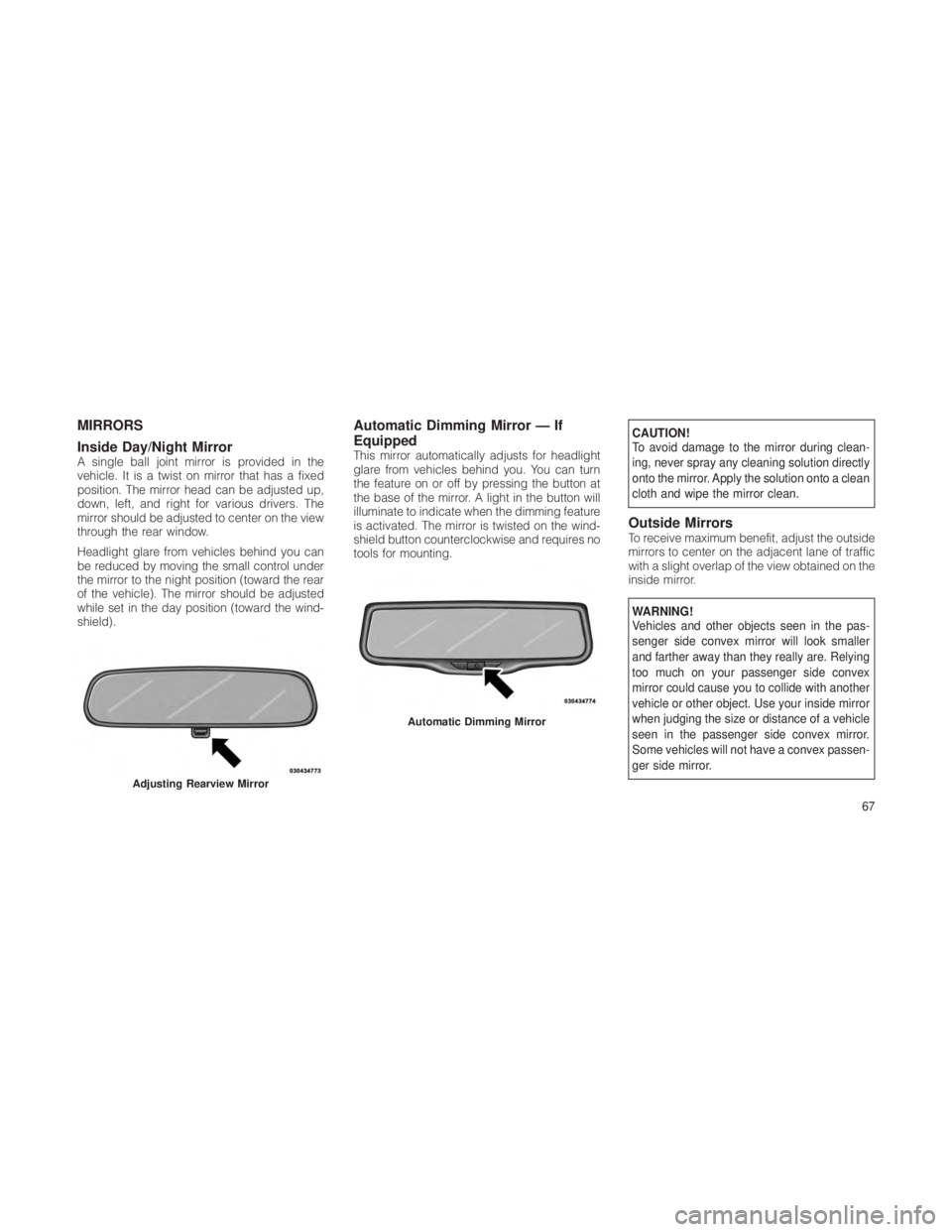

MIRRORS
Inside Day/Night Mirror
A single ball joint mirror is provided in the
vehicle. It is a twist on mirror that has a fixed
position. The mirror head can be adjusted up,
down, left, and right for various drivers. The
mirror should be adjusted to center on the view
through the rear window.
Headlight glare from vehicles behind you can
be reduced by moving the small control under
the mirror to the night position (toward the rear
of the vehicle). The mirror should be adjusted
while set in the day position (toward the wind-
shield).
Automatic Dimming Mirror — If
Equipped
This mirror automatically adjusts for headlight
glare from vehicles behind you. You can turn
the feature on or off by pressing the button at
the base of the mirror. A light in the button will
illuminate to indicate when the dimming feature
is activated. The mirror is twisted on the wind-
shield button counterclockwise and requires no
tools for mounting.
CAUTION!
To avoid damage to the mirror during clean-
ing, never spray any cleaning solution directly
onto the mirror. Apply the solution onto a clean
cloth and wipe the mirror clean.
Outside MirrorsTo receive maximum benefit, adjust the outside
mirrors to center on the adjacent lane of traffic
with a slight overlap of the view obtained on the
inside mirror.
WARNING!
Vehicles and other objects seen in the pas-
senger side convex mirror will look smaller
and farther away than they really are. Relying
too much on your passenger side convex
mirror could cause you to collide with another
vehicle or other object. Use your inside mirror
when judging the size or distance of a vehicle
seen in the passenger side convex mirror.
Some vehicles will not have a convex passen-
ger side mirror.
Adjusting Rearview Mirror
Automatic Dimming Mirror
67
Page 190 of 380

is highlighted on the radio display, press
theTUNE control knob to select and start
playing the track. Turning the TUNEcon-
trol knob fast will scroll through the list
faster. During fast scroll, a slight delay in
updating the information on the radio dis-
play may be noticeable.
• During all List modes, the iPod displays
all lists in “wrap-around” mode. So if the
track is at the bottom of the list, just turn
the wheel backward (counterclockwise)
to get to the track faster.
• In List mode, the radio PRESETbuttons
are used as shortcuts to the following lists
on the iPod or external USB device.
• Preset 1 – Playlists
• Preset2–Ar tists
• Preset 3 – Albums
• Preset 4 – Genres
• Preset 5 – Audiobooks
• Preset 6 – Podcasts •
Pressing a PRESET button will display the
current list on the top line and the first item
in that list on the second line.
• To exit List mode without selecting a
track, press the same PRESETbutton
again to go back to Play mode.
• LIST button: The LISTbutton will display the
top level menu of the iPod or external USB
device. Turn the TUNEcontrol knob to list the
top-menu item to be selected and press the
TUNE control knob. This will display the next
sub-menu list item on the audio device, then
follow the same steps to go to the desired
track in that list. Not all iPod or external USB
device sub-menu levels are available on this
system.
• MUSIC TYPE button: TheMUSIC TYPE but-
ton is another shortcut button to the genre
listing on your audio device.CAUTION!
• Leaving the iPod or external USB device
(or any supported device) anywhere in the
vehicle in extreme heat or cold can alter the
operation or damage the device. Follow the
device manufacturer’s guidelines.
• Placing items on the iPod or external USB
device, or connections to the iPod or
external USB device in the vehicle, can
cause damage to the device and/or to the
connectors.
WARNING!
Do not plug in or remove the iPod or external
USB device while driving. Failure to follow this
warning could result in an accident.
Bluetooth Streaming Audio (BTSA)Music can be streamed from your cellular
phone to the Uconnect™ phone system.
Controlling BTSA Using Radio Buttons
To get into the BTSA mode, press either “AUX”
button on the radio or press the VR button and
say “Bluetooth Streaming Audio”.
186
Page 211 of 380

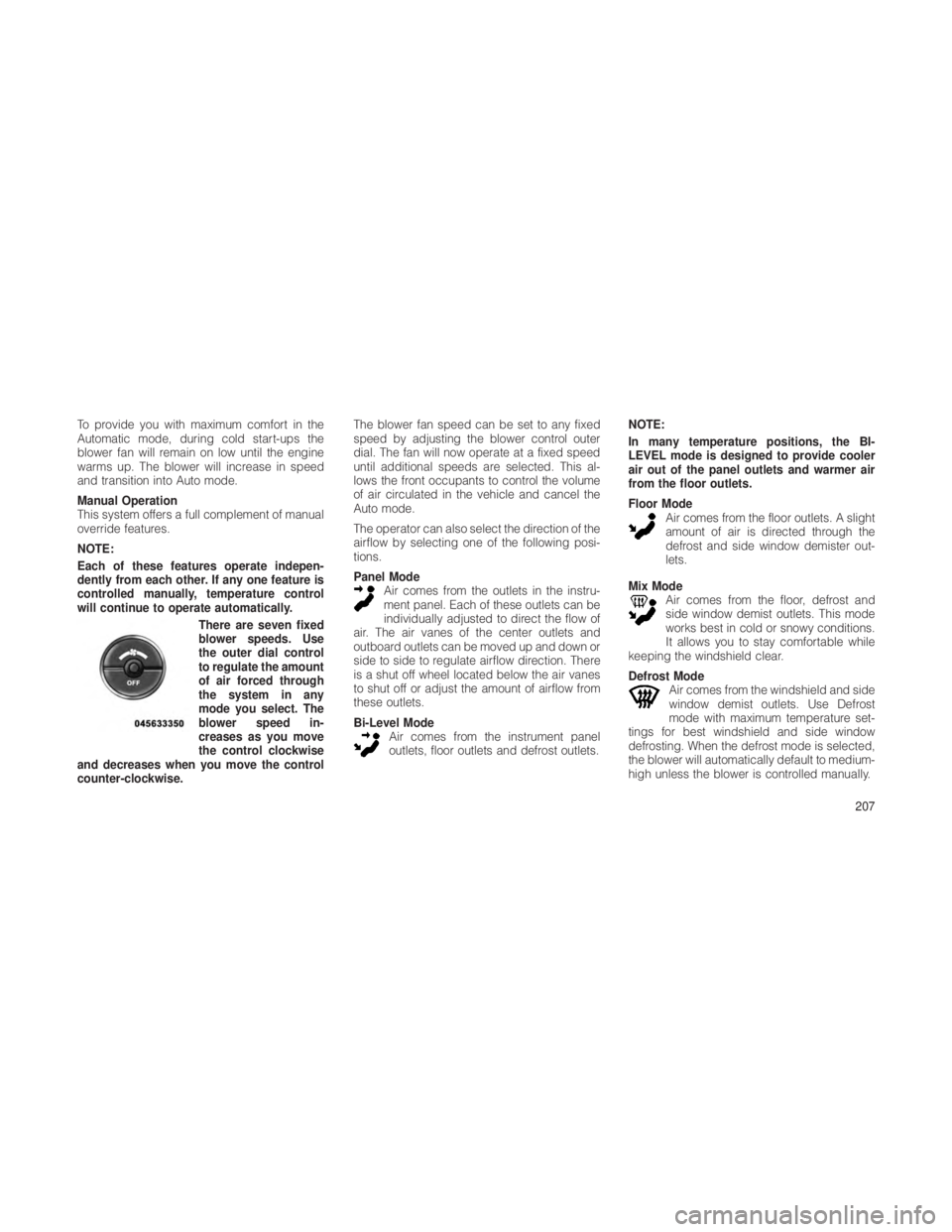

To provide you with maximum comfort in the
Automatic mode, during cold start-ups the
blower fan will remain on low until the engine
warms up. The blower will increase in speed
and transition into Auto mode.
Manual Operation
This system offers a full complement of manual
override features.
NOTE:
Each of these features operate indepen-
dently from each other. If any one feature is
controlled manually, temperature control
will continue to operate automatically.There are seven fixed
blower speeds. Use
the outer dial control
to regulate the amount
of air forced through
the system in any
mode you select. The
blower speed in-
creases as you move
the control clockwise
and decreases when you move the control
counter-clockwise. The blower fan speed can be set to any fixed
speed by adjusting the blower control outer
dial. The fan will now operate at a fixed speed
until additional speeds are selected. This al-
lows the front occupants to control the volume
of air circulated in the vehicle and cancel the
Auto mode.
The operator can also select the direction of the
airflow by selecting one of the following posi-
tions.
Panel Mode
Air comes from the outlets in the instru-
ment panel. Each of these outlets can be
individually adjusted to direct the flow of
air. The air vanes of the center outlets and
outboard outlets can be moved up and down or
side to side to regulate airflow direction. There
is a shut off wheel located below the air vanes
to shut off or adjust the amount of airflow from
these outlets.
Bi-Level Mode Air comes from the instrument panel
outlets, floor outlets and defrost outlets. NOTE:
In many temperature positions, the BI-
LEVEL mode is designed to provide cooler
air out of the panel outlets and warmer air
from the floor outlets.
Floor Mode
Air comes from the floor outlets. A slight
amount of air is directed through the
defrost and side window demister out-
lets.
Mix Mode Air comes from the floor, defrost and
side window demist outlets. This mode
works best in cold or snowy conditions.
It allows you to stay comfortable while
keeping the windshield clear.
Defrost Mode Air comes from the windshield and side
window demist outlets. Use Defrost
mode with maximum temperature set-
tings for best windshield and side window
defrosting. When the defrost mode is selected,
the blower will automatically default to medium-
high unless the blower is controlled manually.
207
Page 291 of 380

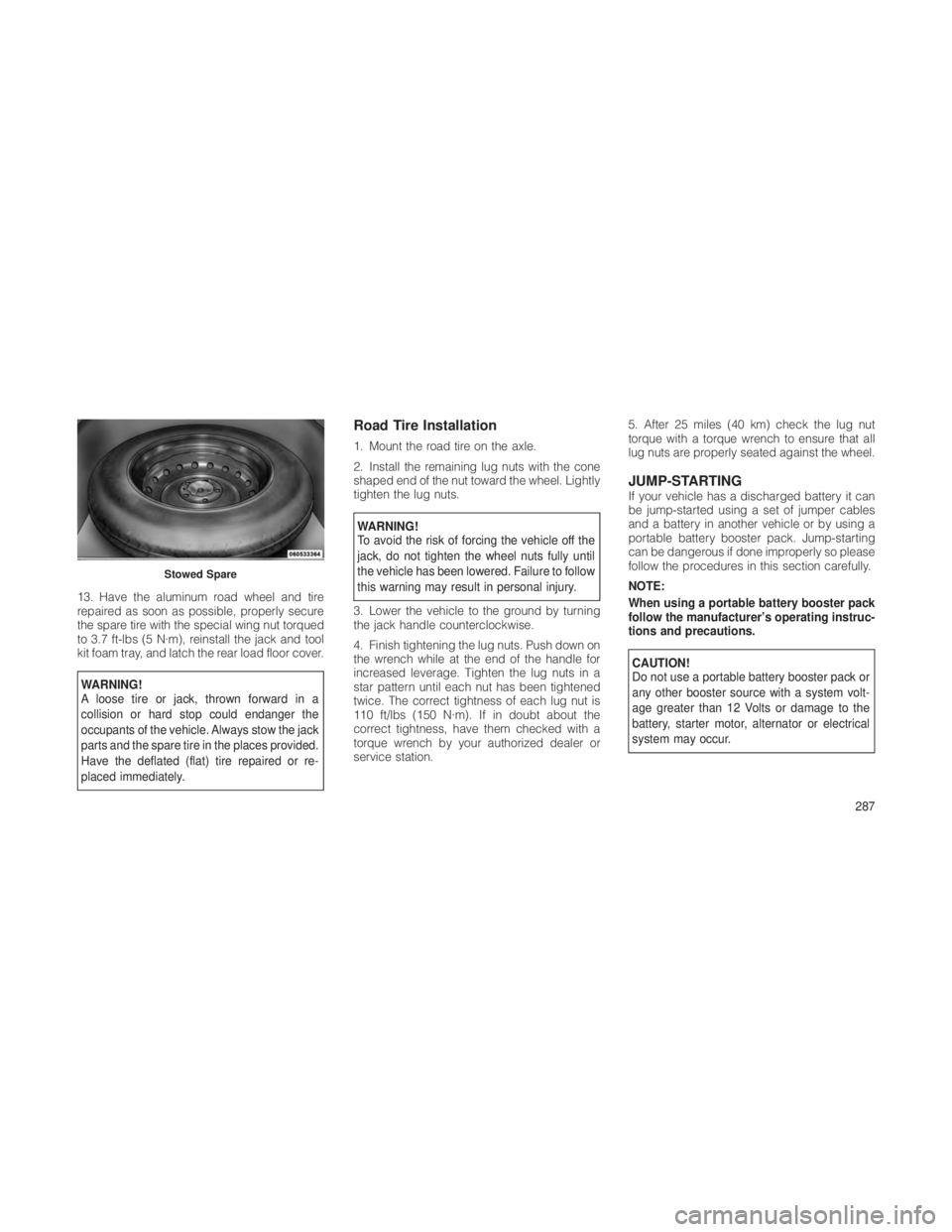

13. Have the aluminum road wheel and tire
repaired as soon as possible, properly secure
the spare tire with the special wing nut torqued
to 3.7 ft-lbs (5 N·m), reinstall the jack and tool
kit foam tray, and latch the rear load floor cover.
WARNING!
A loose tire or jack, thrown forward in a
collision or hard stop could endanger the
occupants of the vehicle. Always stow the jack
parts and the spare tire in the places provided.
Have the deflated (flat) tire repaired or re-
placed immediately.
Road Tire Installation
1. Mount the road tire on the axle.
2. Install the remaining lug nuts with the cone
shaped end of the nut toward the wheel. Lightly
tighten the lug nuts.
WARNING!
To avoid the risk of forcing the vehicle off the
jack, do not tighten the wheel nuts fully until
the vehicle has been lowered. Failure to follow
this warning may result in personal injury.
3. Lower the vehicle to the ground by turning
the jack handle counterclockwise.
4. Finish tightening the lug nuts. Push down on
the wrench while at the end of the handle for
increased leverage. Tighten the lug nuts in a
star pattern until each nut has been tightened
twice. The correct tightness of each lug nut is
110 ft/lbs (150 N·m). If in doubt about the
correct tightness, have them checked with a
torque wrench by your authorized dealer or
service station. 5. After 25 miles (40 km) check the lug nut
torque with a torque wrench to ensure that all
lug nuts are properly seated against the wheel.
JUMP-STARTINGIf your vehicle has a discharged battery it can
be jump-started using a set of jumper cables
and a battery in another vehicle or by using a
portable battery booster pack. Jump-starting
can be dangerous if done improperly so please
follow the procedures in this section carefully.
NOTE:
When using a portable battery booster pack
follow the manufacturer’s operating instruc-
tions and precautions.
CAUTION!
Do not use a portable battery booster pack or
any other booster source with a system volt-
age greater than 12 Volts or damage to the
battery, starter motor, alternator or electrical
system may occur.
Stowed Spare
287
