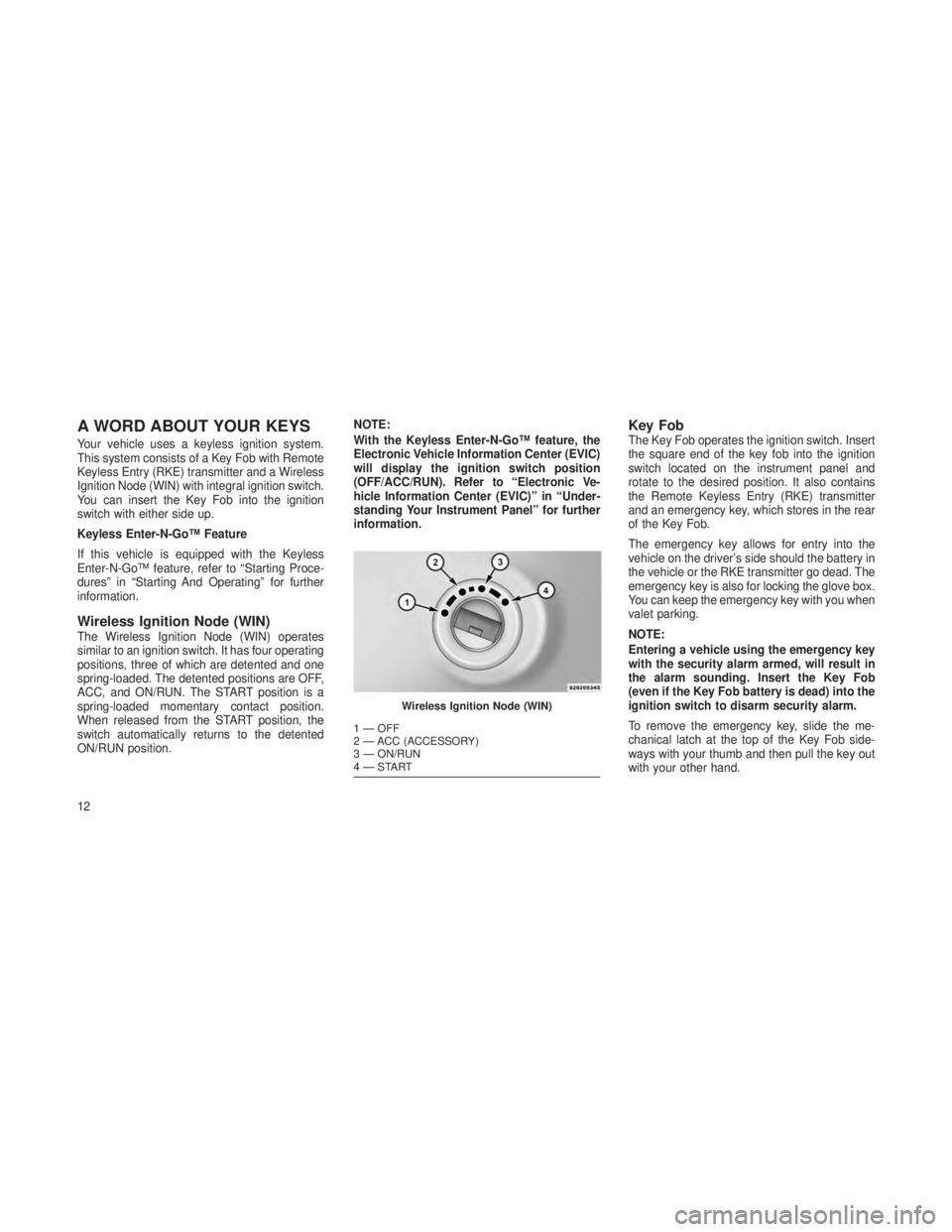

A WORD ABOUT YOUR KEYS
Your vehicle uses a keyless ignition system.
This system consists of a Key Fob with Remote
Keyless Entry (RKE) transmitter and a Wireless
Ignition Node (WIN) with integral ignition switch.
You can insert the Key Fob into the ignition
switch with either side up.
Keyless Enter-N-Go™ Feature
If this vehicle is equipped with the Keyless
Enter-N-Go™ feature, refer to “Starting Proce-
dures” in “Starting And Operating” for further
information.
Wireless Ignition Node (WIN)The Wireless Ignition Node (WIN) operates
similar to an ignition switch. It has four operating
positions, three of which are detented and one
spring-loaded. The detented positions are OFF,
ACC, and ON/RUN. The START position is a
spring-loaded momentary contact position.
When released from the START position, the
switch automatically returns to the detented
ON/RUN position.NOTE:
With the Keyless Enter-N-Go™ feature, the
Electronic Vehicle Information Center (EVIC)
will display the ignition switch position
(OFF/ACC/RUN). Refer to “Electronic Ve-
hicle Information Center (EVIC)” in “Under-
standing Your Instrument Panel” for further
information.
Key FobThe Key Fob operates the ignition switch. Insert
the square end of the key fob into the ignition
switch located on the instrument panel and
rotate to the desired position. It also contains
the Remote Keyless Entry (RKE) transmitter
and an emergency key, which stores in the rear
of the Key Fob.
The emergency key allows for entry into the
vehicle on the driver’s side should the battery in
the vehicle or the RKE transmitter go dead. The
emergency key is also for locking the glove box.
You can keep the emergency key with you when
valet parking.
NOTE:
Entering a vehicle using the emergency key
with the security alarm armed, will result in
the alarm sounding. Insert the Key Fob
(even if the Key Fob battery is dead) into the
ignition switch to disarm security alarm.
To remove the emergency key, slide the me-
chanical latch at the top of the Key Fob side-
ways with your thumb and then pull the key out
with your other hand.
Wireless Ignition Node (WIN)
1 — OFF
2 — ACC (ACCESSORY)
3 — ON/RUN
4—START
12

NOTE:You can insert the double-sided emergency
key into the lock cylinders with either side up.
Removing Key Fob From IgnitionPlace the shift lever in PARK. Turn the Key Fob to
the OFF position and then remove the Key Fob.
With the Keyless Enter-N-Go™ feature, the
EVIC will display the ignition switch position
“OFF/ACC/RUN”. Refer to “Electronic Vehicle
Information Center (EVIC)” in “Understanding
Your Instrument Panel” for further information.NOTE:
•
If you try to remove the Key Fob before
you place the shift lever in PARK, it may
become trapped temporarily in the igni-
tion switch. If this occurs, rotate the key
to the right slightly, then remove the Key
Fob as described. If a malfunction occurs,
the system will trap the key in the ignition
switch to warn you that this safety feature
is inoperable. The engine can be started
and stopped, but the Key Fob cannot be
removed until you obtain service.
•
The power window switches, radio, power
sunroof (if equipped), and power outlets will
remain active for up to 10 minutes after the
ignition switch is turned to the OFF position.
Opening either front door will cancel this
feature. The time for this feature is program-
mable. Refer to “Electronic Vehicle Informa-
tion Center (EVIC)/Personal Settings
(Customer-Programmable Features)” in “Un-
derstanding Your Instrument Panel” for fur-
ther information.
CAUTION!
• If your vehicle battery becomes low or
dead, your Key Fob will become locked in
the ignition.
• Do not attempt to remove the Key Fob
while in this condition, damage could occur
to the Key Fob or ignition module. Only
remove the emergency key for locking and
unlocking the doors.
• Leave the Key Fob in the ignition and
either:
• Jump Start the vehicle.
• Charge the battery.
WARNING!
•When leaving the vehicle, always remove
the Key Fob from the vehicle and lock your
vehicle.
• Never leave children alone in a vehicle, or
with access to an unlocked vehicle.
(Continued)
Emergency Key Removal
13

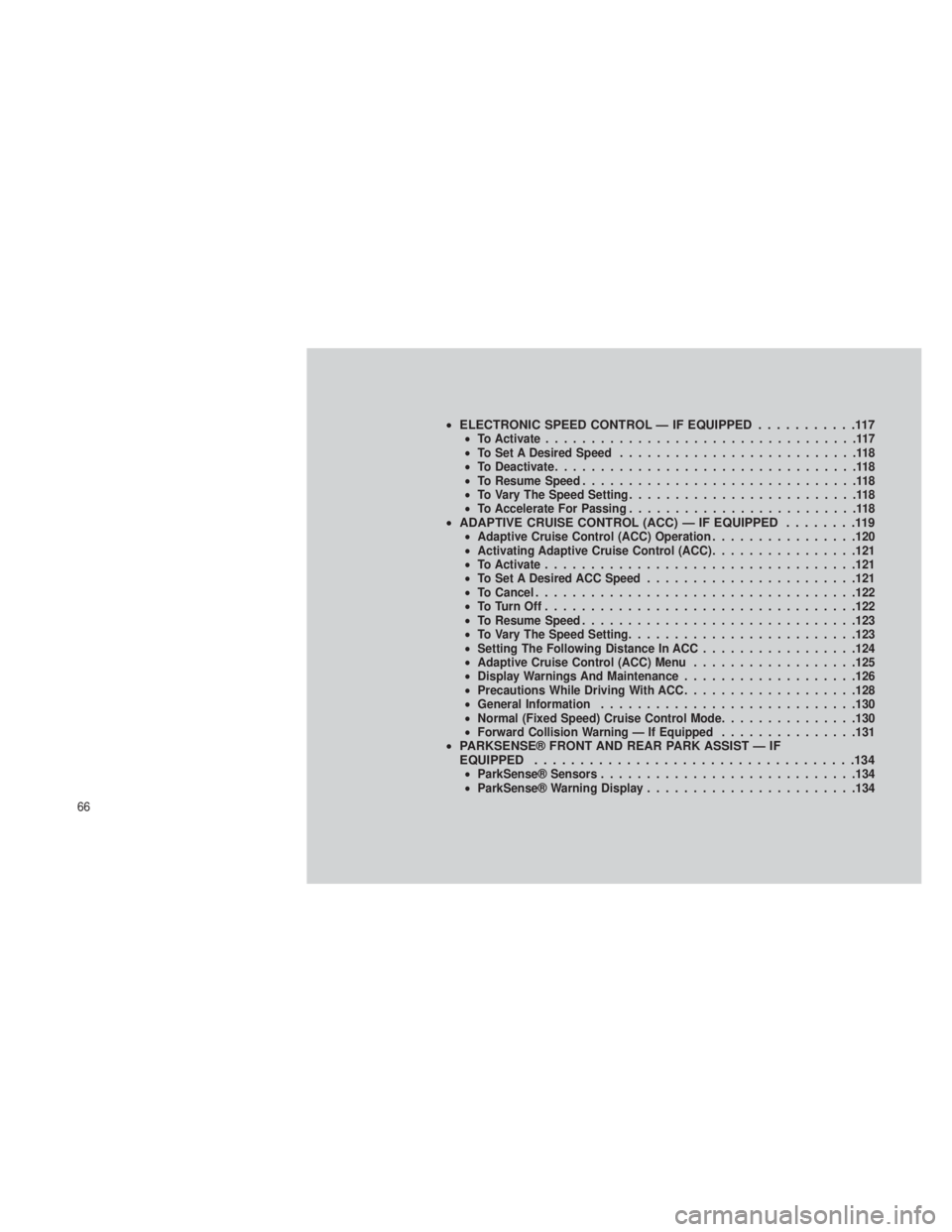

•ELECTRONIC SPEED CONTROL — IF EQUIPPED ...........117•To Activate ..................................117
• To Set A Desired Speed ..........................118
• To Deactivate .................................118
• To Resume Speed ..............................118
• To Vary The Speed Setting .........................118
• To Accelerate For Passing .........................118
•ADAPTIVE CRUISE CONTROL (ACC) — IF EQUIPPED ........119•Adaptive Cruise Control (ACC) Operation ................120

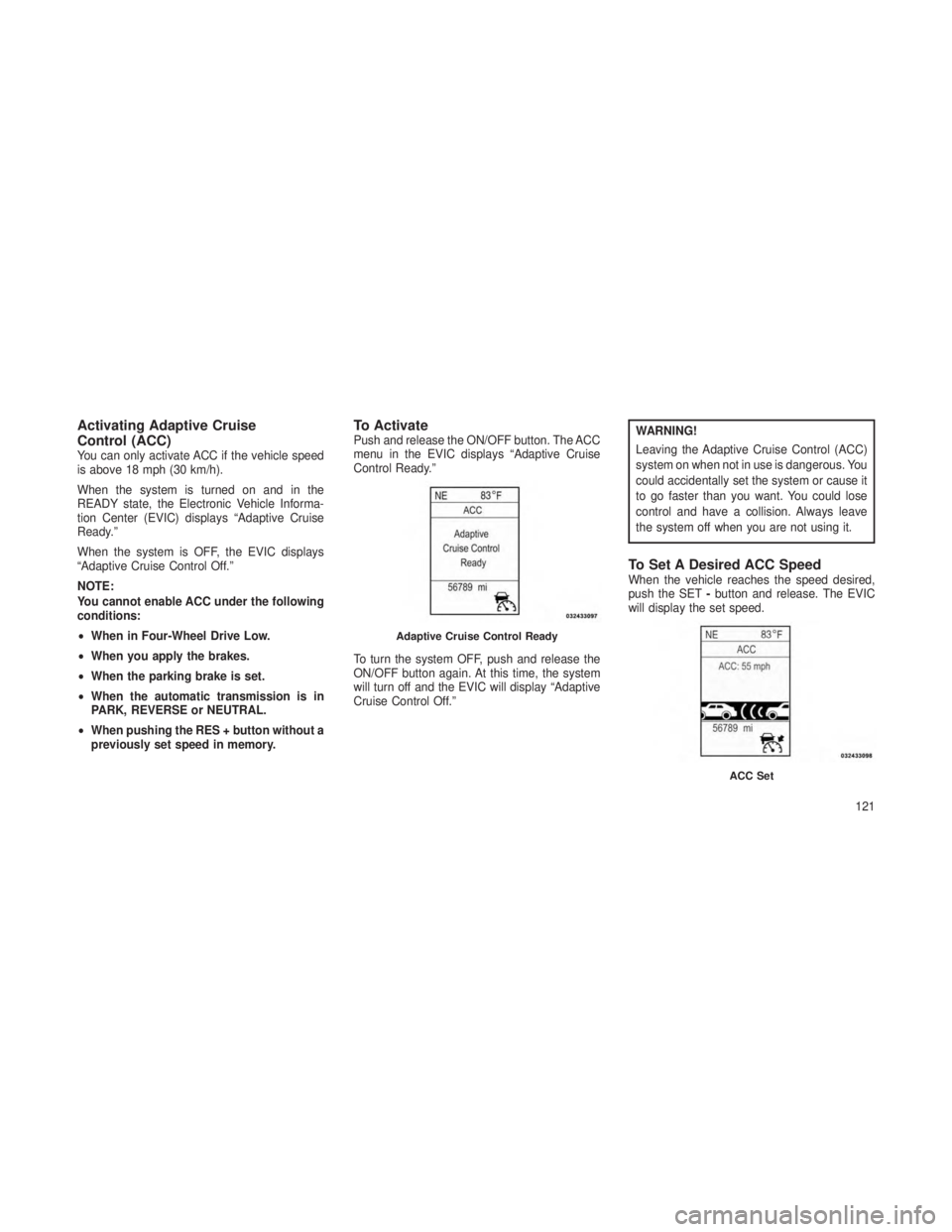

• Activating Adaptive Cruise Control (ACC) ................121
• To Activate ................................. .121
• To Set A Desired ACC Speed ...................... .121
• To Cancel .................................. .122
• ToTurnOff................................. .122
• To Resume Speed ............................. .123
• To Vary The Speed Setting ........................ .123
• Setting The Following Distance In ACC .................124
• Adaptive Cruise Control (ACC) Menu ..................125
• Display Warnings And Maintenance ...................126
• Precautions While Driving With ACC ...................128
• General Information ........................... .130
• Normal (Fixed Speed) Cruise Control Mode ...............130
• Forward Collision Warning — If Equipped ...............131
•PARKSENSE® FRONT AND REAR PARK ASSIST — IF
EQUIPPED ...................................134
•ParkSense® Sensors ........................... .134
• ParkSense® Warning Display ...................... .134
66

•ParkSense® Display ......................... .135
• Enabling And Disabling ParkSense® ................136
• Service The ParkSense® Park Assist System ...........137
• Cleaning The ParkSense® System ..................137
• ParkSense® System Usage Precautions ..............137
•PARKVIEW® REAR BACK UP CAMERA — IF EQUIPPED ....139•Turning ParkView® On Or Off — With Navigation/
Multimedia Radio ........................... .140
• Turning ParkView® On Or Off — Without Navigation/
Multimedia Radio ........................... .140
•OVERHEAD CONSOLE .........................140•Front Map/Reading Lights ..................... .141
• Courtesy/Reading Lights ...................... .141
• Sunglasses Storage ......................... .141
•POWER SUNROOF — IF EQUIPPED .................142•Opening Sunroof — Express .................... .144
• Opening Sunroof — Manual Mode ..................144
• Closing Sunroof — Express ..................... .144
• Closing Sunroof — Manual Mode ..................145
• Pinch Protect Feature ........................ .145
• Venting Sunroof — Express ..................... .143
• Sunshade Operation ......................... .143
• Wind Buffeting ............................ .143
• Sunroof Maintenance ......................... .143
• Ignition OFF Operation ........................ .143
67

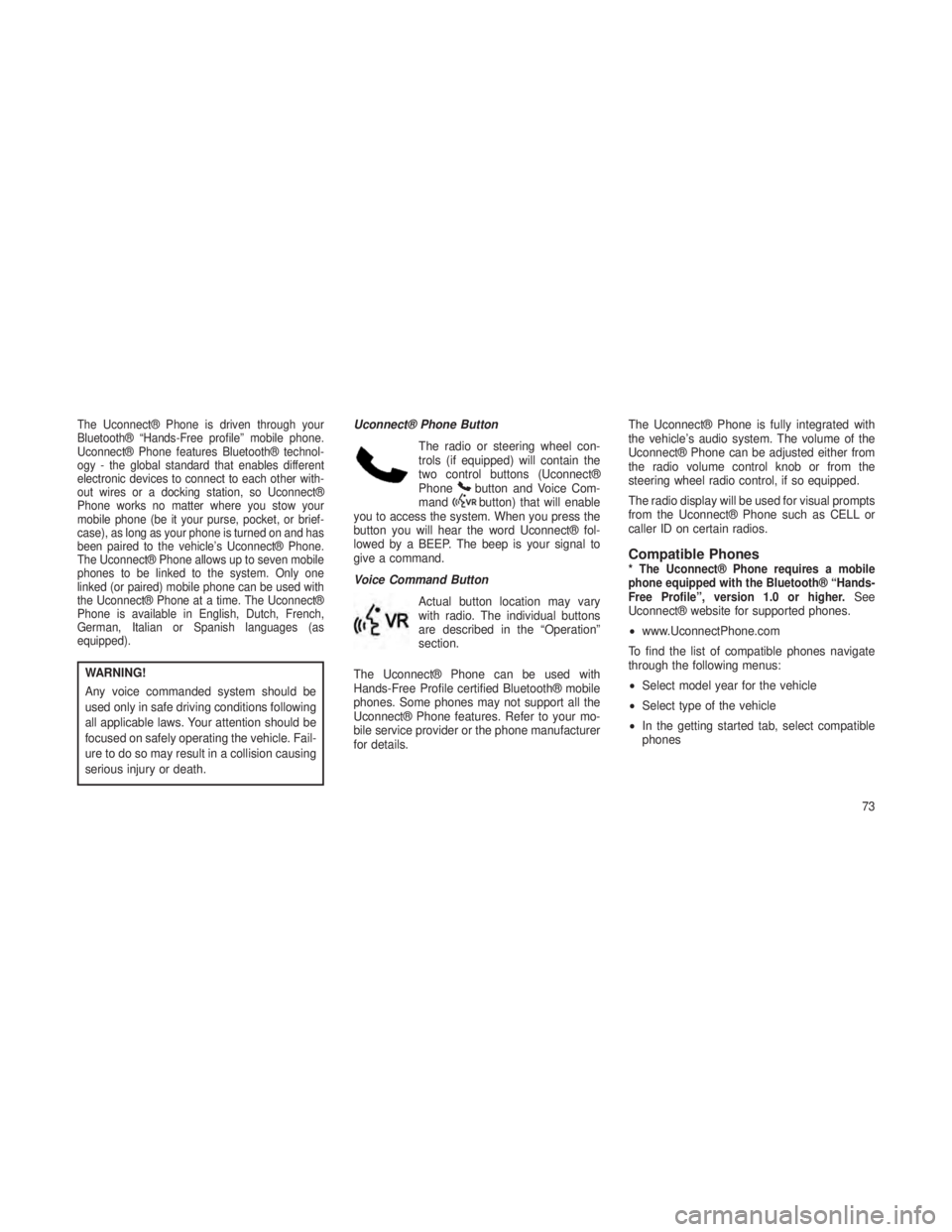

The Uconnect® Phone is driven through your
Bluetooth® “Hands-Free profile” mobile phone.
Uconnect® Phone features Bluetooth® technol-
ogy - the global standard that enables different
electronic devices to connect to each other with-
out wires or a docking station, so Uconnect®
Phone works no matter where you stow your
mobile phone (be it your purse, pocket, or brief-
case), as long as your phone is turned on and has
been paired to the vehicle’s Uconnect® Phone.
The Uconnect® Phone allows up to seven mobile
phones to be linked to the system. Only one
linked (or paired) mobile phone can be used with
the Uconnect® Phone at a time. The Uconnect®
Phone is available in English, Dutch, French,
German, Italian or Spanish languages (as
equipped).
WARNING!
Any voice commanded system should be
used only in safe driving conditions following
all applicable laws. Your attention should be
focused on safely operating the vehicle. Fail-
ure to do so may result in a collision causing
serious injury or death.Uconnect® Phone Button
The radio or steering wheel con-
trols (if equipped) will contain the
two control buttons (Uconnect®
Phone
button and Voice Com-
mandbutton) that will enable
you to access the system. When you press the
button you will hear the word Uconnect® fol-
lowed by a BEEP. The beep is your signal to
give a command.
Voice Command Button
Actual button location may vary
with radio. The individual buttons
are described in the “Operation”
section.
The Uconnect® Phone can be used with
Hands-Free Profile certified Bluetooth® mobile
phones. Some phones may not support all the
Uconnect® Phone features. Refer to your mo-
bile service provider or the phone manufacturer
for details. The Uconnect® Phone is fully integrated with
the vehicle’s audio system. The volume of the
Uconnect® Phone can be adjusted either from
the radio volume control knob or from the
steering wheel radio control, if so equipped.
The radio display will be used for visual prompts
from the Uconnect® Phone such as CELL or
caller ID on certain radios.
Compatible Phones* The Uconnect® Phone requires a mobile
phone equipped with the Bluetooth® “Hands-
Free Profile”, version 1.0 or higher.
See
Uconnect® website for supported phones.
• www.UconnectPhone.com
To find the list of compatible phones navigate
through the following menus:
• Select model year for the vehicle
• Select type of the vehicle
• In the getting started tab, select compatible
phones
73

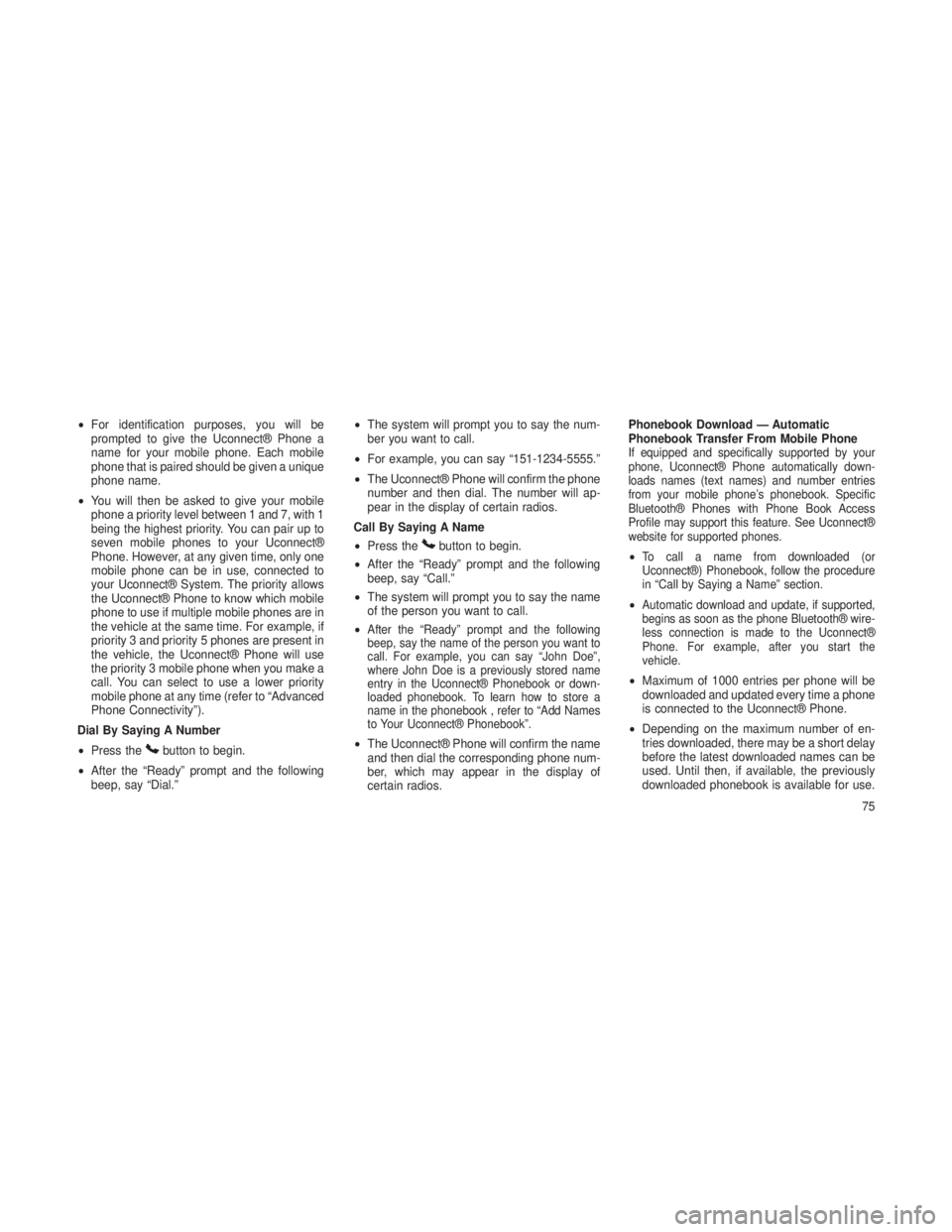

•For identification purposes, you will be
prompted to give the Uconnect® Phone a
name for your mobile phone. Each mobile
phone that is paired should be given a unique
phone name.
• You will then be asked to give your mobile
phone a priority level between 1 and 7, with 1
being the highest priority. You can pair up to
seven mobile phones to your Uconnect®
Phone. However, at any given time, only one
mobile phone can be in use, connected to
your Uconnect® System. The priority allows
the Uconnect® Phone to know which mobile
phone to use if multiple mobile phones are in
the vehicle at the same time. For example, if
priority 3 and priority 5 phones are present in
the vehicle, the Uconnect® Phone will use
the priority 3 mobile phone when you make a
call. You can select to use a lower priority
mobile phone at any time (refer to “Advanced
Phone Connectivity”).
Dial By Saying A Number
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Dial.” •
The system will prompt you to say the num-
ber you want to call.
• For example, you can say “151-1234-5555.”
• The Uconnect® Phone will confirm the phone
number and then dial. The number will ap-
pear in the display of certain radios.
Call By Saying A Name
• Press the
button to begin.
• After the “Ready” prompt and the following
beep, say “Call.”
• The system will prompt you to say the name
of the person you want to call.
•
After the “Ready” prompt and the following
beep, say the name of the person you want to
call. For example, you can say “John Doe”,
where John Doe is a previously stored name
entry in the Uconnect® Phonebook or down-
loaded phonebook. To learn how to store a
name in the phonebook , refer to “Add Names
to Your Uconnect® Phonebook”.
• The Uconnect® Phone will confirm the name
and then dial the corresponding phone num-
ber, which may appear in the display of
certain radios. Phonebook Download — Automatic
Phonebook Transfer From Mobile Phone
If equipped and specifically supported by your
phone, Uconnect® Phone automatically down-
loads names (text names) and number entries
from your mobile phone’s phonebook. Specific
Bluetooth® Phones with Phone Book Access
Profile may support this feature. See Uconnect®
website for supported phones.
•To call a name from downloaded (or
Uconnect®) Phonebook, follow the procedure
in “Call by Saying a Name” section.
•Automatic download and update, if supported,
begins as soon as the phone Bluetooth® wire-
less connection is made to the Uconnect®
Phone. For example, after you start the
vehicle.
•
Maximum of 1000 entries per phone will be
downloaded and updated every time a phone
is connected to the Uconnect® Phone.
• Depending on the maximum number of en-
tries downloaded, there may be a short delay
before the latest downloaded names can be
used. Until then, if available, the previously
downloaded phonebook is available for use.
75

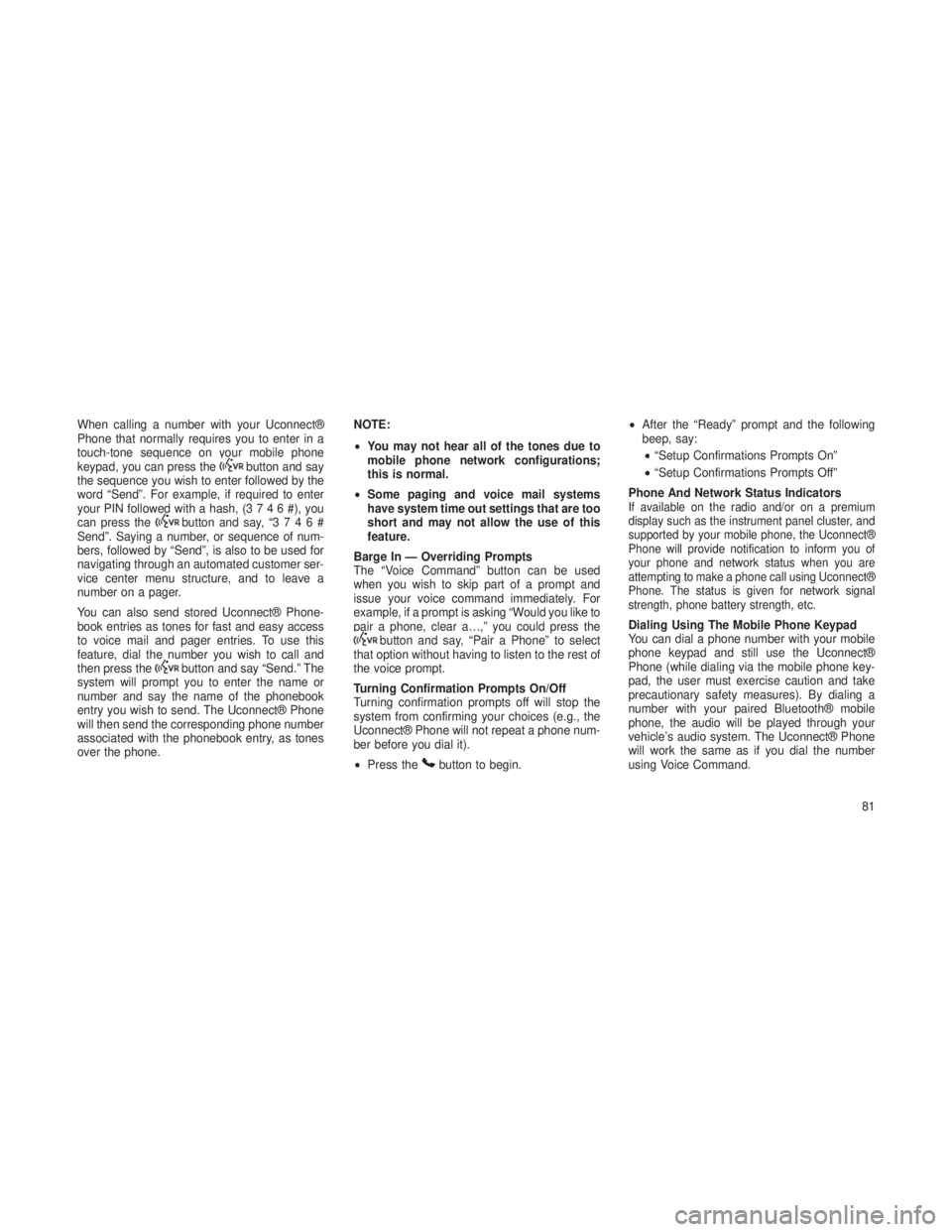

When calling a number with your Uconnect®
Phone that normally requires you to enter in a
touch-tone sequence on your mobile phone
keypad, you can press the
button and say
the sequence you wish to enter followed by the
word “Send”. For example, if required to enter
your PIN followed with a hash, (3746#),you
can press the
button and say, “3746#
Send”. Saying a number, or sequence of num-
bers, followed by “Send”, is also to be used for
navigating through an automated customer ser-
vice center menu structure, and to leave a
number on a pager.
You can also send stored Uconnect® Phone-
book entries as tones for fast and easy access
to voice mail and pager entries. To use this
feature, dial the number you wish to call and
then press the
button and say “Send.” The
system will prompt you to enter the name or
number and say the name of the phonebook
entry you wish to send. The Uconnect® Phone
will then send the corresponding phone number
associated with the phonebook entry, as tones
over the phone. NOTE:
•
You may not hear all of the tones due to
mobile phone network configurations;
this is normal.
• Some paging and voice mail systems
have system time out settings that are too
short and may not allow the use of this
feature.
Barge In — Overriding Prompts
The “Voice Command” button can be used
when you wish to skip part of a prompt and
issue your voice command immediately. For
example, if a prompt is asking “Would you like to
pair a phone, clear a…,” you could press the
button and say, “Pair a Phone” to select
that option without having to listen to the rest of
the voice prompt.
Turning Confirmation Prompts On/Off
Turning confirmation prompts off will stop the
system from confirming your choices (e.g., the
Uconnect® Phone will not repeat a phone num-
ber before you dial it).
• Press the
button to begin. •
After the “Ready” prompt and the following
beep, say:
• “Setup Confirmations Prompts On”
• “Setup Confirmations Prompts Off”
Phone And Network Status Indicators
If available on the radio and/or on a premium
display such as the instrument panel cluster, and
supported by your mobile phone, the Uconnect®
Phone will provide notification to inform you of
your phone and network status when you are
attempting to make a phone call using Uconnect®
Phone. The status is given for network signal
strength, phone battery strength, etc.
Dialing Using The Mobile Phone Keypad
You can dial a phone number with your mobile
phone keypad and still use the Uconnect®
Phone (while dialing via the mobile phone key-
pad, the user must exercise caution and take
precautionary safety measures). By dialing a
number with your paired Bluetooth® mobile
phone, the audio will be played through your
vehicle’s audio system. The Uconnect® Phone
will work the same as if you dial the number
using Voice Command.
81

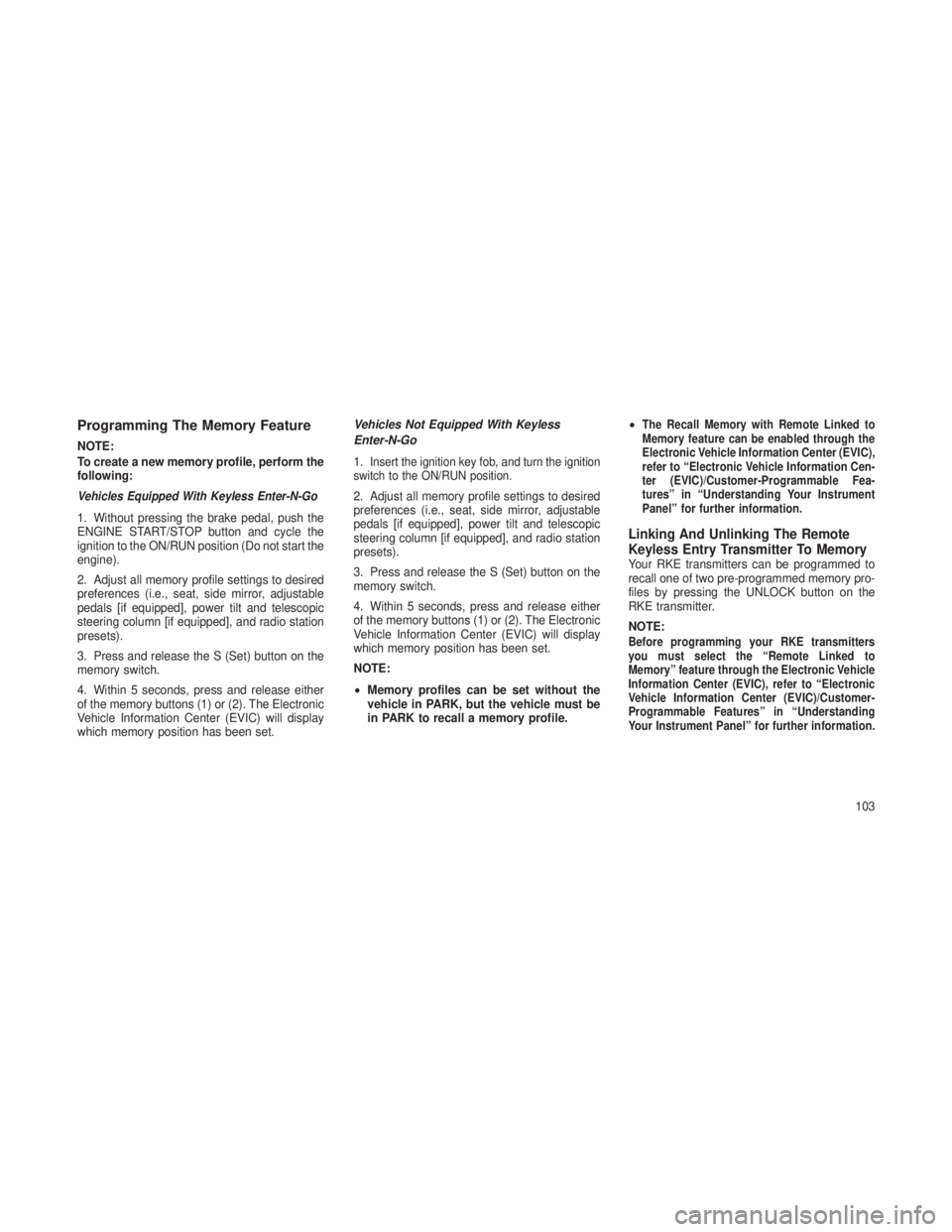

Programming The Memory Feature
NOTE:
To create a new memory profile, perform the
following:
Vehicles Equipped With Keyless Enter-N-Go
1. Without pressing the brake pedal, push the
ENGINE START/STOP button and cycle the
ignition to the ON/RUN position (Do not start the
engine).
2. Adjust all memory profile settings to desired
preferences (i.e., seat, side mirror, adjustable
pedals [if equipped], power tilt and telescopic
steering column [if equipped], and radio station
presets).
3. Press and release the S (Set) button on the
memory switch.
4. Within 5 seconds, press and release either
of the memory buttons (1) or (2). The Electronic
Vehicle Information Center (EVIC) will display
which memory position has been set.Vehicles Not Equipped With Keyless
Enter-N-Go
1.
Insert the ignition key fob, and turn the ignition
switch to the ON/RUN position.
2. Adjust all memory profile settings to desired
preferences (i.e., seat, side mirror, adjustable
pedals [if equipped], power tilt and telescopic
steering column [if equipped], and radio station
presets).
3. Press and release the S (Set) button on the
memory switch.
4. Within 5 seconds, press and release either
of the memory buttons (1) or (2). The Electronic
Vehicle Information Center (EVIC) will display
which memory position has been set.
NOTE:
• Memory profiles can be set without the
vehicle in PARK, but the vehicle must be
in PARK to recall a memory profile. •
The Recall Memory with Remote Linked to
Memory feature can be enabled through the
Electronic Vehicle Information Center (EVIC),
refer to “Electronic Vehicle Information Cen-
ter (EVIC)/Customer-Programmable Fea-
tures” in “Understanding Your Instrument
Panel” for further information.
Linking And Unlinking The Remote
Keyless Entry Transmitter To Memory
Your RKE transmitters can be programmed to
recall one of two pre-programmed memory pro-
files by pressing the UNLOCK button on the
RKE transmitter.
NOTE:
Before programming your RKE transmitters
you must select the “Remote Linked to
Memory” feature through the Electronic Vehicle
Information Center (EVIC), refer to “Electronic
Vehicle Information Center (EVIC)/Customer-
Programmable Features” in “Understanding
Your Instrument Panel” for further information.
103

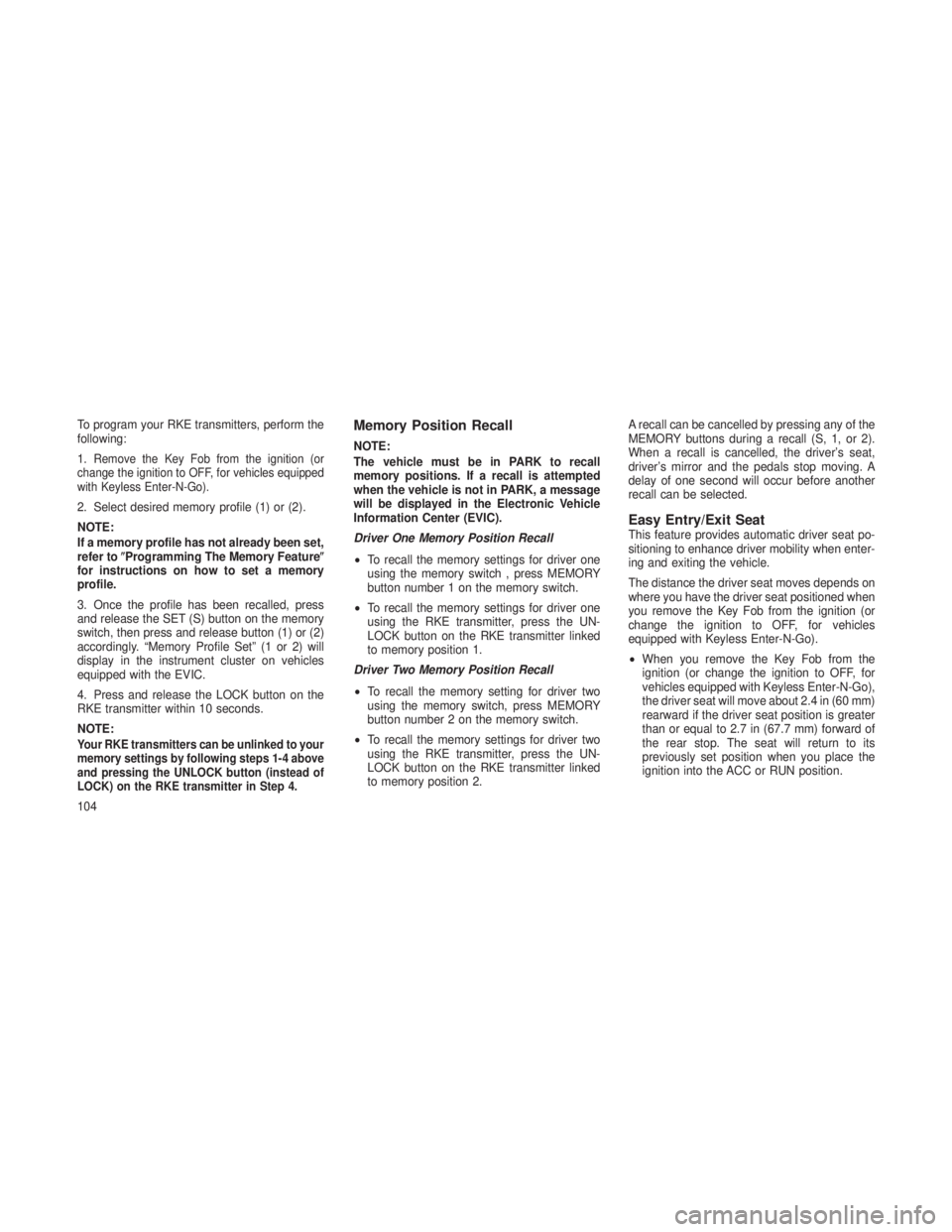

To program your RKE transmitters, perform the
following:
1.
Remove the Key Fob from the ignition (or
change the ignition to OFF, for vehicles equipped
with Keyless Enter-N-Go).
2. Select desired memory profile (1) or (2).
NOTE:
If a memory profile has not already been set,
refer to Programming The Memory Feature
for instructions on how to set a memory
profile.
3. Once the profile has been recalled, press
and release the SET (S) button on the memory
switch, then press and release button (1) or (2)
accordingly. “Memory Profile Set” (1 or 2) will
display in the instrument cluster on vehicles
equipped with the EVIC.
4. Press and release the LOCK button on the
RKE transmitter within 10 seconds.
NOTE:
Your RKE transmitters can be unlinked to your
memory settings by following steps 1-4 above
and pressing the UNLOCK button (instead of
LOCK) on the RKE transmitter in Step 4.
Memory Position Recall
NOTE:
The vehicle must be in PARK to recall
memory positions. If a recall is attempted
when the vehicle is not in PARK, a message
will be displayed in the Electronic Vehicle
Information Center (EVIC).
Driver One Memory Position Recall
• To recall the memory settings for driver one
using the memory switch , press MEMORY
button number 1 on the memory switch.
• To recall the memory settings for driver one
using the RKE transmitter, press the UN-
LOCK button on the RKE transmitter linked
to memory position 1.
Driver Two Memory Position Recall
• To recall the memory setting for driver two
using the memory switch, press MEMORY
button number 2 on the memory switch.
• To recall the memory settings for driver two
using the RKE transmitter, press the UN-
LOCK button on the RKE transmitter linked
to memory position 2. A recall can be cancelled by pressing any of the
MEMORY buttons during a recall (S, 1, or 2).
When a recall is cancelled, the driver’s seat,
driver’s mirror and the pedals stop moving. A
delay of one second will occur before another
recall can be selected.
Easy Entry/Exit SeatThis feature provides automatic driver seat po-
sitioning to enhance driver mobility when enter-
ing and exiting the vehicle.
The distance the driver seat moves depends on
where you have the driver seat positioned when
you remove the Key Fob from the ignition (or
change the ignition to OFF, for vehicles
equipped with Keyless Enter-N-Go).
•
When you remove the Key Fob from the
ignition (or change the ignition to OFF, for
vehicles equipped with Keyless Enter-N-Go),
the driver seat will move about 2.4 in (60 mm)
rearward if the driver seat position is greater
than or equal to 2.7 in (67.7 mm) forward of
the rear stop. The seat will return to its
previously set position when you place the
ignition into the ACC or RUN position.
104

Activating Adaptive Cruise
Control (ACC)
You can only activate ACC if the vehicle speed
is above 18 mph (30 km/h).
When the system is turned on and in the
READY state, the Electronic Vehicle Informa-
tion Center (EVIC) displays “Adaptive Cruise
Ready.”
When the system is OFF, the EVIC displays
“Adaptive Cruise Control Off.”
NOTE:
You cannot enable ACC under the following
conditions:
•When in Four-Wheel Drive Low.
• When you apply the brakes.
• When the parking brake is set.
• When the automatic transmission is in
PARK, REVERSE or NEUTRAL.
• When pushing the RES + button without a
previously set speed in memory.
To ActivatePush and release the ON/OFF button. The ACC
menu in the EVIC displays “Adaptive Cruise
Control Ready.”
To turn the system OFF, push and release the
ON/OFF button again. At this time, the system
will turn off and the EVIC will display “Adaptive
Cruise Control Off.”WARNING!
Leaving the Adaptive Cruise Control (ACC)
system on when not in use is dangerous. You
could accidentally set the system or cause it
to go faster than you want. You could lose
control and have a collision. Always leave
the system off when you are not using it.
To Set A Desired ACC SpeedWhen the vehicle reaches the speed desired,
push the SET -button and release. The EVIC
will display the set speed.
Adaptive Cruise Control Ready
ACC Set
121
