•ENGINE BREAK-IN RECOMMENDATIONS ..............59•Additional Requirements For Diesel Engine — If Equipped ....59•SAFETY TIPS ................................59•Transporting Passengers ........................59
• Exhaust Gas ...............................60
• Safety Checks You Should Make Inside The Vehicle ........60
• Periodic Safety Checks You Should Make Outside
The Vehicle ................................61
11

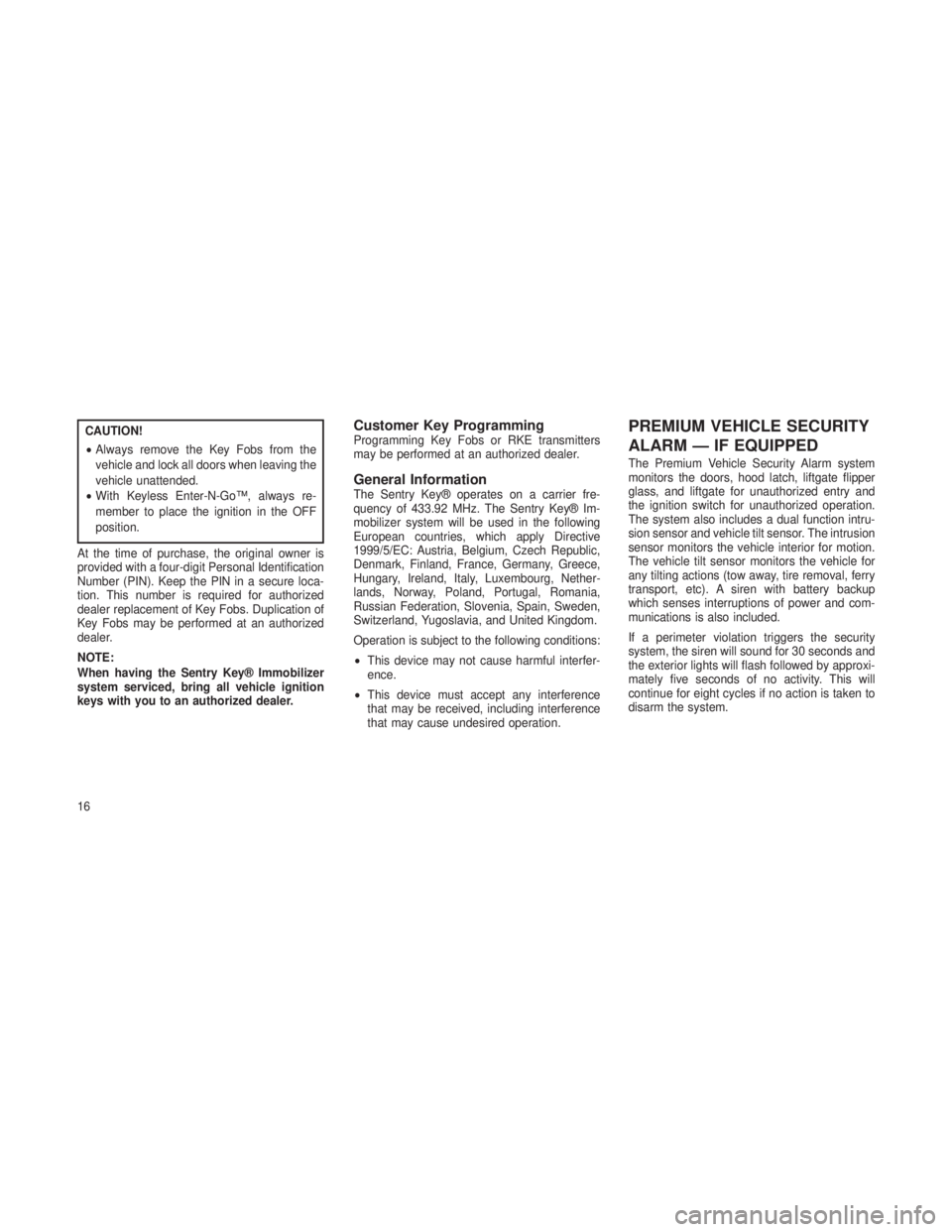

CAUTION!
•Always remove the Key Fobs from the
vehicle and lock all doors when leaving the
vehicle unattended.
• With Keyless Enter-N-Go™, always re-
member to place the ignition in the OFF
position.
At the time of purchase, the original owner is
provided with a four-digit Personal Identification
Number (PIN). Keep the PIN in a secure loca-
tion. This number is required for authorized
dealer replacement of Key Fobs. Duplication of
Key Fobs may be performed at an authorized
dealer.
NOTE:
When having the Sentry Key® Immobilizer
system serviced, bring all vehicle ignition
keys with you to an authorized dealer.Customer Key ProgrammingProgramming Key Fobs or RKE transmitters
may be performed at an authorized dealer.
General InformationThe Sentry Key® operates on a carrier fre-
quency of 433.92 MHz. The Sentry Key® Im-
mobilizer system will be used in the following
European countries, which apply Directive
1999/5/EC: Austria, Belgium, Czech Republic,
Denmark, Finland, France, Germany, Greece,
Hungary, Ireland, Italy, Luxembourg, Nether-
lands, Norway, Poland, Portugal, Romania,
Russian Federation, Slovenia, Spain, Sweden,
Switzerland, Yugoslavia, and United Kingdom.
Operation is subject to the following conditions:
• This device may not cause harmful interfer-
ence.
• This device must accept any interference
that may be received, including interference
that may cause undesired operation.
PREMIUM VEHICLE SECURITY
ALARM — IF EQUIPPED
The Premium Vehicle Security Alarm system
monitors the doors, hood latch, liftgate flipper
glass, and liftgate for unauthorized entry and
the ignition switch for unauthorized operation.
The system also includes a dual function intru-
sion sensor and vehicle tilt sensor. The intrusion
sensor monitors the vehicle interior for motion.
The vehicle tilt sensor monitors the vehicle for
any tilting actions (tow away, tire removal, ferry
transport, etc). A siren with battery backup
which senses interruptions of power and com-
munications is also included.
If a perimeter violation triggers the security
system, the siren will sound for 30 seconds and
the exterior lights will flash followed by approxi-
mately five seconds of no activity. This will
continue for eight cycles if no action is taken to
disarm the system.
16

To Arm The SystemFollow these steps to arm the theft alarm:
1. Remove the key from the ignition system
(refer to"Starting Procedures" in"Starting And
Operating" for further information).
• For vehicles equipped with Keyless Enter-N-
Go™, make sure the vehicle ignition system is
"OFF".
• For vehicles not equipped with Keyless Enter-
N-Go™, make sure the vehicle ignition system
is "OFF" and the key is physically removed from
the ignition.
2. Perform one of the following methods to lock
the vehicle:
• Press LOCK on the interior power door lock
switch with the driver and/or passenger door
open.
• Press the LOCK button on the exterior Pas-
sive Entry Door Handle with a valid Key Fob
available in the same exterior zone (refer to
"Keyless Enter-N-Go™" in"Things To Know
Before Starting Your Vehicle" for further infor-
mation). •
Press the LOCK button on the Remote Key-
less Entry (RKE) transmitter.
3. If any doors are open, close them.
NOTE:
• Once the security system is armed, it
remains in that state until you disarm it by
following either of the disarming proce-
dures described. If a power loss occurs
after arming the system, you must disarm
the system after restoring power to pre-
vent alarm activation.
• The ultrasonic intrusion sensor (motion
detector) actively monitors your vehicle
every time you arm the security system. If
you prefer, you can turn off the ultrasonic
intrusion sensor when arming the secu-
rity system. To do so, press the LOCK
button on the RKE transmitter three times
within 15 seconds of arming the system
(while the Vehicle Security Light is flash-
ing rapidly).To Disarm The SystemThe Vehicle Security Alarm can be disarmed
using any of the following methods:
•Press the UNLOCK button on the Remote
Keyless Entry (RKE) transmitter.
• Grasp the Passive Entry Unlock Door Handle
(if equipped, refer to "Keyless Enter-N-Go" in
"Things To Know Before Starting Your Ve-
hicle" for further information).
• Cycle the vehicle ignition system out of the
OFF position.
• For vehicles equipped with Keyless Enter-
N-Go, press the Keyless Enter-N-Go Start/
Stop button (requires at least one valid
Key Fob in the vehicle).
• For vehicles not equipped with Keyless
Enter-N-Go, insert a valid key into the
ignition switch and turn the key to the ON
position.
17

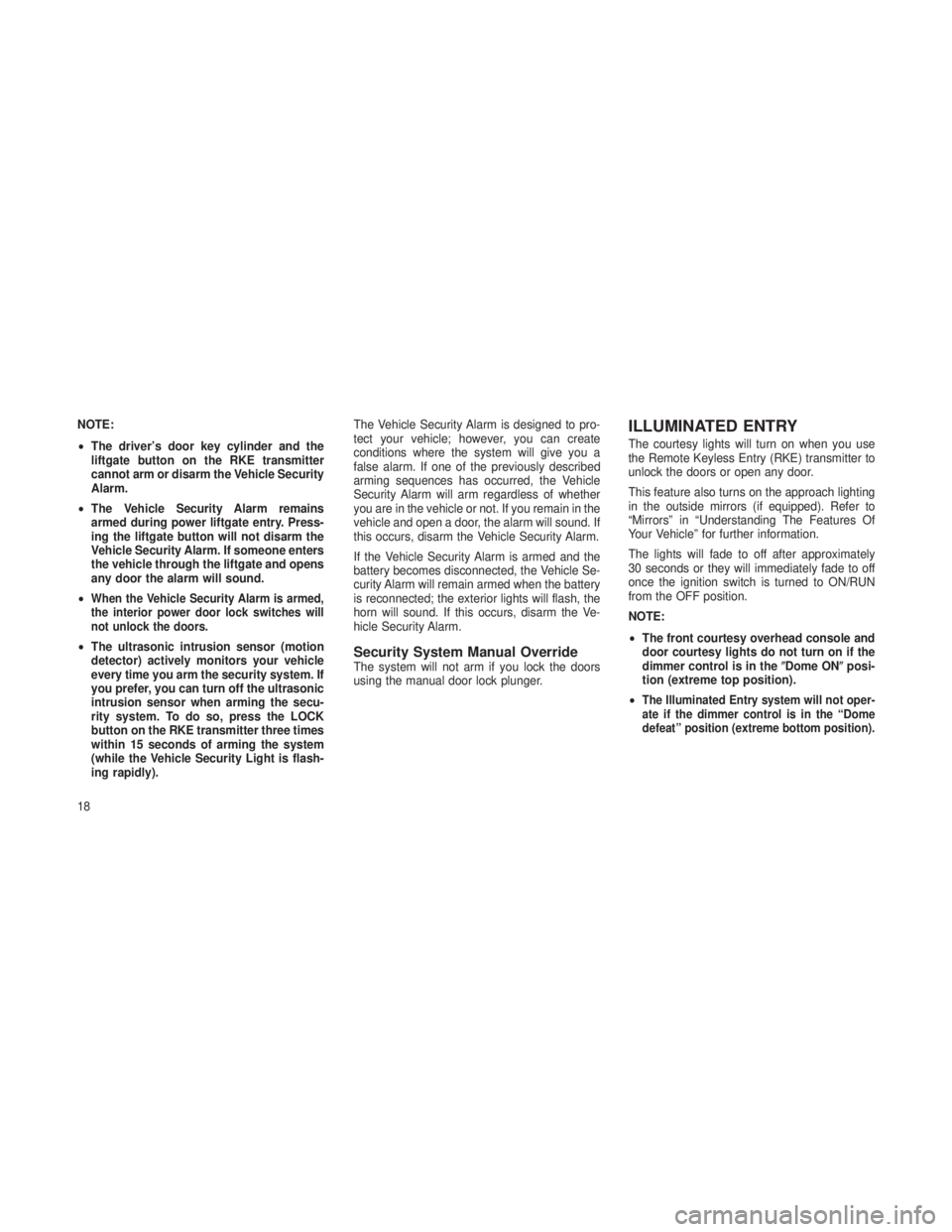

NOTE:
•The driver’s door key cylinder and the
liftgate button on the RKE transmitter
cannot arm or disarm the Vehicle Security
Alarm.
• The Vehicle Security Alarm remains
armed during power liftgate entry. Press-
ing the liftgate button will not disarm the
Vehicle Security Alarm. If someone enters
the vehicle through the liftgate and opens
any door the alarm will sound.
•
When the Vehicle Security Alarm is armed,
the interior power door lock switches will
not unlock the doors.
• The ultrasonic intrusion sensor (motion
detector) actively monitors your vehicle
every time you arm the security system. If
you prefer, you can turn off the ultrasonic
intrusion sensor when arming the secu-
rity system. To do so, press the LOCK
button on the RKE transmitter three times
within 15 seconds of arming the system
(while the Vehicle Security Light is flash-
ing rapidly). The Vehicle Security Alarm is designed to pro-
tect your vehicle; however, you can create
conditions where the system will give you a
false alarm. If one of the previously described
arming sequences has occurred, the Vehicle
Security Alarm will arm regardless of whether
you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If
this occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the
battery becomes disconnected, the Vehicle Se-
curity Alarm will remain armed when the battery
is reconnected; the exterior lights will flash, the
horn will sound. If this occurs, disarm the Ve-
hicle Security Alarm.Security System Manual OverrideThe system will not arm if you lock the doors
using the manual door lock plunger.
ILLUMINATED ENTRY
The courtesy lights will turn on when you use
the Remote Keyless Entry (RKE) transmitter to
unlock the doors or open any door.
This feature also turns on the approach lighting
in the outside mirrors (if equipped). Refer to
“Mirrors” in “Understanding The Features Of
Your Vehicle” for further information.
The lights will fade to off after approximately
30 seconds or they will immediately fade to off
once the ignition switch is turned to ON/RUN
from the OFF position.
NOTE:
•
The front courtesy overhead console and
door courtesy lights do not turn on if the
dimmer control is in the Dome ONposi-
tion (extreme top position).
•
The Illuminated Entry system will not oper-
ate if the dimmer control is in the “Dome
defeat” position (extreme bottom position).
18

•If liftgate is left open for an extended
period of time, the liftgate may need to be
closed manually to reset power liftgate
functionality.
WARNING!
During power operation, personal injury or
cargo damage may occur. Ensure the liftgate
travel path is clear. Make sure the liftgate is
closed and latched before driving away.
NOTE:
• The power liftgate buttons will not oper-
ate if the vehicle is in gear or the vehicle
speed is above 0 mph (0 km/h).
• The power liftgate will not operate in tem-
peratures below 22°F (30°C) or tem-
peratures above 150°F (65°C). Be sure to
remove any buildup of snow or ice from
the liftgate before pressing any of the
power liftgate switches. •
If anything obstructs the power liftgate
while it is closing or opening, the liftgate
will automatically reverse to the closed or
open position, provided it meets suffi-
cient resistance.
• There are also pinch sensors attached to
the side of the liftgate. Light pressure
anywhere along these strips will cause
the liftgate to return to the open position.
• The power liftgate must be in the full open
position for rear liftgate close button on
the left rear trim, near the liftgate opening
to operate. If the liftgate is not fully open,
press the Liftgate button on the Key Fob
to fully open the liftgate, and then press it
again to close.
• If the liftgate handle is pulled while the
power liftgate is closing, the liftgate will
reverse to the full open position.
•
If the liftgate handle is pulled while the
power liftgate is opening, the liftgate motor
will disengage to allow manual operation.
•If the power liftgate encounters multiple
obstructions within the same cycle, the
system will automatically stop and the lift-
gate must be opened or closed manually.
• If your liftgate is power closing and you
put the vehicle in gear, the liftgate will
continue to power close. However, ve-
hicle movement may result in a detection
of an obstruction.
WARNING!
•Driving with the liftgate open can allow
poisonous exhaust gases into your ve-
hicle. You and your passengers could be
injured by these fumes. Keep the liftgate
closed when you are operating the vehicle.
• If you are required to drive with the liftgate
open, make sure that all windows are
closed, and the climate control blower
switch is set at high speed. Do not use the
recirculation mode.
30

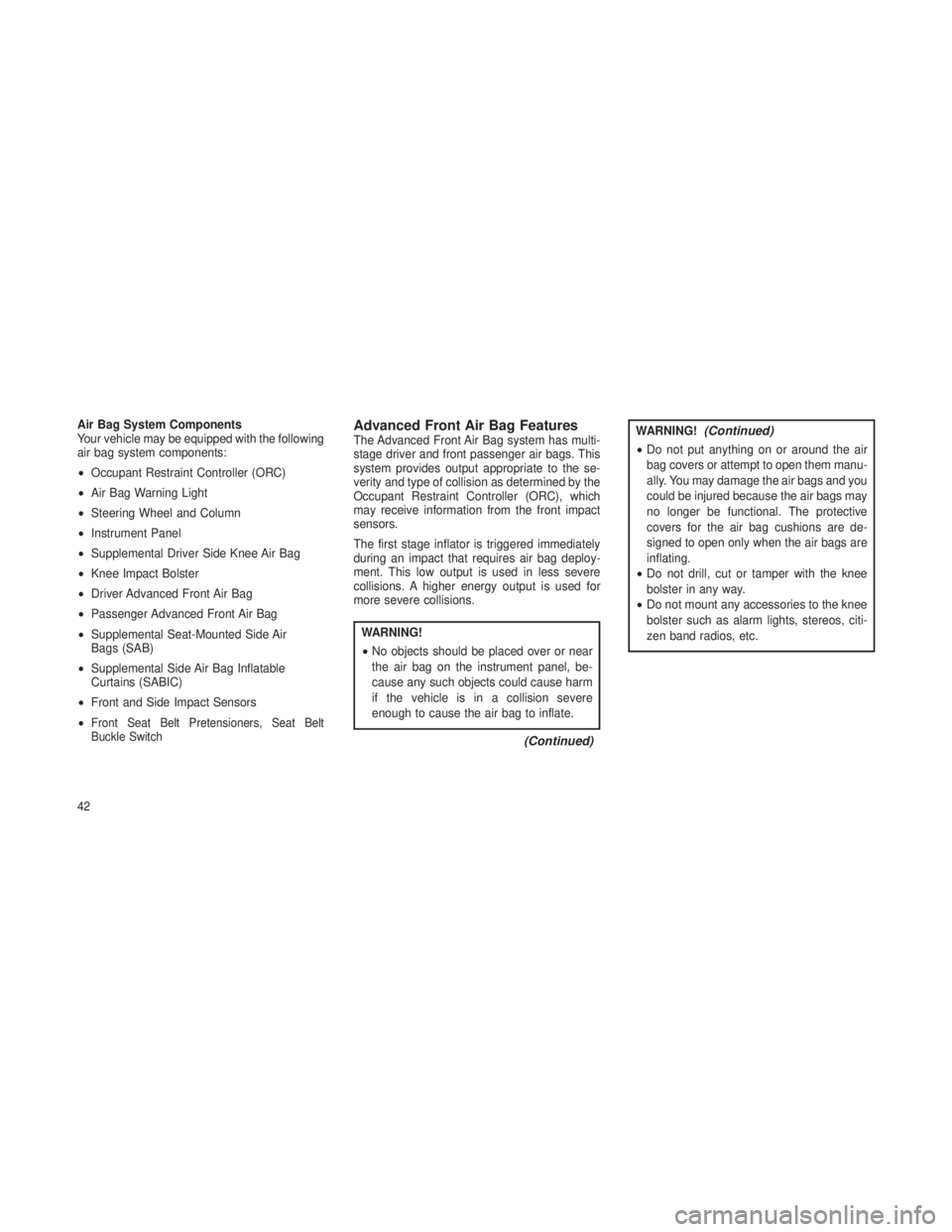

Air Bag System Components
Your vehicle may be equipped with the following
air bag system components:
•Occupant Restraint Controller (ORC)
• Air Bag Warning Light
• Steering Wheel and Column
• Instrument Panel
• Supplemental Driver Side Knee Air Bag
• Knee Impact Bolster
• Driver Advanced Front Air Bag
• Passenger Advanced Front Air Bag
• Supplemental Seat-Mounted Side Air
Bags (SAB)
• Supplemental Side Air Bag Inflatable
Curtains (SABIC)
• Front and Side Impact Sensors
•
Front Seat Belt Pretensioners, Seat Belt
Buckle Switch
Advanced Front Air Bag FeaturesThe Advanced Front Air Bag system has multi-
stage driver and front passenger air bags. This
system provides output appropriate to the se-
verity and type of collision as determined by the
Occupant Restraint Controller (ORC), which
may receive information from the front impact
sensors.
The first stage inflator is triggered immediately
during an impact that requires air bag deploy-
ment. This low output is used in less severe
collisions. A higher energy output is used for
more severe collisions.
WARNING!
• No objects should be placed over or near
the air bag on the instrument panel, be-
cause any such objects could cause harm
if the vehicle is in a collision severe
enough to cause the air bag to inflate.
(Continued)
WARNING!(Continued)
•Do not put anything on or around the air
bag covers or attempt to open them manu-
ally. You may damage the air bags and you
could be injured because the air bags may
no longer be functional. The protective
covers for the air bag cushions are de-
signed to open only when the air bags are
inflating.
• Do not drill, cut or tamper with the knee
bolster in any way.
• Do not mount any accessories to the knee
bolster such as alarm lights, stereos, citi-
zen band radios, etc.
42

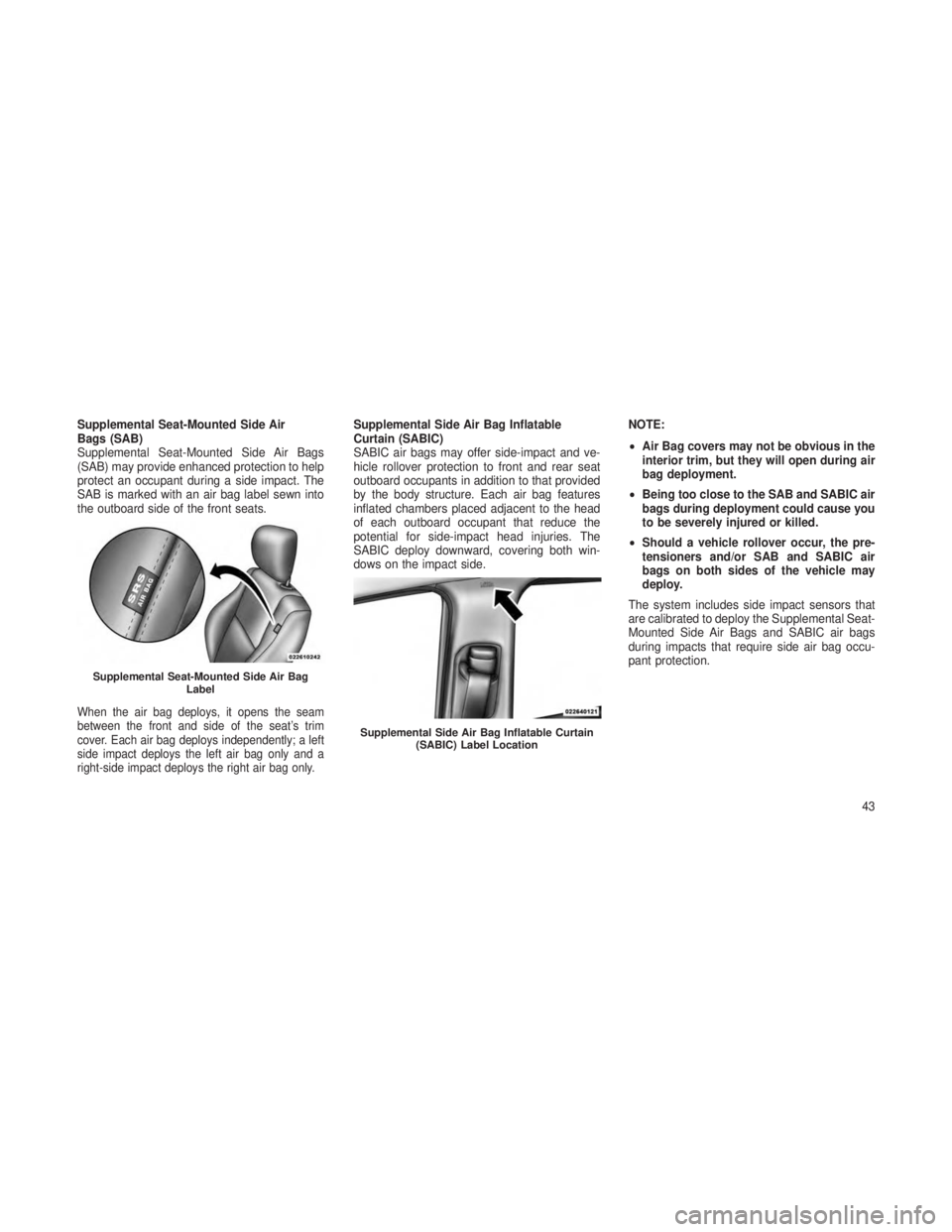

Supplemental Seat-Mounted Side Air
Bags (SAB)
Supplemental Seat-Mounted Side Air Bags
(SAB) may provide enhanced protection to help
protect an occupant during a side impact. The
SAB is marked with an air bag label sewn into
the outboard side of the front seats.
When the air bag deploys, it opens the seam
between the front and side of the seat’s trim
cover. Each air bag deploys independently; a left
side impact deploys the left air bag only and a
right-side impact deploys the right air bag only.
Supplemental Side Air Bag Inflatable
Curtain (SABIC)
SABIC air bags may offer side-impact and ve-
hicle rollover protection to front and rear seat
outboard occupants in addition to that provided
by the body structure. Each air bag features
inflated chambers placed adjacent to the head
of each outboard occupant that reduce the
potential for side-impact head injuries. The
SABIC deploy downward, covering both win-
dows on the impact side.NOTE:
•
Air Bag covers may not be obvious in the
interior trim, but they will open during air
bag deployment.
• Being too close to the SAB and SABIC air
bags during deployment could cause you
to be severely injured or killed.
• Should a vehicle rollover occur, the pre-
tensioners and/or SAB and SABIC air
bags on both sides of the vehicle may
deploy.
The system includes side impact sensors that
are calibrated to deploy the Supplemental Seat-
Mounted Side Air Bags and SABIC air bags
during impacts that require side air bag occu-
pant protection.
Supplemental Seat-Mounted Side Air Bag Label
Supplemental Side Air Bag Inflatable Curtain(SABIC) Label Location
43

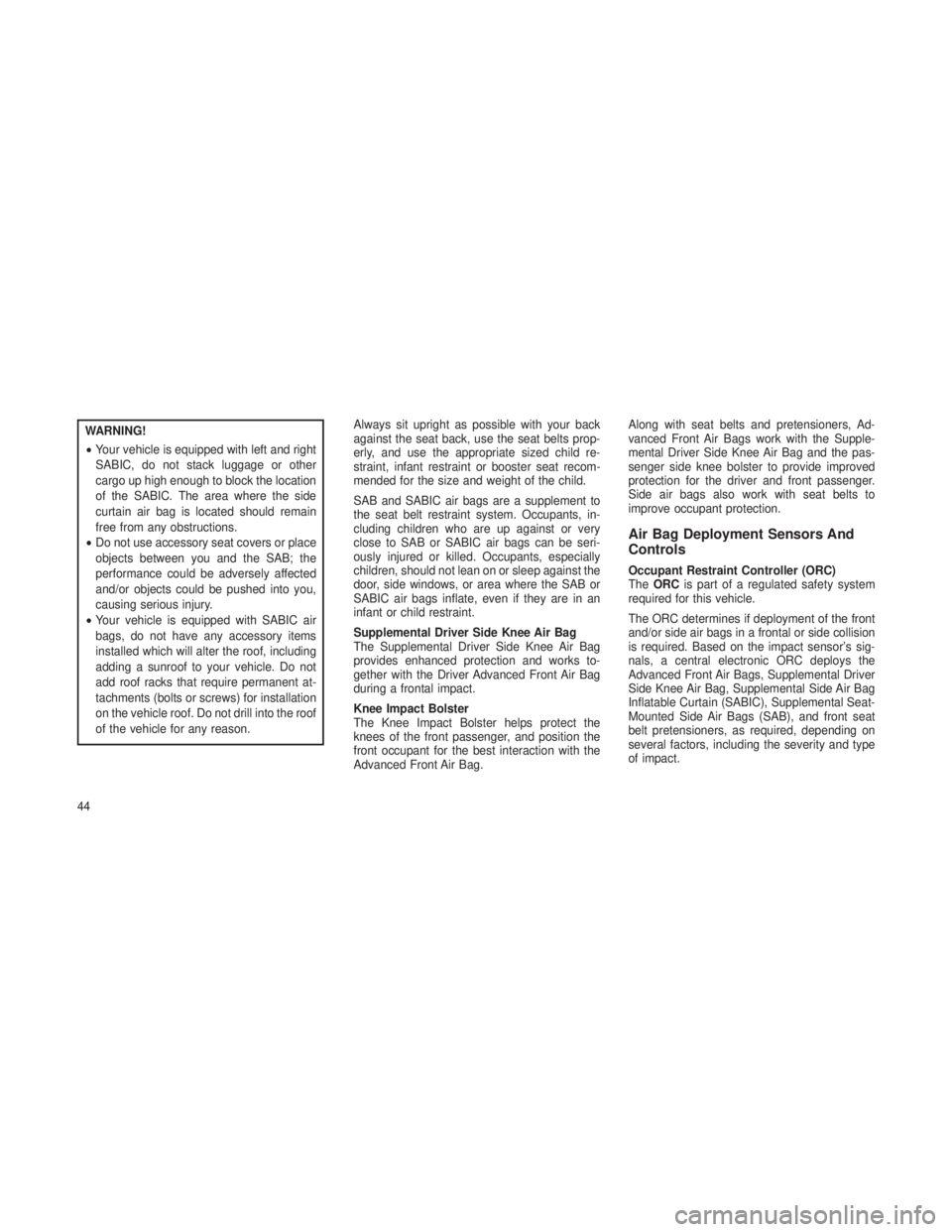

WARNING!
•Your vehicle is equipped with left and right
SABIC, do not stack luggage or other
cargo up high enough to block the location
of the SABIC. The area where the side
curtain air bag is located should remain
free from any obstructions.
• Do not use accessory seat covers or place
objects between you and the SAB; the
performance could be adversely affected
and/or objects could be pushed into you,
causing serious injury.
• Your vehicle is equipped with SABIC air
bags, do not have any accessory items
installed which will alter the roof, including
adding a sunroof to your vehicle. Do not
add roof racks that require permanent at-
tachments (bolts or screws) for installation
on the vehicle roof. Do not drill into the roof
of the vehicle for any reason. Always sit upright as possible with your back
against the seat back, use the seat belts prop-
erly, and use the appropriate sized child re-
straint, infant restraint or booster seat recom-
mended for the size and weight of the child.
SAB and SABIC air bags are a supplement to
the seat belt restraint system. Occupants, in-
cluding children who are up against or very
close to SAB or SABIC air bags can be seri-
ously injured or killed. Occupants, especially
children, should not lean on or sleep against the
door, side windows, or area where the SAB or
SABIC air bags inflate, even if they are in an
infant or child restraint.
Supplemental Driver Side Knee Air Bag
The Supplemental Driver Side Knee Air Bag
provides enhanced protection and works to-
gether with the Driver Advanced Front Air Bag
during a frontal impact.
Knee Impact Bolster
The Knee Impact Bolster helps protect the
knees of the front passenger, and position the
front occupant for the best interaction with the
Advanced Front Air Bag. Along with seat belts and pretensioners, Ad-
vanced Front Air Bags work with the Supple-
mental Driver Side Knee Air Bag and the pas-
senger side knee bolster to provide improved
protection for the driver and front passenger.
Side air bags also work with seat belts to
improve occupant protection.
Air Bag Deployment Sensors And
Controls
Occupant Restraint Controller (ORC)
The
ORC is part of a regulated safety system
required for this vehicle.
The ORC determines if deployment of the front
and/or side air bags in a frontal or side collision
is required. Based on the impact sensor’s sig-
nals, a central electronic ORC deploys the
Advanced Front Air Bags, Supplemental Driver
Side Knee Air Bag, Supplemental Side Air Bag
Inflatable Curtain (SABIC), Supplemental Seat-
Mounted Side Air Bags (SAB), and front seat
belt pretensioners, as required, depending on
several factors, including the severity and type
of impact.
44

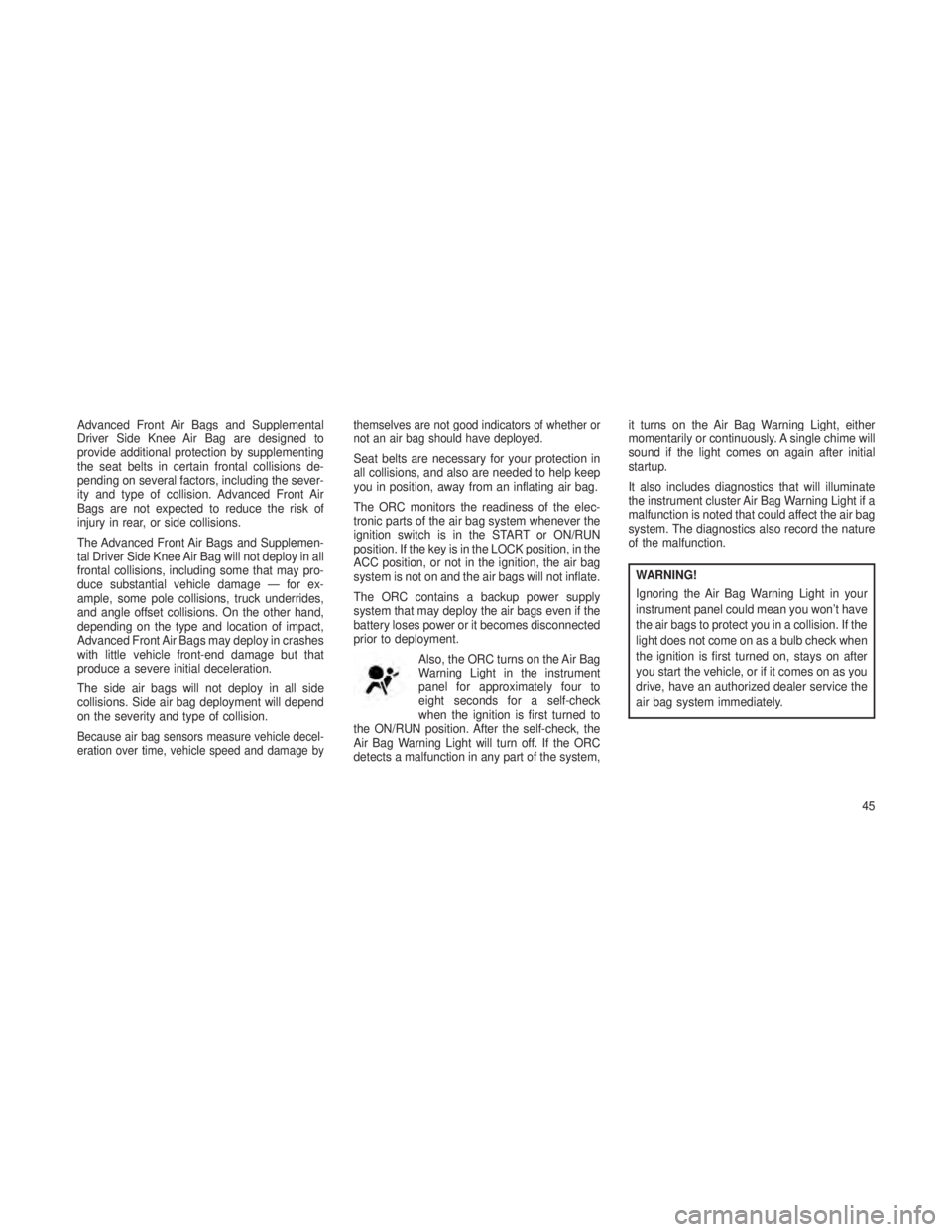

Advanced Front Air Bags and Supplemental
Driver Side Knee Air Bag are designed to
provide additional protection by supplementing
the seat belts in certain frontal collisions de-
pending on several factors, including the sever-
ity and type of collision. Advanced Front Air
Bags are not expected to reduce the risk of
injury in rear, or side collisions.
The Advanced Front Air Bags and Supplemen-
tal Driver Side Knee Air Bag will not deploy in all
frontal collisions, including some that may pro-
duce substantial vehicle damage — for ex-
ample, some pole collisions, truck underrides,
and angle offset collisions. On the other hand,
depending on the type and location of impact,
Advanced Front Air Bags may deploy in crashes
with little vehicle front-end damage but that
produce a severe initial deceleration.
The side air bags will not deploy in all side
collisions. Side air bag deployment will depend
on the severity and type of collision.
Because air bag sensors measure vehicle decel-
eration over time, vehicle speed and damage bythemselves are not good indicators of whether or
not an air bag should have deployed.
Seat belts are necessary for your protection in
all collisions, and also are needed to help keep
you in position, away from an inflating air bag.
The ORC monitors the readiness of the elec-
tronic parts of the air bag system whenever the
ignition switch is in the START or ON/RUN
position. If the key is in the LOCK position, in the
ACC position, or not in the ignition, the air bag
system is not on and the air bags will not inflate.
The ORC contains a backup power supply
system that may deploy the air bags even if the
battery loses power or it becomes disconnected
prior to deployment.
Also, the ORC turns on the Air Bag
Warning Light in the instrument
panel for approximately four to
eight seconds for a self-check
when the ignition is first turned to
the ON/RUN position. After the self-check, the
Air Bag Warning Light will turn off. If the ORC
detects a malfunction in any part of the system, it turns on the Air Bag Warning Light, either
momentarily or continuously. A single chime will
sound if the light comes on again after initial
startup.
It also includes diagnostics that will illuminate
the instrument cluster Air Bag Warning Light if a
malfunction is noted that could affect the air bag
system. The diagnostics also record the nature
of the malfunction.
WARNING!
Ignoring the Air Bag Warning Light in your
instrument panel could mean you won’t have
the air bags to protect you in a collision. If the
light does not come on as a bulb check when
the ignition is first turned on, stays on after
you start the vehicle, or if it comes on as you
drive, have an authorized dealer service the
air bag system immediately.
45

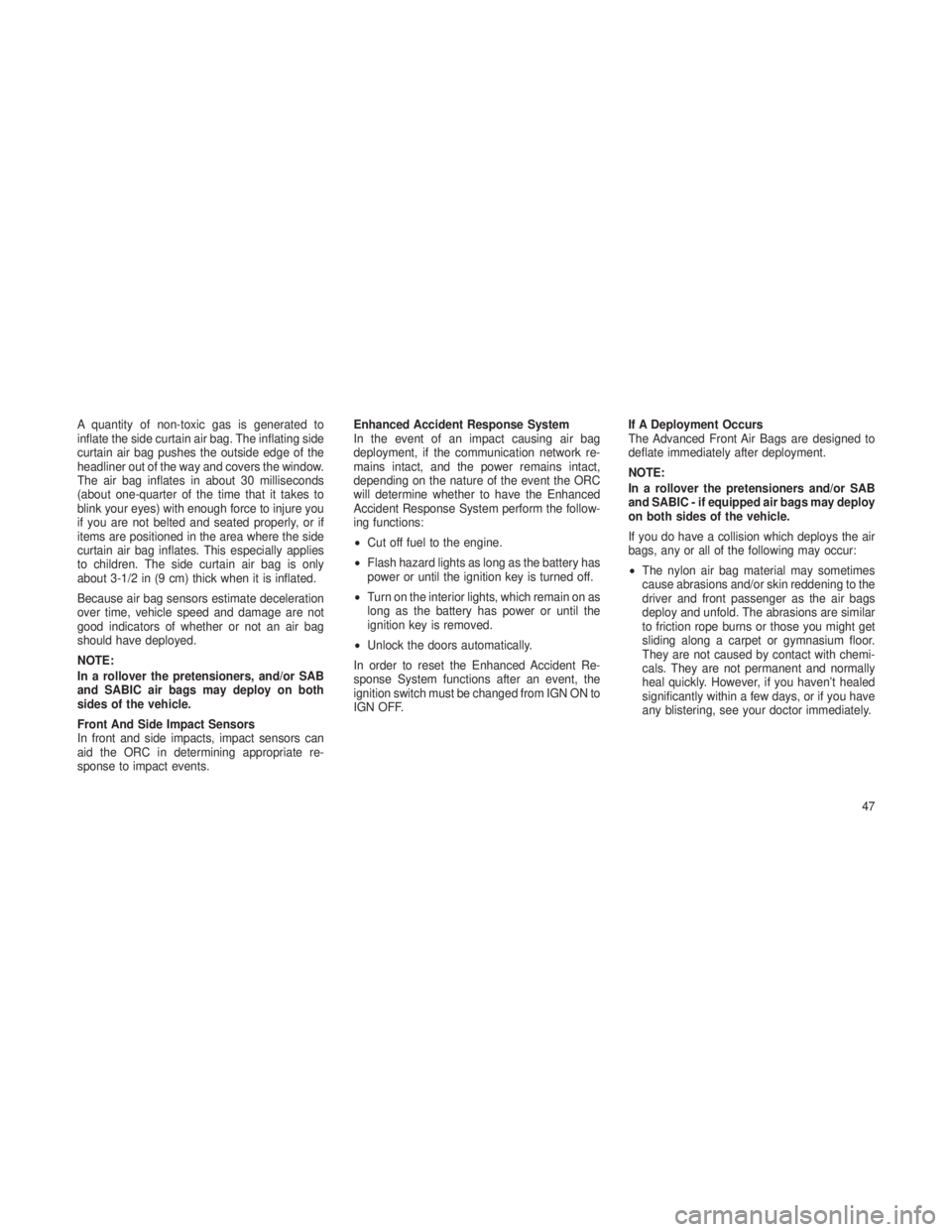

A quantity of non-toxic gas is generated to
inflate the side curtain air bag. The inflating side
curtain air bag pushes the outside edge of the
headliner out of the way and covers the window.
The air bag inflates in about 30 milliseconds
(about one-quarter of the time that it takes to
blink your eyes) with enough force to injure you
if you are not belted and seated properly, or if
items are positioned in the area where the side
curtain air bag inflates. This especially applies
to children. The side curtain air bag is only
about 3-1/2 in (9 cm) thick when it is inflated.
Because air bag sensors estimate deceleration
over time, vehicle speed and damage are not
good indicators of whether or not an air bag
should have deployed.
NOTE:
In a rollover the pretensioners, and/or SAB
and SABIC air bags may deploy on both
sides of the vehicle.
Front And Side Impact Sensors
In front and side impacts, impact sensors can
aid the ORC in determining appropriate re-
sponse to impact events.Enhanced Accident Response System
In the event of an impact causing air bag
deployment, if the communication network re-
mains intact, and the power remains intact,
depending on the nature of the event the ORC
will determine whether to have the Enhanced
Accident Response System perform the follow-
ing functions:
•
Cut off fuel to the engine.
• Flash hazard lights as long as the battery has
power or until the ignition key is turned off.
• Turn on the interior lights, which remain on as
long as the battery has power or until the
ignition key is removed.
• Unlock the doors automatically.
In order to reset the Enhanced Accident Re-
sponse System functions after an event, the
ignition switch must be changed from IGN ON to
IGN OFF. If A Deployment Occurs
The Advanced Front Air Bags are designed to
deflate immediately after deployment.
NOTE:
In a rollover the pretensioners and/or SAB
and SABIC - if equipped air bags may deploy
on both sides of the vehicle.
If you do have a collision which deploys the air
bags, any or all of the following may occur:
•
The nylon air bag material may sometimes
cause abrasions and/or skin reddening to the
driver and front passenger as the air bags
deploy and unfold. The abrasions are similar
to friction rope burns or those you might get
sliding along a carpet or gymnasium floor.
They are not caused by contact with chemi-
cals. They are not permanent and normally
heal quickly. However, if you haven’t healed
significantly within a few days, or if you have
any blistering, see your doctor immediately.
47
