wipers JEEP GRAND CHEROKEE 2013 Owner handbook (in English)

•VOICE COMMAND — IF EQUIPPED ....................91•Voice Command System Operation ....................91
• Commands ...................................92
• Voice Training .................................94
•SEATS ......................................94•Power Seats — If Equipped ........................94
• Passenger’s Power Seat ..........................95
• Power Lumbar — If Equipped .......................96
• Front Passenger Seat Fold-Flat Feature — If Equipped ........96
• Heated Seats — If Equipped ........................96
• Ventilated Seats — If Equipped .......................98
• Head Restraints ................................98
• 60/40 Split Rear Seat ........................... .100
• Reclining Rear Seat ............................ .102
•DRIVER MEMORY SEAT — IF EQUIPPED ................102•Programming The Memory Feature ....................103
• Linking And Unlinking The Remote Keyless Entry Transmitter To
Memory ................................... .103
• Memory Position Recall ......................... .104
• Easy Entry/Exit Seat ........................... .104
•TO OPEN AND CLOSE THE HOOD ....................105
• LIGHTS .....................................106
•Headlight Switch ............................. .106
• Automatic Headlights — If Equipped ..................107
• Headlights On Automatically With Wipers ...............107
• SmartBeam™ — If Equipped ...................... .107
• Daytime Running Lights — If Equipped .................108
64

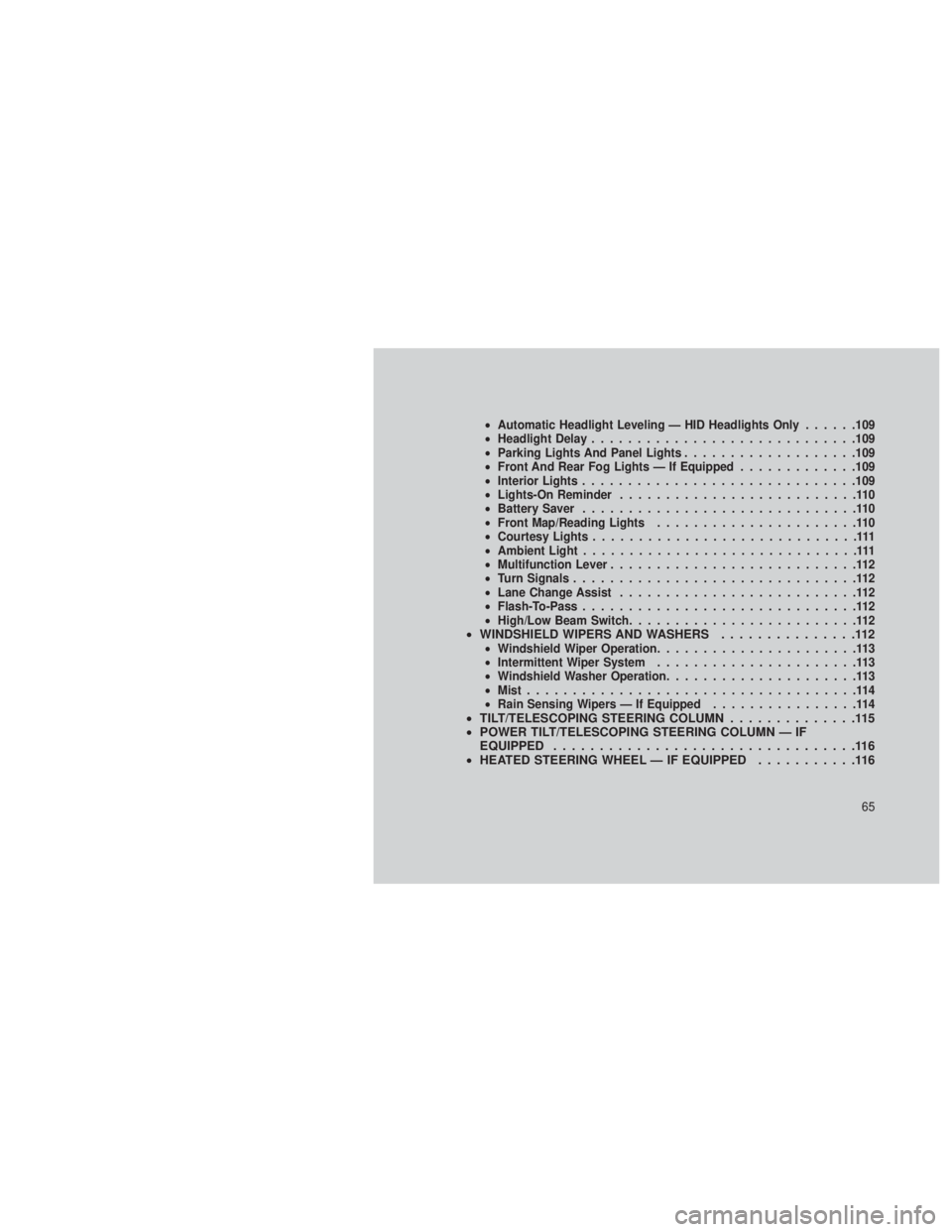

•Automatic Headlight Leveling — HID Headlights Only ......109
• Headlight Delay ............................ .109
• Parking Lights And Panel Lights ...................109
• Front And Rear Fog Lights — If Equipped .............109
• Interior Lights ............................. .109
• Lights-On Reminder ..........................110
• Battery Saver ..............................110
• Front Map/Reading Lights ......................110
• Courtesy Lights .............................111
• Ambient Light ..............................111
• Multifunction Lever ...........................112
• Turn Signals ...............................112
• Lane Change Assist ..........................112
• Flash-To-Pass ..............................112
• High/Low Beam Switch .........................112
•WINDSHIELD WIPERS AND WASHERS ...............112•Windshield Wiper Operation ......................113
• Intermittent Wiper System ......................113
• Windshield Washer Operation .....................113
• Mist ....................................114
• Rain Sensing Wipers — If Equipped ................114
•TILT/TELESCOPING STEERING COLUMN ..............115
• POWER TILT/TELESCOPING STEERING COLUMN — IF
EQUIPPED .................................116
• HEATED STEERING WHEEL — IF EQUIPPED ...........116
65

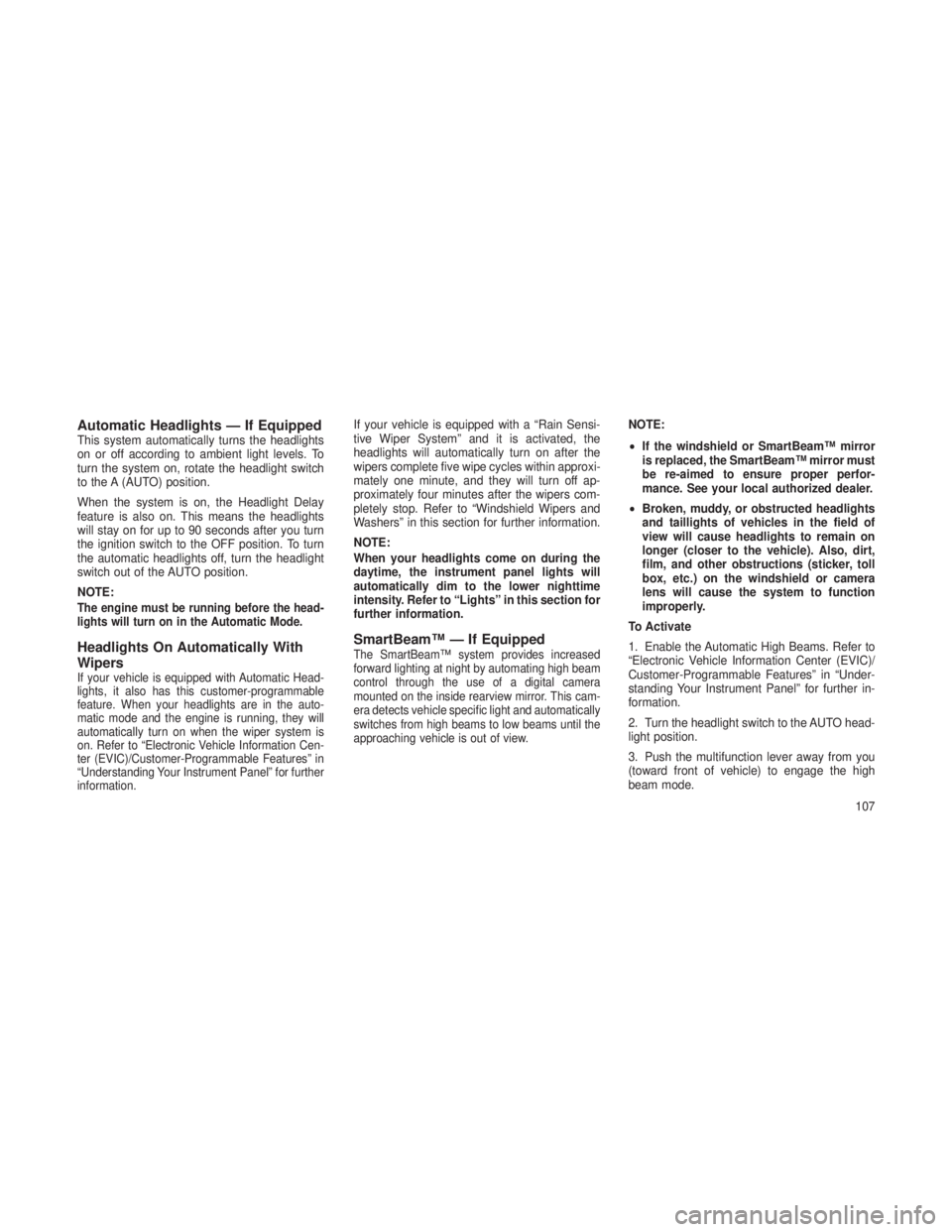

Automatic Headlights — If EquippedThis system automatically turns the headlights
on or off according to ambient light levels. To
turn the system on, rotate the headlight switch
to the A (AUTO) position.
When the system is on, the Headlight Delay
feature is also on. This means the headlights
will stay on for up to 90 seconds after you turn
the ignition switch to the OFF position. To turn
the automatic headlights off, turn the headlight
switch out of the AUTO position.
NOTE:
The engine must be running before the head-
lights will turn on in the Automatic Mode.
Headlights On Automatically With
Wipers
If your vehicle is equipped with Automatic Head-
lights, it also has this customer-programmable
feature. When your headlights are in the auto-
matic mode and the engine is running, they will
automatically turn on when the wiper system is
on. Refer to “Electronic Vehicle Information Cen-
ter (EVIC)/Customer-Programmable Features” in
“Understanding Your Instrument Panel” for further
information.
If your vehicle is equipped with a “Rain Sensi-
tive Wiper System” and it is activated, the
headlights will automatically turn on after the
wipers complete five wipe cycles within approxi-
mately one minute, and they will turn off ap-
proximately four minutes after the wipers com-
pletely stop. Refer to “Windshield Wipers and
Washers” in this section for further information.
NOTE:
When your headlights come on during the
daytime, the instrument panel lights will
automatically dim to the lower nighttime
intensity. Refer to “Lights” in this section for
further information.
SmartBeam™ — If EquippedThe SmartBeam™ system provides increased
forward lighting at night by automating high beam
control through the use of a digital camera
mounted on the inside rearview mirror. This cam-
era detects vehicle specific light and automatically
switches from high beams to low beams until the
approaching vehicle is out of view.
NOTE:
•If the windshield or SmartBeam™ mirror
is replaced, the SmartBeam™ mirror must
be re-aimed to ensure proper perfor-
mance. See your local authorized dealer.
• Broken, muddy, or obstructed headlights
and taillights of vehicles in the field of
view will cause headlights to remain on
longer (closer to the vehicle). Also, dirt,
film, and other obstructions (sticker, toll
box, etc.) on the windshield or camera
lens will cause the system to function
improperly.
To Activate
1. Enable the Automatic High Beams. Refer to
“Electronic Vehicle Information Center (EVIC)/
Customer-Programmable Features” in “Under-
standing Your Instrument Panel” for further in-
formation.
2. Turn the headlight switch to the AUTO head-
light position.
3. Push the multifunction lever away from you
(toward front of vehicle) to engage the high
beam mode.
107

Multifunction LeverThe multifunction lever is located on the left side
of the steering column.
Turn SignalsMove the multifunction lever up or down and the
arrows on each side of the instrument cluster
flash to show proper operation of the front and
rear turn signal lights.NOTE:
If either light remains on and does not flash,
or there is a very fast flash rate, check for a
defective outside light bulb. If an indicator
fails to light when the lever is moved, it
would suggest that the indicator bulb is
defective.
Lane Change AssistTap the lever up or down once, without moving
beyond the detent, and the turn signal (right or left)
will flash three times then automatically turn off.
Flash-To-PassYou can signal another vehicle with your head-
lights by partially pulling the multifunction lever
toward the steering wheel. This will cause the
high beam headlights to turn on until the lever is
released.
High/Low Beam SwitchPush the multifunction lever toward the instru-
ment panel to switch the headlights to high
beam. Pulling the multifunction back toward the
steering wheel will turn the low beams back on,
or shut the high beams off.
WINDSHIELD WIPERS AND
WASHERS
The windshield wiper/washer controls are lo-
cated on the multifunction lever on the left side
of the steering column. The front wipers are
operated by rotating a switch, located on the
end of the lever. For information on the rear
wiper/washer, refer to “Rear Window Features”
in “Understanding The Features Of Your Ve-
hicle”.
Multifunction Lever
Multifunction Lever
11 2

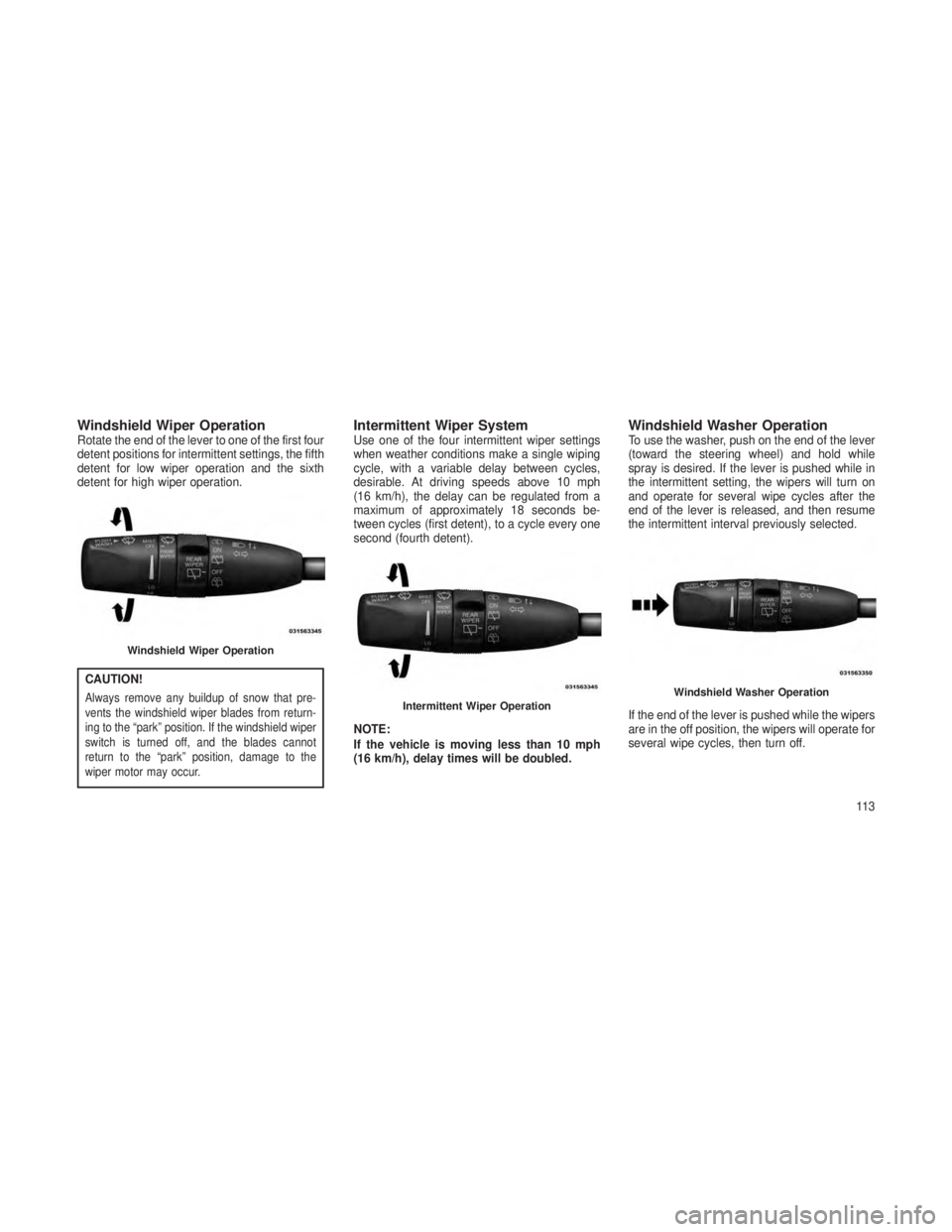

Windshield Wiper OperationRotate the end of the lever to one of the first four
detent positions for intermittent settings, the fifth
detent for low wiper operation and the sixth
detent for high wiper operation.
CAUTION!
Always remove any buildup of snow that pre-
vents the windshield wiper blades from return-
ing to the “park” position. If the windshield wiper
switch is turned off, and the blades cannot
return to the “park” position, damage to the
wiper motor may occur.
Intermittent Wiper SystemUse one of the four intermittent wiper settings
when weather conditions make a single wiping
cycle, with a variable delay between cycles,
desirable. At driving speeds above 10 mph
(16 km/h), the delay can be regulated from a
maximum of approximately 18 seconds be-
tween cycles (first detent), to a cycle every one
second (fourth detent).
NOTE:
If the vehicle is moving less than 10 mph
(16 km/h), delay times will be doubled.Windshield Washer OperationTo use the washer, push on the end of the lever
(toward the steering wheel) and hold while
spray is desired. If the lever is pushed while in
the intermittent setting, the wipers will turn on
and operate for several wipe cycles after the
end of the lever is released, and then resume
the intermittent interval previously selected.
If the end of the lever is pushed while the wipers
are in the off position, the wipers will operate for
several wipe cycles, then turn off.
Windshield Wiper Operation
Intermittent Wiper OperationWindshield Washer Operation
11 3

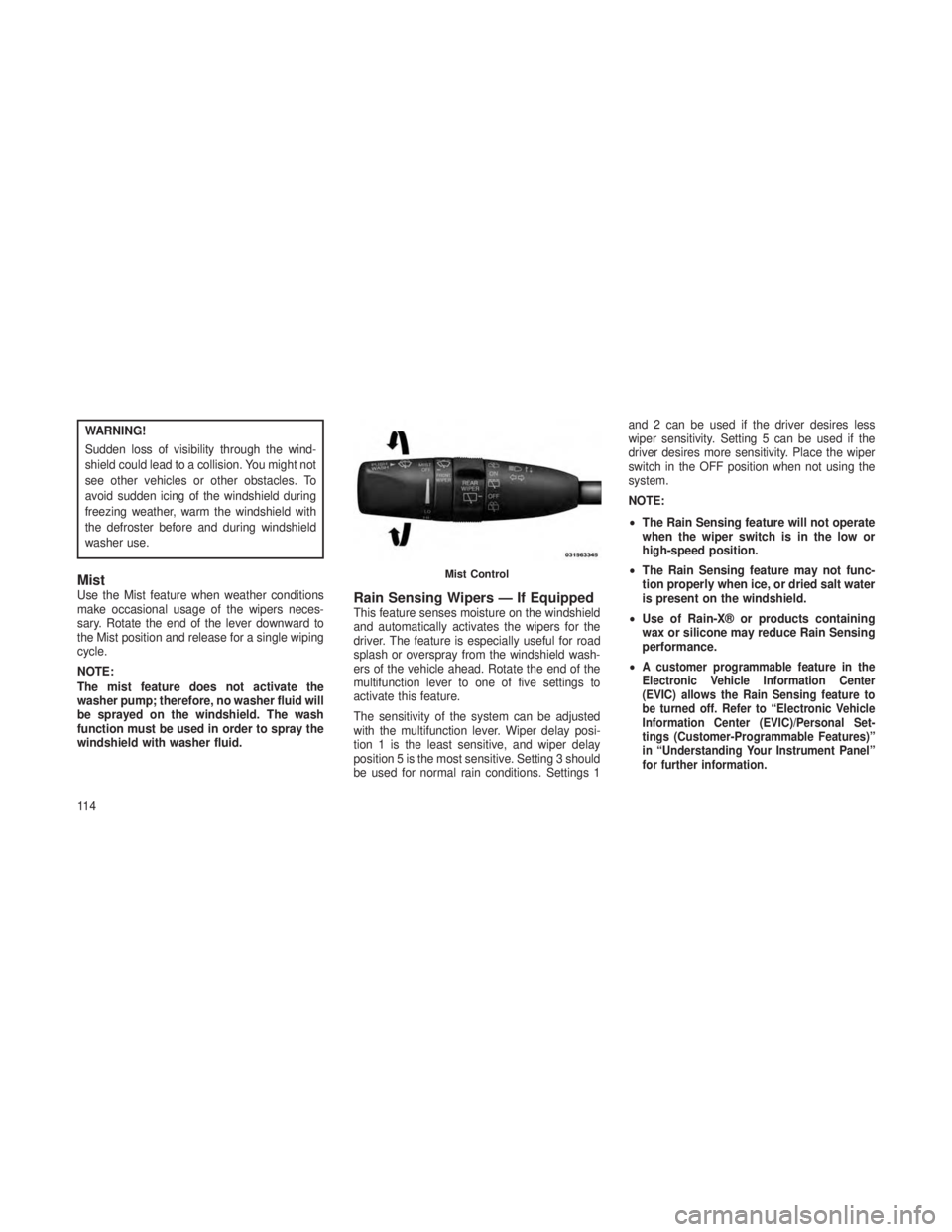

WARNING!
Sudden loss of visibility through the wind-
shield could lead to a collision. You might not
see other vehicles or other obstacles. To
avoid sudden icing of the windshield during
freezing weather, warm the windshield with
the defroster before and during windshield
washer use.
MistUse the Mist feature when weather conditions
make occasional usage of the wipers neces-
sary. Rotate the end of the lever downward to
the Mist position and release for a single wiping
cycle.
NOTE:
The mist feature does not activate the
washer pump; therefore, no washer fluid will
be sprayed on the windshield. The wash
function must be used in order to spray the
windshield with washer fluid.Rain Sensing Wipers — If EquippedThis feature senses moisture on the windshield
and automatically activates the wipers for the
driver. The feature is especially useful for road
splash or overspray from the windshield wash-
ers of the vehicle ahead. Rotate the end of the
multifunction lever to one of five settings to
activate this feature.
The sensitivity of the system can be adjusted
with the multifunction lever. Wiper delay posi-
tion 1 is the least sensitive, and wiper delay
position 5 is the most sensitive. Setting 3 should
be used for normal rain conditions. Settings 1and 2 can be used if the driver desires less
wiper sensitivity. Setting 5 can be used if the
driver desires more sensitivity. Place the wiper
switch in the OFF position when not using the
system.
NOTE:
•
The Rain Sensing feature will not operate
when the wiper switch is in the low or
high-speed position.
• The Rain Sensing feature may not func-
tion properly when ice, or dried salt water
is present on the windshield.
• Use of Rain-X® or products containing
wax or silicone may reduce Rain Sensing
performance.
•
A customer programmable feature in the
Electronic Vehicle Information Center
(EVIC) allows the Rain Sensing feature to
be turned off. Refer to “Electronic Vehicle
Information Center (EVIC)/Personal Set-
tings (Customer-Programmable Features)”
in “Understanding Your Instrument Panel”
for further information.
Mist Control
11 4

The Rain Sensing system has protection fea-
tures for the wiper blades and arms, and will not
operate under the following conditions:
•Low Ambient Temperature — When the
ignition is first turned ON, the Rain Sensing
system will not operate until the wiper switch
is moved, vehicle speed is greater than
0 mph (0 km/h), or the outside temperature is
greater than 32°F (0°C).
• Transmission In NEUTRAL Position —
When the ignition is ON, and the transmis-
sion is in the NEUTRAL position, the Rain
Sensing system will not operate until the
wiper switch is moved, vehicle speed is
greater than 5 mph (8 km/h), or the shift lever
is moved out of the NEUTRAL position.
Remote Start Mode Inhibit — On vehicles
equipped with Remote Starting system, Rain
Sensing wipers are not operational when the
vehicle is in the remote start mode. Once the
operator is in the vehicle and has placed the
ignition switch in the RUN position, rain sensing
wiper operation can resume, if it has been
selected, and no other inhibit conditions (men-
tioned previously) exist.TILT/TELESCOPING STEERING
COLUMN
This feature allows you to tilt the steering col-
umn upward or downward. It also allows you to
lengthen or shorten the steering column. The
tilt/telescoping lever is located below the steer-
ing wheel at the end of the steering column. To unlock the steering column, push the lever
downward (toward the floor). To tilt the steering
column, move the steering wheel upward or
downward as desired. To lengthen or shorten
the steering column, pull the steering wheel
outward or push it inward as desired. To lock the
steering column in position, push the lever
upward until fully engaged.
WARNING!
Do not adjust the steering column while
driving. Adjusting the steering column while
driving or driving with the steering column
unlocked, could cause the driver to lose
control of the vehicle. Failure to follow this
warning may result in serious injury or death.
Tilt/Telescoping Lever
11 5

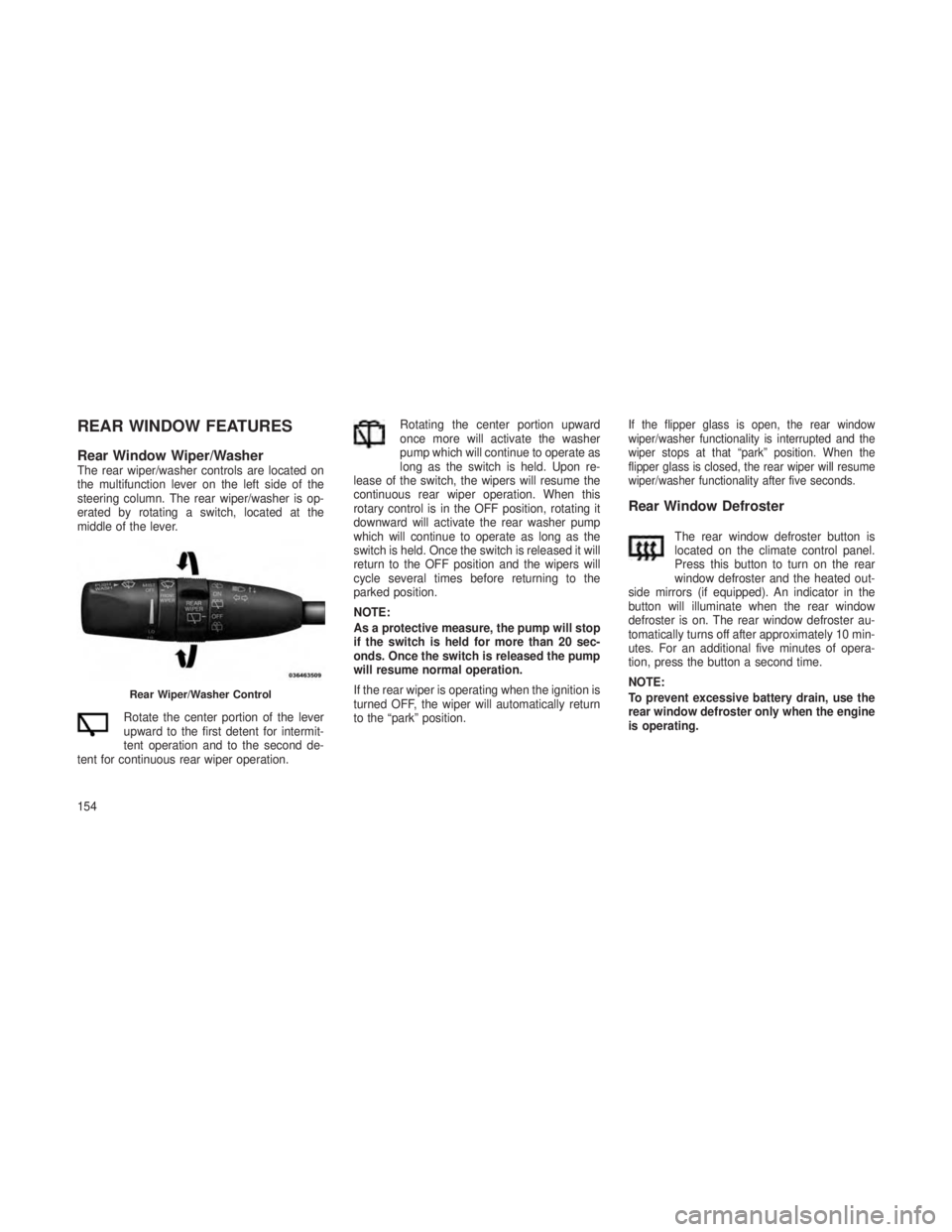

REAR WINDOW FEATURES
Rear Window Wiper/WasherThe rear wiper/washer controls are located on
the multifunction lever on the left side of the
steering column. The rear wiper/washer is op-
erated by rotating a switch, located at the
middle of the lever.Rotate the center portion of the lever
upward to the first detent for intermit-
tent operation and to the second de-
tent for continuous rear wiper operation. Rotating the center portion upward
once more will activate the washer
pump which will continue to operate as
long as the switch is held. Upon re-
lease of the switch, the wipers will resume the
continuous rear wiper operation. When this
rotary control is in the OFF position, rotating it
downward will activate the rear washer pump
which will continue to operate as long as the
switch is held. Once the switch is released it will
return to the OFF position and the wipers will
cycle several times before returning to the
parked position.
NOTE:
As a protective measure, the pump will stop
if the switch is held for more than 20 sec-
onds. Once the switch is released the pump
will resume normal operation.
If the rear wiper is operating when the ignition is
turned OFF, the wiper will automatically return
to the “park” position.
If the flipper glass is open, the rear window
wiper/washer functionality is interrupted and the
wiper stops at that “park” position. When the
flipper glass is closed, the rear wiper will resume
wiper/washer functionality after five seconds.
Rear Window Defroster
The rear window defroster button is
located on the climate control panel.
Press this button to turn on the rear
window defroster and the heated out-
side mirrors (if equipped). An indicator in the
button will illuminate when the rear window
defroster is on. The rear window defroster au-
tomatically turns off after approximately 10 min-
utes. For an additional five minutes of opera-
tion, press the button a second time.
NOTE:
To prevent excessive battery drain, use the
rear window defroster only when the engine
is operating.
Rear Wiper/Washer Control
154

Remote Unlock Sequence
WhenUnlock Driver Door Only On 1st Press
is selected, only the driver’s door will unlock on
the first press of the RKE transmitter UNLOCK
button. When Driver Door 1st Press is selected,
you must press the RKE transmitter UNLOCK
button twice to unlock the passenger’s doors.
When Unlock All Doors On 1st Press is
selected, all of the doors will unlock on the first
press of the RKE transmitter UNLOCK button.
To make your selection, scroll up or down until
the preferred setting is highlighted, then press
and release the SELECT button until a check-
mark appears next to the setting, showing that
the setting has been selected.
NOTE:
If the vehicle is equipped with Keyless
Enter-N-Go™ (Passive Entry) and the EVIC
is programmed to Unlock All Doors 1st
Press, all doors will unlock no matter which
Passive Entry equipped door handle is
grasped. If Driver Door 1st Press is pro-
grammed, only the driver’s door will unlock
when the driver’s door is grasped. With Passive Entry, if Driver Door 1st Press is
programmed touching the handle more than
once will only result in the driver’s door
opening. If driver door first is selected, once
the driver door is opened, the interior door
lock/unlock switch can be used to unlock all
doors (or use RKE transmitter).
RKE Linked To Memory
When this feature is selected, you can use your
RKE transmitter to recall one of two pre-
programmed memory profiles. Each memory
profile contains desired position settings for the
driver seat, side mirror, adjustable pedals (if
equipped), power tilt and telescopic steering
column (if equipped), and a set of desired radio
station presets. When OFF is selected, only the
MEMORY switch on the driver’s door trim panel
will recall memory profiles. To make your selec-
tion, press and release the SELECT button a
check-mark appears next to the feature show-
ing the system has been activated or the check-
mark is removed showing the system has been
deactivated. Refer to “Driver Memory Seat” in
“Understanding The Features Of Your Vehicle”.
Flash Lamps With Lock
When this feature is selected, the front and rear
turn signals will flash when the doors are locked
or unlocked with the RKE transmitter. To make
your selection, press and release the SELECT
button until a check-mark appears next to the
feature showing the system has been activated
or the check-mark is removed showing the
system has been deactivated.
Headlamp Off Delay
When this feature is selected, the driver can
choose to have the headlights remain on for 0,
30, 60, or 90 seconds when exiting the vehicle.
To make your selection, scroll up or down until
the preferred setting is highlighted, then press
and release the SELECT button until a check-
mark appears next to the setting, showing that
the setting has been selected.
Headlamps with Wipers (Available with
Automatic Headlamps Only)
When this feature is selected, and the headlight
switch is in the AUTO position, the headlights
will turn on approximately 10 seconds after the
wipers are turned on. The headlights will also
186

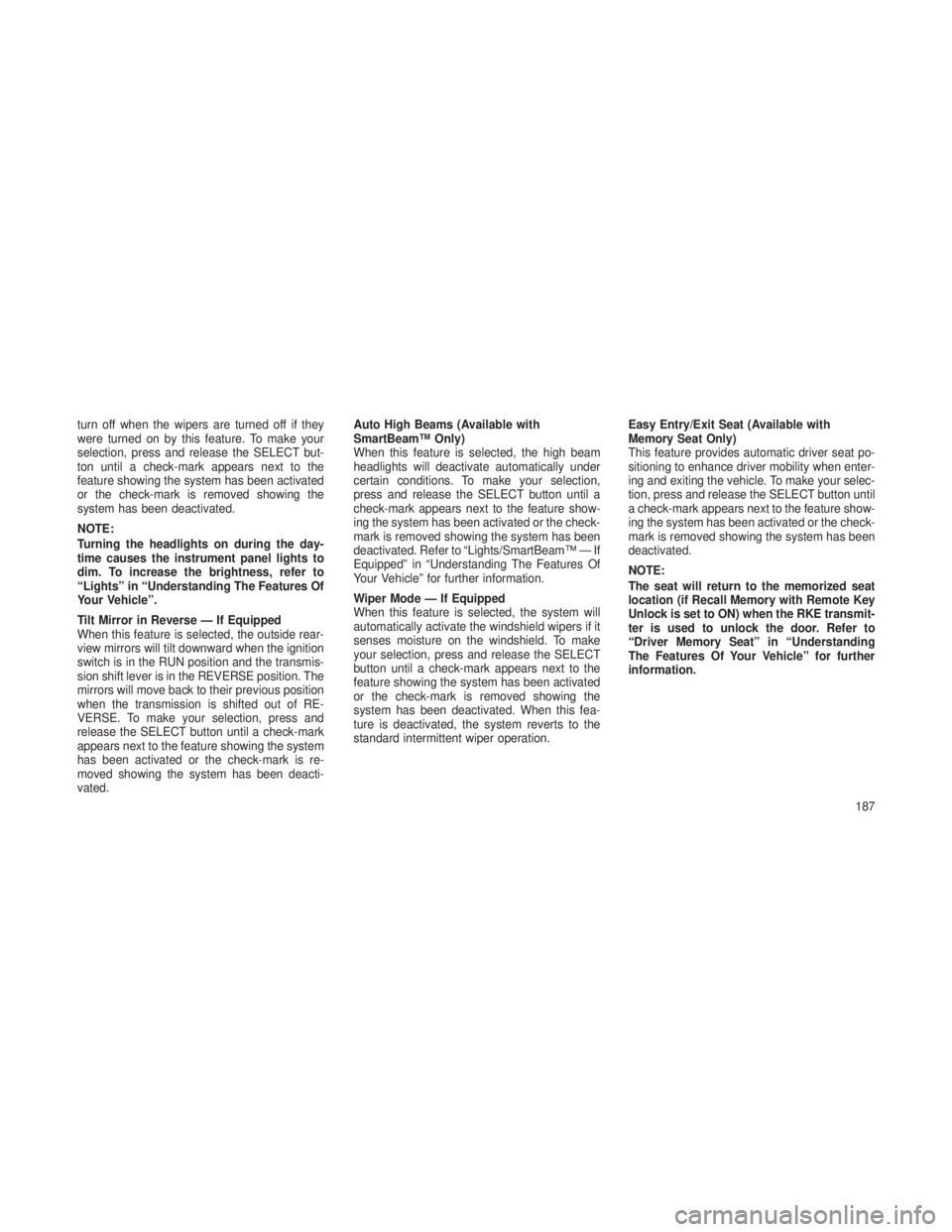

turn off when the wipers are turned off if they
were turned on by this feature. To make your
selection, press and release the SELECT but-
ton until a check-mark appears next to the
feature showing the system has been activated
or the check-mark is removed showing the
system has been deactivated.
NOTE:
Turning the headlights on during the day-
time causes the instrument panel lights to
dim. To increase the brightness, refer to
“Lights” in “Understanding The Features Of
Your Vehicle”.
Tilt Mirror in Reverse — If Equipped
When this feature is selected, the outside rear-
view mirrors will tilt downward when the ignition
switch is in the RUN position and the transmis-
sion shift lever is in the REVERSE position. The
mirrors will move back to their previous position
when the transmission is shifted out of RE-
VERSE. To make your selection, press and
release the SELECT button until a check-mark
appears next to the feature showing the system
has been activated or the check-mark is re-
moved showing the system has been deacti-
vated.Auto High Beams (Available with
SmartBeam™ Only)
When this feature is selected, the high beam
headlights will deactivate automatically under
certain conditions. To make your selection,
press and release the SELECT button until a
check-mark appears next to the feature show-
ing the system has been activated or the check-
mark is removed showing the system has been
deactivated. Refer to “Lights/SmartBeam™ — If
Equipped” in “Understanding The Features Of
Your Vehicle” for further information.
Wiper Mode — If Equipped
When this feature is selected, the system will
automatically activate the windshield wipers if it
senses moisture on the windshield. To make
your selection, press and release the SELECT
button until a check-mark appears next to the
feature showing the system has been activated
or the check-mark is removed showing the
system has been deactivated. When this fea-
ture is deactivated, the system reverts to the
standard intermittent wiper operation.
Easy Entry/Exit Seat (Available with
Memory Seat Only)
This feature provides automatic driver seat po-
sitioning to enhance driver mobility when enter-
ing and exiting the vehicle. To make your selec-
tion, press and release the SELECT button until
a check-mark appears next to the feature show-
ing the system has been activated or the check-
mark is removed showing the system has been
deactivated.
NOTE:
The seat will return to the memorized seat
location (if Recall Memory with Remote Key
Unlock is set to ON) when the RKE transmit-
ter is used to unlock the door. Refer to
“Driver Memory Seat” in “Understanding
The Features Of Your Vehicle” for further
information.
187
