JEEP RENEGADE 2015 1.G Owners Manual

NOTE:The headlights must be on for the high beams to
activate.
Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.
•A “Turn Signal On” message will appear in the instru-
ment cluster and a continuous chime will sound if the
vehicle is driven more than 1 mile (1.6 km) with either
turn signal on.
•When the Daytime Running Lights are on and a turn
signal is activated, the Daytime Running Lamp will
turn off on the side of the vehicle in which the turn
signal is flashing. The Daytime Running Lamp will
turn back on when the turn signal is turned off.
High Beam And Turn Signal Controls
4
GETTING TO KNOW YOUR VEHICLE 99

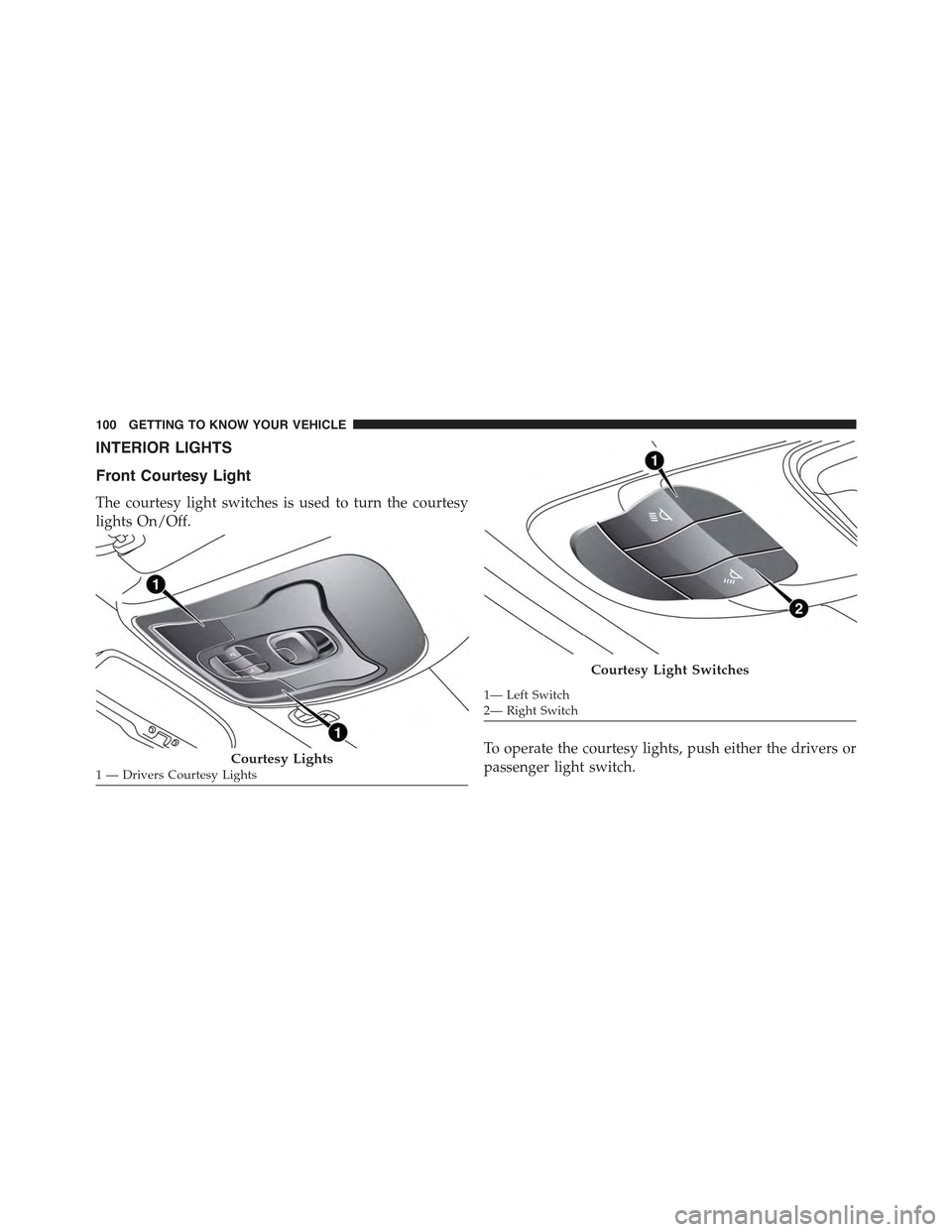

INTERIOR LIGHTS
Front Courtesy Light
The courtesy light switches is used to turn the courtesy
lights On/Off.
To operate the courtesy lights, push either the drivers or
passenger light switch.Courtesy Lights1 — Drivers Courtesy Lights
Courtesy Light Switches
1— Left Switch2— Right Switch
100 GETTING TO KNOW YOUR VEHICLE

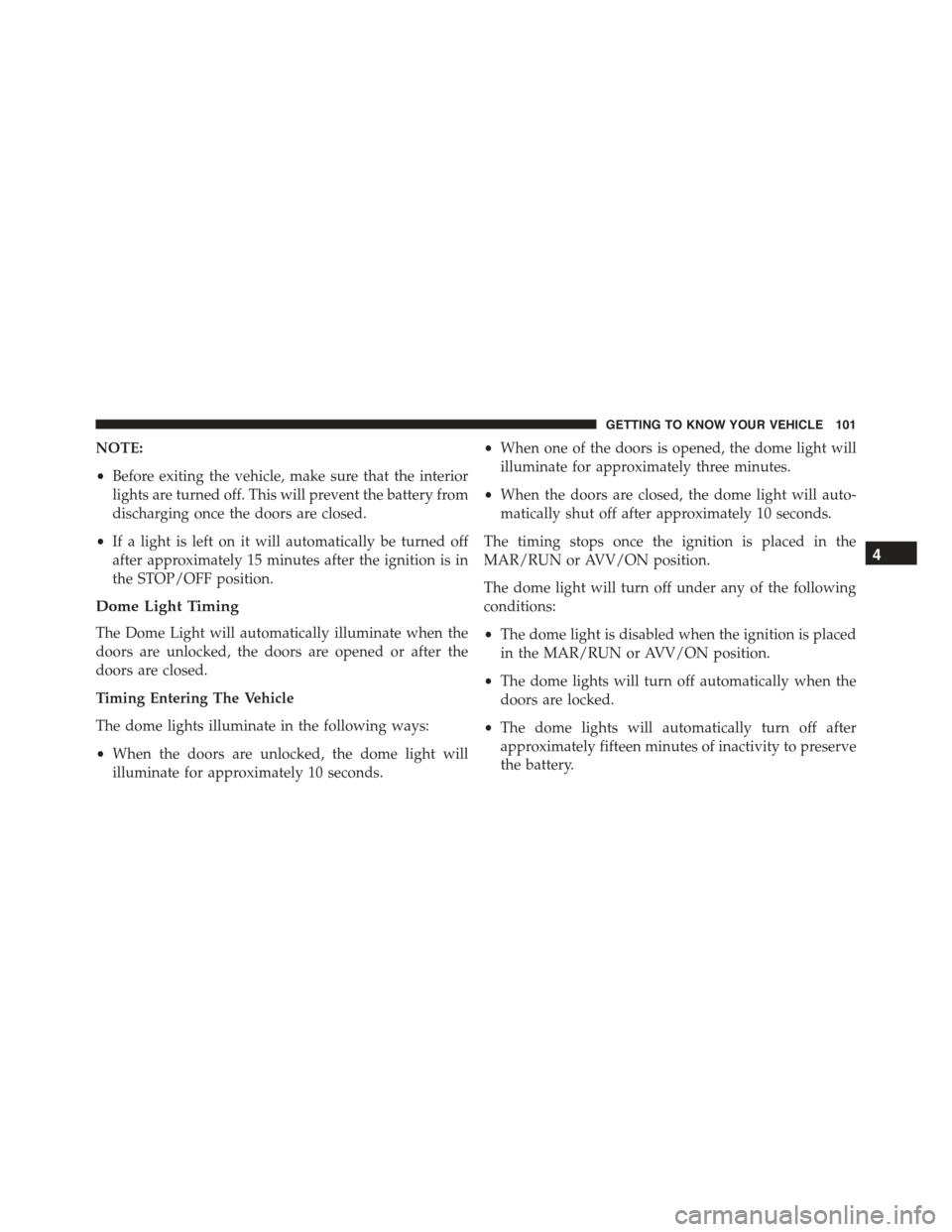

NOTE:
•Before exiting the vehicle, make sure that the interior
lights are turned off. This will prevent the battery from
discharging once the doors are closed.
•If a light is left on it will automatically be turned off
after approximately 15 minutes after the ignition is in
the STOP/OFF position.
Dome Light Timing
The Dome Light will automatically illuminate when the
doors are unlocked, the doors are opened or after the
doors are closed.
Timing Entering The Vehicle
The dome lights illuminate in the following ways:
•When the doors are unlocked, the dome light will
illuminate for approximately 10 seconds.
•When one of the doors is opened, the dome light will
illuminate for approximately three minutes.
•When the doors are closed, the dome light will auto-
matically shut off after approximately 10 seconds.
The timing stops once the ignition is placed in the
MAR/RUN or AVV/ON position.
The dome light will turn off under any of the following
conditions:
•The dome light is disabled when the ignition is placed
in the MAR/RUN or AVV/ON position.
•The dome lights will turn off automatically when the
doors are locked.
•The dome lights will automatically turn off after
approximately fifteen minutes of inactivity to preserve
the battery.
4
GETTING TO KNOW YOUR VEHICLE 101

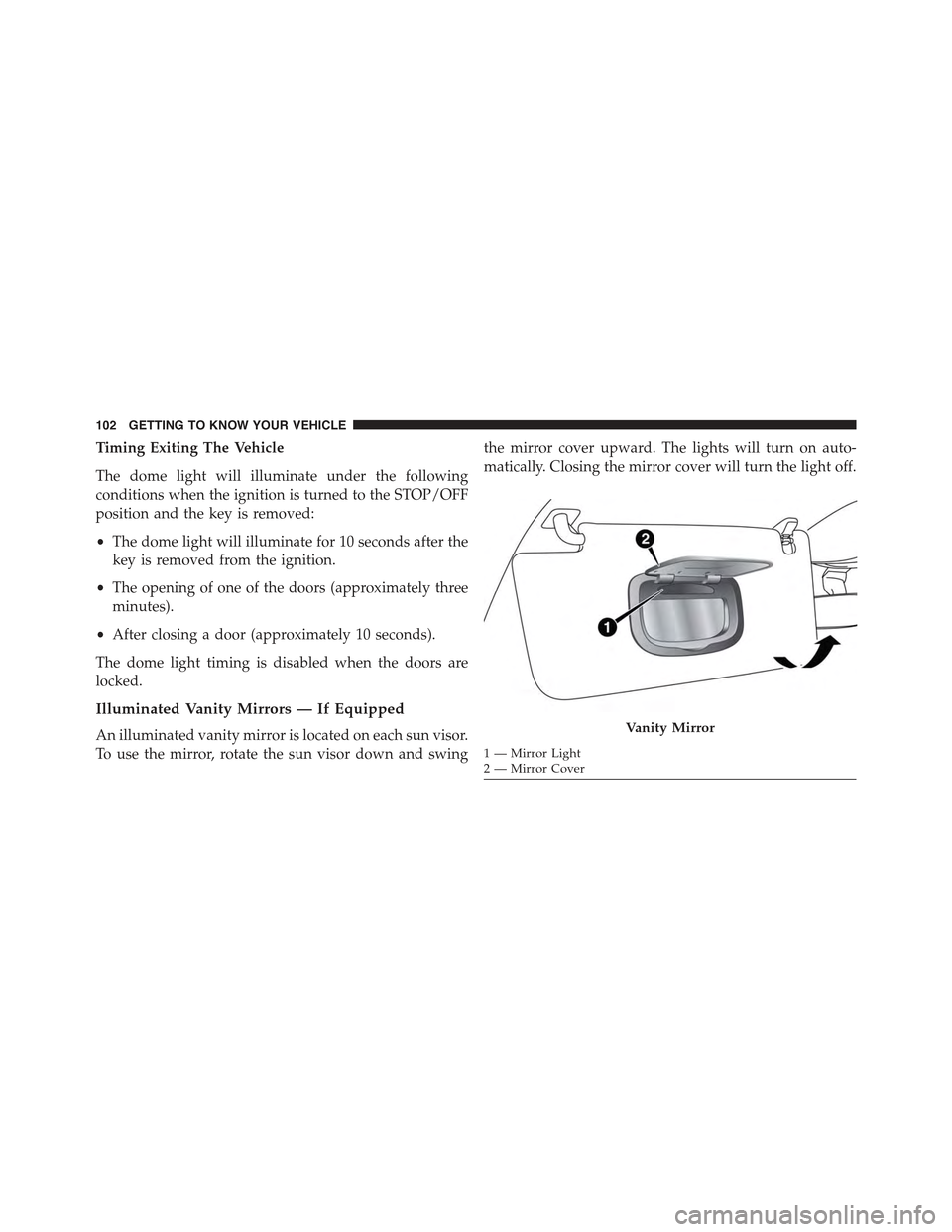

Timing Exiting The Vehicle
The dome light will illuminate under the following
conditions when the ignition is turned to the STOP/OFF
position and the key is removed:
•The dome light will illuminate for 10 seconds after the
key is removed from the ignition.
•The opening of one of the doors (approximately three
minutes).
•After closing a door (approximately 10 seconds).
The dome light timing is disabled when the doors are
locked.
Illuminated Vanity Mirrors — If Equipped
An illuminated vanity mirror is located on each sun visor.
To use the mirror, rotate the sun visor down and swing
the mirror cover upward. The lights will turn on auto-
matically. Closing the mirror cover will turn the light off.
Vanity Mirror
1—MirrorLight2—MirrorCover
102 GETTING TO KNOW YOUR VEHICLE

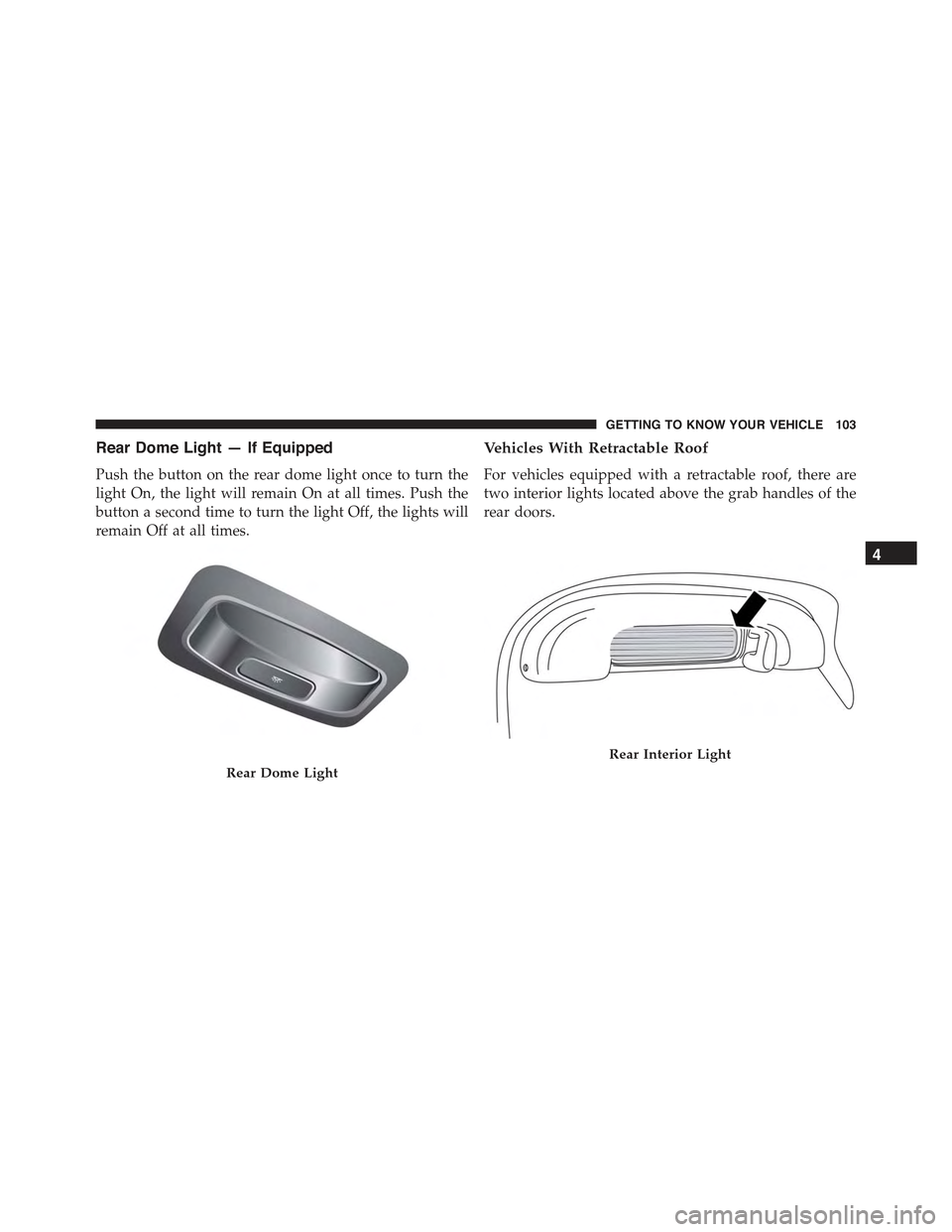

Rear Dome Light — If Equipped
Push the button on the rear dome light once to turn the
light On, the light will remain On at all times. Push the
button a second time to turn the light Off, the lights will
remain Off at all times.
Vehicles With Retractable Roof
For vehicles equipped with a retractable roof, there are
two interior lights located above the grab handles of the
rear doors.
Rear Dome Light
Rear Interior Light
4
GETTING TO KNOW YOUR VEHICLE 103

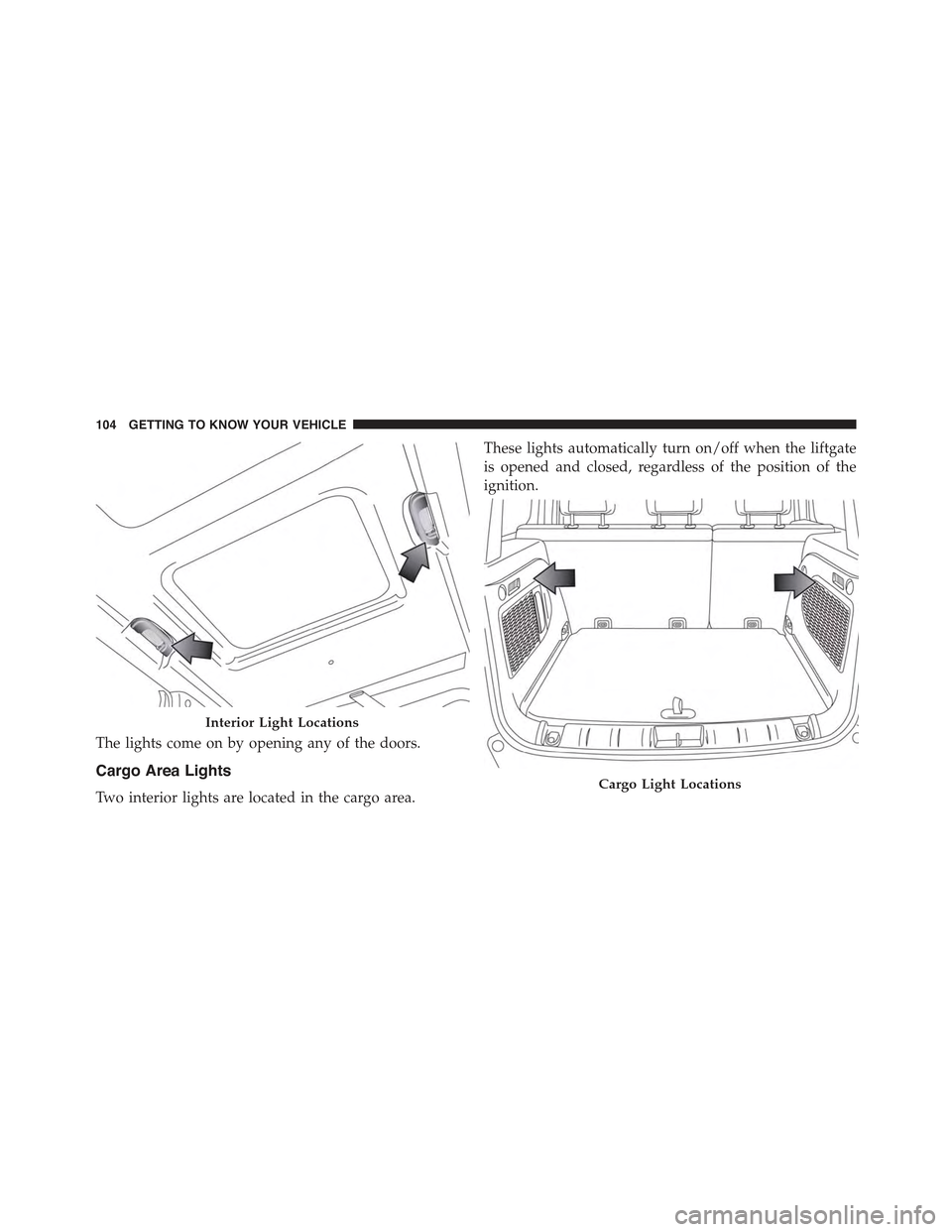

The lights come on by opening any of the doors.
Cargo Area Lights
Two interior lights are located in the cargo area.
These lights automatically turn on/off when the liftgate
is opened and closed, regardless of the position of the
ignition.
Interior Light Locations
Cargo Light Locations
104 GETTING TO KNOW YOUR VEHICLE

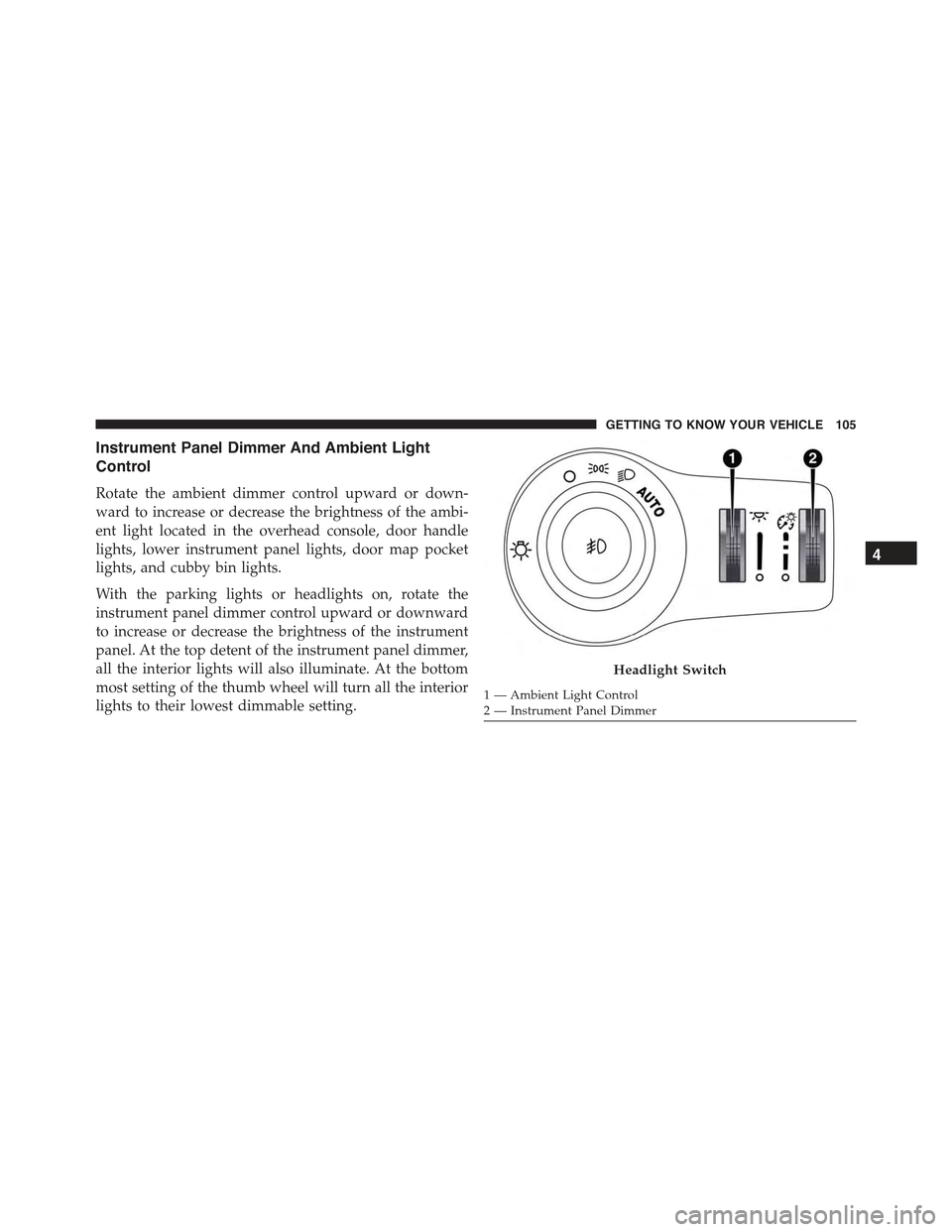

Instrument Panel Dimmer And Ambient Light
Control
Rotate the ambient dimmer control upward or down-
ward to increase or decrease the brightness of the ambi-
ent light located in the overhead console, door handle
lights, lower instrument panel lights, door map pocket
lights, and cubby bin lights.
With the parking lights or headlights on, rotate the
instrument panel dimmer control upward or downward
to increase or decrease the brightness of the instrument
panel. At the top detent of the instrument panel dimmer,
all the interior lights will also illuminate. At the bottom
most setting of the thumb wheel will turn all the interior
lights to their lowest dimmable setting.
Headlight Switch
1—AmbientLightControl2—InstrumentPanelDimmer
4
GETTING TO KNOW YOUR VEHICLE 105

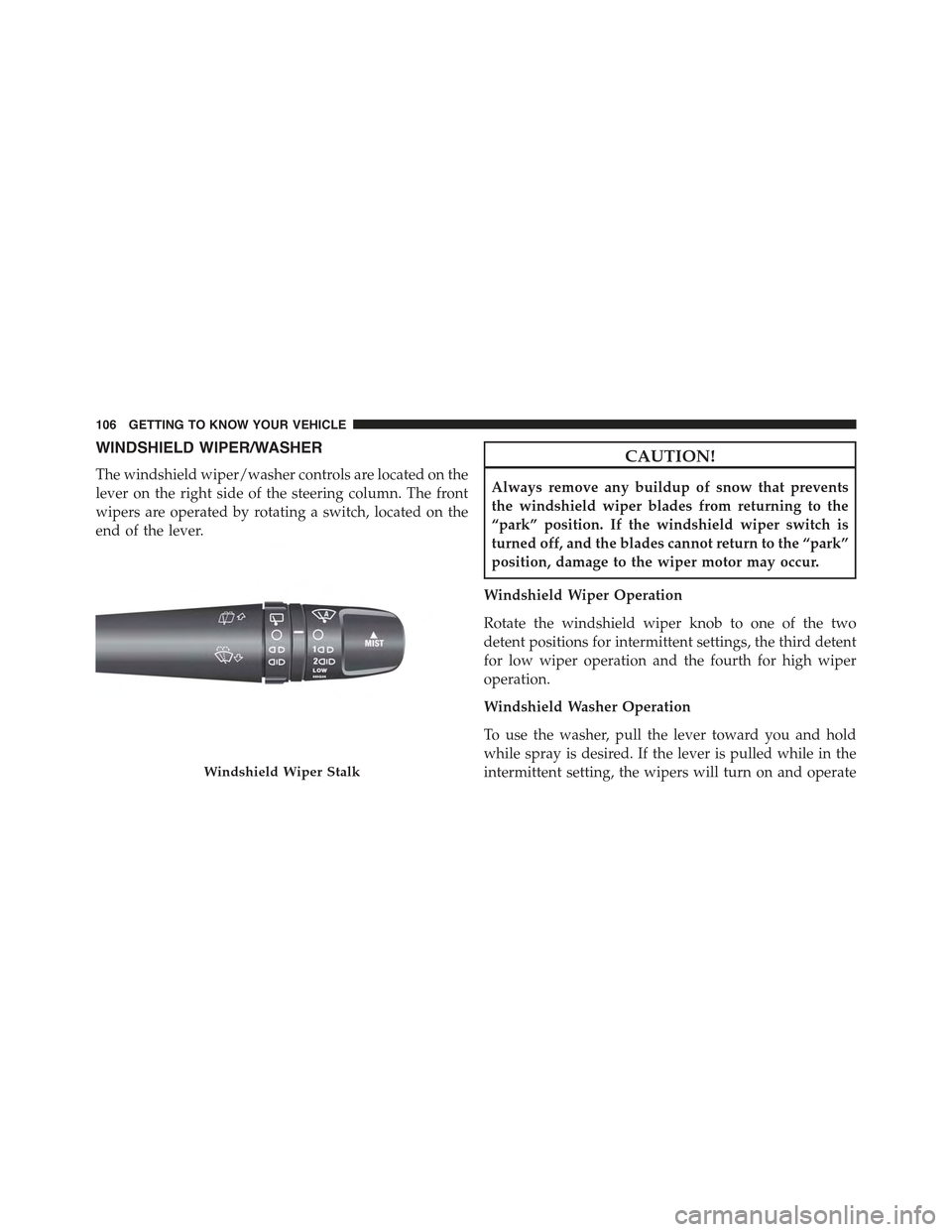

WINDSHIELD WIPER/WASHER
The windshield wiper/washer controls are located on the
lever on the right side of the steering column. The front
wipers are operated by rotating a switch, located on the
end of the lever.
CAUTION!
Always remove any buildup of snow that prevents
the windshield wiper blades from returning to the
“park” position. If the windshield wiper switch is
turned off, and the blades cannot return to the “park”
position, damage to the wiper motor may occur.
Windshield Wiper Operation
Rotate the windshield wiper knob to one of the two
detent positions for intermittent settings, the third detent
for low wiper operation and the fourth for high wiper
operation.
Windshield Washer Operation
To use the washer, pull the lever toward you and hold
while spray is desired. If the lever is pulled while in the
intermittent setting, the wipers will turn on and operateWindshield Wiper Stalk
106 GETTING TO KNOW YOUR VEHICLE

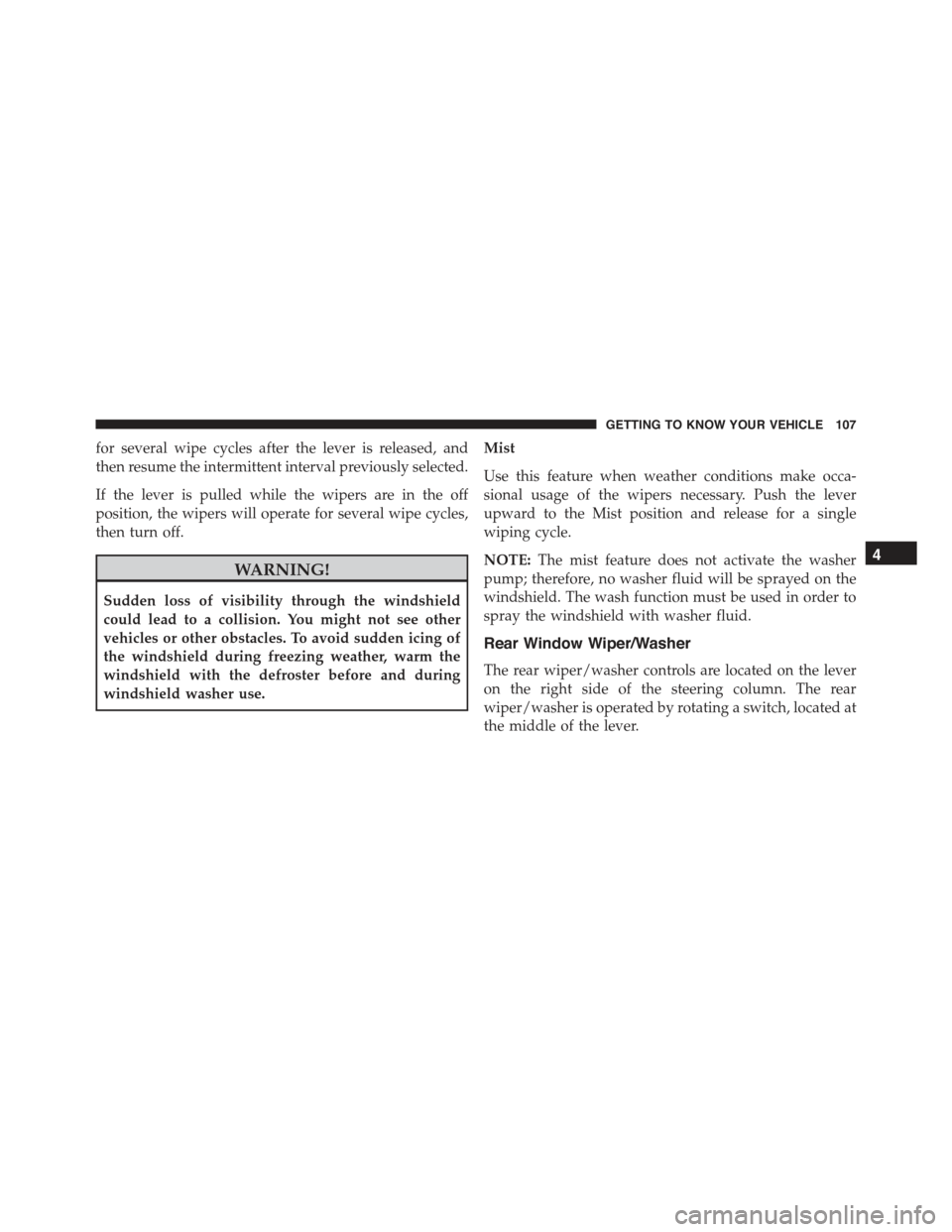

for several wipe cycles after the lever is released, and
then resume the intermittent interval previously selected.
If the lever is pulled while the wipers are in the off
position, the wipers will operate for several wipe cycles,
then turn off.
WARNING!
Sudden loss of visibility through the windshield
could lead to a collision. You might not see other
vehicles or other obstacles. To avoid sudden icing of
the windshield during freezing weather, warm the
windshield with the defroster before and during
windshield washer use.
Mist
Use this feature when weather conditions make occa-
sional usage of the wipers necessary. Push the lever
upward to the Mist position and release for a single
wiping cycle.
NOTE:The mist feature does not activate the washer
pump; therefore, no washer fluid will be sprayed on the
windshield. The wash function must be used in order to
spray the windshield with washer fluid.
Rear Window Wiper/Washer
The rear wiper/washer controls are located on the lever
on the right side of the steering column. The rear
wiper/washer is operated by rotating a switch, located at
the middle of the lever.
4
GETTING TO KNOW YOUR VEHICLE 107

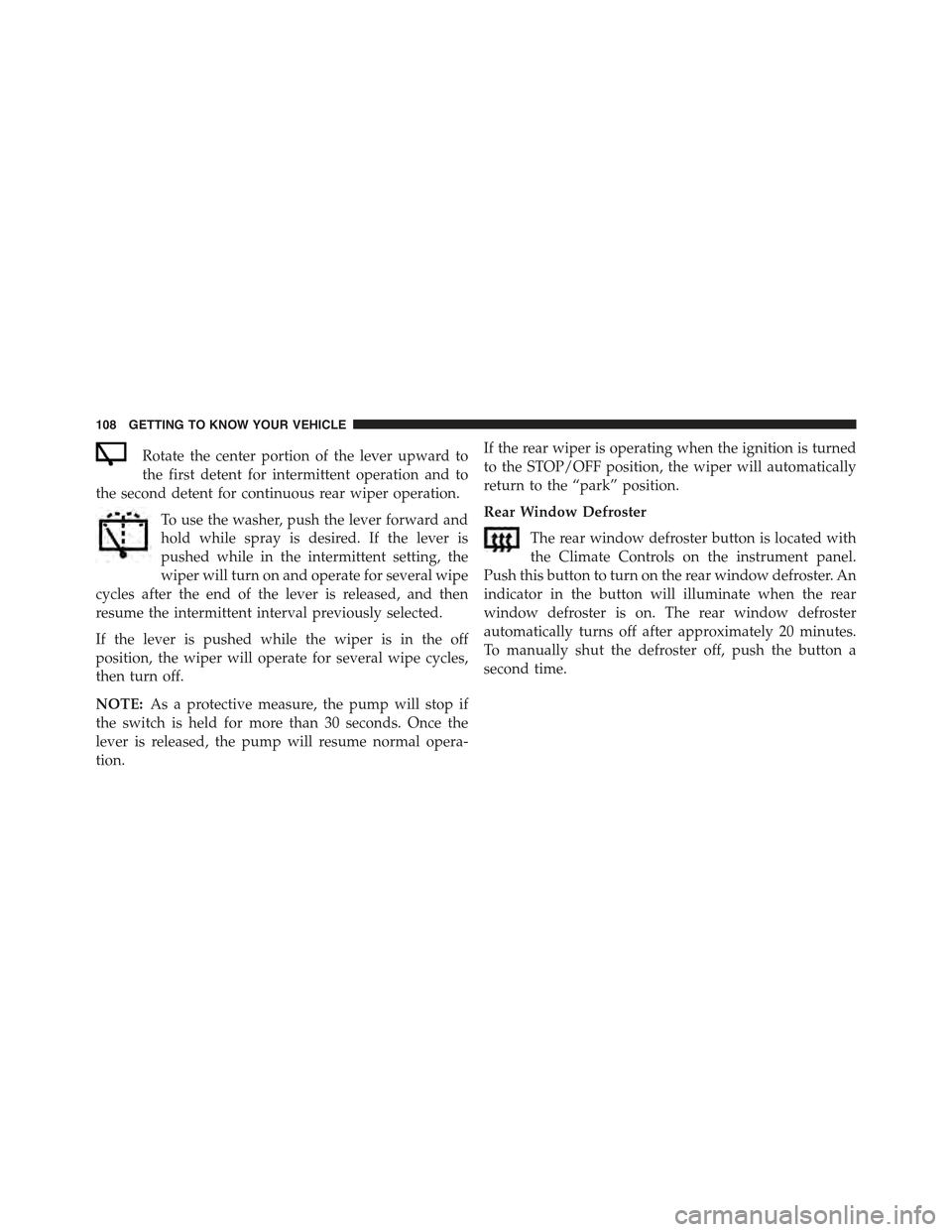

Rotate the center portion of the lever upward to
the first detent for intermittent operation and to
the second detent for continuous rear wiper operation.
To use the washer, push the lever forward and
hold while spray is desired. If the lever is
pushed while in the intermittent setting, the
wiper will turn on and operate for several wipe
cycles after the end of the lever is released, and then
resume the intermittent interval previously selected.
If the lever is pushed while the wiper is in the off
position, the wiper will operate for several wipe cycles,
then turn off.
NOTE:As a protective measure, the pump will stop if
the switch is held for more than 30 seconds. Once the
lever is released, the pump will resume normal opera-
tion.
If the rear wiper is operating when the ignition is turned
to the STOP/OFF position, the wiper will automatically
return to the “park” position.
Rear Window Defroster
The rear window defroster button is located with
the Climate Controls on the instrument panel.
Push this button to turn on the rear window defroster. An
indicator in the button will illuminate when the rear
window defroster is on. The rear window defroster
automatically turns off after approximately 20 minutes.
To manually shut the defroster off, push the button a
second time.
