JEEP RENEGADE 2015 1.G Owners Manual

TECHNICAL DATA
CONTENTS
!VEHICLE IDENTIFICATION...............590
▫Chassis Number......................590
!FLUID CAPACITIES....................592
!FLUIDS, LUBRICANTS AND GENUINE PARTS . .593
▫Engine.............................593
▫Chassis............................594
10

VEHICLE IDENTIFICATION
Chassis Number
The chassis number (VIN) is stamped on a plate located on
the left front corner of the instrument panel cover, which is
visible from outside the car through the windshield.
Vehicle Identification Number (VIN)
590 TECHNICAL DATA

This number is also stamped on the floor of the passenger
compartment, near the right front seat.
Vehicle Identification Number (VIN)
10
TECHNICAL DATA 591

FLUID CAPACITIES
U.SMetric
Fuel (Approximate)
1.4L Turbo/2.4L Engine12.7 Gallons48 Liters
Engine Oil With Filter
1.4L Turbo Engine (SAE 5W-40 Synthetic, API Certified) 3.7 Quarts3.5 Liters
2.4L Engine (SAE 0W-20, API Certified)5.5 Quarts5.2 Liters
Cooling System *
1.4L Turbo Engine (MOPAR® Antifreeze/Engine Coolant 10
Year/150,000 Mile Formula)
10.2 Quarts9.7 Liters
2.4L Engine (MOPAR® Antifreeze/Engine Coolant 10 Year/
150,000 Mile Formula)
6.8 Quarts6.5 Liters
* Includes heater and coolant recovery bottle filled to MAX level.
592 TECHNICAL DATA

FLUIDS, LUBRICANTS AND GENUINE PARTS
Engine
ComponentFluid, Lubricant, or Genuine Part
Engine CoolantWe recommend you use MOPAR® Antifreeze/Coolant 10 Year/150,000 Mile For-
mula OAT (Organic Additive Technology) or equivalent meeting the requirements of
Chrysler Material Standard MS.90032.
Engine Oil – 1.4L Turbo En-
gine
We recommend you use SAE 5W-40 API Certified Synthetic Engine Oil, meeting the
requirements of Chrysler Material Standard MS-12991 such as MOPAR®, Pennzoil®,
and Shell Helix®. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil – 2.4L EngineWe recommend you use SAE 0W-20 API Certified Engine Oil, meeting the require-
ments of Chrysler Material Standard MS-6395 such as MOPAR®, Pennzoil®, and
Shell Helix®. Refer to your engine oil filler cap for correct SAE grade.
Engine Oil FilterWe recommend you use a MOPAR® Engine Oil Filter.
Spark PlugsWe recommend you use MOPAR® Spark Plugs.
Fuel Selection – 1.4L Turbo
Engine
91 Octane
Fuel Selection – 2.4L Engine 87 Octane
10
TECHNICAL DATA 593

Chassis
ComponentFluid, Lubricant, or Genuine Part
Manual TransmissionWe recommend you use MOPAR® C Series Manual &
Dual Dry Clutch Transmission Fluid.
Automatic TransmissionUse only MOPAR® ZF 8&9 Speed ATF™ Automatic
Transmission Fluid, or equivalent. Failure to use the
correct fluid may affect the function or performance of
your transmission.
Power Transfer Unit (PTU) – If EquippedWe recommended you use of synthetic lubricant SAE
75W-90 API GL5
Rear Differential (RDM) – If EquippedWe recommended you use of synthetic lubricant SAE
75W-90 API GL5
Brake Master CylinderWe recommend you use MOPAR® DOT 4. If DOT 4
brake fluid is not available, then DOT 3 is acceptable.
594 TECHNICAL DATA

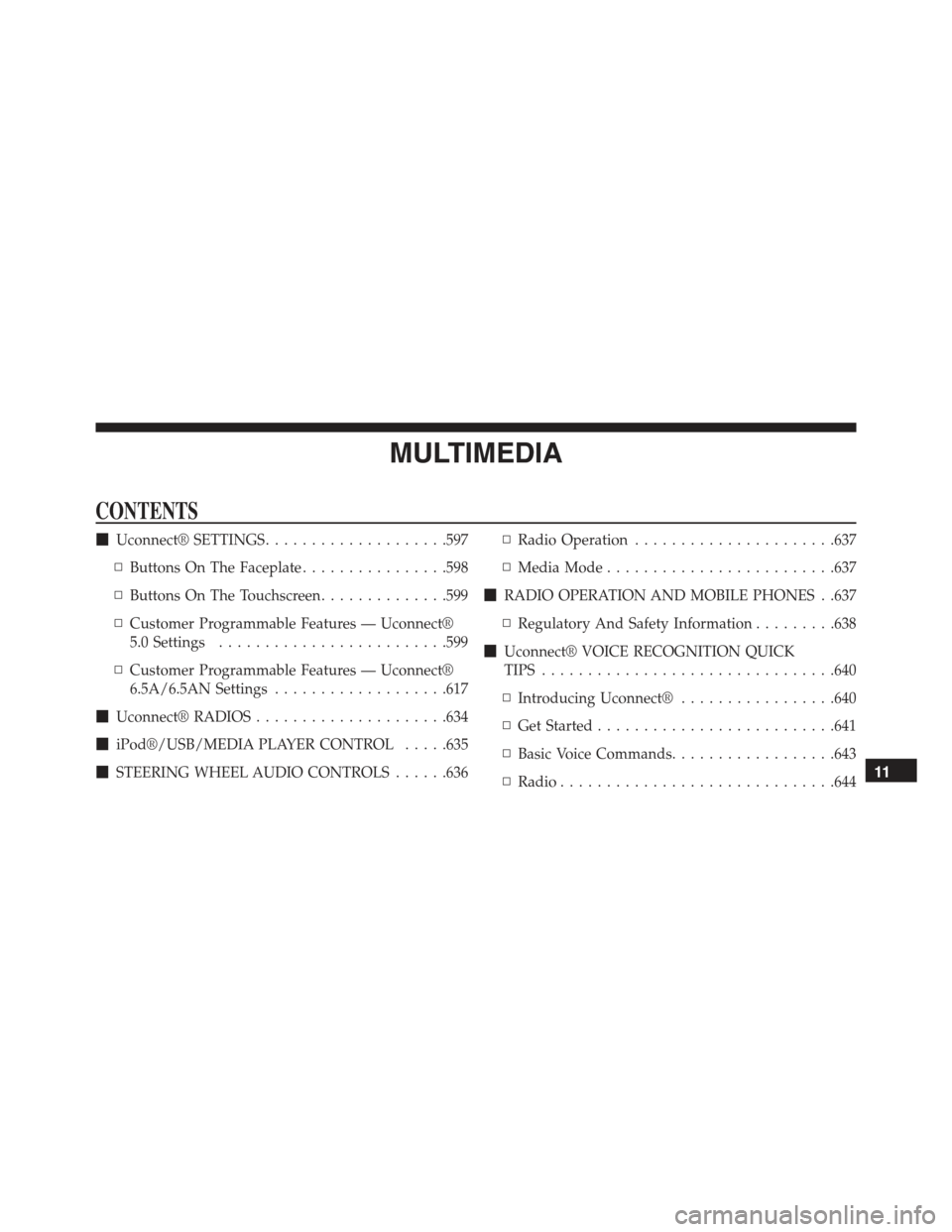

MULTIMEDIA
CONTENTS
!Uconnect® SETTINGS....................597
▫Buttons On The Faceplate................598
▫Buttons On The Touchscreen..............599
▫Customer Programmable Features — Uconnect®
5.0 Settings.........................599
▫Customer Programmable Features — Uconnect®
6.5A/6.5AN Settings...................617
!Uconnect® RADIOS.....................634
!iPod®/USB/MEDIA PLAYER CONTROL.....635
!STEERING WHEEL AUDIO CONTROLS......636
▫Radio Operation......................637
▫Media Mode.........................637
!RADIO OPERATION AND MOBILE PHONES . .637
▫Regulatory And Safety Information.........638
!Uconnect® VOICE RECOGNITION QUICK
TIPS................................640
▫Introducing Uconnect®.................640
▫Get Started..........................641
▫Basic Voice Commands..................643

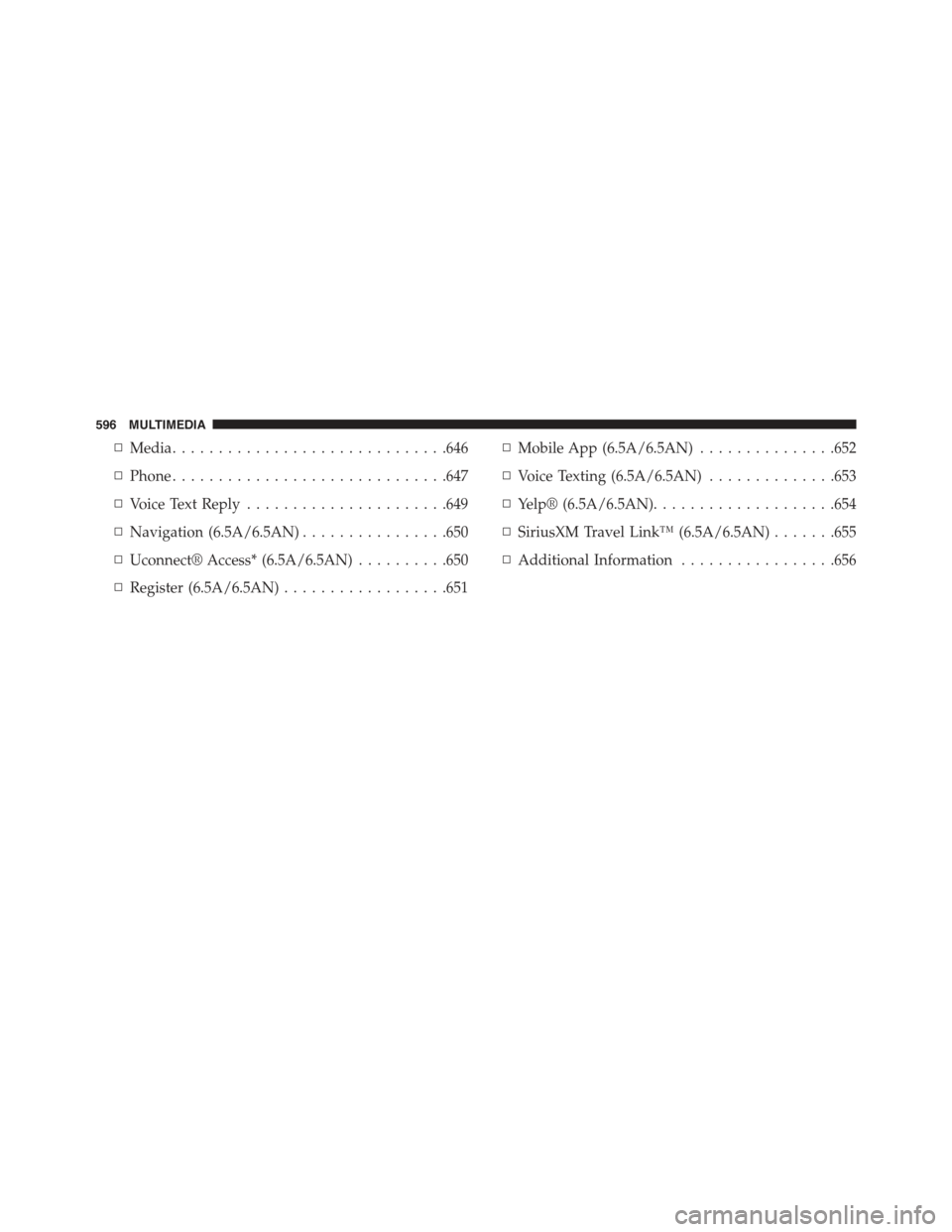

▫Radio..............................64411

▫Media..............................646
▫Phone..............................647
▫Voice Text Reply......................649
▫Navigation (6.5A/6.5AN)................650
▫Uconnect® Access* (6.5A/6.5AN)..........650
▫Register (6.5A/6.5AN)..................651
▫Mobile App (6.5A/6.5AN)...............652
▫Voice Texting (6.5A/6.5AN)..............653
▫Yelp® (6.5A/6.5AN)....................654
▫SiriusXM Travel Link™ (6.5A/6.5AN).......655
▫Additional Information.................656
596 MULTIMEDIA

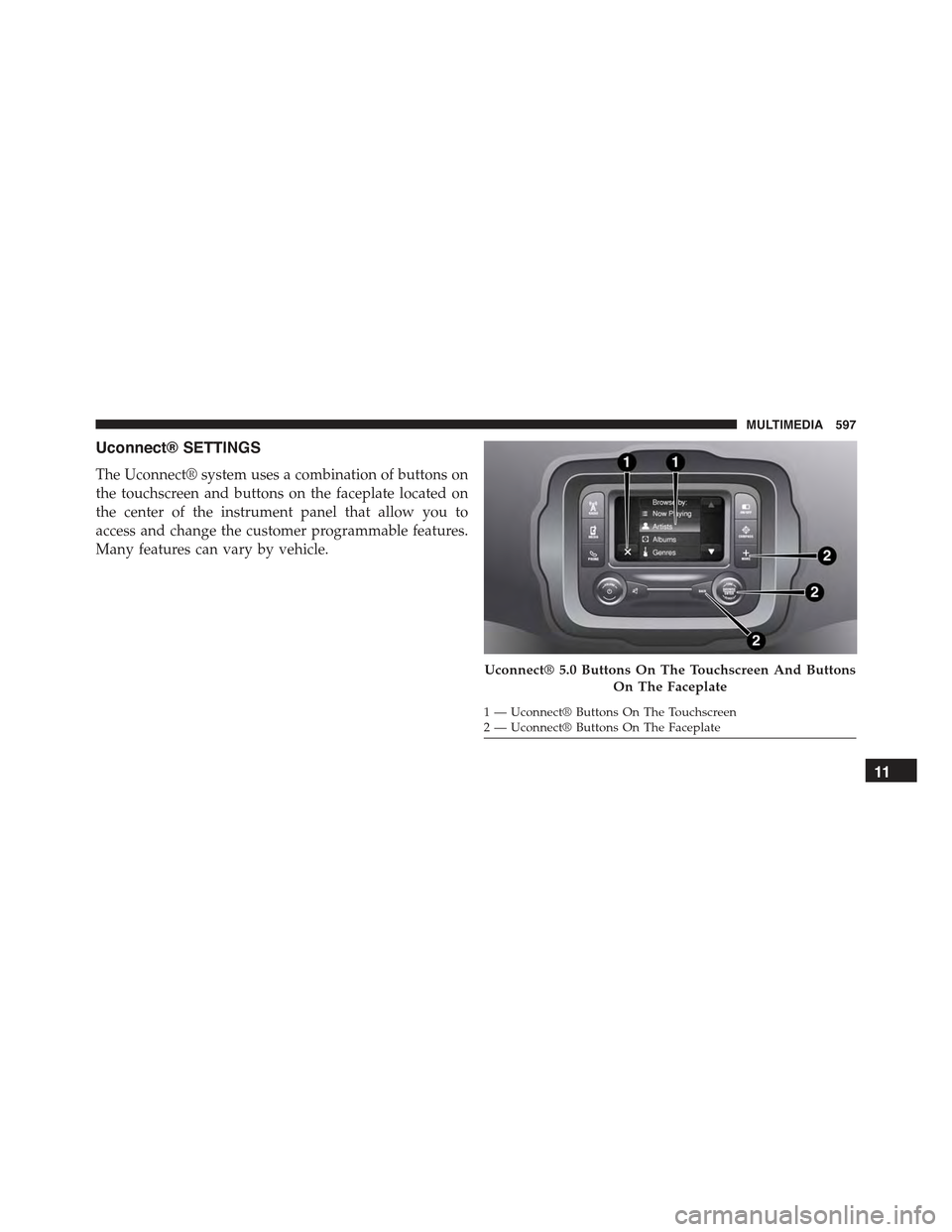

Uconnect® SETTINGS
The Uconnect® system uses a combination of buttons on
the touchscreen and buttons on the faceplate located on
the center of the instrument panel that allow you to
access and change the customer programmable features.
Many features can vary by vehicle.
Uconnect® 5.0 Buttons On The Touchscreen And Buttons
On The Faceplate
1—Uconnect®ButtonsOnTheTouchscreen2—Uconnect®ButtonsOnTheFaceplate
11
MULTIMEDIA 597

Buttons On The Faceplate
Buttons on the faceplate are located below, and beside the
Uconnect® system in the center of the instrument panel.
In addition, there is a Scroll/Enter control knob located
on the right side. Turn the control knob to scroll through
menus and change settings (i.e., 30, 60, 90), push the
center of the control knob one or more times to select or
change a setting (i.e., ON, OFF).
Your Uconnect® system may also have Display Off and
back arrow buttons on the faceplate.
Push the Display Off button on the faceplate to turn off
the Uconnect® screen. Push the Display Off button on the
faceplate a second time to turn the screen on.
Push the Back Arrow button on the faceplate to exit out
of a Menu or certain option on the Uconnect® system.

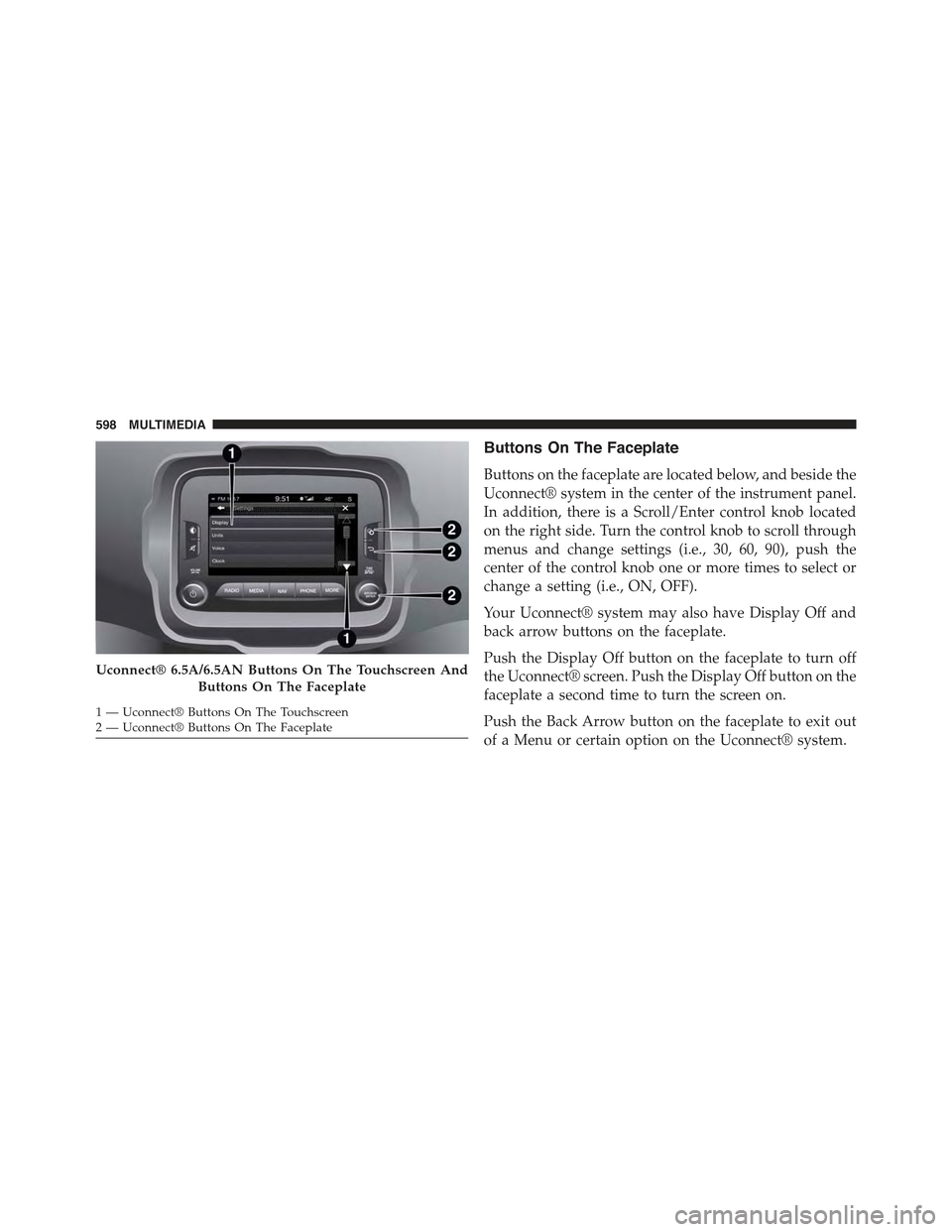

Uconnect® 6.5A/6.5AN Buttons On The Touchscreen And
Buttons On The Faceplate
1—Uconnect®ButtonsOnTheTouchscreen2—Uconnect®ButtonsOnTheFaceplate
598 MULTIMEDIA
