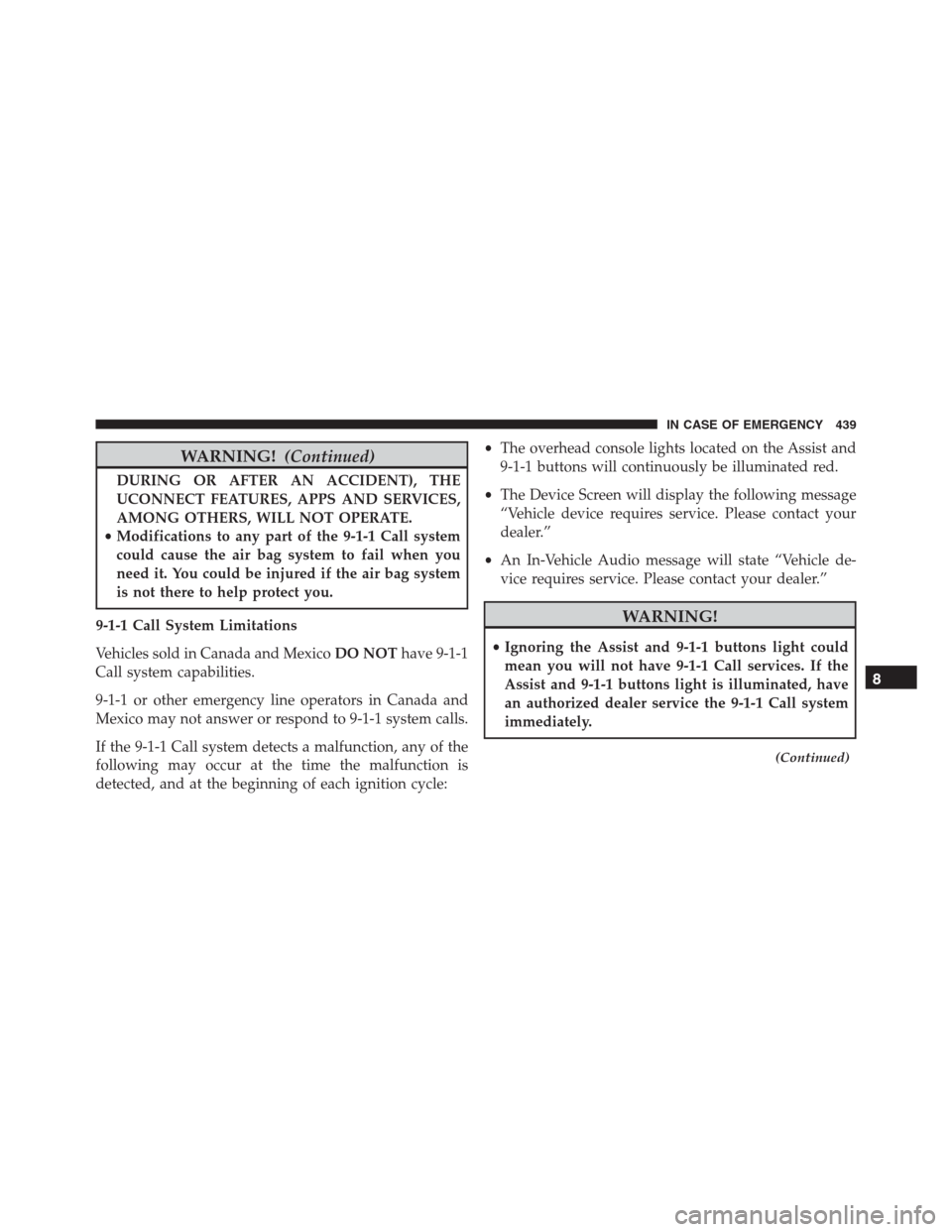

WARNING!(Continued)
DURING OR AFTER AN ACCIDENT), THE
UCONNECT FEATURES, APPS AND SERVICES,
AMONG OTHERS, WILL NOT OPERATE.
•Modifications to any part of the 9-1-1 Call system
could cause the air bag system to fail when you
need it. You could be injured if the air bag system
is not there to help protect you.
9-1-1 Call System Limitations
Vehicles sold in Canada and MexicoDO NOThave 9-1-1
Call system capabilities.
9-1-1 or other emergency line operators in Canada and
Mexico may not answer or respond to 9-1-1 system calls.
If the 9-1-1 Call system detects a malfunction, any of the
following may occur at the time the malfunction is
detected, and at the beginning of each ignition cycle:•The overhead console lights located on the Assist and
9-1-1 buttons will continuously be illuminated red.
•The Device Screen will display the following message
“Vehicle device requires service. Please contact your
dealer.”
•An In-Vehicle Audio message will state “Vehicle de-
vice requires service. Please contact your dealer.”
WARNING!
•Ignoring the Assist and 9-1-1 buttons light could
mean you will not have 9-1-1 Call services. If the
Assist and 9-1-1 buttons light is illuminated, have
an authorized dealer service the 9-1-1 Call system
immediately.
(Continued)
8
IN CASE OF EMERGENCY 439

WARNING!(Continued)
•The Occupant Restraint Control module turns on
the air bag Warning Light on the instrument panel
if a malfunction in any part of the system is
detected. If the air bag Warning Light is illumi-
nated, have an authorized dealer service the ORC
system immediately.
Even if the 9-1-1 Call system is fully functional, factors
beyond FCA US LLC’s control may prevent or stop the
9-1-1 Call system operation. These include, but are not
limited to, the following factors:
•The ignition key has been removed from the ignition
and the delayed accessories mode is active.
•The ignition key is in STOP/OFF position.
•The vehicle’s electrical systems are not intact.•The 9-1-1 Call system software and/or hardware are
damaged during a crash.
•The vehicle battery loses power or becomes discon-
nected during a vehicle crash.
•Operable 1X(voice/data) or 3G(data) network and/or
Global Positioning Satellite signals are unavailable or
obstructed.
•Equipment malfunction at the 9-1-1 operator facility.
•Operator error by the 9-1-1 operator.
•Operable 1X(voice/data) or 3G(data) network conges-
tion.
•Weather.
•Buildings, structures, geographic terrain, or tunnels.
440 IN CASE OF EMERGENCY

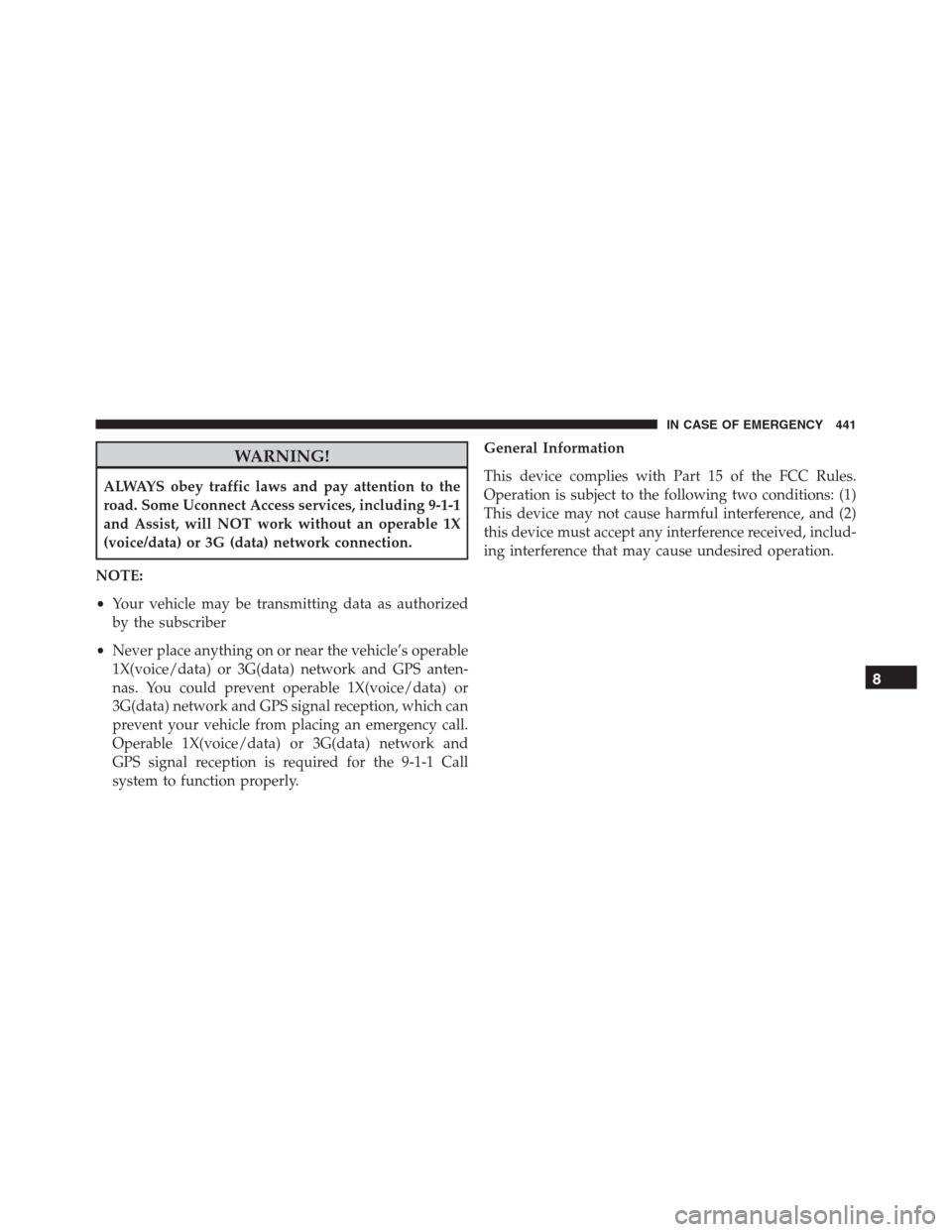

WARNING!
ALWAYS obey traffic laws and pay attention to the
road. Some Uconnect Access services, including 9-1-1
and Assist, will NOT work without an operable 1X
(voice/data) or 3G (data) network connection.
NOTE:
•Your vehicle may be transmitting data as authorized
by the subscriber
•Never place anything on or near the vehicle’s operable
1X(voice/data) or 3G(data) network and GPS anten-
nas. You could prevent operable 1X(voice/data) or
3G(data) network and GPS signal reception, which can
prevent your vehicle from placing an emergency call.
Operable 1X(voice/data) or 3G(data) network and
GPS signal reception is required for the 9-1-1 Call
system to function properly.General Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.
8
IN CASE OF EMERGENCY 441

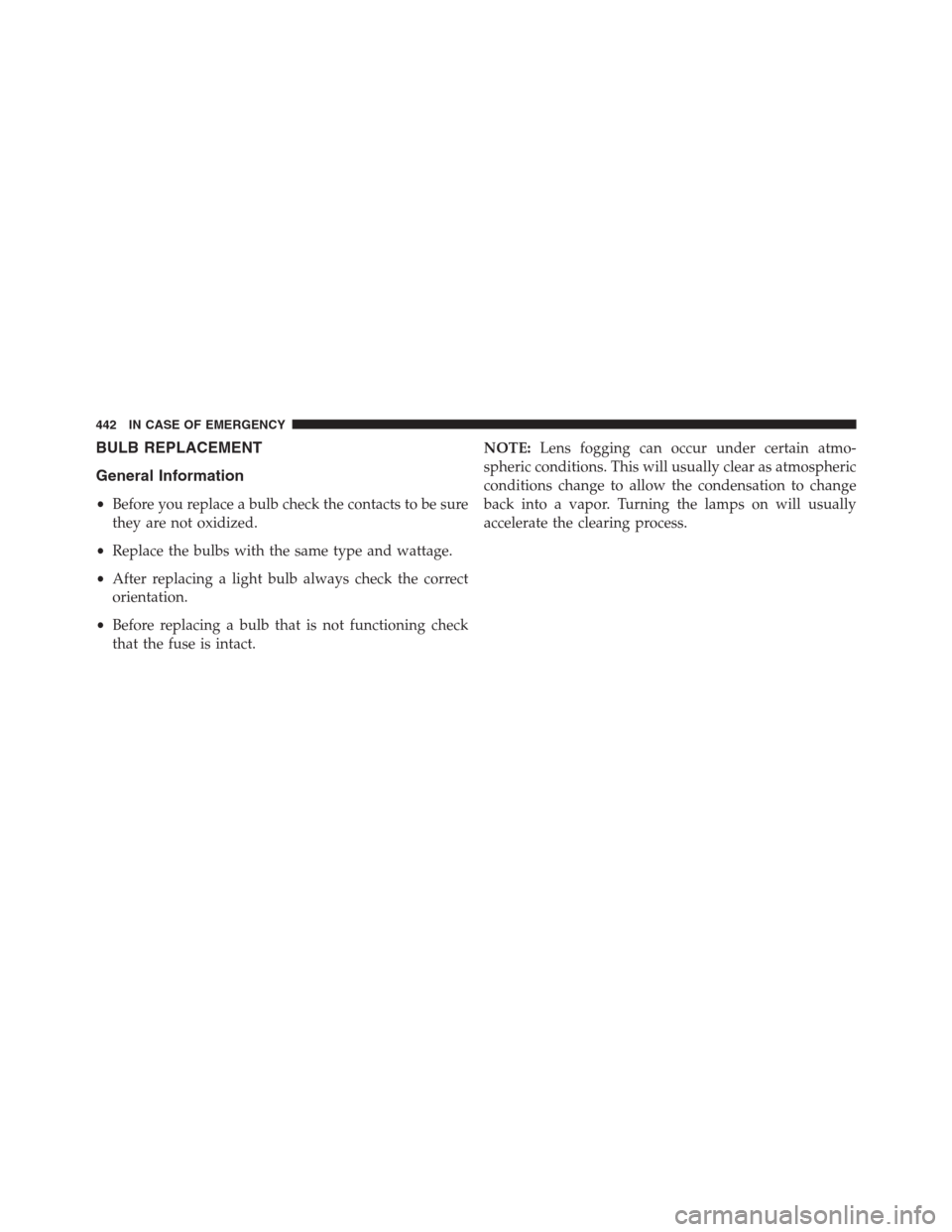

BULB REPLACEMENT
General Information
•Before you replace a bulb check the contacts to be sure
they are not oxidized.
•Replace the bulbs with the same type and wattage.
•After replacing a light bulb always check the correct
orientation.
•Before replacing a bulb that is not functioning check
that the fuse is intact.NOTE:Lens fogging can occur under certain atmo-
spheric conditions. This will usually clear as atmospheric
conditions change to allow the condensation to change
back into a vapor. Turning the lamps on will usually
accelerate the clearing process.
442 IN CASE OF EMERGENCY

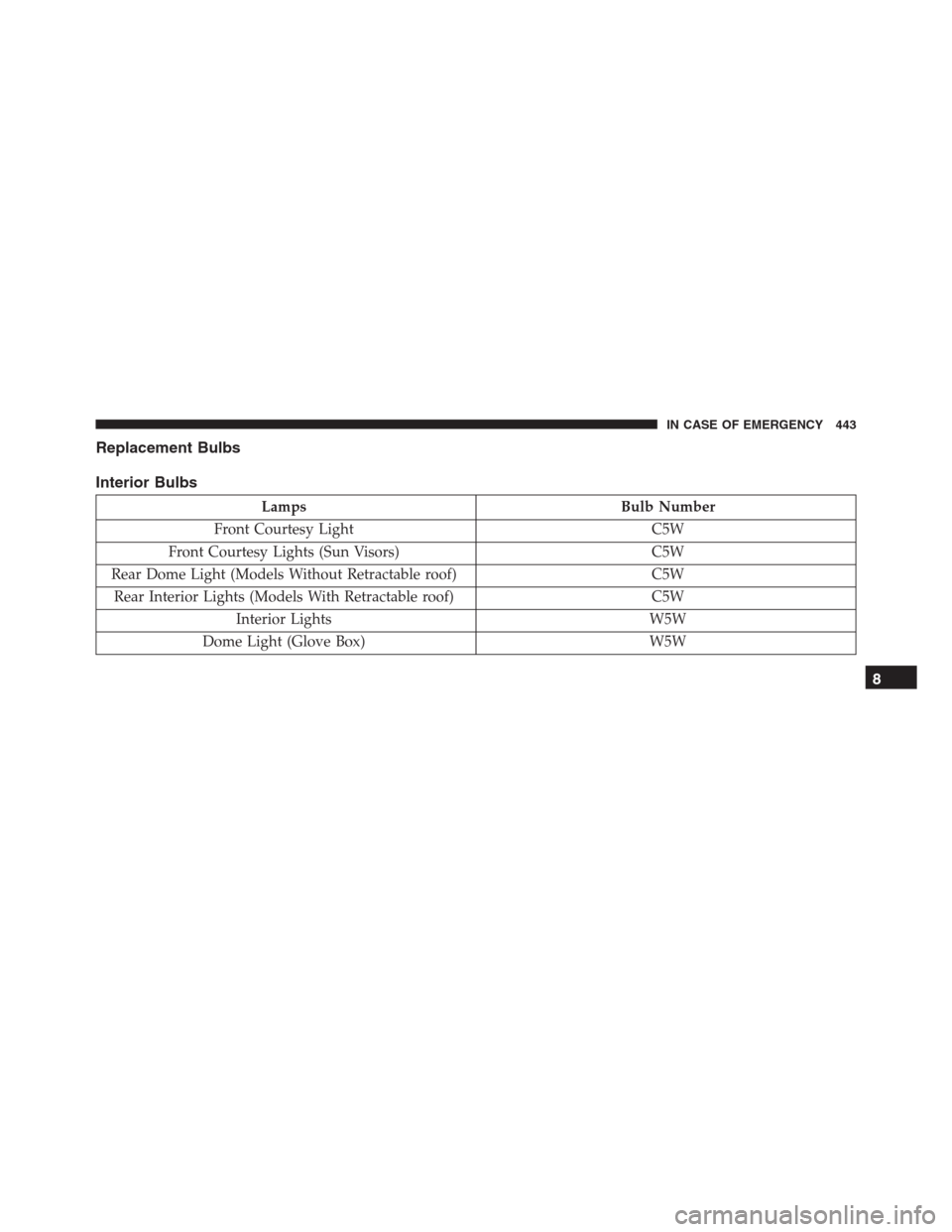

Replacement Bulbs
Interior Bulbs
Lamps Bulb Number
Front Courtesy Light C5W
Front Courtesy Lights (Sun Visors) C5W
Rear Dome Light (Models Without Retractable roof) C5W
Rear Interior Lights (Models With Retractable roof) C5W
Interior Lights W5W
Dome Light (Glove Box) W5W
8
IN CASE OF EMERGENCY 443

Exterior Bulbs
Lamps Bulb Number
Low Beam/High Beam Headlamps H13
Front Position/Daytime Running Lights (DRL ) P21/5W
Front Direction Indicator Lamps PY21W
Front Fog Lamps H11
Side Indicators (Front And Side View Mirror) WY5W
Tail/Brake Lights/Turn Indicators P21W
Center High Mounted Stop Lamp (CHMSL) LED (Serviced at an Authorized Dealer)
Reverse W16W
License Plate Lamp W5W
444 IN CASE OF EMERGENCY

Replacing Exterior Bulbs
Headlamps
Hi/Lo Beam Light Halogen
To replace the bulbs proceed as follows:
1. Open the engine compartment and remove the head-
lamp bulb cap.
Headlamp Bulb Cap8
IN CASE OF EMERGENCY 445

2. Rotate the headlamp bulb socket counterclockwise
then pull outwards.3. Push on the locking tab on the headlamp bulb connec-
tor and remove the bulb and socket.
Headlamp Bulb SocketHeadlamp Bulb Connector
446 IN CASE OF EMERGENCY

4. Install the new headlamp bulb making sure it is
properly locked.5. Install the headlamp bulb and socket; turn it clockwise
making sure it is properly locked.
WARNING!
Carry out the operation of replacing lamps only with
the engine off. Also make sure that the engine is cold,
to avoid the danger of burns.
Headlamp Bulb8
IN CASE OF EMERGENCY 447

Position Lights/Daytime Running Lights/Fog Lights
To replace the bulbs proceed as follows:
1. Turn the front wheels completely.
2. Use a suitable tool to remove the access door.
Position Light/Daytime Running Light/Fog Light Access
1 — Screws
2 — Access Door 448 IN CASE OF EMERGENCY
