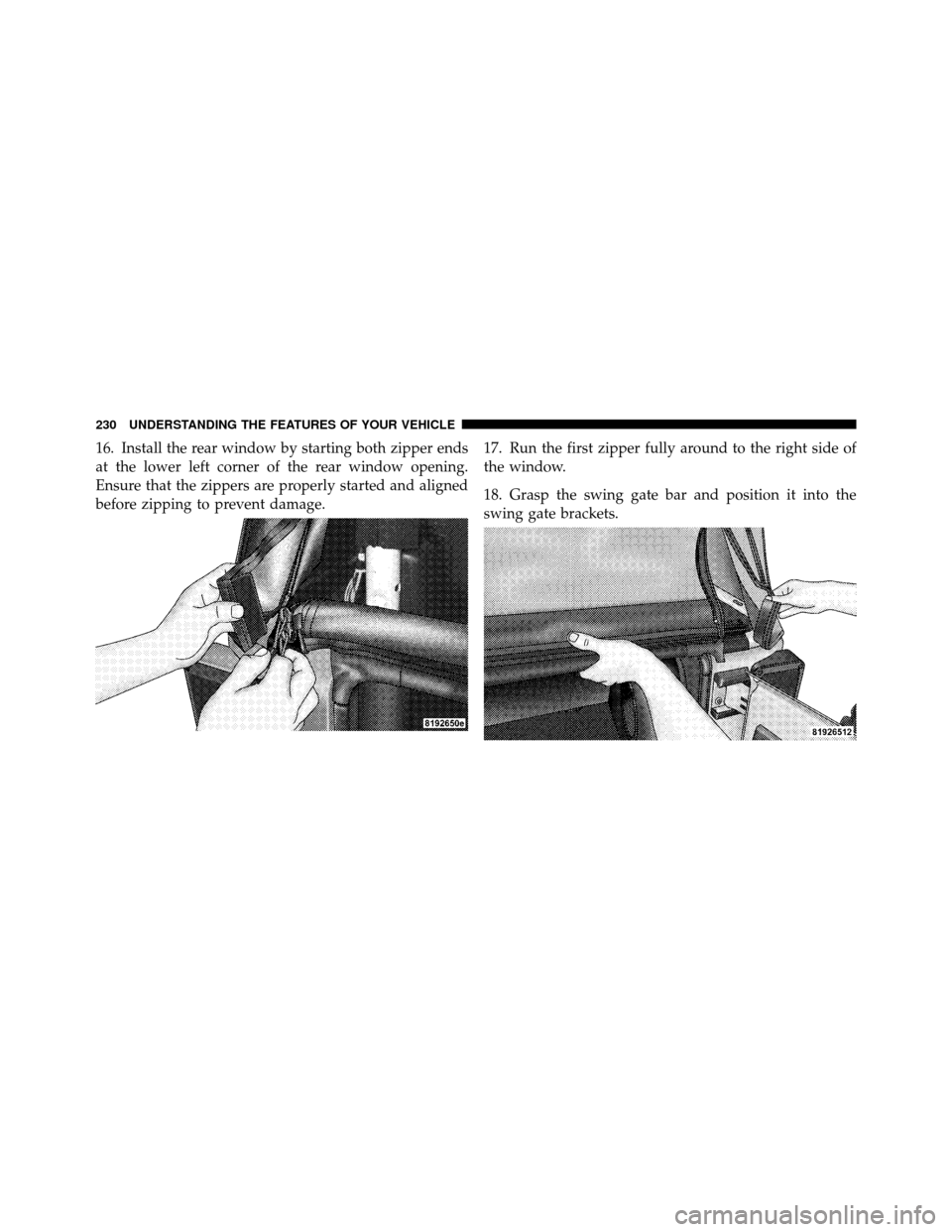

16. Install the rear window by starting both zipper ends
at the lower left corner of the rear window opening.
Ensure that the zippers are properly started and aligned
before zipping to prevent damage.17. Run the first zipper fully around to the right side of
the window.
18. Grasp the swing gate bar and position it into the
swing gate brackets.
230 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

19. Complete the installation of the sail panel by insert-
ing the rest of the retainer into the body channel.
20. Close the header latches and return the sun visors to
their secured position.SUNRIDER(TWO-DOOR MODELS) — IF
EQUIPPED
CAUTION!
Operating the top, opening a door or lowering a
window while the top is wet may allow water to drip
into the vehicle’s interior.
NOTE: If you are going to be driving faster than 40 mph
(64 km/h) with the Sunrider feature open, it is recom-
mended that you remove the rear window of the vehicle.3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 231

Opening the Sunrider
1. Unclip and move the sun visors to the side.
2. Release the header latches from the loops on the
windshield frame.3. Slide the plastic sleeve forward.
232 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

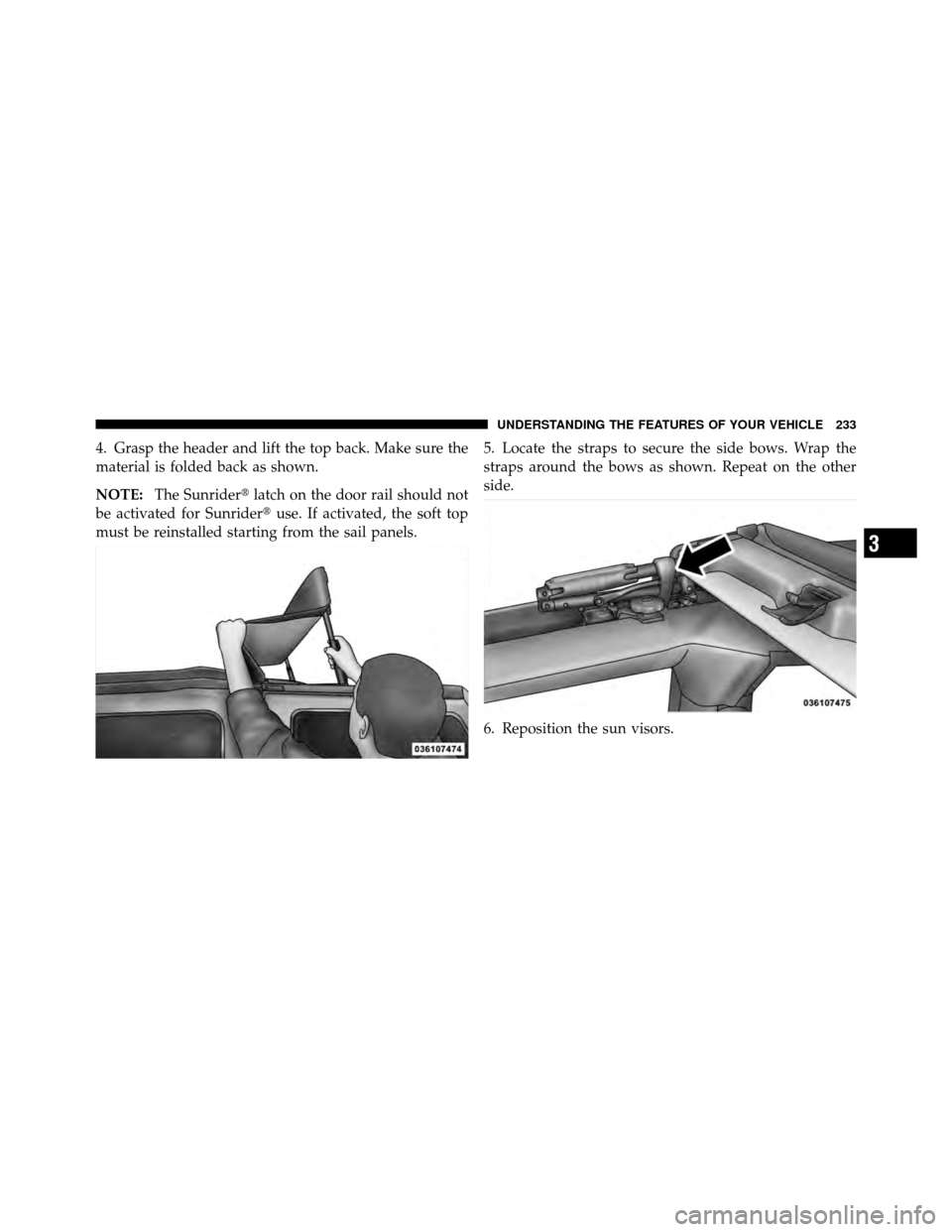

4. Grasp the header and lift the top back. Make sure the
material is folded back as shown.
NOTE:The Sunrider latch on the door rail should not
be activated for Sunrider use. If activated, the soft top
must be reinstalled starting from the sail panels. 5. Locate the straps to secure the side bows. Wrap the
straps around the bows as shown. Repeat on the other
side.
6. Reposition the sun visors.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 233

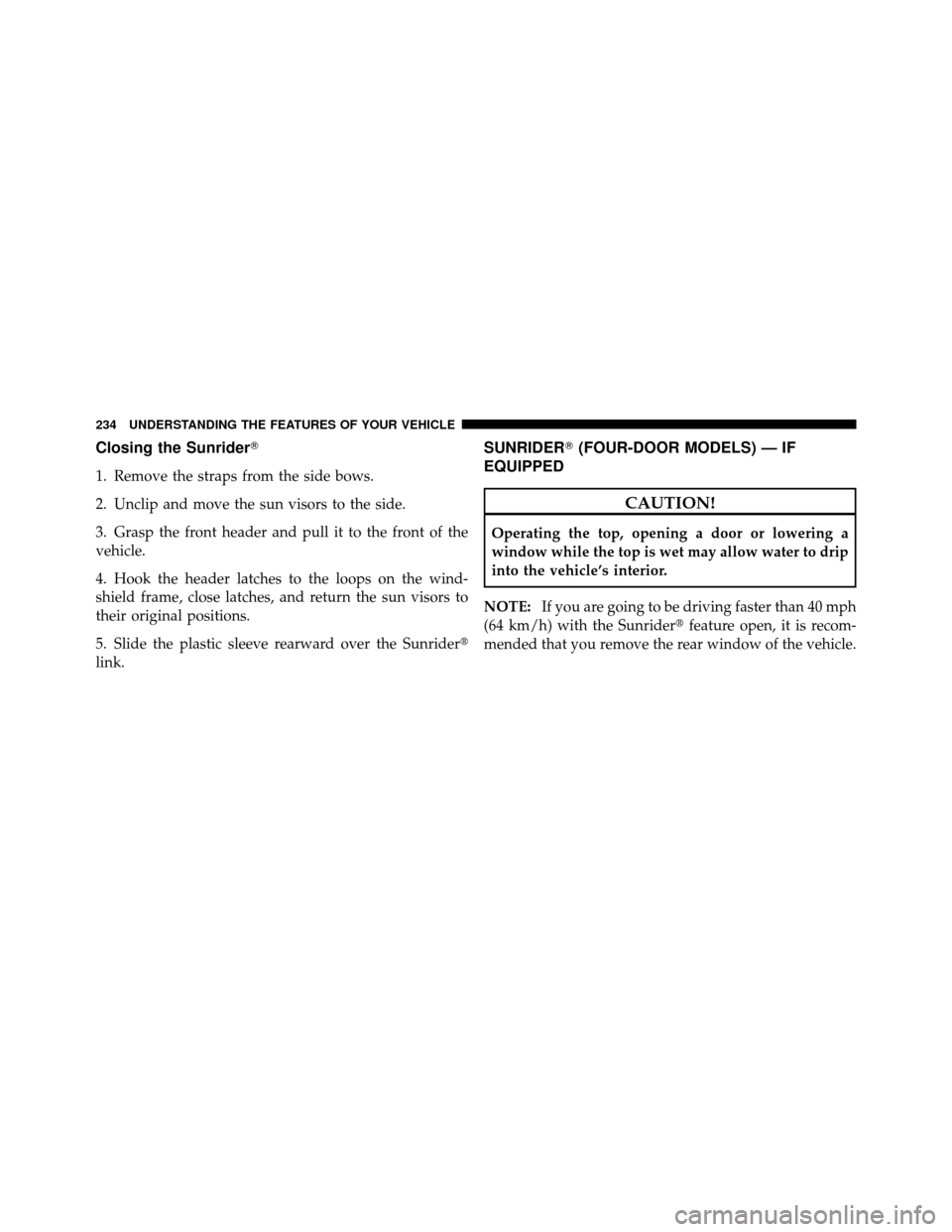

Closing the Sunrider
1. Remove the straps from the side bows.
2. Unclip and move the sun visors to the side.
3. Grasp the front header and pull it to the front of the
vehicle.
4. Hook the header latches to the loops on the wind-
shield frame, close latches, and return the sun visors to
their original positions.
5. Slide the plastic sleeve rearward over the Sunrider
link.
SUNRIDER(FOUR-DOOR MODELS) — IF
EQUIPPED
CAUTION!
Operating the top, opening a door or lowering a
window while the top is wet may allow water to drip
into the vehicle’s interior.
NOTE: If you are going to be driving faster than 40 mph
(64 km/h) with the Sunrider feature open, it is recom-
mended that you remove the rear window of the vehicle.
234 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

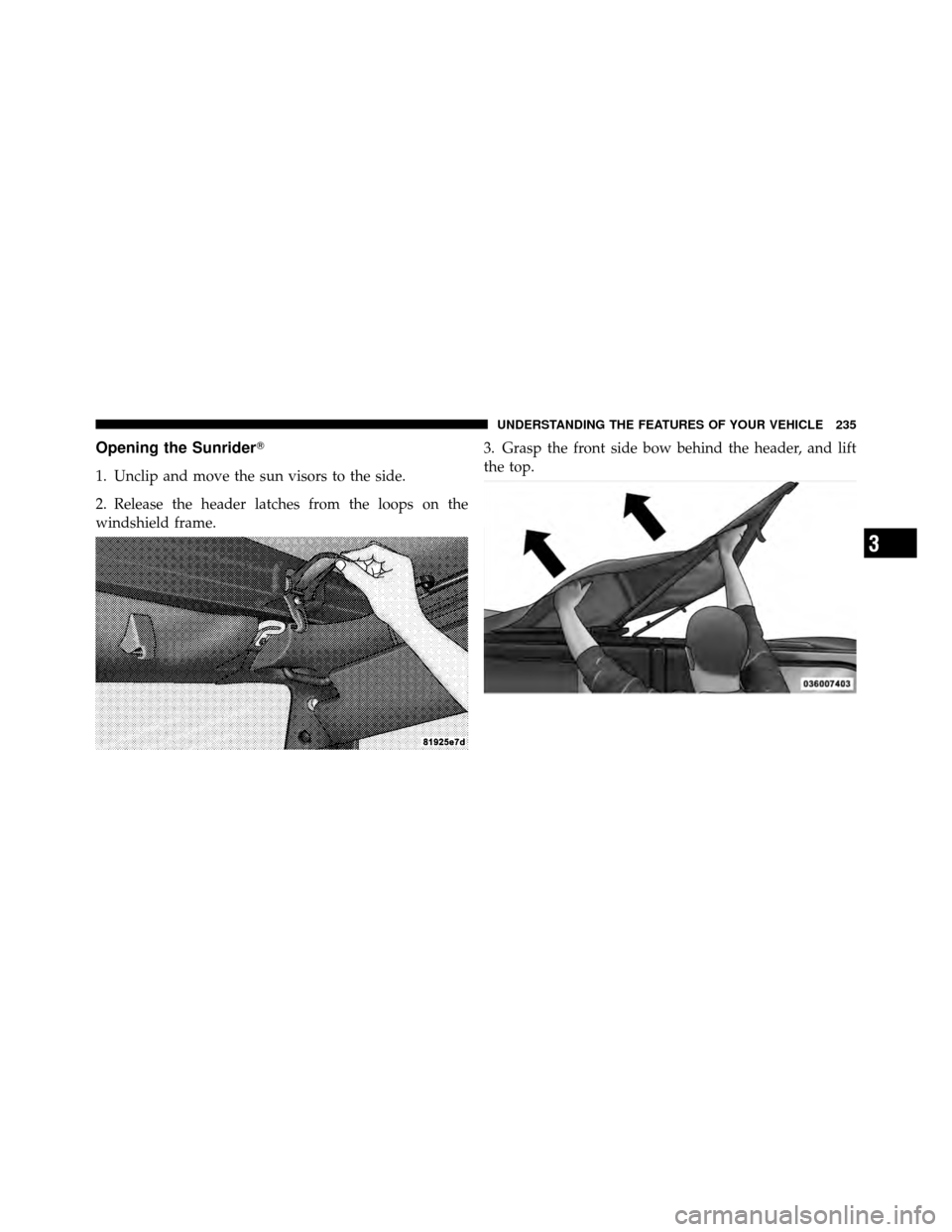

Opening the Sunrider
1. Unclip and move the sun visors to the side.
2. Release the header latches from the loops on the
windshield frame.3. Grasp the front side bow behind the header, and lift
the top.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 235

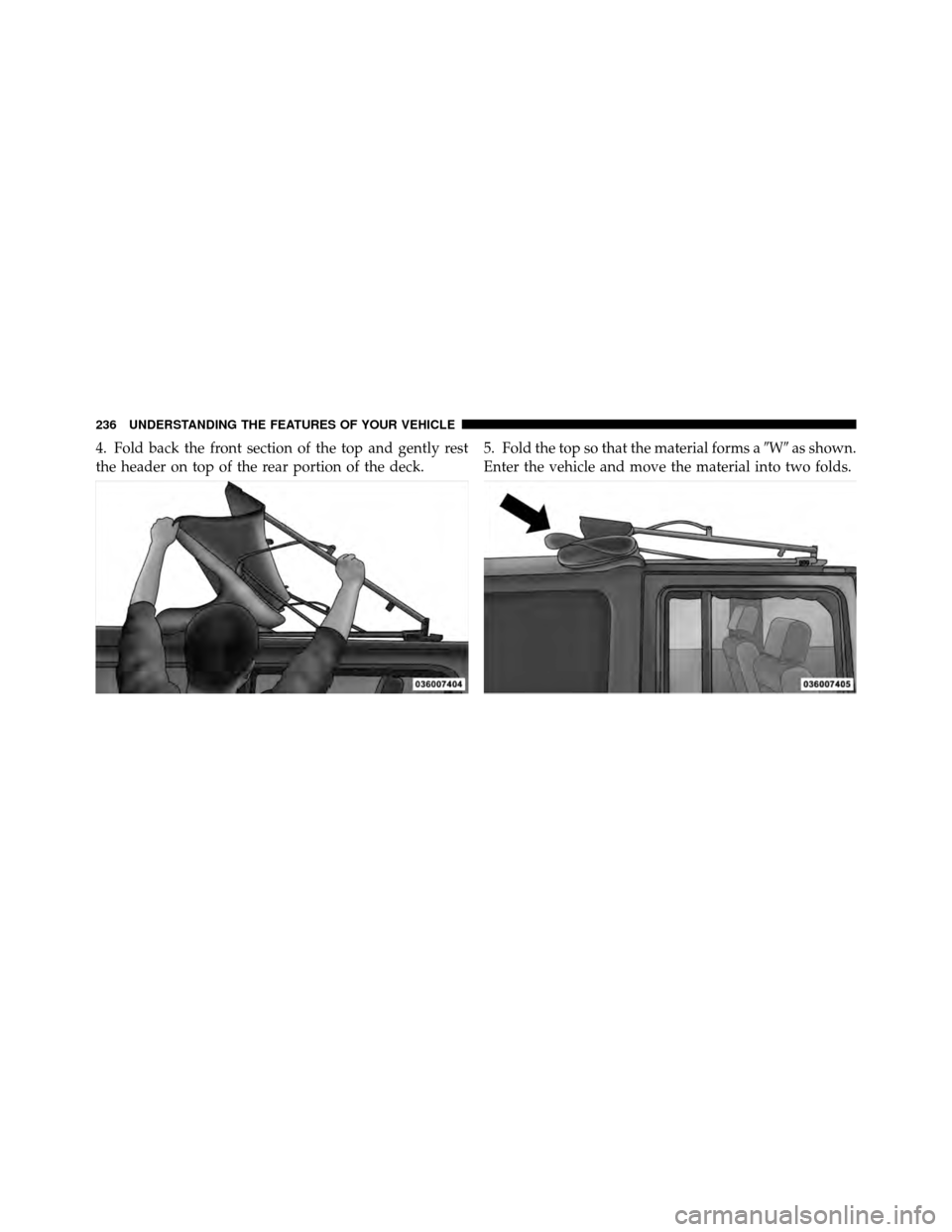

4. Fold back the front section of the top and gently rest
the header on top of the rear portion of the deck.5. Fold the top so that the material forms a
Was shown.
Enter the vehicle and move the material into two folds.
236 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

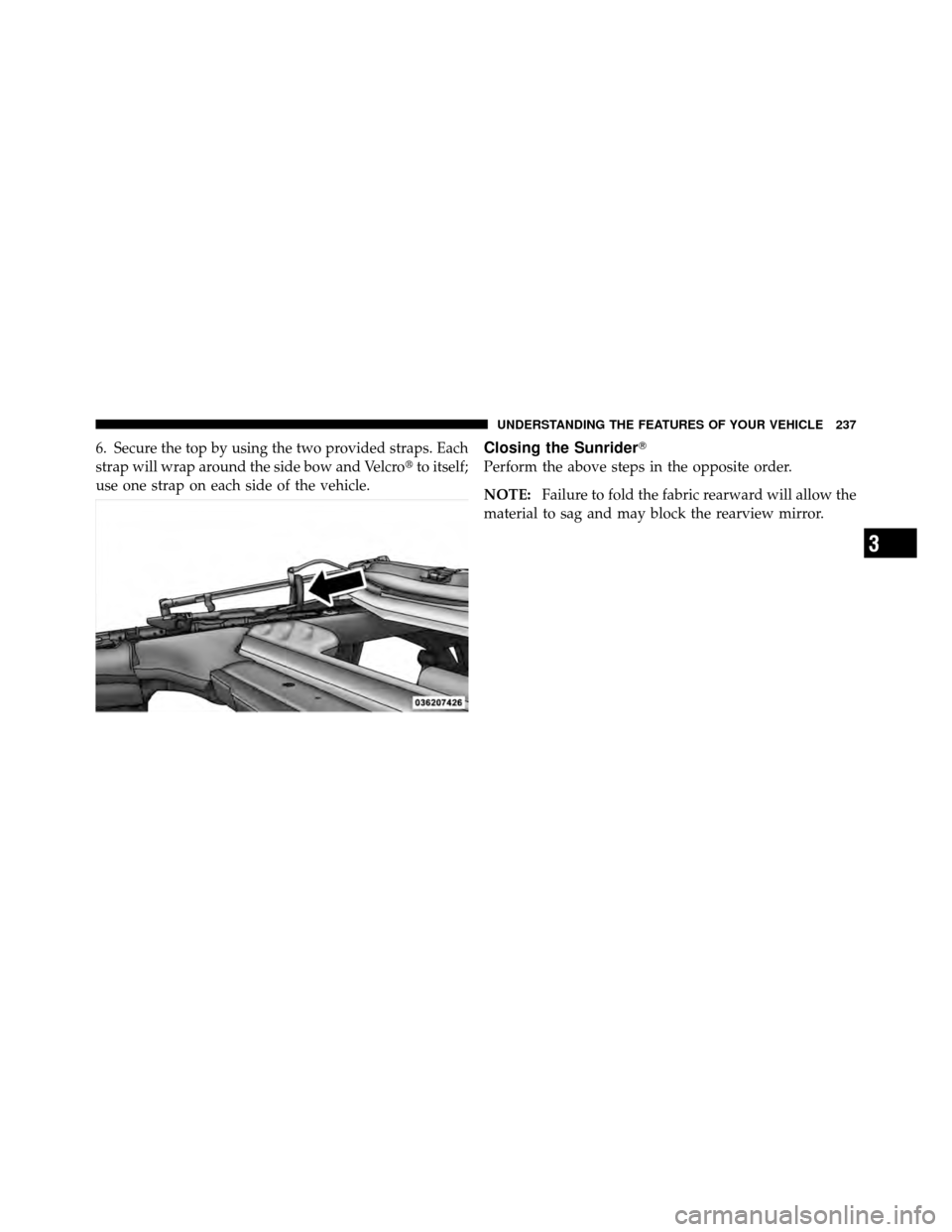

6. Secure the top by using the two provided straps. Each
strap will wrap around the side bow and Velcroto itself;
use one strap on each side of the vehicle.Closing the Sunrider
Perform the above steps in the opposite order.
NOTE: Failure to fold the fabric rearward will allow the
material to sag and may block the rearview mirror.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 237

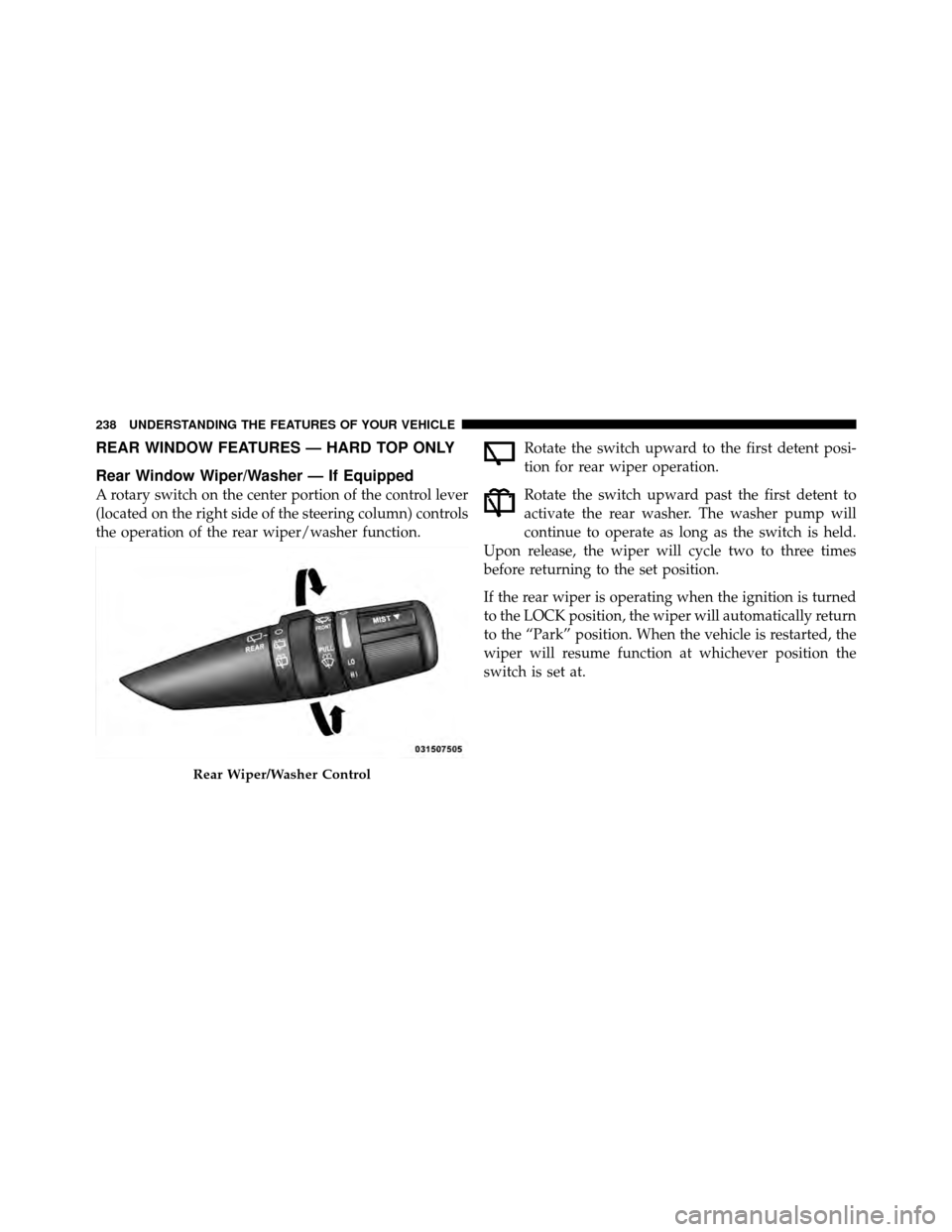

REAR WINDOW FEATURES — HARD TOP ONLY
Rear Window Wiper/Washer — If Equipped
A rotary switch on the center portion of the control lever
(located on the right side of the steering column) controls
the operation of the rear wiper/washer function.Rotate the switch upward to the first detent posi-
tion for rear wiper operation.
Rotate the switch upward past the first detent to
activate the rear washer. The washer pump will
continue to operate as long as the switch is held.
Upon release, the wiper will cycle two to three times
before returning to the set position.
If the rear wiper is operating when the ignition is turned
to the LOCK position, the wiper will automatically return
to the “Park” position. When the vehicle is restarted, the
wiper will resume function at whichever position the
switch is set at.
Rear Wiper/Washer Control
238 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Window Defroster — If Equipped
The rear window defroster button is located on the
bottom right-side of the blower control knob.
Press this button to turn on the rear window defroster.
An indicator in the button will illuminate when the rear
window defroster is on. The rear window defroster
automatically turns off after approximately 10 minutes.
For an additional five minutes of operation, press the
button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
3
