5. Open the swing gate and lower the top.
NOTE:
Ensure the fabric does not overhang the
sides of the vehicle.
•
To raise the soft top, perform the above
steps in the opposite order.
4–Door Sunrider® Down
• Follow these simple steps to open the Sunrider®feature.
1. Unclip and move the sun visors to the side.
2. Release the header latches from the loops on the windshield frame.
3. Grasp the front side bow behind the header, and lift the top.
OPERATING YOUR VEHICLE
29

4. Fold the top so that the material forms a "W" as shown. Enter the vehicle and movethe material into two folds.
5. Fold back the front section of the top and gently rest the header on top of
the rear portion of the deck.
6.
Secure the top by using the two provided
straps. Each strap will wrap around the
side bow and Velcro
®to itself; use one
strap on each side of the vehicle.
NOTE:
•
Failure to fold the fabric rearward will
allow the material to sag and may block
the rearview mirror.
•If you are going to be driving faster than
40 mph (64 km/h) with the Sunrider®
feature open, it is recommended that you
remove the rear window of the vehicle.
•To close the Sunrider®feature, perform
the above steps in the opposite order.
OPERATING YOUR VEHICLE
30

4–Door Soft Top Down
• Follow these simple steps to lower the 4–door soft top.
1. Remove the side and back windows.
2. Remove rear corner panels.
3.
Release header latches from the wind-
shield frame.
4.Fold header rearward, pulling the fabric
to the rear.
OPERATING YOUR VEHICLE
31

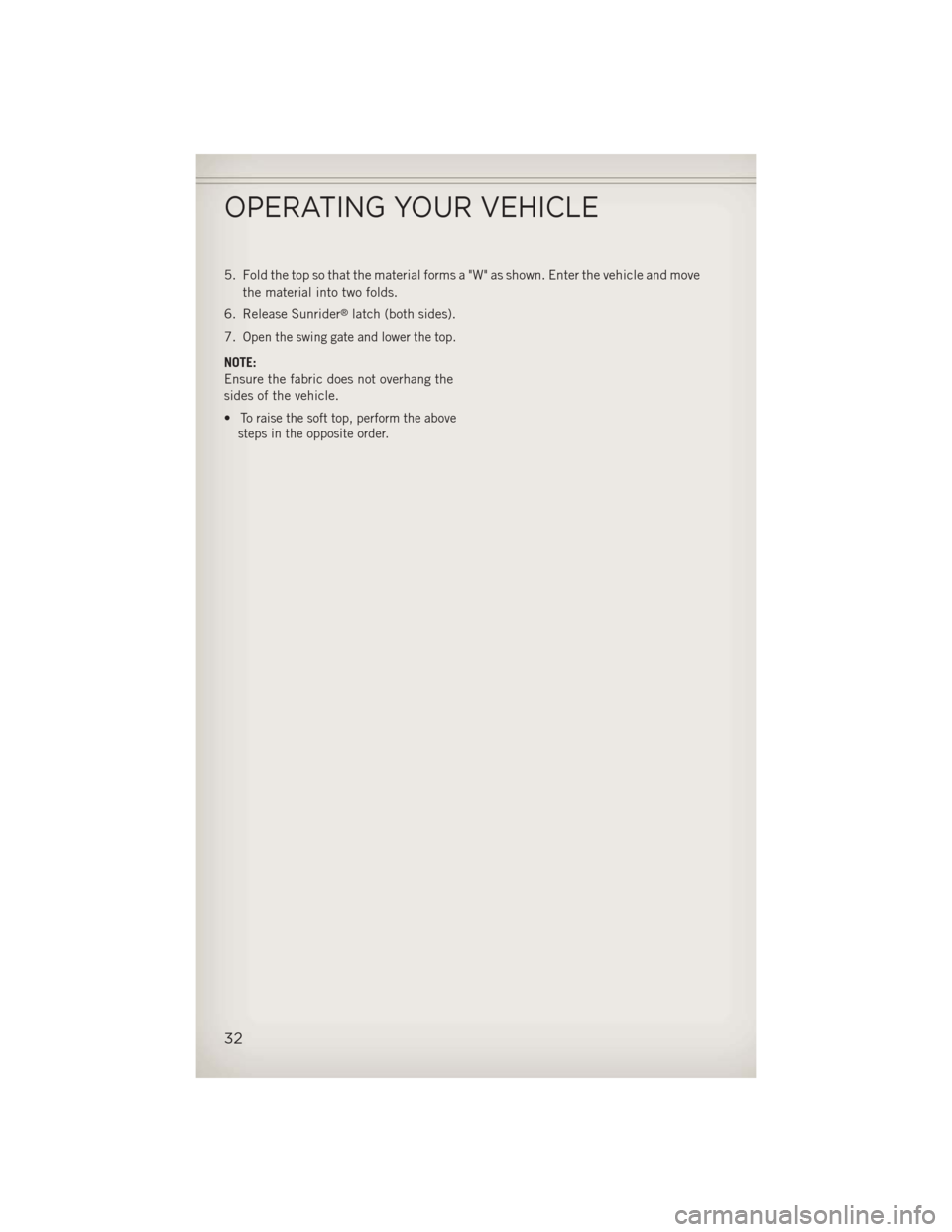

5. Fold the top so that the material forms a "W" as shown. Enter the vehicle and movethe material into two folds.
6. Release Sunrider
®latch (both sides).
7.
Open the swing gate and lower the top.
NOTE:
Ensure the fabric does not overhang the
sides of the vehicle.
•
To raise the soft top, perform the above
steps in the opposite order.
OPERATING YOUR VEHICLE
32

CAUTION!
• Do not run a fabric top through an automatic car wash. Window scratches andwax buildup may result.
• Do not lower the top when the temperature is below 41°F (5°C). Damage to the
top may result.
• Do not lower the top when the windows are dirty. Grit may scratch the window.
• Do not move your vehicle until the top has been either fully attached to the
windshield frame, or fully lowered.
• The soft top is not designed to carry any additional loads such as roof racks,
spare tires, building, hunting, or camping supplies, and/or luggage, etc. Also,
it was not designed as a structural member of the vehicle and, thus, cannot
properly carry any additional loads other than environmental (rain, snow, etc.).
WARNING!
•Do not drive the vehicle with the rear window curtain up unless the side curtains
are also open. Dangerous exhaust gases which can kill could enter the vehicle.
• The fabric upper doors and fabric top are designed only for protection againstthe elements. Do not rely on them to contain occupants within the vehicle or to
protect against injury during an accident. Remember, always wear seat belts.
OPERATING YOUR VEHICLE
33

HARD TOP AND FREEDOM TOP®
Freedom Top® Removal
• Follow these simple steps to remove the front panels.
1. Fold down the sun visor, and move it to the side.
2. Turn the rear fasteners (knobs) (located on the overhead speaker bar assembly)counterclockwise until they can be removed.
3. Turn the center L-shaped locks (two) from the center of the roof panel.
OPERATING YOUR VEHICLE
34

4. Turn the rear L-shaped lock (located above the shoulder belt anchorage).
5.
Unlatch the header panel latch located
at the top of the windshield.
6. Remove the left-hand panel.
• To remove the right panel, follow the steps above except for Step 3.
NOTE:
• The left panel must be removed before removing right panel.
•
Vehicles equipped with a Freedom Top®,
come with a Freedom Top®storage bag
that allows you to store your Freedom
To p®panels. Refer to the Owner's Manual
on the DVD for details.
OPERATING YOUR VEHICLE
35

Hard Top Removal
• Follow these simple steps to remove the hard top.
1. Remove both front panels. Refer to “Front Panel(s) Removal” above.
2. Open both doors.
3. Remove the two Torx
®head screws that secure the hard top at the B-pillar (near
the top of the door) using a #40 Torx®head driver (Four–Door Only).
4. Remove the six Torx
®head screws that secure the hard top to the vehicle (along
the interior bodyside) using a #40 Torx®head driver.
5. Open the swing gate all the way to ensure clearance of the rear window glass. Lift the rear window glass.
6.
Locate and disconnect the wire harness on the left rear inside corner of the vehicle.
7. Remove the washer hose (next to the wire harness) by pinching the grips on
hose connector and pull downward.
8. Close the swing gate.
9. Remove the hard top from the vehicle. Place the hard top on a soft surface to
prevent damage.
CAUTION!
• The front panel(s) must be positioned properly to ensure sealing. Improperinstallation can cause water to leak into the vehicles interior.
• The hard top assembly must be positioned properly to ensure sealing. Improper
installation can cause water to leak into the vehicles interior.
• The hard top is not designed to carry any additional loads such as roof racks,
spare tires, building, hunting, or camping supplies, and/or luggage, etc. Also,
it was not designed as a structural member of the vehicle, and thus cannot
properly carry any additional loads other than environmental (rain, snow, etc.).
• Do not move your vehicle until the top has been either fully attached to the
windshield frame and bodyside, or fully removed.
• The removal of the hard top requires four adults located on each corner. Failure
to follow this caution could damage the hard top.
OPERATING YOUR VEHICLE
36

DUAL TOP — IF EQUIPPED
• If your vehicle is equipped with a Dual Top, you must remove one of the tops fromthe vehicle.
• 2 Door - If the soft top is removed, the pivot brackets must also be removed from
the sport bar.
• 4 Door - If the soft top is removed, ensure that the pivot bracket strap is installed onto
the Soft Top pivot bracket before removing the soft top from the vehicle. Remove the
fasteners between the Soft Top pivot bracket and the attach bracket to the sport
bar.
• The soft top was installed at the fac- tory for shipping purposes only.
NOTE:
The soft top and the hard top are to be
used independently.
• Refer to the Understanding The Fea- tures Of Your Vehicle section of your
vehicle's Owner's Manual on the DVD
for further details.
WIND BUFFETING
•Wind buffeting can be described as a helicopter-type percussion sound. If buffeting
occurs with the rear windows open, adjust the front and rear windows together.
OPERATING YOUR VEHICLE
37

YOUR VEHICLE'S SOUND SYSTEM
