JEEP WRANGLER UNLIMITED 2014 Owner's Guide

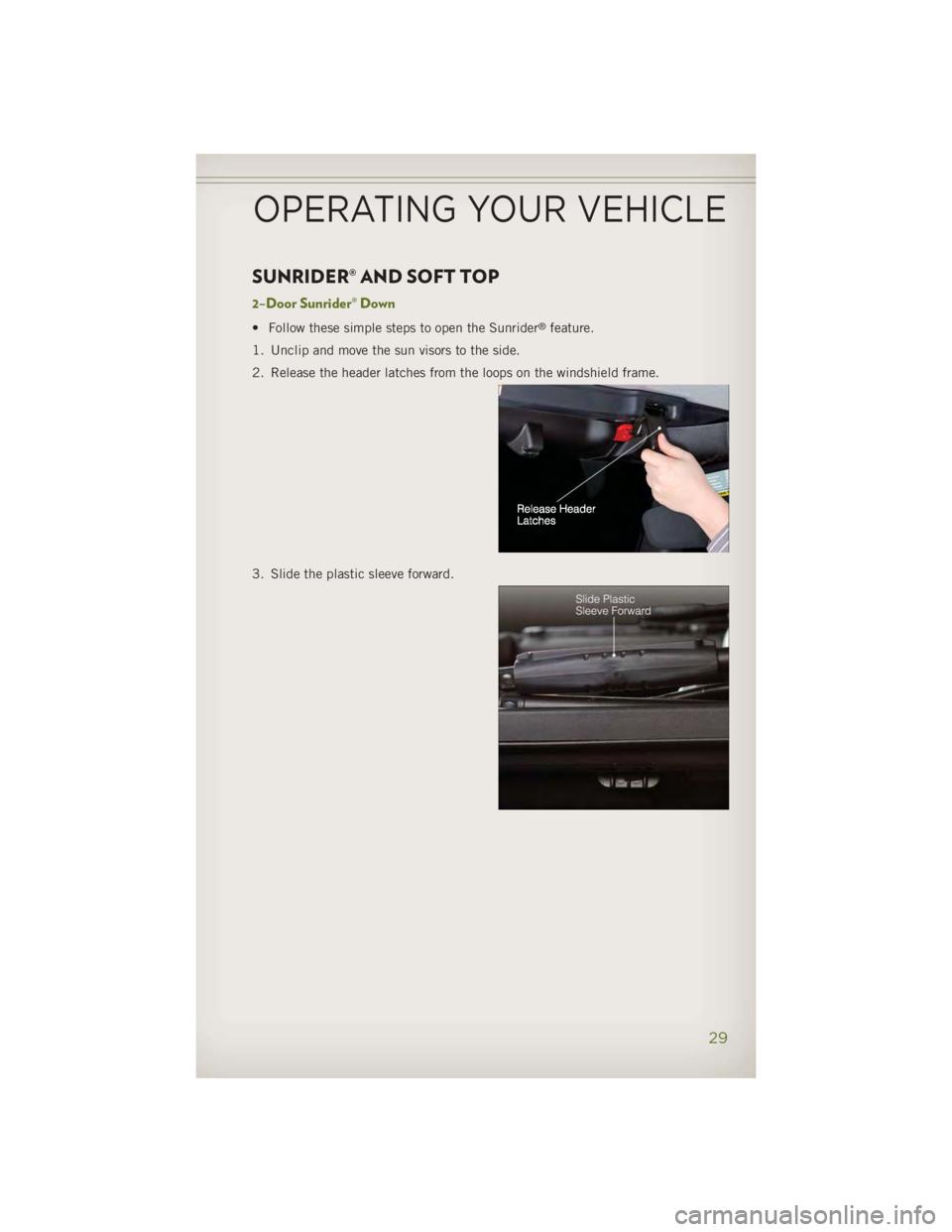

SUNRIDER® AND SOFT TOP 2–Door Sunrider® Down • Follow these simple steps to open the Sunrider ®
feature.
1. Unclip and move the sun visors to the side.
2. Release the header latches from the loops on the windshield frame.
3. Slide the plastic sleeve forward.
OPERATING YOUR VEHICLE
29

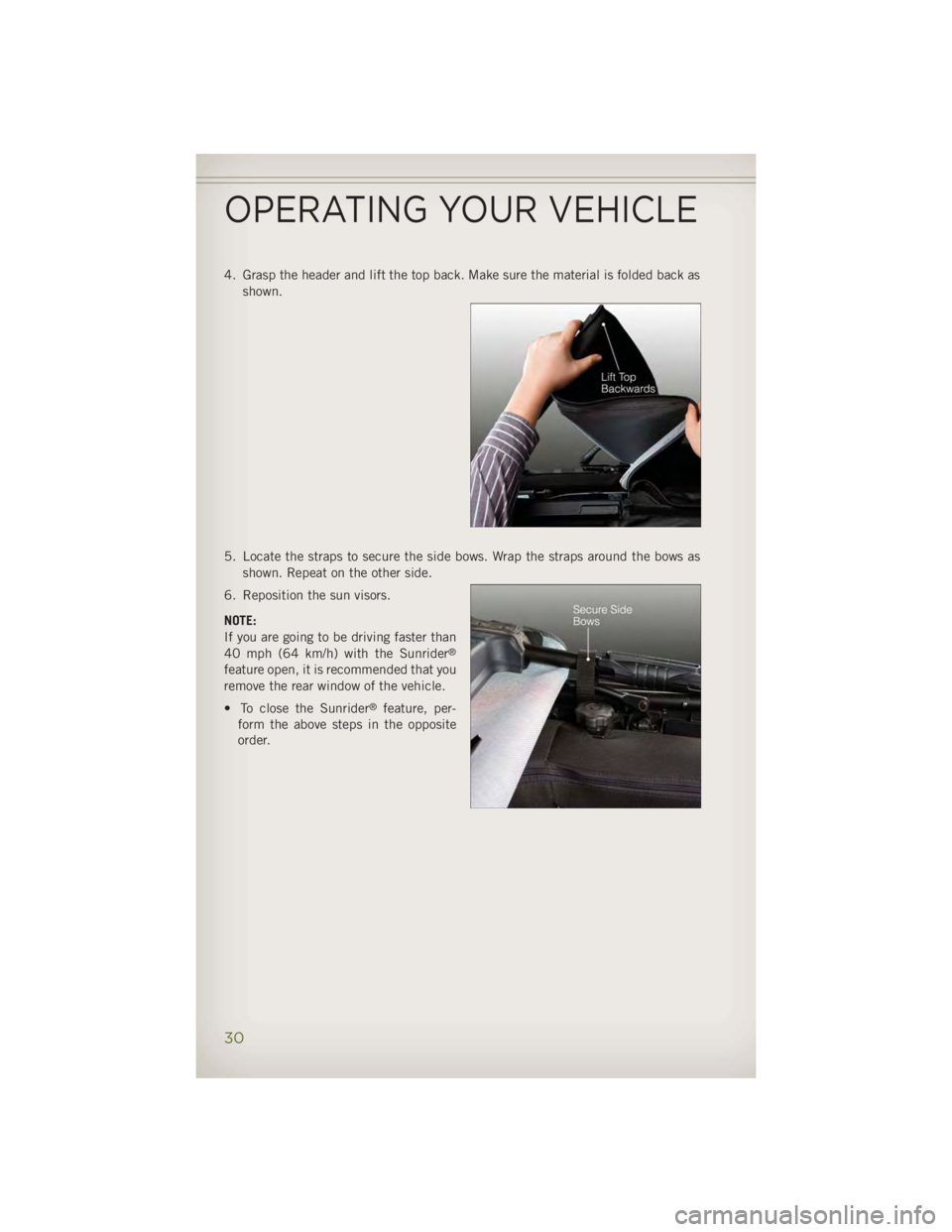

4. Grasp the header and lift the top back. Make sure the material is folded back as
shown.
5. Locate the straps to secure the side bows. Wrap the straps around the bows as
shown. Repeat on the other side.
6. Reposition the sun visors.
NOTE:
If you are going to be driving faster than
40 mph (64 km/h) with the Sunrider ®
feature open, it is recommended that you
remove the rear window of the vehicle.
• To close the Sunrider ®
feature, per-
form the above steps in the opposite
order.
OPERATING YOUR VEHICLE
30

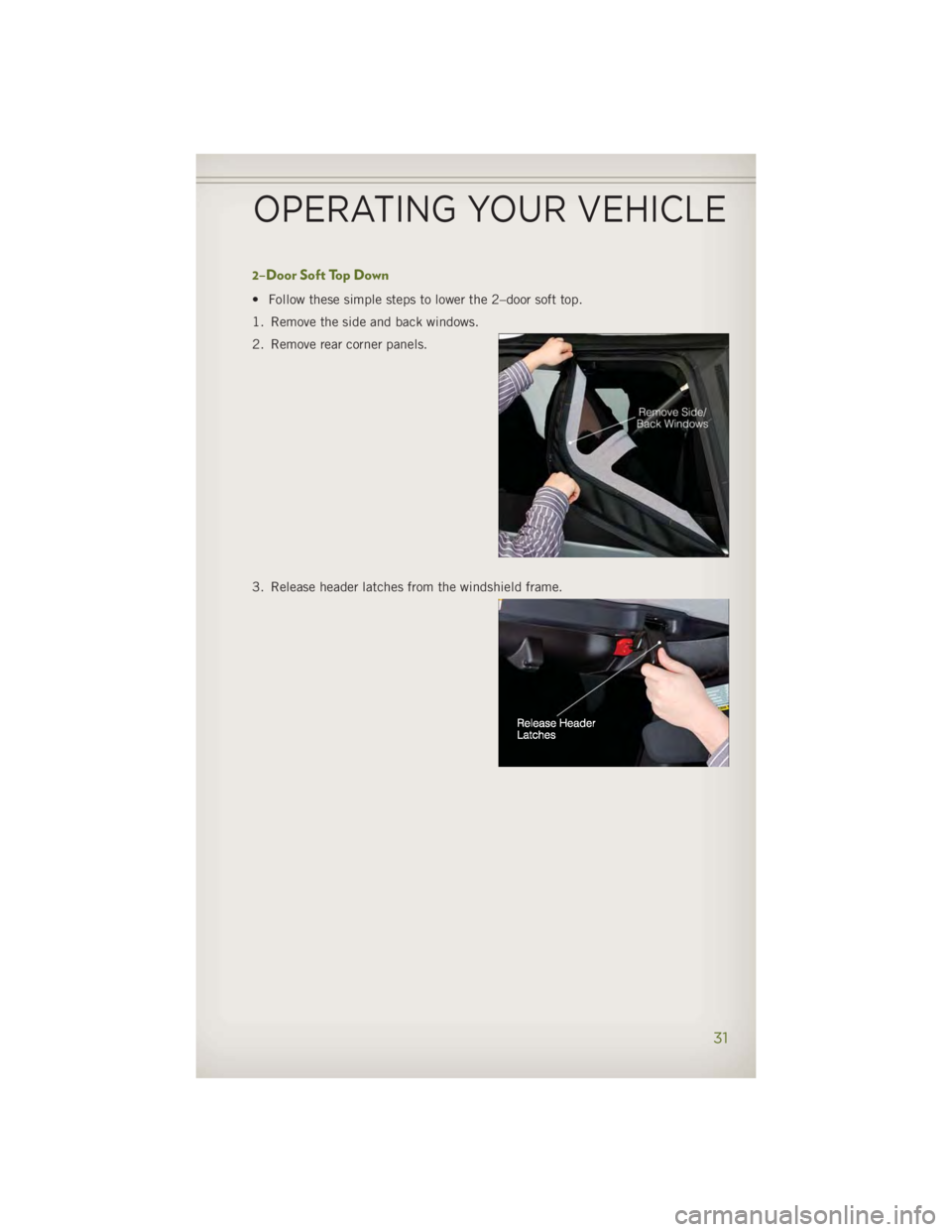

2–Door Soft Top Down • Follow these simple steps to lower the 2–door soft top.
1. Remove the side and back windows.
2. Remove rear corner panels.
3. Release header latches from the windshield frame.
OPERATING YOUR VEHICLE
31

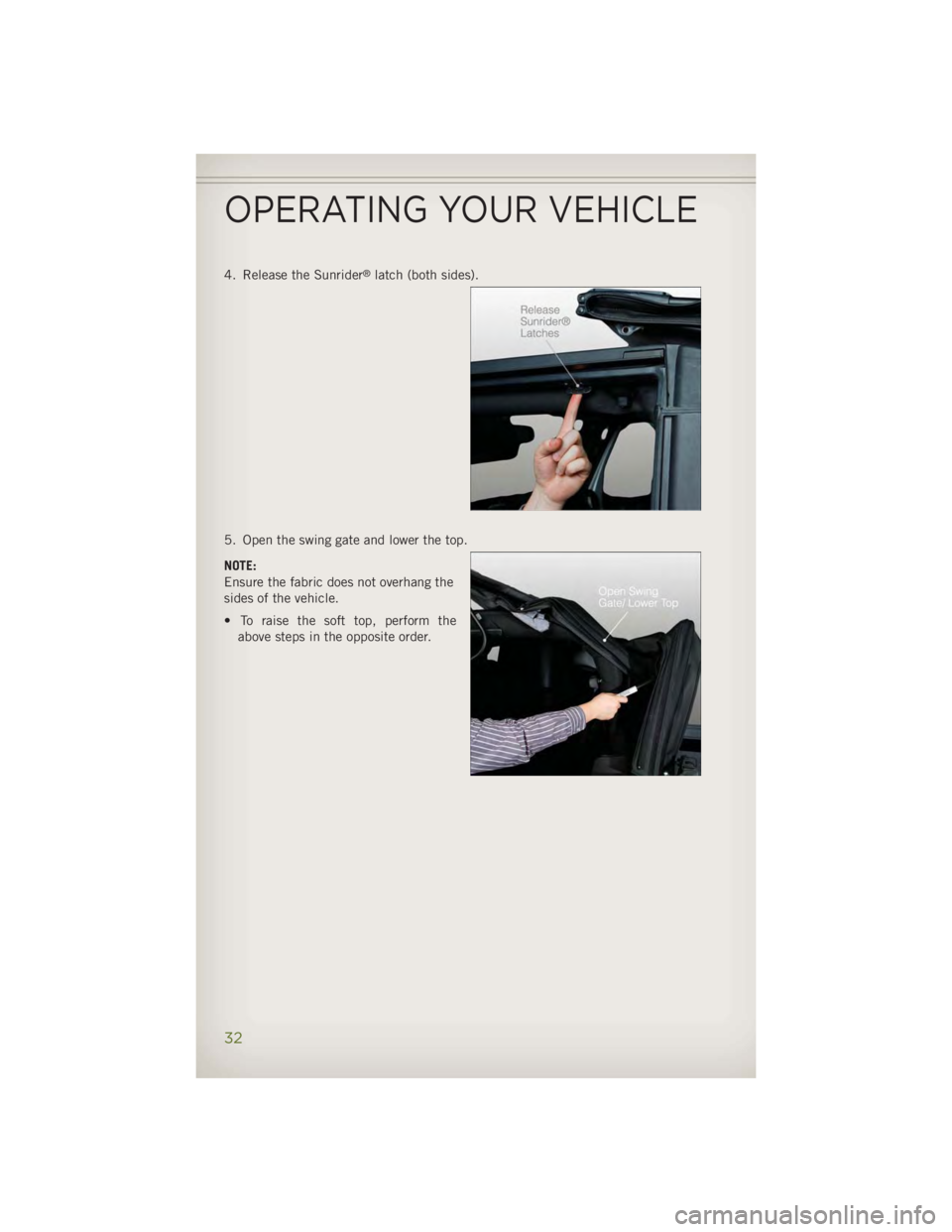

4. Release the Sunrider ®
latch (both sides).
5. Open the swing gate and lower the top.
NOTE:
Ensure the fabric does not overhang the
sides of the vehicle.
• To raise the soft top, perform the
above steps in the opposite order.
OPERATING YOUR VEHICLE
32

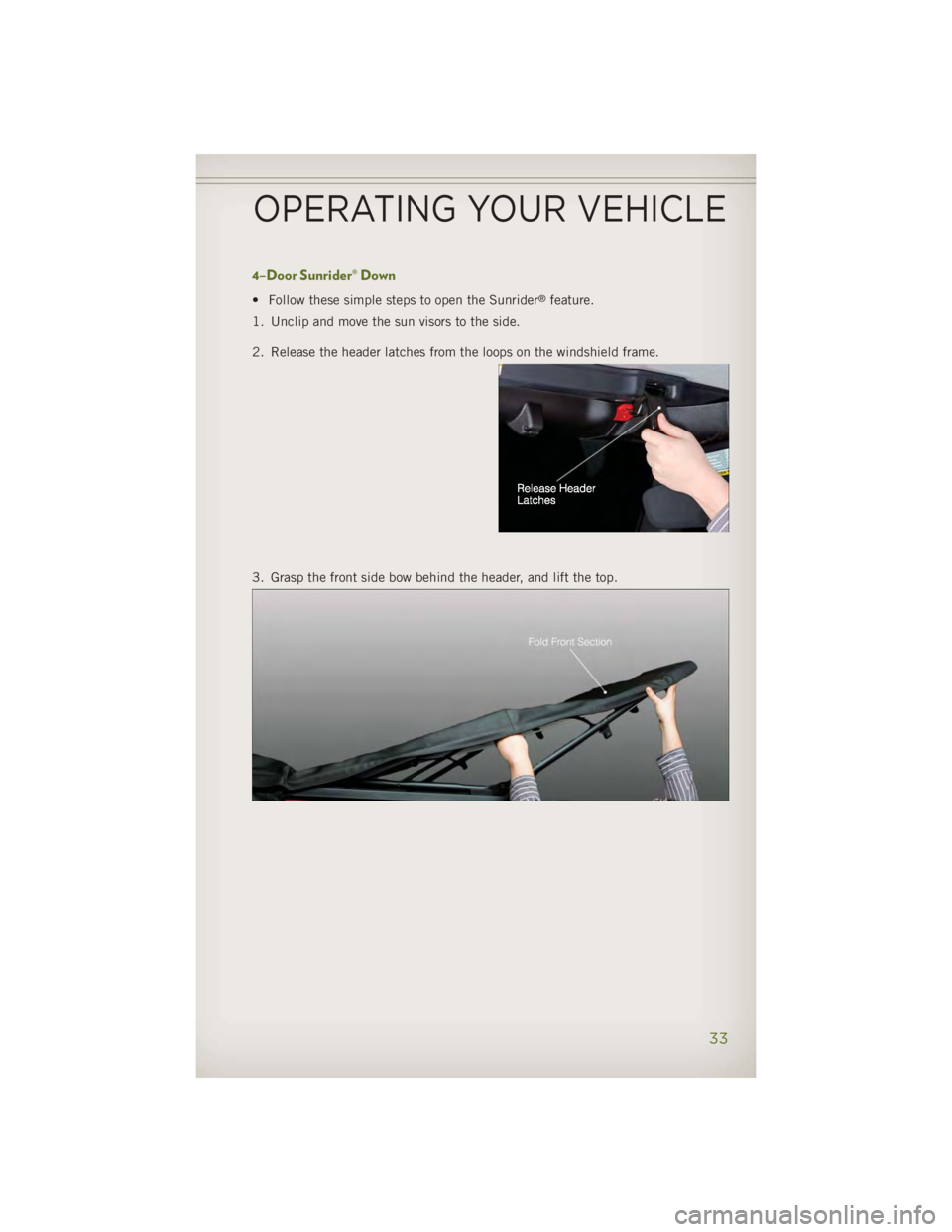

4–Door Sunrider® Down • Follow these simple steps to open the Sunrider ®
feature.
1. Unclip and move the sun visors to the side.
2. Release the header latches from the loops on the windshield frame.
3. Grasp the front side bow behind the header, and lift the top.
OPERATING YOUR VEHICLE
33

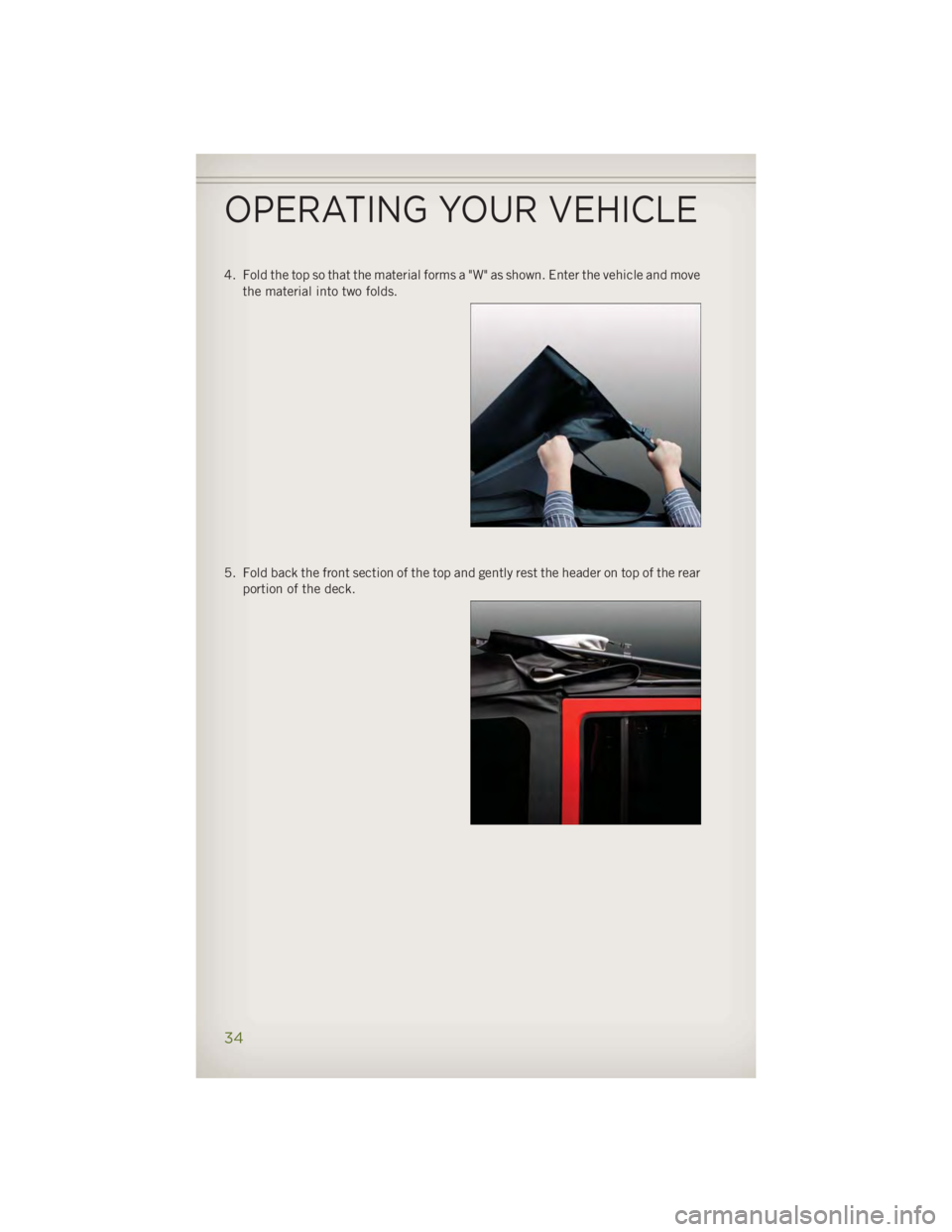

4. Fold the top so that the material forms a "W" as shown. Enter the vehicle and move
the material into two folds.
5. Fold back the front section of the top and gently rest the header on top of the rear
portion of the deck.
OPERATING YOUR VEHICLE
34

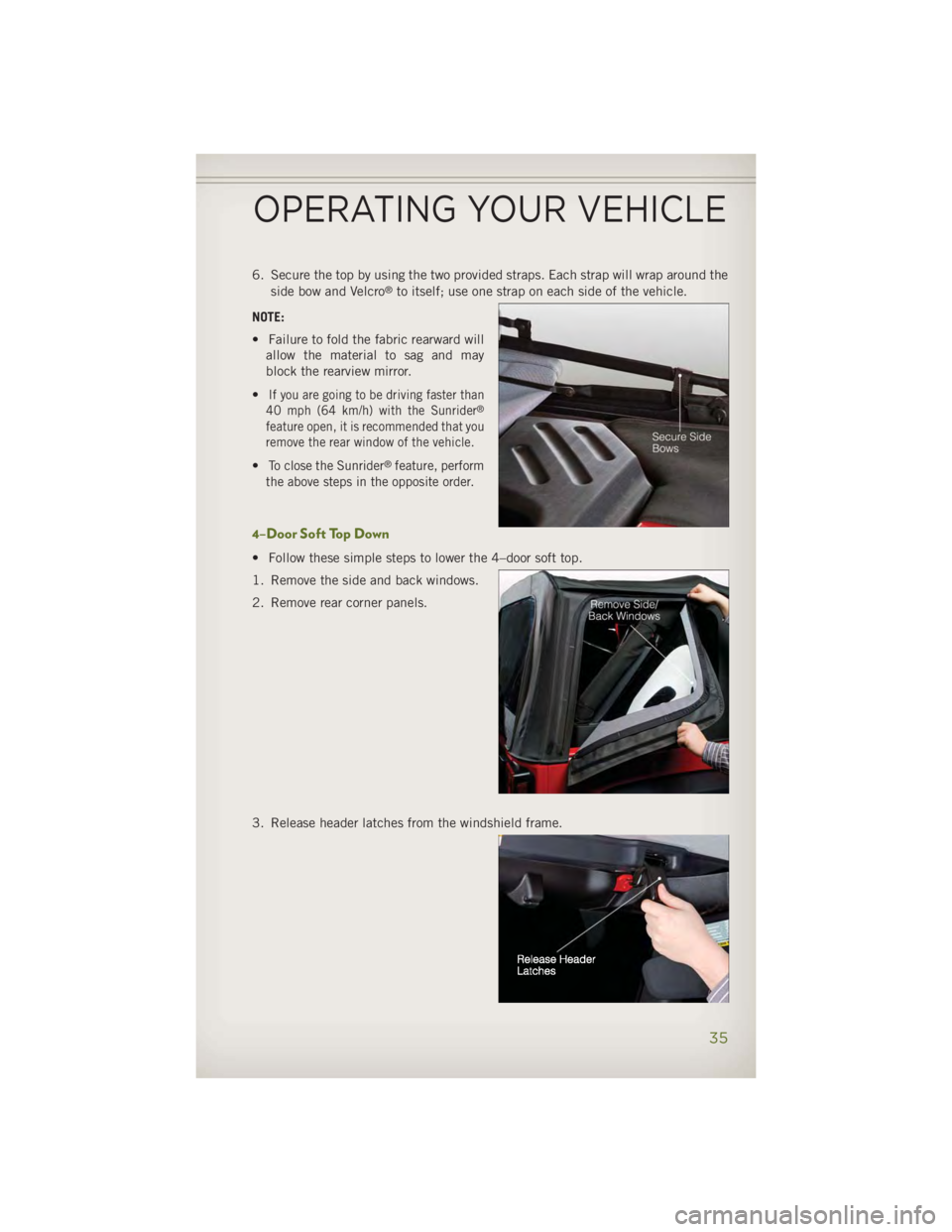

6. Secure the top by using the two provided straps. Each strap will wrap around the
side bow and Velcro ®
to itself; use one strap on each side of the vehicle.
NOTE:
• Failure to fold the fabric rearward will
allow the material to sag and may
block the rearview mirror.
• If you are going to be driving faster than
40 mph (64 km/h) with the Sunrider ®
feature open, it is recommended that you
remove the rear window of the vehicle.
• To close the Sunrider ®
feature, perform
the above steps in the opposite order.
4–Door Soft Top Down • Follow these simple steps to lower the 4–door soft top.
1. Remove the side and back windows.
2. Remove rear corner panels.
3. Release header latches from the windshield frame.
OPERATING YOUR VEHICLE
35

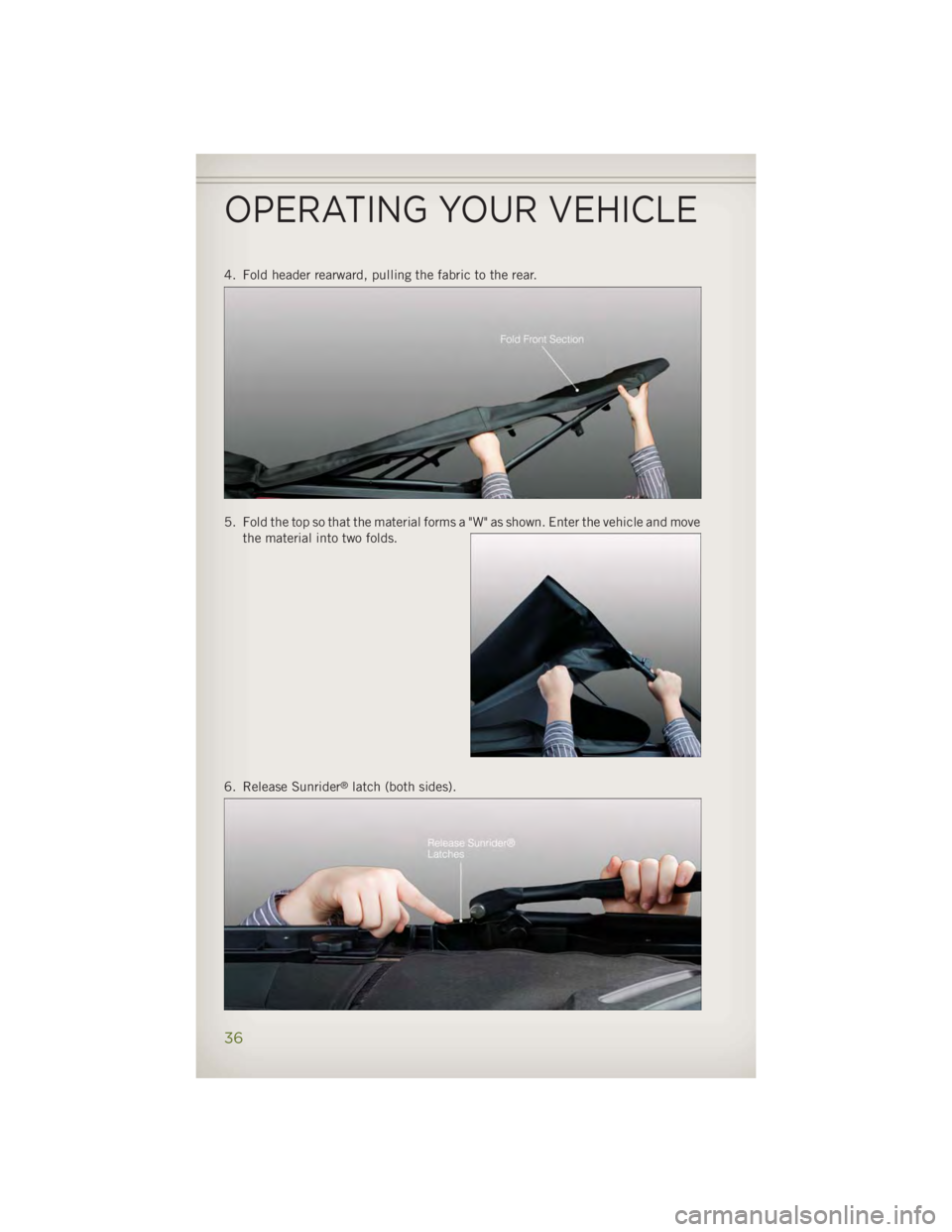

4. Fold header rearward, pulling the fabric to the rear.
5. Fold the top so that the material forms a "W" as shown. Enter the vehicle and move
the material into two folds.
6. Release Sunrider ®
latch (both sides).
OPERATING YOUR VEHICLE
36

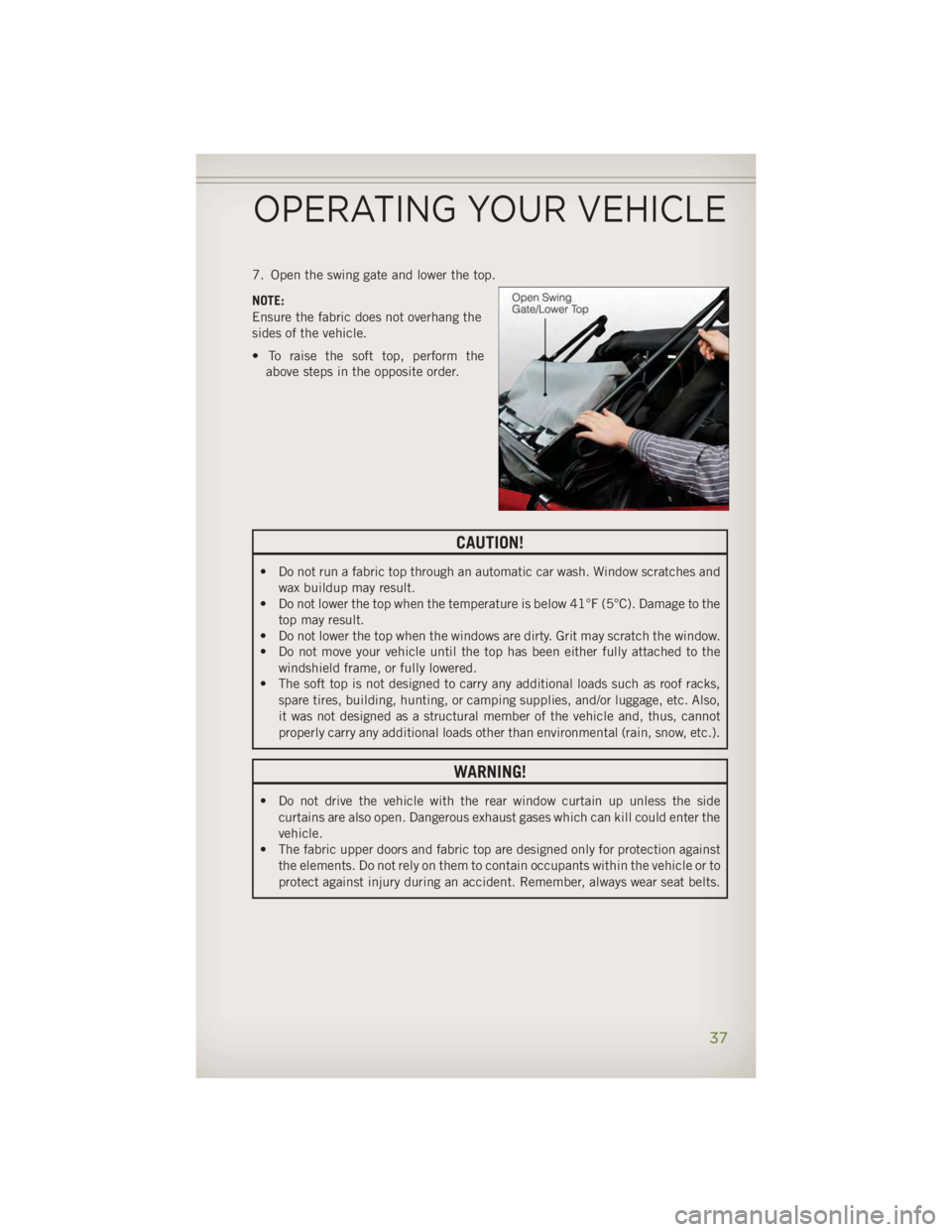

7. Open the swing gate and lower the top.
NOTE:
Ensure the fabric does not overhang the
sides of the vehicle.
• To raise the soft top, perform the
above steps in the opposite order.
CAUTION!• Do not run a fabric top through an automatic car wash. Window scratches and
wax buildup may result.
• Do not lower the top when the temperature is below 41°F (5°C). Damage to the
top may result.
• Do not lower the top when the windows are dirty. Grit may scratch the window.
• Do not move your vehicle until the top has been either fully attached to the
windshield frame, or fully lowered.
• The soft top is not designed to carry any additional loads such as roof racks,
spare tires, building, hunting, or camping supplies, and/or luggage, etc. Also,
it was not designed as a structural member of the vehicle and, thus, cannot
properly carry any additional loads other than environmental (rain, snow, etc.).
WARNING!• Do not drive the vehicle with the rear window curtain up unless the side
curtains are also open. Dangerous exhaust gases which can kill could enter the
vehicle.
• The fabric upper doors and fabric top are designed only for protection against
the elements. Do not rely on them to contain occupants within the vehicle or to
protect against injury during an accident. Remember, always wear seat belts.OPERATING YOUR VEHICLE
37

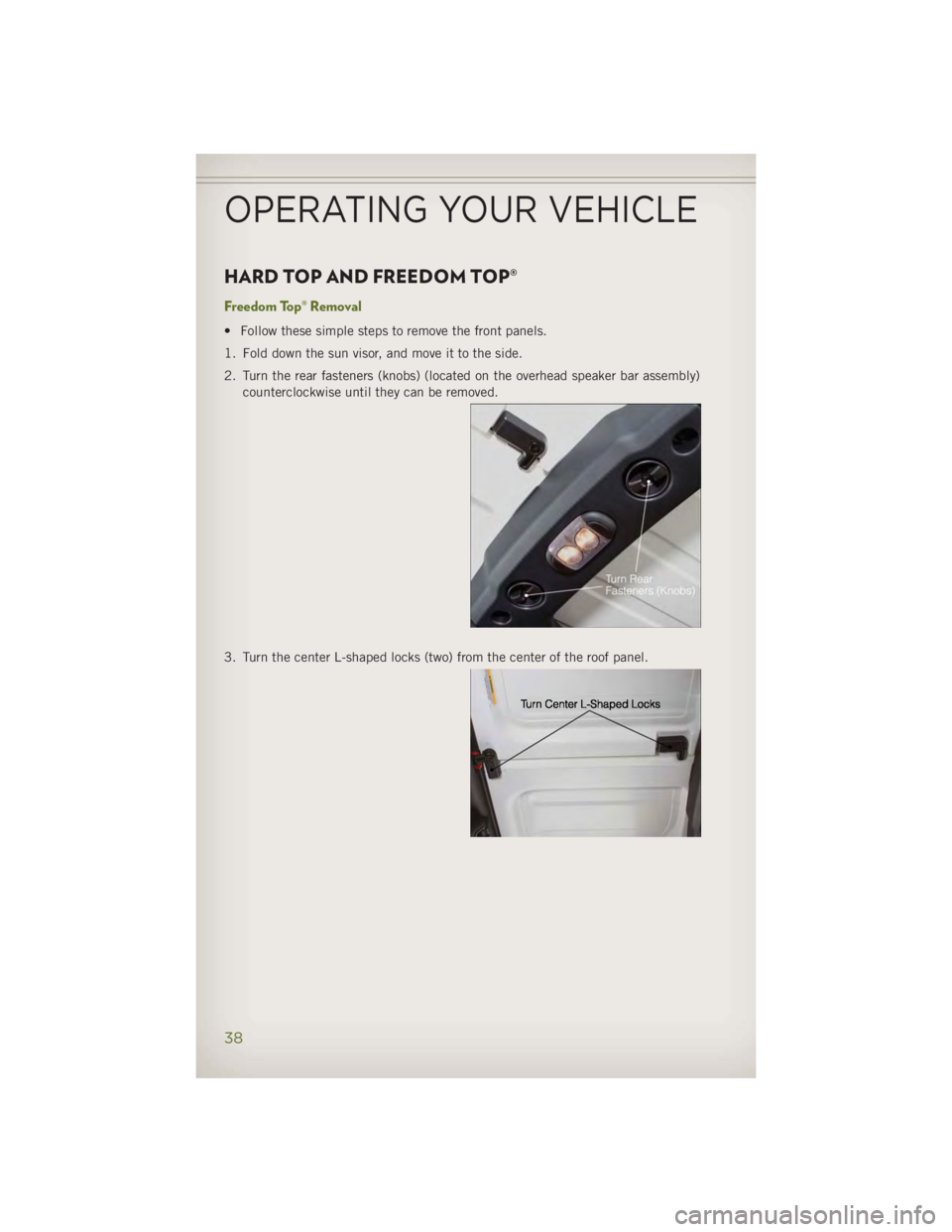

HARD TOP AND FREEDOM TOP® Freedom Top® Removal • Follow these simple steps to remove the front panels.
1. Fold down the sun visor, and move it to the side.
2. Turn the rear fasteners (knobs) (located on the overhead speaker bar assembly)
counterclockwise until they can be removed.
3. Turn the center L-shaped locks (two) from the center of the roof panel.
OPERATING YOUR VEHICLE
