Page 1311 of 2158

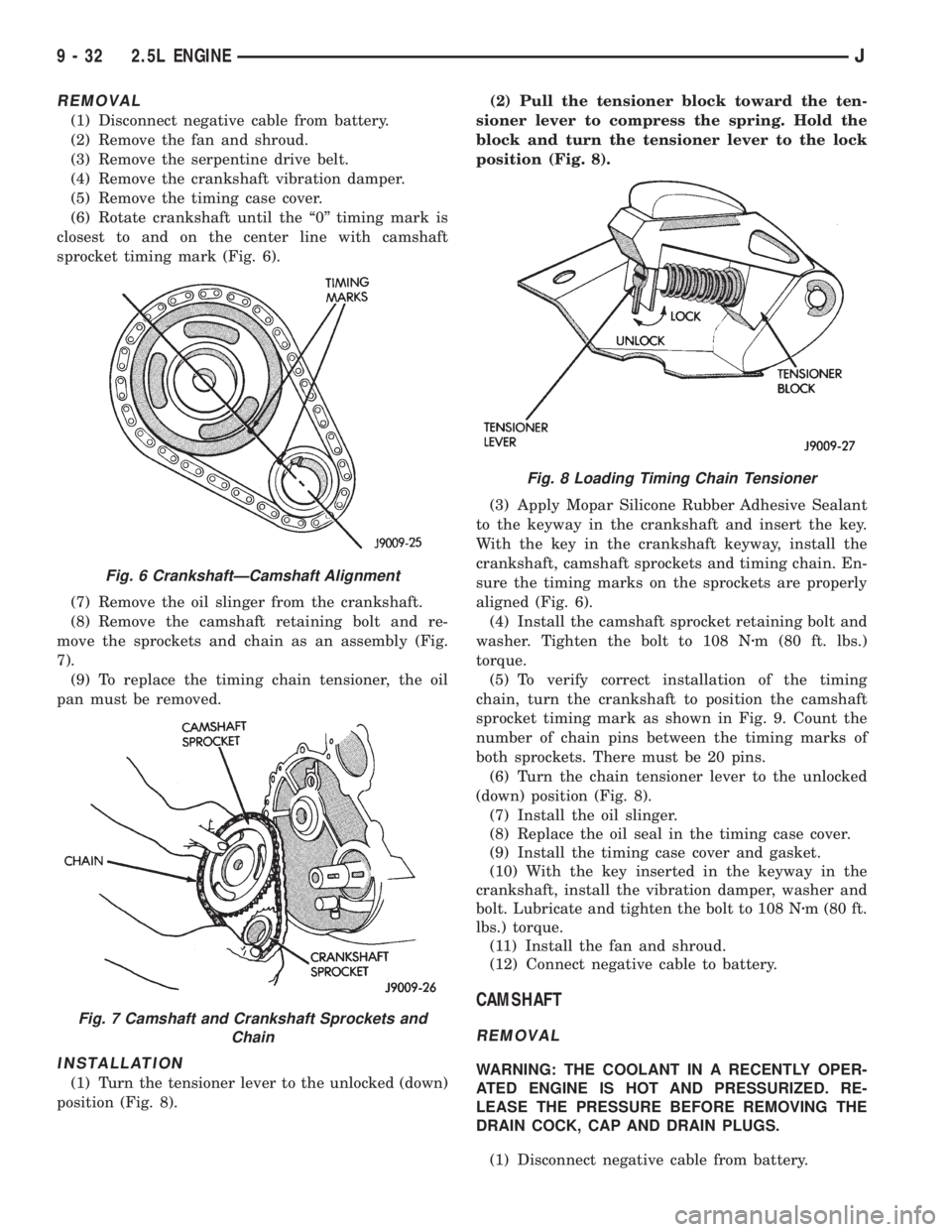

JEEP XJ 1995  Service And Repair Manual REMOVAL
(1) Disconnect negative cable from battery.
(2) Remove the fan and shroud.
(3) Remove the serpentine drive belt.
(4) Remove the crankshaft vibration damper.
(5) Remove the timing case cover.
(

Page 1312 of 2158

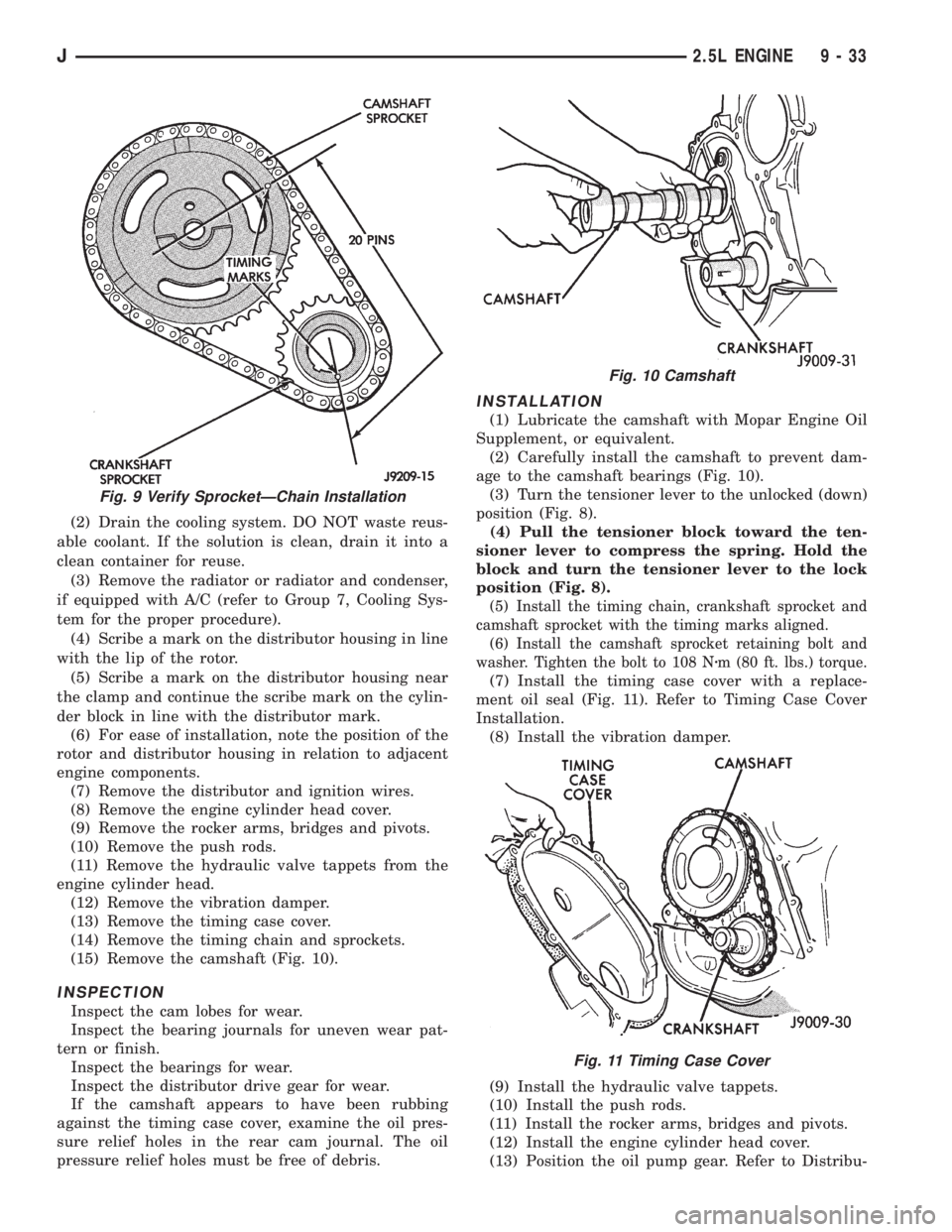

JEEP XJ 1995  Service And Repair Manual (2) Drain the cooling system. DO NOT waste reus-
able coolant. If the solution is clean, drain it into a
clean container for reuse.
(3) Remove the radiator or radiator and condenser,
if equipped with

Page 1313 of 2158

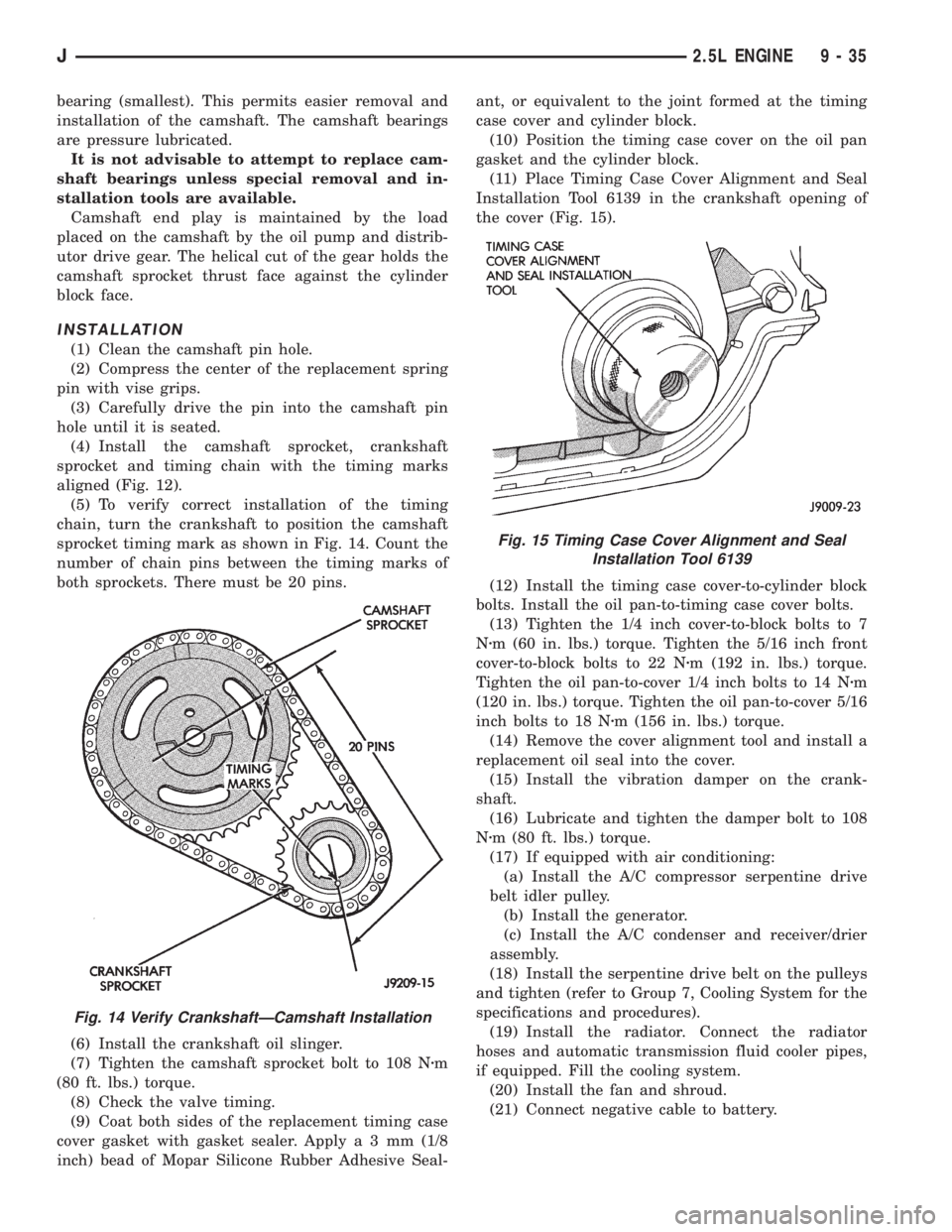

JEEP XJ 1995  Service And Repair Manual tor in the Component Removal/Installation section of
Group 8D, Ignition Systems.
(14) Install the distributor and ignition wires. Re-
fer to Distributor in the Component Removal/Instal-
lation section

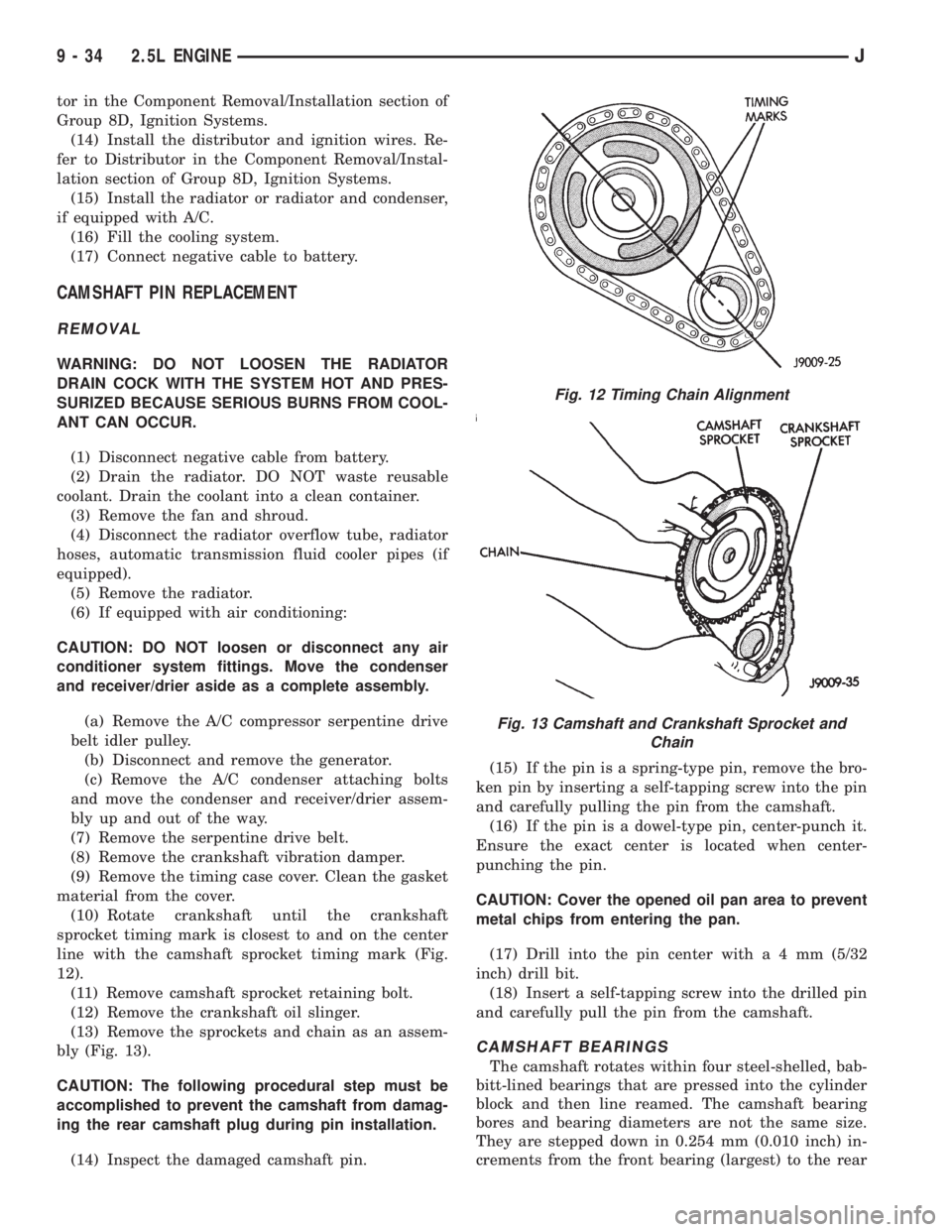

Page 1314 of 2158

JEEP XJ 1995  Service And Repair Manual bearing (smallest). This permits easier removal and
installation of the camshaft. The camshaft bearings
are pressure lubricated.
It is not advisable to attempt to replace cam-
shaft bearings unless sp

Page 1315 of 2158

JEEP XJ 1995  Service And Repair Manual OIL PAN
REMOVAL
(1) Disconnect negative cable from battery.
(2) Raise the vehicle.
(3) Remove the oil pan drain plug and drain the
engine oil.
(4) Disconnect the exhaust pipe at the engine ex-
haust m

Page 1316 of 2158

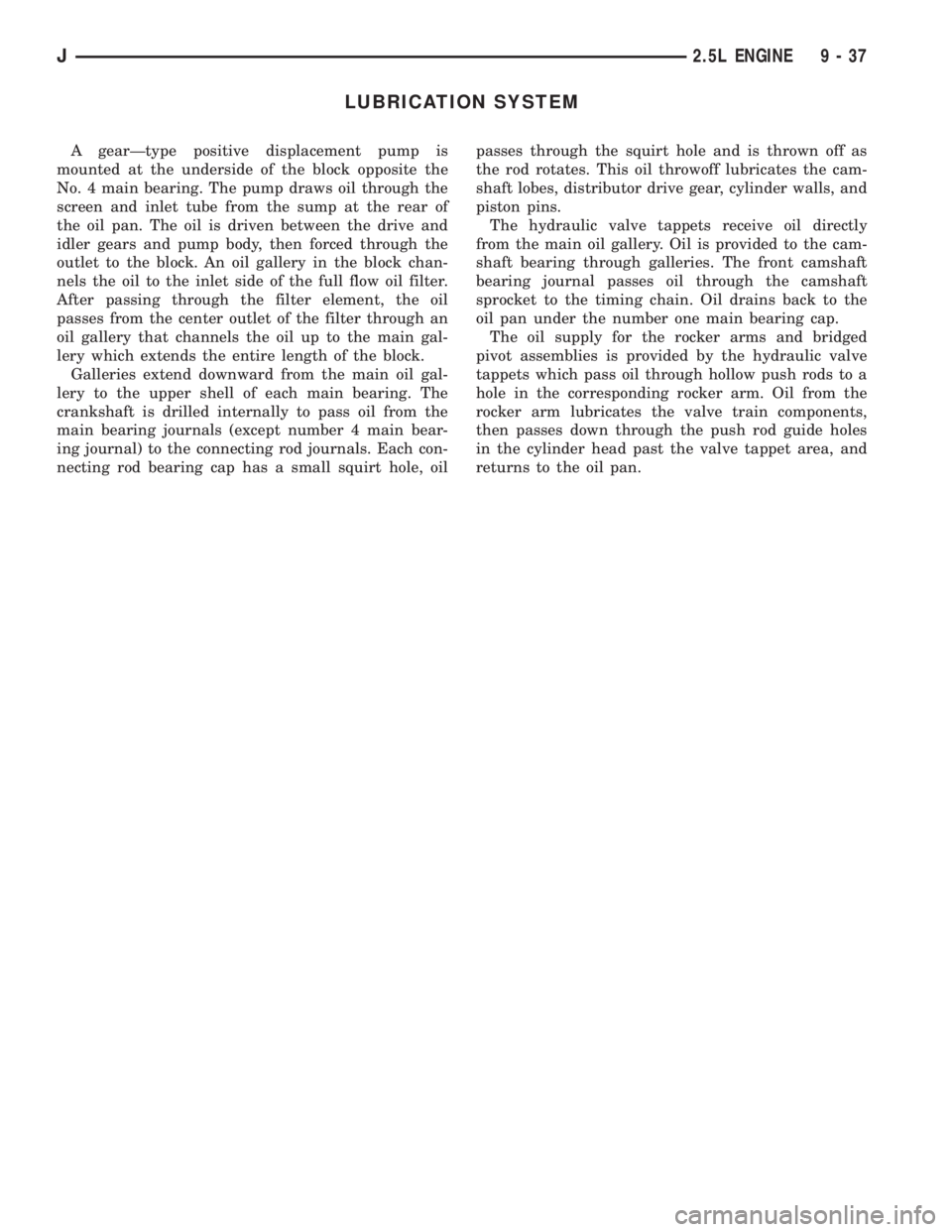

JEEP XJ 1995  Service And Repair Manual LUBRICATION SYSTEM
A gearÐtype positive displacement pump is
mounted at the underside of the block opposite the
No. 4 main bearing. The pump draws oil through the
screen and inlet tube from the sump

Page 1317 of 2158

JEEP XJ 1995  Service And Repair Manual Fig. 4 Oil Lubrication System
9 - 38 2.5L ENGINEJ

Page 1318 of 2158

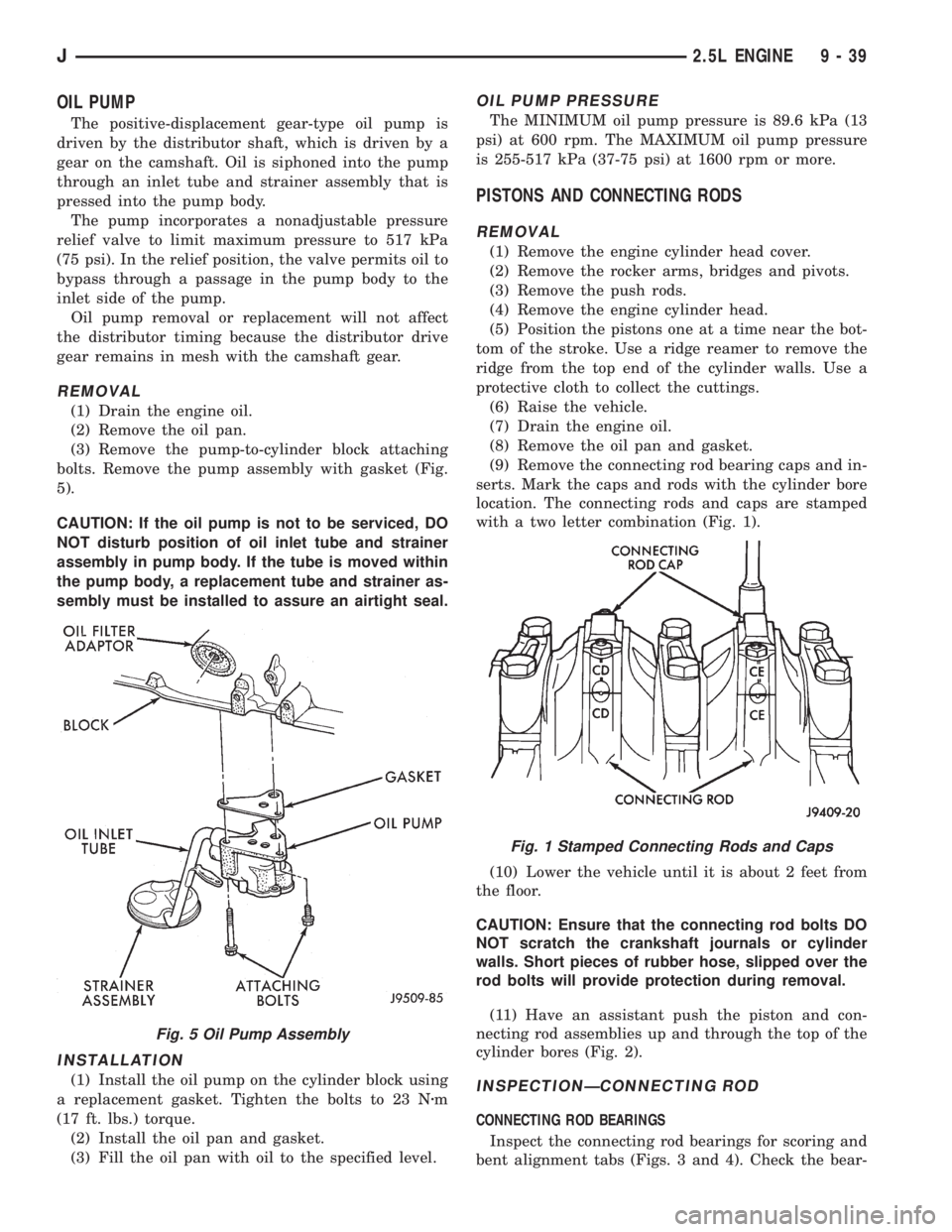

JEEP XJ 1995  Service And Repair Manual OIL PUMP
The positive-displacement gear-type oil pump is
driven by the distributor shaft, which is driven by a
gear on the camshaft. Oil is siphoned into the pump
through an inlet tube and strainer as

Page 1319 of 2158

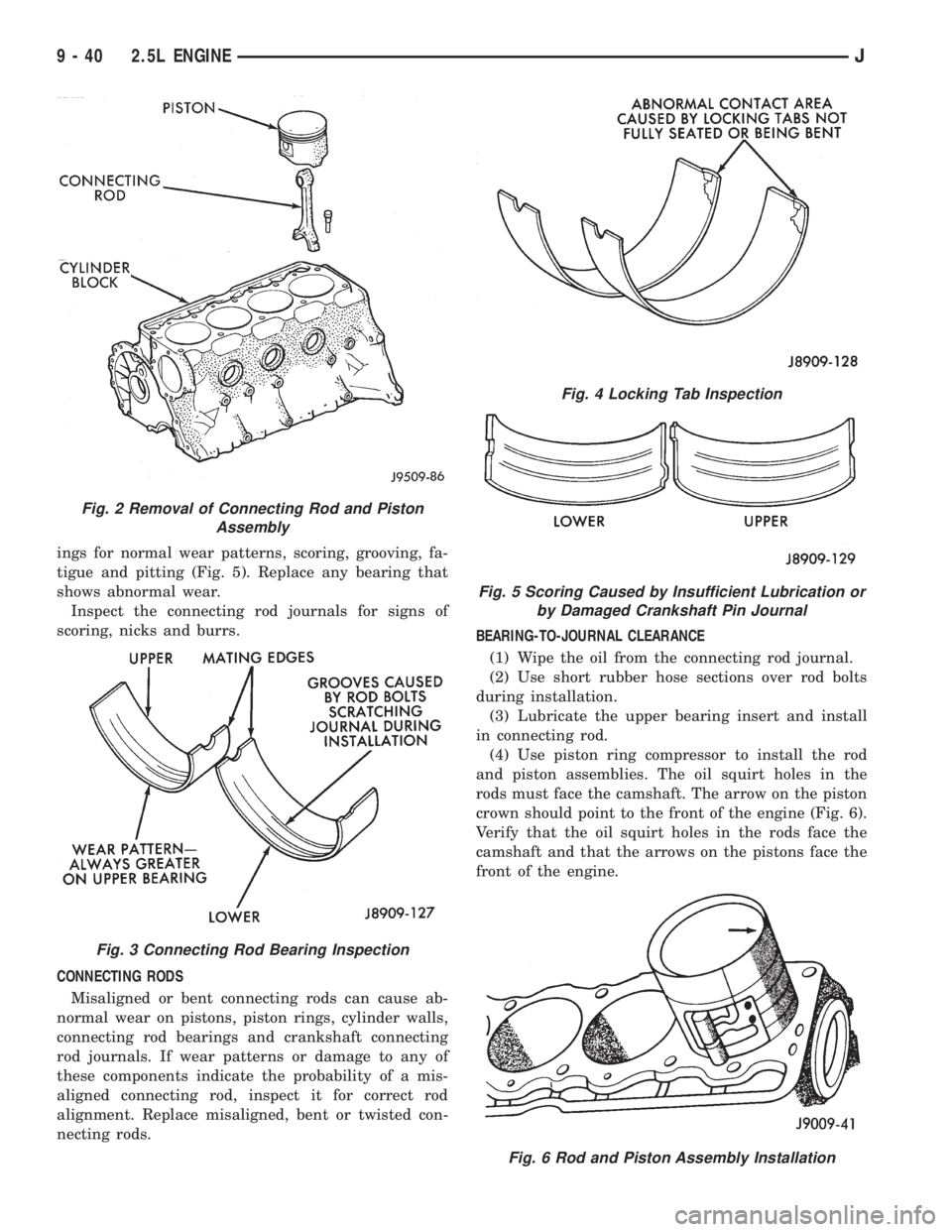

JEEP XJ 1995  Service And Repair Manual ings for normal wear patterns, scoring, grooving, fa-
tigue and pitting (Fig. 5). Replace any bearing that
shows abnormal wear.
Inspect the connecting rod journals for signs of
scoring, nicks and burr

Page 1320 of 2158

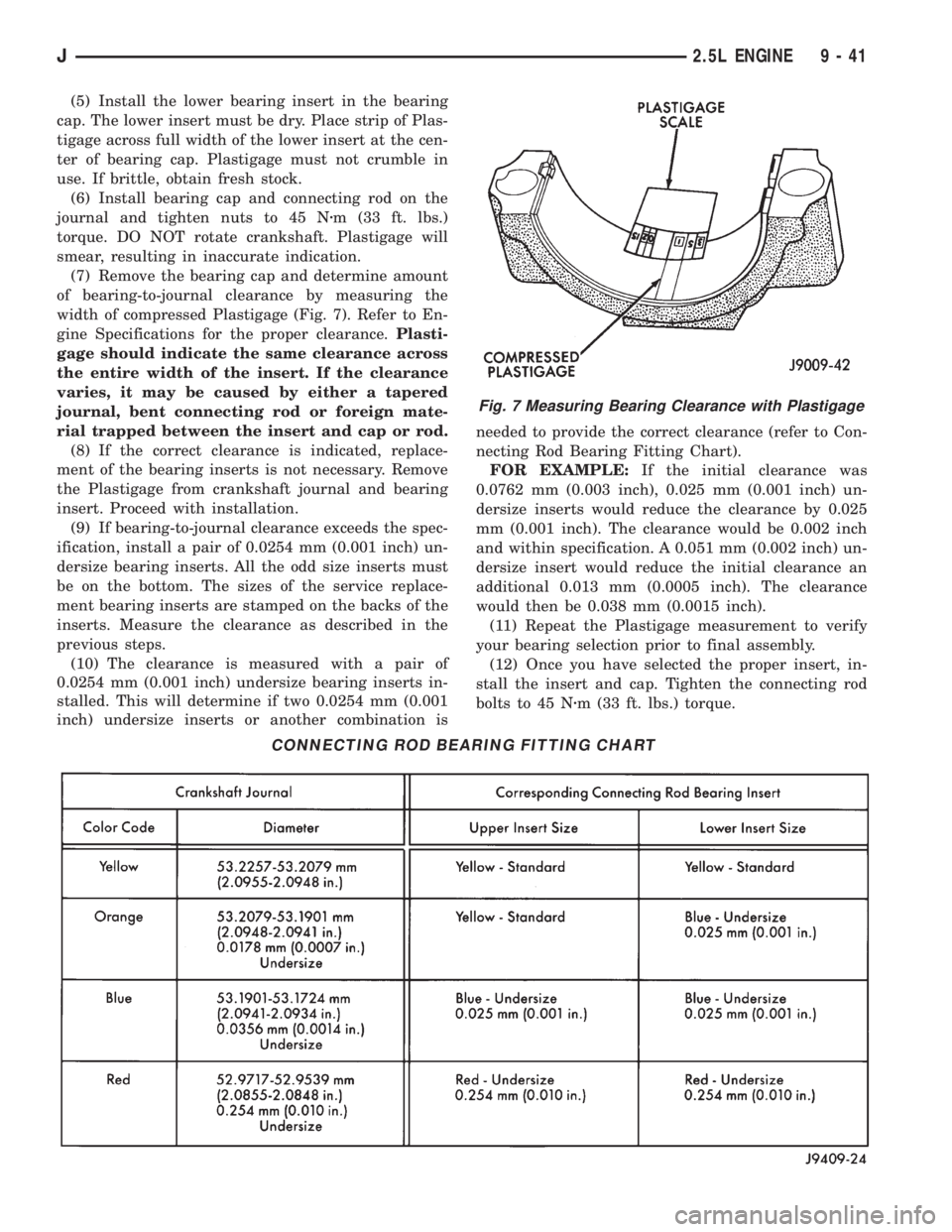

JEEP XJ 1995  Service And Repair Manual (5) Install the lower bearing insert in the bearing
cap. The lower insert must be dry. Place strip of Plas-
tigage across full width of the lower insert at the cen-
ter of bearing cap. Plastigage must
