Page 1711 of 2158

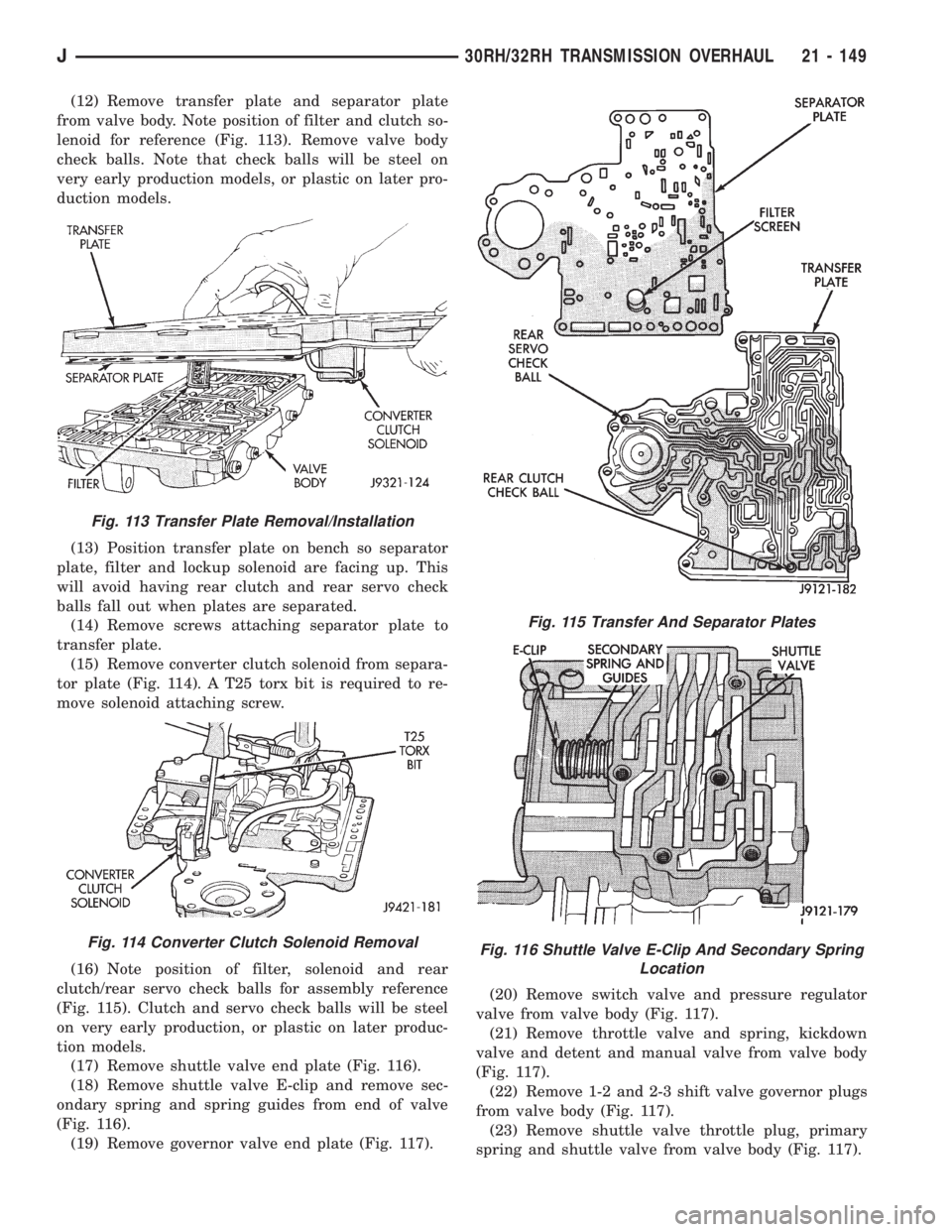

JEEP XJ 1995  Service And Repair Manual (12) Remove transfer plate and separator plate
from valve body. Note position of filter and clutch so-
lenoid for reference (Fig. 113). Remove valve body
check balls. Note that check balls will be ste

Page 1712 of 2158

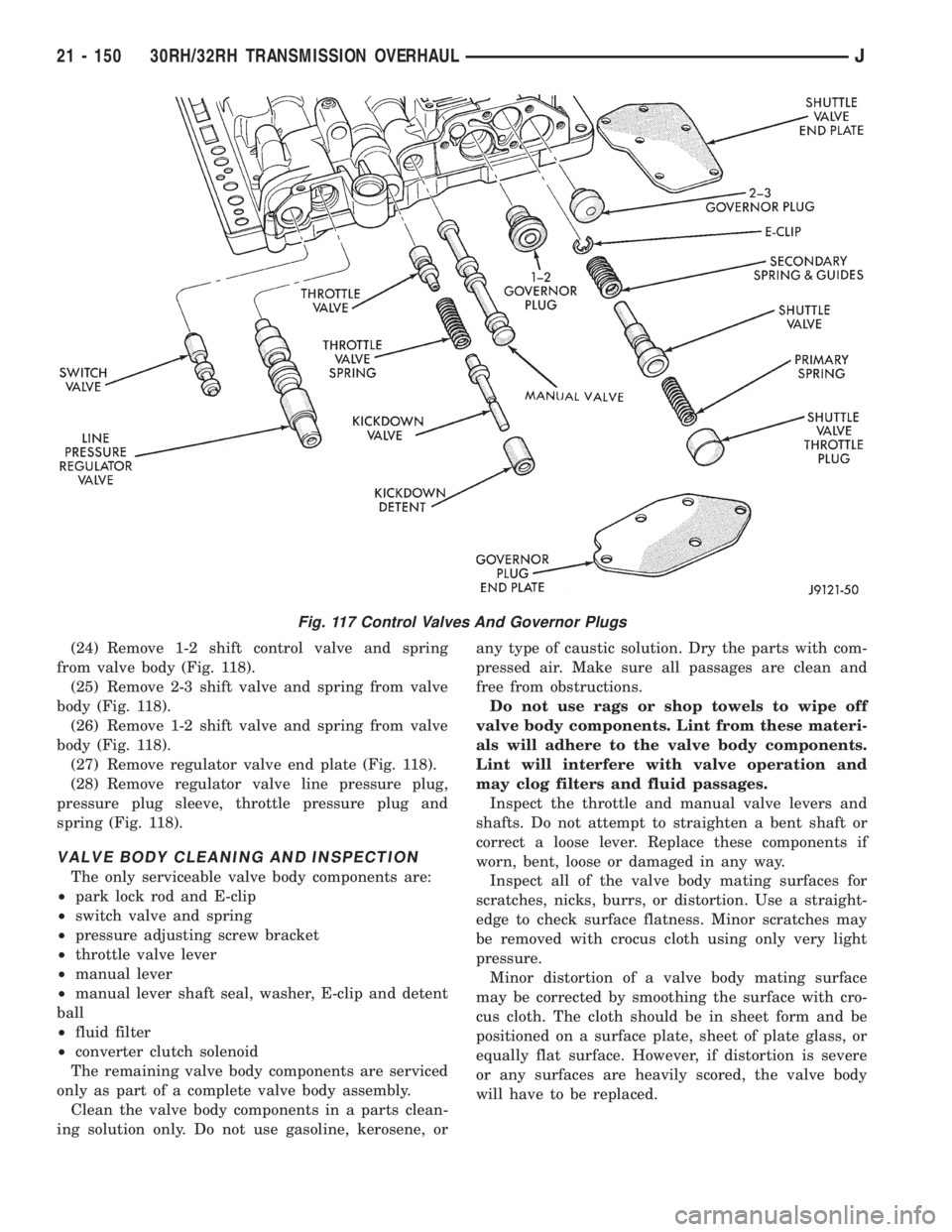

JEEP XJ 1995  Service And Repair Manual (24) Remove 1-2 shift control valve and spring
from valve body (Fig. 118).
(25) Remove 2-3 shift valve and spring from valve
body (Fig. 118).
(26) Remove 1-2 shift valve and spring from valve
body (Fi

Page 1713 of 2158

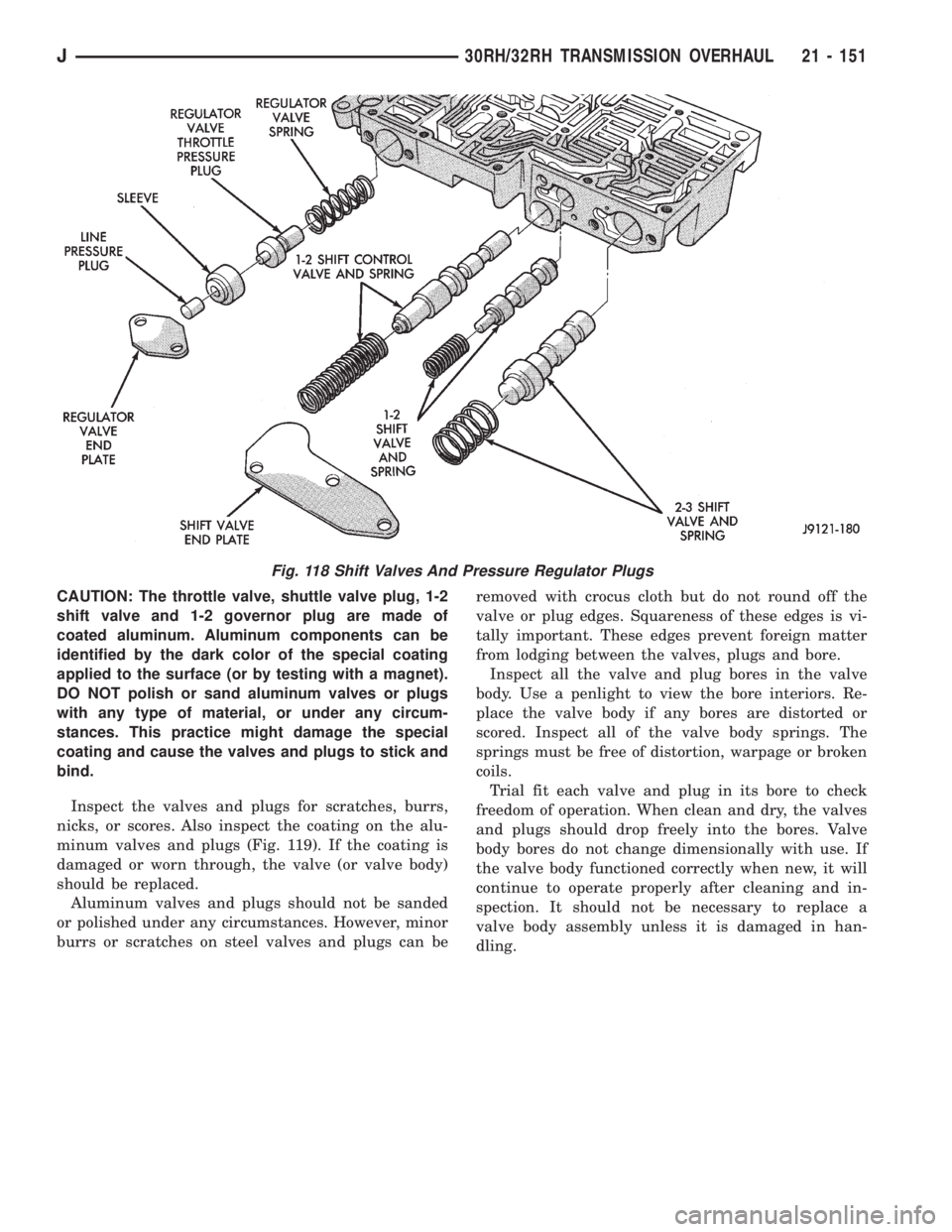

JEEP XJ 1995  Service And Repair Manual CAUTION: The throttle valve, shuttle valve plug, 1-2
shift valve and 1-2 governor plug are made of
coated aluminum. Aluminum components can be
identified by the dark color of the special coating
appli

Page 1714 of 2158

JEEP XJ 1995  Service And Repair Manual Fig. 119 Valve Body Components
21 - 152 30RH/32RH TRANSMISSION OVERHAULJ

Page 1715 of 2158

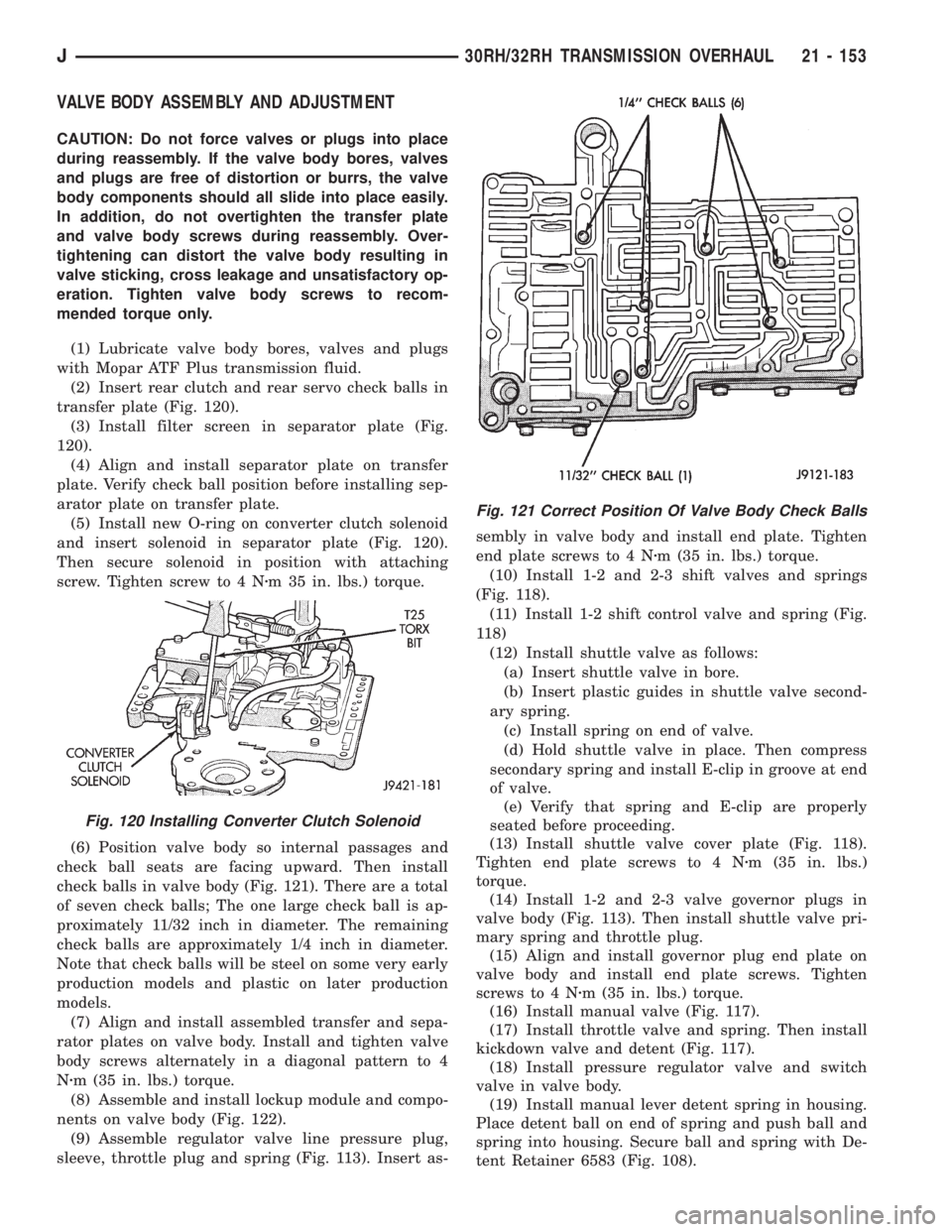

JEEP XJ 1995  Service And Repair Manual VALVE BODY ASSEMBLY AND ADJUSTMENT
CAUTION: Do not force valves or plugs into place
during reassembly. If the valve body bores, valves
and plugs are free of distortion or burrs, the valve
body compone

Page 1716 of 2158

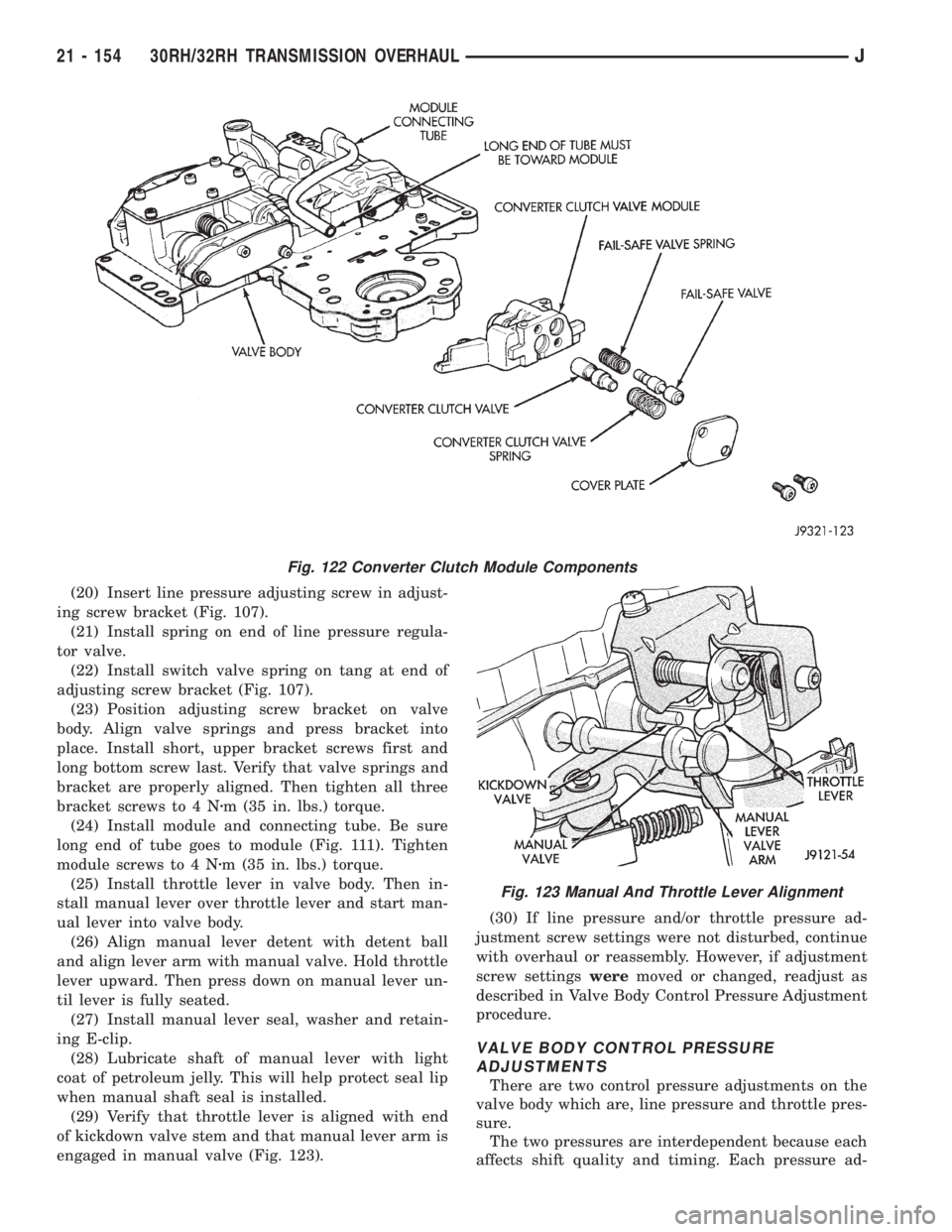

JEEP XJ 1995  Service And Repair Manual (20) Insert line pressure adjusting screw in adjust-
ing screw bracket (Fig. 107).
(21) Install spring on end of line pressure regula-
tor valve.
(22) Install switch valve spring on tang at end of
adj

Page 1717 of 2158

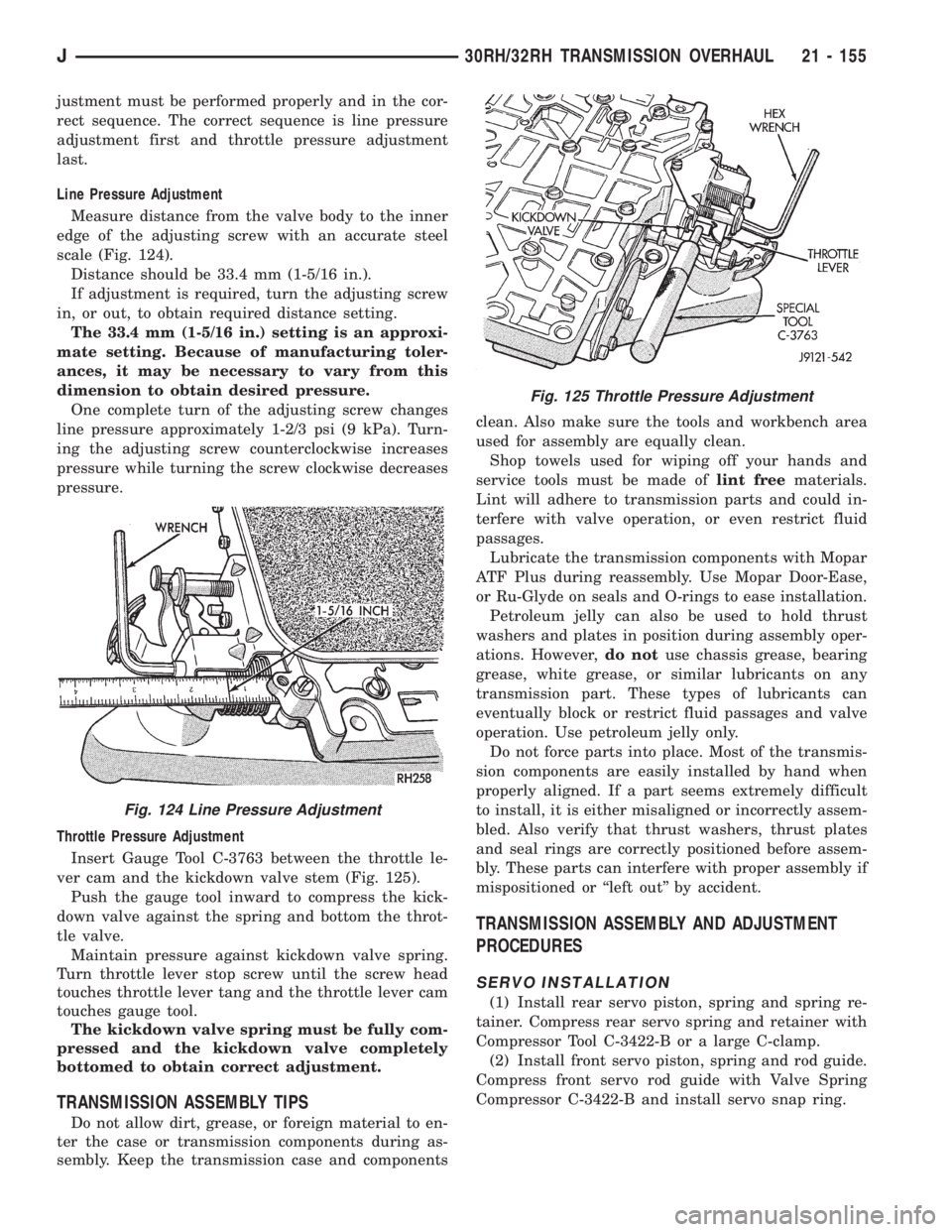

JEEP XJ 1995  Service And Repair Manual justment must be performed properly and in the cor-
rect sequence. The correct sequence is line pressure
adjustment first and throttle pressure adjustment
last.
Line Pressure Adjustment
Measure distan

Page 1718 of 2158

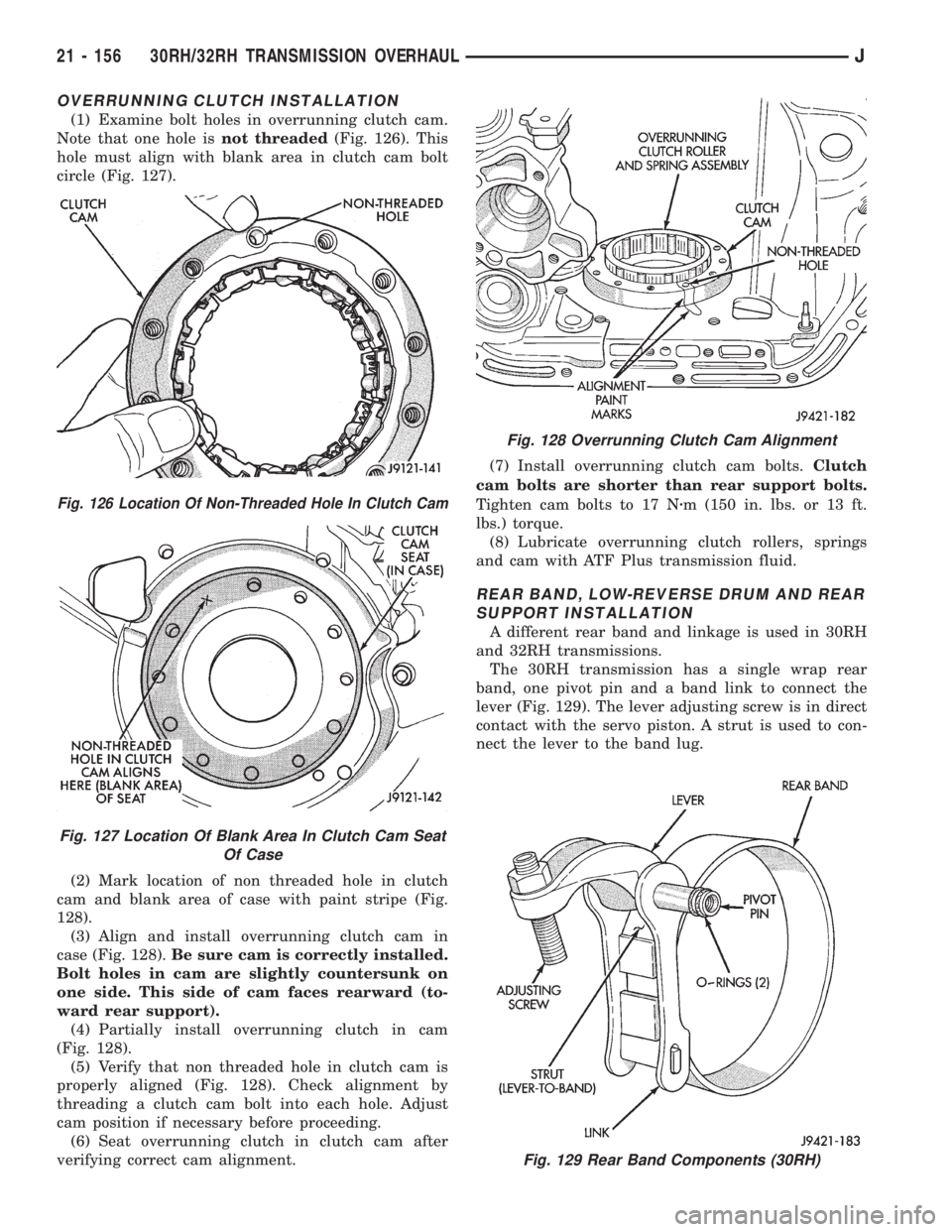

JEEP XJ 1995  Service And Repair Manual OVERRUNNING CLUTCH INSTALLATION
(1) Examine bolt holes in overrunning clutch cam.
Note that one hole isnot threaded(Fig. 126). This
hole must align with blank area in clutch cam bolt
circle (Fig. 127)

Page 1719 of 2158

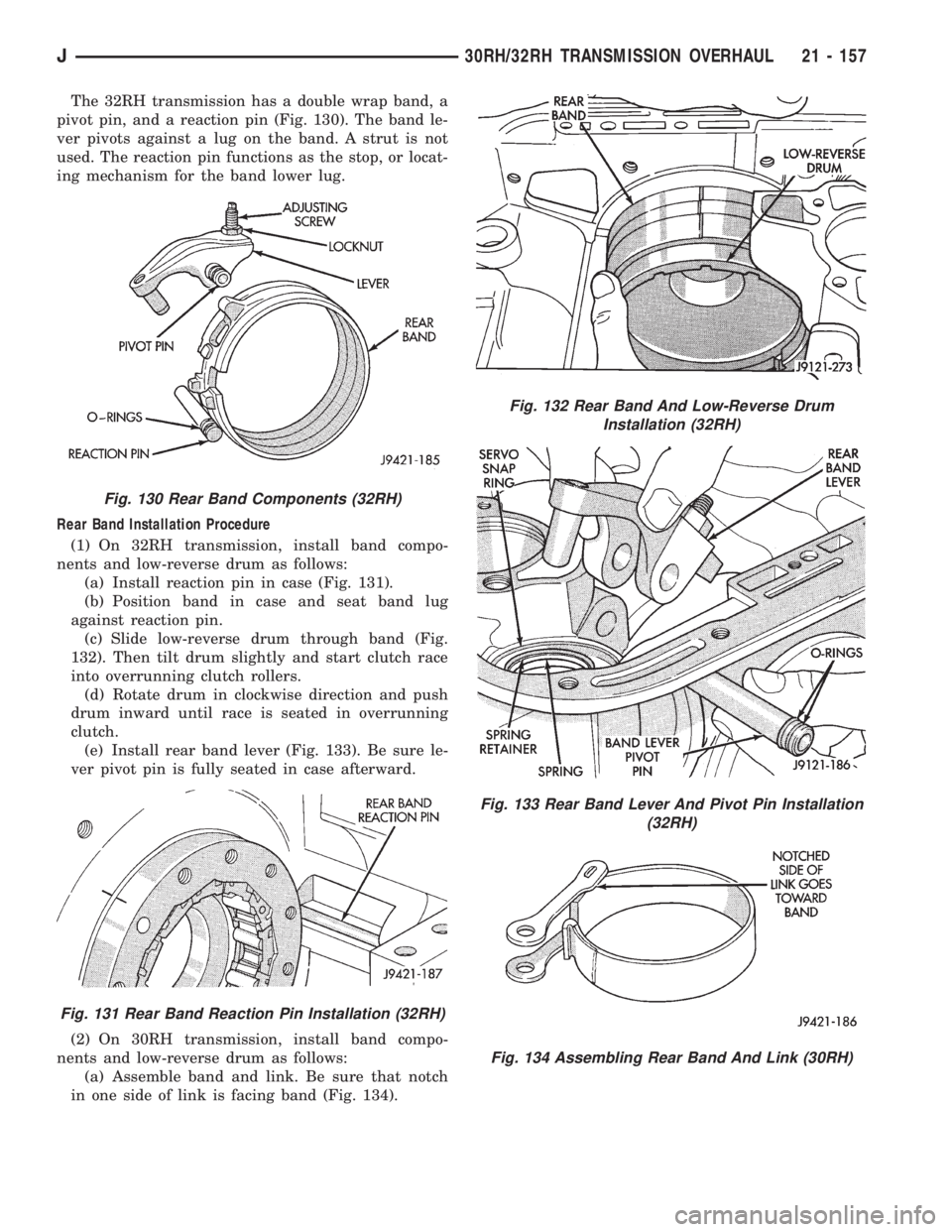

JEEP XJ 1995  Service And Repair Manual The 32RH transmission has a double wrap band, a
pivot pin, and a reaction pin (Fig. 130). The band le-
ver pivots against a lug on the band. A strut is not
used. The reaction pin functions as the stop

Page 1720 of 2158

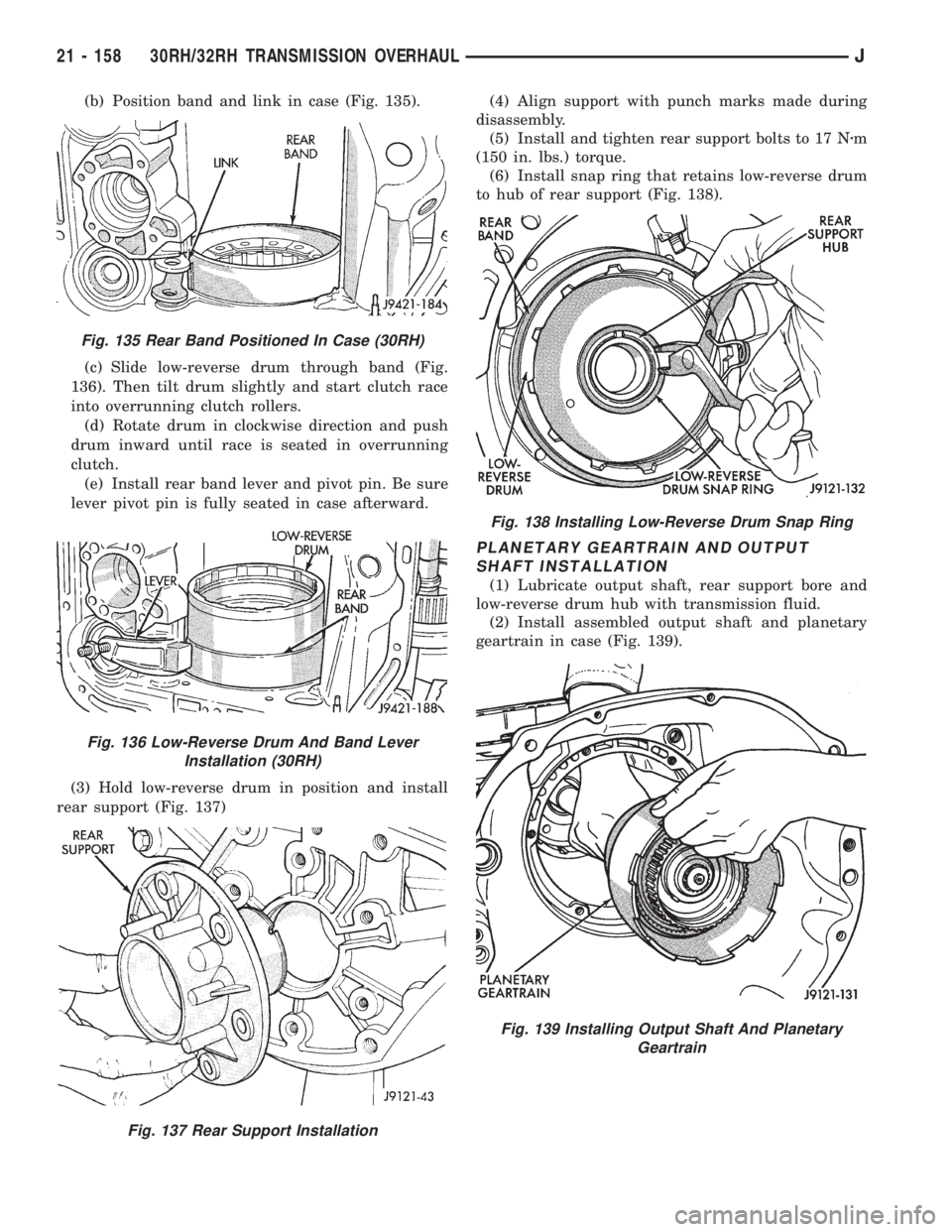

JEEP XJ 1995  Service And Repair Manual (b) Position band and link in case (Fig. 135).
(c) Slide low-reverse drum through band (Fig.
136). Then tilt drum slightly and start clutch race
into overrunning clutch rollers.
(d) Rotate drum in clo
