Page 1741 of 2158

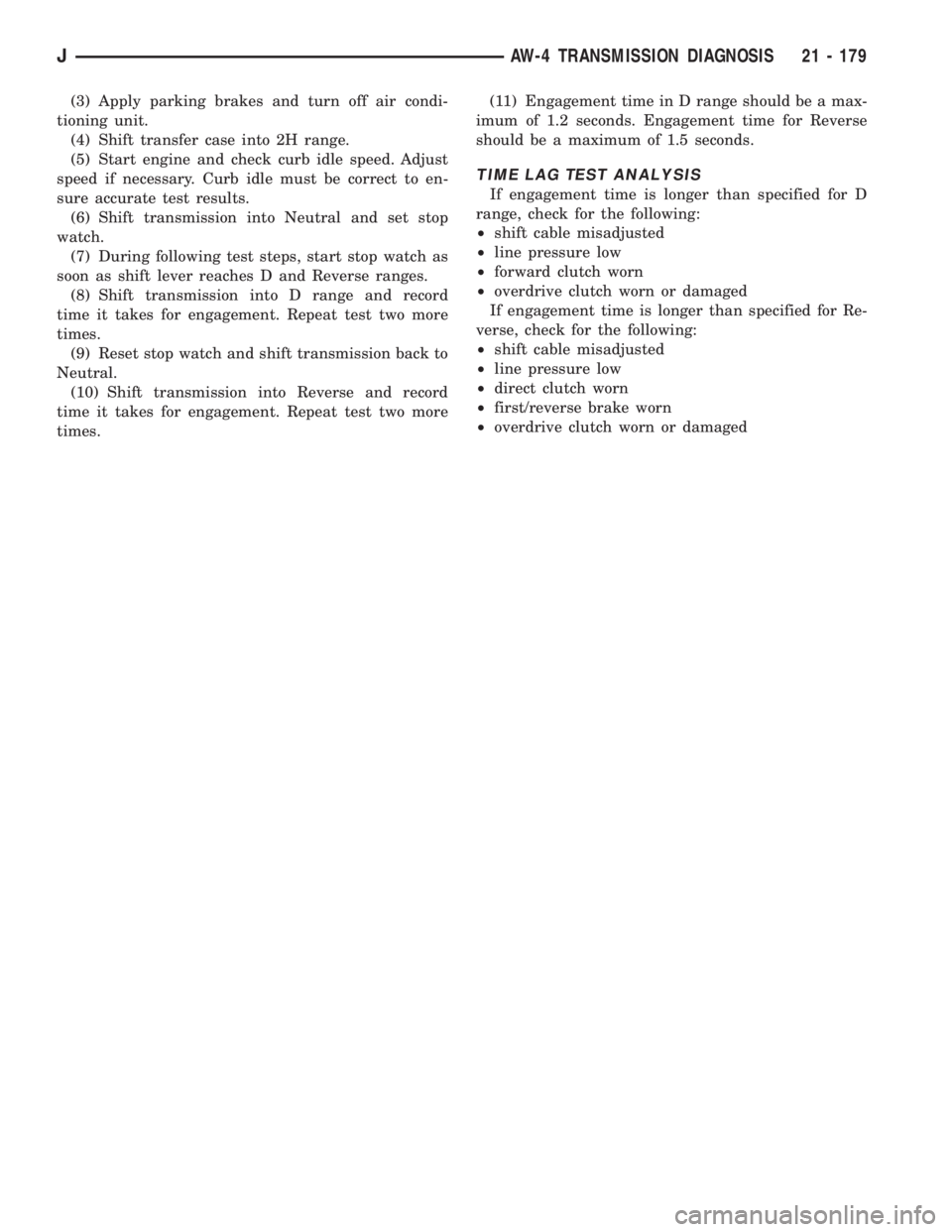

JEEP XJ 1995  Service And Repair Manual (3) Apply parking brakes and turn off air condi-
tioning unit.
(4) Shift transfer case into 2H range.
(5) Start engine and check curb idle speed. Adjust
speed if necessary. Curb idle must be correct t

Page 1742 of 2158

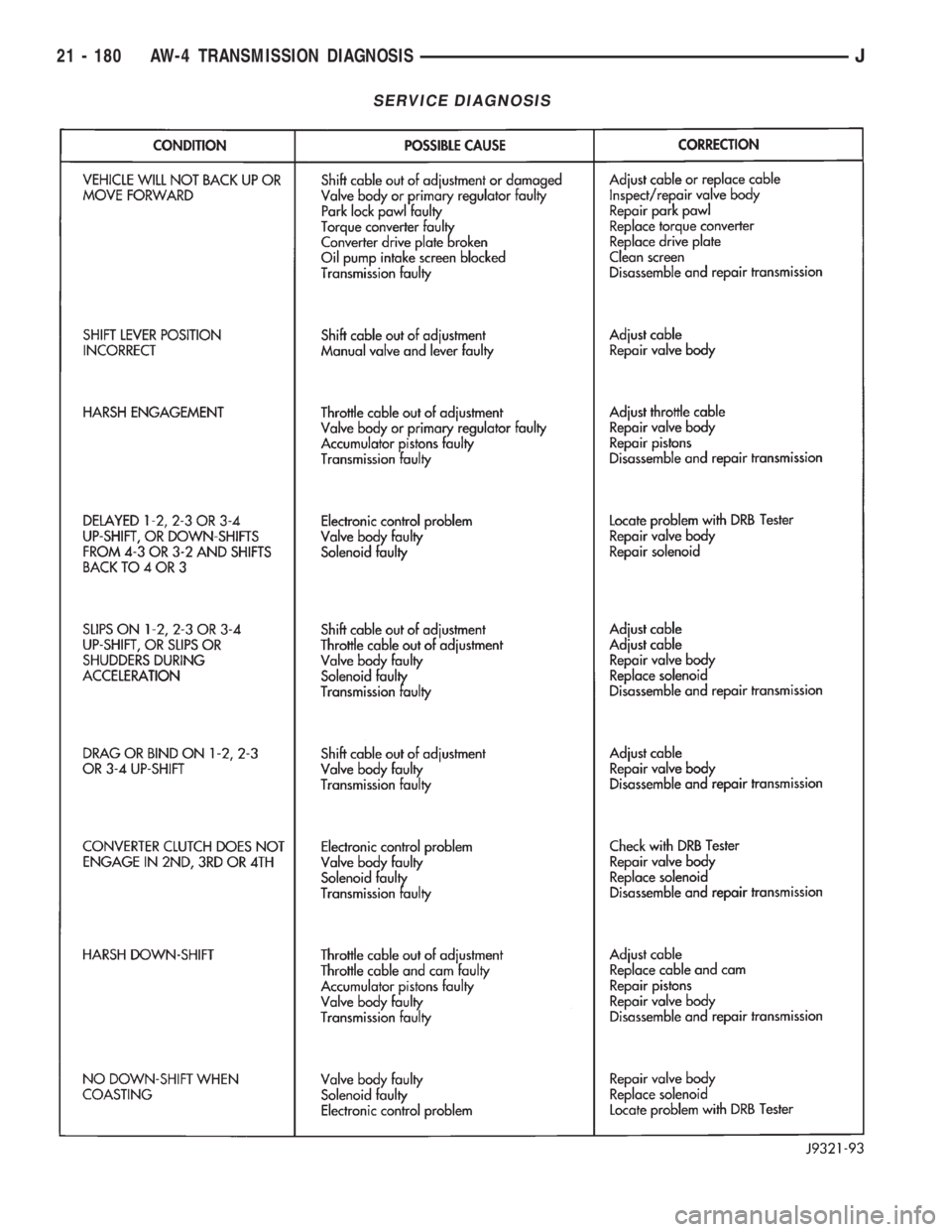

JEEP XJ 1995  Service And Repair Manual SERVICE DIAGNOSIS
21 - 180 AW-4 TRANSMISSION DIAGNOSISJ

Page 1743 of 2158

JEEP XJ 1995  Service And Repair Manual SERVICE DIAGNOSIS
JAW-4 TRANSMISSION DIAGNOSIS 21 - 181

Page 1744 of 2158

JEEP XJ 1995  Service And Repair Manual AW-4 IN-VEHICLE SERVICE
INDEX
page page
Accumulator Pistons and Springs............. 189
Adapter Housing Seal Replacement........... 191
Checking Fluid Level and Condition........... 182
Manual Valve

Page 1745 of 2158

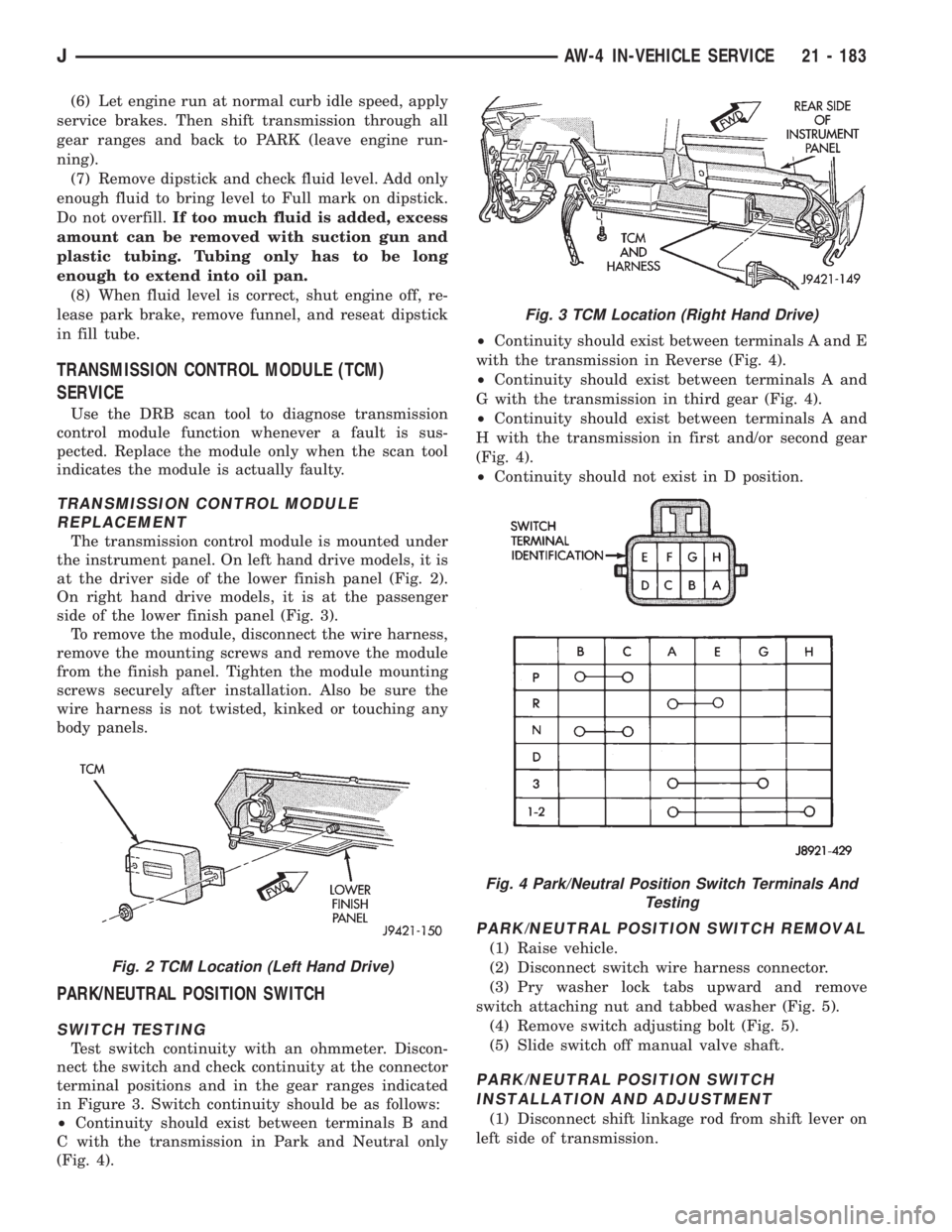

JEEP XJ 1995  Service And Repair Manual (6) Let engine run at normal curb idle speed, apply
service brakes. Then shift transmission through all
gear ranges and back to PARK (leave engine run-
ning).
(7) Remove dipstick and check fluid level

Page 1746 of 2158

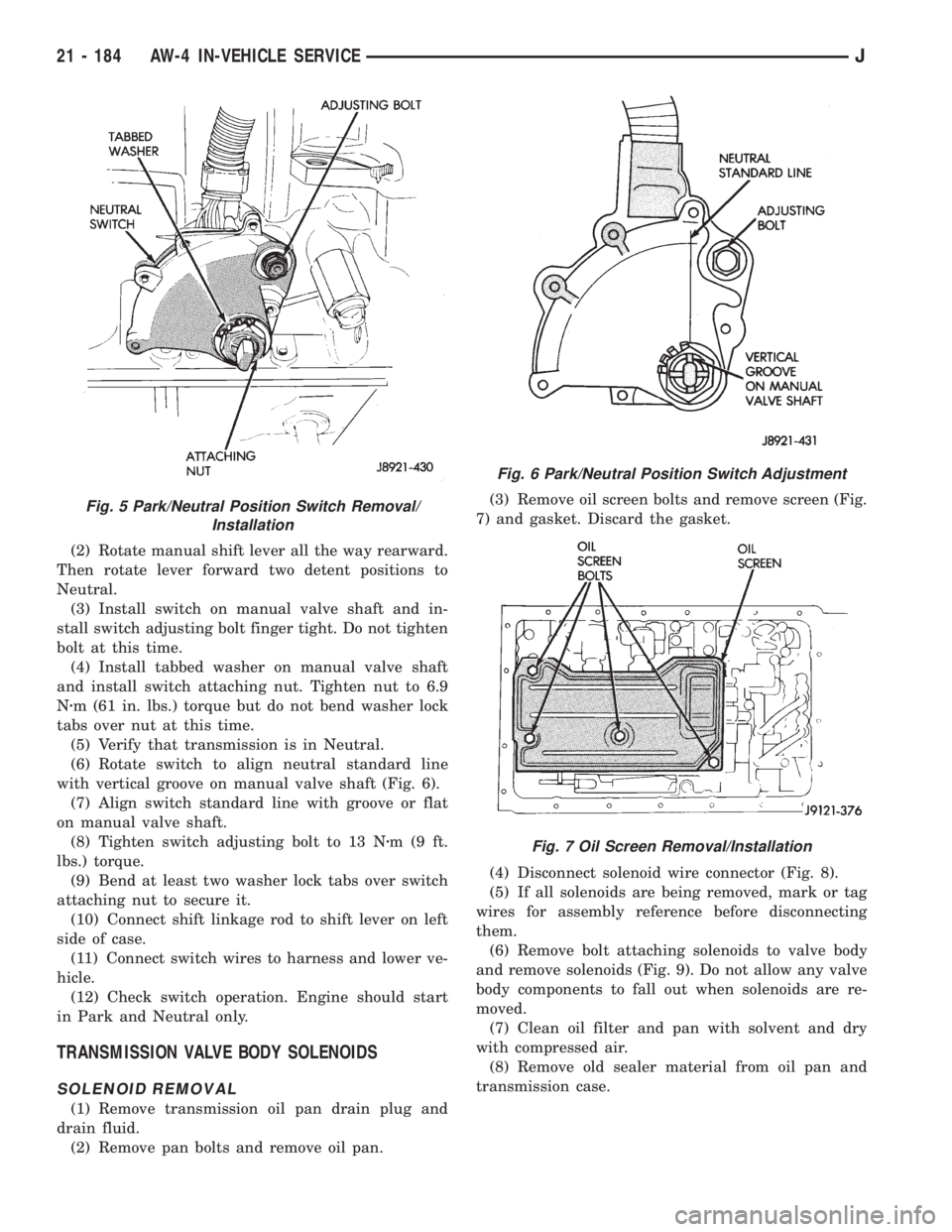

JEEP XJ 1995  Service And Repair Manual (2) Rotate manual shift lever all the way rearward.
Then rotate lever forward two detent positions to
Neutral.
(3) Install switch on manual valve shaft and in-
stall switch adjusting bolt finger tight

Page 1747 of 2158

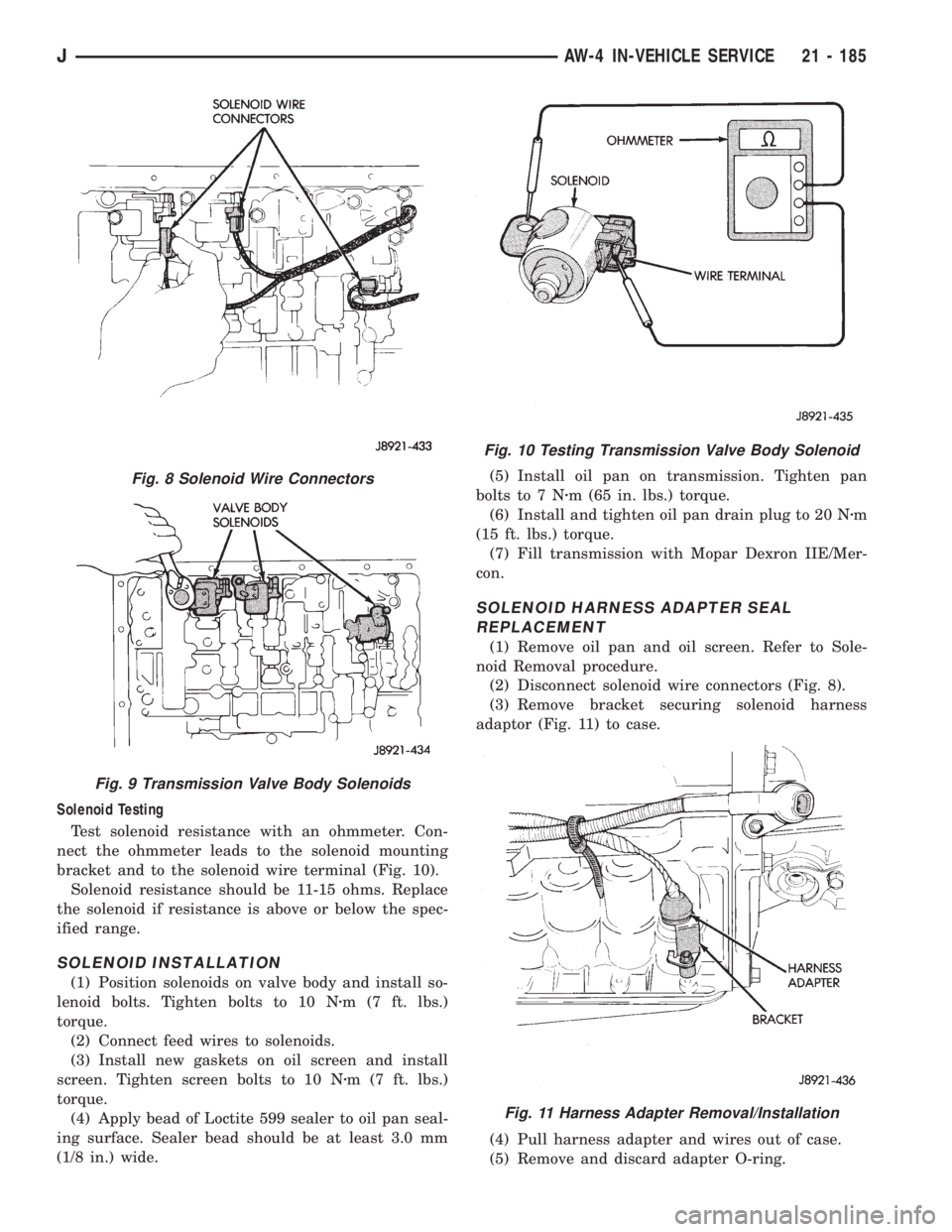

JEEP XJ 1995  Service And Repair Manual Solenoid Testing
Test solenoid resistance with an ohmmeter. Con-
nect the ohmmeter leads to the solenoid mounting
bracket and to the solenoid wire terminal (Fig. 10).
Solenoid resistance should be 11-

Page 1748 of 2158

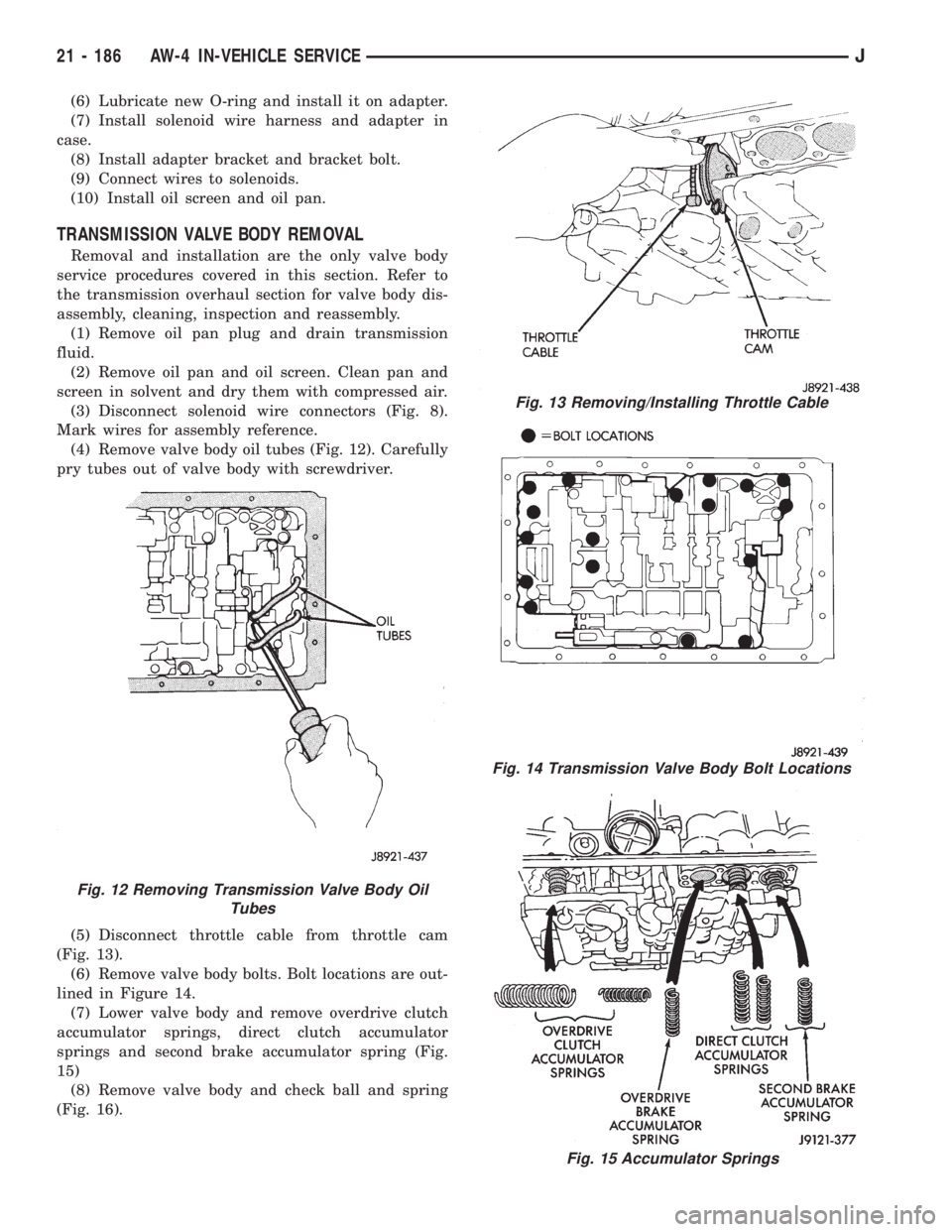

JEEP XJ 1995  Service And Repair Manual (6) Lubricate new O-ring and install it on adapter.
(7) Install solenoid wire harness and adapter in
case.
(8) Install adapter bracket and bracket bolt.
(9) Connect wires to solenoids.
(10) Install oi

Page 1749 of 2158

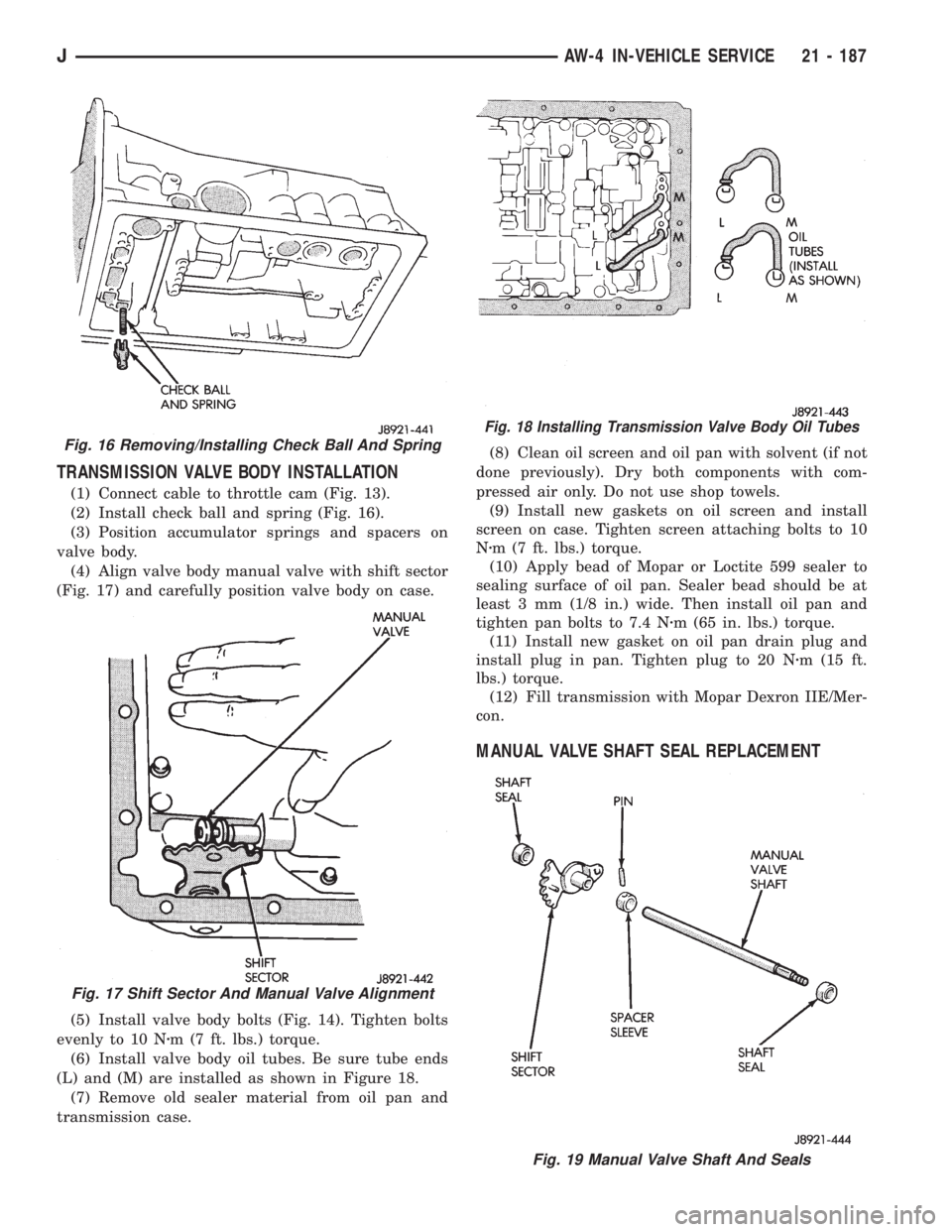

JEEP XJ 1995  Service And Repair Manual TRANSMISSION VALVE BODY INSTALLATION
(1) Connect cable to throttle cam (Fig. 13).
(2) Install check ball and spring (Fig. 16).
(3) Position accumulator springs and spacers on
valve body.
(4) Align val

Page 1750 of 2158

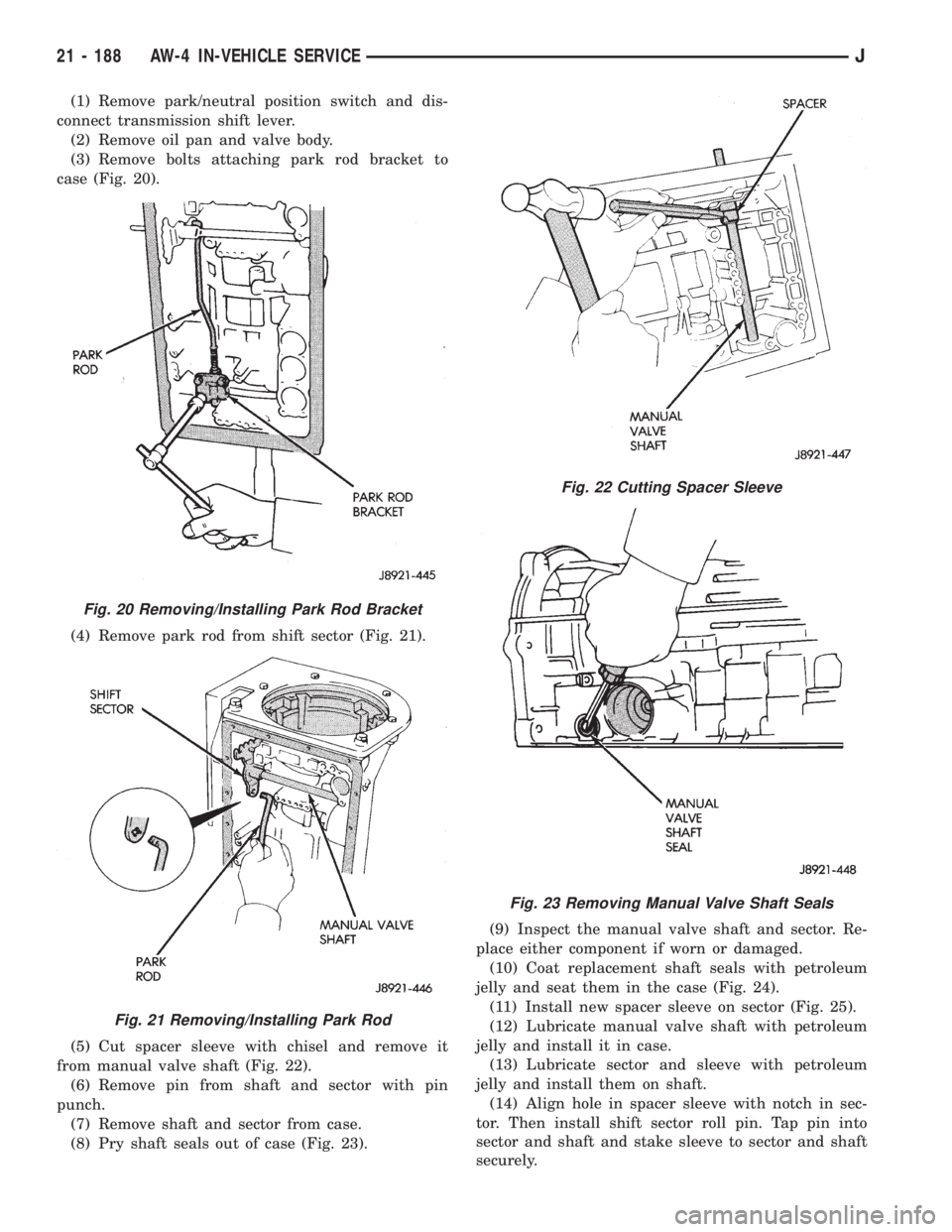

JEEP XJ 1995  Service And Repair Manual (1) Remove park/neutral position switch and dis-
connect transmission shift lever.
(2) Remove oil pan and valve body.
(3) Remove bolts attaching park rod bracket to
case (Fig. 20).
(4) Remove park rod
