Page 1731 of 2158

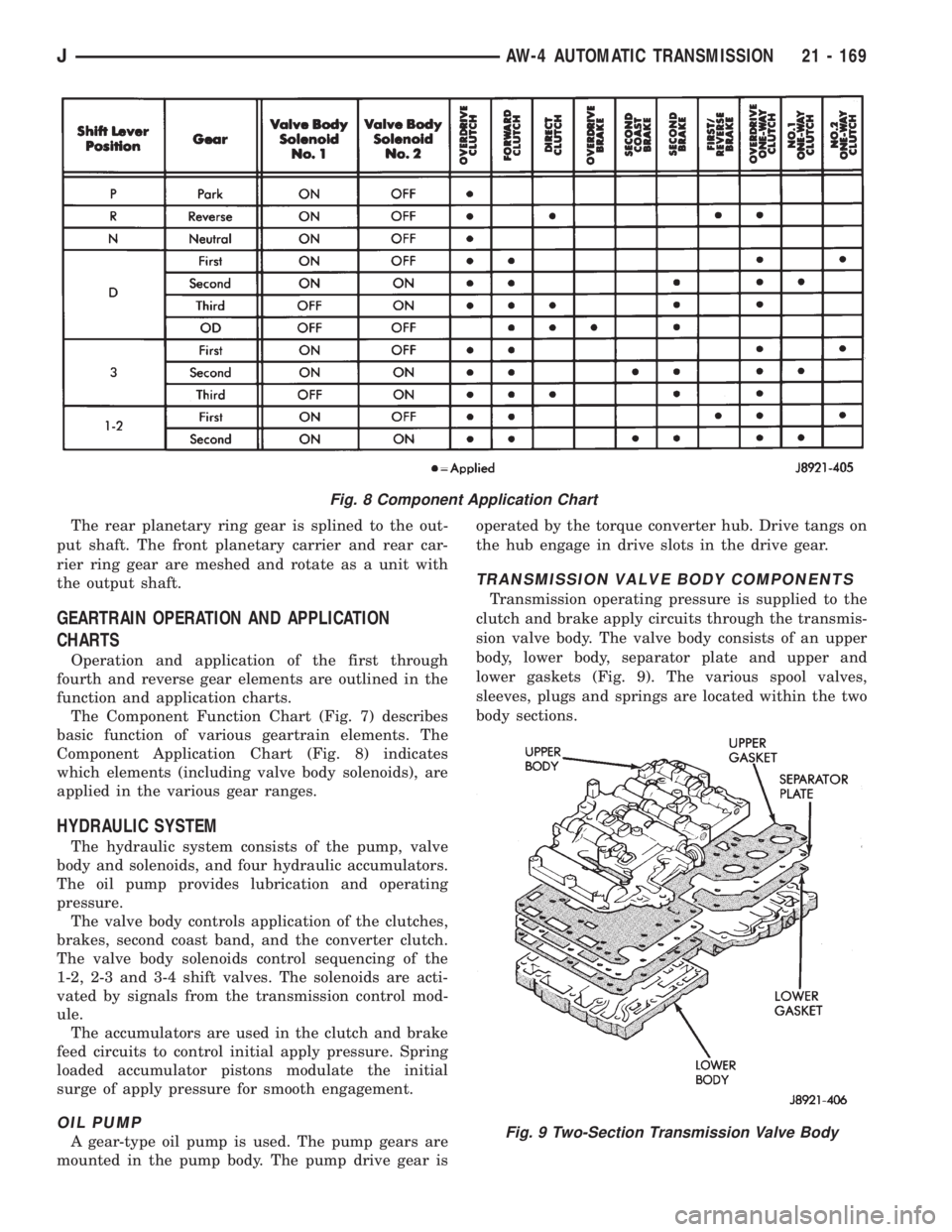

JEEP XJ 1995  Service And Repair Manual The rear planetary ring gear is splined to the out-
put shaft. The front planetary carrier and rear car-
rier ring gear are meshed and rotate as a unit with
the output shaft.
GEARTRAIN OPERATION AND A

Page 1732 of 2158

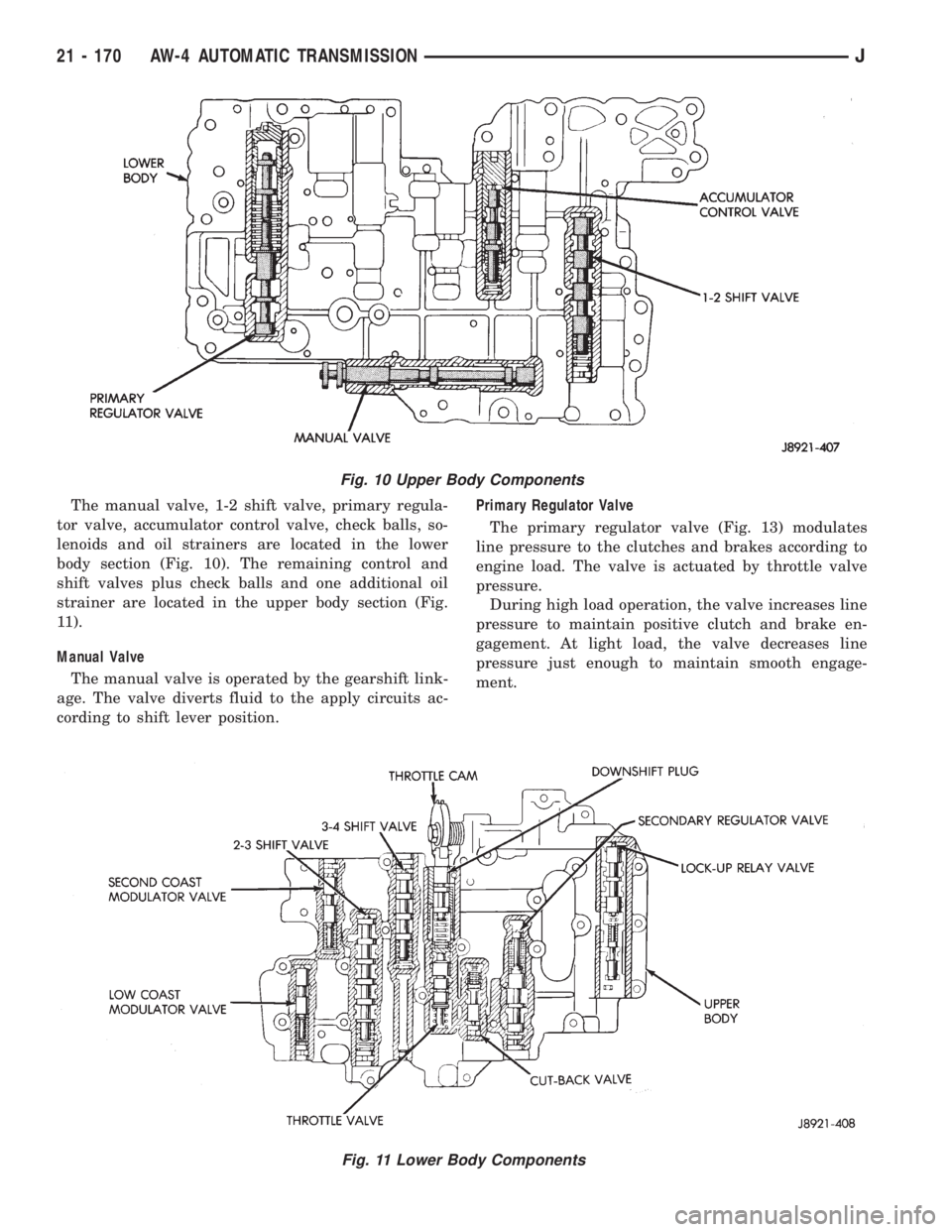

JEEP XJ 1995  Service And Repair Manual The manual valve, 1-2 shift valve, primary regula-
tor valve, accumulator control valve, check balls, so-
lenoids and oil strainers are located in the lower
body section (Fig. 10). The remaining contr

Page 1733 of 2158

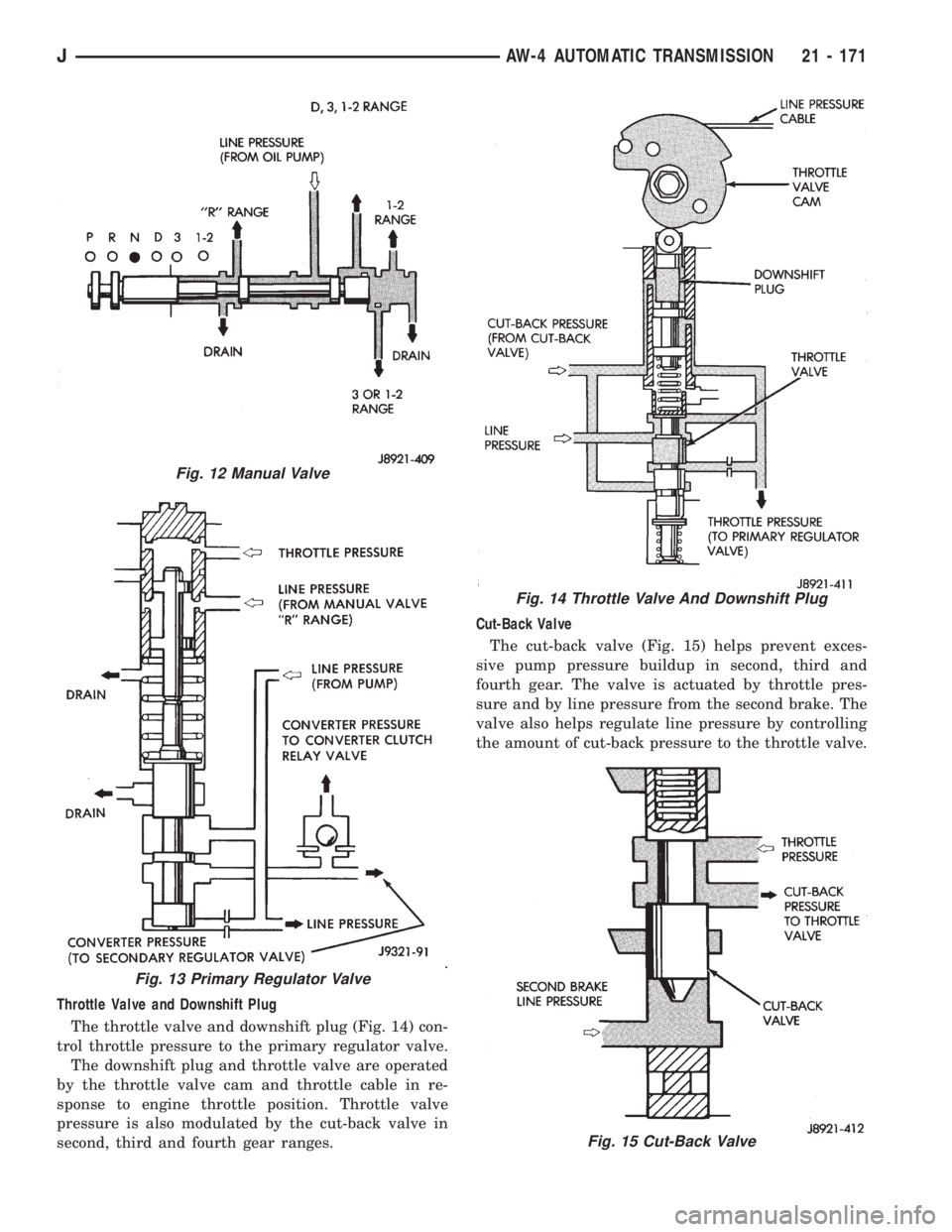

JEEP XJ 1995  Service And Repair Manual Throttle Valve and Downshift Plug
The throttle valve and downshift plug (Fig. 14) con-
trol throttle pressure to the primary regulator valve.
The downshift plug and throttle valve are operated
by the

Page 1734 of 2158

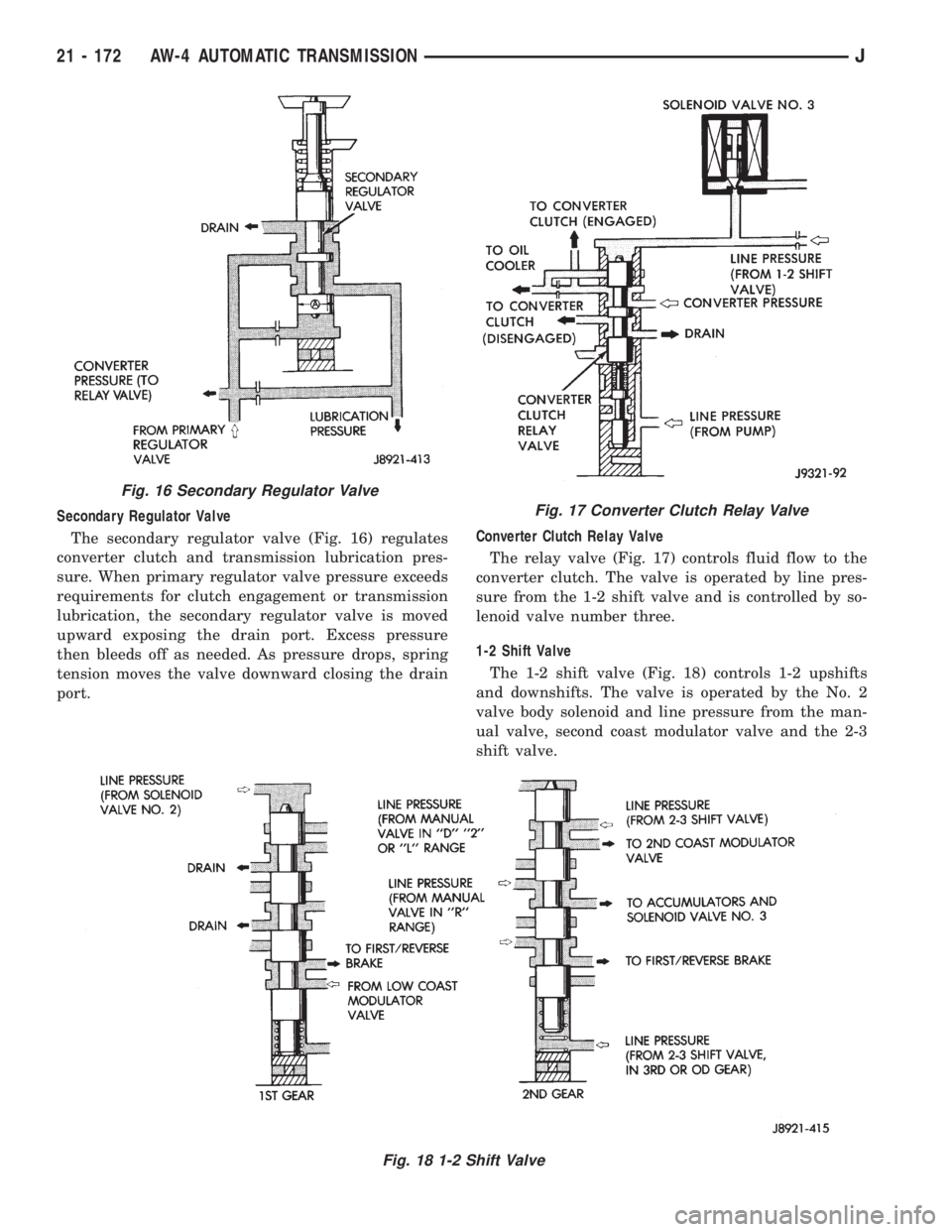

JEEP XJ 1995  Service And Repair Manual Secondary Regulator Valve
The secondary regulator valve (Fig. 16) regulates
converter clutch and transmission lubrication pres-
sure. When primary regulator valve pressure exceeds
requirements for clu

Page 1735 of 2158

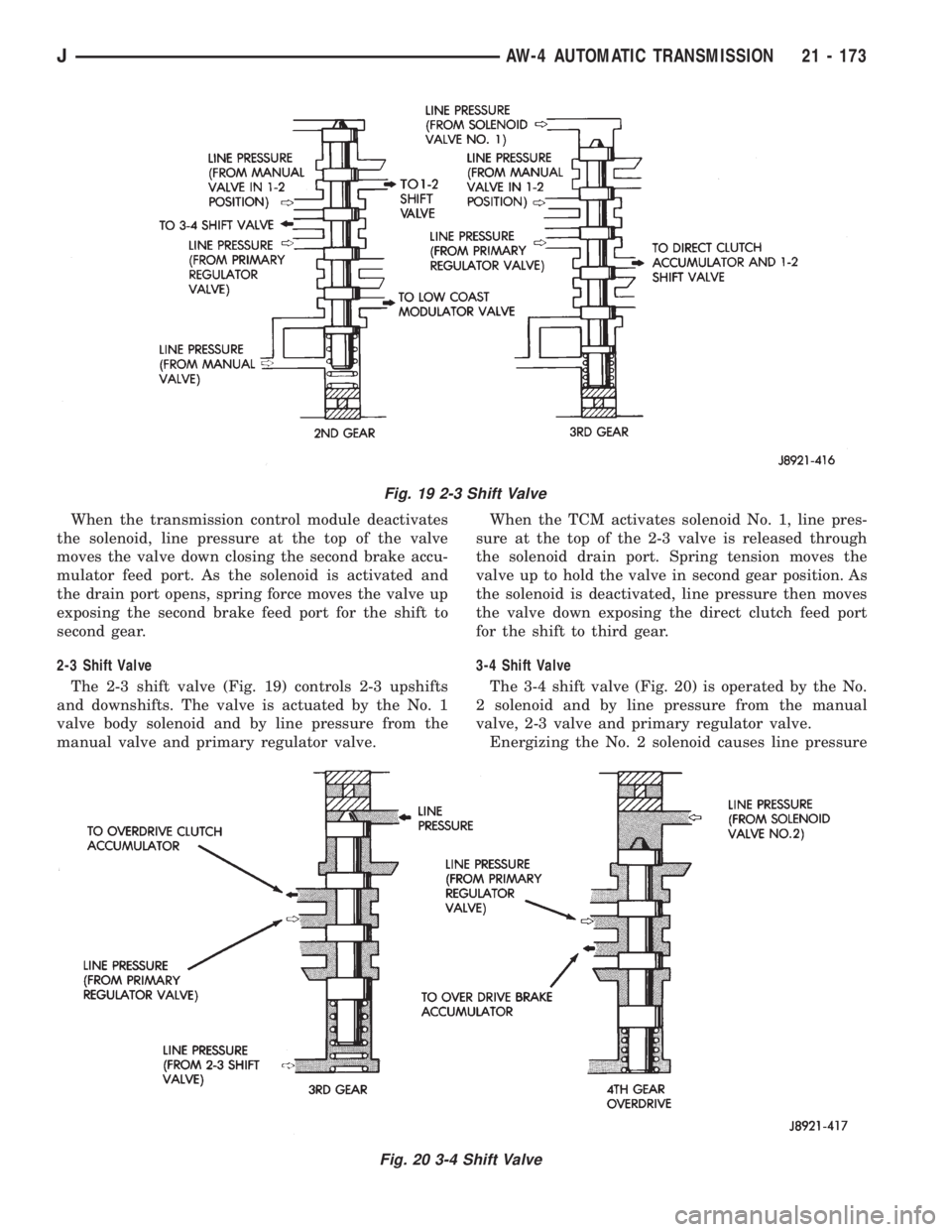

JEEP XJ 1995  Service And Repair Manual When the transmission control module deactivates
the solenoid, line pressure at the top of the valve
moves the valve down closing the second brake accu-
mulator feed port. As the solenoid is activated

Page 1736 of 2158

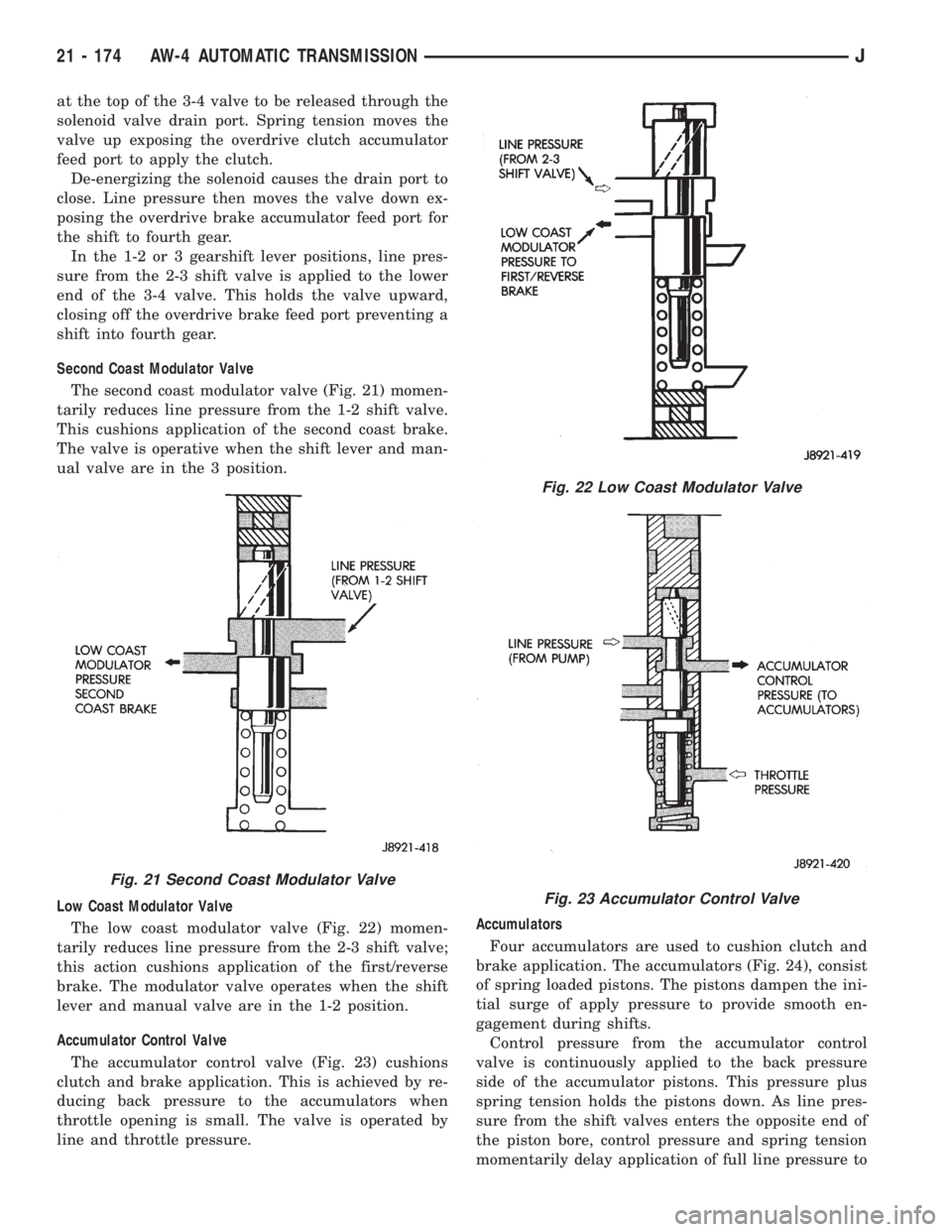

JEEP XJ 1995  Service And Repair Manual at the top of the 3-4 valve to be released through the
solenoid valve drain port. Spring tension moves the
valve up exposing the overdrive clutch accumulator
feed port to apply the clutch.
De-energizi

Page 1737 of 2158

JEEP XJ 1995  Service And Repair Manual cushion engagement. The accumulators are all lo-
cated in the transmission case (Fig. 24).
Transmission Valve Body Solenoids
Three solenoids are used (Fig. 25). The No. 1 and 2
solenoids control shift

Page 1738 of 2158

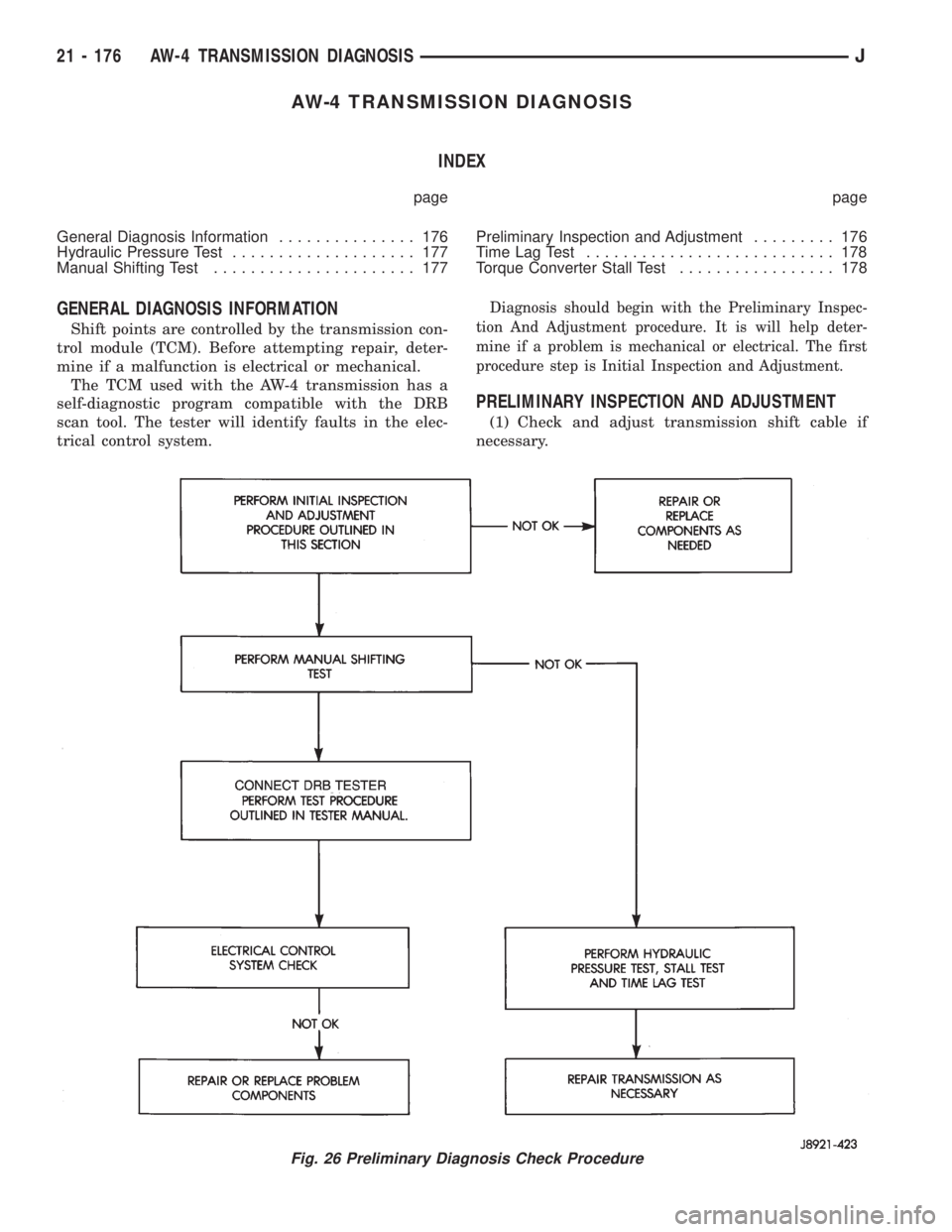

JEEP XJ 1995  Service And Repair Manual AW-4 TRANSMISSION DIAGNOSIS
INDEX
page page
General Diagnosis Information............... 176
Hydraulic Pressure Test.................... 177
Manual Shifting Test...................... 177Preliminary I

Page 1739 of 2158

JEEP XJ 1995  Service And Repair Manual (2) Verify transmission throttle cable operation.
Repair or replace cable if necessary.
(3) Check engine throttle operation. Operate accel-
erator pedal and observe injector throttle plate move-
ment.

Page 1740 of 2158

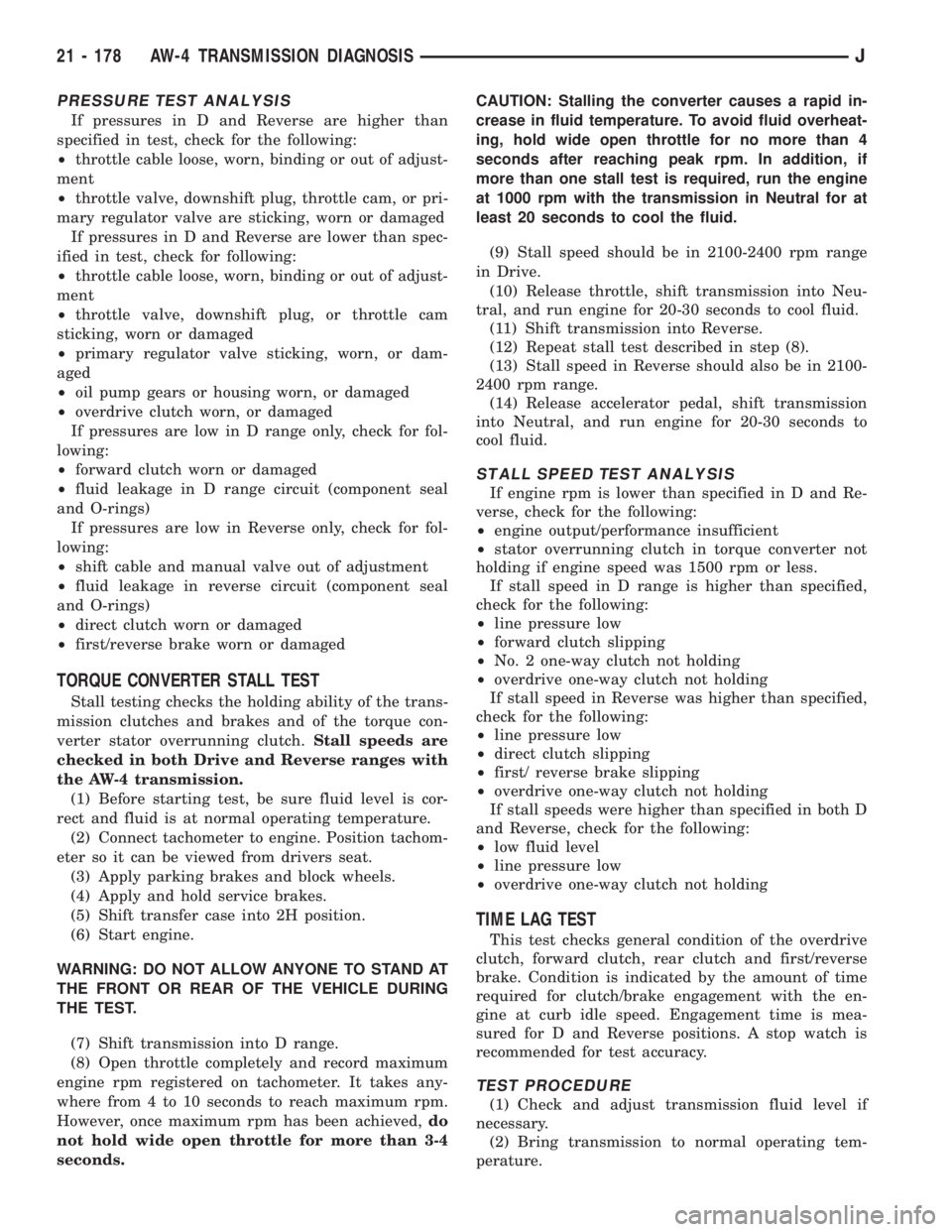

JEEP XJ 1995  Service And Repair Manual PRESSURE TEST ANALYSIS
If pressures in D and Reverse are higher than
specified in test, check for the following:
²throttle cable loose, worn, binding or out of adjust-
ment
²throttle valve, downshif
