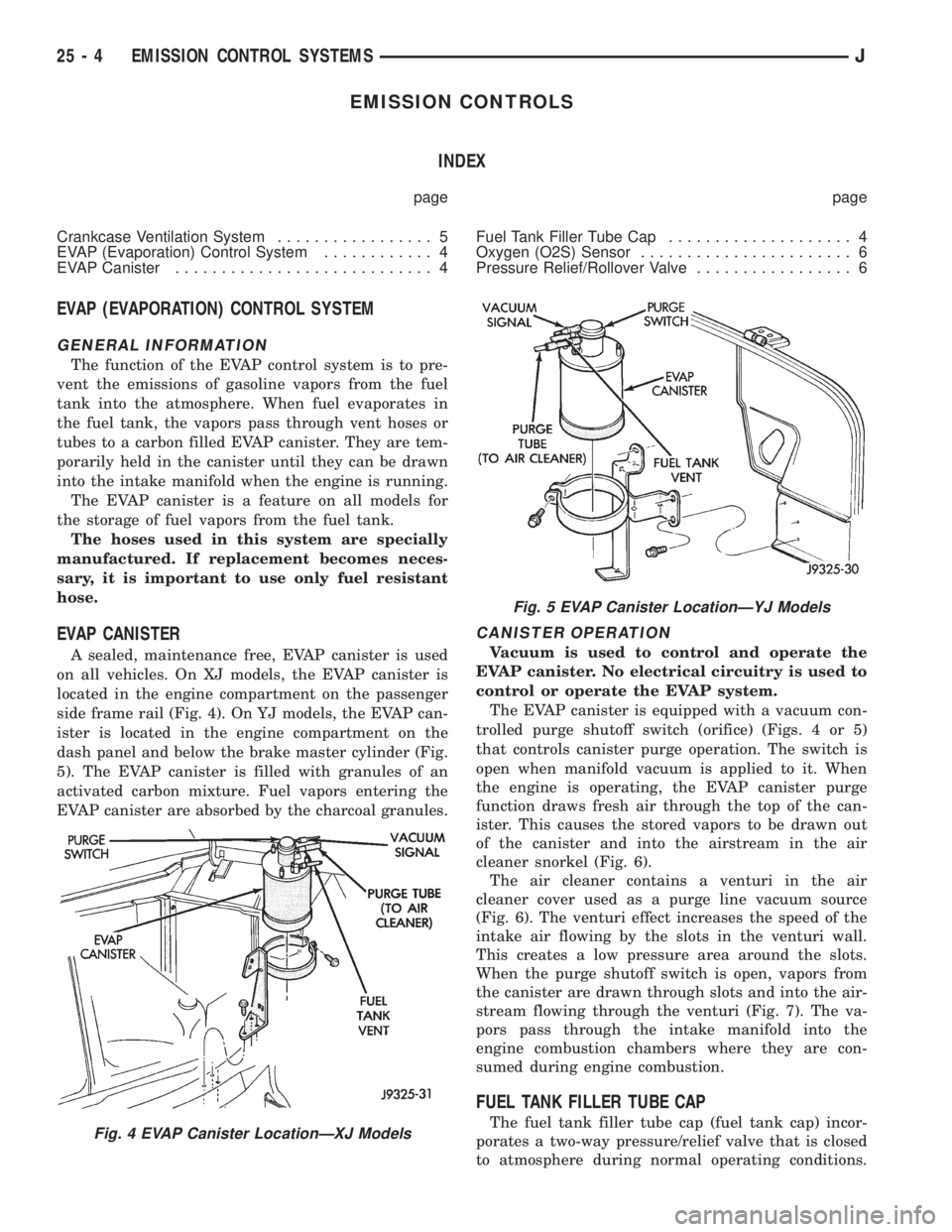

EMISSION CONTROLS
INDEX
page page
Crankcase Ventilation System................. 5
EVAP (Evaporation) Control System............ 4
EVAP Canister............................ 4Fuel Tank Filler Tube Cap.................... 4
Oxygen (O2S) Sensor....................... 6
Pressure Relief/Rollover Valve................. 6
EVAP (EVAPORATION) CONTROL SYSTEM
GENERAL INFORMATION
The function of the EVAP control system is to pre-
vent the emissions of gasoline vapors from the fuel
tank into the atmosphere. When fuel evaporates in
the fuel tank, the vapors pass through vent hoses or
tubes to a carbon filled EVAP canister. They are tem-
porarily held in the canister until they can be drawn
into the intake manifold when the engine is running.
The EVAP canister is a feature on all models for
the storage of fuel vapors from the fuel tank.
The hoses used in this system are specially
manufactured. If replacement becomes neces-
sary, it is important to use only fuel resistant
hose.
EVAP CANISTER
A sealed, maintenance free, EVAP canister is used
on all vehicles. On XJ models, the EVAP canister is
located in the engine compartment on the passenger
side frame rail (Fig. 4). On YJ models, the EVAP can-
ister is located in the engine compartment on the
dash panel and below the brake master cylinder (Fig.
5). The EVAP canister is filled with granules of an
activated carbon mixture. Fuel vapors entering the
EVAP canister are absorbed by the charcoal granules.
CANISTER OPERATION
Vacuum is used to control and operate the
EVAP canister. No electrical circuitry is used to
control or operate the EVAP system.
The EVAP canister is equipped with a vacuum con-
trolled purge shutoff switch (orifice) (Figs. 4 or 5)
that controls canister purge operation. The switch is
open when manifold vacuum is applied to it. When
the engine is operating, the EVAP canister purge
function draws fresh air through the top of the can-
ister. This causes the stored vapors to be drawn out
of the canister and into the airstream in the air
cleaner snorkel (Fig. 6).
The air cleaner contains a venturi in the air
cleaner cover used as a purge line vacuum source
(Fig. 6). The venturi effect increases the speed of the
intake air flowing by the slots in the venturi wall.
This creates a low pressure area around the slots.
When the purge shutoff switch is open, vapors from
the canister are drawn through slots and into the air-
stream flowing through the venturi (Fig. 7). The va-
pors pass through the intake manifold into the
engine combustion chambers where they are con-
sumed during engine combustion.
FUEL TANK FILLER TUBE CAP
The fuel tank filler tube cap (fuel tank cap) incor-
porates a two-way pressure/relief valve that is closed
to atmosphere during normal operating conditions.Fig. 4 EVAP Canister LocationÐXJ Models
Fig. 5 EVAP Canister LocationÐYJ Models
25 - 4 EMISSION CONTROL SYSTEMSJ

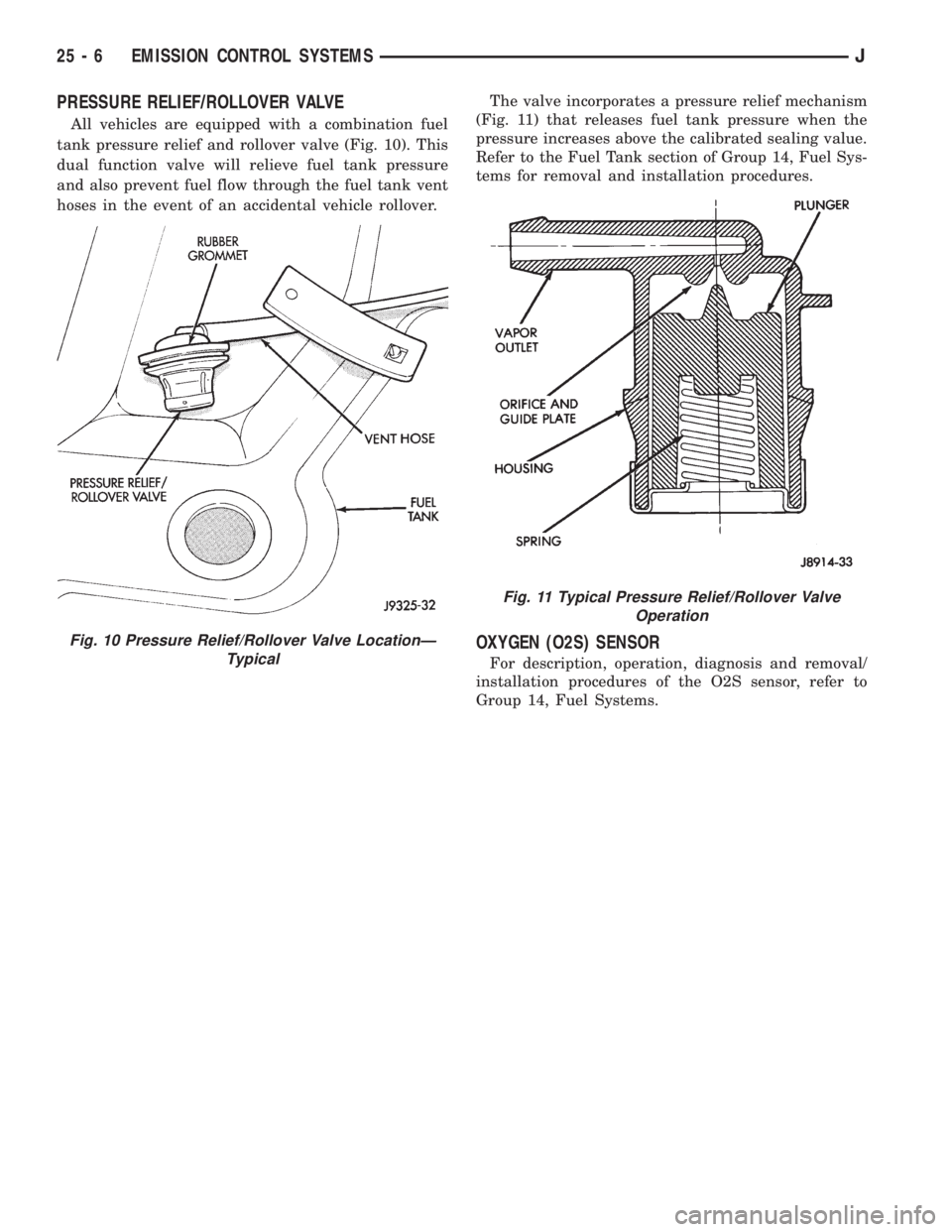

PRESSURE RELIEF/ROLLOVER VALVE
All vehicles are equipped with a combination fuel
tank pressure relief and rollover valve (Fig. 10). This
dual function valve will relieve fuel tank pressure
and also prevent fuel flow through the fuel tank vent
hoses in the event of an accidental vehicle rollover.The valve incorporates a pressure relief mechanism
(Fig. 11) that releases fuel tank pressure when the
pressure increases above the calibrated sealing value.
Refer to the Fuel Tank section of Group 14, Fuel Sys-
tems for removal and installation procedures.
OXYGEN (O2S) SENSOR
For description, operation, diagnosis and removal/
installation procedures of the O2S sensor, refer to
Group 14, Fuel Systems.
Fig. 10 Pressure Relief/Rollover Valve LocationÐ
Typical
Fig. 11 Typical Pressure Relief/Rollover Valve
Operation
25 - 6 EMISSION CONTROL SYSTEMSJ

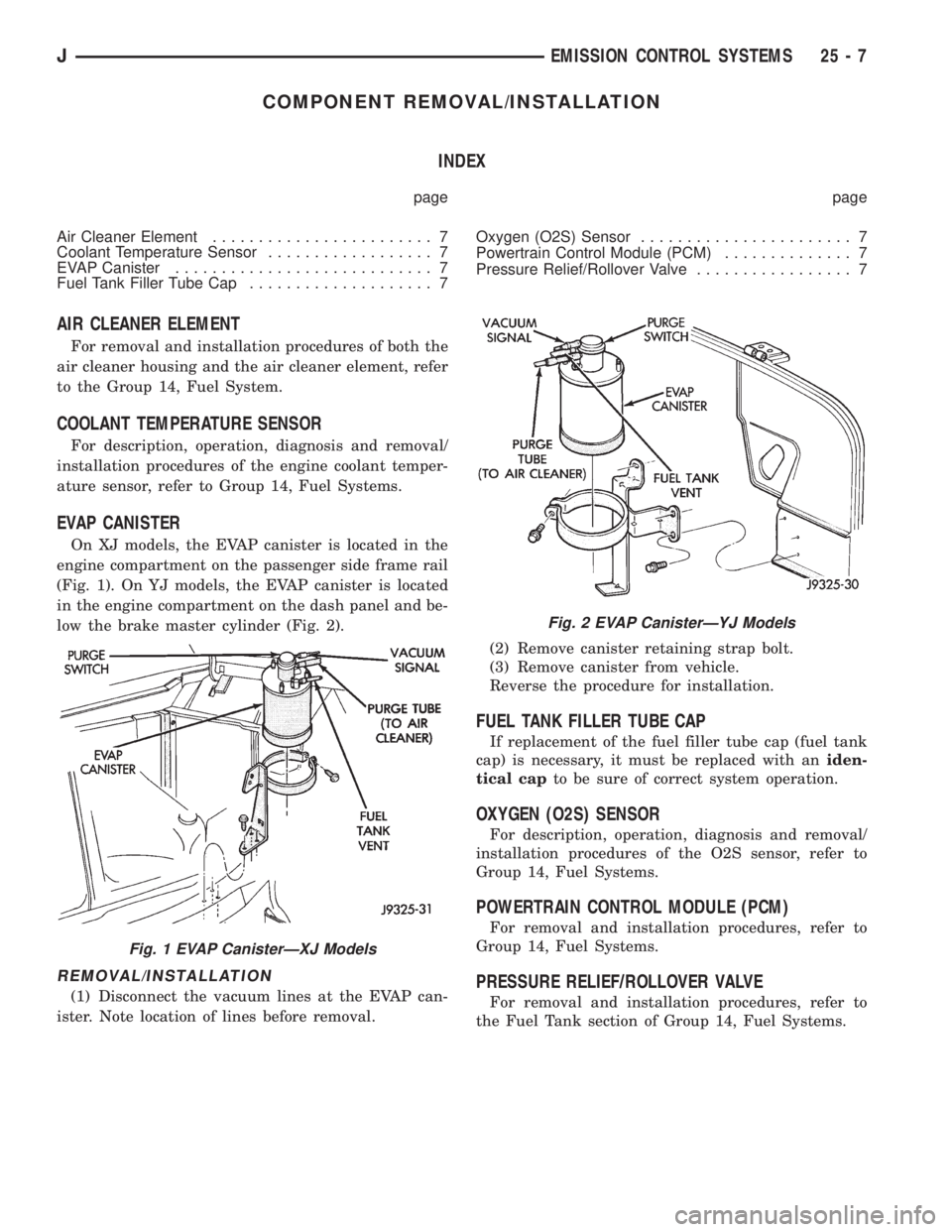

COMPONENT REMOVAL/INSTALLATION
INDEX
page page
Air Cleaner Element........................ 7
Coolant Temperature Sensor.................. 7
EVAP Canister............................ 7
Fuel Tank Filler Tube Cap.................... 7Oxygen (O2S) Sensor....................... 7
Powertrain Control Module (PCM).............. 7
Pressure Relief/Rollover Valve................. 7
AIR CLEANER ELEMENT
For removal and installation procedures of both the
air cleaner housing and the air cleaner element, refer
to the Group 14, Fuel System.
COOLANT TEMPERATURE SENSOR
For description, operation, diagnosis and removal/
installation procedures of the engine coolant temper-
ature sensor, refer to Group 14, Fuel Systems.
EVAP CANISTER
On XJ models, the EVAP canister is located in the
engine compartment on the passenger side frame rail
(Fig. 1). On YJ models, the EVAP canister is located
in the engine compartment on the dash panel and be-
low the brake master cylinder (Fig. 2).
REMOVAL/INSTALLATION
(1) Disconnect the vacuum lines at the EVAP can-
ister. Note location of lines before removal.(2) Remove canister retaining strap bolt.
(3) Remove canister from vehicle.
Reverse the procedure for installation.
FUEL TANK FILLER TUBE CAP
If replacement of the fuel filler tube cap (fuel tank
cap) is necessary, it must be replaced with aniden-
tical capto be sure of correct system operation.
OXYGEN (O2S) SENSOR
For description, operation, diagnosis and removal/
installation procedures of the O2S sensor, refer to
Group 14, Fuel Systems.
POWERTRAIN CONTROL MODULE (PCM)
For removal and installation procedures, refer to
Group 14, Fuel Systems.
PRESSURE RELIEF/ROLLOVER VALVE
For removal and installation procedures, refer to
the Fuel Tank section of Group 14, Fuel Systems.
Fig. 1 EVAP CanisterÐXJ Models
Fig. 2 EVAP CanisterÐYJ Models
JEMISSION CONTROL SYSTEMS 25 - 7

- XJ, ANTENNA REMOVE/INSTALL........8F-8
- XJ, GENERAL INFORMATION...........8K-1
- XJ, MULTI-FUNCTION SWITCH..........8J-4
- XJ, MULTI-FUNCTION SWITCH
REMOVE/INSTALL.....................8J-5
- XJ, RADIO REMOVE/INSTALL...........8F-6
- XJ, SOUND BAR REMOVE/INSTALL......8F-8
- XJ, SPEAKERS REMOVE/INSTALL........8F-6
- XJ, TURN SIGNAL/HAZARD WARNING
SYSTEM.............................8J-3
- YJ, ANTENNA REMOVE/INSTALL.......8F-10
- YJ, BUZZER MODULE SCHEMATIC......8U-4
- YJ, GENERAL INFORMATION..........8K-10
- YJ, HAZARD WARNING SYSTEM........8J-4
- YJ, RADIO REMOVE/INSTALL...........8F-9
- YJ, SERVICE PROCEDURES...........8K-17
- YJ, SOUND BAR REMOVE/INSTALL.....8F-10
- YJ, SPEAKERS REMOVE/INSTALL........8F-9
- YJ, TURN SIGNAL SYSTEM............8J-3
- YJ, TURN SIGNAL/HAZARD WARNING
SWITCH REMOVE/INSTALL..............8J-5
30RH/32RH AUTOMATIC TRANSMISSION . . 21-67
30RH/32RH GENERAL SPECIFICATIONS . . 21-335
30RH/32RH IN-VEHICLE SERVICE........21-99
30RH/32RH PRESSURE TEST
SPECIFICATIONS....................21-336
30RH/32RH TORQUE SPECIFICATIONS . . . 21-336
30RH/32RH TRANSMISSION DIAGNOSIS . . 21-70
30RH/32RH TRANSMISSION OVERHAUL . 21-119
30RH/32RH TRANSMISSION REMOVAL
AND INSTALLATION..................21-115
4-CYLINDER ENGINE, ENGINE FIRING
ORDERÐ2.5L.......................8D-32
60-WAY CONNECTOR, POWERTRAIN
CONTROL MODULE (PCM).............14-40
6-CYLINDER ENGINE, AUXILIARY
ELECTRIC COOLING FANÐXJ MODELS
WITH 4.0L...........................7-35
6-CYLINDER ENGINE, ENGINE FIRING
ORDERÐ4.0L.......................8D-32
ABS BRAKE DIAGNOSIS.................5-3
ABS COMPONENT SERVICEABILITY.......5-37
ABS DIAGNOSTIC CONNECTOR.......5-35,5-3
ABS OPERATION AND SERVICE..........5-33
ABS POWER RELAY; ANTI-LOCK BRAKES
(XJ).............................8W-32-1
ABS POWER RELAY; ANTI-LOCK BRAKES
(XJ-RHD).........................8W-32-1
ABS POWER RELAY; ANTI-LOCK BRAKES
(YJ).............................8W-32-1
ABS PUMP MOTOR RELAY; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
ABS PUMP MOTOR RELAY; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
ABS PUMP MOTOR RELAY; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
ABS SYSTEM POWER-UP AND
INITIALIZATION.......................5-35
ABS WARNING LAMP; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
ABS WARNING LAMP; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
ABS WARNING LAMP; ANTI-LOCK
BRAKES (YJ)
......................8W-32-2
ABS WARNING LAMP; INSTRUMENT
CLUSTER (XJ)
.....................8W-40-2
ABS WARNING LAMP; INSTRUMENT
CLUSTER (XJ-RHD)
................8W-40-2
ABS WARNING LAMP; INSTRUMENT
CLUSTER (YJ)
.....................8W-40-2
ABS WARNING LIGHT DISPLAY
...........5-3
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; FUEL SYSTEM
.............14-63
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; FUEL/IGNITION (YJ)
......8W-30-4
ABSOLUTE PRESSURE (MAP) SENSOR,
MANIFOLD; IGNITION SYSTEMS
....8D-23,8D-5
ABSOLUTE PRESSURE (MAP) SENSOR
TEST, MANIFOLD; FUEL SYSTEM
........14-47
ABSOLUTE PRESSURE (MAP) SENSOR
TEST, MANIFOLD; IGNITION SYSTEMS
....8D-11
ABSOLUTE PRESSURE (MAP)
SENSORÐPCM INPUT, MANIFOLD
.......14-23
ABSOLUTE PRESSURE SENSOR,
MANIFOLD; FUEL/IGNITION (XJ)
......8W-30-4
ABSOLUTE PRESSURE SENSOR,
MANIFOLD; FUEL/IGNITION (XJ-RHD)
. . 8W-30-4ABSORBER, SHOCK; FRONT
SUSPENSION AND AXLE............2-13,2-16
ABSORBER, SHOCK; REAR SUSPENSION
AND AXLES........................3-4,3-7
A/C BLOWER MOTOR.................24-35
A/C COMPONENTS....................24-4
A/C COMPRESSOR; AIR CONDITIONING/
HEATER (YJ)......................8W-42-2
A/C COMPRESSOR CLUTCH............24-15
A/C COMPRESSOR CLUTCH RELAY . 24-15,24-16
A/C CONDENSER.....................24-34
A/C CONTROL REPLACEMENT, HEATER . . . 24-23
A/C OPERATION, HEATER...............24-1
A/C RECIRCULATING DOOR VACUUM
MOTOR REPLACEMENT...............24-27
ACCELERATION SWITCH; ANTI-LOCK
BRAKES (XJ)......................8W-32-1
ACCELERATION SWITCH; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-1
ACCELERATION SWITCH; ANTI-LOCK
BRAKES (YJ)......................8W-32-1
ACCELERATION SWITCH; BRAKES........5-35
ACCELERATION SWITCH INSTALLATION....5-39
ACCELERATION SWITCH OPERATION......5-37
ACCELERATION SWITCH REMOVAL.......5-39
ACCELERATOR PEDAL.................14-17
ACCELERATOR PEDAL AND THROTTLE
CABLE........................14-17,14-58
ACCESSORY DRIVE BELT...............0-21
ACCESSORY DRIVE BELTS, ENGINE.......7-38
ACCESSORY LAMP AND HEATER
CONTROL PANEL LAMP; INTERIOR
LIGHTING (YJ)....................8W-44-1
ACCUMULATOR PISTONS AND SPRINGS . 21-189
A/C-HEATER BLOWER MOTOR; AIR
CONDITIONING/HEATER (YJ).........8W-42-2
A/C-HEATER SYSTEM; AIR
CONDITIONING/HEATER (XJ).........8W-42-1
A/C-HEATER SYSTEM; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-1
ADD-A-TRUNKÐYJ..................23-157
ADJUSTER/MOTORS, POWER SEAT . . . 8R-1,8R-2
ADJUSTER/MOTORS REMOVE/INSTALL,
POWER SEAT........................8R-3
ADJUSTMENT, BRAKELIGHT SWITCH......5-32
ADJUSTMENT, COMPASS VARIATION......8C-5
ADJUSTMENT, DIFFERENTIAL SHIM
PACK MEASUREMENT..................2-43
ADJUSTMENT, DRUM BRAKE............5-57
ADJUSTMENT, FRONT BAND...........21-102
ADJUSTMENT, GEARSHIFT CABLE/
LINKAGE...........................21-71
ADJUSTMENT, PARK INTERLOCK CABLE . 21-195
ADJUSTMENT PROCEDURES,
TRANSMISSION ASSEMBLY...........21-155
ADJUSTMENT, REAR WHEEL SENSOR
INSTALLATION........................5-38
ADJUSTMENT, SHIFT CABLE...........21-195
ADJUSTMENT, SHIFT LINKAGE . . . 21-286,21-309
ADJUSTMENT, TRANSMISSION
THROTTLE CABLE...................21-194
ADJUSTMENT, TRANSMISSION
THROTTLE VALVE CABLE..............21-71
ADJUSTMENT, VALVE BODY ASSEMBLY . . 21-153
ADJUSTMENT (XJ), PARK INTERLOCK
CABLE............................21-101
ADJUSTMENT (XJ), SHIFT CABLE.......21-100
ADJUSTMENT (XJ/YJ), PARKING BRAKE
CABLE TENSIONER....................5-69
ADJUSTMENT (XJ/YJ), THROTTLE VALVE
CABLE............................21-101
ADJUSTMENT (YJ), SHIFT LINKAGE.....21-100
ADJUSTMENTÐMAJOR, DOOR
ALIGNMENT.........................23-41
ADJUSTMENTÐMINOR, DOOR
ALIGNMENT.........................23-37
ADJUSTMENTÐXJ, DOOR LATCH........23-48
ADJUSTMENTÐXJ, HOOD.............23-10
ADJUSTMENTÐXJ, LIFTGATE...........23-63
ADJUSTMENTÐYJ, TAILGATE..........23-121
ADJUSTMENTS, ALIGNMENT
MEASUREMENTS
......................2-8
ADJUSTMENTS, STEERING GEAR
........19-24
AFTERMARKET PAINT AND TRIM
REPAIR PRODUCTSÐXJ
..............23-159
AFTERMARKET PAINT AND TRIM
REPAIR PRODUCTSÐYJ
..............23-160
AIR CLEANER
.......................14-29AIR CLEANER ELEMENT; EMISSION
CONTROL SYSTEMS...................25-7
AIR CLEANER ELEMENT; FUEL SYSTEM . . . 14-59
AIR CLEANER ELEMENT; LUBRICATION
AND MAINTENANCE...................0-18
AIR CLEANER HOUSING...............14-58
AIR CONDITIONING...................24-37
AIR CONDITIONING (A/C) CLUTCH
RELAY.............................14-58
AIR CONDITIONING (A/C) CLUTCH
RELAYÐPCM OUTPUT................14-26
AIR CONDITIONING (A/C) CONTROLSÐ
PCM INPUT.........................14-21
AIR CONDITIONING CONTROLSÐXJ
VEHICLES..........................24-15
AIR CONDITIONING CONTROLSÐYJ
VEHICLES..........................24-16
AIR CONDITIONING, HEATER; AIR
CONDITIONING/HEATER (YJ).........8W-42-2
AIR CONDITIONING OPERATION; AIR
CONDITIONING/HEATER (XJ).........8W-42-2
AIR CONDITIONING OPERATION; AIR
CONDITIONING/HEATER (XJ-RHD).....8W-42-2
AIR CONDITIONING PERFORMANCE
TESTS.............................24-12
AIR CONDITIONING SCHEMATICÐXJ......24-5
AIR CONDITIONING TEST PROCEDURES,
HEATING...........................24-15
AIR CONTROL (IAC) MOTOR, IDLE; FUEL
SYSTEM............................14-62
AIR CONTROL (IAC) MOTOR, IDLE;
FUEL/IGNITION (XJ)................8W-30-2
AIR CONTROL (IAC) MOTOR, IDLE;
FUEL/IGNITION (YJ)................8W-30-2
AIR CONTROL (IAC) MOTOR, IDLE;
FUEL/IGNITION (XJ-RHD)............8W-30-2
AIR CONTROL (IAC) MOTORÐPCM
OUTPUT, IDLE.......................14-27
AIR CONTROL MOTOR TEST, IDLE.......14-49
AIR DEFLECTORÐXJ, COWL
WEATHERSTRIP SEAL/CROSSMEMBER . . . 23-11
AIR DOOR VACUUM MOTOR, FRESH.....24-34
AIR EXHAUST GRILLEÐXJ.............23-25
AIR GAP, SPEED SENSOR...............5-37
AIR INTAKE DUCT, FRESH..............24-34
AIR PRESSURE TEST.................21-74
AIR TEMPERATURE SENSOR, INTAKE;
FUEL/IGNITION (XJ)................8W-30-4
AIR TEMPERATURE SENSOR, INTAKE;
FUEL/IGNITION (YJ)................8W-30-4
AIR TEMPERATURE SENSOR, INTAKE;
FUEL/IGNITION (XJ-RHD)............8W-30-4
AIR TEMPERATURE SENSOR, INTAKE
MANIFOLD; FUEL SYSTEM.............14-60
AIR TEMPERATURE SENSOR, INTAKE
MANIFOLD; IGNITION SYSTEMS....8D-23,8D-5
AIR TEMPERATURE, SENSOR
RESISTANCE (OHMS)ÐCOOLANT
TEMPERATURE SENSOR/MANIFOLD......14-46
AIR TEMPERATURE SENSOR TEST,
INTAKE MANIFOLD; FUEL SYSTEM.......14-46
AIR TEMPERATURE SENSOR TEST,
INTAKE MANIFOLD; IGNITION
SYSTEMS..........................8D-11
AIR TEMPERATURE SENSORÐPCM
INPUT, INTAKE MANIFOLD.............14-22
AIRBAG MODULE.....................8M-1
AIRBAG MODULE HANDLING............8M-2
AIRBAG MODULE REMOVE/INSTALL......8M-3
AIRBAG MODULE REMOVEÐINSTALL....19-49
AIRBAG SYSTEM; RESTRAINT SYSTEMS . . 8M-1
AIRBAG SYSTEM; STEERING...........19-47
AIRBAG SYSTEM SERVICE (DEPLOYED) . . . 8M-2
AIR-CONDITIONER COMPRESSOR........0-21
ALIGNMENT ADJUSTMENTÐMAJOR,
DOOR.............................23-41
ALIGNMENT ADJUSTMENTÐMINOR,
DOOR.............................23-37
ALIGNMENT, FRONT WHEEL..............2-5
ALIGNMENTÐXJ, HEADLAMP...........8L-6
ALIGNMENTÐYJ, HEADLAMP
..........8L-22
ALIGNMENTÐYJ, HOOD
..............23-107
ANCHOR AND BUMPERÐXJ, LIFTGATE
LICENSE PLATE SCREW
...............23-65
ANGLE, GROUND CLEARANCE AND
RAMP
..............................0-11
ANGLE MEASUREMENT, UNIVERSAL
JOINT
..............................16-4
JINDEX 1
Description Group-Page Description Group-Page Description Group-Page

ANTENNA........................8F-2,8F-5
ANTENNA, POWER; RADIO (XJ-RHD) . . . 8W-47-1
ANTENNA REMOVE/INSTALL - XJ.........8F-8
ANTENNA REMOVE/INSTALL - YJ........8F-10
ANTILOCK BRAKES (ABS)................5-1
ANTILOCK BRAKING MODE, ABS
OPERATION IN.......................5-36
ANTILOCK ECU AND HCU DIAGNOSIS......5-3
APPLICATION CHARTS, GEARTRAIN
OPERATION........................21-169
APPLICATION, TRANSMISSION..........21-67
APPLICATIONÐXJ VEHICLES, BULB......8L-18
APPLICATIONÐYJ VEHICLES, BULB......8L-32
APPLIQUEÐXJ, QUARTER WINDOW.....23-25
APPLIQUEÐYJ, RADIATOR GRILLE.....23-104
APRONSÐYJ, FENDER SPLASH........23-115
ARM, LOWER SUSPENSION.............2-13
ARM, PITMAN..................19-17,19-20
ARM REMOVE/INSTALL, LIFTGATE
WIPER.............................8K-17
ARM REMOVE/INSTALL, WINDSHIELD
WIPER.............................8K-17
ARM, UPPER SUSPENSION.............2-12
ARMING/DISARMING MECHANISM;
RESTRAINT SYSTEMS.................8M-2
ARMING/DISARMING MECHANISM;
STEERING..........................19-48
ARMS AND PUSH RODS, ROCKER....9-23,9-65
ASH RECEIVER TRAY LAMPÐXJ, I/P.....23-80
ASSEMBLY....................19-63,19-71
ASSEMBLY AND ADJUSTMENT, VALVE
BODY.............................21-153
ASSEMBLY, CALIPER...................5-50
ASSEMBLY, COMPRESSOR CLUTCH......24-20
ASSEMBLY, DIFFERENTIAL; FRONT
SUSPENSION AND AXLE................2-38
ASSEMBLY, DIFFERENTIAL; REAR
SUSPENSION AND AXLES...............3-21
ASSEMBLY, FINAL; FRONT SUSPENSION
AND AXLE...........................2-46
ASSEMBLY, FINAL; REAR SUSPENSION
AND AXLES..........................3-29
ASSEMBLY, FUEL RAIL................14-62
ASSEMBLY, GEAR....................19-43
ASSEMBLY, IMPACT SENSOR/INFLATOR . . . 8M-2
ASSEMBLY, PINION MEASUREMENT.......3-22
ASSEMBLY REMOVE/INSTALL, CLUSTER . . 8E-17,
8E-35
ASSEMBLY REPLACEMENT, ADJUSTER
PLUG..............................19-29
ASSEMBLY REPLACEMENT, COLUMN.....19-52
ASSEMBLY REPLACEMENTÐXJ
VEHICLES, DRIVE AXLE; FRONT
SUSPENSION AND AXLE................2-23
ASSEMBLY REPLACEMENTÐXJ
VEHICLES, DRIVE AXLE; REAR
SUSPENSION AND AXLES...........3-14,3-31
ASSEMBLY REPLACEMENTÐYJ
VEHICLES, DRIVE AXLE; FRONT
SUSPENSION AND AXLE................2-24
ASSEMBLY REPLACEMENTÐYJ
VEHICLES, DRIVE AXLE; REAR
SUSPENSION AND AXLES...............3-14
ASSEMBLY (SHORT BLOCK), SERVICE
ENGINE..............................9-4
ASSEMBLY TIPS, TRANSMISSION......21-155
ASSEMBLY, TRANSFER CASE
....21-294,21-319
ASSEMBLY/INSTALLATION, PINION GEAR
. . 2-42
ASSEMBLYÐXJ VEHICLES, ENGINE
. . . 9-18,9-59
ASSEMBLYÐYJ VEHICLES, ENGINE
. . . 9-20,9-62
ASSIST HANDLEÐXJ
.................23-89
ASSIST HANDLEÐYJ, FULL-METAL
DOOR
............................23-136
AUTO SHUTDOWN (ASD) RELAYÐPCM
OUTPUT
............................14-26
AUTOMATIC BELT TENSIONERÐXJ
MODELS WITH RIGHT HAND DRIVE
.......7-42
AUTOMATIC SHUT DOWN (ASD) RELAY;
FUEL/IGNITION (XJ)
................8W-30-1
AUTOMATIC SHUT DOWN (ASD) RELAY;
FUEL/IGNITION (YJ)
................8W-30-1
AUTOMATIC SHUT DOWN (ASD) RELAY;
FUEL/IGNITION (XJ-RHD)
............8W-30-1
AUTOMATIC SHUTDOWN (ASD) RELAY;
FUEL SYSTEM
.......................14-59
AUTOMATIC SHUTDOWN (ASD) RELAY;
IGNITION SYSTEMS
..............8D-17,8D-1AUTOMATIC SHUTDOWN (ASD) RELAY
TEST...............................8D-6
AUTOMATIC SHUTDOWN (ASD) RELAY
TESTING...........................14-46
AUTOMATIC SHUTDOWN (ASD)
SENSEÐPCM INPUT..................14-21
AUTOMATIC TRANSMISSION............0-23
AUTOMATIC TRANSMISSION, 30RH/
32RH..............................21-67
AUTOMATIC TRANSMISSION, AW-4.....21-165
AUTOMATIC TRANSMISSION SHIFTER/
IGNITION INTERLOCK MECHANISM......19-55
AUXILIARY ELECTRIC COOLING FANÐXJ
MODELS WITH 4.0L 6-CYLINDER
ENGINE.............................7-35
AW-4 ACCUMULATOR COMPONENT
IDENTIFICATION....................21-342
AW-4 AUTOMATIC TRANSMISSION......21-165
AW-4 BUSHING AND PISTON
CLEARANCE........................21-339
AW-4 CLUTCH AND BRAKE PACK
REQUIREMENTS....................21-341
AW-4 CLUTCH DISC AND PLATE
THICKNESS........................21-338
AW-4 GENERAL SPECIFICATIONS.......21-337
AW-4 IN-VEHICLE SERVICE............21-182
AW-4 OIL PUMP WEAR LIMITS........21-338
AW-4 RETAINER AND PISTON
SPECIFICATIONS....................21-340
AW-4 TORQUE SPECIFICATIONS........21-344
AW-4 TRANSMISSION DIAGNOSIS......21-176
AW-4 TRANSMISSION OVERHAUL......21-201
AW-4 TRANSMISSION REMOVAL AND
INSTALLATION......................21-198
AW-4 VALVE AND SPRING
IDENTIFICATION....................21-343
AW-4 VALVE BODY CHECK BALL
DIMENSIONS.......................21-341
AWAY, PEDAL FALLS....................5-5
AX 15 MANUAL TRANSMISSION........21-33
AX 4/5 MANUAL TRANSMISSION.........21-1
AXLE (2WD), MODEL 30 AXLE AND
TUBE...............................2-22
AXLE, 8 1/4......................3-30,3-51
AXLE ALIGNMENT, REAR...............3-10
AXLE AND TUBE AXLE (2WD), MODEL
30 .................................2-22
AXLE ASSEMBLY REPLACEMENTÐXJ
VEHICLES, DRIVE; FRONT
SUSPENSION AND AXLE................2-23
AXLE ASSEMBLY REPLACEMENTÐXJ
VEHICLES, DRIVE; REAR SUSPENSION
AND AXLES......................3-14,3-31
AXLE ASSEMBLY REPLACEMENTÐYJ
VEHICLES, DRIVE; FRONT
SUSPENSION AND AXLE................2-24
AXLE ASSEMBLY REPLACEMENTÐYJ
VEHICLES, DRIVE; REAR SUSPENSION
AND AXLES..........................3-14
AXLE BUSHING REPLACEMENT......2-12,2-34
AXLE, FRONT DRIVE....................2-3
AXLE, MODEL 30.....................2-49
AXLE, MODEL 30 FRONT...............2-49
AXLE, MODEL 35.................3-13,3-51
AXLE NOISE/VIBRATION DIAGNOSIS;
FRONT SUSPENSION AND AXLE..........2-18
AXLE NOISE/VIBRATION DIAGNOSIS;
REAR SUSPENSION AND AXLES
..........3-9
AXLE SHAFT
.........................3-16
AXLE SHAFT, HUB BEARING
.............2-25
AXLE SHAFT OIL SEAL REPLACEMENT,
INNER
..............................2-35
AXLE SHAFT SEAL AND BEARING
........3-17
AXLE SHAFT, SEAL AND BEARING
SERVICE
............................3-32
AXLE SPECIFICATIONS; FRONT
SUSPENSION AND AXLE
................2-49
AXLE SPECIFICATIONS; REAR
SUSPENSION AND AXLES
...............3-51
AXLEÐYJ VEHICLES, VACUUM
DISCONNECT
.........................2-27
AXLES
...............................3-1
AXLES, FRONT AND REAR
..............0-24
AXLE/SHIFT MOTOR DIAGNOSIS
(CONT'D), DISCONNECT
................2-30
AXLE/SHIFT MOTOR DIAGNOSIS,
DISCONNECT
.........................2-29BACKLASH AND CONTACT PATTERN
ANALYSIS; FRONT SUSPENSION AND
AXLE...............................2-45
BACKLASH AND CONTACT PATTERN
ANALYSIS; REAR SUSPENSION AND
AXLES..............................3-27
BACK-UP LAMPS; REAR LIGHTING (XJ) . 8W-51-1
BACK-UP LAMPS; REAR LIGHTING
(XJ-RHD).........................8W-51-1
BACK-UP LAMPS; REAR LIGHTING (YJ) . 8W-51-1
BACK-UP/REAR TURN SIGNAL/TAIL
LAMP BULB REPLACEMENTÐXJ........8L-12
BACK-UP/REAR TURN SIGNAL/TAIL
LAMP BULB REPLACEMENTÐYJ........8L-28
BALANCE, TIRE AND WHEEL............22-6
BALL DIMENSIONS, AW-4 VALVE BODY
CHECK............................21-341
BALL STUD REPLACEMENTÐXJ,
LIFTGATE SUPPORT ROD..............23-63
BALL STUDS, STEERING KNUCKLE.......2-32
BAR, STABILIZER; FRONT SUSPENSION
AND AXLE.......................2-11,2-15
BAR, STABILIZER; REAR SUSPENSION
AND AXLES...........................3-5
BAR, TRACK; FRONT SUSPENSION AND
AXLE...........................2-11,2-15
BAR, TRACK; REAR SUSPENSION AND
AXLES...............................3-8
BARÐXJ, SOUND....................23-94
BARÐYJ, SPORT...................23-132
BARRIERÐXJ, CARGO...............23-101
BASE COAT/CLEAR COAT FINISH.........23-158
BATTERY; BATTERY/STARTER/
GENERATOR SERVICE..................8B-1
BATTERY; BATTERY/STARTING/
CHARGING SYSTEMS DIAGNOSTICS......8A-2
BATTERY; LUBRICATION AND
MAINTENANCE.......................0-20
BATTERY CHARGING...................8A-7
BATTERY CHARGING TIME TABLE........8A-8
BATTERY CLASSIFICATIONS AND
RATINGS...........................8A-23
BATTERY DIAGNOSIS..................8A-4
BATTERY FEED; FUEL/IGNITION (XJ) . . . 8W-30-1
BATTERY FEED; FUEL/IGNITION (YJ) . . . 8W-30-2
BATTERY FEED; FUEL/IGNITION
(XJ-RHD).........................8W-30-1
BATTERY RATINGS....................8A-3
BATTERY REMOVE/INSTALL.............8B-1
BATTERY SPECIFICATIONS; BATTERY/
STARTER/GENERATOR SERVICE..........8B-8
BATTERY SPECIFICATIONS; BATTERY/
STARTING/CHARGING SYSTEMS
DIAGNOSTICS.......................8A-23
BATTERY TRAYÐXJ..................23-14
BATTERY TRAYÐYJ.................23-110
BATTERY VOLTAGEÐPCM INPUT........14-21
B/C-PILLAR AND LIFTGATE PILLAR TRIM
COVERSÐXJ........................23-88
BEARING AND AXLE SHAFT, HUB.........2-25
BEARING, AXLE SHAFT SEAL............3-17
BEARING LUBRICANTS, CHASSIS
COMPONENT AND WHEEL..............0-28
BEARING NOISE, GEAR; FRONT
SUSPENSION AND AXLE................2-18
BEARING NOISE, GEAR; REAR
SUSPENSION AND AXLES................3-9
BEARING REPLACEMENT, PILOT..........6-12
BEARING REPLACEMENT, PITMAN
SHAFT SEALS.......................19-34
BEARING REPLACEMENT, RELEASE.......6-11
BEARING SERVICE, AXLE SHAFT, SEAL....3-32
BEARINGS, CRANKSHAFT MAIN......9-45,9-87
BEARINGS, FRONT WHEEL..............0-28
BELT, ACCESSORY DRIVE...............0-21
BELT DIAGNOSIS......................7-38
BELT INDICATOR WARNING LAMP, SEAT;
INSTRUMENT CLUSTER (XJ).........8W-40-2
BELT INDICATOR WARNING LAMP, SEAT;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
BELT SCHEMATICS....................7-38
BELT SERVICEÐEXCEPT RIGHT HAND
DRIVE
..............................7-40
BELT SERVICEÐXJ MODELS WITH
RIGHT HAND DRIVE
...................7-42
BELT SWITCH, DRIVER'S SEAT
......8U-1,8U-3
BELT TENSION, DRIVE
.................7-45
BELT TENSION SPECIFICATIONS
..........7-38

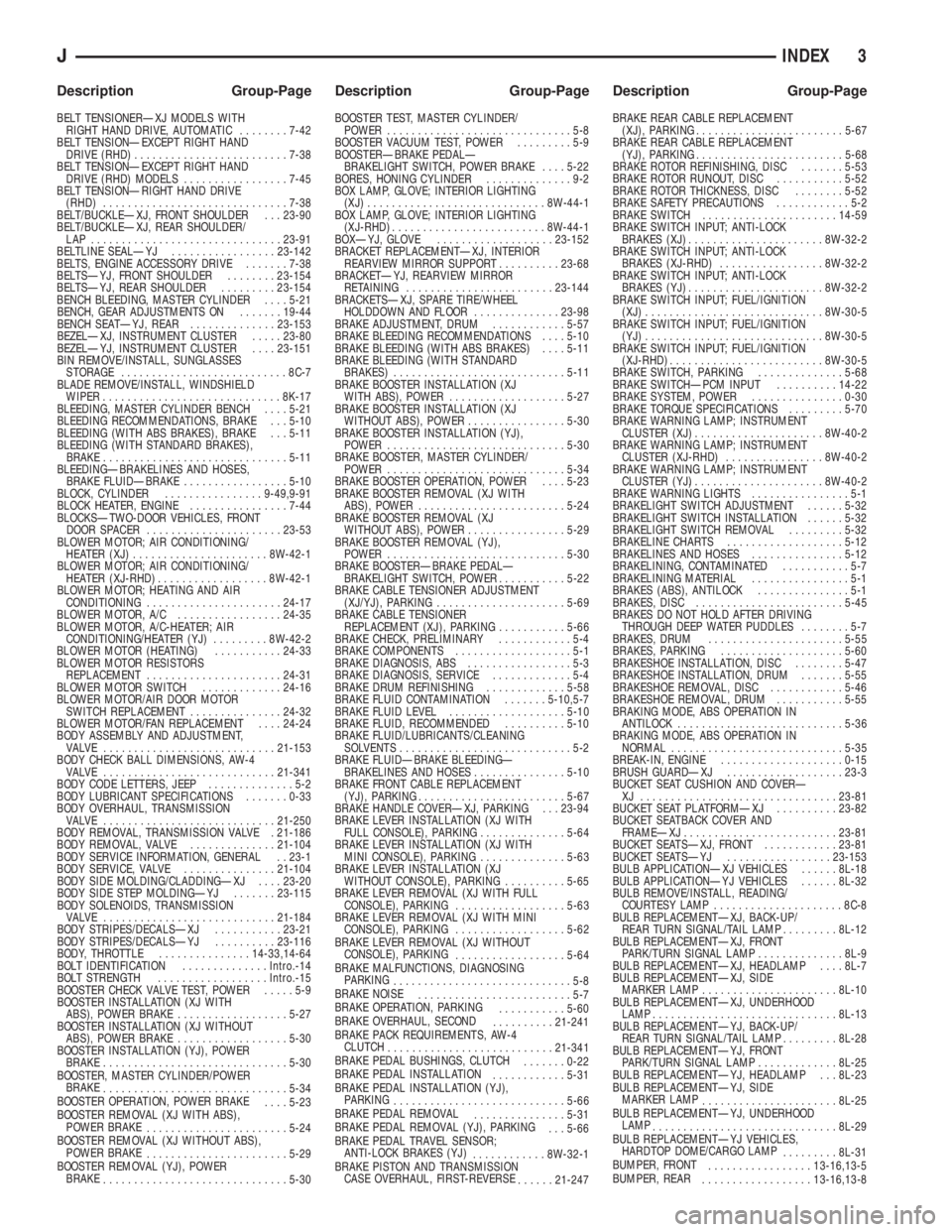

2 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

BELT TENSIONERÐXJ MODELS WITH
RIGHT HAND DRIVE, AUTOMATIC........7-42
BELT TENSIONÐEXCEPT RIGHT HAND
DRIVE (RHD).........................7-38
BELT TENSIONÐEXCEPT RIGHT HAND
DRIVE (RHD) MODELS.................7-45
BELT TENSIONÐRIGHT HAND DRIVE
(RHD)..............................7-38
BELT/BUCKLEÐXJ, FRONT SHOULDER . . . 23-90
BELT/BUCKLEÐXJ, REAR SHOULDER/
LAP ...............................23-91
BELTLINE SEALÐYJ.................23-142
BELTS, ENGINE ACCESSORY DRIVE.......7-38
BELTSÐYJ, FRONT SHOULDER........23-154
BELTSÐYJ, REAR SHOULDER.........23-154
BENCH BLEEDING, MASTER CYLINDER....5-21
BENCH, GEAR ADJUSTMENTS ON.......19-44
BENCH SEATÐYJ, REAR..............23-153
BEZELÐXJ, INSTRUMENT CLUSTER.....23-80
BEZELÐYJ, INSTRUMENT CLUSTER....23-151
BIN REMOVE/INSTALL, SUNGLASSES
STORAGE...........................8C-7
BLADE REMOVE/INSTALL, WINDSHIELD
WIPER.............................8K-17
BLEEDING, MASTER CYLINDER BENCH....5-21
BLEEDING RECOMMENDATIONS, BRAKE . . . 5-10
BLEEDING (WITH ABS BRAKES), BRAKE . . . 5-11
BLEEDING (WITH STANDARD BRAKES),
BRAKE..............................5-11
BLEEDINGÐBRAKELINES AND HOSES,
BRAKE FLUIDÐBRAKE.................5-10
BLOCK, CYLINDER................9-49,9-91
BLOCK HEATER, ENGINE................7-44
BLOCKSÐTWO-DOOR VEHICLES, FRONT
DOOR SPACER......................23-53
BLOWER MOTOR; AIR CONDITIONING/
HEATER (XJ)......................8W-42-1
BLOWER MOTOR; AIR CONDITIONING/
HEATER (XJ-RHD)..................8W-42-1
BLOWER MOTOR; HEATING AND AIR
CONDITIONING......................24-17
BLOWER MOTOR, A/C.................24-35
BLOWER MOTOR, A/C-HEATER; AIR
CONDITIONING/HEATER (YJ).........8W-42-2
BLOWER MOTOR (HEATING)...........24-33
BLOWER MOTOR RESISTORS
REPLACEMENT......................24-31
BLOWER MOTOR SWITCH.............24-16
BLOWER MOTOR/AIR DOOR MOTOR
SWITCH REPLACEMENT...............24-32
BLOWER MOTOR/FAN REPLACEMENT....24-24
BODY ASSEMBLY AND ADJUSTMENT,
VALVE ............................21-153
BODY CHECK BALL DIMENSIONS, AW-4
VALVE ............................21-341
BODY CODE LETTERS, JEEP..............5-2
BODY LUBRICANT SPECIFICATIONS.......0-33
BODY OVERHAUL, TRANSMISSION
VALVE ............................21-250
BODY REMOVAL, TRANSMISSION VALVE . 21-186
BODY REMOVAL, VALVE..............21-104
BODY SERVICE INFORMATION, GENERAL . . 23-1
BODY SERVICE, VALVE...............21-104
BODY SIDE MOLDING/CLADDINGÐXJ....23-20
BODY SIDE STEP MOLDINGÐYJ.......23-115
BODY SOLENOIDS, TRANSMISSION
VALVE ............................21-184
BODY STRIPES/DECALSÐXJ...........23-21
BODY STRIPES/DECALSÐYJ..........23-116
BODY, THROTTLE...............14-33,14-64
BOLT IDENTIFICATION..............Intro.-14
BOLT STRENGTH..................Intro.-15
BOOSTER CHECK VALVE TEST, POWER.....5-9
BOOSTER INSTALLATION (XJ WITH
ABS), POWER BRAKE..................5-27
BOOSTER INSTALLATION (XJ WITHOUT
ABS), POWER BRAKE..................5-30
BOOSTER INSTALLATION (YJ), POWER
BRAKE..............................5-30
BOOSTER, MASTER CYLINDER/POWER
BRAKE
..............................5-34
BOOSTER OPERATION, POWER BRAKE
....5-23
BOOSTER REMOVAL (XJ WITH ABS),
POWER BRAKE
.......................5-24
BOOSTER REMOVAL (XJ WITHOUT ABS),
POWER BRAKE
.......................5-29
BOOSTER REMOVAL (YJ), POWER
BRAKE
..............................5-30BOOSTER TEST, MASTER CYLINDER/
POWER..............................5-8
BOOSTER VACUUM TEST, POWER.........5-9
BOOSTERÐBRAKE PEDALÐ
BRAKELIGHT SWITCH, POWER BRAKE....5-22
BORES, HONING CYLINDER..............9-2
BOX LAMP, GLOVE; INTERIOR LIGHTING
(XJ).............................8W-44-1
BOX LAMP, GLOVE; INTERIOR LIGHTING
(XJ-RHD).........................8W-44-1
BOXÐYJ, GLOVE...................23-152
BRACKET REPLACEMENTÐXJ, INTERIOR
REARVIEW MIRROR SUPPORT..........23-68
BRACKETÐYJ, REARVIEW MIRROR
RETAINING........................23-144
BRACKETSÐXJ, SPARE TIRE/WHEEL
HOLDDOWN AND FLOOR..............23-98
BRAKE ADJUSTMENT, DRUM............5-57
BRAKE BLEEDING RECOMMENDATIONS....5-10
BRAKE BLEEDING (WITH ABS BRAKES)....5-11
BRAKE BLEEDING (WITH STANDARD
BRAKES)............................5-11
BRAKE BOOSTER INSTALLATION (XJ
WITH ABS), POWER...................5-27
BRAKE BOOSTER INSTALLATION (XJ
WITHOUT ABS), POWER................5-30
BRAKE BOOSTER INSTALLATION (YJ),
POWER.............................5-30
BRAKE BOOSTER, MASTER CYLINDER/
POWER.............................5-34
BRAKE BOOSTER OPERATION, POWER....5-23
BRAKE BOOSTER REMOVAL (XJ WITH
ABS), POWER........................5-24
BRAKE BOOSTER REMOVAL (XJ
WITHOUT ABS), POWER................5-29
BRAKE BOOSTER REMOVAL (YJ),
POWER.............................5-30
BRAKE BOOSTERÐBRAKE PEDALÐ
BRAKELIGHT SWITCH, POWER...........5-22
BRAKE CABLE TENSIONER ADJUSTMENT
(XJ/YJ), PARKING.....................5-69
BRAKE CABLE TENSIONER
REPLACEMENT (XJ), PARKING...........5-66
BRAKE CHECK, PRELIMINARY............5-4
BRAKE COMPONENTS...................5-1
BRAKE DIAGNOSIS, ABS.................5-3
BRAKE DIAGNOSIS, SERVICE.............5-4
BRAKE DRUM REFINISHING.............5-58
BRAKE FLUID CONTAMINATION.......5-10,5-7
BRAKE FLUID LEVEL...................5-10
BRAKE FLUID, RECOMMENDED..........5-10
BRAKE FLUID/LUBRICANTS/CLEANING
SOLVENTS............................5-2
BRAKE FLUIDÐBRAKE BLEEDINGÐ
BRAKELINES AND HOSES...............5-10
BRAKE FRONT CABLE REPLACEMENT
(YJ), PARKING........................5-67
BRAKE HANDLE COVERÐXJ, PARKING . . . 23-94
BRAKE LEVER INSTALLATION (XJ WITH
FULL CONSOLE), PARKING..............5-64
BRAKE LEVER INSTALLATION (XJ WITH
MINI CONSOLE), PARKING..............5-63
BRAKE LEVER INSTALLATION (XJ
WITHOUT CONSOLE), PARKING..........5-65
BRAKE LEVER REMOVAL (XJ WITH FULL
CONSOLE), PARKING..................5-63
BRAKE LEVER REMOVAL (XJ WITH MINI
CONSOLE), PARKING..................5-62
BRAKE LEVER REMOVAL (XJ WITHOUT
CONSOLE), PARKING
..................5-64
BRAKE MALFUNCTIONS, DIAGNOSING
PARKING
.............................5-8
BRAKE NOISE
.........................5-7
BRAKE OPERATION, PARKING
...........5-60
BRAKE OVERHAUL, SECOND
..........21-241
BRAKE PACK REQUIREMENTS, AW-4
CLUTCH
...........................21-341
BRAKE PEDAL BUSHINGS, CLUTCH
.......0-22
BRAKE PEDAL INSTALLATION
............5-31
BRAKE PEDAL INSTALLATION (YJ),
PARKING
............................5-66
BRAKE PEDAL REMOVAL
...............5-31
BRAKE PEDAL REMOVAL (YJ), PARKING
. . . 5-66
BRAKE PEDAL TRAVEL SENSOR;
ANTI-LOCK BRAKES (YJ)
............8W-32-1
BRAKE PISTON AND TRANSMISSION
CASE OVERHAUL, FIRST-REVERSE
......21-247BRAKE REAR CABLE REPLACEMENT
(XJ), PARKING........................5-67
BRAKE REAR CABLE REPLACEMENT
(YJ), PARKING........................5-68
BRAKE ROTOR REFINISHING, DISC.......5-53
BRAKE ROTOR RUNOUT, DISC...........5-52
BRAKE ROTOR THICKNESS, DISC........5-52
BRAKE SAFETY PRECAUTIONS............5-2
BRAKE SWITCH......................14-59
BRAKE SWITCH INPUT; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
BRAKE SWITCH INPUT; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
BRAKE SWITCH INPUT; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
BRAKE SWITCH INPUT; FUEL/IGNITION
(XJ).............................8W-30-5
BRAKE SWITCH INPUT; FUEL/IGNITION
(YJ).............................8W-30-5
BRAKE SWITCH INPUT; FUEL/IGNITION
(XJ-RHD).........................8W-30-5
BRAKE SWITCH, PARKING..............5-68
BRAKE SWITCHÐPCM INPUT..........14-22
BRAKE SYSTEM, POWER...............0-30
BRAKE TORQUE SPECIFICATIONS.........5-70
BRAKE WARNING LAMP; INSTRUMENT
CLUSTER (XJ).....................8W-40-2
BRAKE WARNING LAMP; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-2
BRAKE WARNING LAMP; INSTRUMENT
CLUSTER (YJ)......................8W-40-2
BRAKE WARNING LIGHTS................5-1
BRAKELIGHT SWITCH ADJUSTMENT......5-32
BRAKELIGHT SWITCH INSTALLATION......5-32
BRAKELIGHT SWITCH REMOVAL.........5-32
BRAKELINE CHARTS...................5-12
BRAKELINES AND HOSES...............5-12
BRAKELINING, CONTAMINATED...........5-7
BRAKELINING MATERIAL................5-1
BRAKES (ABS), ANTILOCK...............5-1
BRAKES, DISC........................5-45
BRAKES DO NOT HOLD AFTER DRIVING
THROUGH DEEP WATER PUDDLES........5-7
BRAKES, DRUM......................5-55
BRAKES, PARKING....................5-60
BRAKESHOE INSTALLATION, DISC........5-47
BRAKESHOE INSTALLATION, DRUM.......5-55
BRAKESHOE REMOVAL, DISC............5-46
BRAKESHOE REMOVAL, DRUM...........5-55
BRAKING MODE, ABS OPERATION IN
ANTILOCK...........................5-36
BRAKING MODE, ABS OPERATION IN
NORMAL............................5-35
BREAK-IN, ENGINE....................0-15
BRUSH GUARDÐXJ...................23-3
BUCKET SEAT CUSHION AND COVERÐ
XJ ................................23-81
BUCKET SEAT PLATFORMÐXJ..........23-82
BUCKET SEATBACK COVER AND
FRAMEÐXJ.........................23-81
BUCKET SEATSÐXJ, FRONT............23-81
BUCKET SEATSÐYJ.................23-153
BULB APPLICATIONÐXJ VEHICLES......8L-18
BULB APPLICATIONÐYJ VEHICLES......8L-32
BULB REMOVE/INSTALL, READING/
COURTESY LAMP.....................8C-8
BULB REPLACEMENTÐXJ, BACK-UP/
REAR TURN SIGNAL/TAIL LAMP.........8L-12
BULB REPLACEMENTÐXJ, FRONT
PARK/TURN SIGNAL LAMP..............8L-9
BULB REPLACEMENTÐXJ, HEADLAMP....8L-7
BULB REPLACEMENTÐXJ, SIDE
MARKER LAMP......................8L-10
BULB REPLACEMENTÐXJ, UNDERHOOD
LAMP..............................8L-13
BULB REPLACEMENTÐYJ, BACK-UP/
REAR TURN SIGNAL/TAIL LAMP.........8L-28
BULB REPLACEMENTÐYJ, FRONT
PARK/TURN SIGNAL LAMP.............8L-25
BULB REPLACEMENTÐYJ, HEADLAMP . . . 8L-23
BULB REPLACEMENTÐYJ, SIDE
MARKER LAMP
......................8L-25
BULB REPLACEMENTÐYJ, UNDERHOOD
LAMP
..............................8L-29
BULB REPLACEMENTÐYJ VEHICLES,
HARDTOP DOME/CARGO LAMP
.........8L-31
BUMPER, FRONT
.................13-16,13-5
BUMPER, REAR
..................13-16,13-8
JINDEX 3
Description Group-Page Description Group-Page Description Group-Page

BUMPERÐXJ, LIFTGATE LICENSE PLATE
SCREW ANCHOR.....................23-65
BUMPERÐXJ, REAR SEATBACK LATCH
STRIKER...........................23-84
BUMPERS......................13-16,13-5
BUS, CCD; FUEL/IGNITION (XJ).......8W-30-5
BUSHING AND PISTON CLEARANCE,
AW-4 .............................21-339
BUSHING REPLACEMENT, AXLE......2-12,2-34
BUSHING REPLACEMENT, LEAF SPRING
EYE; FRONT SUSPENSION AND AXLE.....2-17
BUSHING REPLACEMENT, LEAF SPRING
EYE; REAR SUSPENSION AND AXLES . . . 3-5,3-7
BUSHINGS, CLUTCH AND BRAKE PEDAL . . . 0-22
BUZZER, COMBINATION; INTERIOR
LIGHTING (YJ)....................8W-44-1
BUZZER MODULE.................8U-1,8U-2
BUZZER MODULE SCHEMATIC - YJ.......8U-4
CABLE, ACCELERATOR PEDAL AND
THROTTLE.....................14-17,14-58
CABLE ADJUSTMENT, PARK INTERLOCK . 21-195
CABLE ADJUSTMENT, SHIFT...........21-195
CABLE ADJUSTMENT, TRANSMISSION
THROTTLE.........................21-194
CABLE ADJUSTMENT, TRANSMISSION
THROTTLE VALVE....................21-71
CABLE ADJUSTMENT (XJ), PARK
INTERLOCK........................21-101
CABLE ADJUSTMENT (XJ), SHIFT.......21-100
CABLE ADJUSTMENT (XJ/YJ), THROTTLE
VALVE..............................21-101
CABLE REMOVE/INSTALL, SERVO.......8H-10
CABLE REPLACEMENT, TRANSMISSION
THROTTLE.........................21-193
CABLE REPLACEMENT (XJ), PARKING
BRAKE REAR.........................5-67
CABLE REPLACEMENT (YJ), PARKING
BRAKE FRONT........................5-67
CABLE REPLACEMENT (YJ), PARKING
BRAKE REAR.........................5-68
CABLE REPLACEMENTÐXJ, LATCH
RELEASE...........................23-11
CABLE RESISTANCE, SPARK PLUG......8D-14
CABLE, SERVO.......................8H-1
CABLE, SPEEDOMETER.................0-33
CABLE TENSIONER ADJUSTMENT
(XJ/YJ), PARKING BRAKE...............5-69
CABLE TENSIONER REPLACEMENT (XJ),
PARKING BRAKE......................5-66
CABLE, THROTTLE...................14-17
CABLE/LINKAGE ADJUSTMENT,
GEARSHIFT.........................21-71
CABLES, DISTRIBUTOR CAP AND
ROTOR, IGNITION.....................0-20
CABLES, SPARK PLUG SECONDARY.....8D-14,
8D-24
CABLES, VENT DOOR CONTROL.........24-32
CALIBRATION, COMPASS...............8C-5
CALIPER ASSEMBLY...................5-50
CALIPER CLEANING AND INSPECTION.....5-50
CALIPER DISASSEMBLY................5-48
CALIPER INSTALLATION................5-51
CALIPER OPERATION AND WEAR
COMPENSATION......................5-45
CALIPER REMOVAL....................5-48
CAMSHAFT......................9-32,9-74
CAMSHAFT PIN REPLACEMENT......9-34,9-75
CAMSHAFT POSITION SENSOR; FUEL
SYSTEM............................14-60
CAMSHAFT POSITION SENSOR;
FUEL/IGNITION (XJ)................8W-30-3
CAMSHAFT POSITION SENSOR;
FUEL/IGNITION (YJ)................8W-30-3
CAMSHAFT POSITION SENSOR;
IGNITION SYSTEMS..............8D-17,8D-2
CAMSHAFT POSITION SENSOR;
FUEL/IGNITION (XJ-RHD)............8W-30-3
CAMSHAFT POSITION SENSOR TEST;
FUEL SYSTEM.......................14-46
CAMSHAFT POSITION SENSOR TEST;
IGNITION SYSTEMS
...................8D-6
CAMSHAFT POSITION SENSORÐPCM
INPUT
.............................14-22
(CANADA ONLY)ÐXJ, DAYTIME
RUNNING LIGHTS
....................8L-15
(CANADA ONLY)ÐYJ, DAYTIME
RUNNING LIGHTS
....................8L-30
CANISTER, EVAP
..................25-4,25-7CAP AND ROTOR, IGNITION CABLES,
DISTRIBUTOR........................0-20
CAP, DISTRIBUTOR....................8D-7
CAP, FUEL TANK FILLER TUBE;
EMISSION CONTROL SYSTEMS......25-4,25-7
CAP, FUEL TANK FILLER TUBE; FUEL
SYSTEM............................14-13
CAP, RADIATOR PRESSURE.............7-25
CAPACITIES, COOLING SYSTEM..........7-45
CAPACITIES, FLUID.....................0-3
CAPACITIES, FUEL TANK..........14-13,14-67
CAPACITY TEST, FUEL PUMP............14-7
CAR REPLACEMENT, PITMAN SHAFT
SEALSÐIN.........................19-23
CARDAN (CV), DOUBLE................16-11
CARDAN, SINGLE....................16-10
CARGO BARRIERÐXJ................23-101
CARGO LAMP AND DOME LAMP;
INTERIOR LIGHTING (XJ-RHD)........8W-44-1
CARGO LAMP, COURTESY LAMPS AND
DOME LAMP; INTERIOR LIGHTING (XJ) . 8W-44-1
CARGO LAMPÐXJ...................23-94
CARPET/MATÐXJ, FRONT.............23-99
CARPET/MATÐXJ, REAR.............23-100
CARPETÐYJ.......................23-156
CARPETS AND FLOOR MATSÐXJ.......23-99
CARRIERÐYJ, EXTERNAL SPARE/
WHEEL TIRE.......................23-133
CASE (4WD VEHICLES), TRANSFER........0-24
CASE ASSEMBLY, TRANSFER....21-294,21-319
CASE CHANGES, TRANSFER...........21-307
CASE CLEANING AND INSPECTION,
TRANSMISSION.....................21-125
CASE COVER OIL SEAL REPLACEMENT,
TIMING.........................9-30,9-73
CASE COVER, TIMING..............9-31,9-72
CASE DISASSEMBLY AND OVERHAUL,
TRANSFER...................21-289,21-310
CASE IDENTIFICATION, TRANSFER.....21-284,
21-307
CASE INSTALLATION, TRANSFER . 21-288,21-309
CASE LUBRICANT AND FILL LEVEL,
TRANSFER.........................21-284
CASE, NP231 TRANSFER.......21-283,21-305
CASE, NP242 TRANSFER.......21-307,21-331
CASE OVERHAUL, FIRST-REVERSE
BRAKE PISTON AND TRANSMISSION....21-247
CASE REMOVAL, TRANSFER.....21-287,21-309
CASE SKID PLATE, TRANSFER......13-15,13-3
CASE SPECIFICATIONS, TRANSMISSION/
TRANSFER.........................21-333
CATALYTIC CONVERTER............11-1,11-4
CATALYTIC CONVERTOR................25-1
CAUTIONS, AND WARNINGS, NOTES;
WIRING DIAGRAMSÐGENERAL
INFORMATION (XJ)...................8W-1
CCD BUS; FUEL/IGNITION (XJ)........8W-30-5
CENTER HIGH MOUNTED STOP LAMP
(CHMSL)ÐXJ.......................8L-12
CENTER HIGH MOUNTED STOP LAMP
(CHMSL)ÐYJ.......................8L-28
CERTIFICATION LABEL, VEHICLE SAFETY . Intro.-4
CHAIN AND SPROCKETS, TIMING....9-31,9-73
CHANGE AND FILTER REPLACEMENT,
ENGINE OIL
..........................0-16
CHANGE, LUBRICANT; FRONT
SUSPENSION AND AXLE
................2-23
CHANGE, LUBRICANT; REAR
SUSPENSION AND AXLES
...........3-13,3-31
CHANGE, REFILLING AFTER OVERHAUL
OR FLUID/FILTER
..............21-100,21-182
CHANGES AND PARTS
INTERCHANGEABILITY, TRANSMISSION
. . . 21-67
CHANGES, TRANSFER CASE
...........21-307
CHANNEL REPLACEMENTÐYJ, DOOR
FRAME GLASS
......................23-142
CHARGING, BATTERY
..................8A-7
CHARGING REFRIGERANT SYSTEM
......24-11
CHARGING SYSTEM; BATTERY/
STARTING/CHARGING SYSTEMS
DIAGNOSTICS
.......................8A-17
CHARGING SYSTEM; CHARGING
SYSTEM (XJ)
.....................8W-20-1
CHARGING SYSTEM; CHARGING
SYSTEM (XJ-RHD)
.................8W-20-1
CHARGING SYSTEM; CHARGING
SYSTEM (YJ)
.....................8W-20-1CHARGING SYSTEM INDICATOR LAMP;
INSTRUMENT CLUSTER (XJ).........8W-40-3
CHARGING SYSTEM SPECIFICATIONS....8A-23
CHARGING TIME TABLE, BATTERY........8A-8
CHART, MAIN BEARING FITTING......9-48,9-90
CHART, XJ PERFORMANCE
TEMPERATURE AND PRESSURE.........24-13
CHART, YJ PERFORMANCE
TEMPERATURE AND PRESSURE.........24-13
CHARTÐAX 15 MANUAL
TRANSMISSION, SELECTIVE SNAP
RING.............................21-334
CHARTS, BRAKELINE..................5-12
CHARTS, DIAGNOSIS GUIDES...........21-77
CHARTS, GEARTRAIN OPERATION AND
APPLICATION.......................21-169
CHARTS, INSPECTION AND DIAGNOSIS.....6-4
CHASSIS AND BODY COMPONENTS.......0-28
CHASSIS COMPONENT AND WHEEL
BEARING LUBRICANTS.................0-28
CHECK VALVE TEST, POWER BOOSTER.....5-9
CHECKING FLUID LEVEL AND
CONDITION........................21-182
CHECKS, PRELIMINARY.................7-5
CHIME/BUZZER MODULE; INTERIOR
LIGHTING (XJ)....................8W-44-2
CHIME/BUZZER MODULE; INTERIOR
LIGHTING (XJ-RHD)................8W-44-2
CHMSL LAMPS, STOP LAMPS; REAR
LIGHTING (XJ)....................8W-51-1
CHMSL LAMPS, STOP LAMPS; REAR
LIGHTING (XJ-RHD)................8W-51-1
CHMSL LAMPS, STOP LAMPS; REAR
LIGHTING (YJ)....................8W-51-1
(CHMSL)ÐXJ, CENTER HIGH MOUNTED
STOP LAMP.........................8L-12
(CHMSL)ÐYJ, CENTER HIGH MOUNTED
STOP LAMP.........................8L-28
CIGAR LIGHTER; HORN/CIGAR LIGHTER . . . 8E-1
CIGAR LIGHTER; HORN/CIGAR LIGHTER
(YJ).............................8W-41-1
CIGAR LIGHTER; INSTRUMENT CLUSTER
(XJ).............................8W-40-1
CIRCUIT IDENTIFICATION; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-1
CIRCUIT REMOVE/INSTALL, PRINTED....8E-19,
8E-40
CIRCUIT SENSEÐPCM INPUT, IGNITION . . 14-23
CIRCUIT VOLTAGE, OPEN...............8A-6
CLAMPS, FUEL TUBES/LINES/HOSES . 14-62,14-9
CLASSIFICATION OF LUBRICANTS.........0-2
CLASSIFICATIONS AND RATINGS,
BATTERY...........................8A-23
CLEANER, AIR.......................14-29
CLEANER ELEMENT, AIR; EMISSION
CONTROL SYSTEMS...................25-7
CLEANER ELEMENT, AIR; FUEL SYSTEM . . 14-59
CLEANER ELEMENT, AIR; LUBRICATION
AND MAINTENANCE...................0-18
CLEANER HOUSING, AIR...............14-58
CLEANING AND INSPECTION, CALIPER....5-50
CLEANING AND INSPECTION, GEAR......19-42
CLEANING AND INSPECTION,
TRANSMISSION CASE................21-125
CLEANING OF TIRES...................22-2
CLEANING/INSPECTION; FRONT
SUSPENSION AND AXLE
................2-37
CLEANING/INSPECTION; REAR
SUSPENSION AND AXLES
...............3-20
CLEANING/REVERSE FLUSHING,
COOLING SYSTEM
....................7-22
CLEARANCE AND RAMP ANGLE,
GROUND
............................0-11
CLEARANCE, AW-4 BUSHING AND
PISTON
...........................21-339
CLOCKSPRING
.......................19-51
CLUSTER AND GAUGE HOUSINGSÐYJ,
INSTRUMENT
......................23-151
CLUSTER ASSEMBLY REMOVE/INSTALL
. . 8E-17,
8E-35
CLUSTER BEZELÐXJ, INSTRUMENT
.....23-80
CLUSTER BEZELÐYJ, INSTRUMENT
....23-151
CLUSTER CONNECTORS (RHD)
.........8E-11
CLUSTER, GAUGE PACKAGE
.......8E-31,8E-43
CLUSTER GROUND; INSTRUMENT
CLUSTER (XJ)
.....................8W-40-3
4 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

CONTENTS; INSTRUMENT PANEL AND
GAUGESÐXJ........................8E-24
CONTENTS; LAMPS...................8L-19
CONTINUITY (LEFT POSITION), POWER
MIRROR SWITCH.....................8T-3
CONTINUITY, POWER SEAT SWITCH......8R-2
CONTINUITY (RIGHT POSITION), POWER
MIRROR SWITCH.....................8T-3
CONTINUITY TESTS, IGNITION SWITCH . . . 8D-30
CONTROL AND DISPLAY SYMBOLS,
INTERNATIONAL VEHICLE.............Intro.-5
CONTROL AND DISPLAY SYMBOLS,
VEHICLE.........................Intro.-10
CONTROL CABLES, VENT DOOR.........24-32
CONTROL DIAGNOSTIC TROUBLE CODE,
SPEED..............................8H-5
CONTROL, FUEL PUMP ELECTRICAL......14-5
CONTROL (IAC) MOTOR, IDLE AIR; FUEL
SYSTEM............................14-62
CONTROL (IAC) MOTOR, IDLE AIR;
FUEL/IGNITION (XJ)................8W-30-2
CONTROL (IAC) MOTOR, IDLE AIR;
FUEL/IGNITION (YJ)................8W-30-2
CONTROL (IAC) MOTOR, IDLE AIR;
FUEL/IGNITION (XJ-RHD)............8W-30-2
CONTROL (IAC) MOTORÐPCM OUTPUT,
IDLE AIR...........................14-27
CONTROL INFORMATION (VECI) LABEL,
VEHICLE EMISSION....................25-1
CONTROL MODULE (PCM) 60-WAY
CONNECTOR, POWERTRAIN............14-40
CONTROL MODULE (PCM),
POWERTRAIN; EMISSION CONTROL
SYSTEMS...........................25-7
CONTROL MODULE (PCM),
POWERTRAIN; FUEL SYSTEM......14-20,14-64
CONTROL MODULE (PCM),
POWERTRAIN; IGNITION SYSTEMS......8D-11,
8D-23,8D-5
CONTROL MODULE, POWERTRAIN . . . 8H-1,8H-7
CONTROL MODULE (TCM) SERVICE,
TRANSMISSION.....................21-183
CONTROL MODULE, TRANSMISSION;
TRANSMISSION CONTROLS (XJ-RHD) . . 8W-31-1
CONTROL MODULEÐ4.0L ENGINE ONLY,
TRANSMISSION; TRANSMISSION
CONTROLS (XJ)...................8W-31-1
CONTROL MOTOR TEST, IDLE AIR.......14-49
CONTROL PANEL LAMP, ACCESSORY
LAMP AND HEATER; INTERIOR
LIGHTING (YJ)....................8W-44-1
CONTROL REPLACEMENT, HEATER.......24-32
CONTROL REPLACEMENT, HEATER AND
A/C................................24-23
CONTROL SERVO REMOVE/INSTALL,
SPEED..............................8H-9
CONTROL SERVO, SPEED..........8H-1,8H-6
CONTROL SWITCH REMOVE/INSTALL,
SPEED..............................8H-9
CONTROL SWITCH, SPEED.........8H-1,8H-6
CONTROL SYSTEM, EMISSION...........0-20
CONTROL SYSTEM, EVAP
(EVAPORATION)......................25-4
CONTROL SYSTEM MAINTENANCE,
EMISSION............................0-4
CONTROL THERMOSTAT, TEMPERATURE . . 24-34
CONTROL, THERMOSTATIC.............24-16
CONTROL UNIT (ECU), ELECTRONIC......5-34
CONTROL UNIT (HCU), HYDRAULIC.......5-33
CONTROL UNIT, HYDRAULIC; ANTI-LOCK
BRAKES (XJ)......................8W-32-2
CONTROL UNIT, HYDRAULIC; ANTI-LOCK
BRAKES (XJ-RHD).................8W-32-2
CONTROL UNIT, HYDRAULIC; ANTI-LOCK
BRAKES (YJ)......................8W-32-2
CONTROL VALVE FITTING O-RING SEAL,
FLOW..............................19-14
CONTROL, VEHICLE SPEED; VEHICLE
SPEED CONTROL (XJ)..............8W-33-1
CONTROL, VEHICLE SPEED; VEHICLE
SPEED CONTROL (XJ-RHD)..........8W-33-1
CONTROLÐPCM INPUT, SPEED
.........14-25
CONTROLÐPCM OUTPUT, SPEED
.......14-29
CONTROLS AND COMPONENTS,
TRANSMISSION
......................21-67
CONTROLS, EMISSION
.................25-4
CONTROLSÐPCM INPUT, AIR
CONDITIONING (A/C)
..................14-21CONTROLSÐXJ VEHICLES, AIR
CONDITIONING......................24-15
CONTROLSÐYJ VEHICLES, AIR
CONDITIONING......................24-16
CONVERSION FORMULAS AND
EQUIVALENT VALUES...............Intro.-11
CONVERSION, METRIC..............Intro.-16
CONVERSION, METRIC AND ENGLISH/
SAE .............................Intro.-11
CONVERTER, CATALYTIC............11-1,11-4
CONVERTER CLUTCH RELAY TEST,
TORQUE............................14-48
CONVERTER CLUTCH RELAY, TORQUE....14-65
CONVERTER CLUTCH RELAYÐPCM
OUTPUT, TORQUE....................14-29
CONVERTER CLUTCH (TCC) SOLENOID
AND RELAY, TORQUE; FUEL/IGNITION
(XJ).............................8W-30-4
CONVERTER CLUTCH (TCC) SOLENOID
AND RELAY, TORQUE; TRANSMISSION
CONTROLS (YJ)...................8W-31-1
CONVERTER CLUTCH (TCC) SOLENOID
AND RELAYÐ2.5L ENGINE ONLY,
TORQUE; TRANSMISSION CONTROLS
(XJ).............................8W-31-1
CONVERTER DIAGNOSIS, TORQUE . 21-86,21-87,
21-88
CONVERTER HOUSING LEAK DIAGNOSIS . . 21-75
CONVERTER INSTALLATION,
TRANSMISSION.....................21-117
CONVERTER INSTALLATION,
TRANSMISSION AND TORQUE.........21-199
CONVERTER REMOVAL, TRANSMISSION . 21-115
CONVERTER REMOVAL, TRANSMISSION
AND TORQUE......................21-198
CONVERTER STALL TEST..............21-74
CONVERTER STALL TEST, TORQUE.....21-178
CONVERTER STATOR CLUTCH
INSPECTION, TORQUE................21-199
CONVERTER, TORQUE...........21-167,21-67
CONVERTERÐPUMP SEALÐDRIVE
PLATE SERVICE.....................21-116
CONVERTOR, CATALYTIC................25-1
COOLANT............................7-20
COOLANT RESERVE/OVERFLOW SYSTEM . . 7-24
COOLANT ROUTING, SYSTEM.............7-1
COOLANT TEMPERATURE GAUGE,
ENGINE; INSTRUMENT CLUSTER (XJ) . . 8W-40-1
COOLANT TEMPERATURE SENSOR.......25-7
COOLANT TEMPERATURE SENSOR,
ENGINE; FUEL SYSTEM................14-60
COOLANT TEMPERATURE SENSOR,
ENGINE; FUEL/IGNITION (XJ).........8W-30-3
COOLANT TEMPERATURE SENSOR,
ENGINE; FUEL/IGNITION (YJ).........8W-30-3
COOLANT TEMPERATURE SENSOR,
ENGINE; IGNITION SYSTEMS.......8D-19,8D-5
COOLANT TEMPERATURE SENSOR,
ENGINE; FUEL/IGNITION (XJ-RHD).....8W-30-3
COOLANT TEMPERATURE SENSOR TEST,
ENGINE; FUEL SYSTEM................14-46
COOLANT TEMPERATURE SENSOR TEST,
ENGINE; IGNITION SYSTEMS............8D-9
COOLANT TEMPERATURE SENSORÐ
PCM INPUT, ENGINE
..................14-23
COOLANT TEMPERATURE WARNING
LAMP, ENGINE; INSTRUMENT
CLUSTER (XJ)
.....................8W-40-1
COOLANT TEMPERATURE WARNING
LAMP, ENGINE; INSTRUMENT
CLUSTER (XJ-RHD)
................8W-40-1
COOLER FLOW TESTING,
TRANSMISSION
.....................21-113
COOLER LINE AND FITTING SERVICE,
TRANSMISSION
.....................21-111
COOLER LINE FITTINGS, TRANSMISSION
. 21-197
COOLER REVERSE FLUSHING,
TRANSMISSION
.....................21-114
COOLER SERVICE, TRANSMISSION
.....21-196
COOLERS, TRANSMISSION OIL
..........7-36
COOLING FANÐXJ MODELS WITH 4.0L
6-CYLINDER ENGINE, AUXILIARY
ELECTRIC
...........................7-35
COOLING SYSTEM; COOLING SYSTEM
......7-1
COOLING SYSTEM; HEATING AND AIR
CONDITIONING
......................24-10
COOLING SYSTEM CAPACITIES
..........7-45COOLING SYSTEM CLEANING/REVERSE
FLUSHING...........................7-22
COOLING SYSTEM COMPONENTS.........7-1
COOLING SYSTEM DIAGNOSIS............7-6
COOLING SYSTEM, DRAINING...........7-21
COOLING SYSTEM, ENGINE.............0-18
COOLING SYSTEM FANS................7-32
COOLING SYSTEM FOR LEAKS, TESTING . . . 7-22
COOLING SYSTEM HOSES..............7-32
COOLING SYSTEM, REFILLING...........7-21
CORE AND HOUSING, HEATER..........24-33
CORE, HEATER......................24-26
COURTESY LAMPS AND DOME LAMP,
CARGO LAMP; INTERIOR LIGHTING
(XJ).............................8W-44-1
COURTESY LAMPS AND DOME LAMPS;
INTERIOR LIGHTING (YJ)............8W-44-1
COURTESY LAMPS, READING...........8C-1
COVER AND DISC INSTALLATION,
CLUTCH.............................6-10
COVER AND DISC REMOVAL, CLUTCH.....6-10
COVER AND DISC RUNOUT, CLUTCH.......6-3
COVER AND FRAMEÐXJ, BUCKET
SEATBACK..........................23-81
COVER, ENGINE CYLINDER HEAD....9-22,9-64
COVER, FRAME CROSSMEMBER........13-16
COVER OIL SEAL REPLACEMENT,
TIMING CASE....................9-30,9-73
COVER REPLACEMENT, PITMAN SHAFT
AND SIDE..........................19-28
COVER, TIMING CASE..............9-31,9-72
COVERÐXJ, BUCKET SEAT CUSHION....23-81
COVERÐXJ, PARKING BRAKE HANDLE . . . 23-94
COVERÐXJ, REAR SEAT CUSHION......23-82
COVERÐXJ, REAR SEATBACK..........23-84
COVERSÐXJ, B/C-PILLAR AND
LIFTGATE PILLAR TRIM...............23-88
COWL GRILLE AND SCREENÐXJ........23-12
COWL GRILLE AND SCREENÐYJ.......23-109
COWL WEATHERSTRIP SEAL/
CROSSMEMBER AIR DEFLECTORÐXJ....23-11
COWL WEATHERSTRIP SEALÐYJ......23-109
CRANKCASE VENTILATION SYSTEM;
EMISSION CONTROL SYSTEMS..........25-5
CRANKCASE VENTILATION SYSTEM;
LUBRICATION AND MAINTENANCE........0-19
CRANKING SPECIFICATIONS, 2.5L
STARTING SYSTEM COLD..............8A-23
CRANKING SPECIFICATIONS, 4.0L
STARTING SYSTEM COLD..............8A-23
CRANKSHAFT MAIN BEARINGS......9-45,9-87
CRANKSHAFT POSITION SENSOR; FUEL
SYSTEM............................14-60
CRANKSHAFT POSITION SENSOR;
FUEL/IGNITION (XJ)................8W-30-3
CRANKSHAFT POSITION SENSOR;
FUEL/IGNITION (YJ)................8W-30-3
CRANKSHAFT POSITION SENSOR;
IGNITION SYSTEMS..............8D-17,8D-3
CRANKSHAFT POSITION SENSOR;
FUEL/IGNITION (XJ-RHD)............8W-30-3
CRANKSHAFT POSITION SENSOR TEST;
FUEL SYSTEM.......................14-47
CRANKSHAFT POSITION SENSOR TEST;
IGNITION SYSTEMS...................8D-7
CRANKSHAFT POSITION SENSORÐPCM
INPUT.............................14-22
CROSSMEMBER COVER, FRAME........13-16
CROSSMEMBERÐXJ, RADIATOR
SUPPORT...........................23-6
CUSHION AND COVERÐXJ, BUCKET
SEAT ..............................23-81
CUSHION COVERÐXJ, REAR SEAT......23-82
CUSHIONÐXJ, REAR SEAT.............23-82
CUT-OFF SWITCH, LOW-PRESSURE
HIGH-PRESSURE................24-15,24-16
CYCLING CLUTCH SWITCH, FIN
SENSING......................24-15,24-31
CYLINDER AND COMBINATION VALVE
INSTALLATION (WITH ABS), MASTER.....5-20
CYLINDER AND COMBINATION VALVE
REMOVAL (WITH ABS), MASTER.........5-17
CYLINDER BENCH BLEEDING, MASTER
....5-21
CYLINDER BLOCK
.................9-49,9-91
CYLINDER BORES, HONING
..............9-2
CYLINDER, CLUTCH MASTER
............0-22
CYLINDER COMBUSTION PRESSURE
LEAKAGE TEST
........................9-6
6 INDEXJ
Description Group-Page Description Group-Page Description Group-Page

DOOR REMOVAL/INSTALLATIONÐXJ.....23-35
DOOR RESTRAINT REPLACEMENTÐXJ . . . 23-41
DOOR SERVICEÐYJ, FULL-METAL......23-142
DOOR SPACER BLOCKSÐTWO-DOOR
VEHICLES, FRONT....................23-53
DOOR STATIONARY WINDOW
GLASSÐXJ, REAR...................23-46
DOOR TRIM PANELÐXJ...............23-31
DOOR TRIM PANELÐYJ, FULL-METAL . . . 23-137
DOOR VACUUM MOTOR, FRESH AIR.....24-34
DOOR VACUUM MOTOR REPLACEMENT,
A/C RECIRCULATING..................24-27
DOOR VENT WINDOW GLASSÐYJ,
FULL-METAL.......................23-137
DOOR WATERDAMÐYJ, FULL-METAL . . . 23-137
DOOR WEATHERSTRIP SEAL
REPLACEMENTÐYJ.................23-142
DOOR WEATHERSTRIP SEALSÐYJ,
FULL-METAL.......................23-141
DOOR WINDOW EXTERIOR
MOLDINGSÐXJ.....................23-54
DOOR WINDOW GLASS AND DOOR
OPENING WEATHERSTRIP SEALSÐXJ....23-55
DOOR WINDOW GLASS REGULATOR
HANDLEÐYJ, FULL-METAL............23-136
DOOR WINDOW GLASS REGULATORÐ
XJ, FRONT..........................23-42
DOOR WINDOW GLASS REGULATORÐ
XJ, REAR...........................23-44
DOOR WINDOW GLASS REGULATORÐ
YJ, FULL-METAL....................23-138
DOOR WINDOW GLASSÐXJ, FRONT.....23-43
DOOR WINDOW GLASSÐXJ, REAR......23-45
DOOR WINDOW GLASSÐYJ, FULL-
METAL............................23-139
DOORÐYJ, HALF-METAL SOFT TOP.....23-134
DOUBLE CARDAN (CV)................16-11
DRAG LINK....................19-16,19-20
DRAINING COOLING SYSTEM............7-21
DRAW FUSE, IGNITION-OFF.............8F-1
DRAW, IGNITION-OFF.................8A-10
DRB SCAN TOOL; BRAKES...............5-3
DRB SCAN TOOL; COOLING SYSTEM.......7-5
DRB SCAN TOOL; EMISSION CONTROL
SYSTEMS...........................25-2
DRB SCAN TOOL; FUEL SYSTEM........14-54
DRB SCAN TOOL; IGNITION SYSTEMS....8D-8
DRIERÐ2.5L ENGINES, CONDENSER
FILTER.............................24-27
DRIERÐ4.0L ENGINES, FILTER.........24-28
DRIP RAIL MOLDINGÐXJ.............23-25
DRIVE (4WD) SWITCH, FOUR-WHEEL;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
DRIVE (4WD) SWITCH, FOUR-WHEEL;
TRANSMISSION CONTROLS (XJ-RHD) . . 8W-31-1
DRIVE, AUTOMATIC BELT TENSIONERÐ
XJ MODELS WITH RIGHT HAND..........7-42
DRIVE AXLE ASSEMBLY
REPLACEMENTÐXJ VEHICLES; FRONT
SUSPENSION AND AXLE................2-23
DRIVE AXLE ASSEMBLY
REPLACEMENTÐXJ VEHICLES; REAR
SUSPENSION AND AXLES...........3-14,3-31
DRIVE AXLE ASSEMBLY
REPLACEMENTÐYJ VEHICLES; FRONT
SUSPENSION AND AXLE................2-24
DRIVE AXLE ASSEMBLY
REPLACEMENTÐYJ VEHICLES; REAR
SUSPENSION AND AXLES
...............3-14
DRIVE AXLE, FRONT
....................2-3
DRIVE BELT, ACCESSORY
...............0-21
DRIVE BELT DIAGNOSIS (CONT.),
SERPENTINE
.........................7-40
DRIVE BELT DIAGNOSIS, SERPENTINE
.....7-39
DRIVE, BELT SERVICEÐEXCEPT RIGHT
HAND
...............................7-40
DRIVE, BELT SERVICEÐXJ MODELS
WITH RIGHT HAND
....................7-42
DRIVE BELT TENSION
..................7-45
DRIVE BELTS, ENGINE ACCESSORY
.......7-38
DRIVE GEAR, SPEED SENSOR
ROTORÐSPEEDOMETER
.............21-193
DRIVE, GENERATOR REMOVE/INSTALLÐ
LEFT-HAND
..........................8B-6
DRIVE, GENERATOR REMOVE/INSTALLÐ
RIGHT-HAND
.........................8B-7
DRIVE PULLEY REPLACEMENT
..........19-13DRIVE (RHD), BELT TENSIONÐEXCEPT
RIGHT HAND.........................7-38
DRIVE (RHD), BELT TENSIONÐRIGHT
HAND...............................7-38
DRIVE (RHD) MODELS, BELT TENSIONÐ
EXCEPT RIGHT HAND..................7-45
DRIVE SHAFTS.......................0-26
DRIVE VEHICLES, RIGHT HAND..........23-1
DRIVE, VISCOUS FAN..................7-34
DRIVELINE SNAP; FRONT SUSPENSION
AND AXLE...........................2-19
DRIVELINE SNAP; REAR SUSPENSION
AND AXLES..........................3-10
DRIVELINE VIBRATION.................16-3
DRIVER'S DOOR JAMB SWITCH.....8U-1,8U-2
DRIVER'S POWER LOCK SWITCHÐ2-
DOOR (LHD).........................8P-3
DRIVER'S POWER LOCK SWITCHÐ2-
DOOR (RHD).........................8P-4
DRIVER'S POWER LOCK SWITCHÐ4-
DOOR..............................8P-5
DRIVER'S POWER WINDOW SWITCHÐ
2-DOOR (LHD).......................8S-4
DRIVER'S POWER WINDOW SWITCHÐ
2-DOOR (RHD).......................8S-5
DRIVER'S POWER WINDOW SWITCHÐ
4-DOOR.............................8S-3
DRIVER'S SEAT BELT SWITCH.......8U-1,8U-3
DRIVETRAIN.........................0-22
DRL MODULE REPLACEMENTÐXJ.......8L-15
DRL MODULE REPLACEMENTÐYJ........8L-30
DRUM BRAKE ADJUSTMENT............5-57
DRUM BRAKES.......................5-55
DRUM BRAKESHOE INSTALLATION.......5-55
DRUM BRAKESHOE REMOVAL...........5-55
DRUM REFINISHING, BRAKE............5-58
DRUMÐREAR SUPPORT OVERHAUL,
OVERRUNNING CLUTCHÐLOW-
REVERSE..........................21-125
DUCT, DEFROSTER NOZZLE............24-33
DUCT, FRESH AIR INTAKE..............24-34
ECU AND HCU DIAGNOSIS, ANTILOCK......5-3
ECU INSTALLATION (XJ MODELS)........5-40
ECU OPERATION......................5-37
ECU REMOVAL (XJ MODELS)............5-40
ECU REMOVAL/INSTALLATION (YJ
MODELS)............................5-41
EDGE GUARD/EDGE PROTECTOR
STRIPÐXJ, DOOR....................23-54
EFFECTS OF INCORRECT FLUID LEVEL....21-71
EFFORT, HARD PEDAL OR HIGH PEDAL.....5-6
ELECTRIC COOLING FANÐXJ MODELS
WITH 4.0L 6-CYLINDER ENGINE,
AUXILIARY..........................7-35
ELECTRICAL CONTROL, FUEL PUMP......14-5
ELECTRONIC CONTROL UNIT (ECU).......5-34
ELECTROSTATIC DISCHARGE (ESD)
SENSITIVE DEVICES; WIRING
DIAGRAMSÐGENERAL INFORMATION
(XJ)...............................8W-2
ELEMENT, AIR CLEANER; EMISSION
CONTROL SYSTEMS...................25-7
ELEMENT, AIR CLEANER; FUEL SYSTEM . . 14-59
ELEMENT, AIR CLEANER; LUBRICATION
AND MAINTENANCE...................0-18
ELEMENT TEST, OXYGEN SENSOR (O2S)
HEATING...........................14-48
ELEMENTS, HEATER; POWER MIRRORS
(XJ-RHD).........................8W-62-1
EMISSION CONTROL INFORMATION
(VECI) LABEL, VEHICLE.................25-1
EMISSION CONTROL SYSTEM...........0-20
EMISSION CONTROL SYSTEM
MAINTENANCE........................0-4
EMISSION CONTROLS..................25-4
EMR LAMPÐPCM OUTPUT............14-27
ENGINE ACCESSORY DRIVE BELTS.......7-38
ENGINE AND TRANSMISSION/TRANSFER
CASE IDENTIFICATION...............Intro.-5
ENGINE ASSEMBLY (SHORT BLOCK),
SERVICE.............................9-4
ENGINE ASSEMBLYÐXJ VEHICLES
. . . 9-18,9-59
ENGINE ASSEMBLYÐYJ VEHICLES
. . . 9-20,9-62
ENGINE, AUXILIARY ELECTRIC COOLING
FANÐXJ MODELS WITH 4.0L
6-CYLINDER
.........................7-35
ENGINE BLOCK HEATER
................7-44
ENGINE BREAK-IN
.....................0-15ENGINE COOLANT TEMPERATURE
GAUGE; INSTRUMENT CLUSTER (XJ) . . 8W-40-1
ENGINE COOLANT TEMPERATURE
SENSOR; FUEL SYSTEM...............14-60
ENGINE COOLANT TEMPERATURE
SENSOR; FUEL/IGNITION (XJ)........8W-30-3
ENGINE COOLANT TEMPERATURE
SENSOR; FUEL/IGNITION (YJ)........8W-30-3
ENGINE COOLANT TEMPERATURE
SENSOR; IGNITION SYSTEMS......8D-19,8D-5
ENGINE COOLANT TEMPERATURE
SENSOR; FUEL/IGNITION (XJ-RHD)....8W-30-3
ENGINE COOLANT TEMPERATURE
SENSOR TEST; FUEL SYSTEM..........14-46
ENGINE COOLANT TEMPERATURE
SENSOR TEST; IGNITION SYSTEMS.......8D-9
ENGINE COOLANT TEMPERATURE
SENSORÐPCM INPUT................14-23
ENGINE COOLANT TEMPERATURE
WARNING LAMP; INSTRUMENT
CLUSTER (XJ).....................8W-40-1
ENGINE COOLANT TEMPERATURE
WARNING LAMP; INSTRUMENT
CLUSTER (XJ-RHD)................8W-40-1
ENGINE COOLING SYSTEM..............0-18
ENGINE CYLINDER HEAD...........9-25,9-67
ENGINE CYLINDER HEAD COVER.....9-22,9-64
ENGINE CYLINDER HEAD GASKET
FAILURE DIAGNOSIS....................9-5
ENGINE DAMPER.....................9-17
ENGINE DIAGNOSIS....................9-5
ENGINE, DIAGRAM INDEXÐ2.5L;
FUEL/IGNITION (XJ)..................8W-30-6
ENGINE, DIAGRAM INDEXÐ4.0L;
FUEL/IGNITION (XJ)................8W-30-6
ENGINE, ENGINE EXHAUST MANIFOLDÐ
2.5L................................11-7
ENGINE, ENGINE EXHAUST MANIFOLDÐ
4.0L................................11-7
ENGINE, ENGINE FIRING ORDERÐ2.5L
4-CYLINDER........................8D-32
ENGINE, ENGINE FIRING ORDERÐ4.0L
6-CYLINDER........................8D-32
ENGINE EXHAUST MANIFOLDÐ2.5L
ENGINE.............................11-7
ENGINE EXHAUST MANIFOLDÐ4.0L
ENGINE.............................11-7
ENGINE FIRING ORDERÐ2.5L
4-CYLINDER ENGINE.................8D-32
ENGINE FIRING ORDERÐ4.0L
6-CYLINDER ENGINE.................8D-32
ENGINE, INTAKE MANIFOLDÐ2.5L........11-7
ENGINE, INTAKE MANIFOLDÐ4.0L........11-8
ENGINE MAINTENANCE.................0-15
ENGINE MOUNTÐREAR............9-16,9-57
ENGINE MOUNTSÐFRONT..........9-14,9-56
ENGINE OIL..........................0-15
ENGINE OIL CHANGE AND FILTER
REPLACEMENT.......................0-16
ENGINE OIL FILTER....................0-17
ENGINE OIL PRESSURE.................9-7
ENGINE ONLY, POWER STEERING
PRESSURE SWITCHÐ2.5L.............14-63
ENGINE ONLY, TORQUE CONVERTER
CLUTCH (TCC) SOLENOID AND
RELAYÐ2.5L; TRANSMISSION
CONTROLS (XJ)...................8W-31-1
ENGINE ONLY, TRANSMISSION
CONTROL MODULEÐ4.0L;
TRANSMISSION CONTROLS (XJ)......8W-31-1
ENGINE PERFORMANCE.................9-2
ENGINE SERVICE PROCEDURES, 2.5L.....9-13
ENGINE SERVICE PROCEDURES, 4.0L.....9-55
ENGINE SPECIFICATIONS...........9-52,9-93
ENGINE, VACUUM ROUTING
SCHEMATICÐ2.5L 4 CYLINDER..........25-3
ENGINE, VACUUM ROUTING
SCHEMATICÐ4.0L 6 CYLINDER..........25-3
ENGINES, CONDENSER FILTER
DRIERÐ2.5L........................24-27
ENGINES, CONDENSERÐ4.0L..........24-28
ENGINES, FILTER DRIERÐ4.0L
.........24-28
ENGINES, FUEL USAGE STATEMENTÐ
GAS
................................0-19
ENGLISH/SAE CONVERSION, METRIC
. . Intro.-11
ENTRY MODULE, KEYLESS
.........8P-1,8P-7
ENTRY MODULE, REMOTE KEYLESS;
POWER DOOR LOCKS (XJ)
...........8W-61-1
JINDEX 9
Description Group-Page Description Group-Page Description Group-Page

ENTRY MODULE REMOVE/INSTALL,
KEYLESS...........................8P-10
ENTRY RECEIVER, KEYLESS.............8C-1
ENTRY RECEIVERÐXJ, KEYLESS........23-93
ENTRY TRANSMITTER, KEYLESS . 8P-1,8P-7,8P-8
EQUIPMENT, REFRIGERANT.............24-7
EQUIVALENT VALUES, CONVERSION
FORMULAS.......................Intro.-11
EVACUATING REFRIGERANT SYSTEM.....24-11
EVAP CANISTER..................25-4,25-7
EVAP (EVAPORATION) CONTROL
SYSTEM............................25-4
EVAPORATIVE HOUSING
COMPONENTSÐYJ....................24-6
EVAPORATOR AND HOUSING...........24-35
EVAPORATOR COIL...................24-30
EVAPORATOR/BLOWER HOUSING........24-29
EXHAUST GAS RECIRCULATION (EGR)
SYSTEM............................25-1
EXHAUST GRILLEÐXJ, AIR............23-25
EXHAUST HEAT SHIELDS...............11-1
EXHAUST MANIFOLDÐ2.5L ENGINE,
ENGINE.............................11-7
EXHAUST MANIFOLDÐ4.0L ENGINE,
ENGINE.............................11-7
EXHAUST PIPEÐXJ VEHICLES...........11-3
EXHAUST PIPEÐYJ VEHICLES...........11-4
EXHAUST SYSTEM; EXHAUST SYSTEM
AND INTAKE MANIFOLD................11-1
EXHAUST SYSTEM; LUBRICATION AND
MAINTENANCE.......................0-21
EXHAUST SYSTEM DIAGNOSIS..........11-2
EXHAUST TAILPIPEÐXJ VEHICLES,
MUFFLER............................11-5
EXHAUST TAILPIPEÐYJ VEHICLES,
MUFFLER............................11-6
EXPANSION VALVE..............24-31,24-35
EXTENDED IDLE SWITCH; FUEL/
IGNITION (XJ).....................8W-30-5
EXTENDED IDLE SWITCH TEST..........14-48
EXTENDED IDLE SWITCHÐPCM INPUT . . . 14-23
EXTENSIONÐXJ, QUARTER TRIM PANEL . 23-87
EXTERIOR COMPONENTS.........23-104,23-3
EXTERIOR LAMPSÐXJ................8L-18
EXTERIOR LAMPSÐYJ................8L-32
EXTERIOR MOLDINGSÐXJ, DOOR
WINDOW...........................23-54
EXTERIOR NAMEPLATES (ADHESIVE-
BACKED)ÐYJ......................23-120
EXTERIOR NAMEPLATESÐXJ...........23-26
EXTERNAL HANDLEÐXJ, DOOR.........23-48
EXTERNAL MIRRORSÐXJ.............23-27
EXTERNAL RELEASE HANDLEÐYJ,
FULL-METAL DOOR LATCH............23-140
EXTERNAL SPARE/WHEEL TIRE
CARRIERÐYJ......................23-133
(EXTERNAL)ÐYJ, HALF METAL DOOR
MIRROR..........................23-121
EYE BUSHING REPLACEMENT, LEAF
SPRING; FRONT SUSPENSION AND
AXLE...............................2-17
EYE BUSHING REPLACEMENT, LEAF
SPRING; REAR SUSPENSION AND
AXLES............................3-5,3-7
FAN RELAY AND MOTOR, RADIATOR;
AIR CONDITIONING/HEATER (XJ)......8W-42-2
FAN RELAY AND MOTOR, RADIATOR;
AIR CONDITIONING/HEATER (XJ-RHD) . . 8W-42-2
FAN RELAYÐPCM OUTPUT, RADIATOR . . . 14-28
FANÐXJ MODELS WITH 4.0L
6-CYLINDER ENGINE, AUXILIARY
ELECTRIC COOLING...................7-35
FANS, COOLING SYSTEM...............7-32
FEED, BATTERY; FUEL/IGNITION (XJ) . . . 8W-30-1
FEED, BATTERY; FUEL/IGNITION (YJ) . . . 8W-30-2
FEED, BATTERY; FUEL/IGNITION
(XJ-RHD).........................8W-30-1
FEED, IGNITION; FUEL/IGNITION
(XJ-RHD).........................8W-30-1
FENDER FLAREÐYJ.................23-114
FENDER INNER SPLASH SHIELDSÐYJ . . 23-116
FENDER SPLASH APRONSÐYJ........23-115
FENDERÐXJ, FRONT
.................23-14
FENDERSÐYJ
......................23-110
FIELDÐPCM OUTPUT, GENERATOR
......14-27
FILL LEVEL, TRANSFER CASE
LUBRICANT
........................21-284
FILLER DOOR BUMPERSÐXJ, FUEL
.....23-27FILLER HOSE SPLASH SHIELDÐXJ
VEHICLES, FUEL......................13-4
FILLER NOZZLE/TUBEÐXJ, FUEL........23-26
FILLER PROTECTOR/NOZZLEÐYJ, FUEL . 23-121
FILLER TUBE CAP, FUEL TANK;
EMISSION CONTROL SYSTEMS......25-4,25-7
FILLER TUBE CAP, FUEL TANK; FUEL
SYSTEM............................14-13
FILLER TUBE, NO-LEAD FUEL TANK......14-13
FILTER DRIERÐ2.5L ENGINES,
CONDENSER........................24-27
FILTER DRIERÐ4.0L ENGINES..........24-28
FILTER, ENGINE OIL...................0-17
FILTER, FUEL; FUEL SYSTEM.......14-60,14-9
FILTER, FUEL; LUBRICATION AND
MAINTENANCE.......................0-19
FILTER REPLACEMENT, ENGINE OIL
CHANGE............................0-16
FILTER REPLACEMENT, FLUID..........21-99
FILTER REPLACEMENT, OIL............21-103
FIN SENSING CYCLING CLUTCH SWITCH . 24-15,
24-31
FINAL ASSEMBLY; FRONT SUSPENSION
AND AXLE...........................2-46
FINAL ASSEMBLY; REAR SUSPENSION
AND AXLES..........................3-29
FIRING ORDERÐ2.5L 4-CYLINDER
ENGINE, ENGINE.....................8D-32
FIRING ORDERÐ4.0L 6-CYLINDER
ENGINE, ENGINE.....................8D-32
FIRST-REVERSE BRAKE PISTON AND
TRANSMISSION CASE OVERHAUL......21-247
FIRST/SECOND/THIRD/REVERSE
COMPONENTS......................21-168
FITTING CHART, CONNECTING ROD
BEARING........................9-41,9-83
FITTING CHART, MAIN BEARING......9-48,9-90
FITTING O-RING SEAL, FLOW CONTROL
VALVE .............................19-14
FITTING SERVICE, TRANSMISSION
COOLER LINE......................21-111
FITTINGS, TRANSMISSION COOLER LINE . 21-197
FLAREÐYJ, FENDER.................23-114
FLARES AND LINERSÐXJ, REAR
WHEELHOUSE.......................23-19
FLASHER, COMBINATION; TURN
SIGNALS (XJ).....................8W-52-1
FLASHERS, HAZARD; TURN SIGNALS
(XJ).............................8W-52-1
FLASHERS, HAZARD; TURN SIGNALS
(XJ-RHD).........................8W-52-1
FLASHERS, HAZARD; TURN SIGNALS
(YJ).............................8W-52-1
FLOOR BRACKETSÐXJ, SPARE
TIRE/WHEEL HOLDDOWN..............23-98
FLOOR CONSOLEÐXJ, FULL...........23-95
FLOOR CONSOLESÐYJ...............23-155
FLOOR MATSÐXJ, CARPETS...........23-99
FLOOR SHIFTÐXJ, MINI-CONSOLE WITH . 23-94
FLOW CONTROL VALVE FITTING O-RING
SEAL..............................19-14
FLOW TESTING, TRANSMISSION
COOLER...........................21-113
FLUID AND FILTER REPLACEMENT.......21-99
FLUID CAPACITIES.....................0-3
FLUID, CLUTCH LINKAGE................6-1
FLUID CONTAMINATION, BRAKE.......5-10,5-7
FLUID LEVEL AND CONDITION,
CHECKING.........................21-182
FLUID LEVEL, BRAKE..................5-10
FLUID LEVEL CHECK.............21-70,21-99
FLUID LEVEL, CLUTCH.................6-14
FLUID, RECOMMENDED BRAKE..........5-10
FLUID WARNING LAMP, LOW WASHER;
INSTRUMENT CLUSTER (XJ).........8W-40-2
FLUID WARNING LAMP, LOW WASHER;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
FLUID/FILTER CHANGE, REFILLING
AFTER OVERHAUL OR..........21-100,21-182
FLUID/LUBRICANTS/CLEANING
SOLVENTS, BRAKE
.....................5-2
FLUIDÐBRAKE BLEEDINGÐ
BRAKELINES AND HOSES, BRAKE
........5-10
FLUSHING, COOLING SYSTEM
CLEANING/REVERSE
...................7-22
FLUSHING, TRANSMISSION COOLER
REVERSE
..........................21-114
FLYWHEEL RUNOUT
....................6-3FLYWHEEL SERVICE...................6-16
FOG LAMP DIAGNOSIS............8L-21,8L-3
FOG LAMP REPLACEMENTÐXJ..........8L-9
FOG LAMP REPLACEMENTÐYJ.........8L-25
FOG LAMP SWITCH REPLACEMENTÐXJ . . 8L-10
FOG LAMP SWITCH REPLACEMENTÐYJ . . 8L-26
FOG LAMPS; FRONT LIGHTING (XJ) . . . 8W-50-1
FOG LAMPS; FRONT LIGHTING (XJ-RHD) . 8W-50-2
FOG LAMPS; FRONT LIGHTING (YJ) . . . 8W-50-1
FOG LAMPSÐXJ......................8L-7
FOG LAMPSÐYJ.....................8L-23
FORM-IN-PLACE GASKETS...............9-1
FORMULAS AND EQUIVALENT VALUES,
CONVERSION.....................Intro.-11
FORWARD CLUTCH OVERHAUL........21-232
FOURTH GEAR OVERDRIVE
COMPONENTS......................21-167
FOUR-WHEEL DRIVE (4WD) SWITCH;
INSTRUMENT CLUSTER (XJ-RHD).....8W-40-2
FOUR-WHEEL DRIVE (4WD) SWITCH;
TRANSMISSION CONTROLS (XJ-RHD) . . 8W-31-1
FOUR-WHEEL-DRIVE VEHICLE TOWING....0-12
FRAME.........................13-10,13-1
FRAME CROSSMEMBER COVER.........13-16
FRAME DIMENSIONS.............13-13,13-1
FRAME GLASS CHANNEL
REPLACEMENTÐYJ, DOOR...........23-142
FRAME REPAIRS......................13-13
FRAME STRAIGHTENING...............13-13
FRAME WEATHERSTRIP SEALÐYJ,
WINDSHIELD.......................23-146
FRAMEÐXJ, BUCKET SEATBACK COVER . . 23-81
FRAMEÐYJ, WINDSHIELD............23-145
FREQUENCY INTERFERENCE, RADIO......8F-5
FRESH AIR DOOR VACUUM MOTOR......24-34
FRESH AIR INTAKE DUCT..............24-34
FRONT AND REAR AXLES...............0-24
FRONT AXLE, MODEL 30...............2-49
FRONT BUCKET SEATSÐXJ............23-81
FRONT BUMPER.................13-16,13-5
FRONT CABLE REPLACEMENT (YJ),
PARKING BRAKE......................5-67
FRONT CARPET/MATÐXJ..............23-99
FRONT CLUTCH OVERHAUL...........21-134
FRONT DOOR SPACER BLOCKSÐTWO-
DOOR VEHICLES.....................23-53
FRONT DOOR WINDOW GLASS
REGULATORÐXJ....................23-42
FRONT DOOR WINDOW GLASSÐXJ.....23-43
FRONT DRIVE AXLE....................2-3
FRONT FENDERÐXJ..................23-14
FRONT INNER SCUFF PLATE/COWL SIDE
TRIM PANELÐXJ....................23-86
FRONT PARK/TURN SIGNAL LAMP BULB
REPLACEMENTÐXJ...................8L-9
FRONT PARK/TURN SIGNAL LAMP BULB
REPLACEMENTÐYJ..................8L-25
FRONT PLANETARY GEAR OVERHAUL . . . 21-237
FRONT SERVO AND BAND OVERHAUL . . . 21-146
FRONT SHOULDER BELT/BUCKLEÐXJ....23-90
FRONT SHOULDER BELTSÐYJ.........23-154
FRONT SKID PLATE
....................13-1
FRONT SUSPENSION
...................2-1
FRONT SUSPENSION COMPONENTS, XJ
. . . 2-49
FRONT SUSPENSION COMPONENTS, YJ
. . . 2-49
FRONT SUSPENSION, XJ
...............2-11
FRONT SUSPENSION, YJ
...............2-15
FRONT TOW HOOKS
...................13-7
FRONT WHEEL ALIGNMENT
..............2-5
FRONT WHEEL BEARINGS
..............0-28
FRONT WHEEL SENSOR INSTALLATION
....5-38
FRONT WHEEL SENSOR REMOVAL
.......5-38
FUEL DELIVERY SYSTEM
...............14-3
FUEL FILLER DOOR BUMPERSÐXJ
......23-27
FUEL FILLER HOSE SPLASH SHIELDÐXJ
VEHICLES
...........................13-4
FUEL FILLER NOZZLE/TUBEÐXJ
........23-26
FUEL FILLER PROTECTOR/NOZZLEÐYJ
. . 23-121
FUEL FILTER; FUEL SYSTEM
........14-60,14-9
FUEL FILTER; LUBRICATION AND
MAINTENANCE
.......................0-19
FUEL GAUGE; INSTRUMENT CLUSTER
(XJ)
.............................8W-40-1
FUEL GAUGE; INSTRUMENT CLUSTER
(XJ-RHD)
.........................8W-40-1
FUEL GAUGE SENDING UNIT
...........14-16
10 INDEXJ
Description Group-Page Description Group-Page Description Group-Page
