Features of your vehicle
Rear View Monitor will activate with
the Engine Start/Stop button is
turned ON and the shift lever in the R
(Reverse) position.This system is a supplemental sys-
tem that shows behind the vehicle
through the rearview display mirror
while backing-up.
This system is a supplementary
system only. It is the responsibility
of the driver to always check the
inside/outside rearview mirrors and
the area behind the vehicle before
and while backing up.
Always keep the camera lens
clean. If lens is covered with for-
eign matter, the camera may not
operate normally.
REAR VIEW MONITOR (RVM)
WARNING - Backing &
using camera
Never rely solely on the rear view
monitor. You must always use
methods of viewing the area
behind you including looking
over both shoulders as well as
checking all three rear view mir-
rors. Due to the difficulty of
ensuring that the area behind
you remains clear, always back
up slowly and stop immediately
if you suspect that a person, and
especially a child, might be
behind you.
OYG049403
OYG040404N

Features of your vehicle
100 4
Surround View Monitoring is not a
substitute for proper and safe park-
ing procedures. Surround View
Monitoring may not detect every
object surrounding the vehicle.
Always drive safely and use caution
when parking.Surround View Monitoring can assist
in parking by allowing the driver to
see around the vehicle. Push the but-
ton into the [ON] position to operate
the system.
To cancel the system, push the but-
ton again.Operating conditions
- When the ENGINE START/STOP
button is ON position
- When the transaxle is on D, N or R
- When the vehicle speed is not over
9 mph (15 km/h).
When the vehicle speed is over 9
mph, SVM is turned off. If the vehicle
speed then decreases below over 9
mph (15 km/h) SVM will not auto-
matically turn on again. To operate
again, push the button.
When the vehicle moves back-
wards, regardless of On/Off of but-
ton and vehicle speed, SVM oper-
ates automatically.
SURROUND VIEW MONITORING (SVM) (IF EQUIPPED)
OYG040405N
OYG049406

4101
Features of your vehicle
Surround View Monitor auto activa-
tion is activated or deactivated
when you select ‘Settings →
Vehicle →Driver Assistance →
Parking safety →Surround View
Monitor Auto On’ from the Settings
menu in the Infotainment System
screen.
For more details, please scan the
QR code in a separately supplied
Car Infotainment System Quick
Reference Guide.
When the trunk and driver/passen-
ger door are opened and the out-
side mirror is folded, the warning is
illuminated in SVM
If SVM is not operating normally, the
system should be checked by an
authorized Kia dealer.
WARNING
This system is a supplementary
system only. It is the responsi-
bility of the driver to always
check the area around the vehi-
cle before and while moving.

Features of your vehicle
102 4
Reverse Parking Distance Warning
assists the driver during backward
movement of the vehicle by chiming if
any object is sensed within a distance
of 48 in. (120 cm) behind the vehicle.
This system is a supplemental system
and it is not intended to nor does it
replace the need for extreme care and
attention of the driver. The sensing
range and objects detectable by rear
ultrasonic sensors are limited.
Whenever backing-up, pay as much
attention to what is behind you as you
would in a vehicle without Reverse
Parking Distance Warning.
Operation of Reverse Parking
Distance Warning
Operating condition
This system will activate when
backing up with the Engine
Start/Stop button is turned ON.
If the vehicle is moving at a speed
over 3 mph (5 km/h), the system
may not be activated.
The sensing distance while the
back-up warning system is in oper-
ation is approximately 48 in. (120
cm) at the rear bumper center
area, 24 in. (60 cm) at the rear
bumper side areas.
When more than two objects are
sensed at the same time, the clos-
est one will be recognized first.
REVERSE PARKING DISTANCE WARNING (PDW)
WARNING -Reverse
Parking Distance Warning
Never rely solely on Reverse
Parking Distance Warning.
Always perform a visual inspec-
tion to make sure the vehicle is
clear of all obstructions before
moving the vehicle in any direc-
tion. Stop immediately if you are
aware of a child anywhere near
your vehicle. Some objects may
not be detected by the sensors,
due to the object's size or mate-
rial.
OYG049400
Ultrasonic sensors

4103
Features of your vehicle
Types of warning sound
When an object is 24 in. to 48 in
(60 cm to 120 cm) from the rear
bumper: Buzzer beeps intermit-
tently.
When an object is 12 in. to 24 in
(30 cm to 60 cm) from the rear
bumper: Buzzer beeps more fre-
quently.
When an object is within 16 in. (40
cm) of the rear bumper:
Buzzer sounds continuously.
Non-operational conditions of
Reverse Parking Distance
Warning
Reverse Parking Distance
Warning may not operate properly
when:
1. Moisture is frozen to the sensor. (It
will operate normally once the
moisture clears.)
2. The sensor is covered with foreign
matter, such as snow or water, or
the sensor cover is blocked. (It will
operate normally when the materi-
al is removed or the sensor is no
longer blocked.)
3. Driving on uneven road surfaces
(unpaved roads, gravel, bumps,
gradient).
4. Objects generating excessive
noise (vehicle horns, loud motor-
cycle engines, or truck air brakes)
are within range of the sensor.5. Heavy rain or water spray exists.
6. Wireless transmitters or mobile
phones are within range of the
sensor.
7. The sensor is covered with snow.
8. Trailer towing

Features of your vehicle
104 4
The detecting range may decrease
when:
1. The sensor is covered with foreign
matter such as snow or water.
(The sensing range will return to
normal when removed.)
2. Outside air temperature is
extremely hot or cold.
The following objects may not be
recognized by the sensor:
1. Sharp or slim objects such as
ropes, chains or small poles.
2. Objects which tend to absorb the
sensor frequency such as clothes,
sound absorbent material or snow.
3. Undetectable objects smaller than
40 in (100 cm) in height and nar-
rower than 6 in. (14 cm) in diame-
ter.Reverse Parking Distance
Warning precautions
Reverse Parking Distance Warning
may not sound consistently
depending on the speed and
shapes of the objects detected.
Reverse Parking Distance Warning
may malfunction if the vehicle
bumper height or sensor installa-
tion has been modified or dam-
aged. Any non-factory installed
equipment or accessories may also
interfere with the sensor perform-
ance.
The sensor may not recognize
objects less than 16 in. (40 cm)
from the sensor, or it may sense an
incorrect distance. Use caution.
When the sensor is frozen or cov-
ered with snow, dirt, or water, the
sensor may be inoperative until the
material is removed using a soft
cloth.
To prevent damage, do not push,
scratch or strike the sensor.
✽ ✽
NOTICE
This system can only sense objects
within the range and location of the
sensors. It cannot detect objects in
other areas where sensors are not
installed. Also, small or slim objects,
such as poles or objects located
between sensors may not be detected
by the sensors.
Always visually check behind the
vehicle when backing up.
Be sure to inform any drivers of the
vehicle that may be unfamiliar with
the system regarding the systems'
capabilities and limitations.

4105
Features of your vehicle

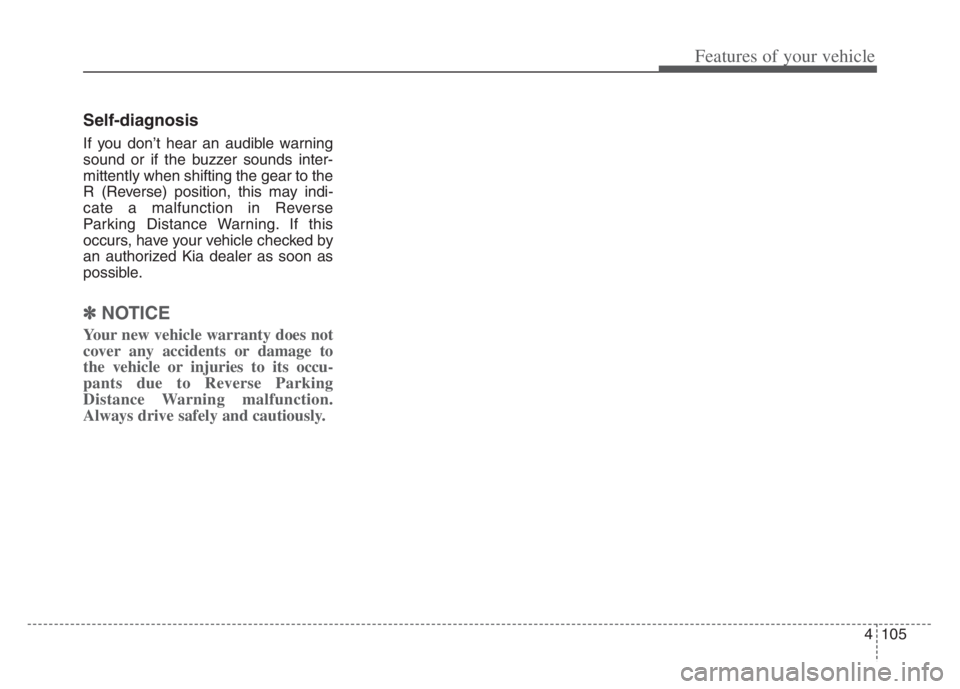

Self-diagnosis
If you don’t hear an audible warning
sound or if the buzzer sounds inter-
mittently when shifting the gear to the
R (Reverse) position, this may indi-
cate a malfunction in Reverse
Parking Distance Warning. If this
occurs, have your vehicle checked by
an authorized Kia dealer as soon as
possible.
✽ ✽
NOTICE
Your new vehicle warranty does not
cover any accidents or damage to
the vehicle or injuries to its occu-
pants due to Reverse Parking
Distance Warning malfunction.
Always drive safely and cautiously.

Features of your vehicle
106 4
Reverse Parking Collision-Avoidance
Assist is a supplemental system that
can warn the driver or apply braking
force to reduce the possibility of col-
lision with pedestrians when the
vehicle is reversing.System Setting and Operation
System setting
Reverse Parking Collision-Avoidance
Assist can be activated from the
Settings menu in the LCD display or
infotainment system display by fol-
lowing the procedure below.
1. Set the Engine Start/Stop button
to the ON or START position.
2. Select ‘Settings →Driver
Assistance →Parking Safety →
Active Assist / Warning Only / Off’
in the infotainment system display.
REVERSE PARKING COLLISION-AVOIDANCE ASSIST (PCA) (IF EQUIPPED)
WARNING
Always look around your vehi-
cle to make sure there are no
objects or pedestrian before
moving the vehicle in any
direction to prevent a colli-
sion.
Do not solely rely on Reverse
Parking Collision-Avoidance
Assist.
The system might not assist
the driver leading to pedestri-
an injury or vehicle damage.
Be aware that some objects
may not be visible on the
screen or be detected by the
rear ultrasonic sensors, due
to the objects’ distance, size
or material, all of which can
limit the effectiveness of the
sensors.

4107
Features of your vehicle
- The system is ready for operation
when ‘Active Assist’ is selected. In
the event of an imminent collision
with a pedestrian or an object,
the system warns the driver or
applies braking force to help
avoid the collision.
- The system is ready for operation
when ‘Warning Only’ is selected.
In the event of an imminent colli-
sion with a pedestrian, the sys-
tem warns the driver but does not
assist in braking.
- The system deactivates when
‘Off’ is selected.Operating conditions
Reverse Parking Collision-Avoidance
Assist enters the ready status, when
‘Active Assist’ or ‘Warning Only’ is
selected in the AVN system screen
and the following conditions are sat-
isfied :
The trunk is closed
The shift lever is in R (Reverse)
Vehicle speed is below 6 mph (10
km/h)
The rear view camera and the rear
ultrasonic sensors are in normal
conditions The driver needs to select ‘Active
Assist’ on the infotainment system
display for collision-avoidance assist.
The solid lines behind the vehicle in
the cluster LCD display indicates that
the system is ready to assist the driv-
er.
Note that the system assists the driv-
er only once. The driver has to shift
the gear to R (Reverse) from another
gear position to reactivate the sys-
tem.
The performance of Reverse Parking
Collision-Avoidance Assist may vary
under certain conditions. If the vehi-
cle speed exceeds 2 mph (3 km/h),
the system can assist only pedestri-
an collision avoidance.
As always, be careful when backing
up your vehicle and be aware of your
surroundings.

Features of your vehicle
108 4
Warning and Control
Active assist
If the system detects a risk of colli-
sion with a pedestrian or an object
behind the vehicle, the system will
warn the driver with audible warn-
ing, steering wheel vibration, and
warnings on the infotainment sys-
tem display.
If the system detects imminent col-
lision with a pedestrian or an object
behind the vehicle, the system may
apply braking power. The driver
needs to pay attention as the brake
will release within 2 seconds. The
driver must immediately depress
the brake pedal and check sur-
roundings.The brake assist will turn off when :
- The driver shifts the gear to P
(Park) or D (Drive)
- The driver depresses the brake
pedal with sufficient power
- The braking has been assisted for
approximately 2 seconds
The warning will turn off when :
- The driver shifts the gear to P
(Park), N (Neutral), or D (Drive)
The brake control may not operate
properly depending on the status of
the ESC (Electronic Stability
Control). There will only be a warning
when :
- The ESC (Electronic Stability
Control) warning light is on
- The ESC (Electronic Stability
Control) is engaged in a different
function
OYG040532N
OYG049536
■ Infotainment system display
■ Cluster LCD display
